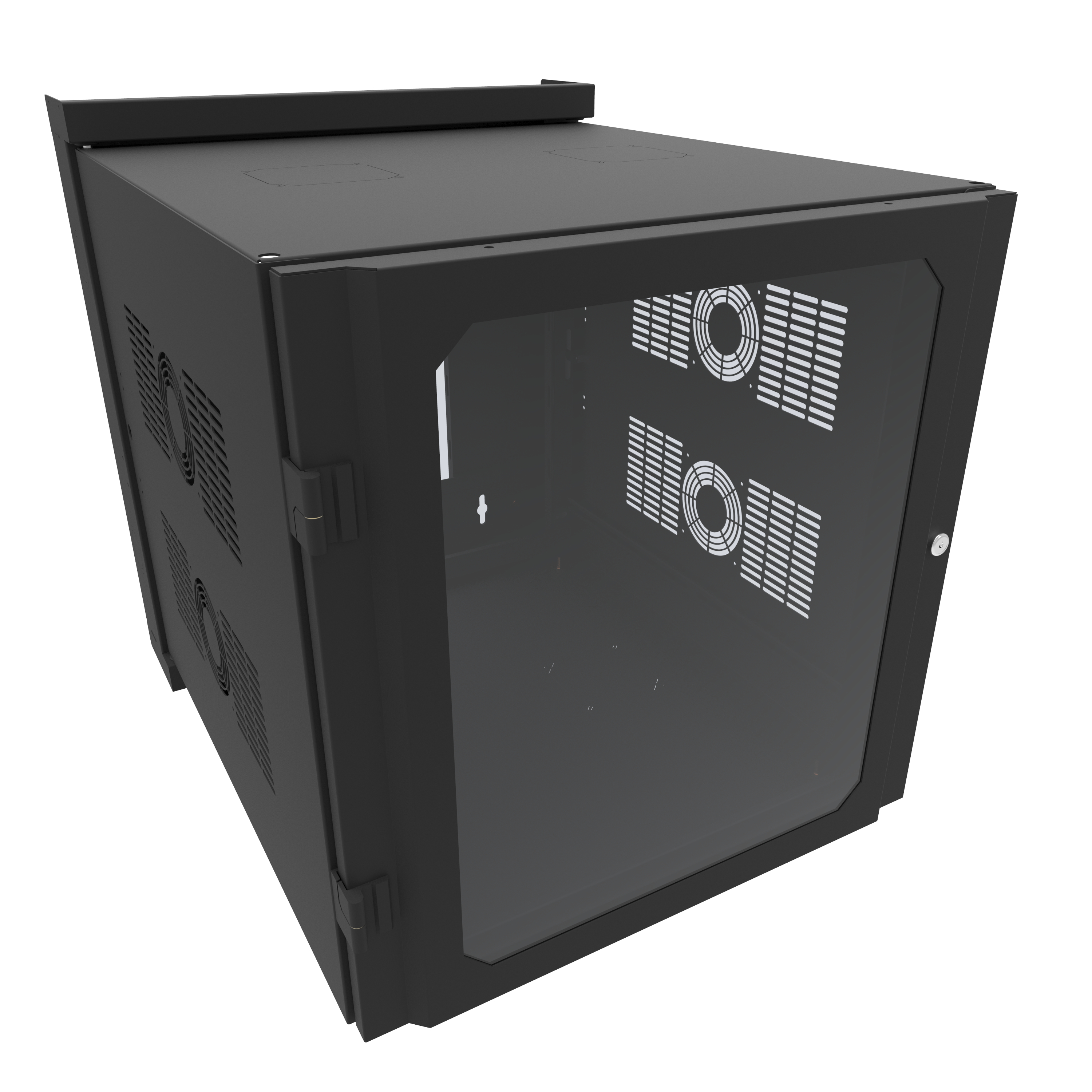

Hammond HWM2412U26WDBK 12U 26in-Deep Swing-Out Wall Cabinet, Window Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 12U enclosed swing-out wall cabinet with window front door for equipment visibility without opening the door
- UL2416 listed with 350 lb (159 kg) load rating; UL file E474597
- Seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5) per IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10
- 14-gauge welded rear section with 16-gauge center section and doors in mild steel, RAL9005 Black
- 26 in center section depth gives 28.85 in usable equipment depth with 21.00 in x 19.00 in mounting opening
- Reversible body and heavy-duty spring hinge allow on-site swing direction change and controlled rear access
- Adjustable tapped 10-32 rail pair included with SCREW1032-50 starter hardware pack
- Cable entry knockouts on top, bottom and both sides, plus fan knockout pattern for optional DNMF100AC115/DNMF100AC230 fans
The HWM2412U26WDBK is a 12U swing-out wall-mount rack cabinet with a window front door, built for IT and telecom environments that need a secure, enclosed 19-inch rack plus full rear access. The window door lets technicians see equipment status indicators without opening the cabinet, making it a good fit for network closets, communication rooms and structured cabling installations with active equipment.
Construction is mild steel: a 14-gauge welded rear section with a 16-gauge center section and doors, finished in RAL9005 Black powder coat. The HWM Series is UL2416 listed to a 350 lb (159 kg) load rating and is seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5) in accordance with IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10. Concealed hinges and a heavy-duty spring-hinge mechanism support controlled swing-out access, and the cabinet body is reversible so the swing direction can be changed on site.
This 26 in center-section version measures 27.81 in H x 24.68 in W x 31.18 in D overall (listed nominally as 27.75 x 24.68 x 31.7 in), with 12U of mounting space: 21.00 in high, 19.00 in wide and 28.85 in of usable depth. Usable depth is the maximum equipment depth that still allows the body section to swing out unimpeded. Shipping weight is 122 lbs (55.34 kg).
- One pair of adjustable tapped 10-32 mounting rails with a starter hardware pack of SCREW1032-50 screws.
- Multiple cable entry knockouts top, bottom and sides, plus a rear opening for cable access.
- Fan knockout pattern for optional DNMF100AC115 or DNMF100AC230 fans.
- Power bar mounting position that does not consume rack U space.
HWM2412U26WDBK is made in Canada, TAA-compliant, USMCA, RoHS and REACH compliant, under UL file E474597.
Ideal For
- Network closets requiring rear access and seismic-rated equipment
- Telecom and data communication rooms
- Government, education and commercial IT environments
- Structured cabling environments with active equipment needing monitoring visibility
- Secure enclosed wall-mounted rack installations requiring rear service access
Overview
| Series | HWM Series |
| Rack Type | Enclosed Wall Rack |
| Part Number | HWM2412U26WDBK |
| Front Door Style | Window door |
| Long Description | 12U 24W 31.7D Swing Out Wall Cabinet w/ Window Door |
| Short Description | 12U 31D SWING-OUT WALL CABINET |
| White Equivalent Part Number | HWM2412U26WDWH (RAL9003 White) |
Dimensions
| Rear Opening | 20.67 in (525 mm) x 11.68 in (297 mm) |
| Overall Depth | 31.18 in (792 mm) / 31.17 in (792 mm) per drawing |
| Overall Width | 24.68 in (627 mm) |
| Overall Height | 27.81 in (706 mm) |
| Center Section Depth | 26 in (26.00 in / 660 mm) |
| Front View Width Detail | 24.25 in (616 mm) |
| Nominal Size (H X W X D) | 27.75 in x 24.68 in x 31.7 in (705 mm x 627 mm x 805 mm) |
| Overall Internal Space (Depth) | 30.97 in (787 mm) |
| Front Panel Height (Door Removed Opening) | 21.00 in (533 mm) |
Identifiers
| UPC | 623980489964 |
| ECCN | EAR99 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980489964 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398048996 |
Load Ratings
| Seismic Rating | 200 lb (90.72 kg) dynamic load (Ip = 1.5) |
| UL2416 Load Rating | 350 lb (159 kg) |
Rack Mounting
| Rail Type | Tapped 10-32 |
| Rack Units | 12U |
| Rails Included | One (1) pair of adjustable 10-32 threaded mounting rails |
| Included Hardware | Starter hardware pack with SCREW1032-50 screws |
| Power Bar Mounting | Power bar mounting without using 'U' space |
| Rack Compatibility | 19 in rack equipment |
| Mounting (Usable) Depth | 28.85 in (733 mm) - maximum equipment depth allowing the body section to swing out unimpeded |
| Mounting (Usable) Width | 19.00 in (483 mm) |
| 19 In Mounting Dimension | 18.31 in (465 mm) |
| Mounting (Usable) Height | 21.00 in (533 mm) |
Packaging & Shipping
| Shipping Weight | 122 lbs (55.34 kg) |
Construction & Finish
| Finish | Painted black textured powder coat (GREENGUARD Gold, TSCA, RoHS compliant) |
| Hinges | Concealed hinges; heavy-duty spring-hinge mechanism |
| Material | Mild Steel |
| Paint Color | RAL9005 Black |
| Rear Section | 14-gauge welded |
| Reversibility | Reversible cabinet body allows swing direction change on site |
| Assembly Components | HWM rear section 24W 12U (1), HWM centre section (1), HWM window door assembly 12U (1), 19 in tapped panel rails (pair) (1) |
| Center Section And Doors | 16-gauge |
Environmental & Protection
| Ventilation | Integrated ventilation and fan provisions |
| Cable Access | Multiple cable entry knockouts and rear cable access |
| Side Knockouts | 2X double K.O. Ø2.00 / Ø2.50, both sides |
| Fan Knockout Pattern | For optional fans DNMF100AC115 and DNMF100AC230; 4.00 in (102 mm) pattern |
| Top And Bottom Knockouts | 2X Ø0.62; 2X double K.O. Ø1.12 / Ø1.38; 3X double K.O. Ø2.00 / Ø3.00 |
Compliance & Certifications
| Standards | cULus, PCI, Zone 4, TAA-compliant |
| UL File # | E474597 |
| UL Listing | UL2416 listed (350 lb load rating) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Seismic Standards | IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, ASCE 7-10 |
| Manufacturing Origin | Manufactured in North America |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much equipment depth can I actually install in the HWM2412U26WDBK?▾
Usable mounting depth is 28.85 in (733 mm). That figure is the maximum equipment depth that will still allow the body section of the cabinet to swing out unimpeded. The overall internal space is 30.97 in (787 mm) deep.
What is the weight capacity?▾
The HWM Series is UL2416 listed with a 350 lb (159 kg) load rating, and is seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5) per IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10.
Which rails are included and what thread do they use?▾
One pair of adjustable tapped 10-32 threaded mounting rails is included, along with a starter hardware pack containing SCREW1032-50 screws. Square-hole rails (HWMSR12U) and additional tapped rails (HWMTR12U) are available for 12U cabinets.
Can the cabinet swing to the other side?▾
Yes. The cabinet body is reversible, so the swing direction can be changed on site to suit the installation, and the heavy-duty spring-hinge mechanism supports controlled swing-out access.
Can I add cooling fans?▾
Yes. The cabinet includes a fan knockout pattern for optional DNMF100AC115 or DNMF100AC230 fans, plus integrated ventilation and fan provisions.
Is this part available in white, and what accessories fit 12U?▾
The equivalent white (RAL9003) version is HWM2412U26WDWH. 12U accessories listed include HWMRPP12 rear-pan panel for post mounting, HWMTR12U tapped rails, HWMSR12U square hole rails, WRPS12UWH/WRPS12UNF inner panels, and the HWMSLOCK replacement front door lock.
Is it suitable for government projects?▾
It is TAA-compliant and manufactured in North America (country of origin CA), with USMCA, RoHS and REACH compliance, which supports government procurement requirements.
