Hammond WRPS32UNF 32U Unfinished Aluminum Inner Panel for Wall Cabinets
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 32U panel size with overall dimensions of 51.63 in x 16.19 in x 0.50 in (1,311 mm x 411 mm x 13 mm).
- Unfinished aluminum panel with no finish applied; steel RAL9003 white version is WRPS32UWH.
- 14-gauge steel or aluminum construction provides a durable mounting surface for non-rackmount equipment inside wall cabinets.
- Secures to rear mounting studs inside compatible Hammond wall cabinets rather than EIA-compliant rack rails.
- Compatible with HWM, HWC, NWC and NWM wall cabinet series.
- Slotted corner design supports easier installation and alignment on cabinet mounting studs; mounting hardware included.
- Mounts DIN rail components, network devices, IT equipment and cable management accessories without interfering with rack rails.
- TAA-compliant, RoHS and REACH compliant, made in North America in an ISO 9001 certified facility.

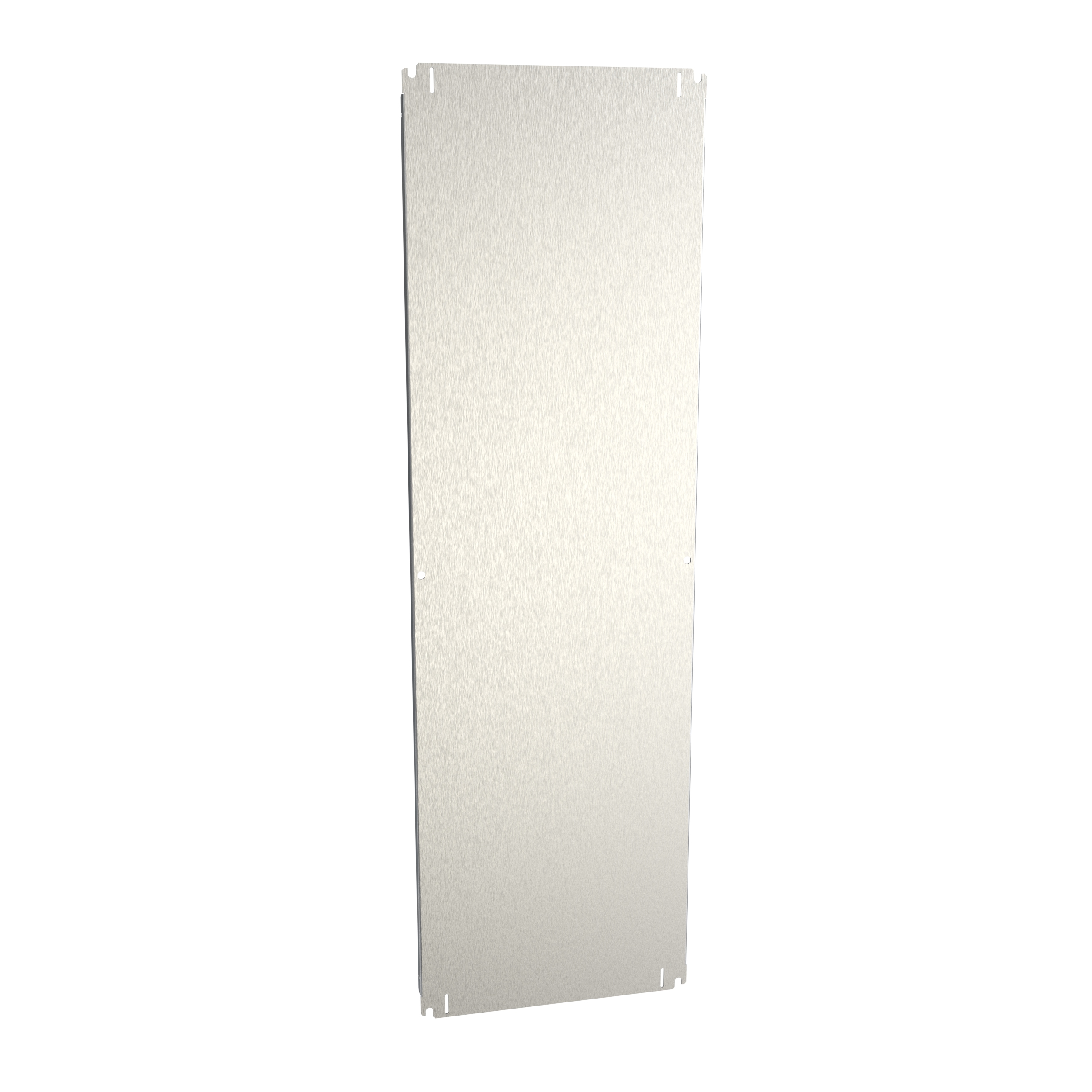

The WRPS32UNF is a 32U inner mounting panel in unfinished aluminum, designed to create a solid mounting surface for non-rackmount equipment inside wall-mounted rack cabinets. It suits IT and network integrators, telecom and low-voltage installers, and industrial panel builders who need to secure devices that have no EIA rack flanges.
The WRP Series is built from 14-gauge steel or aluminum construction for a durable mounting surface; this part number is the aluminum version and is supplied with no finish, making it a straightforward choice where painted white steel is not required. A slotted corner design supports easier installation and alignment on the cabinet mounting studs, and mounting hardware is included for installation.
WRPS32UNF measures 51.63 in x 16.19 in x 0.50 in (1,311 mm x 411 mm x 13 mm) overall and corresponds to a 32U cabinet size. Rather than attaching to EIA-compliant rack rails, the panel secures to the rear mounting studs inside compatible Hammond wall cabinets, so it does not interfere with rack-mounted gear. It is listed as compatible with the HWM, HWC, NWC and NWM wall cabinet series.
Typical loads include DIN rail components, network devices, IT equipment and cable management accessories. By creating a secondary mounting surface behind rack-mounted equipment, the panel helps optimize cabinet space, accessibility and equipment organization.
- RoHS, REACH and USMCA compliant; TAA-compliant
- Manufactured in North America (country of origin: CA) within an ISO 9001 certified facility
- Tariff code 8538.10.0000, ECCN EAR99, UNSPSC 39121302
Ideal For
- Wall-mounted IT and network cabinets
- Telecom and low-voltage installations
- Industrial wall cabinet applications
- Mounting DIN rail and control components inside wall cabinets
- Adding a rear mounting surface behind rack-mounted equipment
Overview
| Series | WRP Series - Rack Mount Equipment Panel for Non-Rack Devices |
| Description | 32U ALUM INNER PANEL |
| Part Number | WRPS32UNF |
| Cabinet Rack Units | 32U |
| Steel RAL9003 White Equivalent | WRPS32UWH |
Dimensions
| Hole Diameter | 0.25 in (6 mm) |
| Overall Depth | 0.50 in (13 mm) |
| Overall Width | 16.19 in (411 mm) |
| Overall Height | 51.63 in (1311 mm) |
| Size H X W X D | 51.63 in x 16.19 in x 0.5 in (1,311 mm x 411 mm x 13 mm) |
| Drawing Overall Height | 51.62 in (1311 mm) |
| Mounting Hole Diameter (Corners) | 0.44 in (11 mm) |
Identifiers
| UPC | 623980022956 |
| UNSPSC | 39121302 |
| GTIN-14 | 00623980022956 |
| UPC W/o Check Digit | 62398002295 |
Rack Mounting
| Hardware | Mounting hardware included |
| Mounting Method | Secures to rear mounting studs inside compatible Hammond wall cabinets (not EIA-compliant rack rails) |
| Cabinet Compatibility | HWM, HWC, NWC and NWM wall cabinet series |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Country Of Origin | CA |
Construction & Finish
| Finish | Unfinished (aluminum panel with no finish) |
| Material | Aluminum |
| Construction | 14-gauge steel or aluminum construction (series) |
| Design Detail | Slotted corner design for easier installation and alignment on cabinet mounting studs |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| Manufacturing | Manufactured in North America within an ISO 9001 certified facility |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size cabinet does WRPS32UNF fit?▾
It is the 32U size in the WRP Series and is designed for compatible Hammond wall cabinets in the HWM, HWC, NWC and NWM series. The panel measures 51.63 in x 16.19 in x 0.50 in (1,311 mm x 411 mm x 13 mm) overall.
Is this panel painted?▾
No. WRPS32UNF is an unfinished aluminum panel with no finish applied. If you need a painted version, the steel RAL9003 white equivalent is WRPS32UWH.
Does it mount to the rack rails?▾
No. The WRP panel secures to the rear mounting studs inside compatible Hammond wall cabinets rather than to EIA-compliant rack rails, so it does not interfere with rack-mounted equipment.
Is mounting hardware included?▾
Yes, mounting hardware is included for installation, and the slotted corner design supports easier installation and alignment on the cabinet mounting studs.
What can be mounted on the panel?▾
It is designed for DIN rail components, network devices, IT equipment and cable management accessories that do not have rackmount flanges.
Is WRPS32UNF TAA compliant?▾
Yes. It is listed as TAA-compliant and is manufactured in North America (country of origin CA) within an ISO 9001 certified facility. It is also RoHS, REACH and USMCA compliant.
