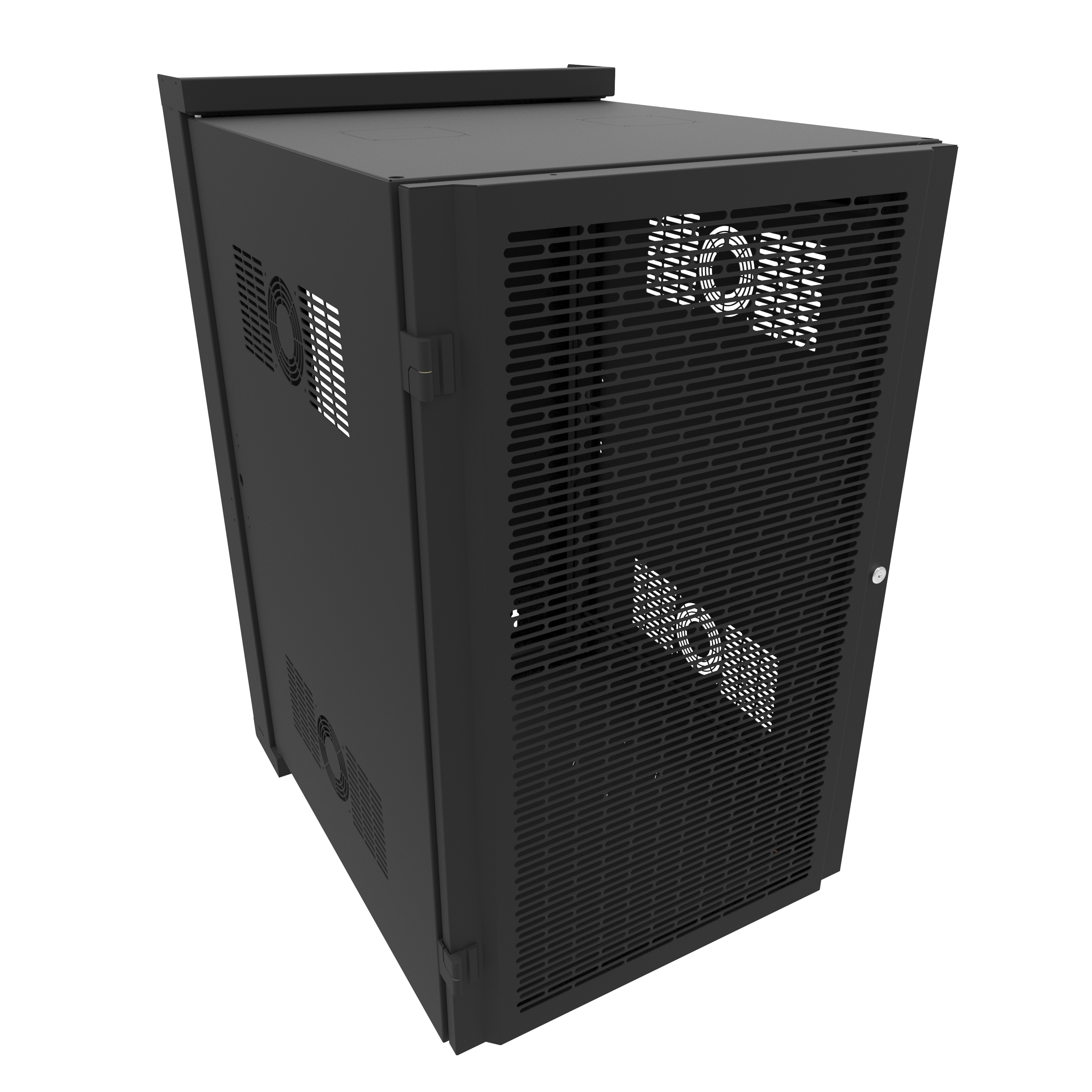

Hammond HWM2420U26BK 20U Swing-Out Wall Cabinet, Vented Door, 26" Deep
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 20U enclosed wall-mount cabinet, 41.75 x 24.68 x 31.18 in (1060 x 627 x 792 mm) overall with a 26 in deep center section.
- UL2416 listed to 350 lb (159 kg) load rating; UL file E474597.
- Seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5) per IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10.
- Swing-out design gives front and full rear access; reversible body allows on-site swing direction change.
- 14-gauge welded rear section with 16-gauge center section and doors in RAL9005 black powder coat.
- Includes one pair of adjustable 19" tapped 10-32 rails and a starter hardware pack with SCREW1032-50 screws.
- Vented front door plus fan knockout pattern for optional DNMF100AC115 or DNMF100AC230 fans.
- Usable mounting space 35.00 in H x 19.00 in W x 28.85 in D; TAA-compliant, made in Canada.
The HWM2420U26BK is a 20U enclosed wall-mount rack cabinet with a swing-out body and a vented front door, built for IT, telecom and structured cabling installations that need a secure enclosure plus full rear access. It accepts standard 19" rack equipment and ships with one pair of adjustable 19" tapped 10-32 mounting rails, so switches, patch panels and other active gear can be positioned anywhere in the 20U of usable height.
Construction is mild steel with a 14-gauge welded rear section and 16-gauge center section and doors, finished in RAL9005 black textured powder coat. The HWM Series is UL2416 listed to a 350 lb (159 kg) load rating (UL file E474597) and seismic rated to a 200 lb (90.72 kg) dynamic load (Ip = 1.5) per IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10.
Overall size is 41.75 in H x 24.68 in W x 31.18 in D (1060 x 627 x 792 mm), with a 26 in deep center section. Usable mounting space is 35.00 in (889 mm) high, 19.00 in (483 mm) wide and 28.85 in (733 mm) deep - the maximum equipment depth that still allows the body section to swing out unimpeded. Overall internal depth is 30.97 in (787 mm).
- Reversible cabinet body lets the swing direction be changed on site.
- Heavy-duty spring-hinge mechanism for controlled swing-out access.
- Multiple cable entry knockouts top and bottom, plus a rear cable opening.
- Fan knockout pattern for optional DNMF100AC115 or DNMF100AC230 fans.
A starter hardware pack with SCREW1032-50 screws is included for equipment mounting. HWM2420U26BK is made in Canada, TAA-compliant, USMCA compliant, and RoHS and REACH compliant. Shipping weight is 156 lbs (70.76 kg).
Ideal For
- Network closets requiring rear access and seismic-rated equipment
- Telecom and data communication rooms
- Government, education and commercial IT environments
- Structured cabling environments with active equipment
- Installations requiring UL2416 listed enclosed wall-mount racks
Overview
| Series | HWM Series |
| Rack Type | Enclosed Wall Rack |
| Front Door | Vented door |
| Rack Units | 20U |
| Part Number | HWM2420U26BK |
| Long Description | 20U 24W 31.7D Swing Out Wall Cabinet w/ Vented Door |
| Short Description | 20U 31D SWING-OUT WALL CABINET |
| Alternative Part No. | RB-SW18DV |
| White Equivalent Part No. | HWM2420U26WH (RAL9003 White) |
Dimensions
| Overall Depth | 31.18 in (792 mm) |
| Overall Width | 24.68 in (627 mm) |
| Overall Height | 41.75 in (1060 mm) |
| Size H X W X D | 41.75 in x 24.68 in x 31.7 in (1,060 mm x 627 mm x 805 mm) |
| Center Section Depth | 26 in (660 mm) |
| Nominal Size (Product List) | 41.75 in H x 24.68 in W x 31.7 in D |
| Overall Internal Space Depth | 30.97 in (787 mm) |
| Rear Section Height (Drawing) | 38.25 in (972 mm) |
| Old Style Overall Depth (Reference) | 31.70 in |
| Overall Depth (Drawing, Front View) | 31.17 in (792 mm) |
| Overall Height (Drawing, Front View) | 41.81 in (1062 mm) |
Identifiers
| UPC | 623980777818 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980777818 |
| UPC W/o Check Digit | 62398077781 |
Rack Mounting
| Rail Type | Tapped 10-32 |
| Load Rating | 350 lb (159 kg) per UL2416 |
| Rails Supplied | One (1) pair of adjustable 19" tapped panel rails |
| Seismic Rating | 200 lb (90.72 kg) dynamic load (Ip = 1.5) |
| Included Hardware | Starter hardware pack with SCREW1032-50 screws |
| Usable Depth Note | Mounting dimensions / usable depth is the maximum equipment depth that will allow the body section of the cabinet to swing out unimpeded |
| Rack Compatibility | 19" rack equipment |
| Mounting (Usable) Depth | 28.85 in (733 mm) |
| Mounting (Usable) Width | 19.00 in (483 mm) |
| Mounting (Usable) Height | 35.00 in (889 mm) - 20U |
| Panel Opening (Door Removed) | 21.00 in (533 mm) opening; 18.31 in (465 mm) 19" mounting |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 156 lbs (70.76 kg) |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Finish | Painted black textured powder coat (GREENGUARD Gold, TSCA, RoHS compliant) |
| Hinging | Concealed hinges; heavy-duty spring-hinge mechanism for swing-out access |
| Material | Mild Steel |
| Paint Color | RAL9005 Black |
| Door Locking | Front door and rear section keyed alike; optional replacement lock HWMSLOCK |
| Reversibility | Reversible cabinet body allows swing direction to be changed on site |
| Assembly Content | HWM rear section 24W 20U (1), HWM centre section (1), HWM vented door assembly 20U (1), 19" tapped panel rails pair (1) |
| Rear Section Gauge | 14-gauge, welded |
| Center Section And Doors Gauge | 16-gauge |
Environmental & Protection
| Ventilation | Vented front door; integrated ventilation and fan provisions |
| Rear Cable Access | Rear opening 28.98 in (736 mm) x 11.68 in (297 mm) |
| Fan Knockout Pattern | Provision for optional fans DNMF100AC115 or DNMF100AC230 |
| Cable Entry Knockouts | 2X 0.62 in knockouts, 2X double K.O. 1.12/1.38 in and 3X double K.O. 2.00/3.00 in top and bottom; 2X double K.O. 2.00/2.50 in |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | cULus, PCI, Zone 4, TAA-compliant |
| UL File # | E474597 |
| UL Listing | UL2416 listed (350 lb load rating) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Seismic Standards | IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, ASCE 7-10 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much equipment depth can I install in the HWM2420U26BK?▾
Usable mounting depth is 28.85 in (733 mm). Hammond notes this is the maximum equipment depth that will still allow the body section of the cabinet to swing out unimpeded. Overall internal space depth is 30.97 in (787 mm).
What is the load rating?▾
The cabinet is UL2416 listed to 350 lb (159 kg) under UL file E474597, and it is seismic rated to a 200 lb (90.72 kg) dynamic load (Ip = 1.5) per IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10.
Are mounting rails included, and what thread do they use?▾
Yes. One pair of adjustable 19" tapped 10-32 panel rails is included, along with a starter hardware pack containing SCREW1032-50 screws for equipment mounting. Optional square-hole rails (HWMSR20U) and tapped rails (HWMTR20U) are listed for 20U cabinets.
Can the cabinet swing to the other side?▾
Yes. The cabinet body is reversible, so the swing direction can be changed on site to suit the installation. The front door and rear section are keyed alike.
Does it support fans and cable entry?▾
It has a vented front door, integrated ventilation and a fan knockout pattern for optional DNMF100AC115 or DNMF100AC230 fans, plus multiple top and bottom cable knockouts and a rear cable opening measuring 28.98 in x 11.68 in (736 x 297 mm).
Is a white version available?▾
Yes. HWM2420U26BK is RAL9005 Black; the RAL9003 White equivalent is HWM2420U26WH. A window-door version of this size is also listed in the series.
