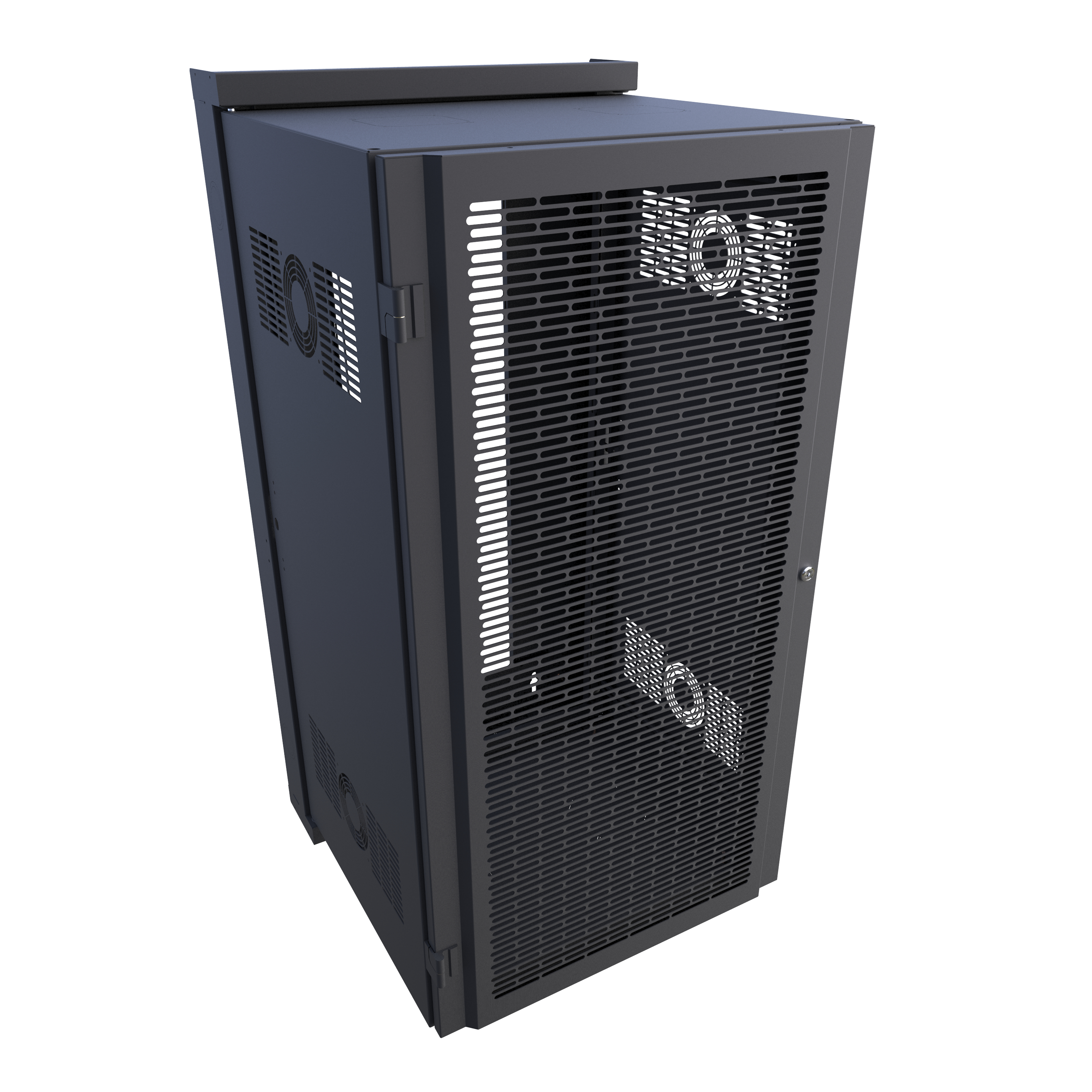

Hammond HWM2424U20BK 24U Swing-Out Wall Cabinet, Vented Door, 350 lb
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 24U enclosed wall rack with 42.00 in x 19.00 in x 22.85 in usable mounting space and 20 in center section depth
- UL2416 listed to 350 lb (159 kg); seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5) per IBC 2018, CBC 2019, NBC 2018, ASCE 7-16/7-10
- Swing-out center section on heavy-duty spring hinges gives front and full rear access for installation and servicing
- 14-gauge welded rear section with 16-gauge center section and doors, mild steel, RAL9005 Black powder coat
- Vented front door for airflow; door and rear section are keyed alike (optional HWMSLOCK replacement lock)
- One pair of adjustable 19-inch tapped 10-32 mounting rails plus starter hardware pack with SCREW1032-50 screws
- Reversible body allows swing direction to be changed on site; multiple cable knockouts and rear cable opening
- Fan knockout pattern for optional DNMF100AC115 or DNMF100AC230 fans; TAA compliant, made in Canada
The HWM2424U20BK is a 24U enclosed swing-out wall-mount rack cabinet with a vented front door, built for IT and telecom installations that need a secure enclosure plus full rear access. It is part of the HWM Series, a UL2416 listed range designed for mounting 19-inch rack equipment in network closets and communication rooms.
Construction is mild steel: a 14-gauge welded rear section with a 16-gauge center section and doors, finished in RAL9005 Black powder coat. The center section swings out on heavy-duty spring hinges (concealed hinges on the door) so technicians can reach the back of installed equipment, and the cabinet body is reversible so the swing direction can be changed on site. The HWM Series is rated by UL2416 to 350 lb (159 kg) and seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5) per IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10.
Overall size is 48.75 in x 24.68 in x 25.7 in (1,238 mm x 627 mm x 653 mm) with a 20 in center section depth. Usable mounting space is 42.00 in (1067 mm) high x 19.00 in (483 mm) wide x 22.85 in (580 mm) deep — the maximum equipment depth that still lets the body section swing out unimpeded. One pair of adjustable 19-inch tapped 10-32 panel rails and a starter hardware pack with SCREW1032-50 screws are included.
Multiple double cable-entry knockouts in the top, bottom and sides plus a rear cable opening support structured cabling, and a fan knockout pattern accepts optional DNMF100AC115 or DNMF100AC230 fans. HWM2424U20BK is manufactured in Canada and TAA compliant.
Ideal For
- Network closets requiring rear access and seismic-rated equipment
- Telecom and data communication rooms
- Government, education and commercial IT environments
- Structured cabling environments with active equipment needing airflow
- Secure, enclosed 19-inch rack mounting with rear service access
Overview
| Series | HWM Series |
| Rack Type | Enclosed Wall Rack |
| Rack Units | 24U |
| Part Number | HWM2424U20BK |
| Front Door Style | Vented door |
| Long Description | 24U 24W 25.7D Swing Out Wall Cabinet w/ Vented Door |
| Short Description | 24U 25D SWING-OUT WALL CABINET |
| White Equivalent Part No. | HWM2424U20WH (RAL9003 White) |
Dimensions
| Overall Depth | 25.18 in (640 mm) per ordering table; 25.17 in (639 mm) per drawing; old style O/A depth 25.70 in |
| Overall Width | 24.68 in (627 mm) |
| Overall Height | 48.75 in (1238 mm); 48.81 in (1240 mm) per drawing |
| Top View Width | 24.00 in (610 mm) |
| Center Section Depth | 20 in (20.00 in / 508 mm on drawing) |
| Nominal Size (H X W X D) | 48.75 in x 24.68 in x 25.7 in (1,238 mm x 627 mm x 653 mm) |
| Overall Internal Space (Depth) | 24.97 in (634 mm) |
Accessories
| Optional Fans | DNMF100AC115, DNMF100AC230 |
| Optional Inner Panel (24U) | WRPS24UWH (steel, RAL9003 White) or WRPS24UNF (aluminum, unfinished) — 37.63 in x 16.19 in x 0.50 in |
| Square Hole Rail (Pair, 24U) | HWMSR24U |
| Vertical Cable Manager (24U) | VCT42 |
| Tapped 10-32 Rail (Pair, 24U) | HWMTR24U |
| Optional Front Door Replacement Lock | HWMSLOCK |
| Rear-Pan Panel For Post Mounting (24U) | HWMRPP24 |
Identifiers
| UPC | 623980777764 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980777764 |
| UPC W/o Check Digit | 62398077776 |
Rack Mounting
| Rail Type | Tapped 10-32 |
| Load Rating | UL2416 rated to 350 lb (159 kg) |
| Rails Supplied | One (1) pair of adjustable 19" tapped panel rails |
| Rack Compatibility | 19" rack equipment (18.31 in / 465 mm 19" MTG dimension) |
| Seismic Load Rating | 200 lb (90.72 kg) dynamic load, Ip = 1.5 |
| Mounting (Usable) Depth | 22.85 in (580 mm) — maximum equipment depth that allows the body section to swing out unimpeded |
| Mounting (Usable) Width | 19.00 in (483 mm) |
| Mounting (Usable) Height | 42.00 in (1067 mm) |
| Front Door Opening Height | 21.00 in (533 mm) opening |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 146 lbs (66.22 kg) |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Gauge | 14-gauge welded rear section; 16-gauge center section and doors |
| Hinging | Heavy-duty spring-hinge swing-out mechanism; concealed door hinges |
| Material | Mild Steel |
| Security | Front door and rear section keyed alike |
| Reversibility | Reversible cabinet body — swing direction can be changed on site |
| Finish / Colour | RAL9005 Black powder coat (painted black textured) |
| Included Hardware | Starter hardware pack with SCREW1032-50 screws |
| Included Components | HWM rear section 24W 24U (1), HWM centre section (1), HWM vented door assembly 24U (1), 19" tapped panel rails (pair) (1), HWM pin stop bracket (1) |
Environmental & Protection
| Rear Cable Access | Rear opening (11.68 in / 297 mm shown on rear view) |
| Power Bar Mounting | Power bar mounting without using 'U' space |
| Cable Entry Knockouts | Double knockouts 2.00/2.50 in dia. both sides; 2X double K.O. 1.12/1.38 in top and bottom; 3X double K.O. 2.00/3.00 in top and bottom; 2X 0.62 in dia. knockout top and bottom |
| Ventilation / Cooling | Vented door; fan knockout and cutout pattern for optional fans DNMF100AC115 or DNMF100AC230 |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | cULus, PCI, Zone 4, TAA-compliant |
| UL File # | E474597 |
| UL Listing | UL2416 listed (350 lb load rating) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Seismic Standards | IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, ASCE 7-10 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much equipment weight can the HWM2424U20BK support?▾
It is UL2416 listed with a 350 lb (159 kg) load rating, and seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5) in accordance with IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10.
What is the maximum equipment depth I can install?▾
The usable mounting depth is 22.85 in (580 mm). Per Hammond's note, that is the maximum equipment depth that will still allow the body section of the cabinet to swing out unimpeded.
Why does the depth show as both 25.7 in and 25.18 in?▾
25.7 in is the nominal depth listed in the product data and reflects the old style overall depth; the current ordering table lists 25.18 in (640 mm) and the drawing shows 25.17 in (639 mm). The center section depth is 20 in.
What rails and hardware come with it?▾
HWM2424U20BK includes one pair of adjustable 19" tapped 10-32 panel rails and a starter hardware pack with SCREW1032-50 screws for equipment mounting. Square hole rails (HWMSR24U) and extra tapped rails (HWMTR24U) are available separately.
Can the cabinet swing open to the other side?▾
Yes. The cabinet body is reversible, so the swing direction can be changed on site to suit the installation.
Can fans be added for active equipment?▾
The door is vented and the cabinet has a fan knockout and cutout pattern for optional DNMF100AC115 or DNMF100AC230 fans.
Is this cabinet suitable for government procurement?▾
It is TAA-compliant and manufactured in Canada (North America), and the standards listed include cULus, PCI and Zone 4.
