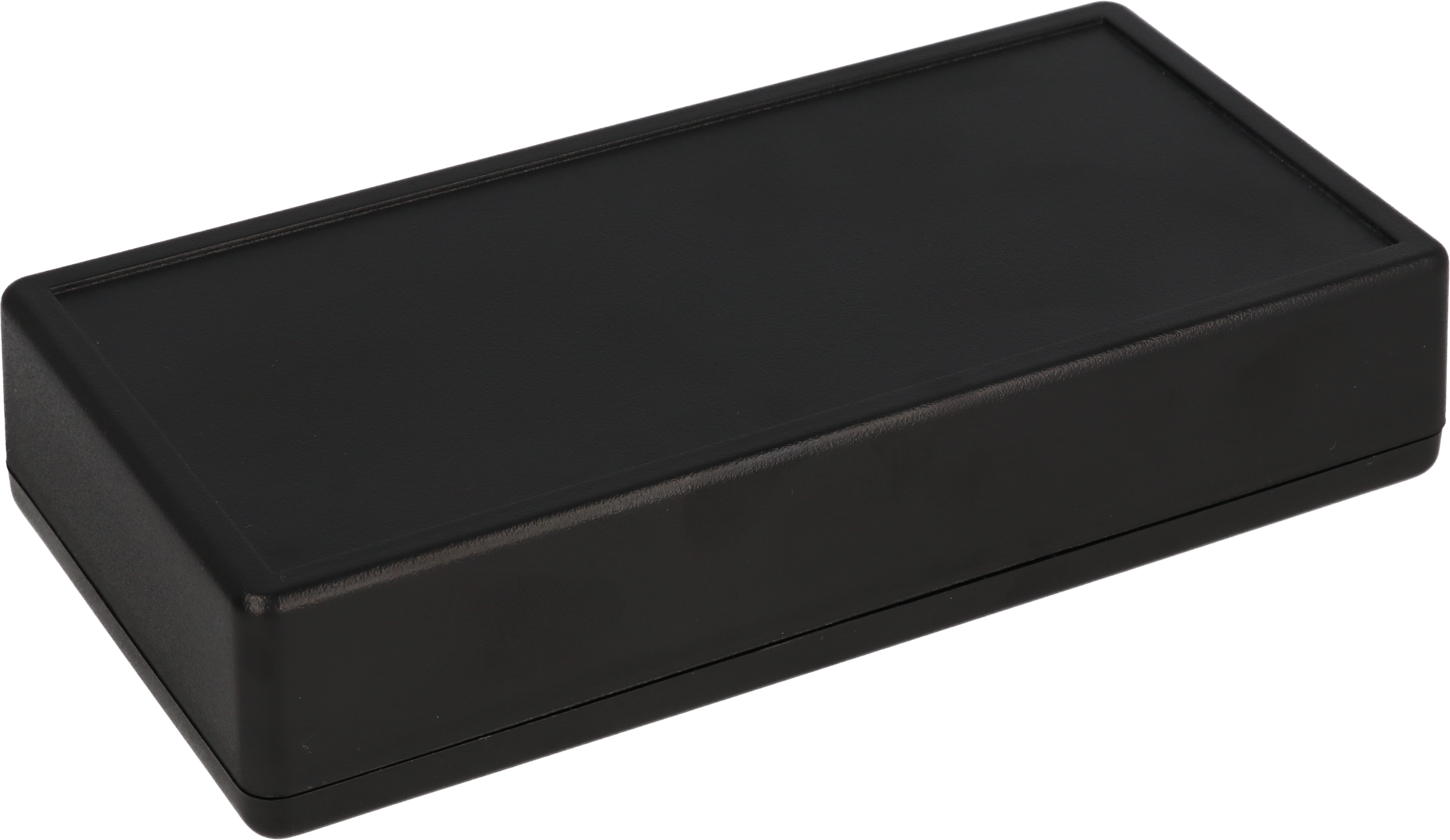

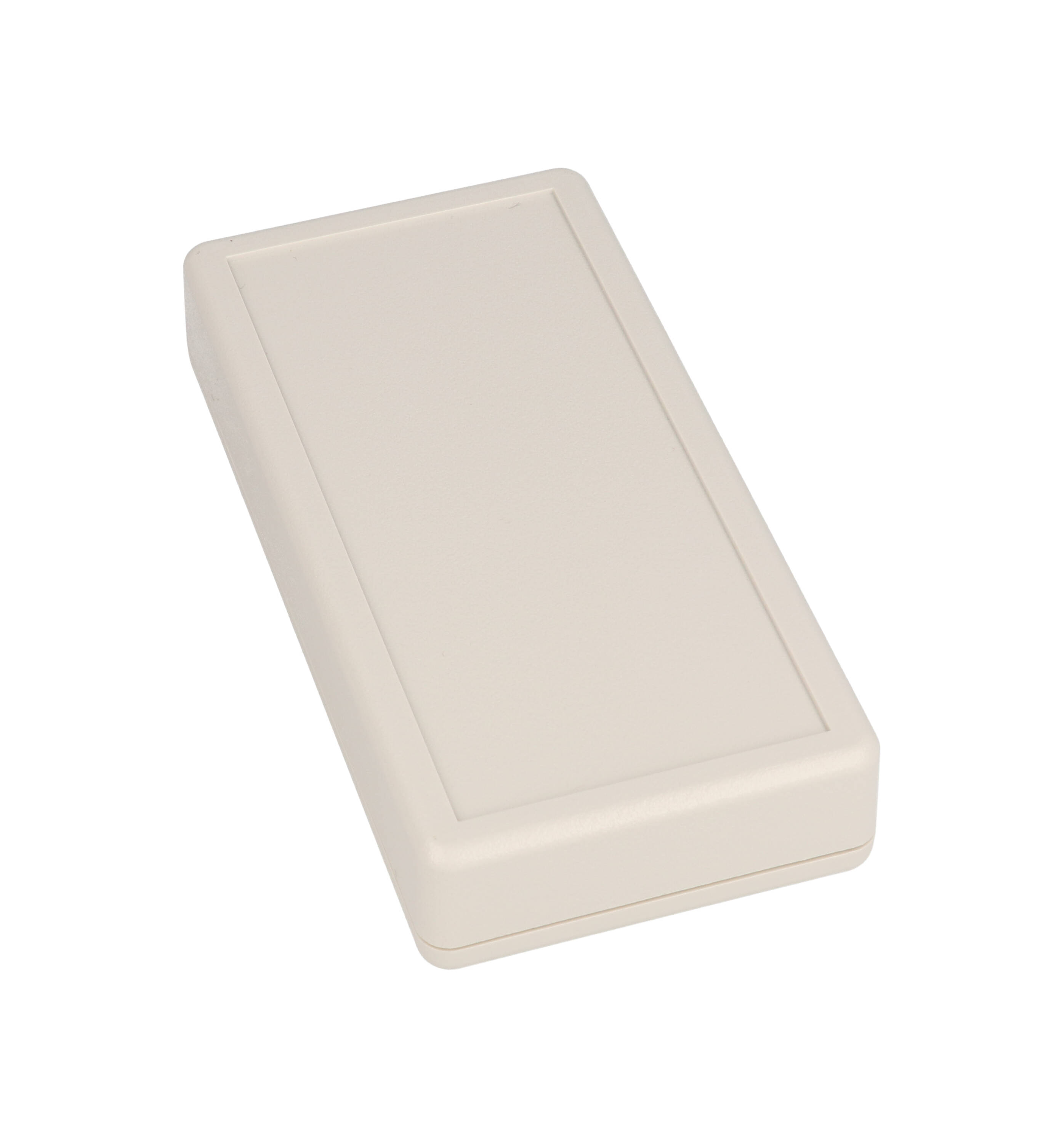

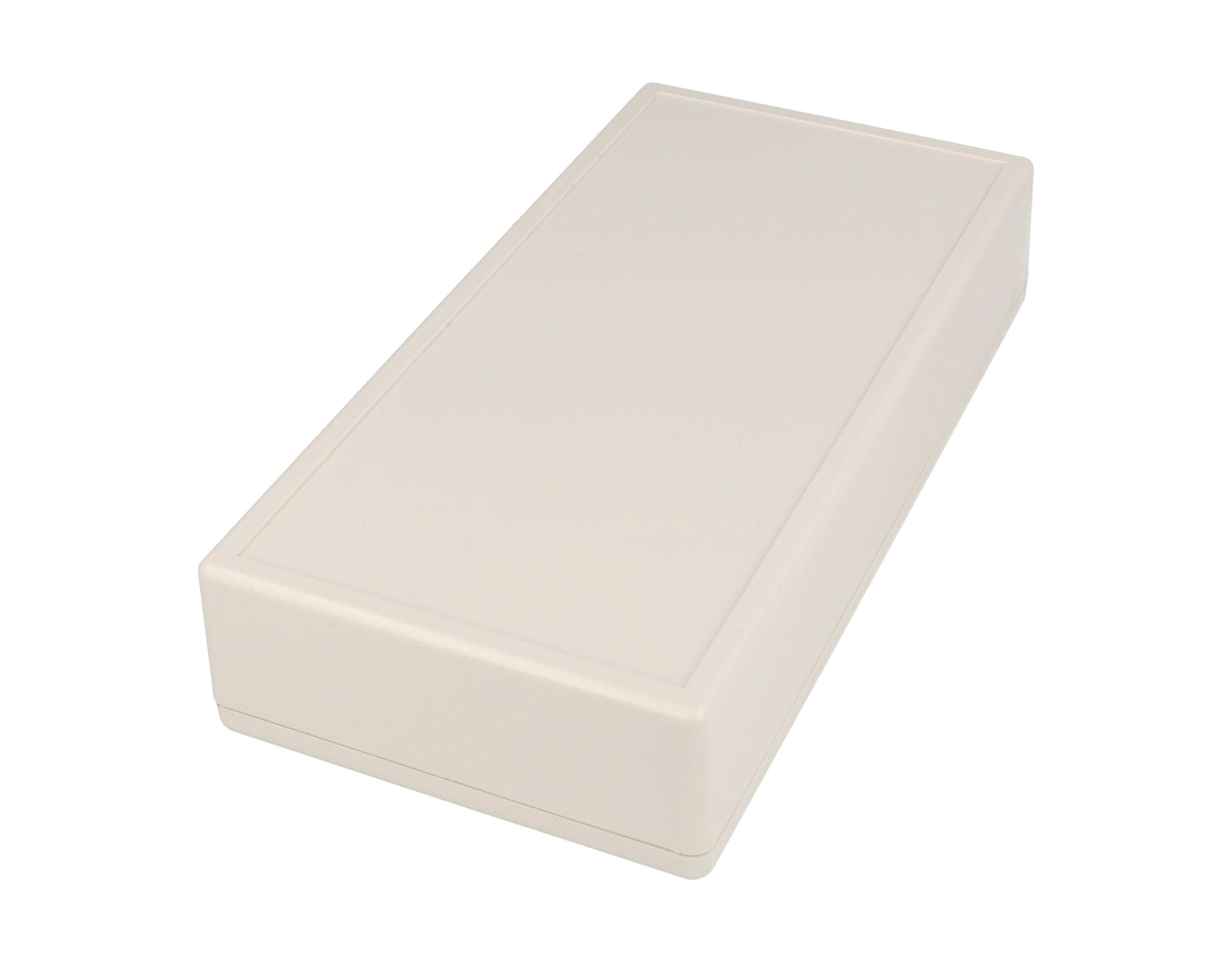

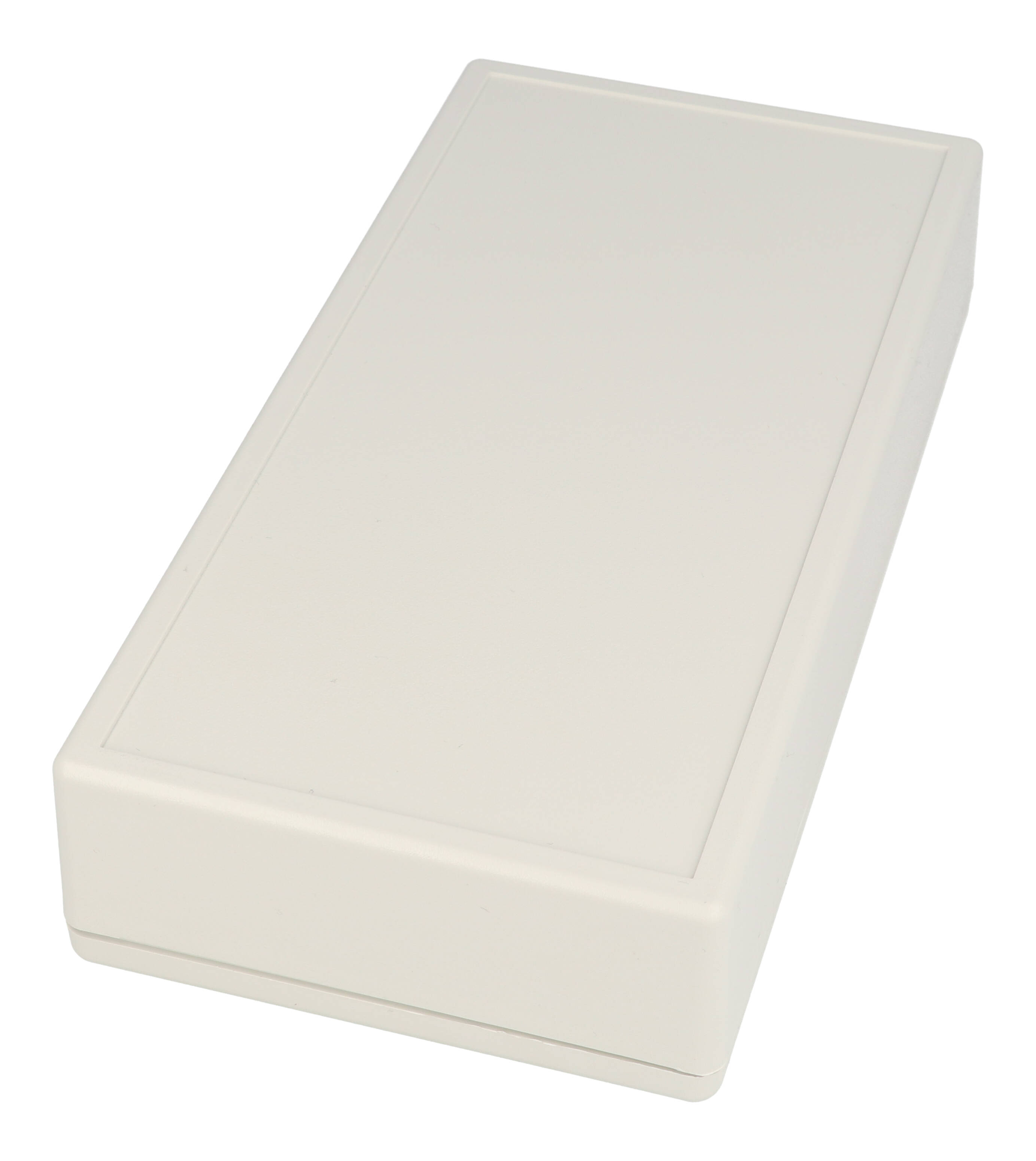

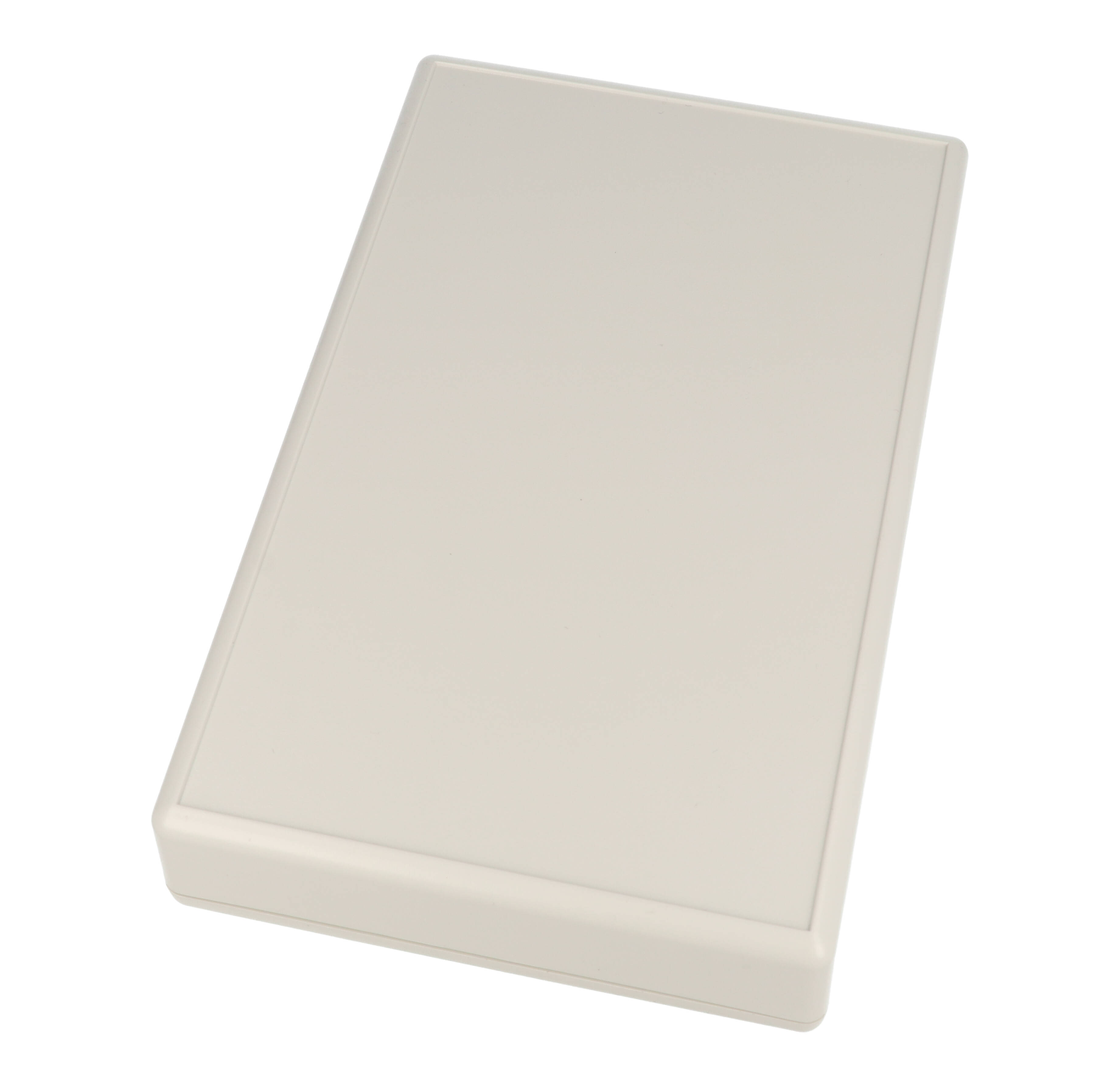

Hand Held Enclosures · 1599 Series

Features:

• ■Attractively styled and ergonomically designed for use as a handheld instrument enclosure.
• ■Flame retardant version is molded from flame retardant ABS plastic (rated UL94V-0) and is assembled with machine screws into integral brass bushings.
• ■General purpose version is molded from economical plastic (not flame retardant) and is assembled with self-tapping screws into plastic posts.

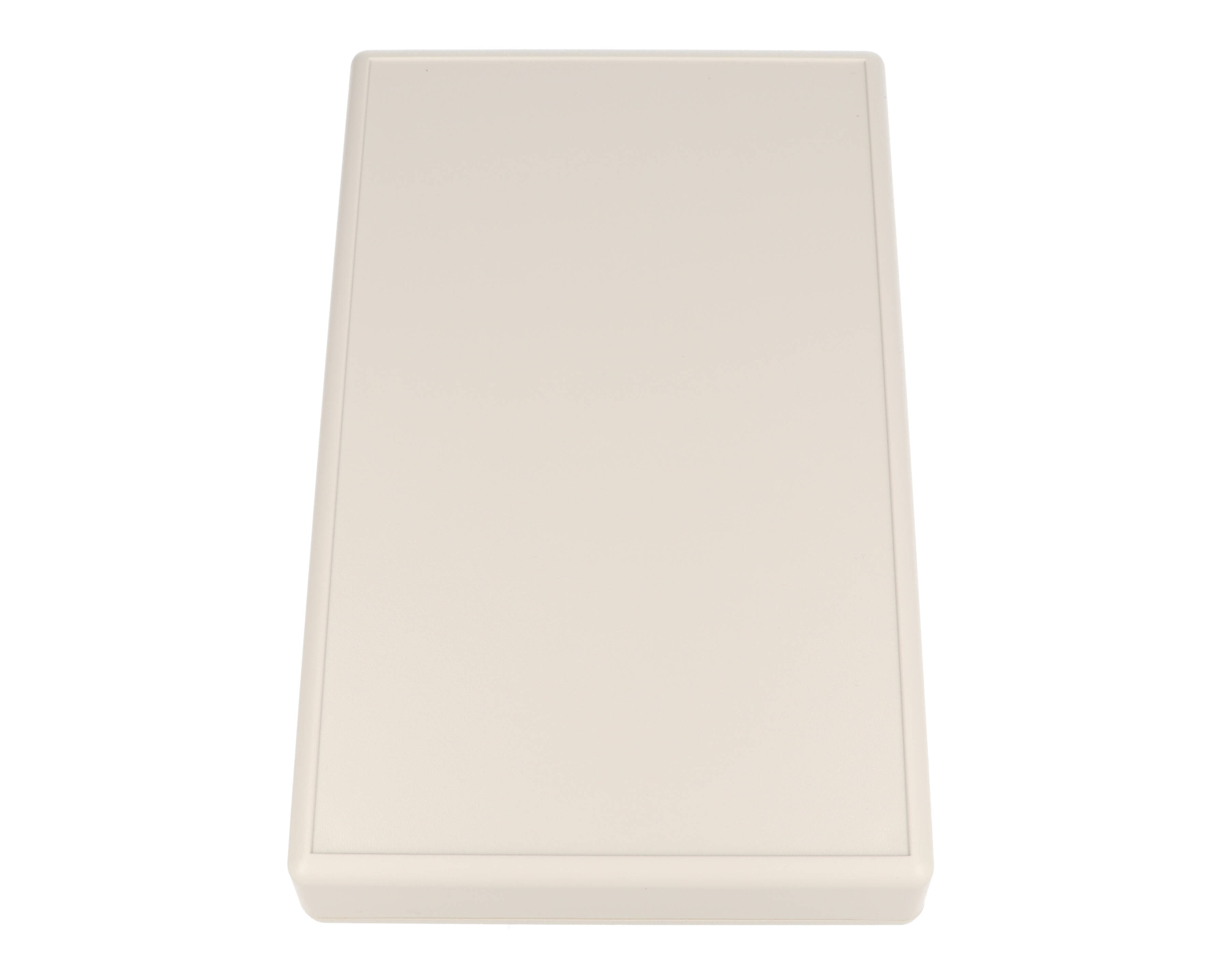

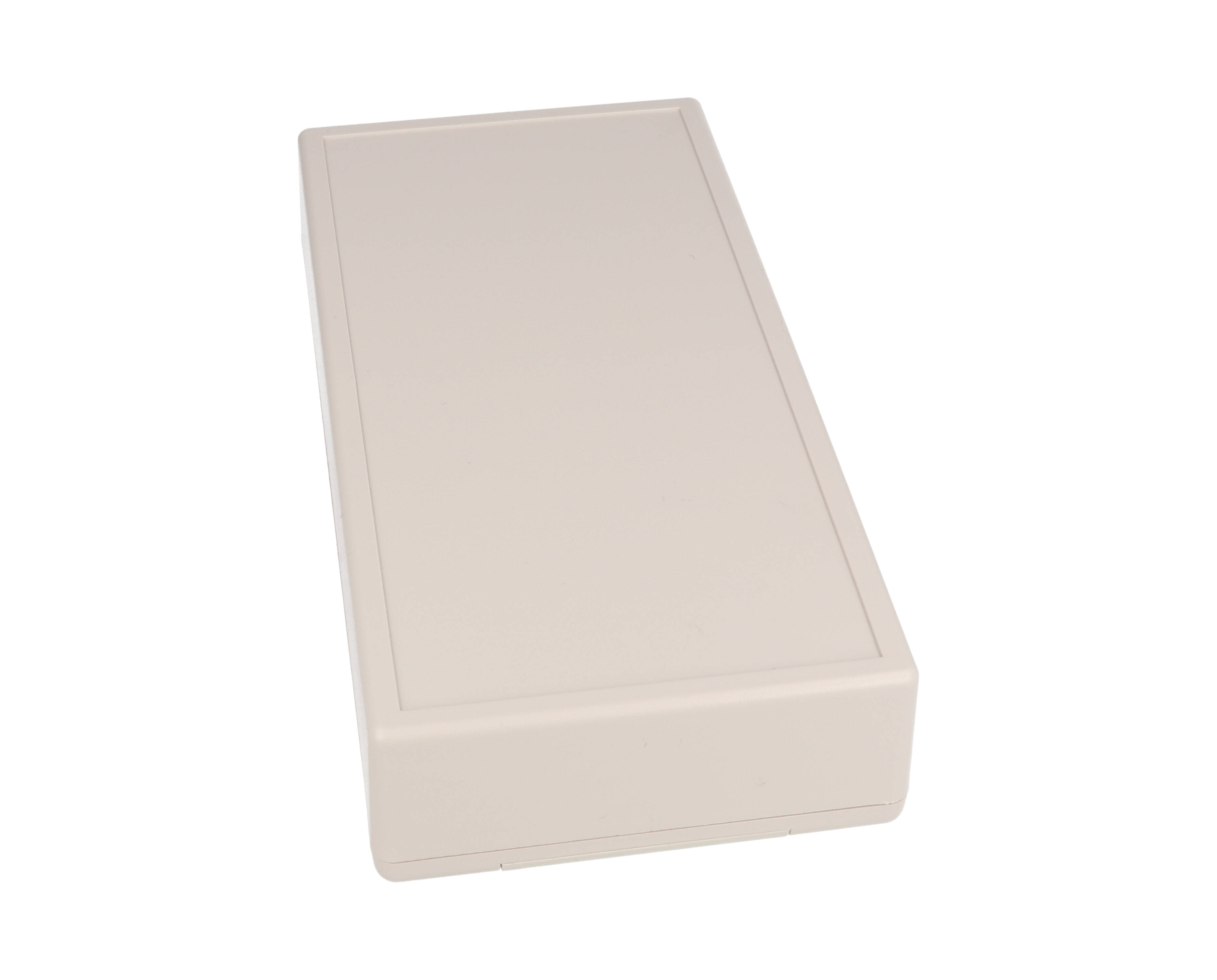

• ■Recessed top for membrane display or key pad.
• ■Lap joint construction provides protection against access of dust and splashing water.
• ■Versions without a battery door are designed to meet IP54 ratings.
• ■Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
• ■Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.
• ■If EMI/ RFI shielding is required, try 1599RFI series.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.

Photo Features:

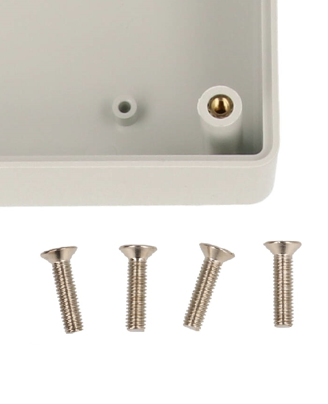

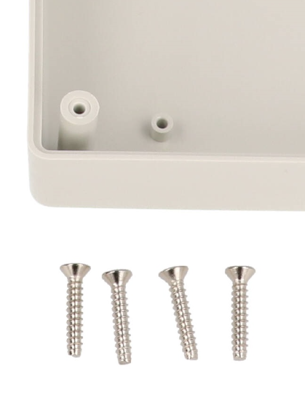

Flame retardant models use machine screws into brass bushings. General purpose models use self-tapping screws.

Accessories:

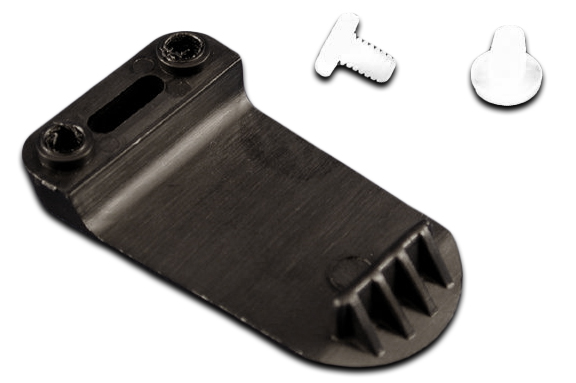

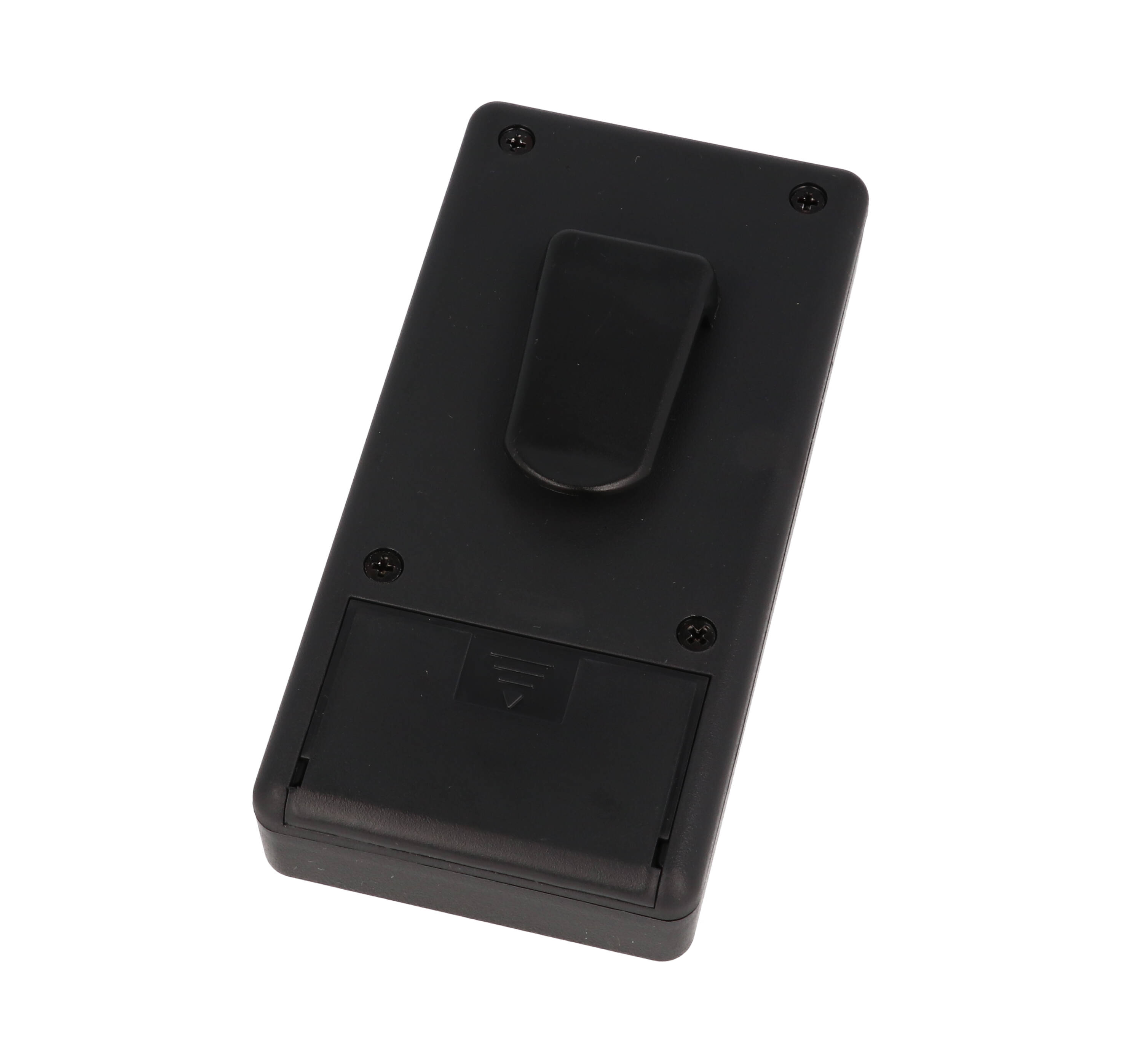

Optional Belt Clip

Gray: 1599CLIPGY

• ■50 pack of optional PC board screws (#4 x 1/4" Self-Tapping), part number 1593ATS50 100 pack of optional PC board screws (#4 x 1/4" Self-Tapping), part number 1593ATS100
• ■Replacement cover screws for flame retardant 1599B sizes: 100 pack of silver replacement cover screws (M3-0.5 x 18mm Flat Head), part number 1594MS100 100 pack of black replacement cover screws (M3-0.5 x 18mm Flat Head), part number 1594MS100BK
• ■Replacement cover screws for flame retardant 1599E, H, & K sizes: 100 pack of silver replacement cover screws (M3 - 0.5 x 12 mm) 1599HMS100 - (nickel plated) Package of 100 or 1599HMS100BK (black oxide) Package of 100.
• ■Replacement cover screws for general purpose versions: 1599B sizes: 100 pack of silver replacement cover screws (#4 x 3/4" Self-Tapping), part number 1599BTS100 1599E, H, & K sizes: 100 pack of silver replacement cover screws (#4 x 5/8" Self-Tapping), part number 1593MS100

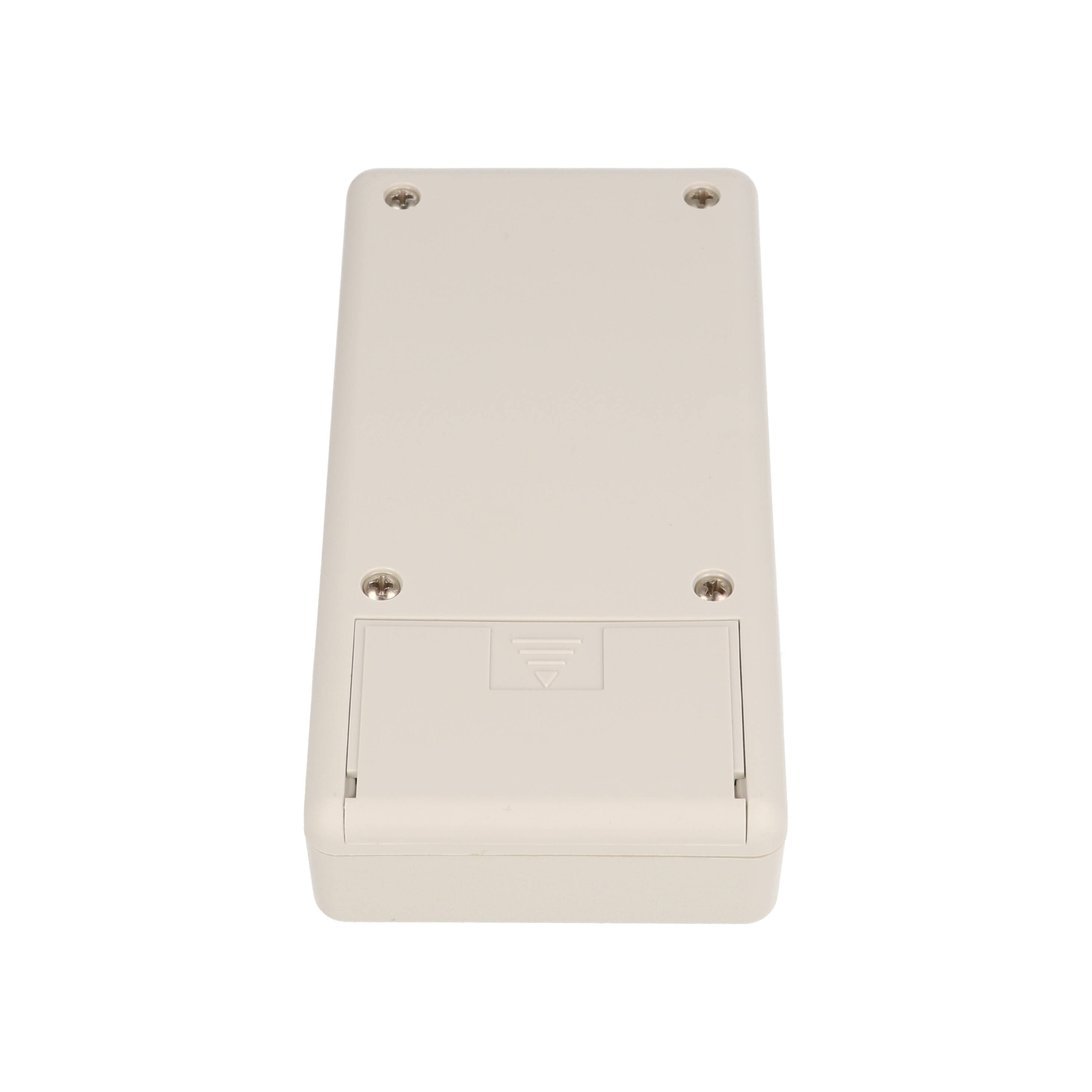

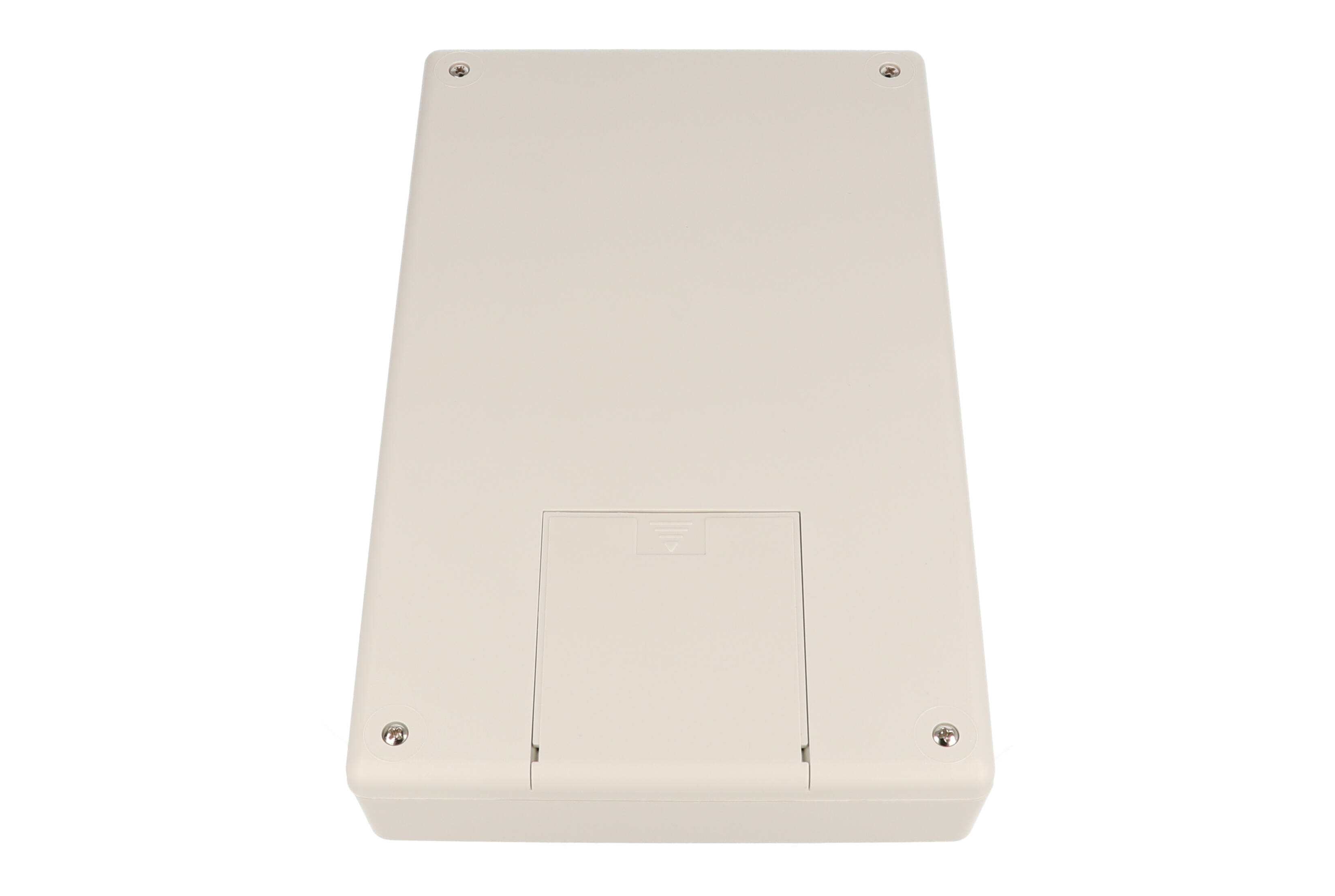

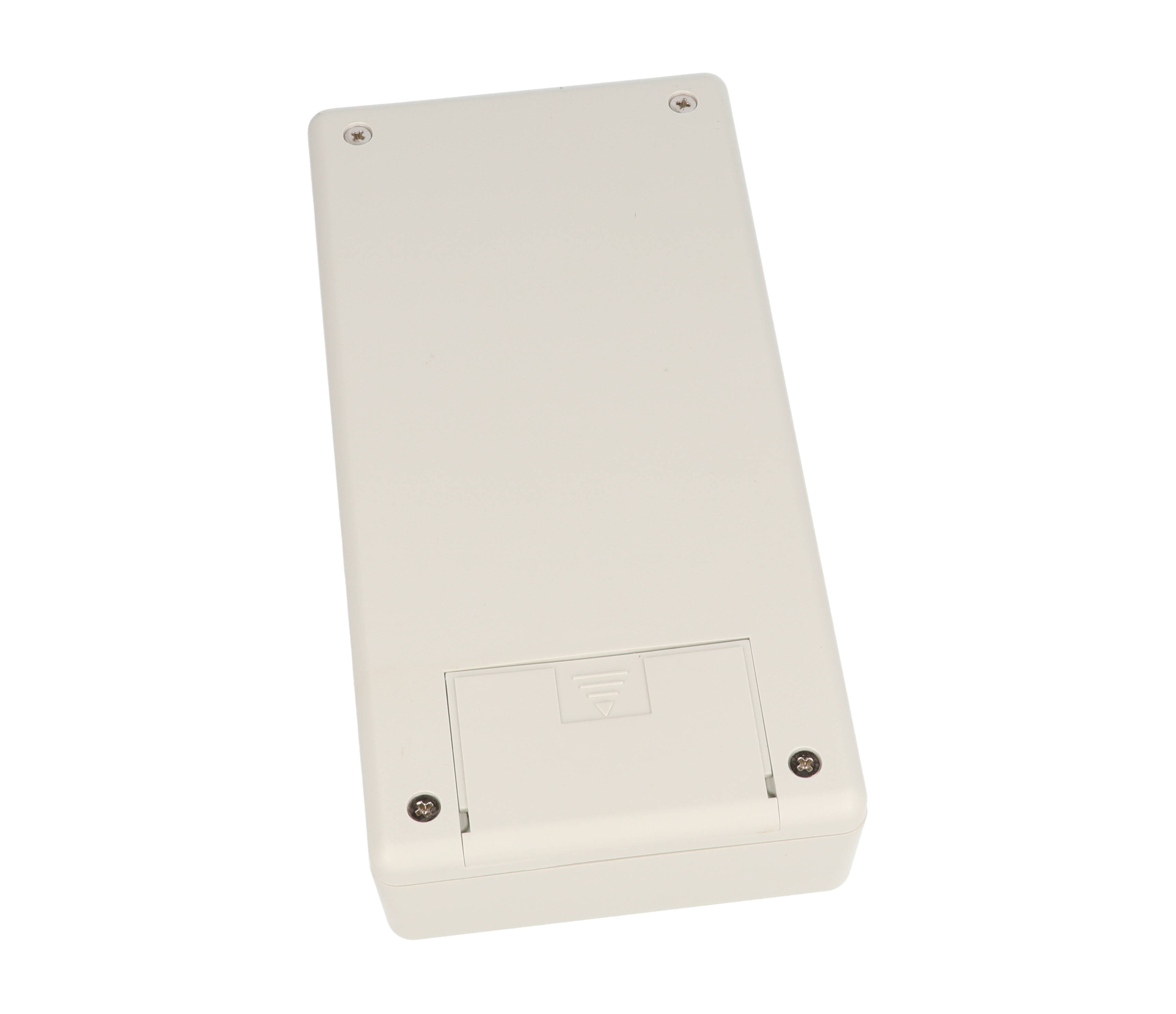

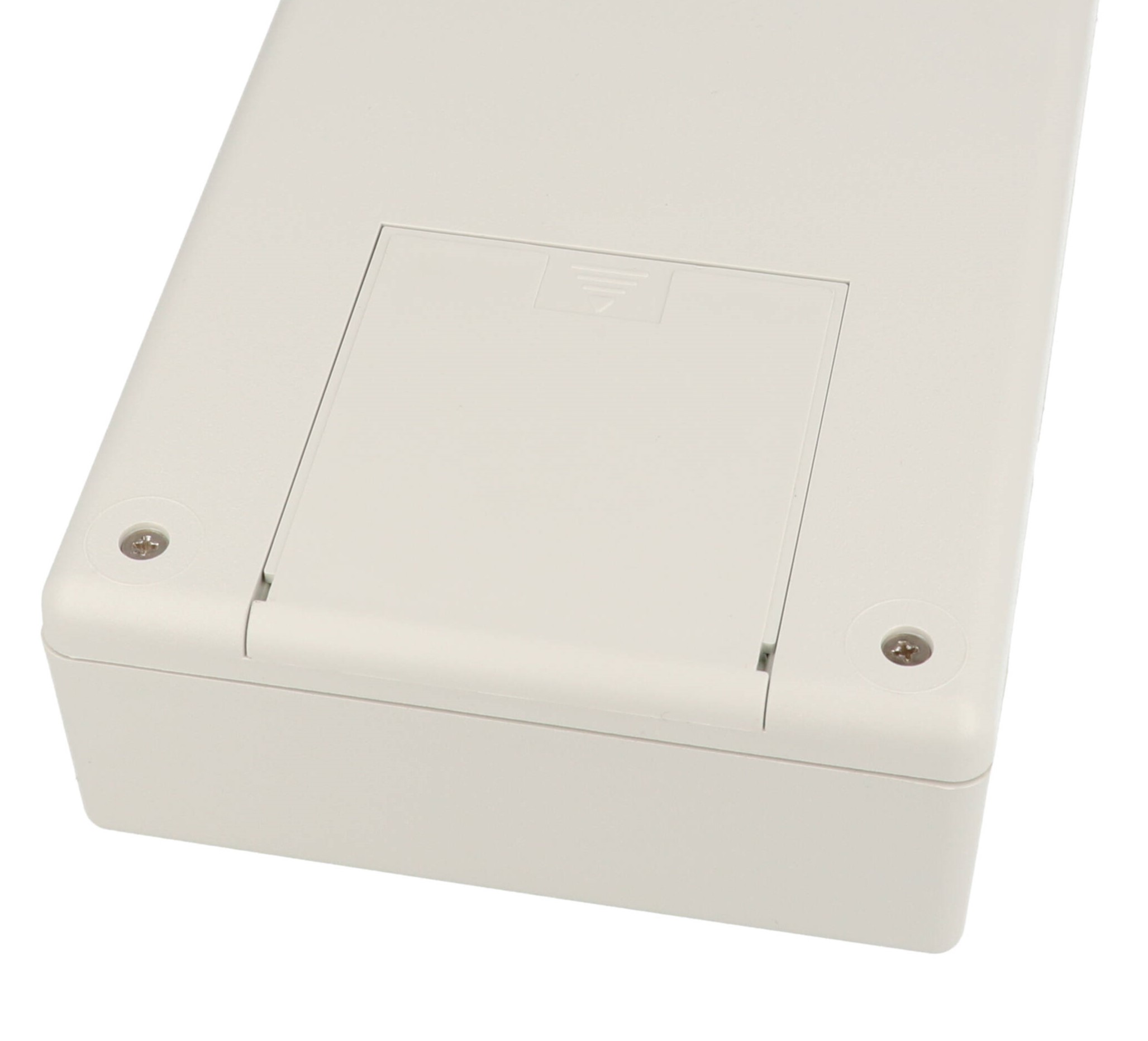

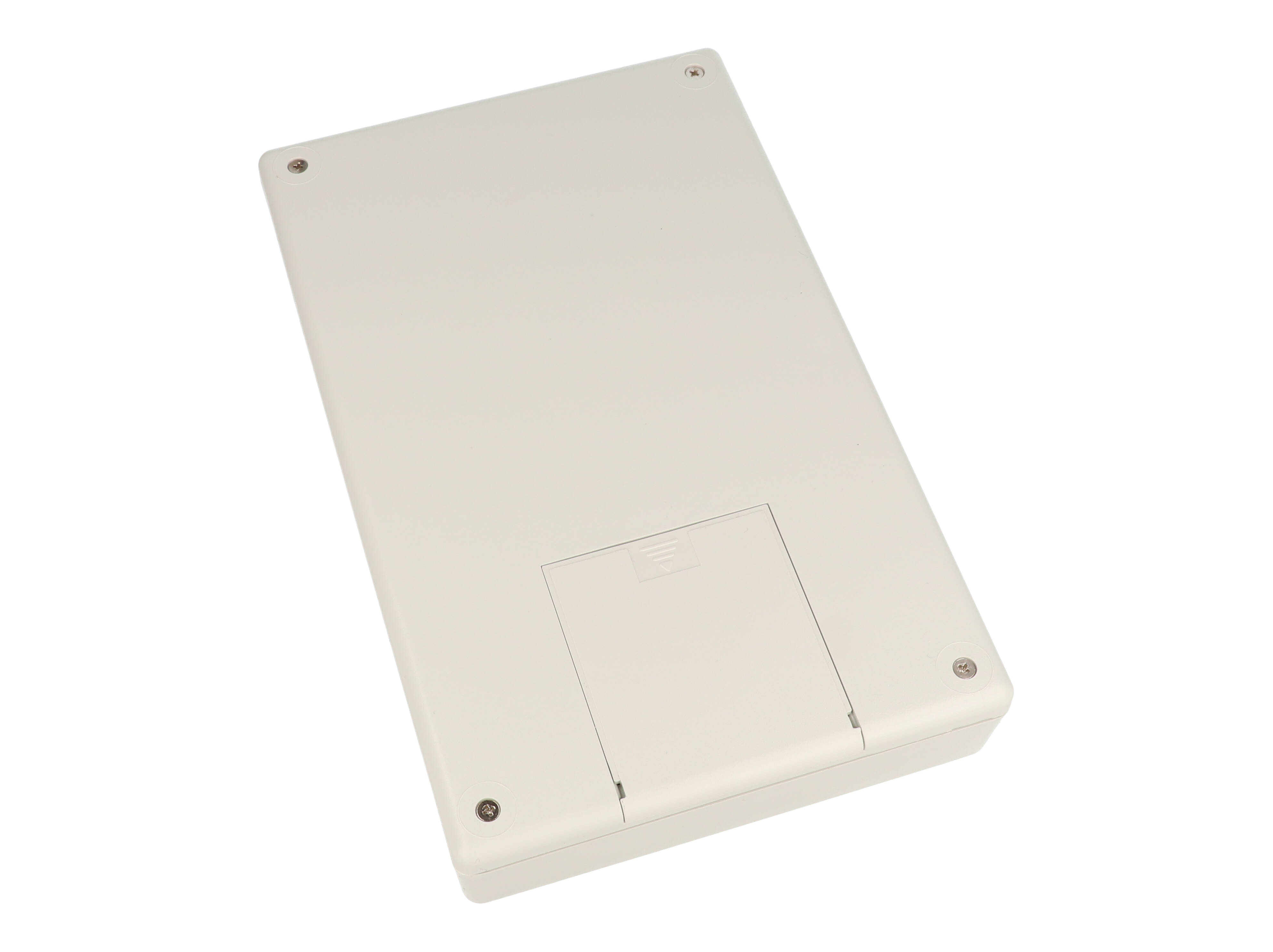

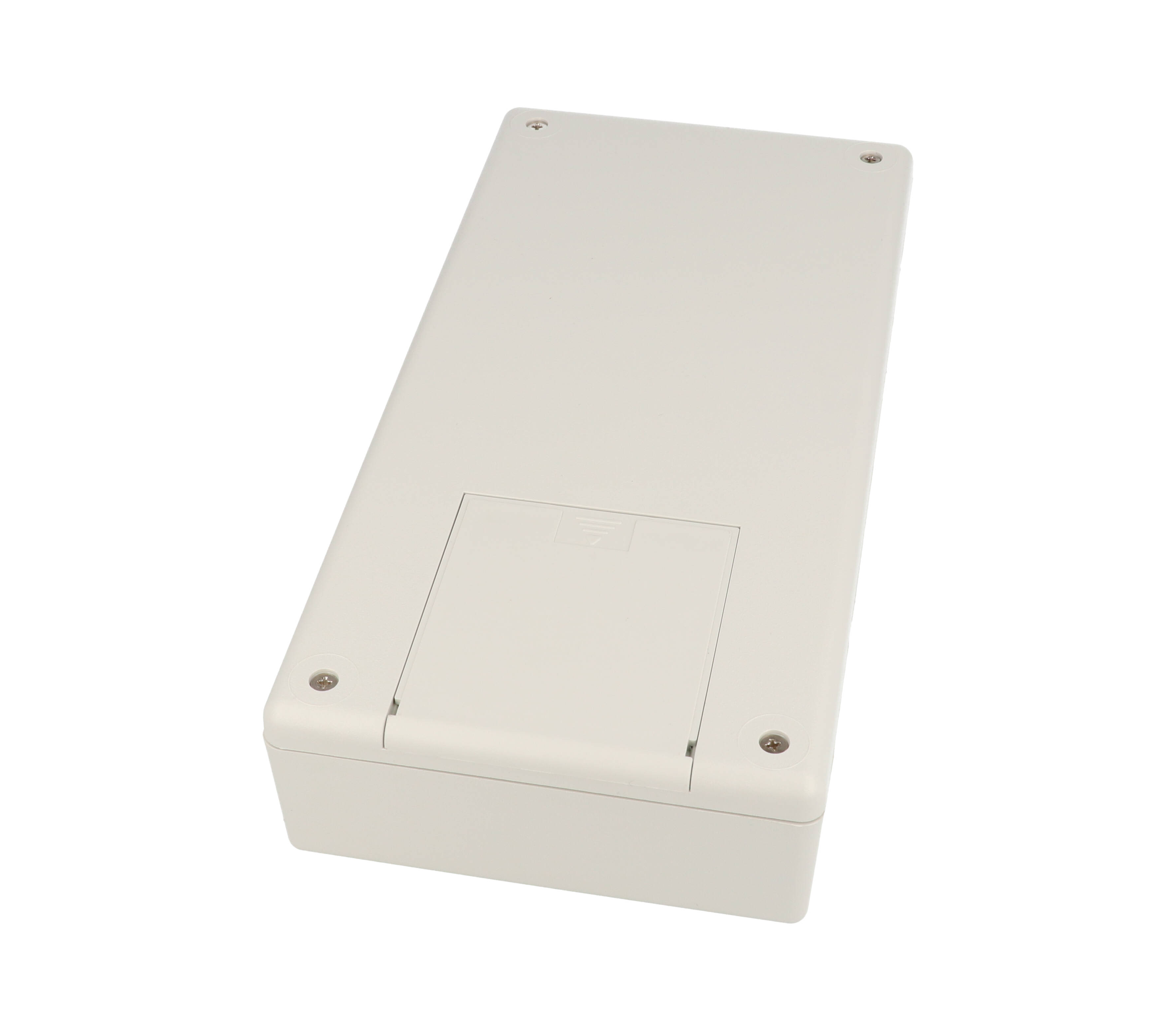

• ■Designed for our battery door enclosure (part numbers ending in BAT).
• ■Includes all the parts required to install the battery or batteries.

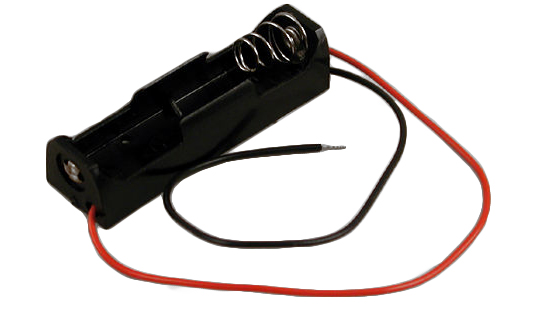

• ■Includes the battery holder, wires and foam anti-rattle pad.
• ■Refer to "Battery Holder Compatibility" table below.

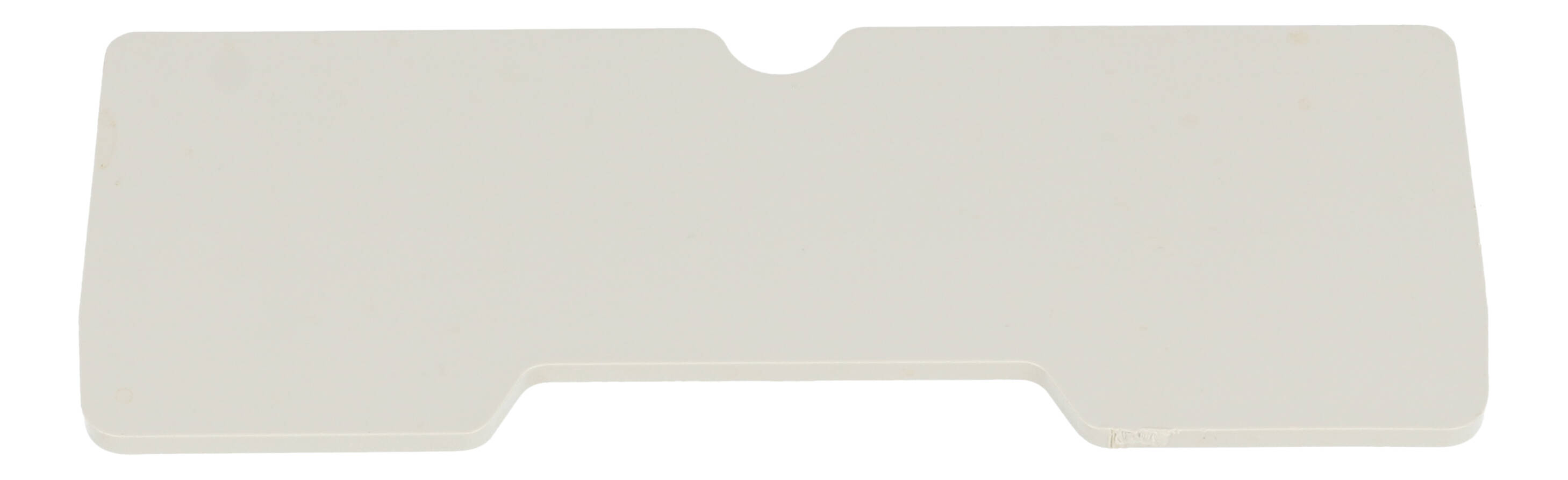

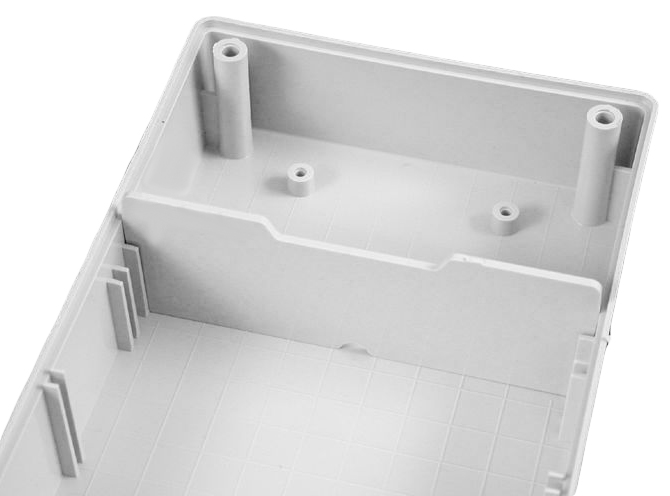

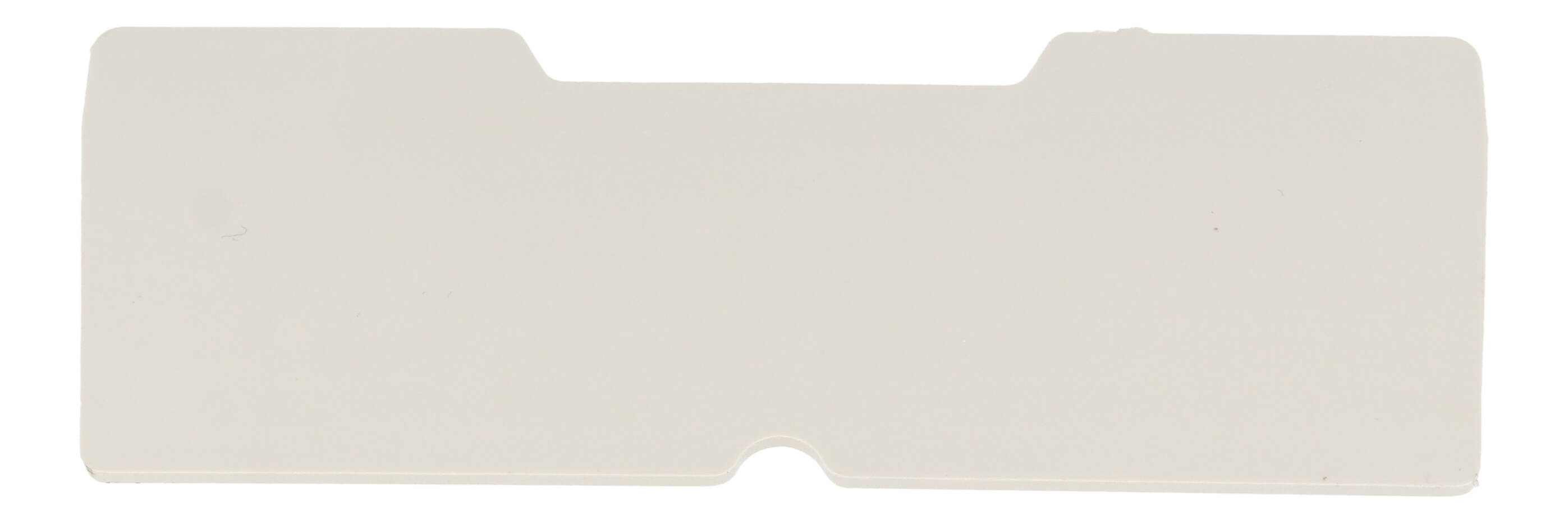

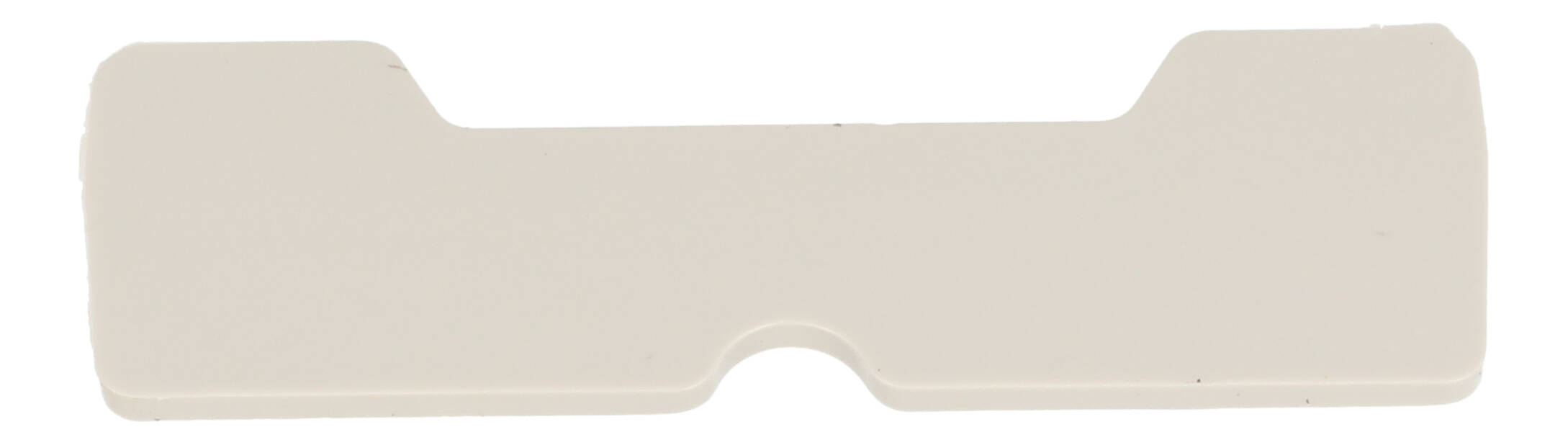

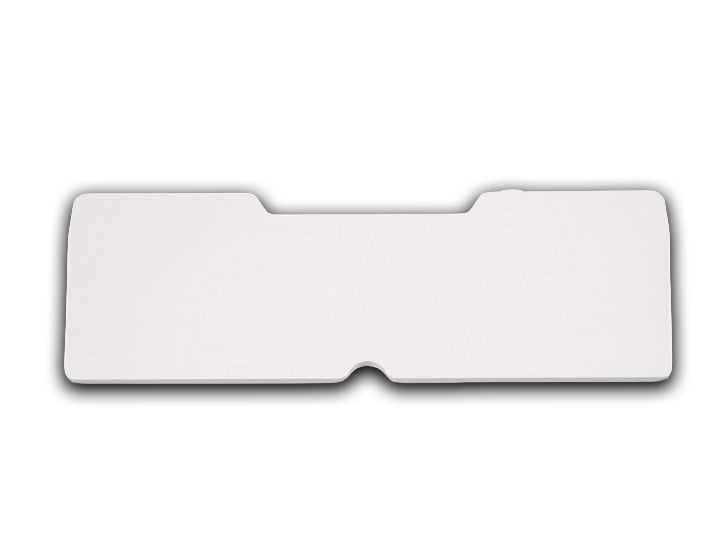

• ■Grey ABS plastic panel barriers.
• ■Insert vertically into the P.C. card guides.
• ■Sold individually.
• ■Refer to "Enclosures" table below for compatibility.
• ■Molded from tough nylon (choice of Black or Grey).
• ■Includes 2 nylon screws (insulated to avoid internal interference).
• ■Mounting template included.

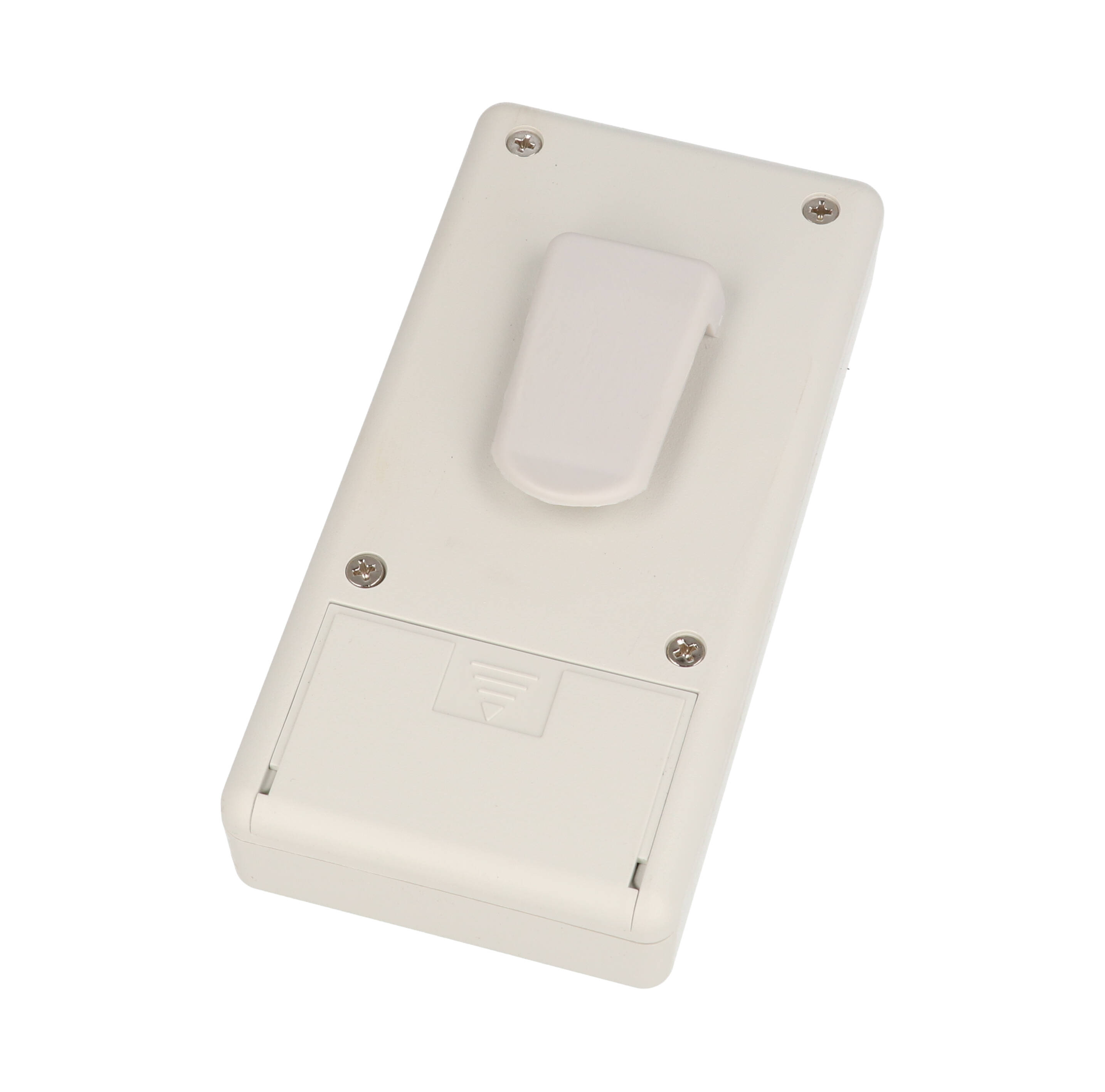

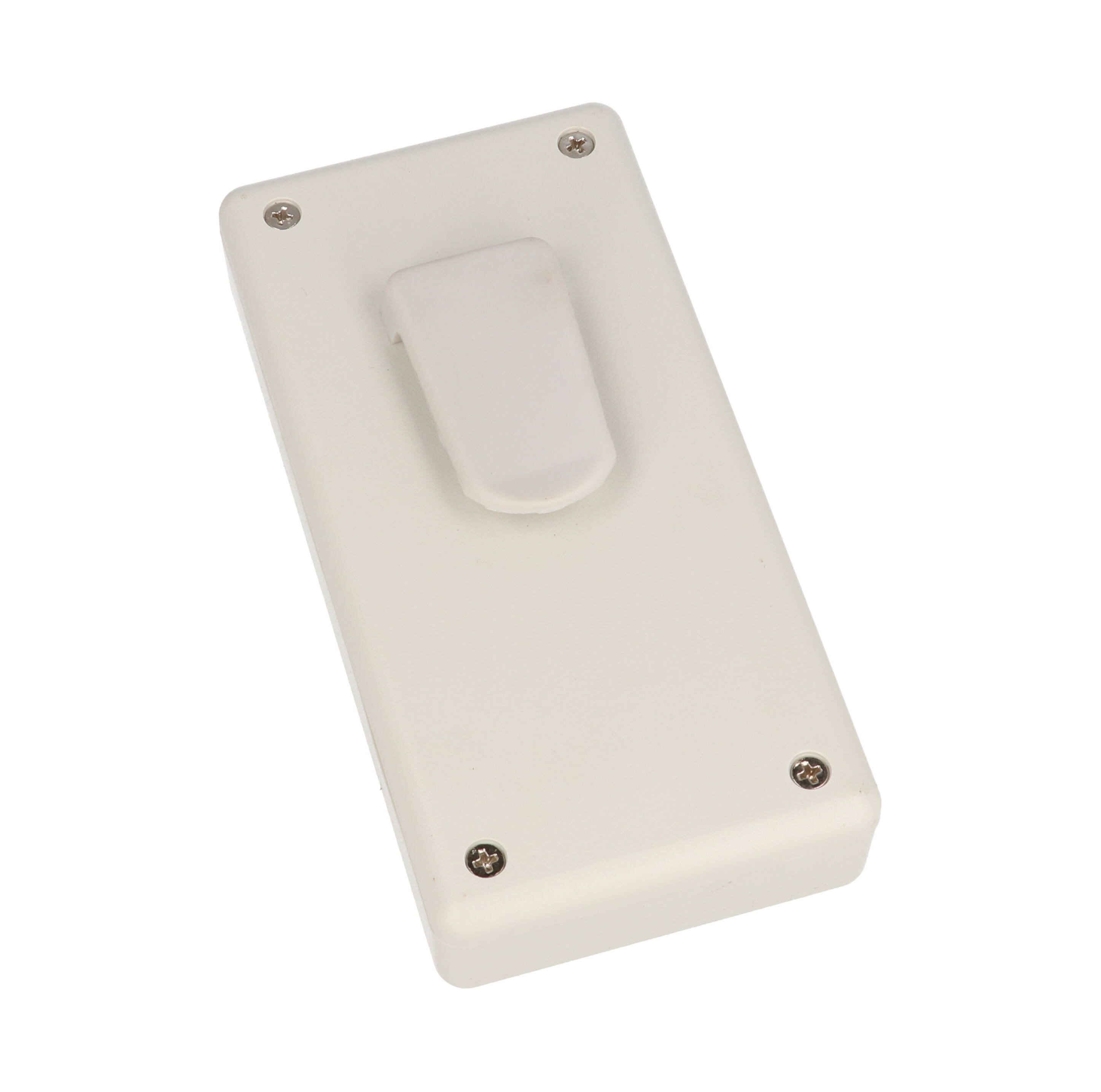

• ■Part numbers ending in "CP" come with these clips installed. All other 1599 enclosures are compatible.
