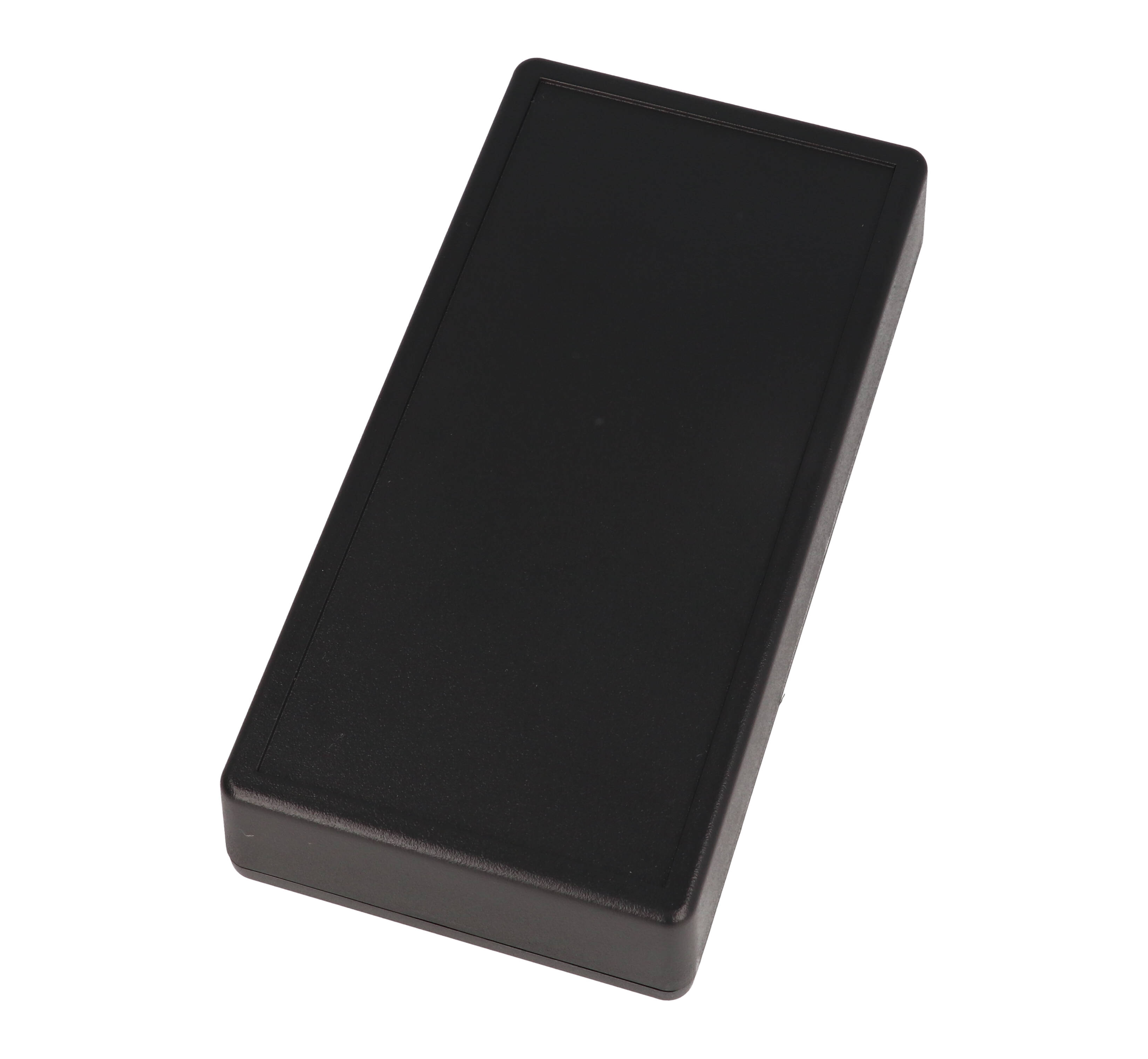

Hammond 1599EBK IP54 170x85mm Black Flame Retardant Handheld Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP54 rated, black flame retardant ABS (UL94 V-0)
- 170 x 85 x 34 mm (6.7 x 3.35 x 1.33 in) mid-size handheld case
- Maximum P.C. board 162.5 x 72 mm
- Machine screws into integral brass bushings; 4 cover screws included
- Recessed top for membrane display or key pad
- Keyhole knockouts inside the base for wall mounting
- Optional 1599ED-BULK divider and nylon belt clips
The 1599EBK is the black, flame retardant E-size enclosure in the 1599 Series of handheld cases. At 170 x 85 x 34 mm it gives more room than the B size for instrument electronics, keypads and displays, and with no battery door it is listed as IP54.

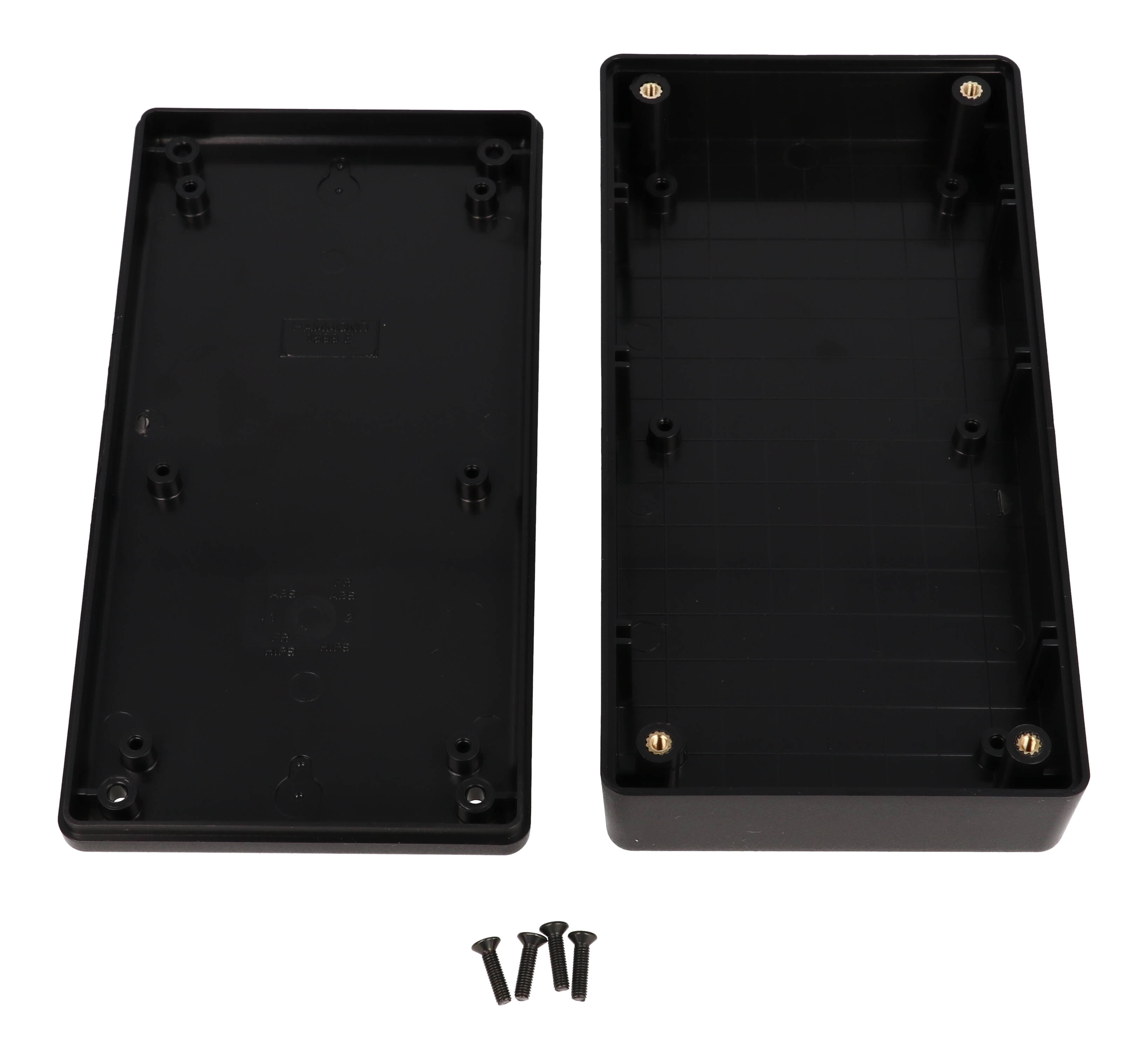

The box and lid are flame retardant ABS with a UL flammability rating of 94 V-0, assembled with machine screws into integral brass bushings. The purchased assembly includes the box, lid and 4 cover screws; recommended torque is 42-57 ozf.in (30-40 cN.m). Replacement M3-0.5 x 12mm cover screws are 1599HMS100 (nickel plated) or 1599HMS100BK (black oxide).
The part listing gives 6.7 x 3.35 x 1.33 in (170 x 85 x 34 mm); the ordering table lists 170 x 86 x 35 mm. Inside, the drawing shows 164.69 x 80.19 x 28.70 mm, and the maximum P.C. board is 162.5 x 72 mm, held on standoffs that accept #4 self-tapping screws. Shipping weight is 0.31 lbs (0.14 kg).
A recessed top accepts a membrane display or key pad, lap joint construction guards against dust and splashing water, and two keyhole knockouts in the base allow wall mounting. The 1599EBK is RoHS and REACH compliant, ships in shrink wrap and can be factory modified by milling, drilling or printing.
Ideal For
- Handheld test and measurement instruments
- Portable controllers with membrane keypads
- Dust and splash-exposed handheld devices
- Wall-mounted control electronics
Overview
| Type | Hand-held, general purpose |
| Series | 1599 Series Hand Held Enclosures |
| Version | Flame retardant |
| Part Number | 1599EBK |
| Battery Door | No |
| Long Description | enclosure - plastic |
| Short Description | HAND HELD CASE & LID FRABS |
| Belt Clip Included | No |
| Flame Retardant Version (Ordering Table) | 1599EBK |
Dimensions
| Inside Width | 80.19 mm [3.16 in] |
| Inside Height | 28.70 mm [1.13 in] |
| Inside Length | 164.69 mm [6.48 in] |
| Size L X W X H | 6.7 in x 3.35 in x 1.33 in (170 mm x 85 mm x 34 mm) |
| Max. P.C. Board Width | 162.5 mm |
| Max. P.C. Board Length | 72 mm |
| Overall Width (Drawing) | 85.50 mm [3.37 in] |
| Overall Height (Drawing) | 34.75 mm [1.37 in] |
| Overall Length (Drawing) | 170.00 mm [6.69 in] |
| Maximum P.C. Board (Drawing) | 162.50 mm x 72.00 mm [6.40 in x 2.83 in] |
| Nominal Size L X W X D (Ordering Table) | 6.69 in (170 mm) x 3.39 in (86 mm) x 1.38 in (35 mm) |
Accessories
| Battery Divider | 1599ED-BULK (ABS divider panel) |
| P.C. Board Screws | #4 x 1/4" pan head self-tapping, pkg of 50 (1593ATS50) or 100 (1593ATS100) |
| Optional Belt Clip | Nylon belt clip 1599CLIP (Black) or 1599CLIPGY (Grey); includes 2 insulated nylon screws and mounting template |
| Replacement Cover Screws | M3-0.5 x 12mm machine screws, pkg 100: 1599HMS100 (nickel plated) or 1599HMS100BK (black oxide) |
Identifiers
| UPC | 623980566740 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Box, lid and 4 cover screws (P.C. board not supplied) |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.31 lbs (0.14 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Color | Black |
| Joint | Lap joint construction (protection against access of dust and splashing water) |
| Material | ABS Plastic |
| Fastening | Machine screws into integral brass bushings |
| Solid Models | STEP or IGES |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| P.C. Board Mounting | PC board standoffs on the inside top and bottom; accepts #4 self-tapping screws (P.C. board not supplied) |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Color (Ordering Table) | Black |
| Enclosure Material Detail | Box and lid made from flame retardant ABS with a UL flammability rating of 94 V-0 |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1599EBK?▾
The listing gives 6.7 x 3.35 x 1.33 in (170 x 85 x 34 mm); the series ordering table lists it as 170 x 86 x 35 mm.
Is it IP rated?▾
Yes, it is listed as IP54. 1599 versions without a battery door are designed to meet IP54.
What is the largest P.C. board it accepts?▾
162.5 mm x 72 mm.
What replacement cover screws fit?▾
M3-0.5 x 12mm machine screws: 1599HMS100 (nickel plated) or 1599HMS100BK (black oxide), 100 per pack.
Is there a grey version?▾
Yes. The ordering table lists 1599EGY as the grey flame retardant version and 1599ESGY as the grey general purpose version.
Can this enclosure be wall mounted?▾
Yes. Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.
