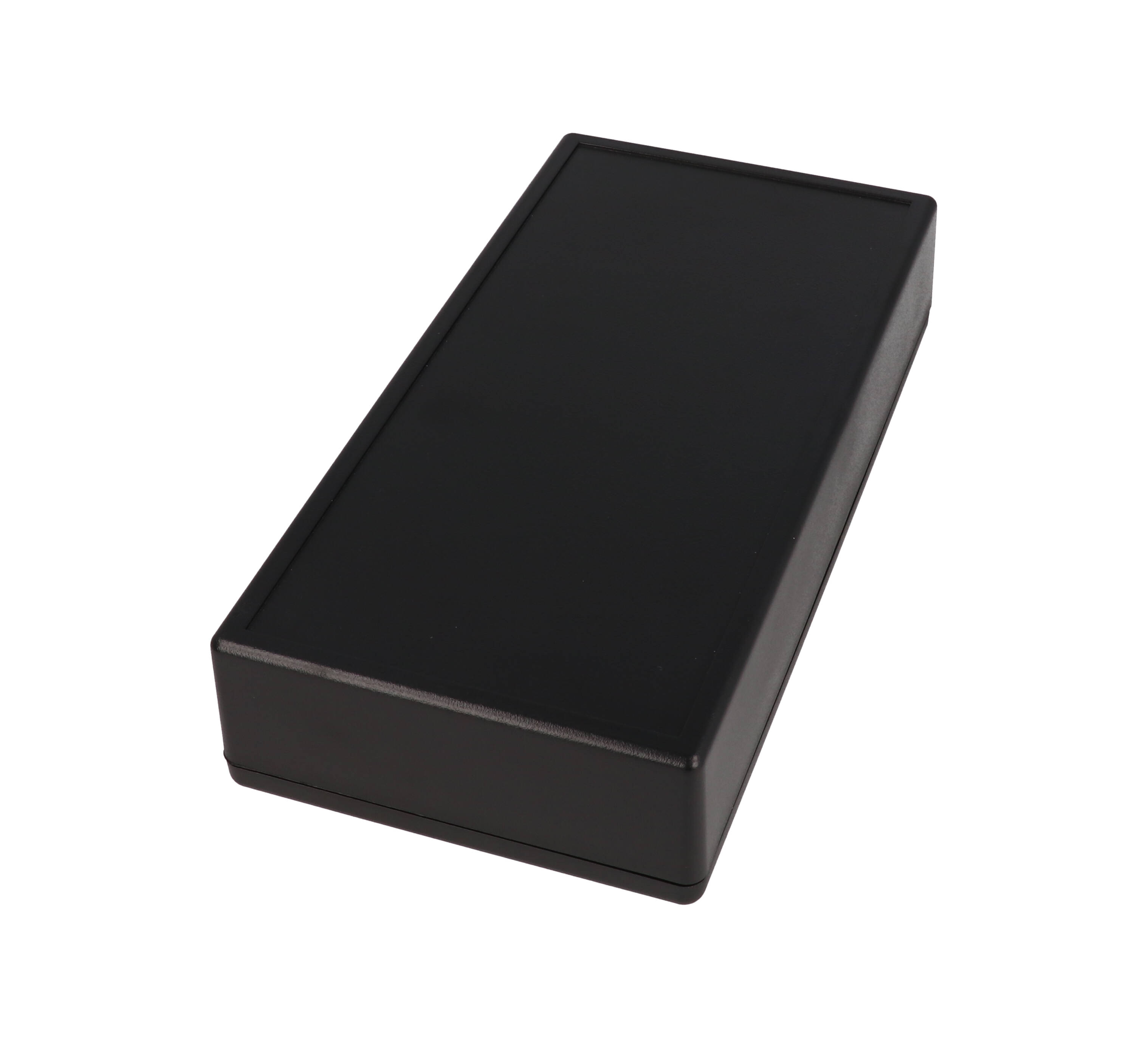

Hammond 1599HBK IP54 220x110mm Black Flame Retardant Handheld Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP54 rated, black flame retardant ABS (UL94 V-0)
- 220 x 110 x 44 mm (8.66 x 4.33 x 1.73 in)
- Maximum P.C. board 212.5 x 96.5 mm
- Machine screws into brass bushings; 4 cover screws included
- Recessed top for membrane display or key pad
- Keyhole knockouts for wall mounting
- Optional 1599HD-BULK divider and nylon belt clips
The 1599HBK is the black, flame retardant H-size model of the 1599 Series handheld enclosures, measuring 220 x 110 x 44 mm. It suits larger handheld instruments, data terminals and controllers that need room for a sizeable P.C. board and a keypad or display, with an IP54 listing.

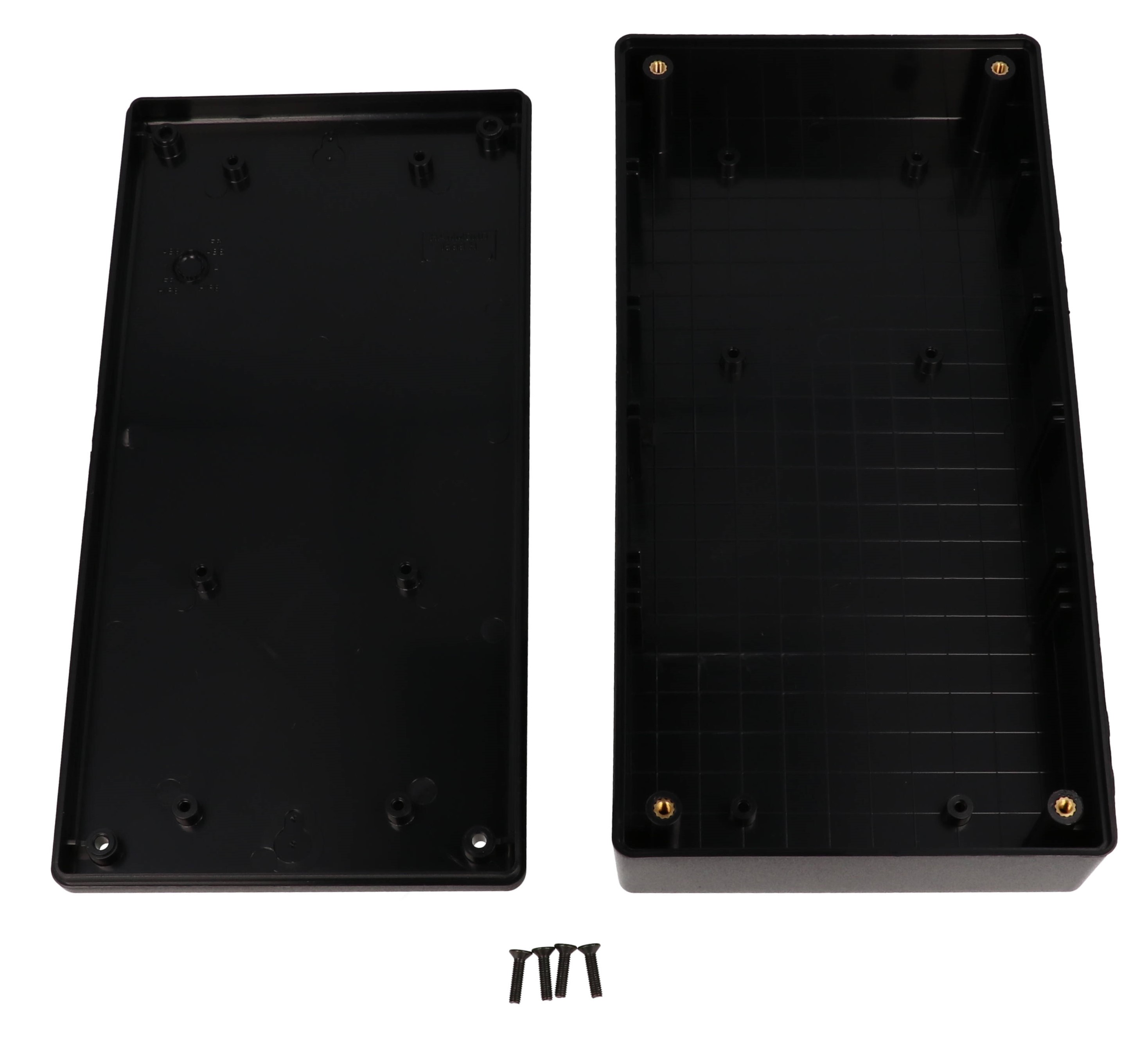

Box and lid are flame retardant ABS with a UL flammability rating of 94 V-0, assembled with machine screws into integral brass bushings. The purchased assembly includes the box, lid and 4 cover screws, with a recommended torque of 42-57 ozf.in (30-40 cN.m). Replacement M3-0.5 x 12mm cover screws are 1599HMS100 (nickel plated) or 1599HMS100BK (black oxide).
The listing size is 8.66 x 4.33 x 1.73 in (220 x 110 x 44 mm); the ordering table lists a depth of 45 mm. The drawing shows inside dimensions of 213.68 x 103.68 x 38.25 mm, and the maximum P.C. board is 212.5 x 96.5 mm on standoffs for #4 self-tapping screws. Shipping weight is 0.52 lbs (0.24 kg).
The recessed top accepts a membrane display or key pad, lap joints protect against dust and splashing water, and two keyhole knockouts inside the base allow wall mounting. The 1599HBK is RoHS and REACH compliant, ships in shrink wrap, and can be factory modified by milling, drilling or printing.
Ideal For
- Larger handheld instruments and data terminals
- Portable controllers with displays and keypads
- Dust and splash-exposed handheld equipment
- Wall-mounted control panels
Overview
| Type | Hand-held, general purpose |
| Series | 1599 Series Hand Held Enclosures |
| Version | Flame retardant |
| Part Number | 1599HBK |
| Battery Door | No |
| Long Description | enclosure - plastic |
| Short Description | HAND HELD CASE & LID FRABS |
| Belt Clip Included | No |
| Flame Retardant Version (Ordering Table) | 1599HBK |
Dimensions
| Inside Width | 103.68 mm [4.08 in] |
| Inside Height | 38.25 mm [1.51 in] |
| Inside Length | 213.68 mm [8.41 in] |
| Size L X W X H | 8.66 in x 4.33 in x 1.73 in (220 mm x 110 mm x 44 mm) |
| Max. P.C. Board Width | 212.5 mm |
| Max. P.C. Board Length | 96.5 mm |
| Overall Width (Drawing) | 110.00 mm [4.33 in] |
| Overall Height (Drawing) | 44.85 mm [1.77 in] |
| Overall Length (Drawing) | 220.00 mm [8.66 in] |
| Maximum P.C. Board (Drawing) | 212.50 mm x 96.50 mm [8.37 in x 3.80 in] |
| Nominal Size L X W X D (Ordering Table) | 8.66 in (220 mm) x 4.33 in (110 mm) x 1.77 in (45 mm) |
Accessories
| Battery Divider | 1599HD-BULK (ABS divider panel) |
| P.C. Board Screws | #4 x 1/4" pan head self-tapping, pkg of 50 (1593ATS50) or 100 (1593ATS100) |
| Optional Belt Clip | Nylon belt clip 1599CLIP (Black) or 1599CLIPGY (Grey); includes 2 insulated nylon screws and mounting template |
| Replacement Cover Screws | M3-0.5 x 12mm machine screws, pkg 100: 1599HMS100 (nickel plated) or 1599HMS100BK (black oxide) |
Identifiers
| UPC | 623980566771 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Box, lid and 4 cover screws (P.C. board not supplied) |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.52 lbs (0.24 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Color | Black |
| Joint | Lap joint construction (protection against access of dust and splashing water) |
| Material | ABS Plastic |
| Fastening | Machine screws into integral brass bushings |
| Solid Models | STEP or IGES |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| P.C. Board Mounting | PC board standoffs on the inside top and bottom; accepts #4 self-tapping screws (P.C. board not supplied) |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Color (Ordering Table) | Black |
| Enclosure Material Detail | Box and lid made from flame retardant ABS with a UL flammability rating of 94 V-0 |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1599HBK?▾
The listing gives 8.66 x 4.33 x 1.73 in (220 x 110 x 44 mm); the series table lists 220 x 110 x 45 mm.
How large a P.C. board fits?▾
Up to 212.5 mm x 96.5 mm.
Is it IP54 rated?▾
Yes, the 1599HBK is listed as IP54.
What cover screws does it use?▾
M3-0.5 x 12mm machine screws into brass bushings; replacements are 1599HMS100 or 1599HMS100BK.
Is a grey version available?▾
Yes, the ordering table lists 1599HGY (flame retardant) and 1599HSGY (general purpose) in grey.
Can this enclosure be wall mounted?▾
Yes. Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.
