Hammond 1599ESGY IP54 170x85mm Grey General Purpose ABS Handheld Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Economical general purpose ABS, light grey, UL94 HB
- IP54 rated; lap joint against dust and splashing water
- 170 x 85 x 34 mm (6.7 x 3.35 x 1.33 in)
- Maximum P.C. board 162.5 x 72 mm
- Self-tapping screws into plastic posts; 4 cover screws included
- Recessed top for membrane display or key pad
- Keyhole knockouts for wall mounting

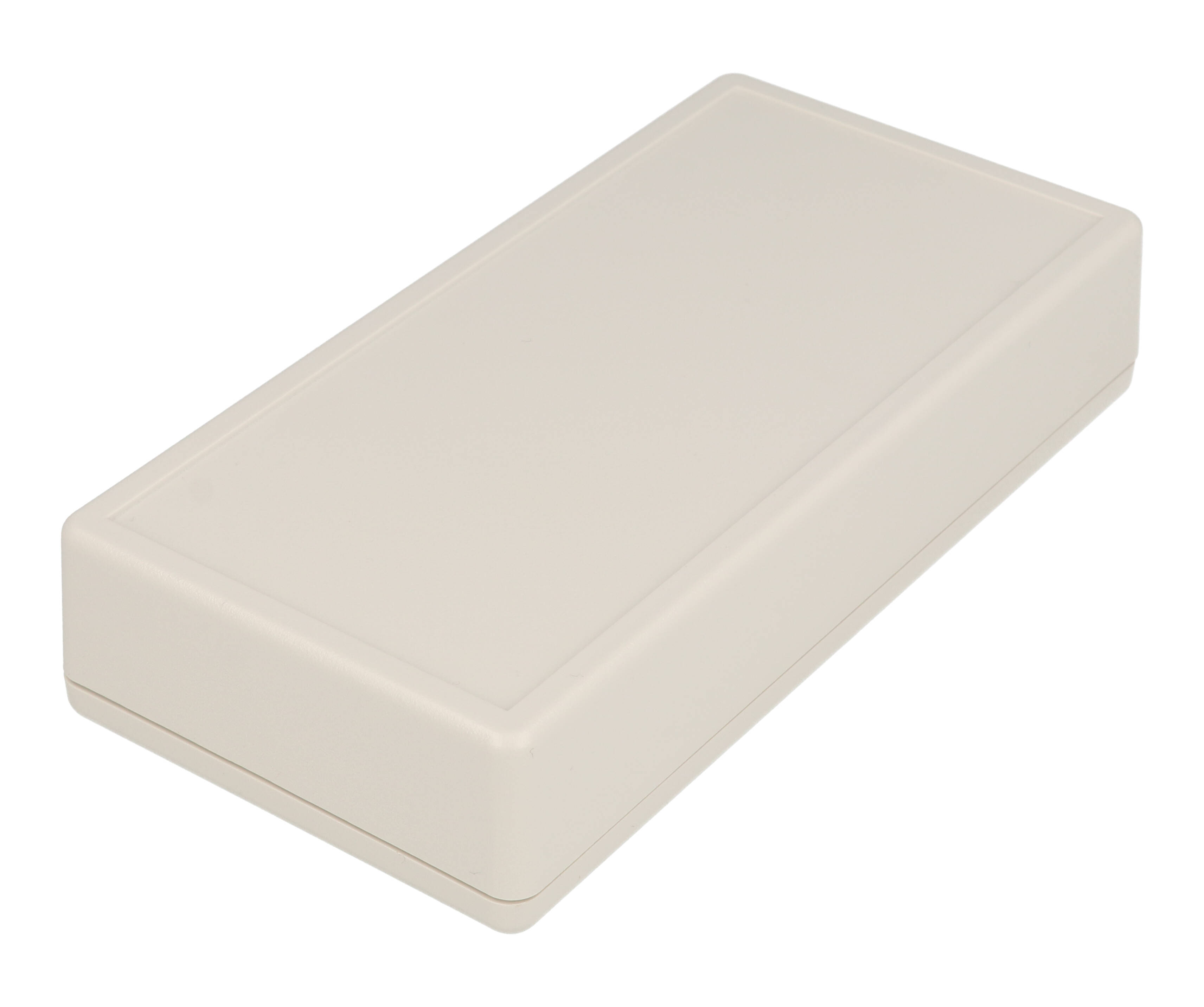

The 1599ESGY is the general purpose, light grey E-size enclosure in the 1599 Series handheld range. It offers the 170 x 85 x 34 mm handheld form in economical plastic for projects where a flame retardant rating is not required, and it is listed as IP54.
Box and lid are general purpose ABS with a UL94 HB flame rating; the series describes the general purpose version as not flame retardant. It assembles with self-tapping screws into plastic posts, and the purchased assembly includes the box, lid and 4 cover screws. Recommended torque is 42-57 ozf.in (30-40 cN.m), and replacement #4 x 5/8" self-tapping cover screws are 1593MS100 (pack of 100).
The listing size is 6.7 x 3.35 x 1.33 in (170 x 85 x 34 mm); the ordering table lists 170 x 86 x 35 mm. The drawing shows inside dimensions of 164.69 x 80.19 x 28.70 mm, and the maximum P.C. board is 162.5 x 72 mm, secured to standoffs with #4 self-tapping screws. Shipping weight is 0.28 lbs (0.13 kg).

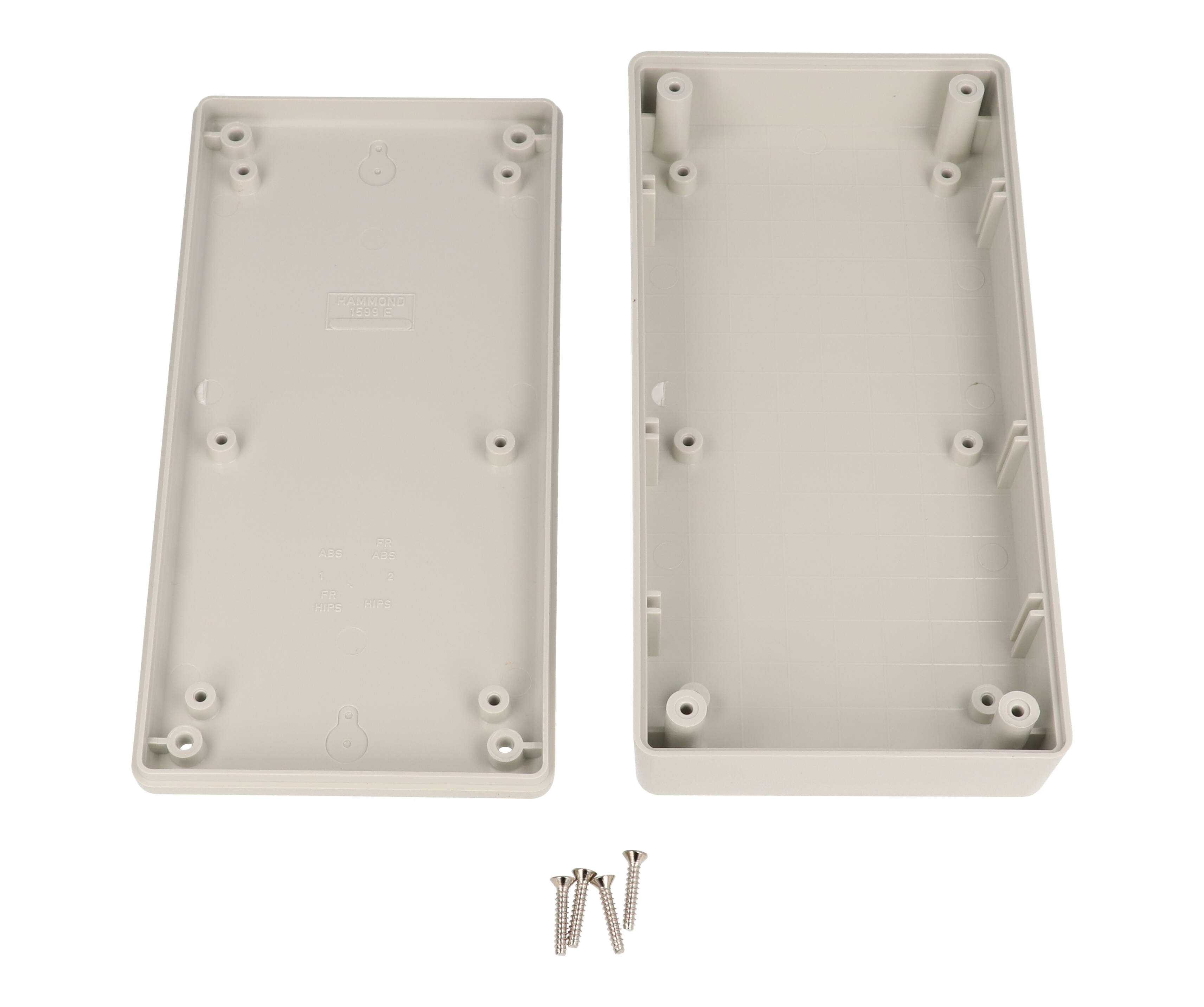

Lap joint construction protects against dust and splashing water, the recessed top accepts a membrane display or key pad, and two keyhole knockouts inside the base allow wall mounting. The 1599ESGY is RoHS and REACH compliant and ships in shrink wrap.
Ideal For
- Cost-sensitive handheld instruments
- Portable controllers and remotes
- Handheld devices exposed to dust and splashes
- Prototype and small-batch electronics
Overview
| Type | Hand-held, general purpose |
| Series | 1599 Series Hand Held Enclosures |
| Version | General purpose (not flame retardant) |
| Part Number | 1599ESGY |
| Battery Door | No |
| Long Description | enclosure - plastic |
| Short Description | PLASTIC BOX |
| Belt Clip Included | No |
| Flame Retardant Version (Ordering Table) | 1599EGY |
| General Purpose Version (Ordering Table) | 1599ESGY |
Dimensions
| Inside Width | 80.19 mm [3.16 in] |
| Inside Height | 28.70 mm [1.13 in] |
| Inside Length | 164.69 mm [6.48 in] |
| Size L X W X H | 6.7 in x 3.35 in x 1.33 in (170 mm x 85 mm x 34 mm) |
| Max. P.C. Board Width | 162.5 mm |
| Max. P.C. Board Length | 72 mm |
| Overall Width (Drawing) | 85.50 mm [3.37 in] |
| Overall Height (Drawing) | 34.75 mm [1.37 in] |
| Overall Length (Drawing) | 170.00 mm [6.69 in] |
| Maximum P.C. Board (Drawing) | 162.50 mm x 72.00 mm [6.40 in x 2.83 in] |
| Nominal Size L X W X D (Ordering Table) | 6.69 in (170 mm) x 3.39 in (86 mm) x 1.38 in (35 mm) |
Accessories
| Battery Divider | 1599ED-BULK (ABS divider panel) |
| P.C. Board Screws | #4 x 1/4" pan head self-tapping, pkg of 50 (1593ATS50) or 100 (1593ATS100) |
| Optional Belt Clip | Nylon belt clip 1599CLIP (Black) or 1599CLIPGY (Grey); includes 2 insulated nylon screws and mounting template |
| Replacement Cover Screws | #4 x 5/8" self-tapping, pkg 100: 1593MS100 |
Identifiers
| UPC | 623980566962 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Box, lid and 4 cover screws (P.C. board not supplied) |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.28 lbs (0.13 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Color | Light Gray |
| Joint | Lap joint construction (protection against access of dust and splashing water) |
| Material | ABS Plastic |
| Fastening | Self-tapping screws into plastic posts |
| Solid Models | STEP or IGES |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| P.C. Board Mounting | PC board standoffs on the inside top and bottom; accepts #4 self-tapping screws (P.C. board not supplied) |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Color (Ordering Table) | Grey |
| Enclosure Material Detail | Box and lid made from general purpose ABS (not flame retardant) |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1599ESGY flame retardant?▾
No. It is the general purpose version rated UL94 HB; the flame retardant equivalent is 1599EGY.
What IP rating does it have?▾
IP54.
What size P.C. board fits?▾
Up to 162.5 mm x 72 mm.
Which replacement cover screws are used?▾
#4 x 5/8" self-tapping screws, 100 pack part number 1593MS100.
What is included?▾
Box, lid and 4 cover screws.
Can this enclosure be wall mounted?▾
Yes. Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.
