Hammond 1599BBK 130x65 mm Black Flame-Retardant Handheld Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Handheld enclosure, 130 x 65 x 26 mm (5.12 x 2.56 x 1.02 in) per ordering table
- Flame retardant ABS rated UL94 V-0, black
- Designed to meet IP54; lap joint guards against dust and splashing water
- Takes P.C. boards up to 53 x 123.5 mm on standoffs accepting #4 self-tapping screws
- Recessed top for a membrane display or key pad
- M3 machine screws into brass bushings; recommended torque 30-40 cN.m
- Two keyhole knockouts inside the base for wall mounting

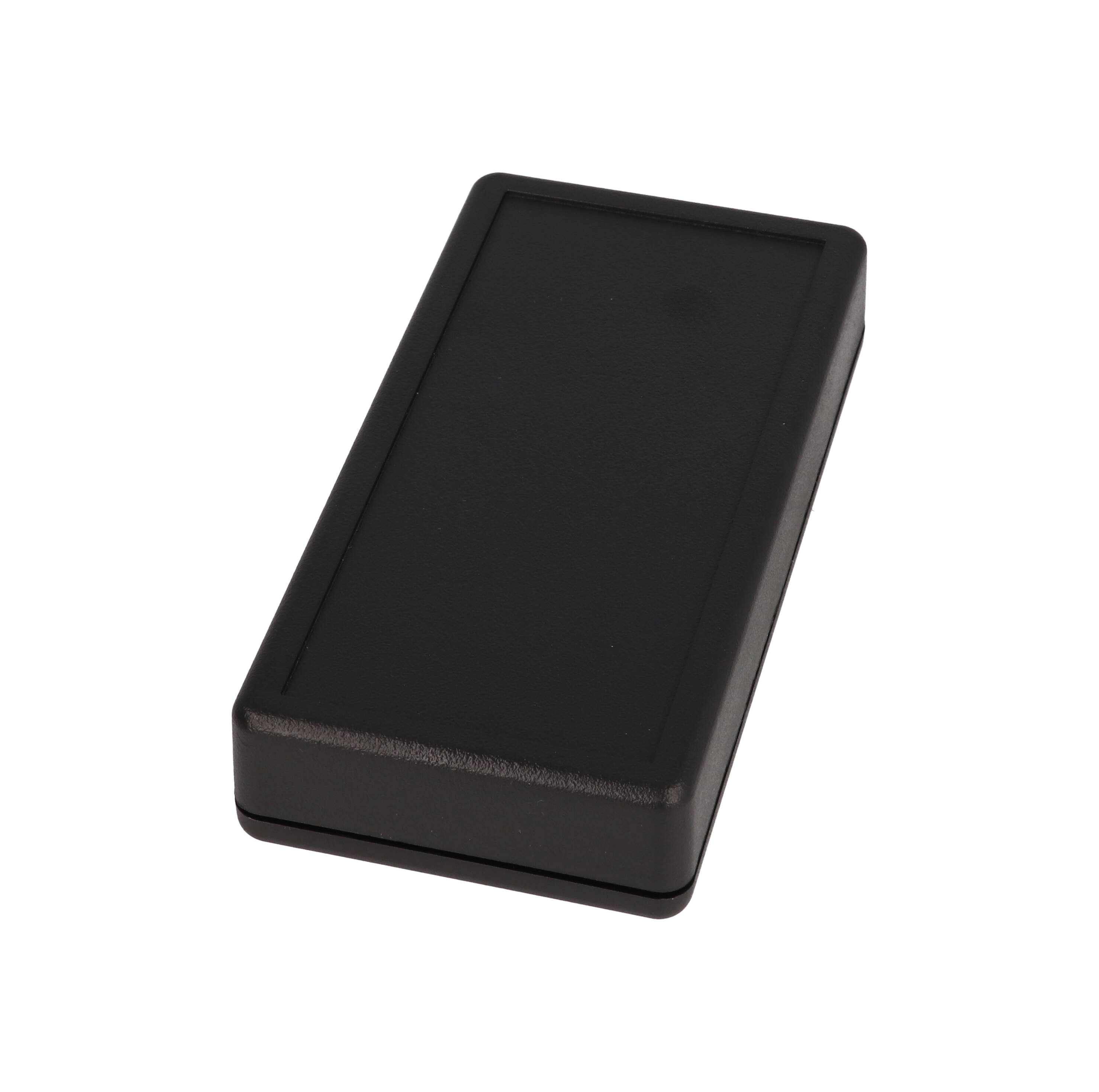

The 1599BBK is the black, standard version of the smallest 1599 handheld enclosure - the 1599B size - molded in flame retardant ABS. It is shaped for hand-held instruments such as handheld controllers and keypad devices, and suits product designers who want a finished-looking case without tooling their own.
The ordering table lists it at 5.12 in (130 mm) long, 2.56 in (65 mm) wide and 1.02 in (26 mm) deep, while the part page gives a nominal 5.12 x 2.56 x 0.97 in (130 x 65 x 25 mm). Inside there is 124.33 mm of length, 59.33 mm of width and 19.25 mm of height, and a printed circuit board of up to 53 x 123.5 mm fits on the standoffs molded into the inside top and bottom, which accept #4 self-tapping screws.
- Flame retardant ABS rated UL94 V-0
- Designed to meet IP54, with lap joint construction against dust and splashing water
- Recessed top for a membrane display or key pad
- Extra deep top and ultra shallow base
- Two keyhole knockouts inside the base for wall mounting

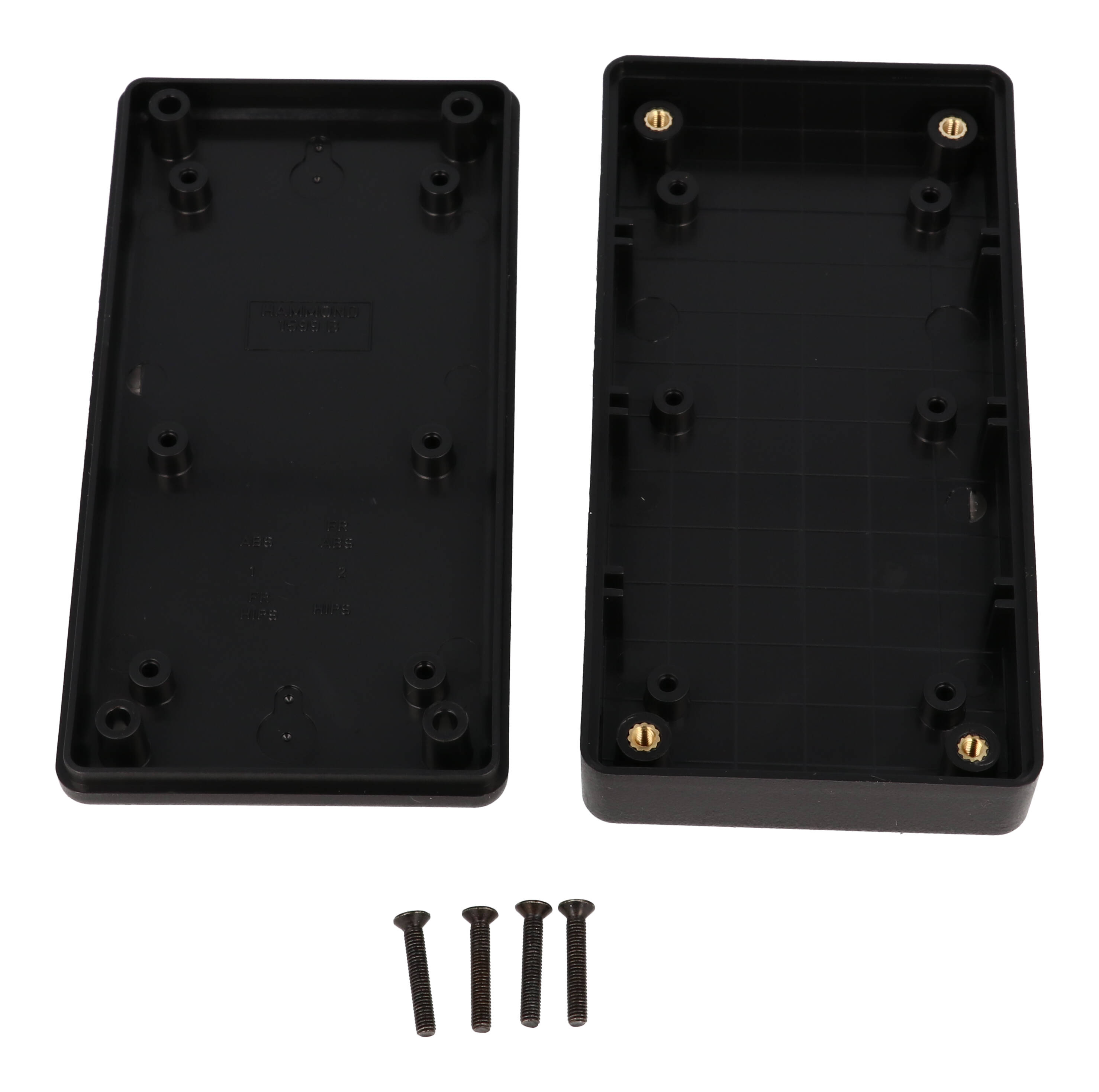

The lid fastens with M3-0.5 machine screws threaded into integral brass bushings, with a recommended torque of 42-57 ozf.in (30-40 cN.m). Each 1599BBK comes with the box, lid and 4 cover screws. Options include the 1599CLIP belt clip, the 1599BD-BULK battery divider and 1593ATS50/1593ATS100 board screws.
Ideal For
- Handheld electronic instruments
- Handheld controllers
- Membrane keypad and display devices
- Wall-mounted small electronics using the keyhole knockouts
Overview
| Color | Black |
| Description | enclosure - plastic |
| Battery Door | No |
| Model Family | 1599B (Fire Retardant ABS) |
| Product Type | Hand-held, general purpose |
| Short Description | HAND HELD CASE & LID FRABS |
| Belt Clip Included | No |
Dimensions
| Inside Width | 59.33 mm [2.34 in] |
| Inside Height | 19.25 mm [.76 in] |
| Inside Length | 124.33 mm [4.89 in] |
| Depth (Ordering Table) | 1.02 in (26 mm) |
| Width (Ordering Table) | 2.56 in (65 mm) |
| Length (Ordering Table) | 5.12 in (130 mm) |
| Nominal Size (L X W X H) | 5.12 in x 2.56 in x 0.97 in (130 mm x 65 mm x 25 mm) |
| Overall Height (Drawing) | 25.50 mm [1.00 in] |
Accessories
| Battery Divider | 1599BD-BULK (ABS divider panel, grey) |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Screws | 1593ATS50 (Pkg 50), 1593ATS100 (Pkg 100) [#4 x 1/4" pan head self-tapping] |
| Replacement Cover Screws (Pkg 100) | 1594MS100 (silver), 1594MS100BK (black) [M3-0.5 x 18 mm flat head machine screws] |
Identifiers
| UPC | 623980566719 |
| UNSPSC | 39121301 |
| Part Number | 1599BBK |
PCB Mounting
| P.C. Board | Not supplied |
| P.C. Board Standoffs | On inside top and bottom; accept #4 self-tapping screws |
| Max. P.C. Board Width | 123.5 mm [4.86 in] |
| Max. P.C. Board Length | 53 mm [2.09 in] |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.18 lbs (0.08 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Joint | Lap joint construction |
| Material | ABS Plastic, flame retardant |
| CAD Models | Solid models available in .stp or .x_t |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| Cover Fastening | M3-0.5 machine screws into integral brass bushings |
| Factory Modification | Milling, drilling, printing etc. available from factory |
| Included In Assembly | Box, lid and 4 cover screws |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; use plastic-safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1599BBK?▾
The ordering table lists 5.12 in (130 mm) long, 2.56 in (65 mm) wide and 1.02 in (26 mm) deep; the part page gives a nominal 5.12 x 2.56 x 0.97 in (130 x 65 x 25 mm). Inside dimensions are 124.33 mm [4.89 in] long, 59.33 mm [2.34 in] wide and 19.25 mm [.76 in] high.
What size circuit board fits?▾
The maximum P.C. board is 53 mm by 123.5 mm. Standoffs on the inside top and bottom accept #4 self-tapping screws (1593ATS50 or 1593ATS100). The board is not supplied.
What is included?▾
The purchased assembly includes box, lid and 4 cover screws.
Is it flame retardant?▾
Yes. The box and lid are made from flame retardant ABS with a UL flammability rating of 94 V-0.
Is the 1599BBK waterproof?▾
It is designed to meet IP54. Lap joint construction provides protection against access of dust and splashing water.
Can I add a belt clip later?▾
Yes. The 1599CLIP (black) or 1599CLIPGY (grey) nylon belt clip is compatible with all 1599 enclosures; it includes 2 nylon screws and a mounting template.
