Hammond 1599BSGYBAT 130x65mm General Purpose Grey Case, Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- General purpose ABS box and lid, light grey, UL94 HB
- Battery door for BH1AAAW, BH2AAAW or BS61 9V holder kits
- 130 x 65 x 25 mm (5.12 x 2.56 x 0.97 in)
- Maximum P.C. board 89.25 x 53 mm
- Self-tapping screws into plastic posts; 4 cover screws included
- Recessed top for membrane display or key pad
- RoHS and REACH compliant

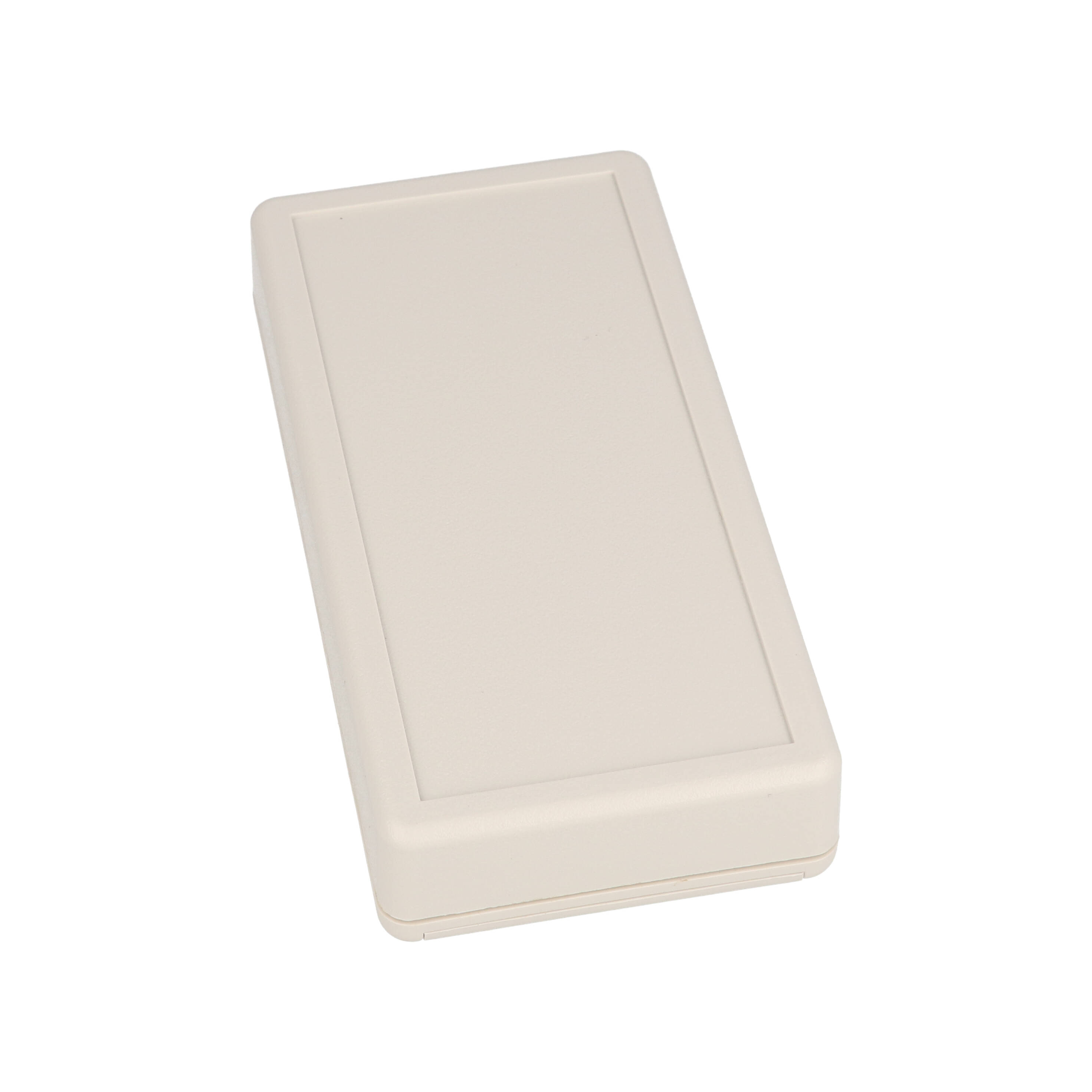

The 1599BSGYBAT is the general purpose, light grey B-size 1599 Series handheld enclosure with a battery door. It is an economical choice for battery-powered handheld devices where a flame retardant enclosure is not specified.

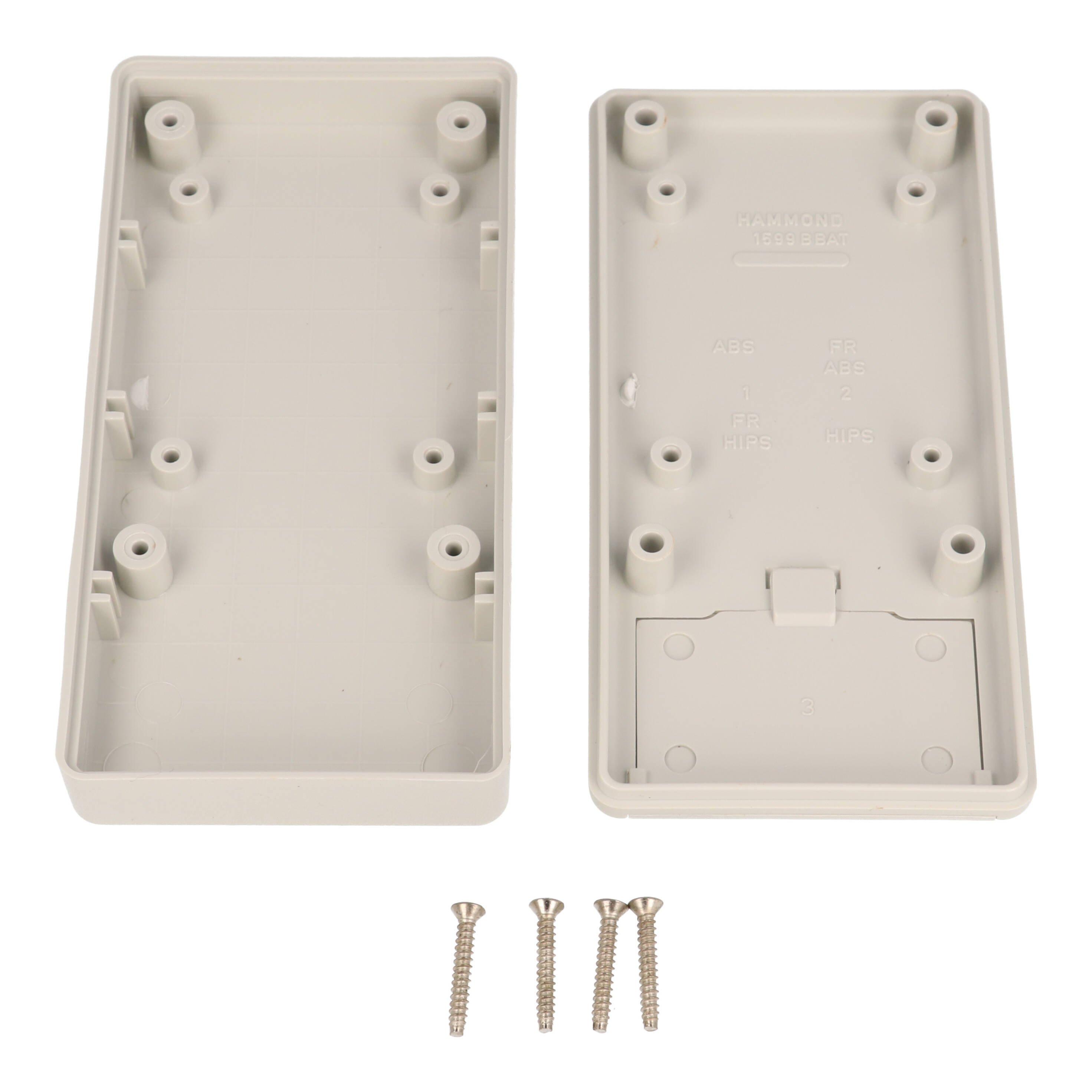

The box and lid are general purpose ABS rated UL94 HB and assemble with self-tapping screws into plastic posts. The purchased assembly includes the box, lid, battery door and 4 cover screws, and the recommended torque is 42-57 ozf.in (30-40 cN.m). Replacement cover screws are #4 x 3/4" self-tapping (1599BTS100, pack of 100).
Listed size is 5.12 x 2.56 x 0.97 in (130 x 65 x 25 mm); the drawing shows inside dimensions of 124.13 x 59.82 x 19.50 mm. The battery compartment reduces the usable board length, giving a maximum P.C. board of 89.25 x 53 mm on standoffs that accept #4 self-tapping screws. Shipping weight is 0.17 lbs (0.08 kg).
The battery door suits BH1AAAW, BH2AAAW and BS61 (9V) holder kits, and a 1599BD-BULK divider is available. The recessed top accepts a membrane display or key pad, lap joints help keep out dust and splashing water, and keyhole knockouts inside the base allow wall mounting. The 1599BSGYBAT is RoHS and REACH compliant and ships in shrink wrap.
Ideal For
- Battery-powered handheld devices
- Economical portable instruments
- AAA or 9V powered remotes
- Hobby and prototype handheld electronics
Overview
| Type | Hand-held, battery door |
| Series | 1599 Series Hand Held Enclosures |
| Version | General purpose (not flame retardant) |
| Part Number | 1599BSGYBAT |
| Battery Door | Yes |
| Long Description | enclosure - plastic |
| Short Description | PLASTIC BOX W/BATTERY DOOR |
| Belt Clip Included | No |
| Flame Retardant Version (Ordering Table) | 1599BGYBAT |
| General Purpose Version (Ordering Table) | 1599BSGYBAT |
Dimensions
| Inside Width | 59.82 mm [2.35 in] |
| Inside Height | 19.50 mm [.77 in] |
| Inside Length | 124.13 mm [4.89 in] |
| Size L X W X H | 5.12 in x 2.56 in x 0.97 in (130 mm x 65 mm x 25 mm) |
| Max. P.C. Board Width | 89.25 mm |
| Max. P.C. Board Length | 53 mm |
| Overall Width (Drawing) | 65.00 mm [2.56 in] |
| Overall Height (Drawing) | 25.50 mm [1.00 in] |
| Overall Length (Drawing) | 130.00 mm [5.12 in] |
| Maximum P.C. Board (Drawing) | 89.25 mm x 53.00 mm [3.51 in x 2.09 in] |
| Nominal Size L X W X D (Ordering Table) | 5.12 in (130 mm) x 2.56 in (65 mm) x 1.02 in (26 mm) |
Accessories
| Battery Divider | 1599BD-BULK (ABS divider panel, grey) |
| P.C. Board Screws | #4 x 1/4" pan head self-tapping, pkg of 50 (1593ATS50) or 100 (1593ATS100) |
| Optional Belt Clip | Nylon belt clip 1599CLIP (Black) or 1599CLIPGY (Grey); includes 2 insulated nylon screws and mounting template |
| Replacement Cover Screws | #4 x 3/4" self-tapping, pkg 100: 1599BTS100 |
| Battery Holder Kits (Fit B Size) | BH1AAAW (1 AAA), BH2AAAW (2 AAA), BS61 (1 x 9V) |
Identifiers
| UPC | 623980566474 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Box, lid, battery door and 4 cover screws (P.C. board not supplied) |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.17 lbs (0.08 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Color | Light Gray |
| Joint | Lap joint construction (protection against access of dust and splashing water) |
| Material | ABS Plastic |
| Fastening | Self-tapping screws into plastic posts |
| Solid Models | .stp or .x_t |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| P.C. Board Mounting | PC board standoffs on the inside top and bottom; accepts #4 self-tapping screws (P.C. board not supplied) |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Color (Ordering Table) | Grey |
| Enclosure Material Detail | Box and lid made from general purpose ABS (not flame retardant) |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is included with the 1599BSGYBAT?▾
Box, lid, battery door and 4 cover screws. The P.C. board and battery holder are sold separately.
Which battery holder kits fit?▾
BH1AAAW (1 AAA), BH2AAAW (2 AAA) and BS61 (one 9V cell).
Is it flame retardant?▾
No. It is the general purpose version, rated UL94 HB. The flame retardant equivalent is 1599BGYBAT.
What is the maximum P.C. board size?▾
89.25 mm x 53 mm.
Which screws hold the lid on?▾
#4 x 3/4" self-tapping screws into plastic posts; replacements are 1599BTS100 (100 pack).
Are there chemicals I should keep away from this ABS enclosure?▾
Yes. The manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection and anti-seize pastes, strong solvents or cleaners, and some greases and oils.
