Hammond 1599HBKBAT 220x110mm Black Flame Retardant Case, Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black flame retardant ABS box and lid, UL94 V-0
- Battery door takes 1-4 AA, 1-4 AAA or 9V holder kits
- 220 x 110 x 44 mm (8.66 x 4.33 x 1.73 in)
- Maximum P.C. board 140 x 96.5 mm
- Machine screws into brass bushings; 4 cover screws included
- Recessed top for membrane display or key pad
- Keyhole knockouts for wall mounting

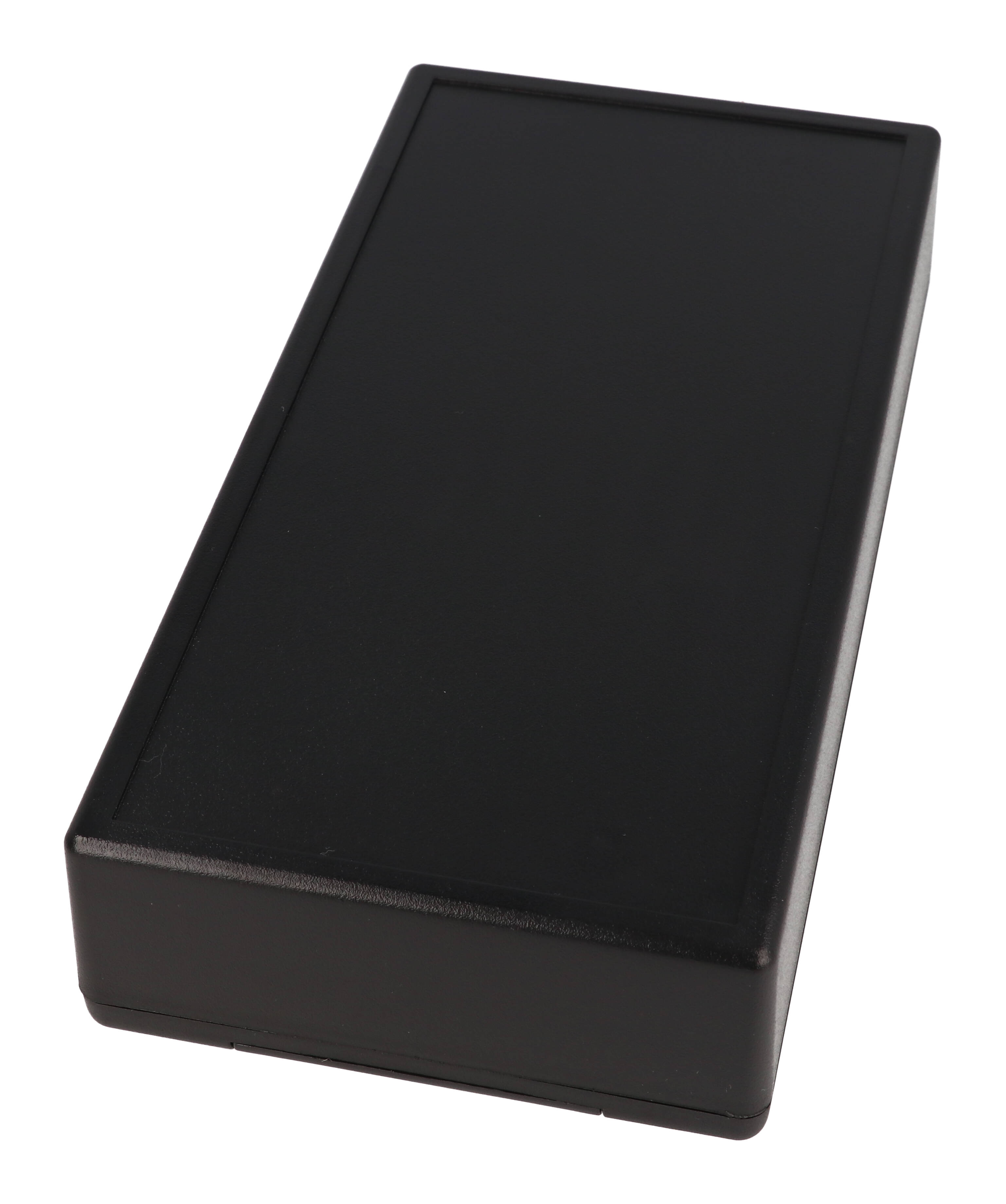

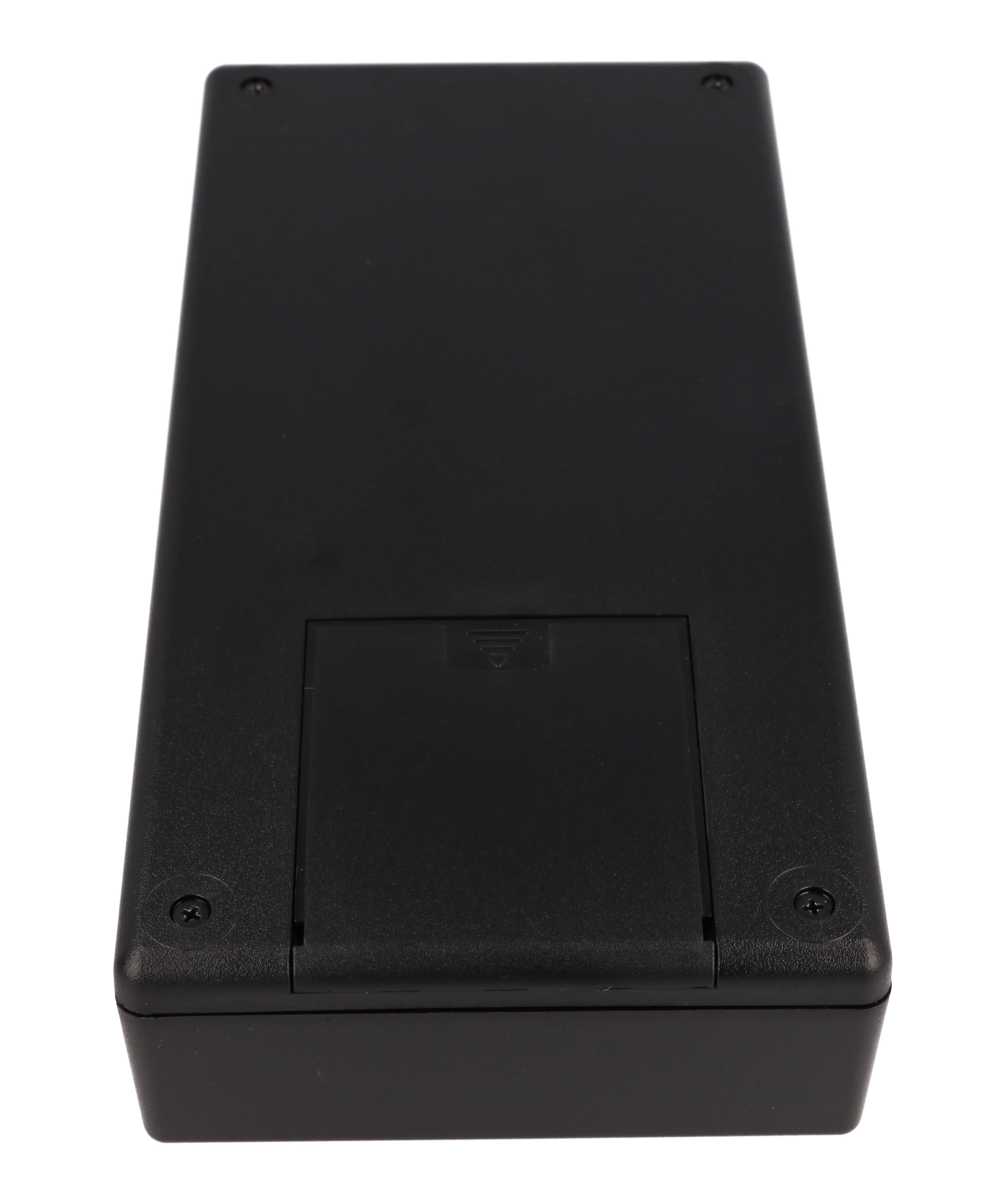

The 1599HBKBAT is the H-size 1599 Series handheld enclosure in black flame retardant ABS with a battery door. It is suited to substantial battery-powered handheld equipment that may need up to four AA or AAA cells.

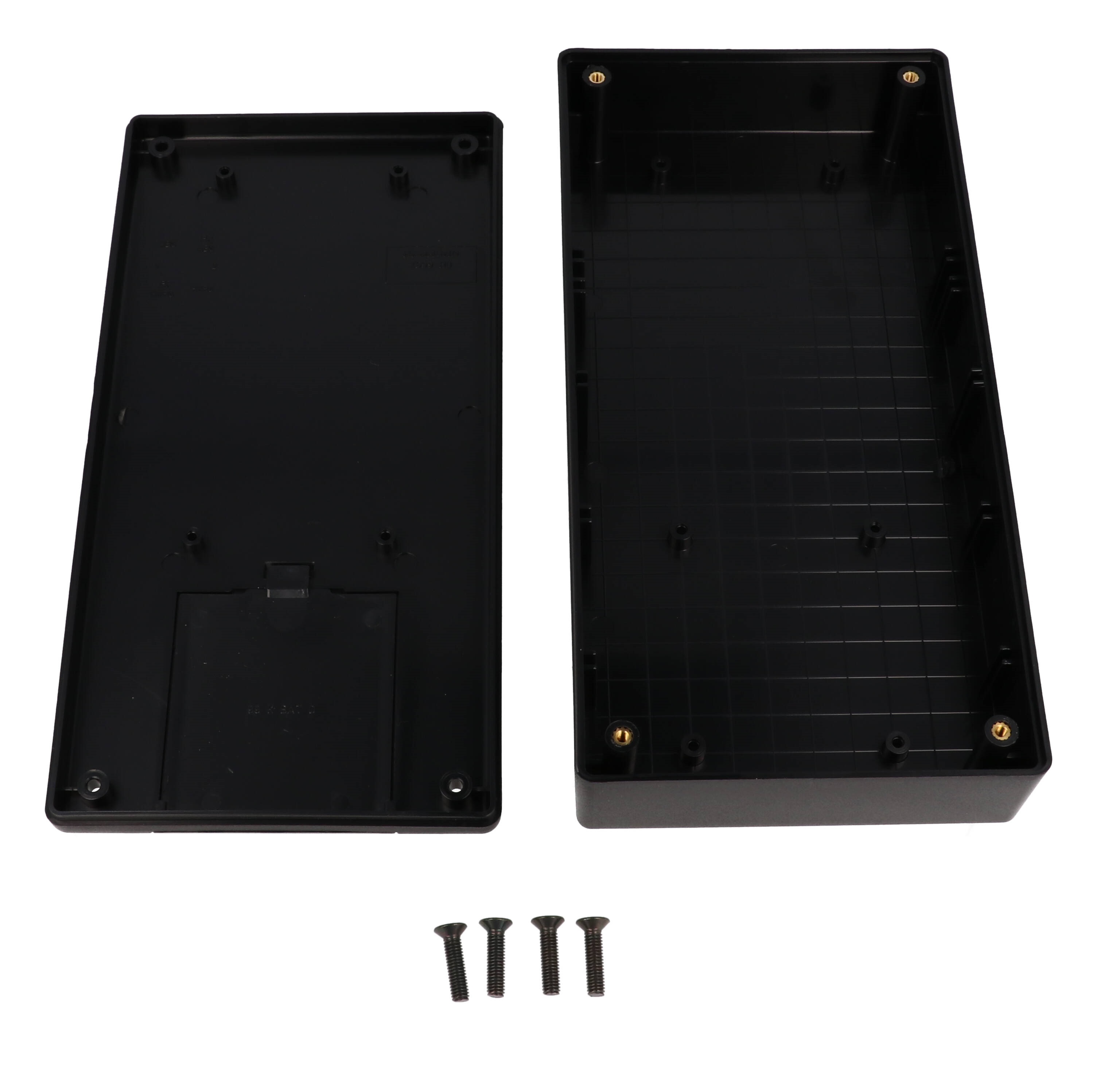

The box and lid are flame retardant ABS with a UL flammability rating of 94 V-0, assembled with machine screws into integral brass bushings. The purchased assembly includes the box, lid, battery door and 4 cover screws, and the recommended torque is 42-57 ozf.in (30-40 cN.m). Replacement M3-0.5 x 12mm screws are 1599HMS100 or 1599HMS100BK.
Listed size is 8.66 x 4.33 x 1.73 in (220 x 110 x 44 mm), with a 45 mm depth in the ordering table. The drawing shows an inside width of 103.70 mm and inside height of 38.25 mm. With the battery compartment in place, the maximum P.C. board is 140 x 96.5 mm, mounted on standoffs for #4 self-tapping screws. Shipping weight is 0.54 lbs (0.24 kg).
- Battery holder kits for the H size: BH1AAW to BH4AAW (1-4 AA), BH1AAAW to BH4AAAW (1-4 AAA) or BS61 (9V)
- Optional 1599HD-BULK battery divider
- Recessed top for a membrane display or key pad
Lap joint construction helps keep out dust and splashing water, and keyhole knockouts inside the base allow wall mounting. The 1599HBKBAT is RoHS and REACH compliant and ships in shrink wrap.
Ideal For
- Multi-cell battery-powered handheld equipment
- Large portable instruments and data terminals
- Handheld controllers with keypads and displays
- Portable field test equipment
Overview
| Type | Hand-held, battery door |
| Series | 1599 Series Hand Held Enclosures |
| Version | Flame retardant |
| Part Number | 1599HBKBAT |
| Battery Door | Yes |
| Long Description | enclosure - plastic |
| Short Description | 1599H BLACK CASE W/ BAT DOOR |
| Belt Clip Included | No |
| Flame Retardant Version (Ordering Table) | 1599HBKBAT |
Dimensions
| Inside Width | 103.70 mm [4.08 in] |
| Inside Height | 38.25 mm [1.51 in] |
| Size L X W X H | 8.66 in x 4.33 in x 1.73 in (220 mm x 110 mm x 44 mm) |
| Max. P.C. Board Width | 140 mm |
| Max. P.C. Board Length | 96.5 mm |
| Overall Width (Drawing) | 110.00 mm [4.33 in] |
| Overall Height (Drawing) | 44.85 mm [1.77 in] |
| Overall Length (Drawing) | 220.00 mm [8.66 in] |
| Nominal Size L X W X D (Ordering Table) | 8.66 in (220 mm) x 4.33 in (110 mm) x 1.77 in (45 mm) |
Accessories
| Battery Divider | 1599HD-BULK (ABS divider panel) |
| P.C. Board Screws | #4 x 1/4" pan head self-tapping, pkg of 50 (1593ATS50) or 100 (1593ATS100) |
| Optional Belt Clip | Nylon belt clip 1599CLIP (Black) or 1599CLIPGY (Grey); includes 2 insulated nylon screws and mounting template |
| Replacement Cover Screws | M3-0.5 x 12mm machine screws, pkg 100: 1599HMS100 (nickel plated) or 1599HMS100BK (black oxide) |
| Battery Holder Kits (Fit H Size) | BH1AAW, BH2AAW, BH3AAW, BH4AAW (1-4 AA), BH1AAAW, BH2AAAW, BH3AAAW, BH4AAAW (1-4 AAA), BS61 (1 x 9V) |
Identifiers
| UPC | 623980998978 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Box, lid, battery door and 4 cover screws (P.C. board not supplied) |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.54 lbs (0.24 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Color | Black |
| Joint | Lap joint construction (protection against access of dust and splashing water) |
| Material | ABS Plastic |
| Fastening | Machine screws into integral brass bushings |
| Solid Models | STEP or IGES |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| P.C. Board Mounting | PC board standoffs on the inside top and bottom; accepts #4 self-tapping screws (P.C. board not supplied) |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Color (Ordering Table) | Black |
| Enclosure Material Detail | Box and lid made from flame retardant ABS with a UL flammability rating of 94 V-0 |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many batteries can the 1599HBKBAT hold?▾
Battery holder kits for the 1599H size cover 1 to 4 AA cells (BH1AAW-BH4AAW), 1 to 4 AAA cells (BH1AAAW-BH4AAAW) or one 9V cell (BS61).
What is the maximum P.C. board?▾
140 mm x 96.5 mm.
What is included?▾
Box, lid, battery door and 4 cover screws.
Is it flame retardant?▾
Yes, flame retardant ABS with a UL flammability rating of 94 V-0.
Does it carry an IP rating?▾
No IP rating is listed for this battery door version; the series states versions without a battery door are designed to meet IP54.
Are there chemicals I should keep away from this ABS enclosure?▾
Yes. The manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection and anti-seize pastes, strong solvents or cleaners, and some greases and oils.
