Hammond 1599BSGY IP54 130x65mm Grey General Purpose ABS Handheld Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Economical general purpose ABS, light grey, UL94 HB
- IP54 rating; lap joint against dust and splashing water
- 130 x 65 x 25 mm (5.12 x 2.56 x 0.97 in)
- Maximum P.C. board 123.5 x 53 mm
- Self-tapping screws into plastic posts; 4 cover screws included
- Recessed top for membrane display or key pad
- Keyhole knockouts inside the base for wall mounting

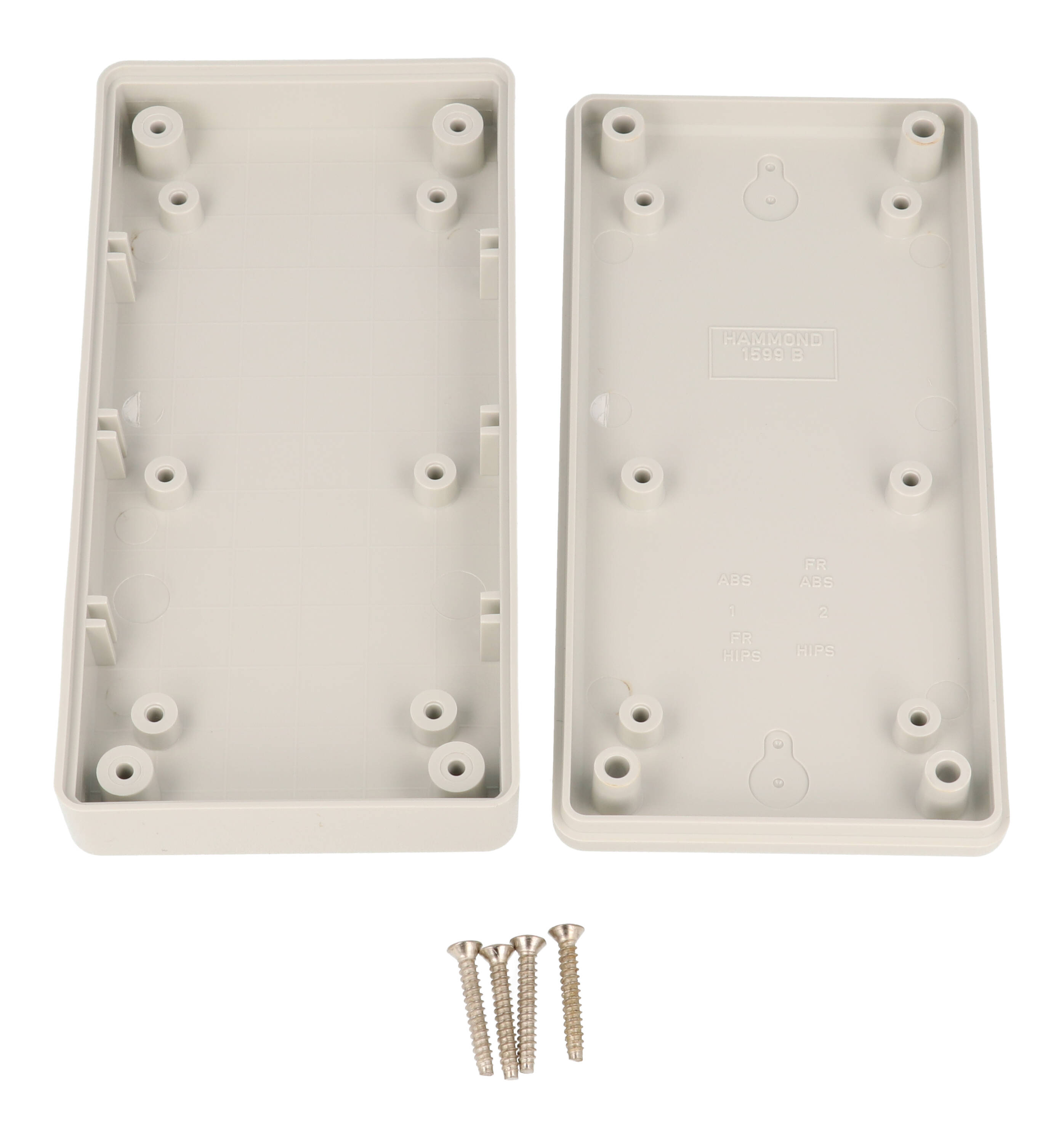

The 1599BSGY is the general purpose version of the B-size 1599 Series handheld enclosure, in light grey. It offers the same ergonomic styling as the flame retardant models at an economical price point, for handheld projects where a flame retardant rating is not required.
Box and lid are made from general purpose ABS with a UL94 HB flame rating (the series notes the general purpose plastic is not flame retardant). Assembly is with self-tapping screws into plastic posts; the purchased assembly includes the box, lid and 4 cover screws, and the recommended torque is 42-57 ozf.in (30-40 cN.m). Replacement cover screws are #4 x 3/4" self-tapping, sold 100 per pack as 1599BTS100.
The listed size is 5.12 x 2.56 x 0.97 in (130 x 65 x 25 mm), with inside dimensions on the drawing of 124.33 x 59.33 x 19.25 mm. There is no battery door, so the maximum P.C. board is 123.5 x 53 mm, fixed to standoffs that accept #4 self-tapping screws. Shipping weight is 0.17 lbs (0.08 kg).
The 1599BSGY is listed as IP54, with lap joint construction against dust and splashing water. A recessed top suits a membrane display or key pad, and two keyhole knockouts inside the base allow wall mounting. It is RoHS and REACH compliant and ships in shrink wrap.
Ideal For
- Cost-sensitive handheld instruments
- Remote controls and keypad devices
- Portable electronics prototypes
- Small wall-mounted control units
Overview
| Type | Hand-held, general purpose |
| Series | 1599 Series Hand Held Enclosures |
| Version | General purpose (not flame retardant) |
| Part Number | 1599BSGY |
| Battery Door | No |
| Long Description | enclosure - plastic |
| Short Description | PLASTIC BOX |
| Belt Clip Included | No |
| Flame Retardant Version (Ordering Table) | 1599BGY |
| General Purpose Version (Ordering Table) | 1599BSGY |
Dimensions
| Inside Width | 59.33 mm [2.34 in] |
| Inside Height | 19.25 mm [.76 in] |
| Inside Length | 124.33 mm [4.89 in] |
| Size L X W X H | 5.12 in x 2.56 in x 0.97 in (130 mm x 65 mm x 25 mm) |
| Max. P.C. Board Width | 123.5 mm |
| Max. P.C. Board Length | 53 mm |
| Overall Width (Drawing) | 65.00 mm [2.56 in] |
| Overall Height (Drawing) | 25.50 mm [1.00 in] |
| Overall Length (Drawing) | 130.00 mm [5.12 in] |
| Maximum P.C. Board (Drawing) | 123.50 mm x 53.00 mm [4.86 in x 2.09 in] |
| Nominal Size L X W X D (Ordering Table) | 5.12 in (130 mm) x 2.56 in (65 mm) x 1.02 in (26 mm) |
Accessories
| Battery Divider | 1599BD-BULK (ABS divider panel, grey) |
| P.C. Board Screws | #4 x 1/4" pan head self-tapping, pkg of 50 (1593ATS50) or 100 (1593ATS100) |
| Optional Belt Clip | Nylon belt clip 1599CLIP (Black) or 1599CLIPGY (Grey); includes 2 insulated nylon screws and mounting template |
| Replacement Cover Screws | #4 x 3/4" self-tapping, pkg 100: 1599BTS100 |
Identifiers
| UPC | 623980566733 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Box, lid and 4 cover screws (P.C. board not supplied) |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.17 lbs (0.08 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Color | Light Gray |
| Joint | Lap joint construction (protection against access of dust and splashing water) |
| Material | ABS Plastic |
| Fastening | Self-tapping screws into plastic posts |
| Solid Models | .stp or .x_t |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| P.C. Board Mounting | PC board standoffs on the inside top and bottom; accepts #4 self-tapping screws (P.C. board not supplied) |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Color (Ordering Table) | Grey |
| Enclosure Material Detail | Box and lid made from general purpose ABS (not flame retardant) |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1599BSGY differ from the 1599BGY?▾
The 1599BSGY is the general purpose version: general purpose ABS rated UL94 HB with self-tapping screws into plastic posts. The 1599BGY is the flame retardant equivalent in the ordering table.
Is it weather or dust protected?▾
It is listed as IP54, and lap joint construction protects against access of dust and splashing water.
What P.C. board size fits?▾
Up to 123.5 mm x 53 mm.
Which replacement cover screws does it use?▾
#4 x 3/4" self-tapping screws, 100 pack part number 1599BTS100.
Can I add a belt clip?▾
Yes. The optional nylon belt clip 1599CLIP (black) or 1599CLIPGY (grey) is compatible with 1599 enclosures.
Can this enclosure be wall mounted?▾
Yes. Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.
