Hammond 1599ESGYBAT 170x85mm General Purpose Grey Case, Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- General purpose ABS, light grey, UL94 HB
- Battery door fits AA, AAA or 9V holder kits for the E size
- 170 x 85 x 34 mm (6.7 x 3.35 x 1.33 in)
- Maximum P.C. board 129 x 72 mm
- Self-tapping screws into plastic posts; 4 cover screws included
- Recessed top for membrane display or key pad
- RoHS and REACH compliant

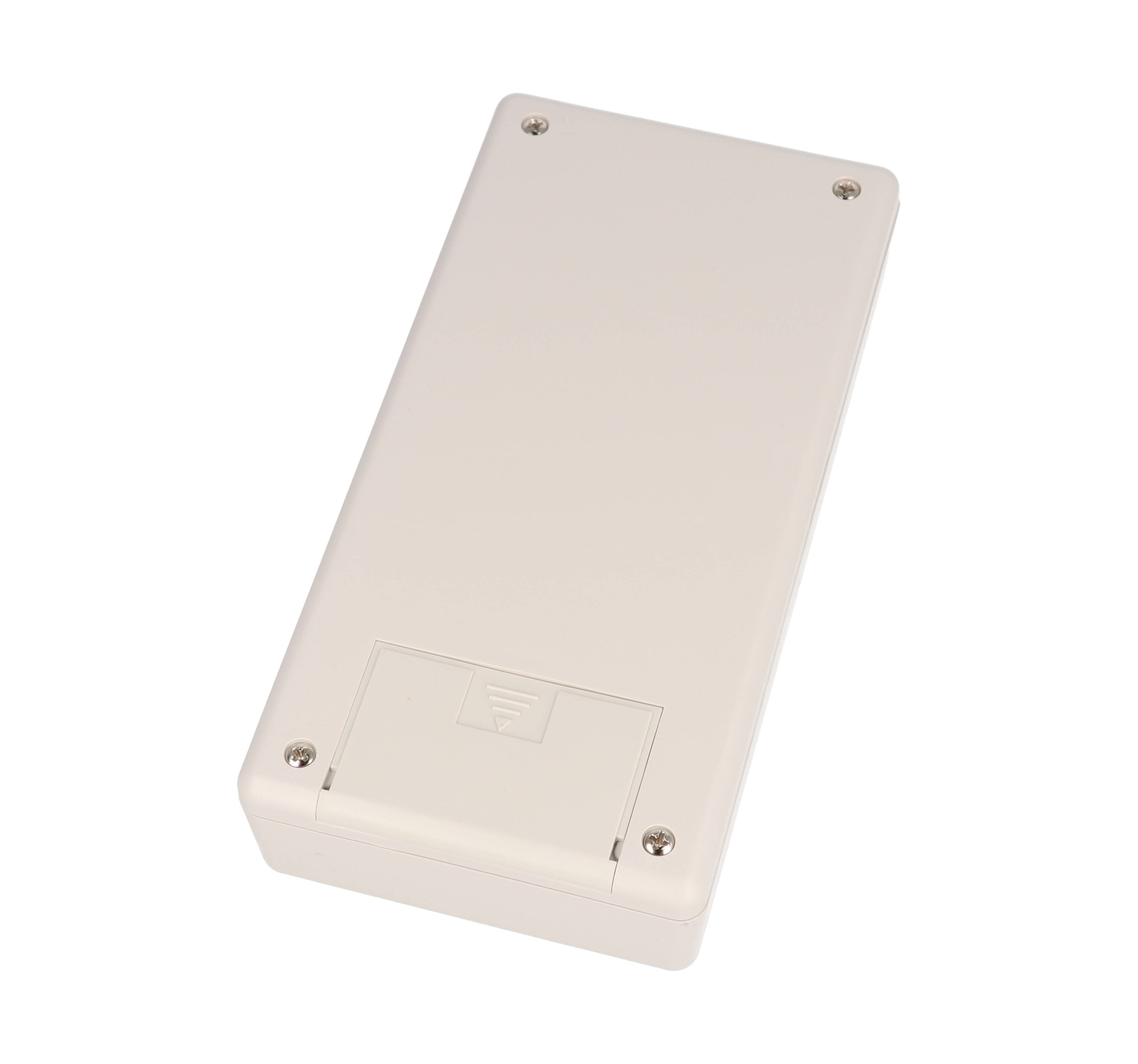

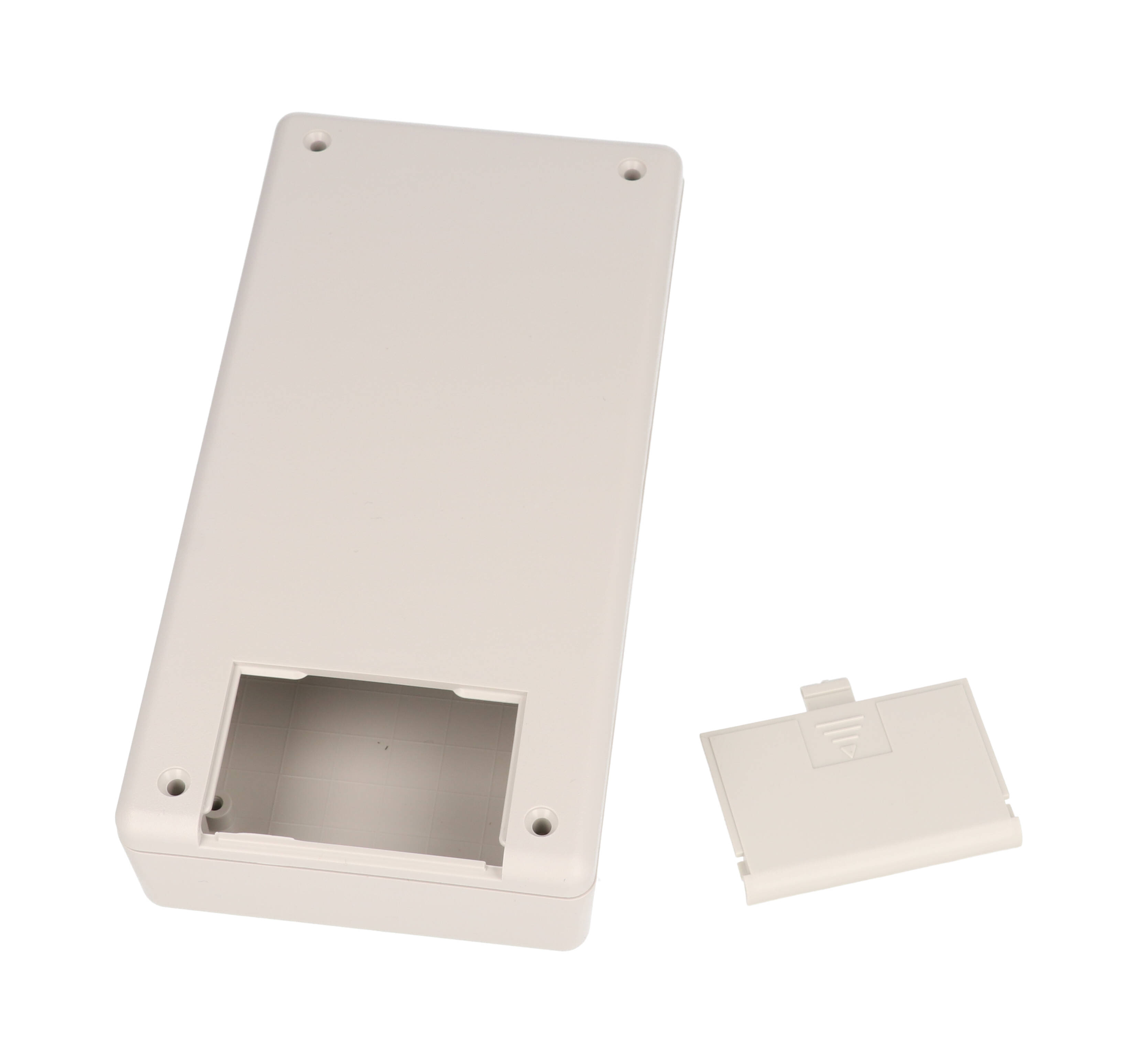

The 1599ESGYBAT is the general purpose, light grey E-size 1599 Series handheld enclosure with a battery door. It is an economical option for battery-powered handheld electronics where the design does not call for a flame retardant enclosure.

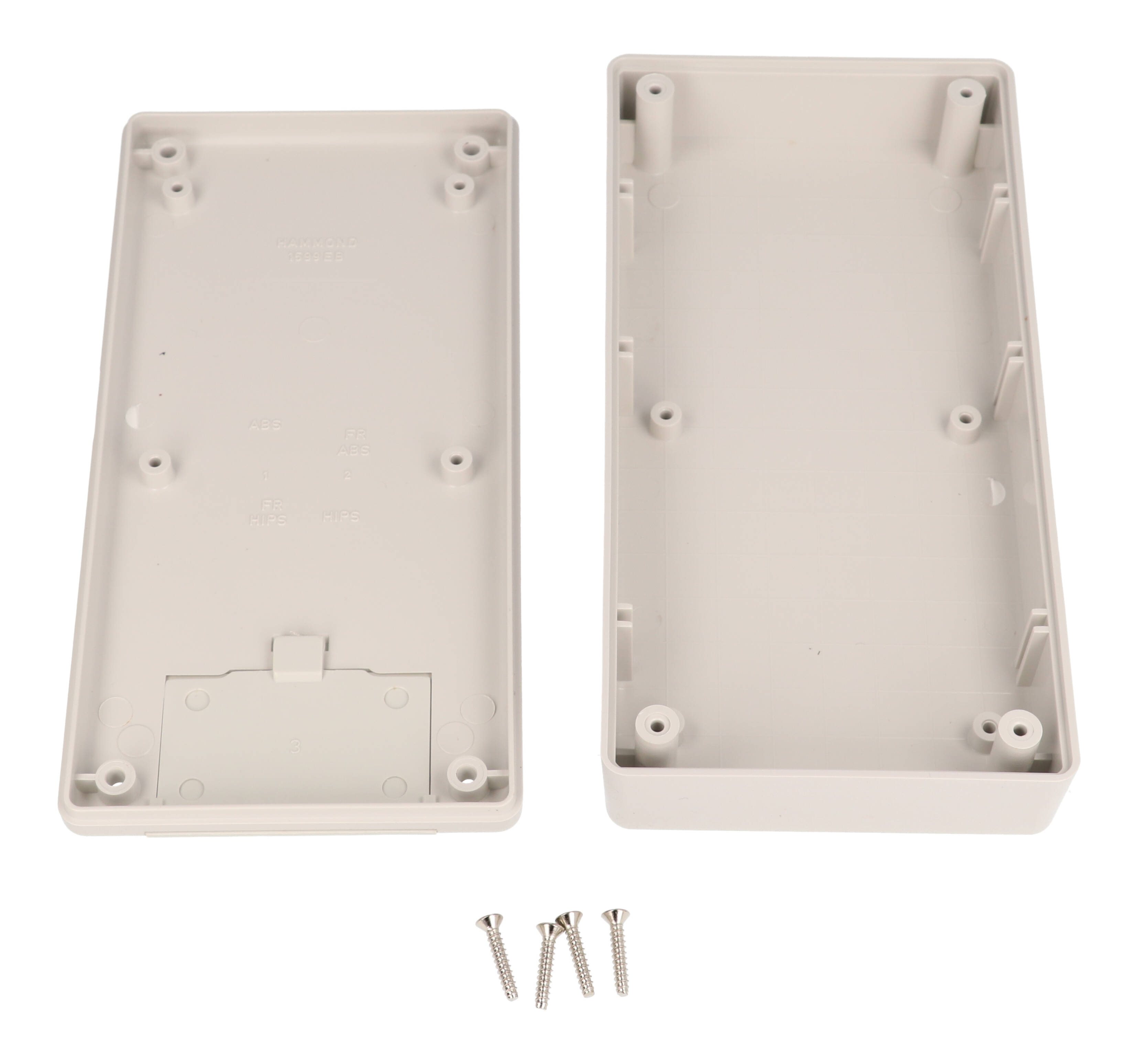

The box and lid are general purpose ABS rated UL94 HB, assembled with self-tapping screws into plastic posts. The purchased assembly includes the box, lid, battery door and 4 cover screws; recommended torque is 42-57 ozf.in (30-40 cN.m). Replacement #4 x 5/8" self-tapping cover screws are 1593MS100.
Size per the listing is 6.7 x 3.35 x 1.33 in (170 x 85 x 34 mm), shown as 170 x 86 x 35 mm in the ordering table. Inside dimensions on the drawing are 164.01 x 80.19 x 28.75 mm. The battery compartment limits the maximum P.C. board to 129 x 72 mm, fixed on standoffs that accept #4 self-tapping screws. Shipping weight is 0.28 lbs (0.13 kg).
- Battery holder kits for the E size: BH1AAW, BH2AAW (1-2 AA), BH1AAAW, BH2AAAW, BH3AAAW (1-3 AAA) or BS61 (9V)
- Optional 1599ED-BULK battery divider
- Optional nylon belt clip 1599CLIP or 1599CLIPGY

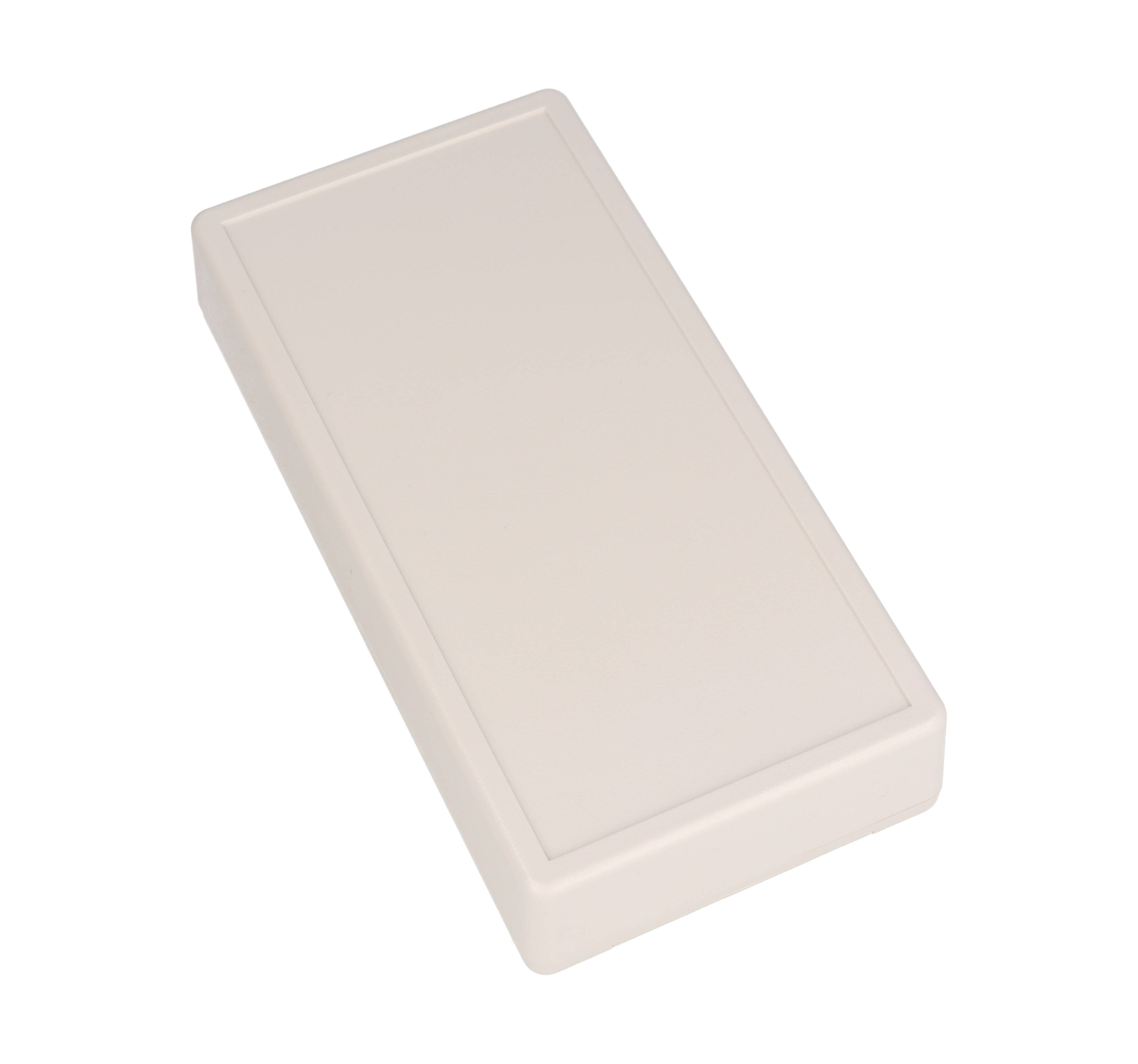

The recessed top accepts a membrane display or key pad, and keyhole knockouts inside the base permit wall mounting. The 1599ESGYBAT is RoHS and REACH compliant and ships in shrink wrap.
Ideal For
- Economical battery-powered handheld devices
- AA or AAA powered remotes and meters
- 9V battery portable electronics
- Prototype handheld instruments
Overview
| Type | Hand-held, battery door |
| Series | 1599 Series Hand Held Enclosures |
| Version | General purpose (not flame retardant) |
| Part Number | 1599ESGYBAT |
| Battery Door | Yes |
| Long Description | enclosure - plastic |
| Short Description | PLASTIC BOX W/BATTERY DOOR |
| Belt Clip Included | No |
| Flame Retardant Version (Ordering Table) | 1599EGYBAT |
| General Purpose Version (Ordering Table) | 1599ESGYBAT |
Dimensions
| Inside Width | 80.19 mm [3.16 in] |
| Inside Height | 28.75 mm [1.13 in] |
| Inside Length | 164.01 mm [6.46 in] |
| Size L X W X H | 6.7 in x 3.35 in x 1.33 in (170 mm x 85 mm x 34 mm) |
| Max. P.C. Board Width | 129 mm |
| Max. P.C. Board Length | 72 mm |
| Overall Width (Drawing) | 85.50 mm [3.37 in] |
| Overall Length (Drawing) | 170.00 mm [6.69 in] |
| Maximum P.C. Board (Drawing) | 129.00 mm x 72.00 mm [5.08 in x 2.83 in] |
| Nominal Size L X W X D (Ordering Table) | 6.69 in (170 mm) x 3.39 in (86 mm) x 1.38 in (35 mm) |
Accessories
| Battery Divider | 1599ED-BULK (ABS divider panel) |
| P.C. Board Screws | #4 x 1/4" pan head self-tapping, pkg of 50 (1593ATS50) or 100 (1593ATS100) |
| Optional Belt Clip | Nylon belt clip 1599CLIP (Black) or 1599CLIPGY (Grey); includes 2 insulated nylon screws and mounting template |
| Replacement Cover Screws | #4 x 5/8" self-tapping, pkg 100: 1593MS100 |
| Battery Holder Kits (Fit E Size) | BH1AAW (1 AA), BH2AAW (2 AA), BH1AAAW (1 AAA), BH2AAAW (2 AAA), BH3AAAW (3 AAA), BS61 (1 x 9V) |
Identifiers
| UPC | 623980566542 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Box, lid, battery door and 4 cover screws (P.C. board not supplied) |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.28 lbs (0.13 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Color | Light Gray |
| Joint | Lap joint construction (protection against access of dust and splashing water) |
| Material | ABS Plastic |
| Fastening | Self-tapping screws into plastic posts |
| Solid Models | STEP or IGES |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| P.C. Board Mounting | PC board standoffs on the inside top and bottom; accepts #4 self-tapping screws (P.C. board not supplied) |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Color (Ordering Table) | Grey |
| Enclosure Material Detail | Box and lid made from general purpose ABS (not flame retardant) |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What does the 1599ESGYBAT include?▾
Box, lid, battery door and 4 cover screws. Battery holders and the P.C. board are not included.
Which battery holders fit?▾
BH1AAW, BH2AAW, BH1AAAW, BH2AAAW, BH3AAAW and BS61 (9V) are listed for the 1599E size.
Is it flame retardant?▾
No. It is general purpose ABS rated UL94 HB; the flame retardant equivalent is 1599EGYBAT.
What is the maximum P.C. board size?▾
129 mm x 72 mm.
Which cover screws does it use?▾
#4 x 5/8" self-tapping screws; replacements are 1593MS100 (100 pack).
Are there chemicals I should keep away from this ABS enclosure?▾
Yes. The manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection and anti-seize pastes, strong solvents or cleaners, and some greases and oils.
