Hammond BH2AAAW Two-Cell AAA Battery Holder with Wire Leads
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Holds two AAA batteries (not included)
- Pre-attached + and - wires, 150.00 mm [5.91 in] per drawing
- Adhesive pad on underside for installation
- 51.20 mm [2.02 in] long x 23.90 mm [.94 in] wide x 14.45 mm [.57 in] high
- Black ABS plastic
- RoHS and REACH compliant; 1 per package

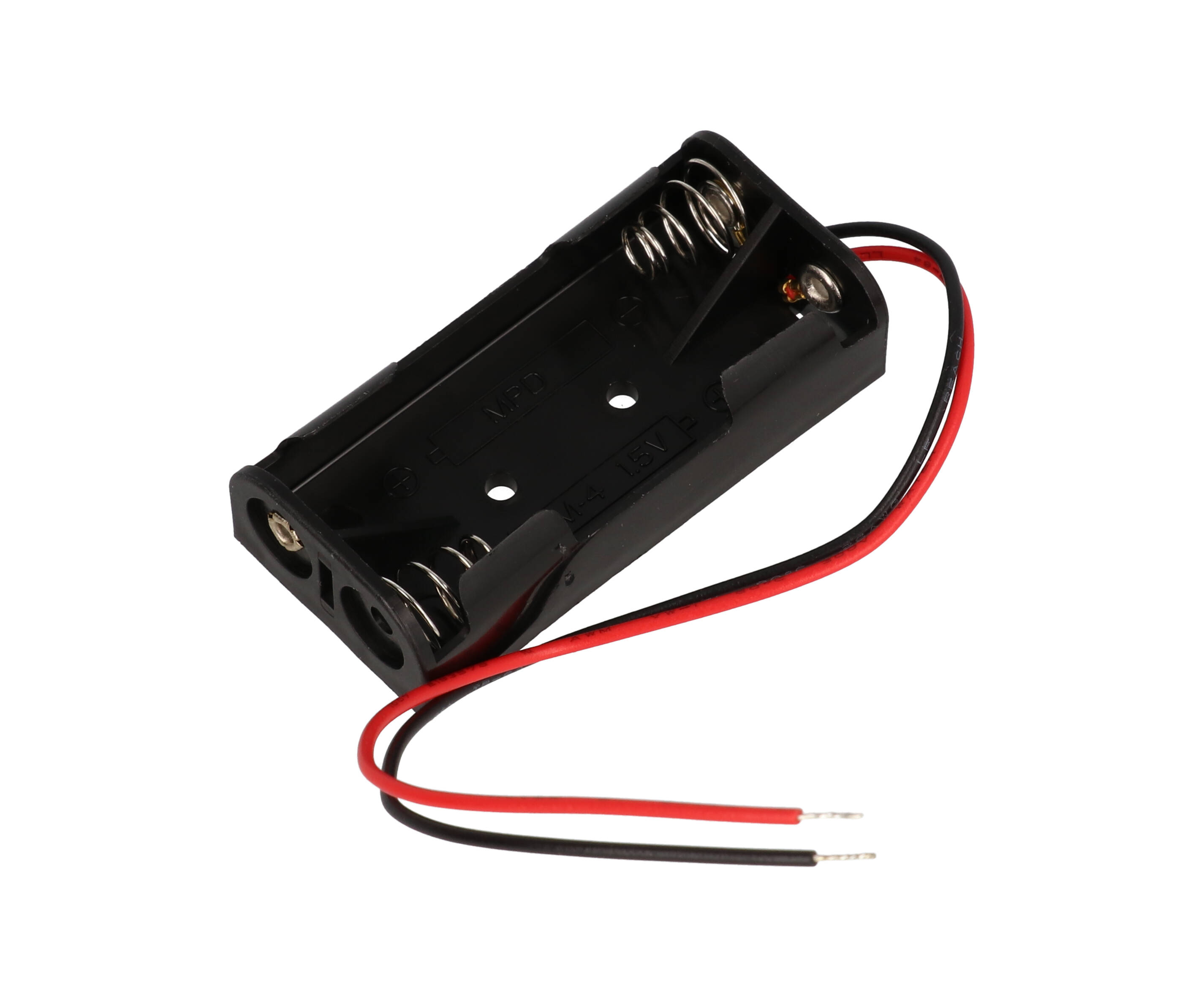

The BH2AAAW is a battery holder that accepts two AAA cells, giving product developers and electronics builders an easy wired power pack for compact devices. Batteries are not included; one holder comes per package.

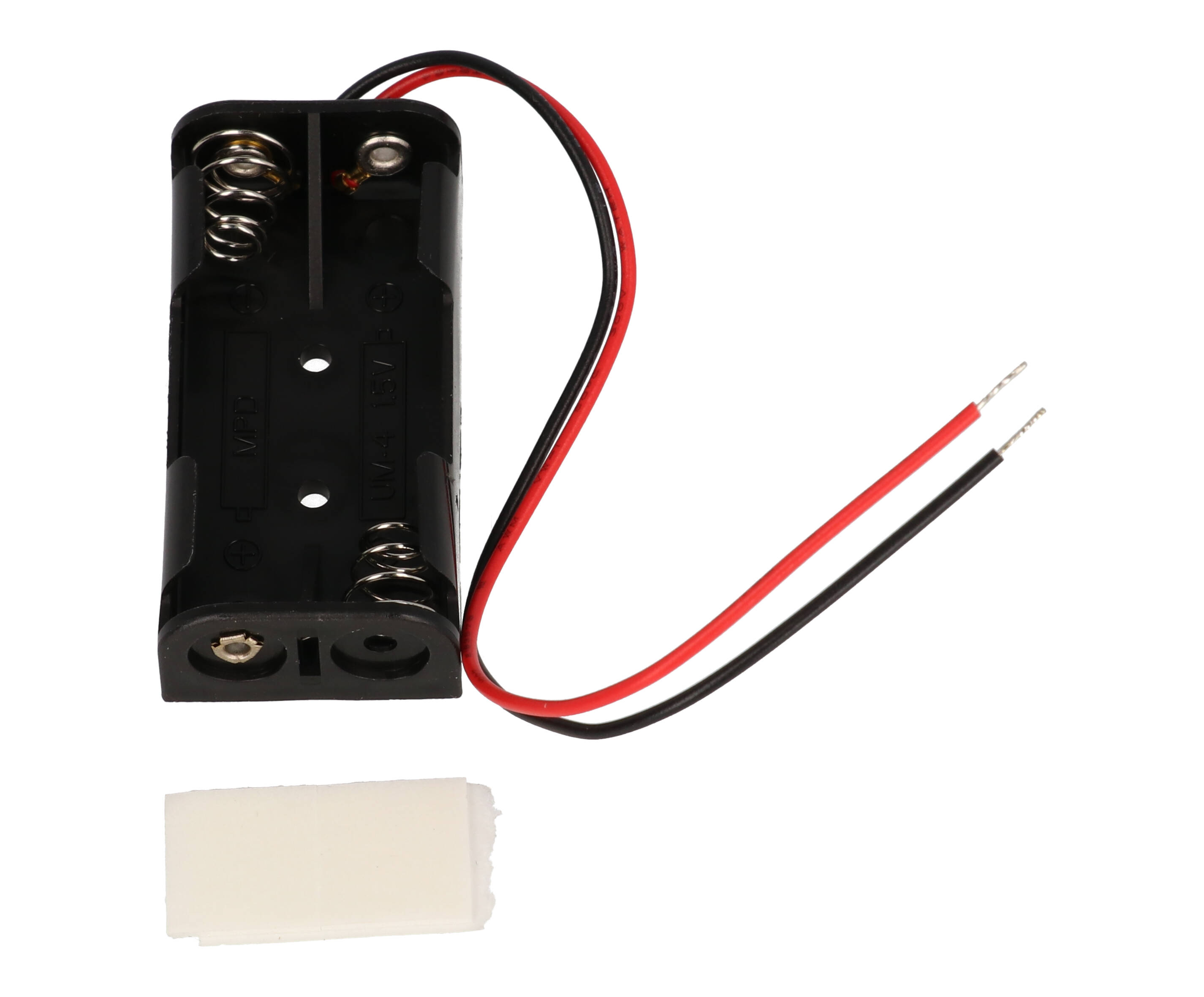

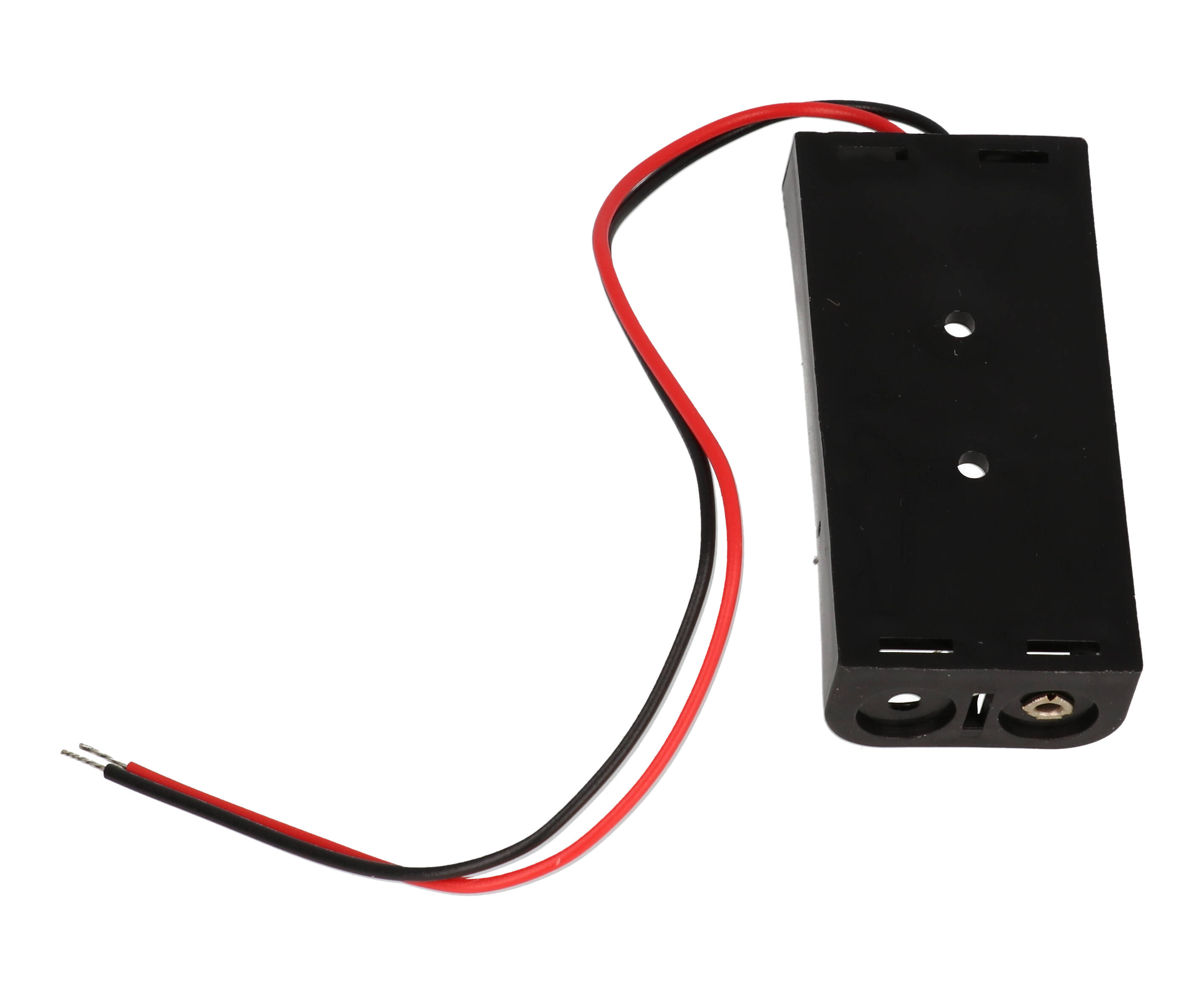

It is molded from black ABS plastic and fitted with a + wire and a - wire, shown on the drawing at 150.00 mm [5.91 in]. An adhesive pad on the underside is provided for installation, letting you fix the holder inside an enclosure or onto a panel without hardware.
The drawing shows the holder at 51.20 mm [2.02 in] long and 23.90 mm [.94 in] wide, with a height of 14.45 mm [.57 in]. The two cells sit side by side in this footprint.
The BH2AAAW is bagged, ships at 0.02 lbs (0.01 kg), and is RoHS and REACH compliant. For two AA cells, see the BH2AAW in the same series.
The drawing note states it is for use with 2 AAA batteries. Because the leads come attached and the adhesive pad handles mounting, no separate snap or fasteners are needed to fit it into a design, and the enclosure walls stay free of extra holes. For inventory systems, the BH2AAAW carries UPC 623980001524 and UNSPSC 39121301.
Ideal For
- Two-cell AAA power for handheld electronics
- Battery pack inside small plastic enclosures
- Prototype and DIY projects
Overview
| Type | Battery holder |
| Series | BH Series (Battery Holders) |
| Description | Hardware - battery holder for AAA cell |
| Part Number | BH2AAAW |
| Drawing Note | For use with 2 AAA batteries |
| Short Description | 2XAAA BATT HOLDER |
| Quantity Per Package | 1 |
| Compatible Batteries (Not Included) | (2) AAA |
Dimensions
| Width | 23.90 mm [.94 in] |
| Height | 14.45 mm [.57 in] |
| Inner Length | 48.17 mm [1.90 in] |
| Overall Length | 51.20 mm [2.02 in] |
| Wire Lead Length | 150.00 mm [5.91 in] |
Identifiers
| UPC | 623980001524 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Color | Black |
| Leads | + wire and - wire |
| Material | ABS Plastic |
| Installation | Adhesive pad on underside for installation |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many batteries does the BH2AAAW hold?▾
Two AAA batteries. Batteries are not included.
Does it come with wires?▾
Yes, a + wire and a - wire shown at 150.00 mm [5.91 in] on the drawing.
How is the holder secured?▾
With the adhesive pad on its underside.
What size is it?▾
51.20 mm [2.02 in] long, 23.90 mm [.94 in] wide and 14.45 mm [.57 in] high.
What colour and material is it?▾
Black ABS plastic.
