Hammond BH4AAAW Four-Cell AAA Battery Holder with Wire Leads
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Holds four AAA batteries (not included)
- + and - wire leads, 150.00 mm [5.91 in] per drawing
- Adhesive pad on underside for installation
- 50.60 mm [1.99 in] x 48.00 mm [1.89 in] footprint, 12.00 mm [.47 in] high
- Black ABS plastic
- RoHS and REACH compliant; one per package

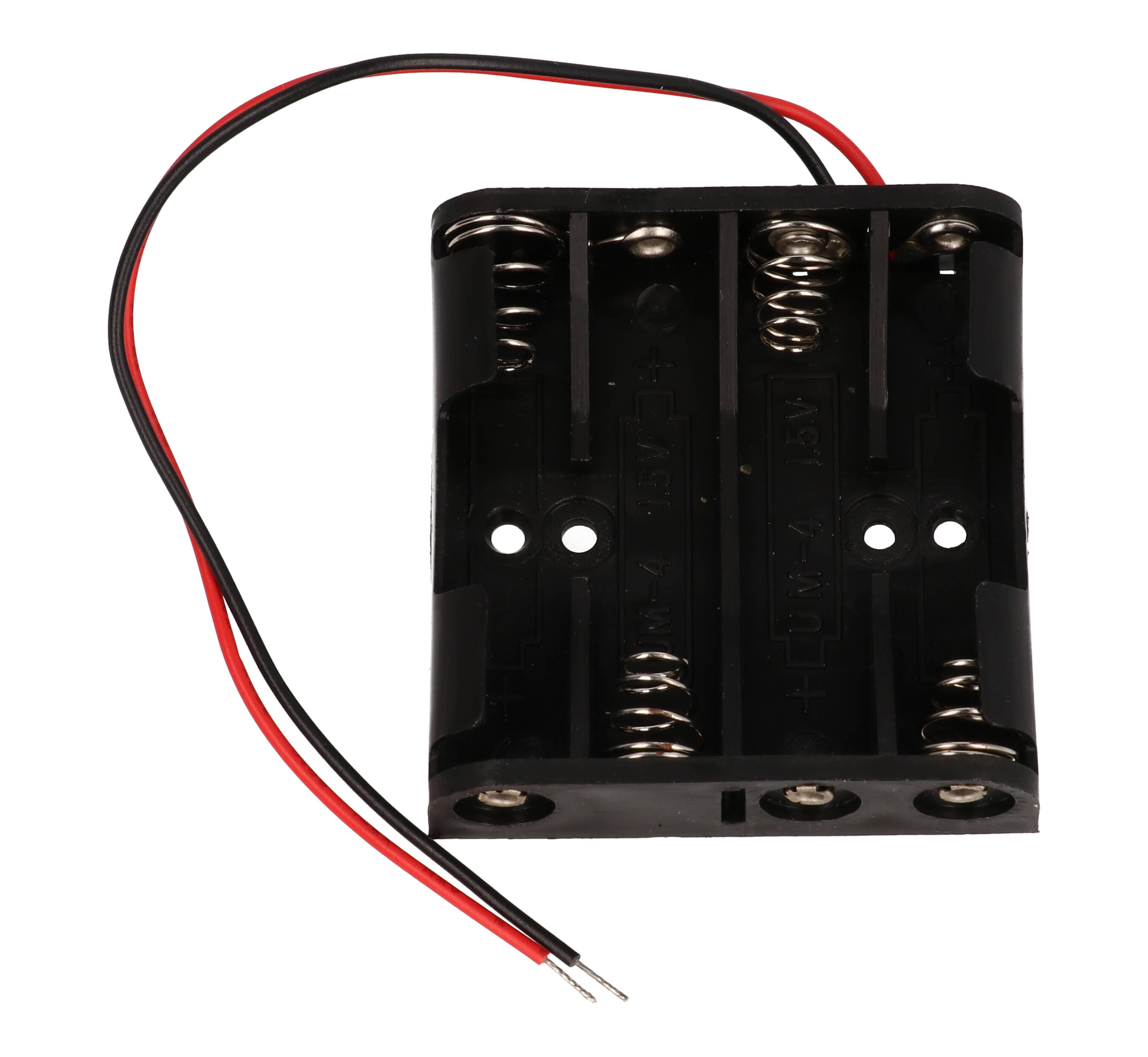

The BH4AAAW accepts four AAA batteries, making it a compact option for designers and builders who need a four-cell AAA supply in a small enclosure. Batteries are not included, and one holder is packed per package.

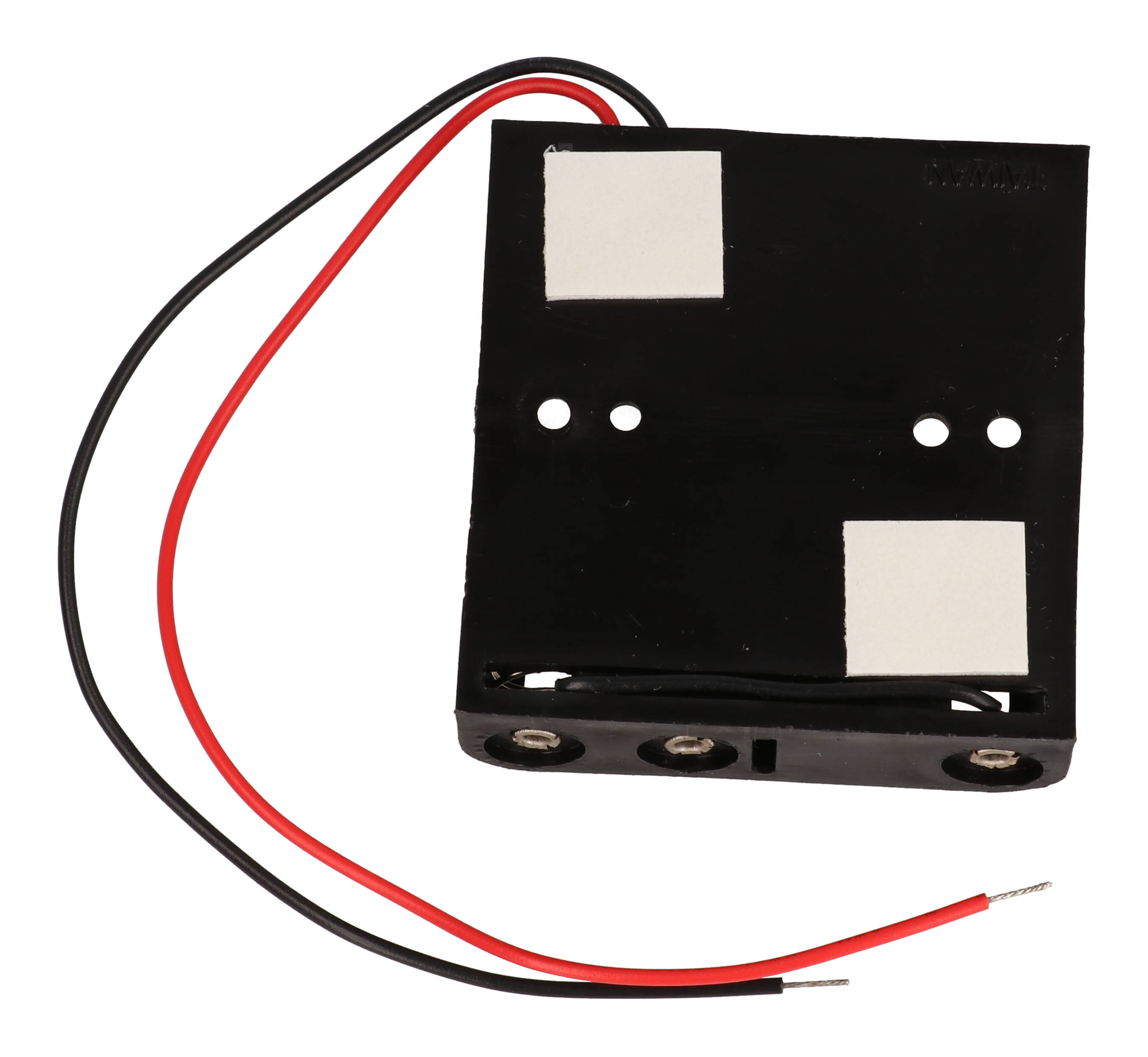

The holder is molded in black ABS plastic and supplied with a + wire and a - wire, each shown at 150.00 mm [5.91 in] on the drawing. An adhesive pad on the underside allows installation without screws or brackets.
The drawing shows a near-square footprint of 50.60 mm [1.99 in] long by 48.00 mm [1.89 in] wide, with a height of 12.00 mm [.47 in], keeping four AAA cells in a low-profile layout.
Bagged with a shipping weight of 0.04 lbs (0.02 kg), the BH4AAAW is RoHS and REACH compliant. For four AA cells, see the BH4AAW.
The drawing note states it is for use with 4 AAA batteries. Pre-attached leads and an adhesive underside let you fit it without separate snaps, fasteners or extra holes in the enclosure. For ordering and inventory, the BH4AAAW carries UPC 623980001562 and UNSPSC 39121301.
Its low 12.00 mm [.47 in] height suits slim cases.
Ideal For
- Four-cell AAA power for compact devices
- Low-profile battery mounting in enclosures
- DIY and prototype electronics
Overview
| Type | Battery holder |
| Series | BH Series (Battery Holders) |
| Description | Hardware - battery holder for AAA cell |
| Part Number | BH4AAAW |
| Drawing Note | For use with 4 AAA batteries |
| Short Description | 4XAAA BATT HOLDER |
| Quantity Per Package | 1 |
| Compatible Batteries (Not Included) | (4) AAA |
Dimensions
| Width | 48.00 mm [1.89 in] |
| Height | 12.00 mm [.47 in] |
| Inner Length | 46.33 mm [1.82 in] |
| Overall Length | 50.60 mm [1.99 in] |
| Wire Lead Length | 150.00 mm [5.91 in] |
Identifiers
| UPC | 623980001562 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Color | Black |
| Leads | + wire and - wire |
| Material | ABS Plastic |
| Installation | Adhesive pad on underside for installation |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many batteries fit in the BH4AAAW?▾
Four AAA batteries (not included).
What is its footprint?▾
50.60 mm [1.99 in] long by 48.00 mm [1.89 in] wide, with a height of 12.00 mm [.47 in].
How is it installed?▾
With the adhesive pad on its underside.
Does it include wire leads?▾
Yes, + and - wires shown at 150.00 mm [5.91 in] on the drawing.
What is it made of?▾
Black ABS plastic.
