Hammond BH1AAAW Single AAA Battery Holder with Wire Leads
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Holds one AAA battery (battery not included)
- Pre-wired + and - leads, 150.00 mm [5.91 in] on the drawing
- Adhesive pad on underside for screw-free installation
- Overall length 50.40 mm [1.98 in]; 13.20 mm [.52 in] wide; 10.90 mm [.43 in] high
- Molded black ABS plastic
- RoHS and REACH compliant; 1 per package

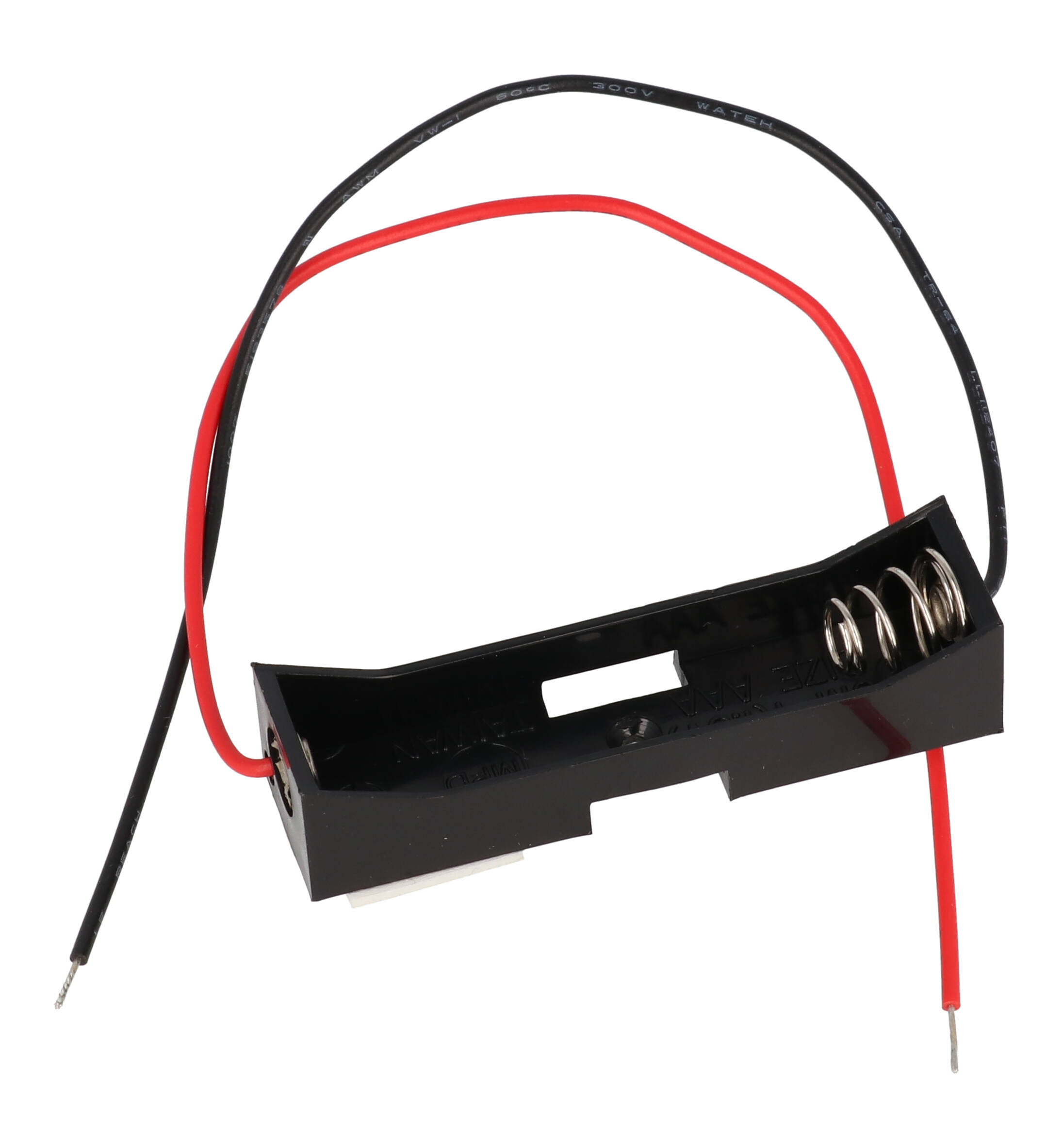

The BH1AAAW is a compact battery holder for a single AAA cell. It is aimed at electronics hobbyists, product designers and OEM builders who need to power a small circuit inside an enclosure from one AAA battery. The battery itself is not included, and one holder is supplied per package.

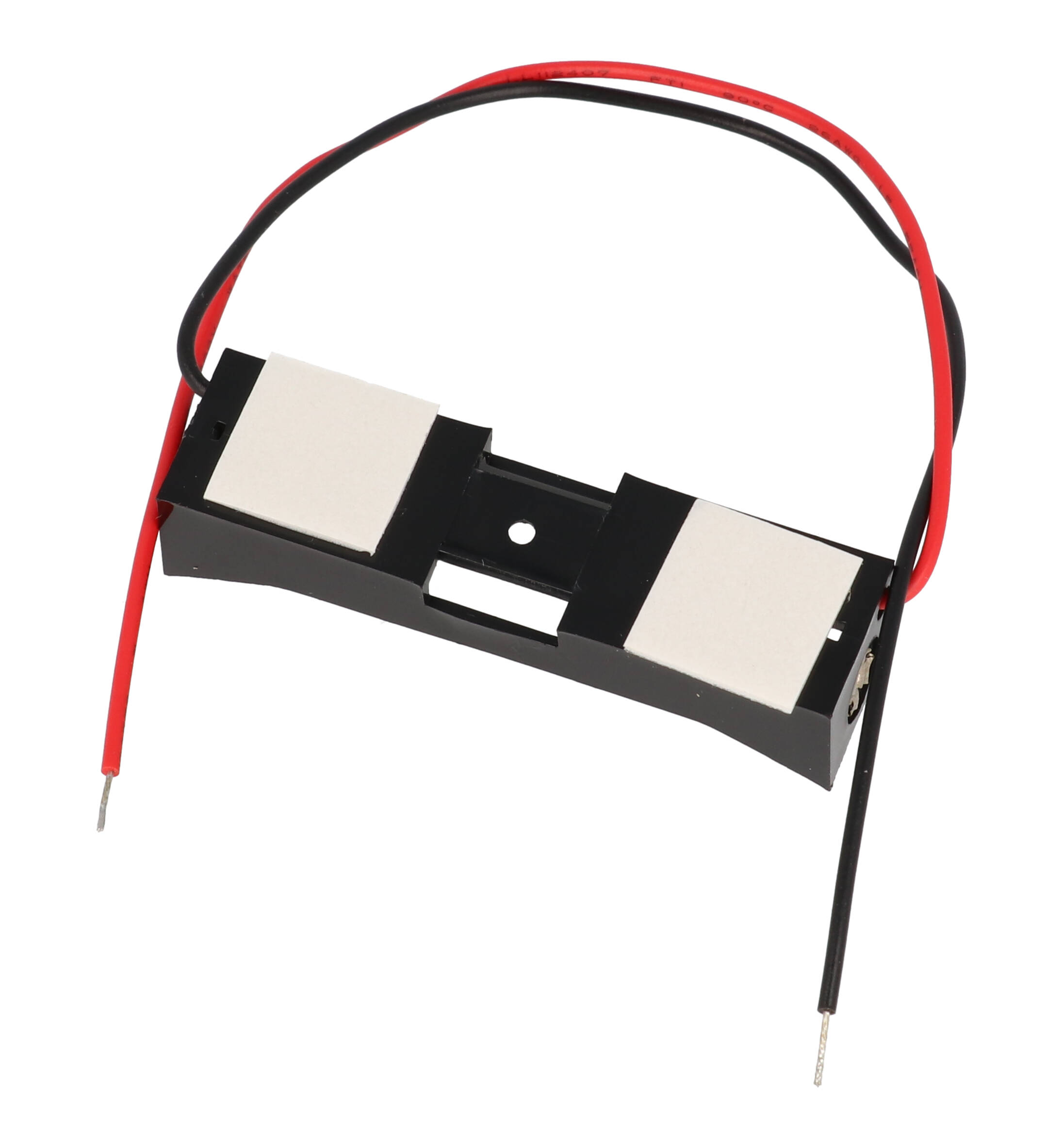

The holder is molded in black ABS plastic. It comes with two leads, marked + wire and - wire on the drawing, each shown at 150.00 mm [5.91 in], so it can be soldered straight to a board or terminal. An adhesive pad on the underside is provided for installation, so the holder can be stuck to the inside wall or floor of an enclosure without screws.
According to the drawing, the holder measures 50.40 mm [1.98 in] overall length, 13.20 mm [.52 in] wide and 10.90 mm [.43 in] high. That small footprint suits handheld and small-case designs where space is tight.
The BH1AAAW ships in a bag with a shipping weight of 0.01 lbs (0.00 kg) and is RoHS and REACH compliant. For a single AA cell instead, the series also offers the BH1AAW.
The drawing notes this holder is for use with 1 AAA battery. It carries UPC 623980035680 and UNSPSC 39121301 for purchasing and inventory systems.
Ideal For
- Powering small circuits from one AAA cell
- Battery compartment inside small plastic enclosures
- Prototype and hobby electronics builds
Overview
| Type | Battery holder |
| Series | BH Series (Battery Holders) |
| Description | Hardware - battery holder for AAA cell |
| Part Number | BH1AAAW |
| Drawing Note | For use with 1 AAA battery |
| Short Description | 1XAAA BATT HOLDER |
| Quantity Per Package | 1 |
| Compatible Batteries (Not Included) | (1) AAA |
Dimensions
| Width | 13.20 mm [.52 in] |
| Height | 10.90 mm [.43 in] |
| Inner Length | 47.50 mm [1.87 in] |
| Overall Length | 50.40 mm [1.98 in] |
| Wire Lead Length | 150.00 mm [5.91 in] |
Identifiers
| UPC | 623980035680 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Color | Black |
| Leads | + wire and - wire |
| Material | ABS Plastic |
| Installation | Adhesive pad on underside for installation |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What battery does the BH1AAAW hold?▾
One AAA battery. The battery is not included.
How is it mounted?▾
The drawing shows an adhesive pad on the underside for installation.
Does it have wires attached?▾
Yes, it has a + wire and a - wire, each shown at 150.00 mm [5.91 in] on the drawing.
How big is the holder?▾
Overall length is 50.40 mm [1.98 in], with a width of 13.20 mm [.52 in] and height of 10.90 mm [.43 in].
How many holders come in a package?▾
One per package.
