Hammond 1599BBKBAT 130x65 mm Black Handheld Enclosure, Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Handheld enclosure, 130 x 65 x 26 mm (5.12 x 2.56 x 1.02 in) per ordering table
- Flame retardant ABS rated UL94 V-0, black
- Integrated battery door; accepts BH1AAAW, BH2AAAW or BS61 battery holders
- Takes P.C. boards up to 53 x 89.25 mm on standoffs accepting #4 self-tapping screws

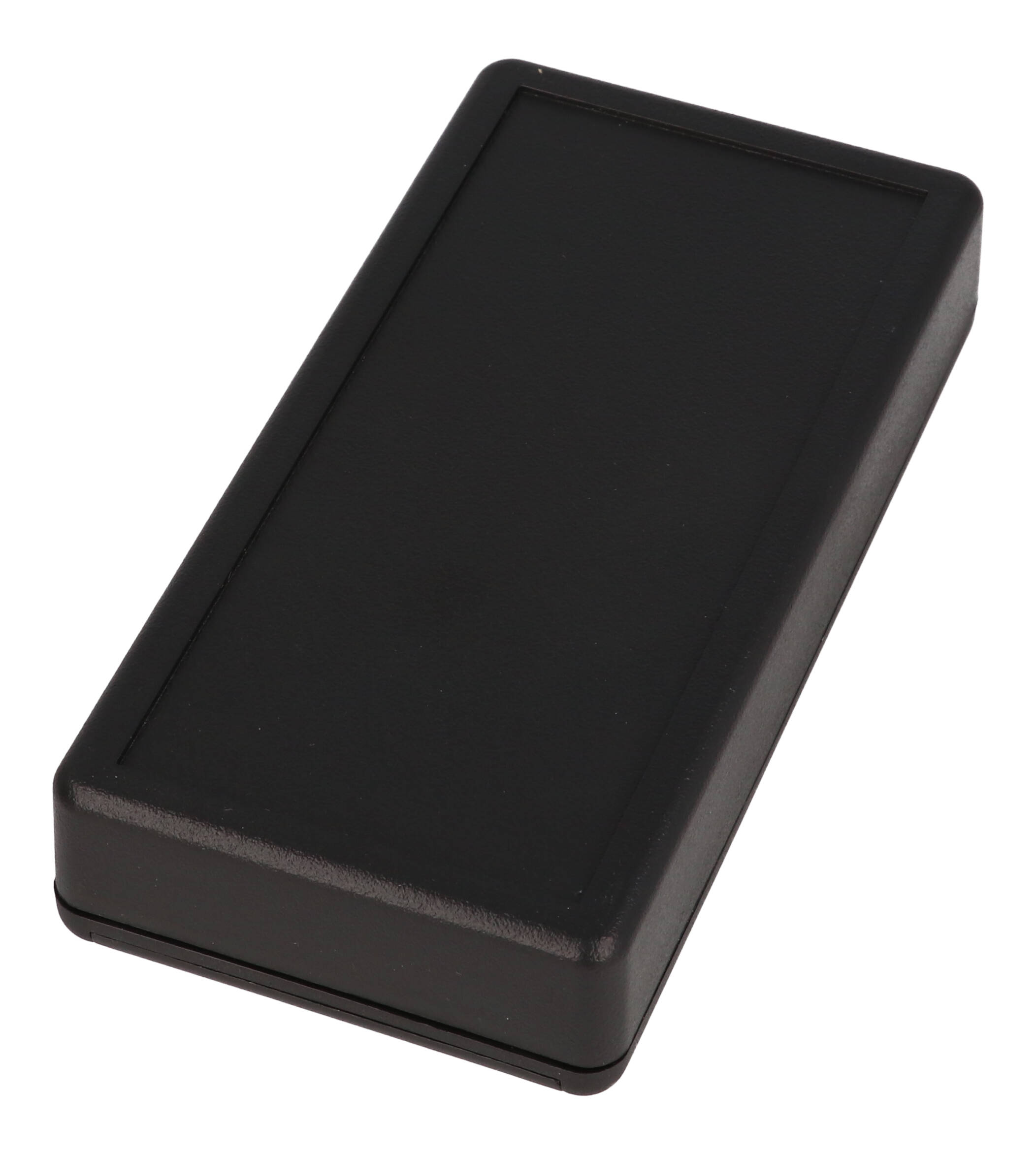

- Recessed top for a membrane display or key pad
- M3 machine screws into brass bushings; recommended torque 30-40 cN.m
- Two keyhole knockouts inside the base for wall mounting
- Compatible with 1599CLIP / 1599CLIPGY belt clips and 1599BD-BULK divider

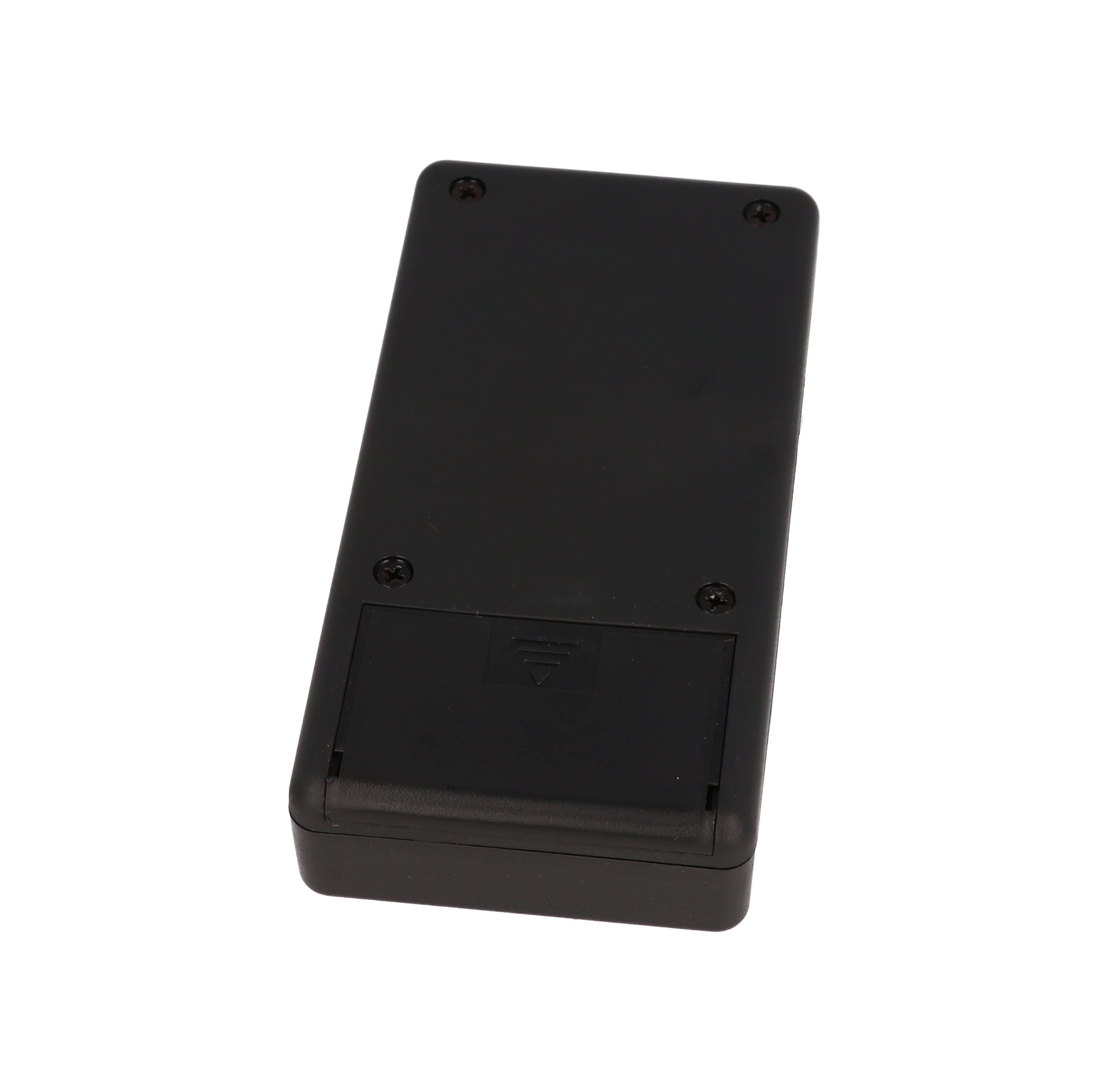

The 1599BBKBAT is the battery-door version of the black 1599B handheld enclosure. It is built for portable, battery-powered handheld instruments and controllers, with a separate door giving access to the battery compartment.
Box and lid are flame retardant ABS with a UL94 V-0 flammability rating. The outside matches the other 1599B models: 5.12 in (130 mm) long, 2.56 in (65 mm) wide and 1.02 in (26 mm) deep in the ordering table (part page nominal 130 x 65 x 25 mm). The inside measures 124.13 x 59.82 x 19.50 mm. Because the battery compartment occupies one end, the maximum printed circuit board is 53 x 89.25 mm rather than the 123.5 mm length of the non-battery model.
Battery holders for the 1599B size, sold separately, include the BH1AAAW (1 AAA cell), BH2AAAW (2 AAA cells) and BS61 (1 - 9V cell). Holder kits include the holder, wires and a foam anti-rattle pad. The 1599BD-BULK ABS divider slides into the card guides to separate the cells from the electronics.
Like the rest of the flame retardant line, the 1599BBKBAT closes with M3-0.5 machine screws into brass bushings (recommended torque 30-40 cN.m), has a recessed top for a membrane key pad, and includes two keyhole knockouts for wall mounting. It ships with the box, lid, battery door and 4 cover screws. Note that the IP54 design applies to versions without a battery door.
Ideal For
- Battery-powered handheld instruments
- Portable handheld controllers
- AAA or 9V powered keypad devices
- Handheld devices with membrane displays
Overview
| Color | Black |
| Description | enclosure - plastic |
| Battery Door | Yes |
| Model Family | 1599B (Fire Retardant ABS) - battery door version 1599BBAT |
| Product Type | Hand-held, battery door |
| Short Description | FRABS BX & LD C/W BATTERY DOOR |
| Belt Clip Included | No |
Dimensions
| Inside Width | 59.82 mm [2.35 in] |
| Inside Height | 19.50 mm [.77 in] |
| Inside Length | 124.13 mm [4.89 in] |
| Depth (Ordering Table) | 1.02 in (26 mm) |
| Width (Ordering Table) | 2.56 in (65 mm) |
| Length (Ordering Table) | 5.12 in (130 mm) |
| Nominal Size (L X W X H) | 5.12 in x 2.56 in x 0.97 in (130 mm x 65 mm x 25 mm) |
| Overall Height (Drawing) | 25.50 mm [1.00 in] |
Accessories
| Battery Divider | 1599BD-BULK (ABS divider panel, grey) |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Screws | 1593ATS50 (Pkg 50), 1593ATS100 (Pkg 100) [#4 x 1/4" pan head self-tapping] |
| Battery Holders For 1599B Size | BH1AAAW (1 AAA cell), BH2AAAW (2 AAA cells), BS61 (1 - 9V cell) |
| Replacement Cover Screws (Pkg 100) | 1594MS100 (silver), 1594MS100BK (black) [M3-0.5 x 18 mm flat head machine screws] |
Identifiers
| UPC | 623980566443 |
| UNSPSC | 39121301 |
| Part Number | 1599BBKBAT |
PCB Mounting
| P.C. Board | Not supplied |
| P.C. Board Standoffs | On inside top and bottom; accept #4 self-tapping screws |
| Max. P.C. Board Width | 89.25 mm [3.51 in] |
| Max. P.C. Board Length | 53 mm [2.09 in] |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Joint | Lap joint construction |
| Material | ABS Plastic, flame retardant |
| CAD Models | Solid models available in .stp or .x_t |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| Cover Fastening | M3-0.5 machine screws into integral brass bushings |
| Factory Modification | Milling, drilling, printing etc. available from factory |

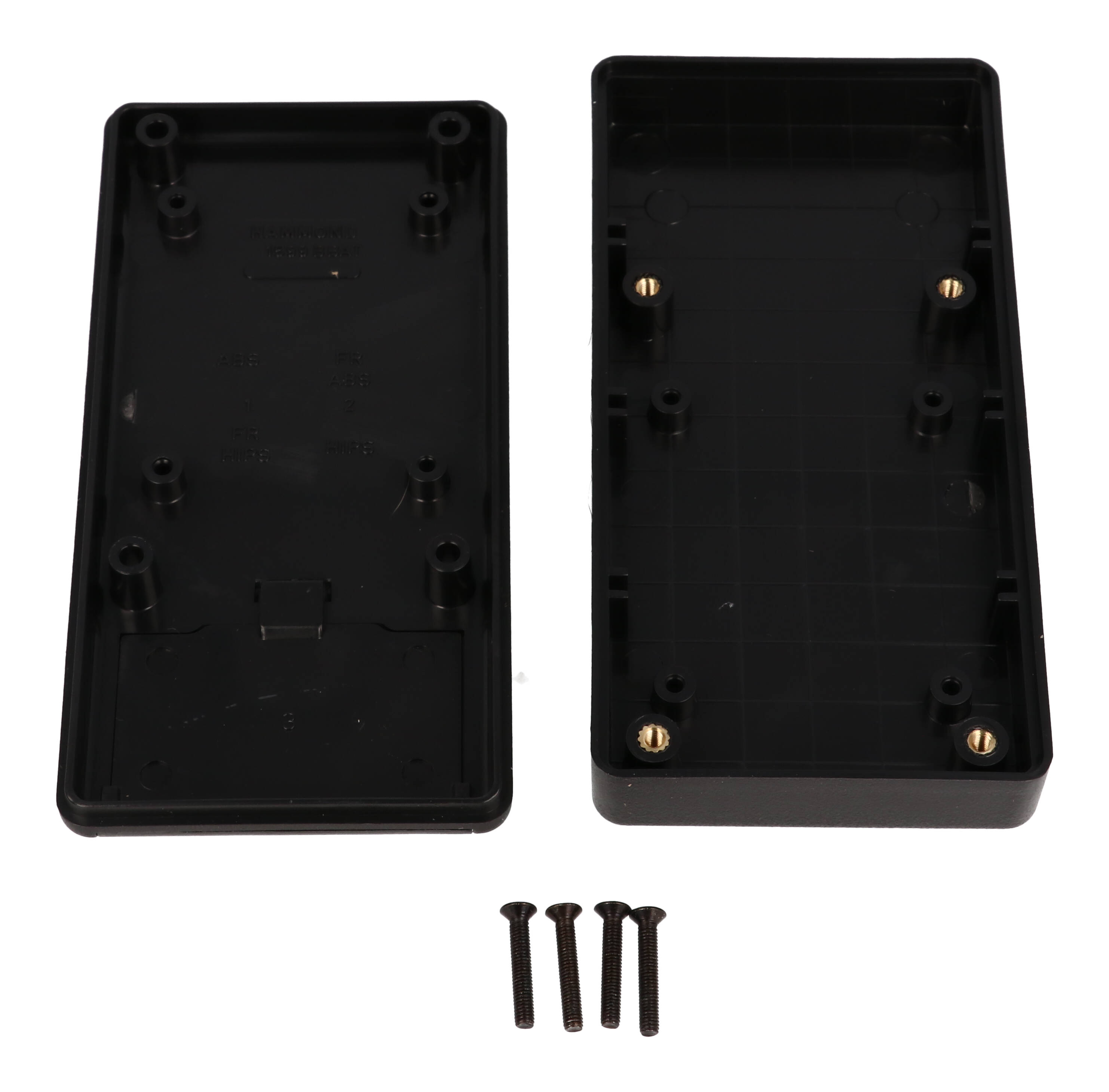

| Included In Assembly | Box, lid, battery door and 4 cover screws |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; use plastic-safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1599BBKBAT?▾
The ordering table lists 5.12 in (130 mm) long, 2.56 in (65 mm) wide and 1.02 in (26 mm) deep; the part page gives a nominal 5.12 x 2.56 x 0.97 in (130 x 65 x 25 mm). Inside dimensions are 124.13 mm [4.89 in] long, 59.82 mm [2.35 in] wide and 19.50 mm [.77 in] high.
What size circuit board fits?▾
The maximum P.C. board is 53 mm by 89.25 mm. Standoffs on the inside top and bottom accept #4 self-tapping screws (1593ATS50 or 1593ATS100). The board is not supplied.
What is included?▾
The purchased assembly includes box, lid, battery door and 4 cover screws.
Is it flame retardant?▾
Yes. The box and lid are made from flame retardant ABS with a UL flammability rating of 94 V-0.
Which battery holders fit the 1599BBKBAT?▾
For the 1599B size, the compatibility table lists BH1AAAW (1 AAA cell), BH2AAAW (2 AAA cells) and BS61 (1 - 9V cell). They are sold separately.
Is the battery door version IP54?▾
The series states that versions without a battery door are designed to meet IP54; no IP rating is listed for this battery door model.
