Hammond 1599KSGYBAT 220 x 140 mm Gray Economy Handheld Box, Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Battery door on a 220 x 140 x 41 mm economy handheld enclosure
- General purpose ABS, UL94 HB, light gray
- Max PC board 131 x 140.5 mm
- Fits optional AA, AAA and 9V battery holder kits
- Self-tapping cover screws into plastic posts
- Recessed top for membrane display or key pad
- Includes box, lid, battery door and 4 cover screws

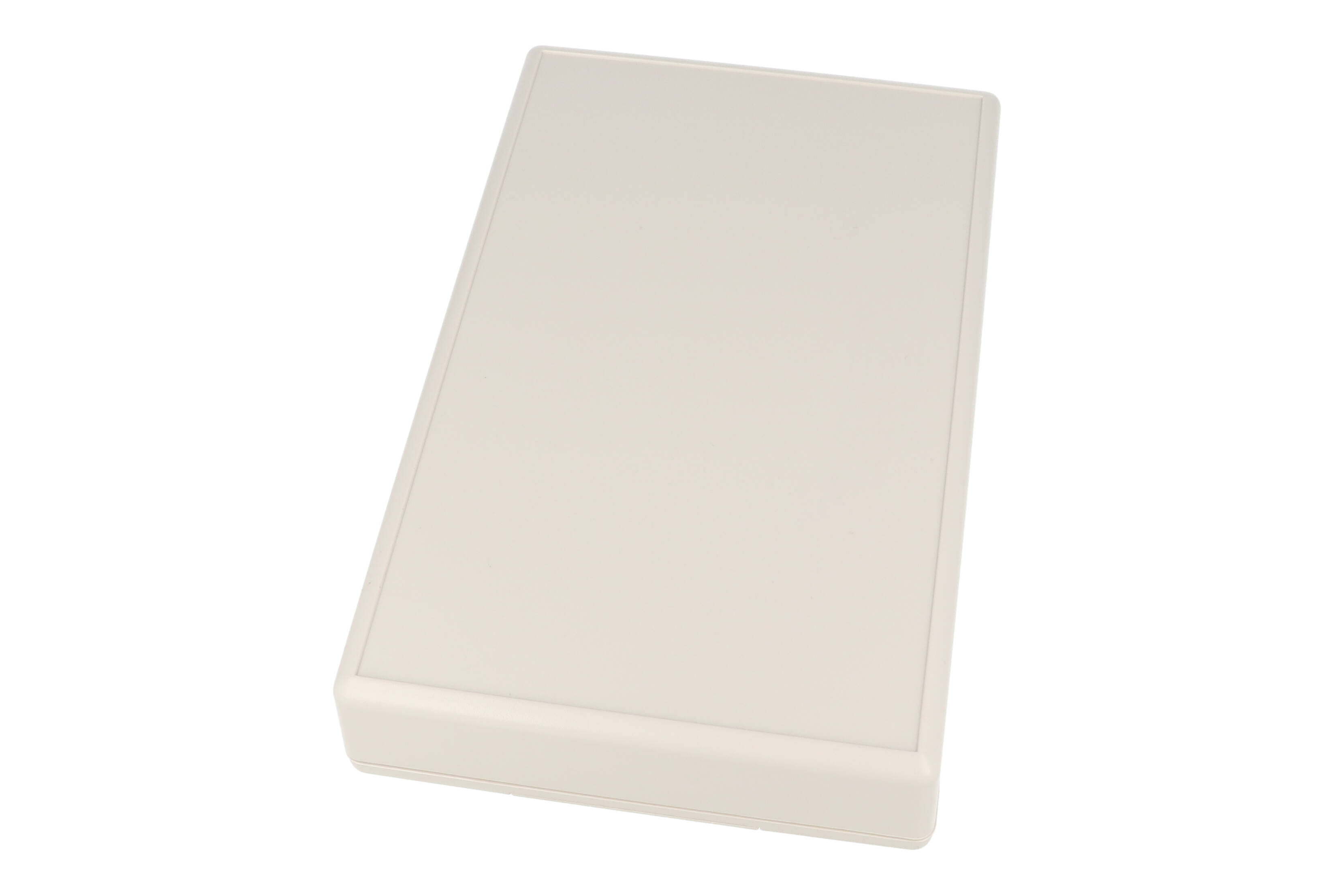

The 1599KSGYBAT is the general purpose, light gray 1599K handheld enclosure with a battery door. It offers an economical housing for portable battery-powered devices that need a wide top surface but not a flame retardant material; the flame retardant equivalent is 1599KGYBAT.
Box and lid are molded from general purpose ABS with a UL94 HB flame rating and closed with #4 x 5/8 in self-tapping screws into plastic posts. The recessed top accepts a membrane display or key pad, and the lap joint helps protect against dust and splashing water.
Nominal size is 220 x 140 x 41 mm (8.66 x 5.5 x 1.6 in), with a 40 mm depth in the series table. The drawing shows 213.58 mm inside length, 133.58 mm inside width and 33.00 mm inside height. With the battery compartment, the maximum PC board is 131 x 140.5 mm (board not supplied), on standoffs that accept #4 self-tapping screws.

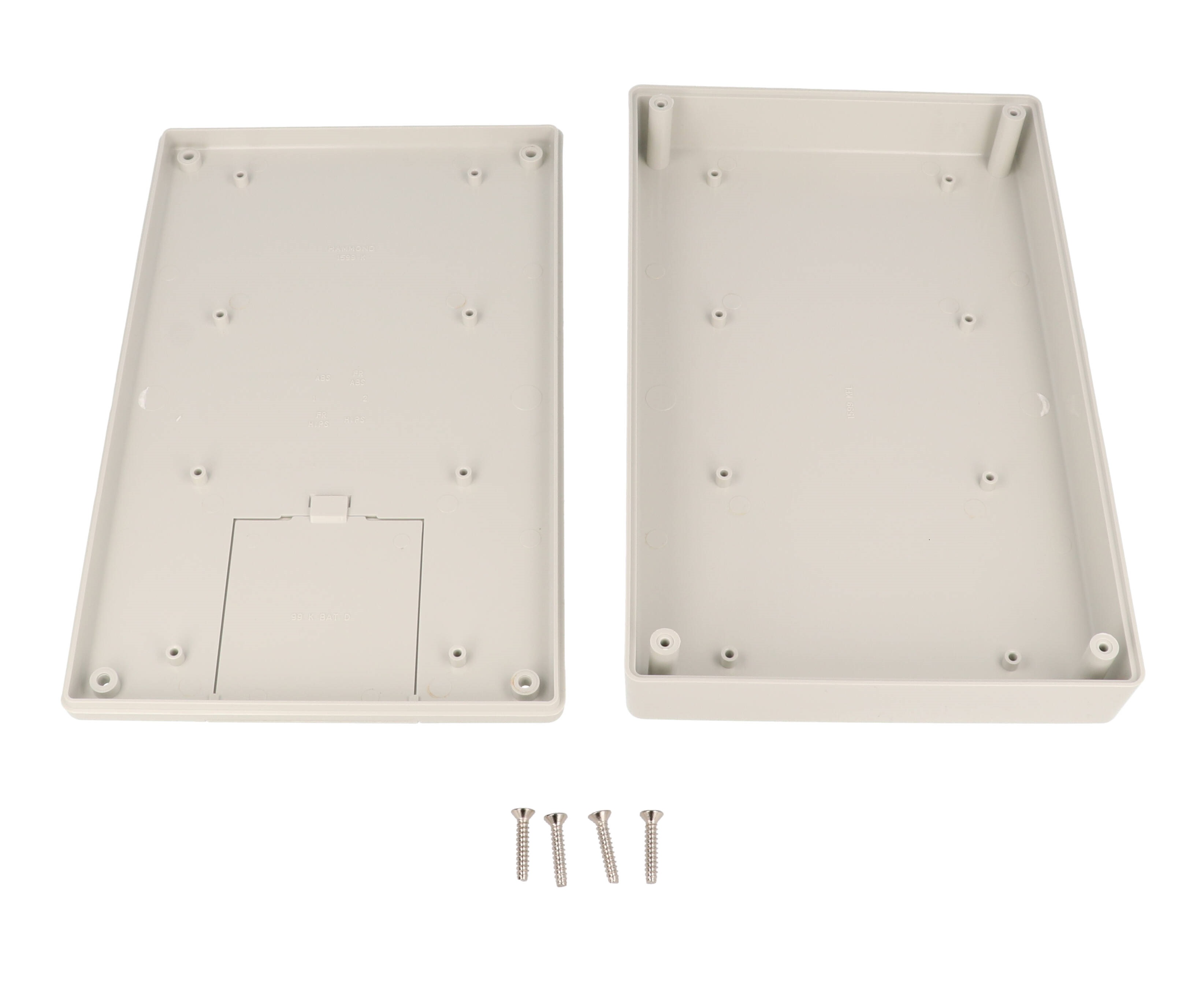

The 1599KSGYBAT ships shrink wrapped with box, lid, battery door and 4 cover screws; recommended torque is 42-57 ozf.in (30-40 cN.m). Optional battery holder kits for 1599K battery door enclosures include the holder, wires and foam anti-rattle pad. RoHS and REACH compliant.
Ideal For
- Economical battery-powered handhelds
- Portable keypad controllers
- Handheld meters and readers
- Battery-operated prototypes
Overview
| Type | Hand-held, battery door |
| Series | 1599 Series Hand Held Enclosures |
| Description | enclosure - plastic |
| Part Number | 1599KSGYBAT |
| Battery Door | Yes |
| Short Description | PLASTIC BOX W/BATTERY DOOR |
| Belt Clip Included | No |
| Flame Retardant Version | 1599KGYBAT |
| General Purpose Version | 1599KSGYBAT |
Dimensions
| Inside Width | 133.58 mm [5.26 in] |
| Inside Height | 33.00 mm [1.30 in] |
| Inside Length | 213.58 mm [8.41 in] |
| Size (L X W X H) | 8.66 in x 5.5 in x 1.6 in (220 mm x 140 mm x 41 mm) |
| Depth (Series Table) | 1.57 in (40 mm) |
| Width (Series Table) | 5.51 in (140 mm) |
| Length (Series Table) | 8.66 in (220 mm) |
| Max. P.C. Board Width | 140.5 mm |
| Max. P.C. Board Length | 131 mm |
| Overall Dimensions (Drawing) | 220.00 x 140.00 x 40.00 mm [8.66 x 5.51 x 1.57 in] |
Accessories
| Optional Belt Clip | 1599CLIP (Black), 1599CLIPGY (Grey) - nylon, includes 2 nylon screws and mounting template |
| Optional P.C. Board Screws | 1593ATS50 (pack of 50) or 1593ATS100 (pack of 100), #4 x 1/4" pan head self-tapping |
| Compatible Battery Holder Kits | BH1AAW, BH2AAW, BH3AAW, BH4AAW (1-4 AA cells); BH1AAAW, BH2AAAW, BH3AAAW, BH4AAAW (1-4 AAA cells); BS61 (1 - 9V cell) |
Identifiers
| UPC | 623980998862 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.6 lbs (0.27 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Color | Light Gray (series table: Grey) |
| Material | ABS Plastic |
| P.C. Board | Not supplied |
| Solid Models | STEP or IGES |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| Material Detail | Box and lid made from General Purpose ABS (not flame retardant) |
| Cover Screw Type | #4 x 5/8" self-tapping screws into plastic posts (replacement 1593MS100 Grey, pkg 100) |
| Factory Modification | Milling, drilling, printing etc. available from factory |
| Included In Assembly | Box, lid, battery door and 4 cover screws |
| P.C. Board Standoffs | On inside top and bottom; accept #4 self-tapping screws |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| Flame Rating | UL94 HB |
| Joint Construction | Lap joint for protection against dust and splashing water |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which battery holders fit this enclosure?▾
The series lists BH1AAW, BH2AAW, BH3AAW, BH4AAW, BH1AAAW, BH2AAAW, BH3AAAW, BH4AAAW and BS61 as fitting 1599K battery door enclosures.
What is the largest PC board it takes?▾
131 x 140.5 mm; the board is not supplied.
Is the 1599KSGYBAT flame retardant?▾
No, it is general purpose ABS rated UL94 HB. Choose 1599KGYBAT for flame retardant UL94 V-0 material.
What is in the box?▾
Box, lid, battery door and 4 cover screws.
