Hammond 1599BBKCP 130x65 mm Black Handheld Enclosure with Belt Clip
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Handheld enclosure, 130 x 65 x 26 mm (5.12 x 2.56 x 1.02 in) per ordering table
- Flame retardant ABS rated UL94 V-0, black
- Nylon belt clip and 2 belt clip screws included, fitted at the factory
- Takes P.C. boards up to 53 x 123.5 mm on standoffs accepting #4 self-tapping screws
- Recessed top for a membrane display or key pad
- M3 machine screws into brass bushings; recommended torque 30-40 cN.m
- Two keyhole knockouts inside the base for wall mounting
The 1599BBKCP is the black 1599B handheld enclosure supplied with a nylon belt clip already installed. With no battery door it keeps the full internal length for electronics, giving belt-worn devices the same 53 x 123.5 mm board area as the standard 1599BBK.
It is molded from flame retardant ABS rated UL94 V-0 and is designed to meet IP54; lap joint construction protects against dust and splashing water. The ordering table gives 5.12 in (130 mm) long, 2.56 in (65 mm) wide and 1.02 in (26 mm) deep, with a part page nominal of 130 x 65 x 25 mm. Inside space is 124.33 x 59.33 x 19.25 mm, and the maximum board is 53 x 123.5 mm.
The clip is molded from tough nylon and fastened with 2 insulated nylon screws to avoid internal interference. The lid is secured with M3-0.5 machine screws into integral brass bushings (recommended torque 30-40 cN.m), and PC board standoffs on the inside top and bottom accept #4 self-tapping screws such as 1593ATS50 or 1593ATS100.

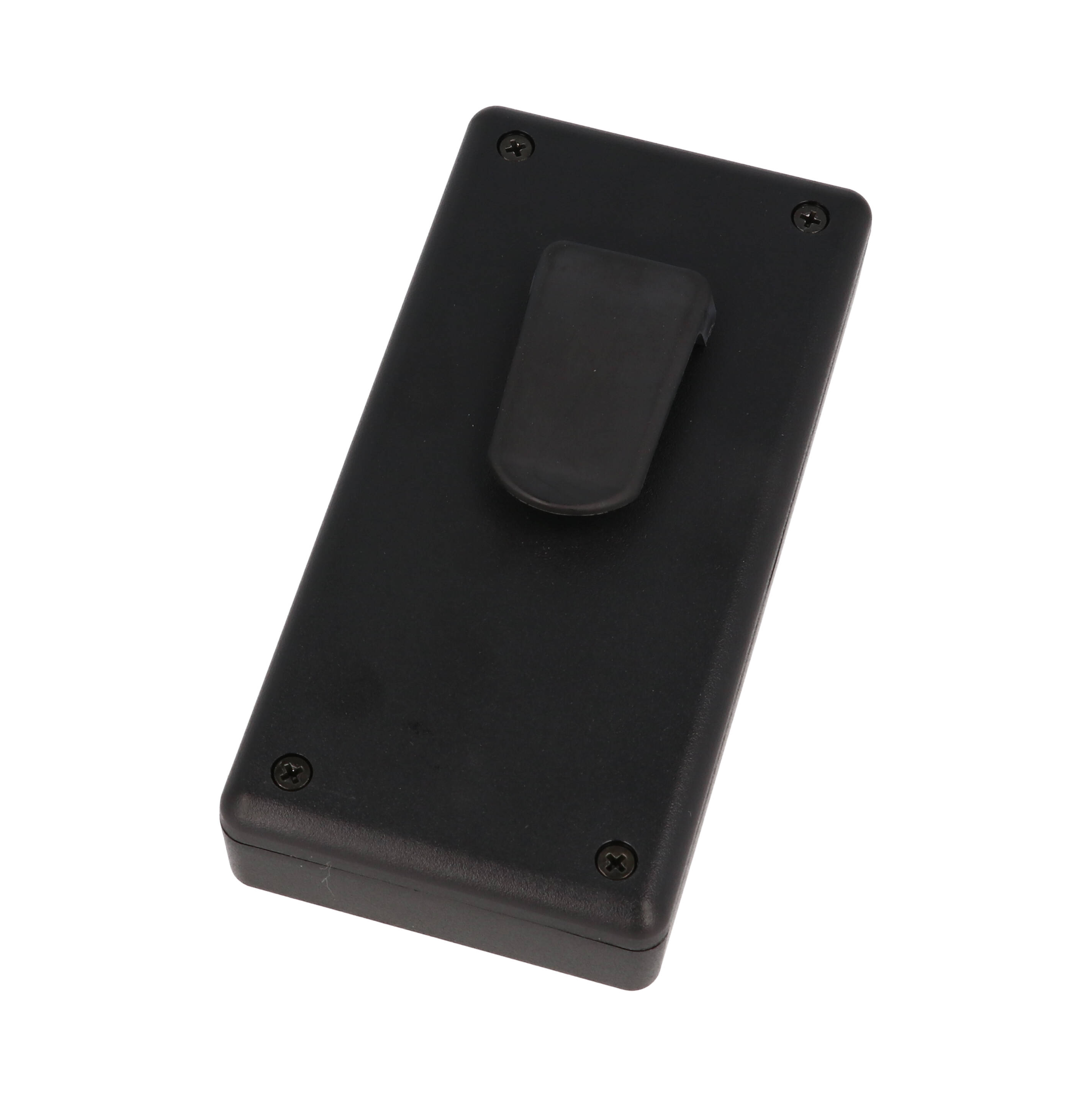

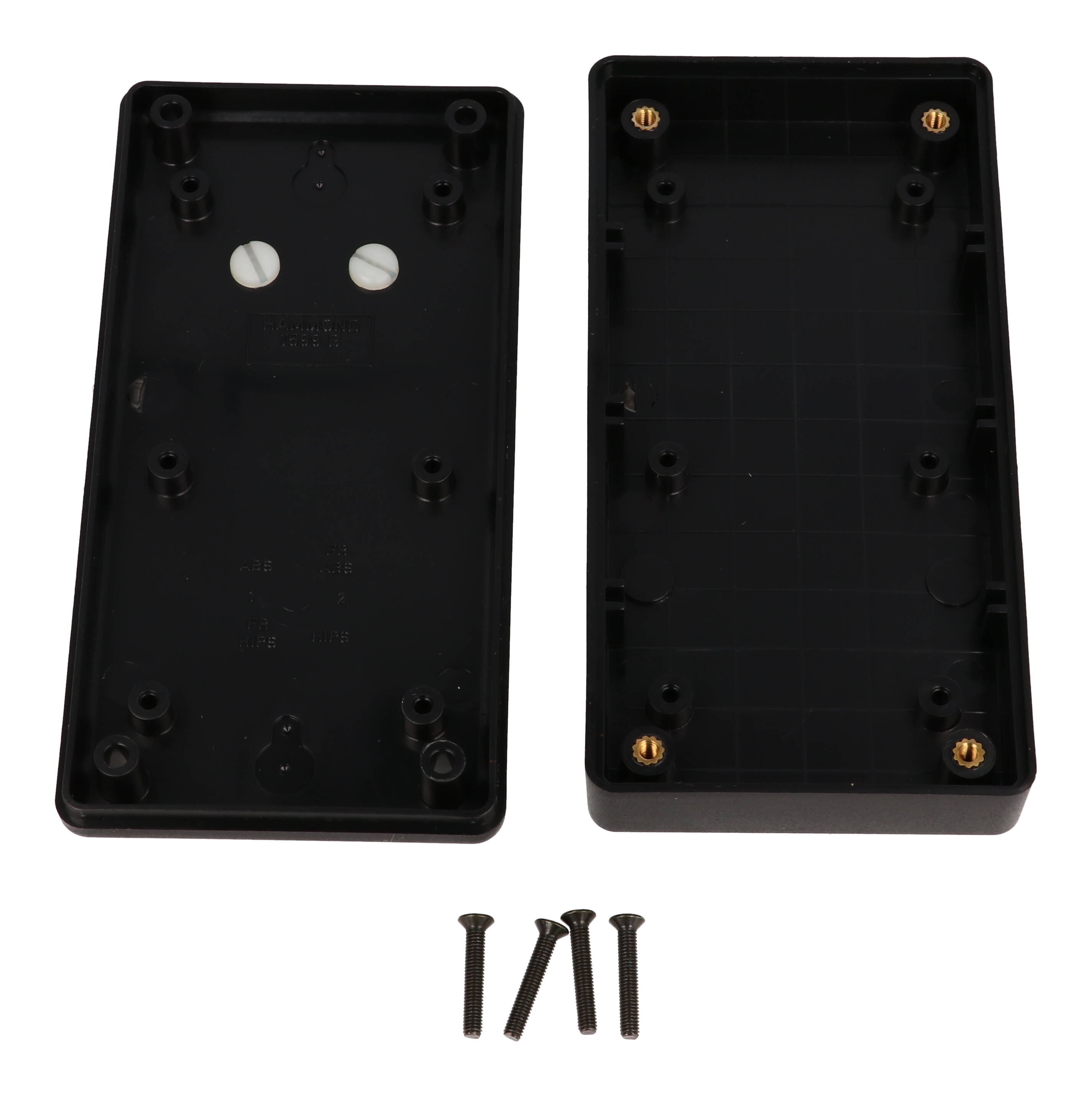

Supplied with the 1599BBKCP: box, lid, belt clip, 2 belt clip screws and 4 cover screws. The recessed top is designed for a membrane display or key pad, and two keyhole knockouts inside the base allow wall mounting as an alternative to belt carry.
Ideal For
- Belt-worn handheld instruments
- Portable handheld controllers
- Membrane keypad devices carried in the field
- Wall-mounted keypad units using keyhole knockouts
Overview
| Color | Black |
| Description | enclosure - plastic |
| Battery Door | No |
| Model Family | 1599B (Fire Retardant ABS) |
| Product Type | Hand-held, belt clip |
| Short Description | 1599BBK C/W CLIP |
| Belt Clip Included | Yes |
Dimensions
| Inside Width | 59.33 mm [2.34 in] |
| Inside Height | 19.25 mm [.76 in] |
| Inside Length | 124.33 mm [4.89 in] |
| Depth (Ordering Table) | 1.02 in (26 mm) |
| Width (Ordering Table) | 2.56 in (65 mm) |
| Length (Ordering Table) | 5.12 in (130 mm) |
| Nominal Size (L X W X H) | 5.12 in x 2.56 in x 0.97 in (130 mm x 65 mm x 25 mm) |
| Overall Height (Drawing) | 25.50 mm [1.00 in] |
Accessories
| Battery Divider | 1599BD-BULK (ABS divider panel, grey) |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Screws | 1593ATS50 (Pkg 50), 1593ATS100 (Pkg 100) [#4 x 1/4" pan head self-tapping] |
| Replacement Cover Screws (Pkg 100) | 1594MS100 (silver), 1594MS100BK (black) [M3-0.5 x 18 mm flat head machine screws] |
Identifiers
| UPC | 623980566856 |
| UNSPSC | 39121301 |
| Part Number | 1599BBKCP |
PCB Mounting
| P.C. Board | Not supplied |
| P.C. Board Standoffs | On inside top and bottom; accept #4 self-tapping screws |
| Max. P.C. Board Width | 123.5 mm [4.86 in] |
| Max. P.C. Board Length | 53 mm [2.09 in] |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.2 lbs (0.09 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Joint | Lap joint construction |
| Material | ABS Plastic, flame retardant |
| CAD Models | Solid models available in .stp or .x_t |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| Cover Fastening | M3-0.5 machine screws into integral brass bushings |
| Factory Modification | Milling, drilling, printing etc. available from factory |
| Included In Assembly | Box, lid, belt clip, 2 belt clip screws and 4 cover screws |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; use plastic-safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1599BBKCP?▾
The ordering table lists 5.12 in (130 mm) long, 2.56 in (65 mm) wide and 1.02 in (26 mm) deep; the part page gives a nominal 5.12 x 2.56 x 0.97 in (130 x 65 x 25 mm). Inside dimensions are 124.33 mm [4.89 in] long, 59.33 mm [2.34 in] wide and 19.25 mm [.76 in] high.
What size circuit board fits?▾
The maximum P.C. board is 53 mm by 123.5 mm. Standoffs on the inside top and bottom accept #4 self-tapping screws (1593ATS50 or 1593ATS100). The board is not supplied.
What is included?▾
The purchased assembly includes box, lid, belt clip, 2 belt clip screws and 4 cover screws.
Is it flame retardant?▾
Yes. The box and lid are made from flame retardant ABS with a UL flammability rating of 94 V-0.
Is this enclosure IP54?▾
Yes. The part is listed with an IP54 rating; versions without a battery door are designed to meet IP54.
How is the belt clip attached?▾
The nylon belt clip comes installed and uses 2 nylon screws, insulated to avoid internal interference.
