Hammond 1599BGYBAT 130x65mm Grey Flame Retardant Case, Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flame retardant ABS box and lid rated UL94 V-0, light grey
- Integrated battery door; accepts 1 or 2 AAA or one 9V holder kit
- 130 x 65 x 25 mm (5.12 x 2.56 x 0.97 in) compact handheld size
- Maximum P.C. board 89.25 x 53 mm on internal standoffs
- Machine screws into integral brass bushings; 4 cover screws included
- Recessed top for a membrane display or key pad
- Keyhole knockouts inside the base for wall mounting
- RoHS and REACH compliant

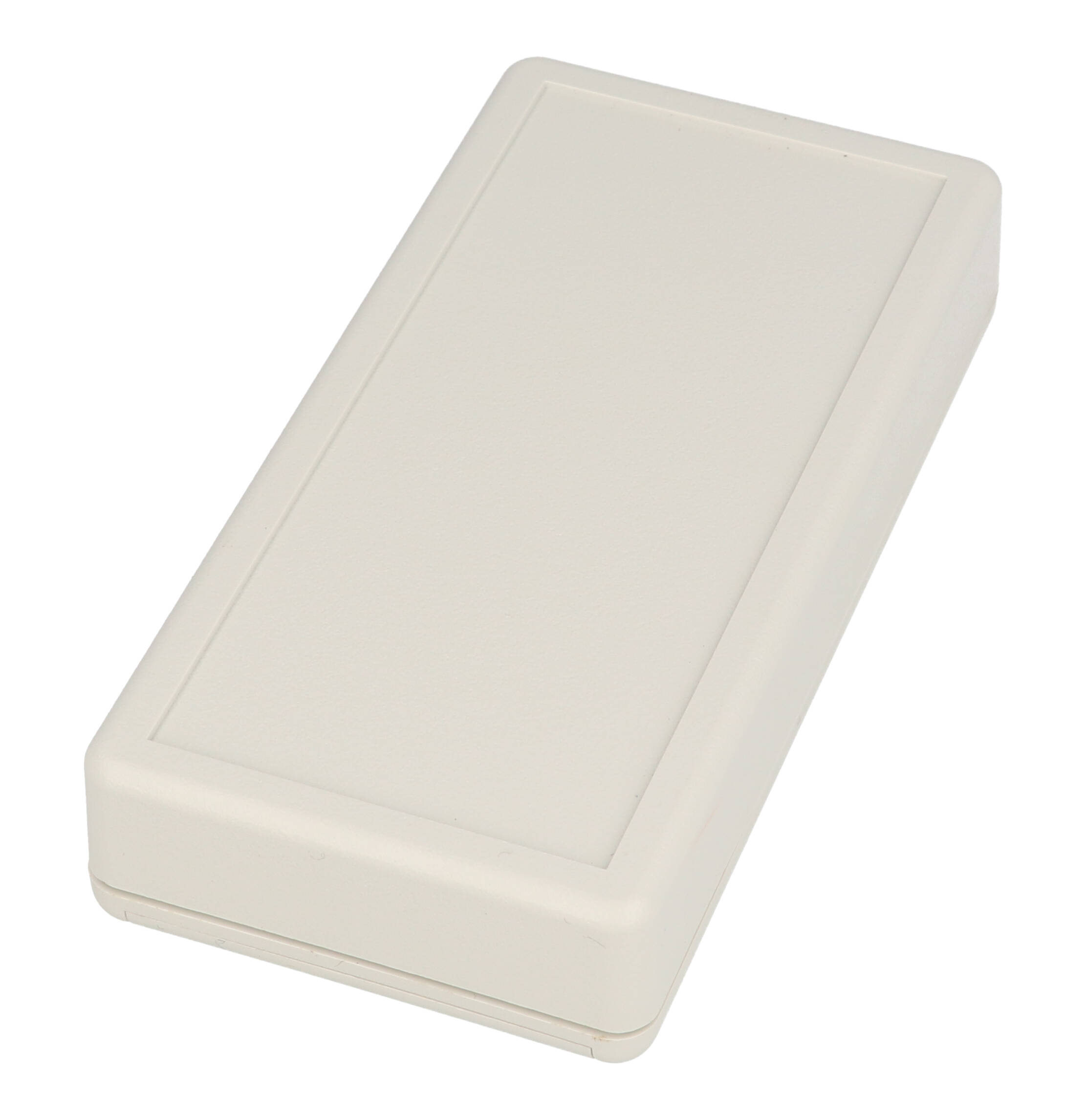

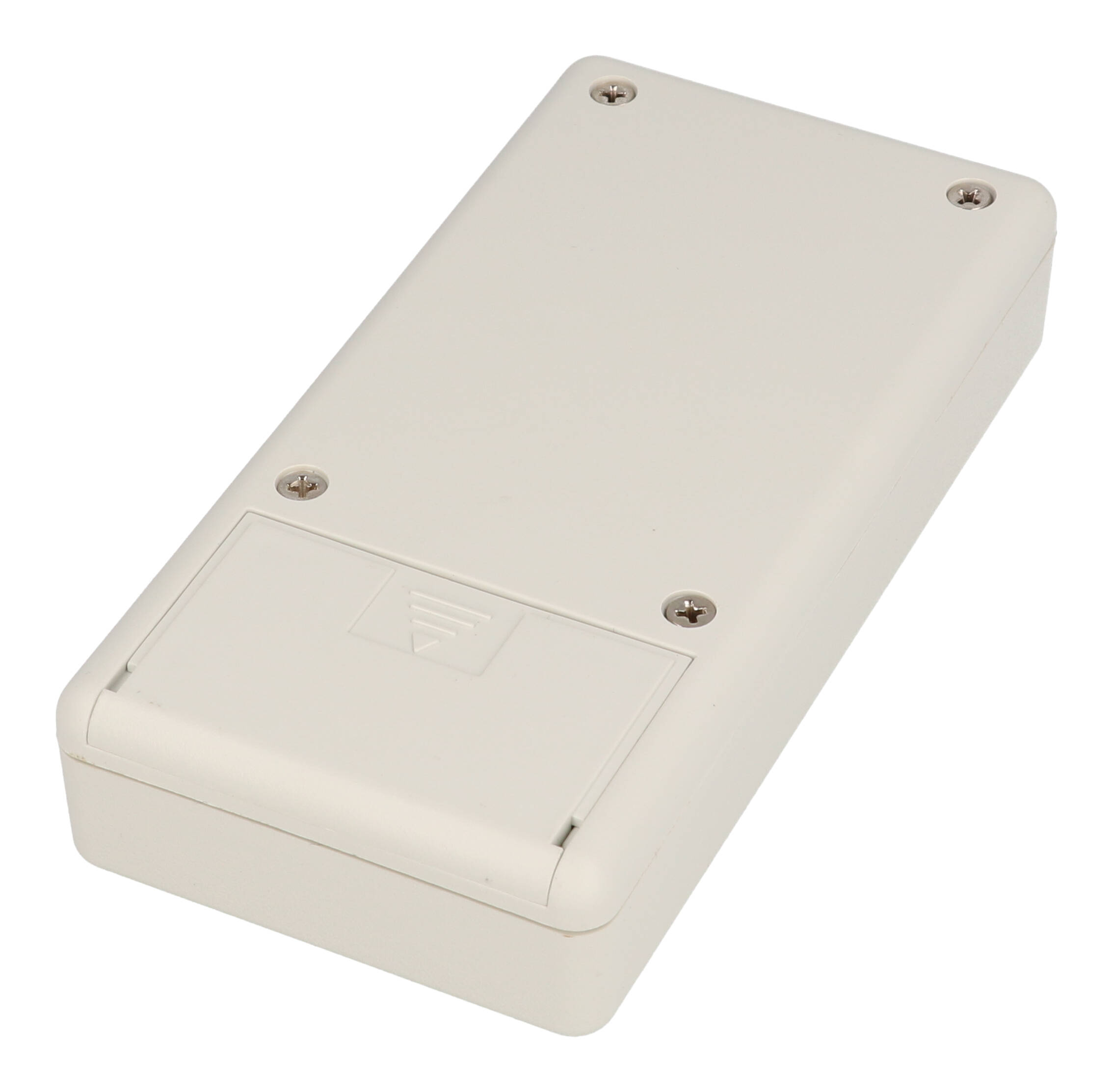

The 1599BGYBAT is the smallest (B size) member of the 1599 Series handheld enclosures, supplied in light grey flame retardant ABS with a battery door. It suits designers of portable meters, remote controls and handheld instruments who need a compact, ergonomic case with an accessible battery compartment.

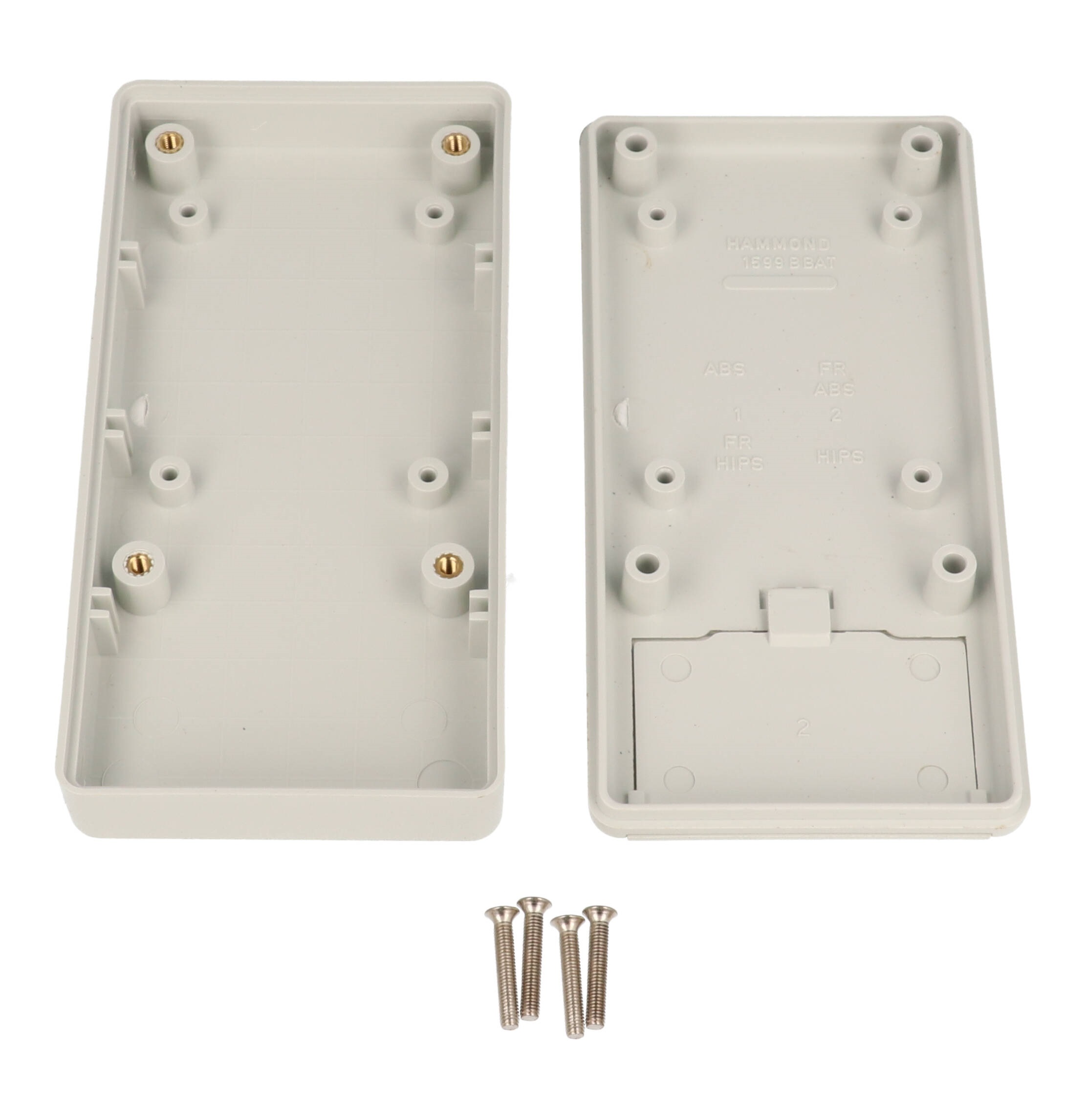

The box and lid are molded from flame retardant ABS with a UL flammability rating of 94 V-0 and assemble with machine screws into integral brass bushings. The purchased assembly includes the box, lid, battery door and 4 cover screws; the recommended cover screw torque is 42-57 ozf.in (30-40 cN.m). A recessed top accepts a membrane display or key pad, and lap joint construction protects against access of dust and splashing water.
Size is 5.12 x 2.56 x 0.97 in (130 x 65 x 25 mm) per the part listing, with the drawing showing inside dimensions of 124.13 x 59.82 x 19.50 mm. Because the battery compartment takes up part of the length, the maximum P.C. board is 89.25 x 53 mm. PC board standoffs on the inside top and bottom accept #4 self-tapping screws. Shipping weight is 0.19 lbs (0.09 kg).
- Fits battery holder kits BH1AAAW, BH2AAAW and BS61 (9V)
- Optional 1599BD-BULK battery divider and 1599CLIP / 1599CLIPGY belt clips
- Two keyhole knockouts inside the base for wall mounting
The part is RoHS and REACH compliant, ships in shrink wrap, and can be factory modified (milling, drilling, printing). Solid models are available in .stp or .x_t format.
Ideal For
- Battery-powered handheld instruments
- Portable meters and test devices with membrane keypads
- Compact remote controls and controllers
- Wall-mounted battery-powered electronics
Overview
| Type | Hand-held, battery door |
| Series | 1599 Series Hand Held Enclosures |
| Version | Flame retardant |
| Part Number | 1599BGYBAT |
| Battery Door | Yes |
| Long Description | enclosure - plastic |
| Short Description | FRABS BX & LD C/W BATTERY DOOR |
| Belt Clip Included | No |
| Flame Retardant Version (Ordering Table) | 1599BGYBAT |
| General Purpose Version (Ordering Table) | 1599BSGYBAT |
Dimensions
| Inside Width | 59.82 mm [2.35 in] |
| Inside Height | 19.50 mm [.77 in] |
| Inside Length | 124.13 mm [4.89 in] |
| Size L X W X H | 5.12 in x 2.56 in x 0.97 in (130 mm x 65 mm x 25 mm) |
| Max. P.C. Board Width | 89.25 mm |
| Max. P.C. Board Length | 53 mm |
| Overall Width (Drawing) | 65.00 mm [2.56 in] |
| Overall Height (Drawing) | 25.50 mm [1.00 in] |
| Overall Length (Drawing) | 130.00 mm [5.12 in] |
| Maximum P.C. Board (Drawing) | 89.25 mm x 53.00 mm [3.51 in x 2.09 in] |
| Nominal Size L X W X D (Ordering Table) | 5.12 in (130 mm) x 2.56 in (65 mm) x 1.02 in (26 mm) |
Accessories
| Battery Divider | 1599BD-BULK (ABS divider panel, grey) |
| P.C. Board Screws | #4 x 1/4" pan head self-tapping, pkg of 50 (1593ATS50) or 100 (1593ATS100) |
| Optional Belt Clip | Nylon belt clip 1599CLIP (Black) or 1599CLIPGY (Grey); includes 2 insulated nylon screws and mounting template |
| Replacement Cover Screws | M3-0.5 x 18mm flat head machine screws, pkg 100: 1594MS100 (silver/grey) or 1594MS100BK (black) |
| Battery Holder Kits (Fit B Size) | BH1AAAW (1 AAA), BH2AAAW (2 AAA), BS61 (1 x 9V) |
Identifiers
| UPC | 623980566450 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Box, lid, battery door and 4 cover screws (P.C. board not supplied) |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Color | Light Gray |
| Joint | Lap joint construction (protection against access of dust and splashing water) |
| Material | ABS Plastic |
| Fastening | Machine screws into integral brass bushings |
| Solid Models | .stp or .x_t |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| P.C. Board Mounting | PC board standoffs on the inside top and bottom; accepts #4 self-tapping screws (P.C. board not supplied) |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Color (Ordering Table) | Grey |
| Enclosure Material Detail | Box and lid made from flame retardant ABS with a UL flammability rating of 94 V-0 |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What comes with the 1599BGYBAT?▾
The purchased assembly includes the box, lid, battery door and 4 cover screws. The P.C. board and battery holder are not supplied.
Which battery holders fit this B-size enclosure?▾
Battery holder kits BH1AAAW (1 AAA), BH2AAAW (2 AAA) and BS61 (one 9V cell) fit the 1599B battery door size.
What is the largest P.C. board it takes?▾
The maximum P.C. board size is 89.25 mm x 53 mm.
Is the 1599BGYBAT IP54 rated?▾
The series states that versions without a battery door are designed to meet IP54; this part has a battery door and its listing does not give an IP rating.
What is the flame rating?▾
The box and lid are flame retardant ABS with a UL flammability rating of 94 V-0.
Can this enclosure be wall mounted?▾
Yes. Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.
