Hammond 1599HGY IP54 220x110mm Grey Flame Retardant Handheld Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP54 rated, light grey flame retardant ABS (UL94 V-0)
- 220 x 110 x 44 mm (8.66 x 4.33 x 1.73 in)
- Maximum P.C. board 212.5 x 96.5 mm
- Machine screws into brass bushings; 4 cover screws included
- Recessed top for membrane display or key pad
- Keyhole knockouts for wall mounting
- Compatible with 1599HD-BULK divider and nylon belt clips

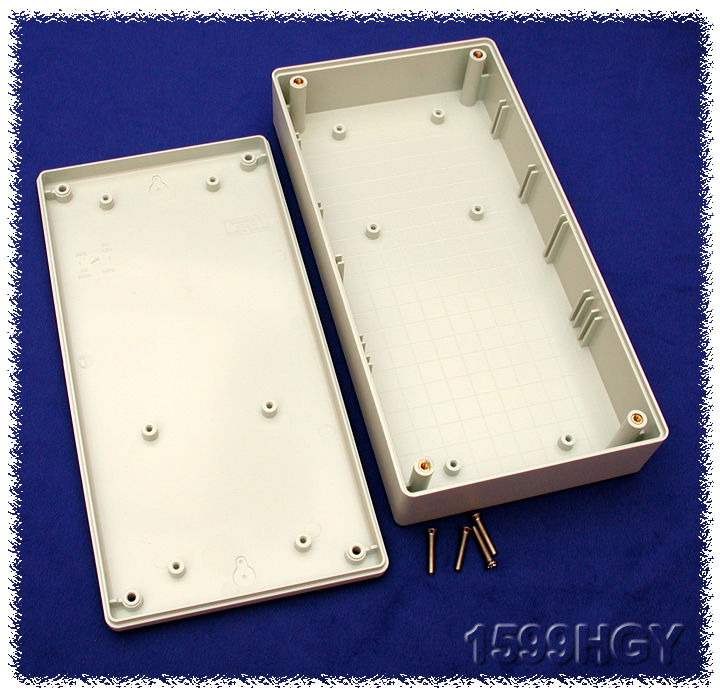

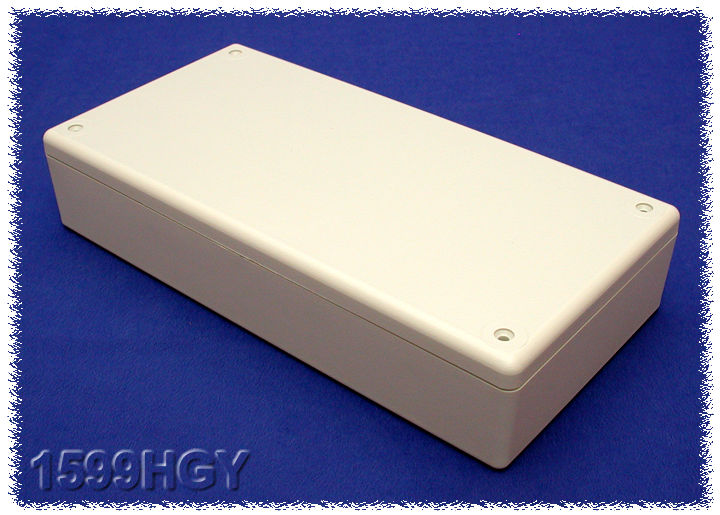

The 1599HGY is the light grey, flame retardant H-size enclosure in the 1599 Series handheld range. At 220 x 110 x 44 mm it has plenty of room inside and is listed as IP54, suiting larger handheld instruments, terminals and control units.

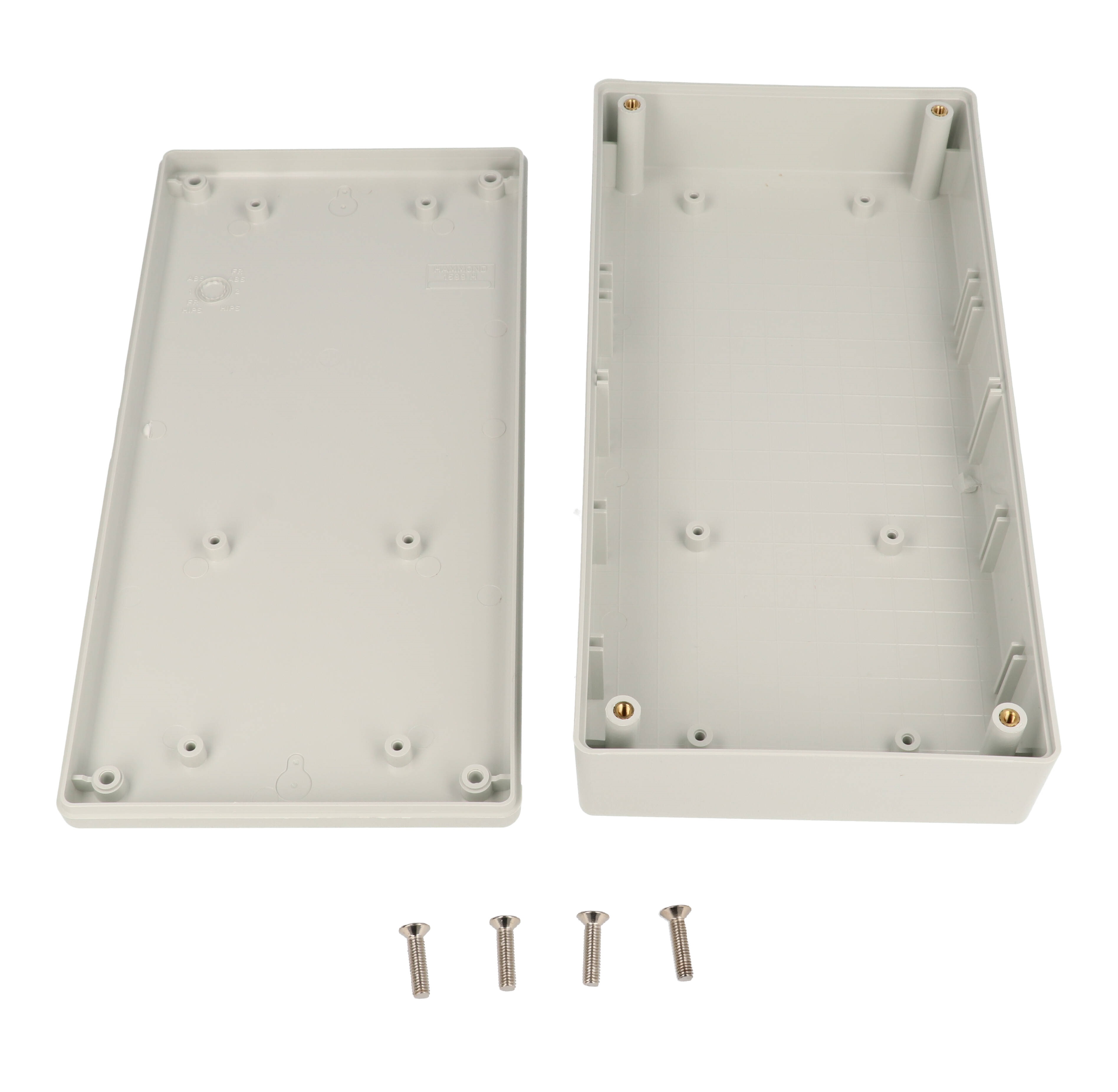

The box and lid are flame retardant ABS with a UL flammability rating of 94 V-0, fastened with machine screws into integral brass bushings. The purchased assembly includes the box, lid and 4 cover screws, and the recommended torque is 42-57 ozf.in (30-40 cN.m). Replacement M3-0.5 x 12mm screws are 1599HMS100 (nickel plated) or 1599HMS100BK (black oxide).

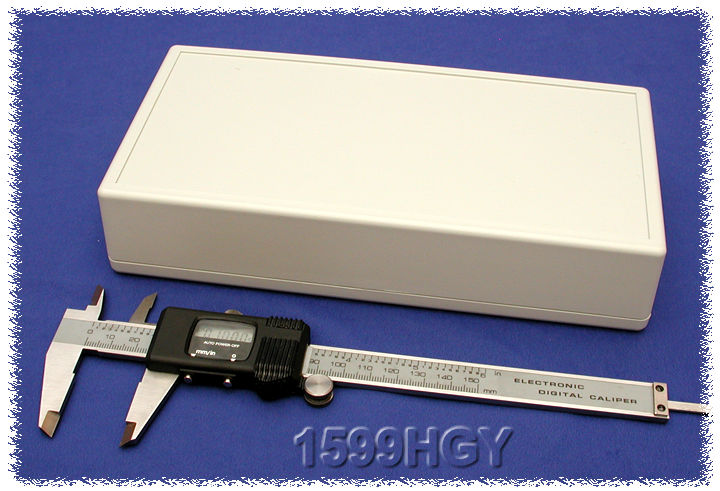

Listed size is 8.66 x 4.33 x 1.73 in (220 x 110 x 44 mm); the ordering table gives 220 x 110 x 45 mm. Inside dimensions on the drawing are 213.68 x 103.68 x 38.25 mm, and the maximum P.C. board is 212.5 x 96.5 mm on standoffs for #4 self-tapping screws. Shipping weight is 0.54 lbs (0.24 kg).
A recessed top accepts a membrane display or key pad, lap joint construction protects against dust and splashing water, and two keyhole knockouts inside the base allow wall mounting. The 1599HGY is RoHS and REACH compliant, ships in shrink wrap and can be factory modified (milling, drilling, printing). Its general purpose counterpart is 1599HSGY.
Ideal For
- Larger flame-rated handheld instruments
- Portable data terminals with keypads
- Handheld equipment exposed to dust and splashes
- Wall-mounted control units
Overview
| Type | Hand-held, general purpose |
| Series | 1599 Series Hand Held Enclosures |
| Version | Flame retardant |
| Part Number | 1599HGY |
| Battery Door | No |
| Long Description | enclosure - plastic |
| Short Description | HAND HELD CASE & LID FRABS |
| Belt Clip Included | No |
| Flame Retardant Version (Ordering Table) | 1599HGY |
| General Purpose Version (Ordering Table) | 1599HSGY |
Dimensions
| Inside Width | 103.68 mm [4.08 in] |
| Inside Height | 38.25 mm [1.51 in] |
| Inside Length | 213.68 mm [8.41 in] |
| Size L X W X H | 8.66 in x 4.33 in x 1.73 in (220 mm x 110 mm x 44 mm) |
| Max. P.C. Board Width | 212.5 mm |
| Max. P.C. Board Length | 96.5 mm |
| Overall Width (Drawing) | 110.00 mm [4.33 in] |
| Overall Height (Drawing) | 44.85 mm [1.77 in] |
| Overall Length (Drawing) | 220.00 mm [8.66 in] |
| Maximum P.C. Board (Drawing) | 212.50 mm x 96.50 mm [8.37 in x 3.80 in] |
| Nominal Size L X W X D (Ordering Table) | 8.66 in (220 mm) x 4.33 in (110 mm) x 1.77 in (45 mm) |
Accessories
| Battery Divider | 1599HD-BULK (ABS divider panel) |
| P.C. Board Screws | #4 x 1/4" pan head self-tapping, pkg of 50 (1593ATS50) or 100 (1593ATS100) |
| Optional Belt Clip | Nylon belt clip 1599CLIP (Black) or 1599CLIPGY (Grey); includes 2 insulated nylon screws and mounting template |
| Replacement Cover Screws | M3-0.5 x 12mm machine screws, pkg 100: 1599HMS100 (nickel plated) or 1599HMS100BK (black oxide) |
Identifiers
| UPC | 623980566788 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Box, lid and 4 cover screws (P.C. board not supplied) |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.54 lbs (0.24 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Color | Light Gray |
| Joint | Lap joint construction (protection against access of dust and splashing water) |
| Material | ABS Plastic |
| Fastening | Machine screws into integral brass bushings |
| Solid Models | STEP or IGES |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| P.C. Board Mounting | PC board standoffs on the inside top and bottom; accepts #4 self-tapping screws (P.C. board not supplied) |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Color (Ordering Table) | Grey |
| Enclosure Material Detail | Box and lid made from flame retardant ABS with a UL flammability rating of 94 V-0 |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What P.C. board size fits the 1599HGY?▾
Up to 212.5 mm x 96.5 mm.
Is the 1599HGY IP54?▾
Yes, it is listed with an IP54 rating.
What is included?▾
Box, lid and 4 cover screws; the P.C. board is not supplied.
How is the lid fastened?▾
With M3-0.5 x 12mm machine screws into integral brass bushings, at a recommended torque of 42-57 ozf.in (30-40 cN.m).
Can it be customized?▾
Yes, the drawing notes that the enclosure can be factory modified by milling, drilling, printing and similar operations.
Can this enclosure be wall mounted?▾
Yes. Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.
