Hammond 1599EGYBAT 170x85mm Grey Flame Retardant Case, Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light grey flame retardant ABS, UL94 V-0
- Battery door for AA, AAA or 9V holder kits (E size)
- 170 x 85 x 34 mm (6.7 x 3.35 x 1.33 in)
- Maximum P.C. board 129 x 72 mm
- Brass bushings with machine screws; 4 cover screws included

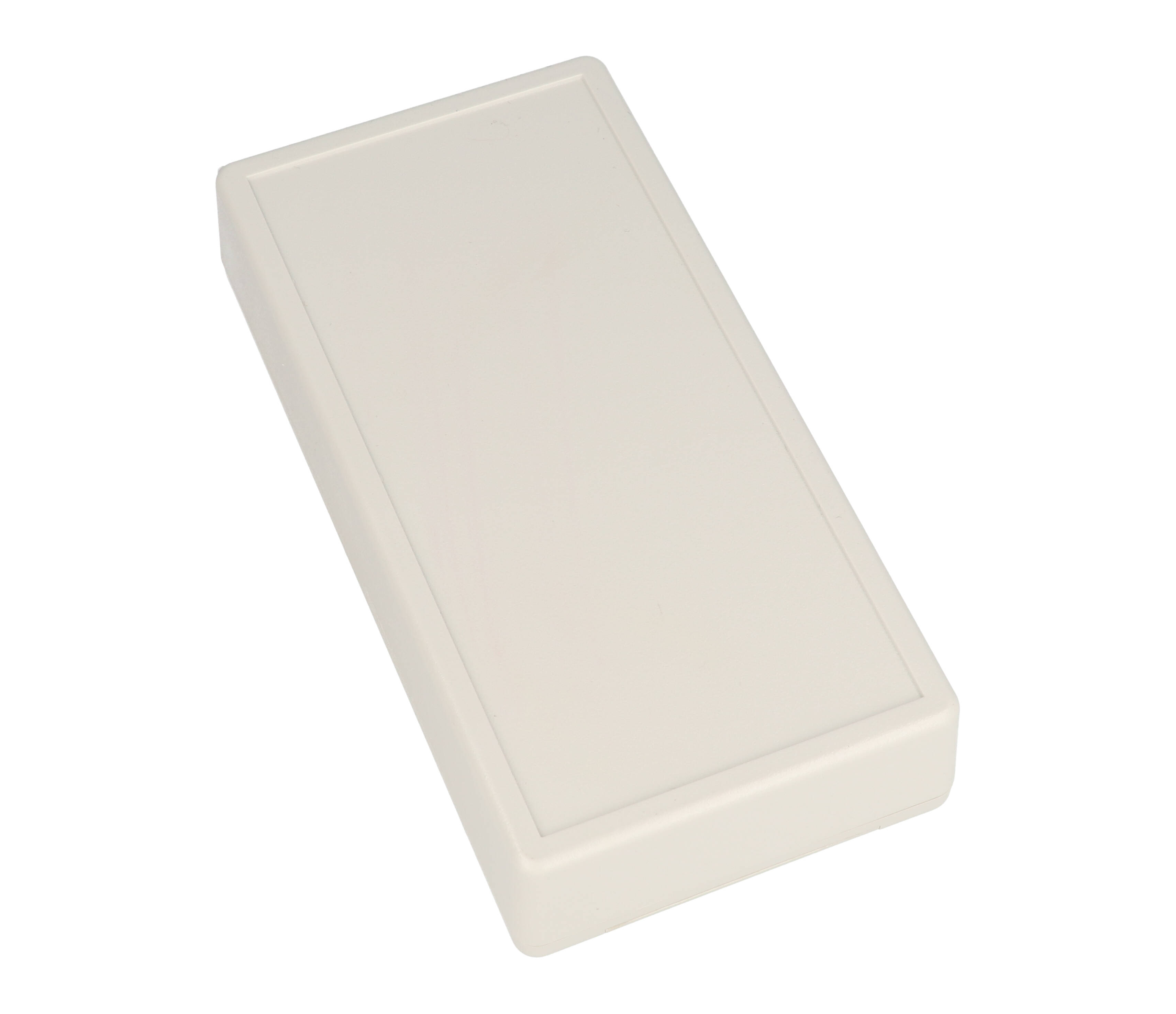

- Recessed top for membrane display or key pad
- RoHS and REACH compliant

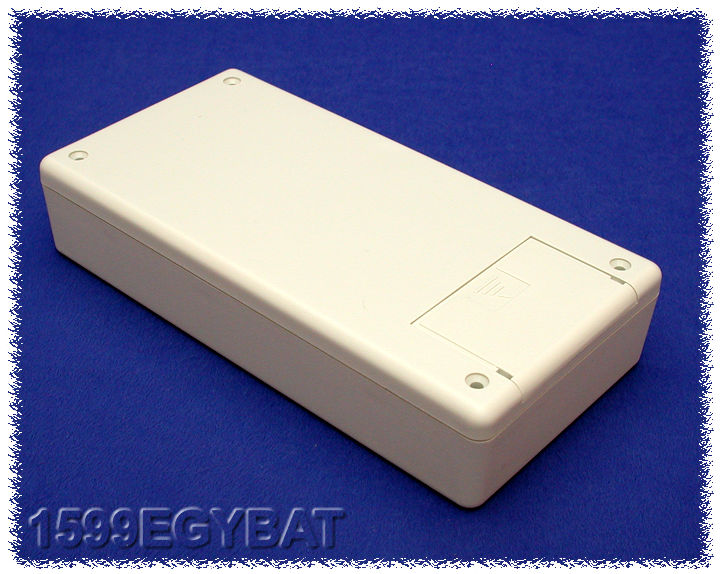

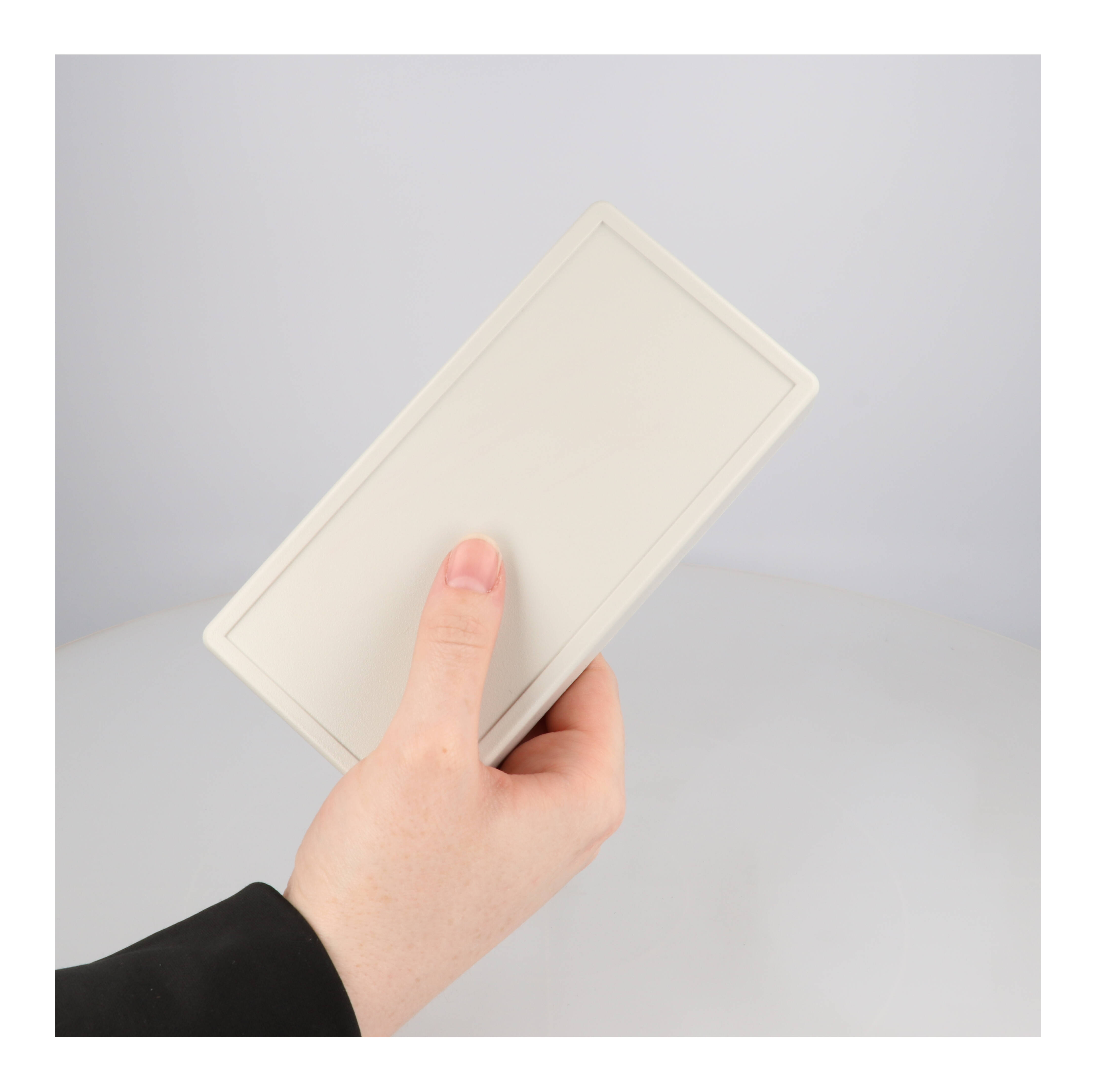

The 1599EGYBAT is the light grey, flame retardant E-size 1599 Series handheld enclosure with a battery door. It suits portable instruments and controllers powered by AA, AAA or 9V cells that users need to change without opening the main case.

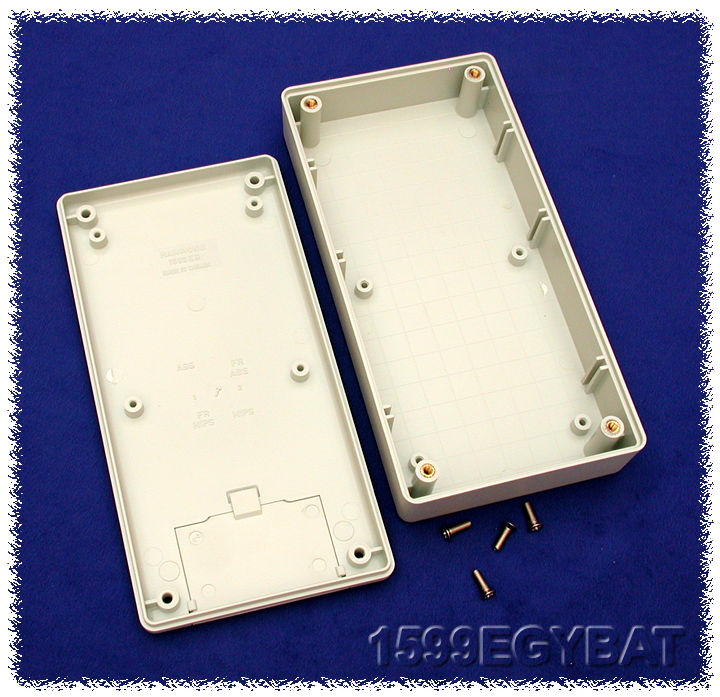

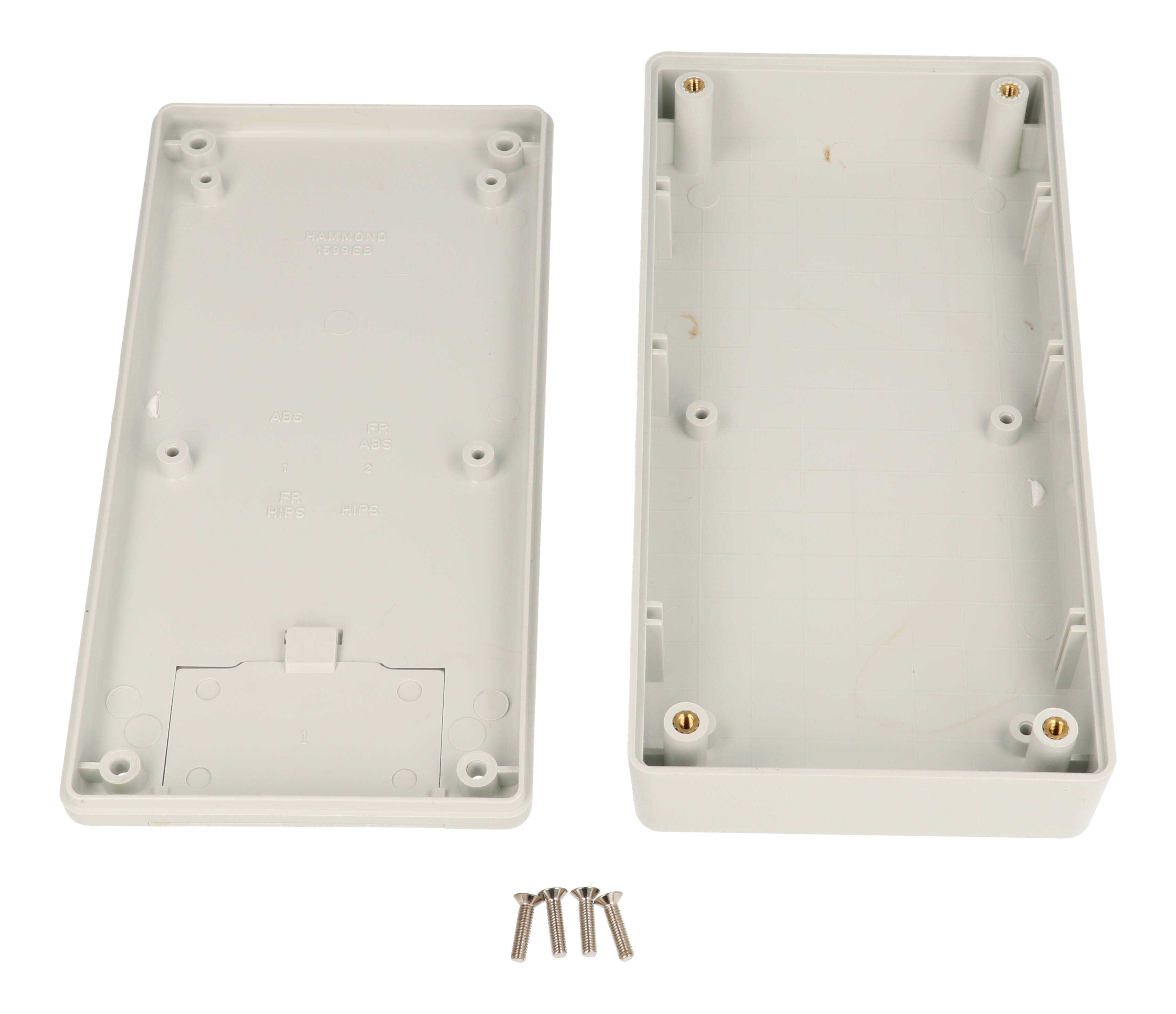

The box and lid are flame retardant ABS rated UL94 V-0, assembled with machine screws into integral brass bushings. The purchased assembly includes the box, lid, battery door and 4 cover screws, with a recommended torque of 42-57 ozf.in (30-40 cN.m). Replacement M3-0.5 x 12mm cover screws are 1599HMS100 or 1599HMS100BK.

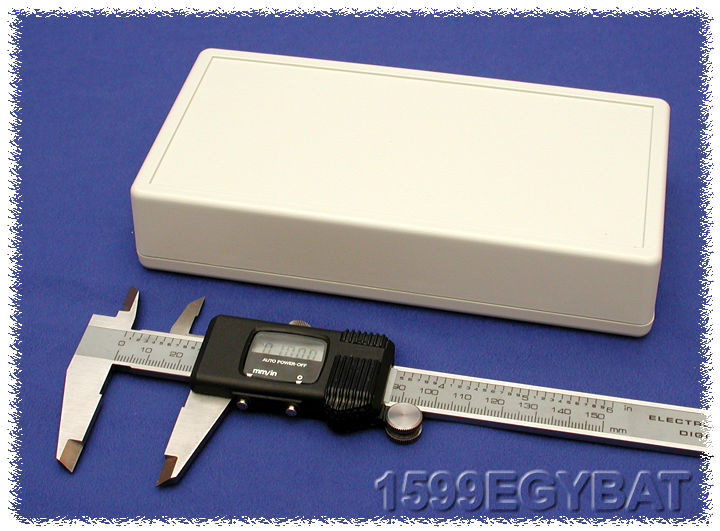

The listing gives 6.7 x 3.35 x 1.33 in (170 x 85 x 34 mm); the ordering table shows 170 x 86 x 35 mm. Inside dimensions on the drawing are 164.01 x 80.19 x 28.75 mm. With space taken by the battery compartment, the maximum P.C. board is 129 x 72 mm, mounted on standoffs for #4 self-tapping screws. Shipping weight is 0.3 lbs (0.14 kg).
Battery holder kits for the E size are BH1AAW, BH2AAW (1-2 AA), BH1AAAW, BH2AAAW, BH3AAAW (1-3 AAA) or BS61 (9V), and the 1599ED-BULK divider is available. A recessed top accepts a membrane display or key pad, and keyhole knockouts inside the base support wall mounting. The 1599EGYBAT is RoHS and REACH compliant and ships in shrink wrap; its general purpose counterpart is 1599ESGYBAT.
Ideal For
- AA or AAA battery handheld instruments
- 9V powered portable meters
- Handheld keypad controllers
- Portable field devices
Overview
| Type | Hand-held, battery door |
| Series | 1599 Series Hand Held Enclosures |
| Version | Flame retardant |
| Part Number | 1599EGYBAT |
| Battery Door | Yes |
| Long Description | enclosure - plastic |
| Short Description | 1599EGY C/W BATTERY DOOR |
| Belt Clip Included | No |
| Flame Retardant Version (Ordering Table) | 1599EGYBAT |
| General Purpose Version (Ordering Table) | 1599ESGYBAT |
Dimensions
| Inside Width | 80.19 mm [3.16 in] |
| Inside Height | 28.75 mm [1.13 in] |
| Inside Length | 164.01 mm [6.46 in] |
| Size L X W X H | 6.7 in x 3.35 in x 1.33 in (170 mm x 85 mm x 34 mm) |
| Max. P.C. Board Width | 129 mm |
| Max. P.C. Board Length | 72 mm |
| Overall Width (Drawing) | 85.50 mm [3.37 in] |
| Overall Length (Drawing) | 170.00 mm [6.69 in] |
| Maximum P.C. Board (Drawing) | 129.00 mm x 72.00 mm [5.08 in x 2.83 in] |
| Nominal Size L X W X D (Ordering Table) | 6.69 in (170 mm) x 3.39 in (86 mm) x 1.38 in (35 mm) |
Accessories
| Battery Divider | 1599ED-BULK (ABS divider panel) |
| P.C. Board Screws | #4 x 1/4" pan head self-tapping, pkg of 50 (1593ATS50) or 100 (1593ATS100) |
| Optional Belt Clip | Nylon belt clip 1599CLIP (Black) or 1599CLIPGY (Grey); includes 2 insulated nylon screws and mounting template |
| Replacement Cover Screws | M3-0.5 x 12mm machine screws, pkg 100: 1599HMS100 (nickel plated) or 1599HMS100BK (black oxide) |
| Battery Holder Kits (Fit E Size) | BH1AAW (1 AA), BH2AAW (2 AA), BH1AAAW (1 AAA), BH2AAAW (2 AAA), BH3AAAW (3 AAA), BS61 (1 x 9V) |
Identifiers
| UPC | 623980566535 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Box, lid, battery door and 4 cover screws (P.C. board not supplied) |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.3 lbs (0.14 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Color | Light Gray |
| Joint | Lap joint construction (protection against access of dust and splashing water) |
| Material | ABS Plastic |
| Fastening | Machine screws into integral brass bushings |
| Solid Models | STEP or IGES |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| P.C. Board Mounting | PC board standoffs on the inside top and bottom; accepts #4 self-tapping screws (P.C. board not supplied) |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Color (Ordering Table) | Grey |
| Enclosure Material Detail | Box and lid made from flame retardant ABS with a UL flammability rating of 94 V-0 |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which battery holder kits fit the 1599EGYBAT?▾
BH1AAW, BH2AAW, BH1AAAW, BH2AAAW, BH3AAAW and BS61 (9V) are listed for the 1599E size.
What is the maximum P.C. board?▾
129 mm x 72 mm.
What is included?▾
Box, lid, battery door and 4 cover screws.
Is there a general purpose equivalent?▾
Yes, the ordering table pairs it with 1599ESGYBAT (general purpose ABS).
What torque should the cover screws be tightened to?▾
42-57 ozf.in (30-40 cN.m).
Are there chemicals I should keep away from this ABS enclosure?▾
Yes. The manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection and anti-seize pastes, strong solvents or cleaners, and some greases and oils.
