Hammond BH1AAW Single AA Battery Holder with Wire Leads
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Holds one AA battery (not included)
- + and - wire leads, 150.00 mm [5.91 in] per drawing
- Adhesive pad on underside for installation
- 59.70 mm [2.35 in] long, 16.13 mm [.64 in] wide, 14.13 mm [.56 in] high
- Black ABS plastic construction
- RoHS and REACH compliant; sold 1 per package

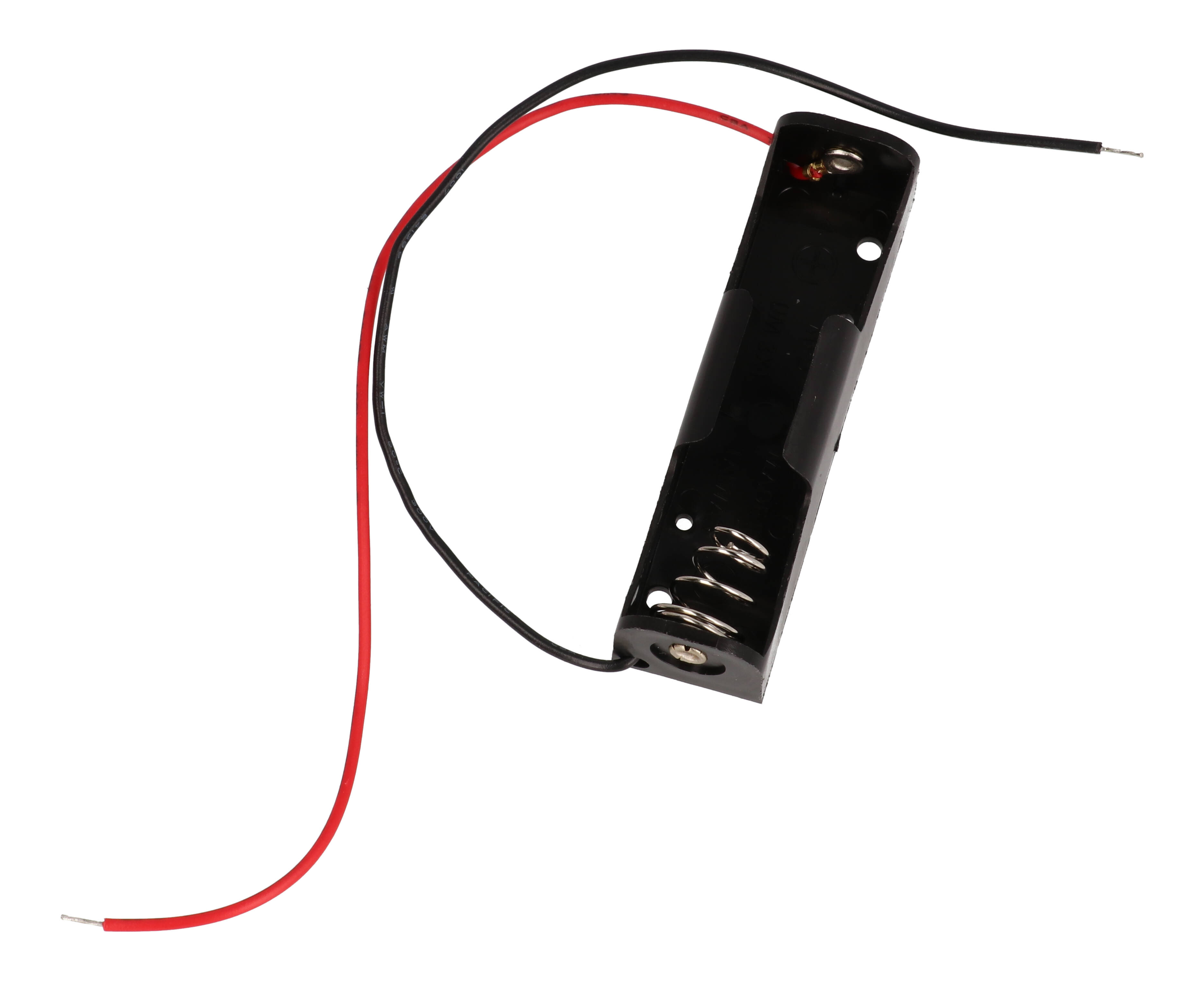

The BH1AAW holds one AA battery and is intended for designers and builders who want a simple, wired single-cell power source for a small electronic device. The battery is not included, and each package contains one holder.

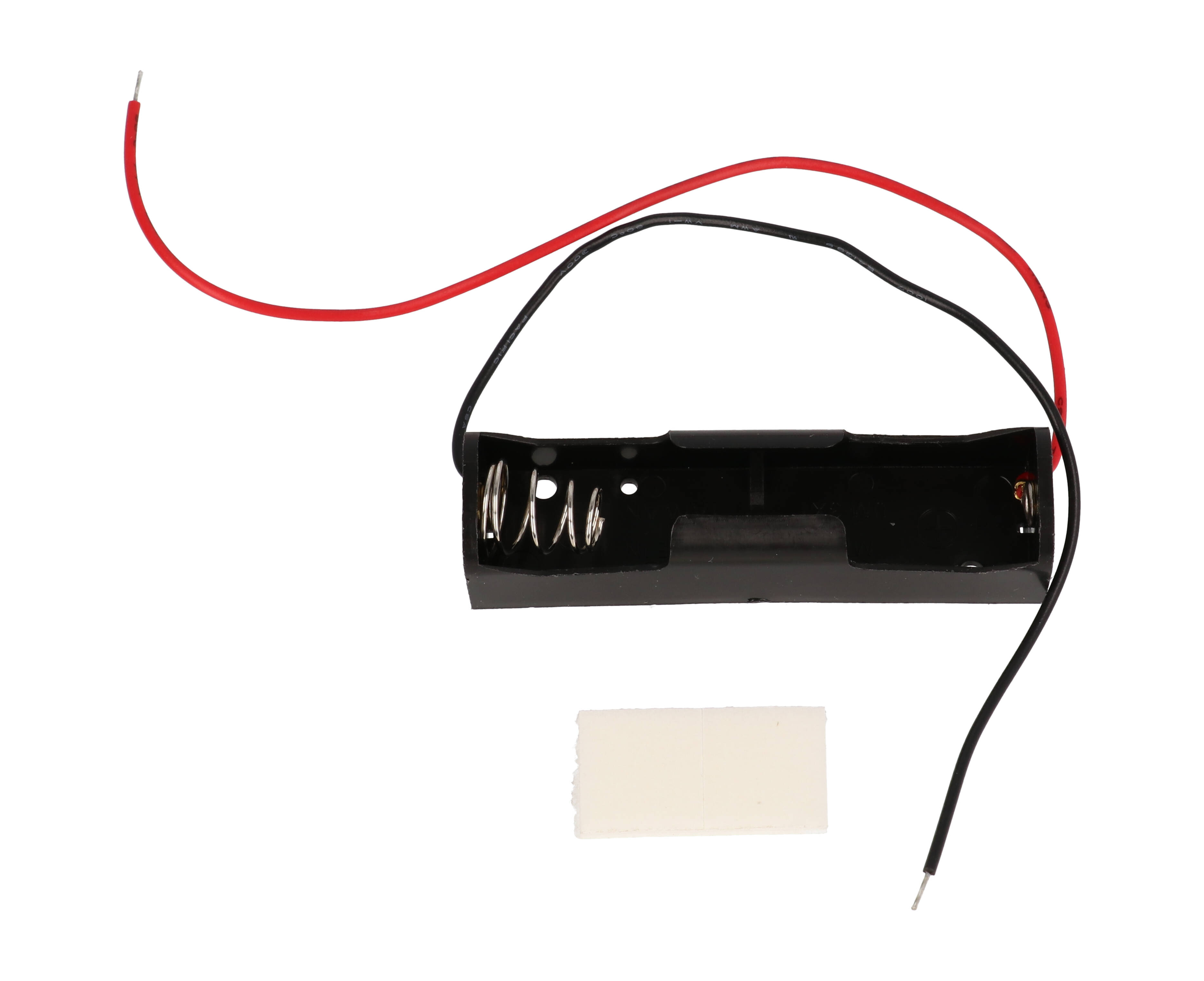

Molded from black ABS plastic, the holder has a + wire and a - wire, each 150.00 mm [5.91 in] long according to the drawing, ready to connect to a PCB or terminal block. Installation is by an adhesive pad on the underside, so it can be fixed inside an enclosure without drilling.
The drawing gives an overall length of 59.70 mm [2.35 in], a width of 16.13 mm [.64 in] and a height of 14.13 mm [.56 in]. Compared with the AAA version (BH1AAAW), this holder is longer and wider to accept the larger AA cell.
The BH1AAW is packed in a bag, has a shipping weight of 0.02 lbs (0.01 kg), and is RoHS and REACH compliant.
The drawing note confirms the holder is for use with 1 AA battery. For ordering and inventory, the BH1AAW carries UPC 623980035659 and UNSPSC 39121301. Because the leads are already attached, there is no separate battery snap to wire, and the adhesive mounting keeps the enclosure walls free of extra holes.
Ideal For
- Single AA cell power for small devices
- Battery holder inside small enclosures
- Prototyping and hobby electronics
Overview
| Type | Battery holder |
| Series | BH Series (Battery Holders) |
| Description | Hardware - battery holder for AA cell |
| Part Number | BH1AAW |
| Drawing Note | For use with 1 AA battery |
| Short Description | 1XAA BATT HOLDER |
| Quantity Per Package | 1 |
| Compatible Batteries (Not Included) | (1) AA |
Dimensions
| Width | 16.13 mm [.64 in] |
| Height | 14.13 mm [.56 in] |
| Inner Length | 52.85 mm [2.08 in] |
| Overall Length | 59.70 mm [2.35 in] |
| Wire Lead Length | 150.00 mm [5.91 in] |
Identifiers
| UPC | 623980035659 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Color | Black |
| Leads | + wire and - wire |
| Material | ABS Plastic |

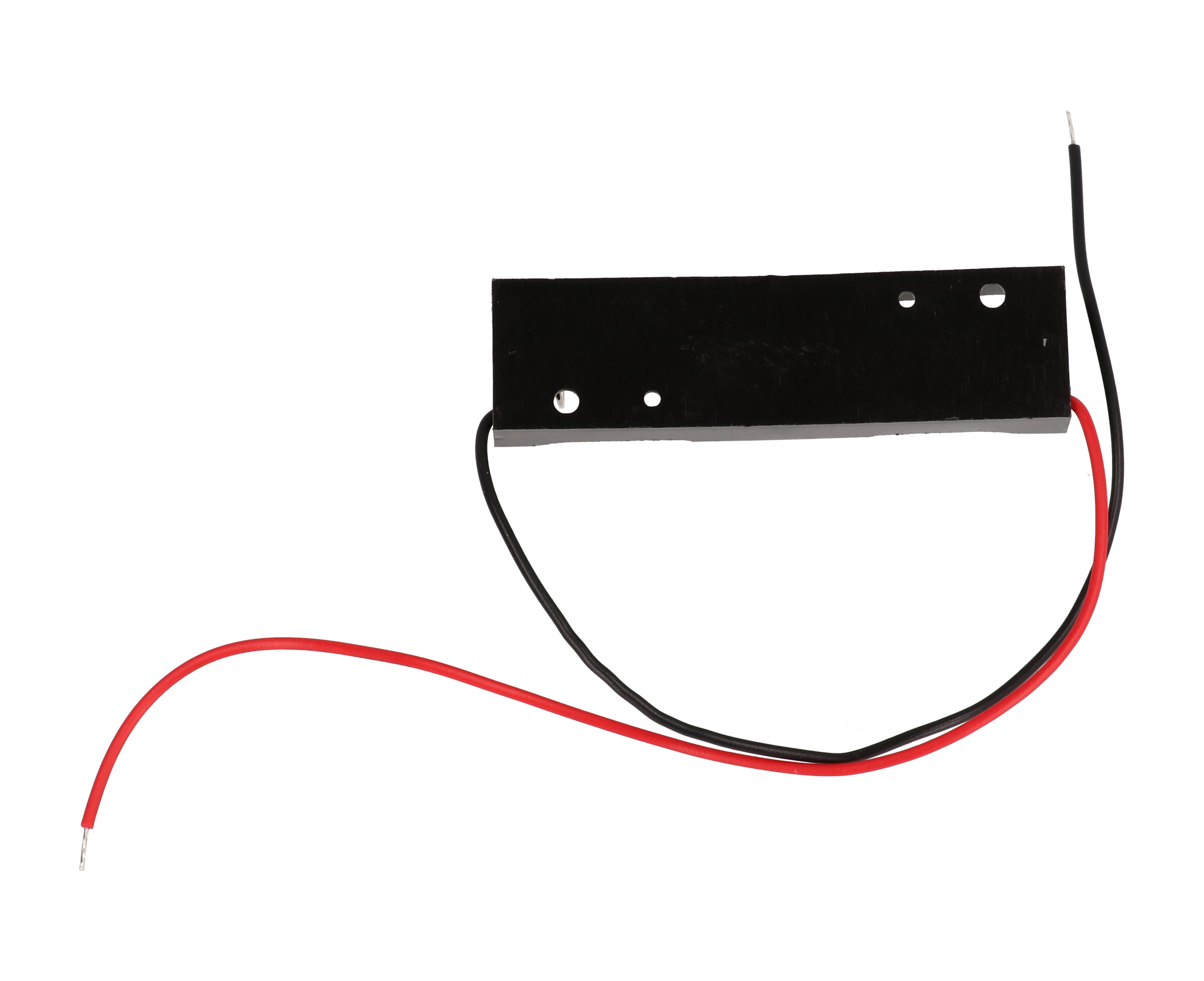

| Installation | Adhesive pad on underside for installation |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What battery fits the BH1AAW?▾
One AA battery, which is not included.
How long are the leads?▾
The + and - wires are shown at 150.00 mm [5.91 in] on the drawing.
How do I install it in an enclosure?▾
It has an adhesive pad on the underside for installation.
What are its dimensions?▾
59.70 mm [2.35 in] overall length, 16.13 mm [.64 in] wide and 14.13 mm [.56 in] high.
What is it made of?▾
Black ABS plastic.
