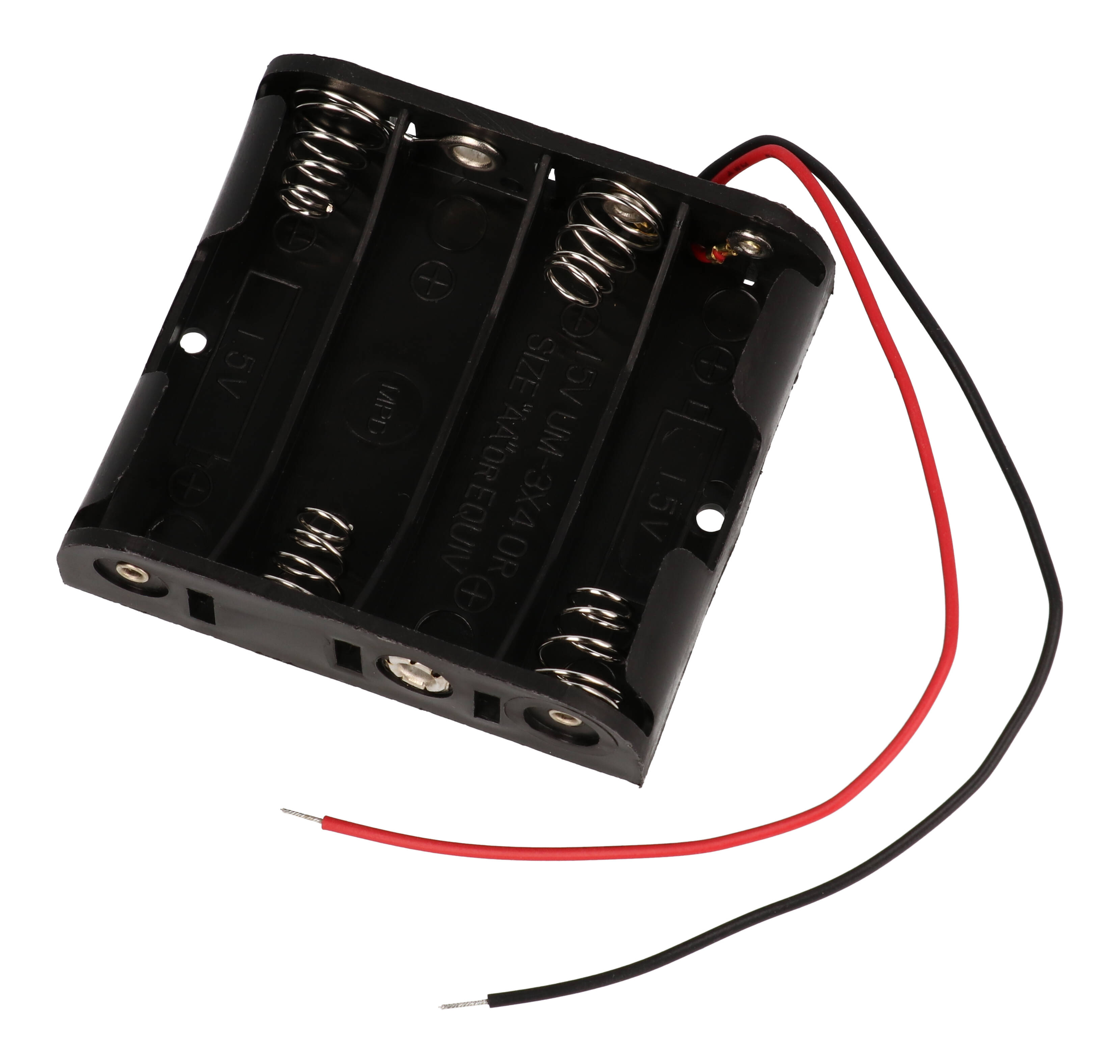

Hammond BH4AAW Four-Cell AA Battery Holder with Wire Leads
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Holds four AA batteries (not included)
- + and - wire leads, 150.00 mm [5.91 in] per drawing

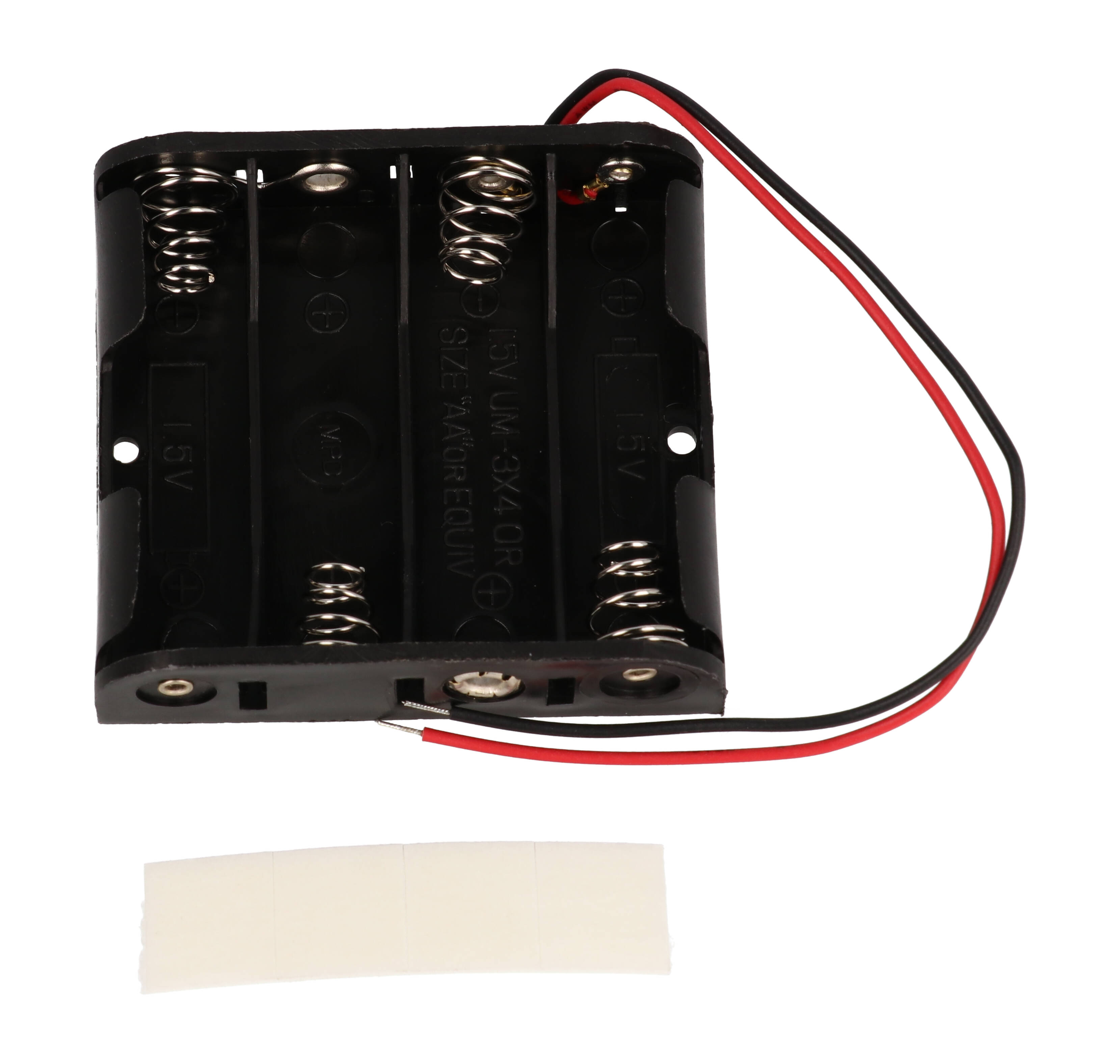

- Adhesive pad on underside for installation
- 61.25 mm [2.41 in] x 59.25 mm [2.33 in] footprint, 14.57 mm [.57 in] high
- Molded black ABS plastic
- RoHS and REACH compliant; one per package
The BH4AAW is a battery holder for four AA cells. It suits OEM engineers, integrators and hobbyists who want a wired four-cell AA power pack that can be fixed inside an enclosure. The batteries are not included, and it is sold one per package.

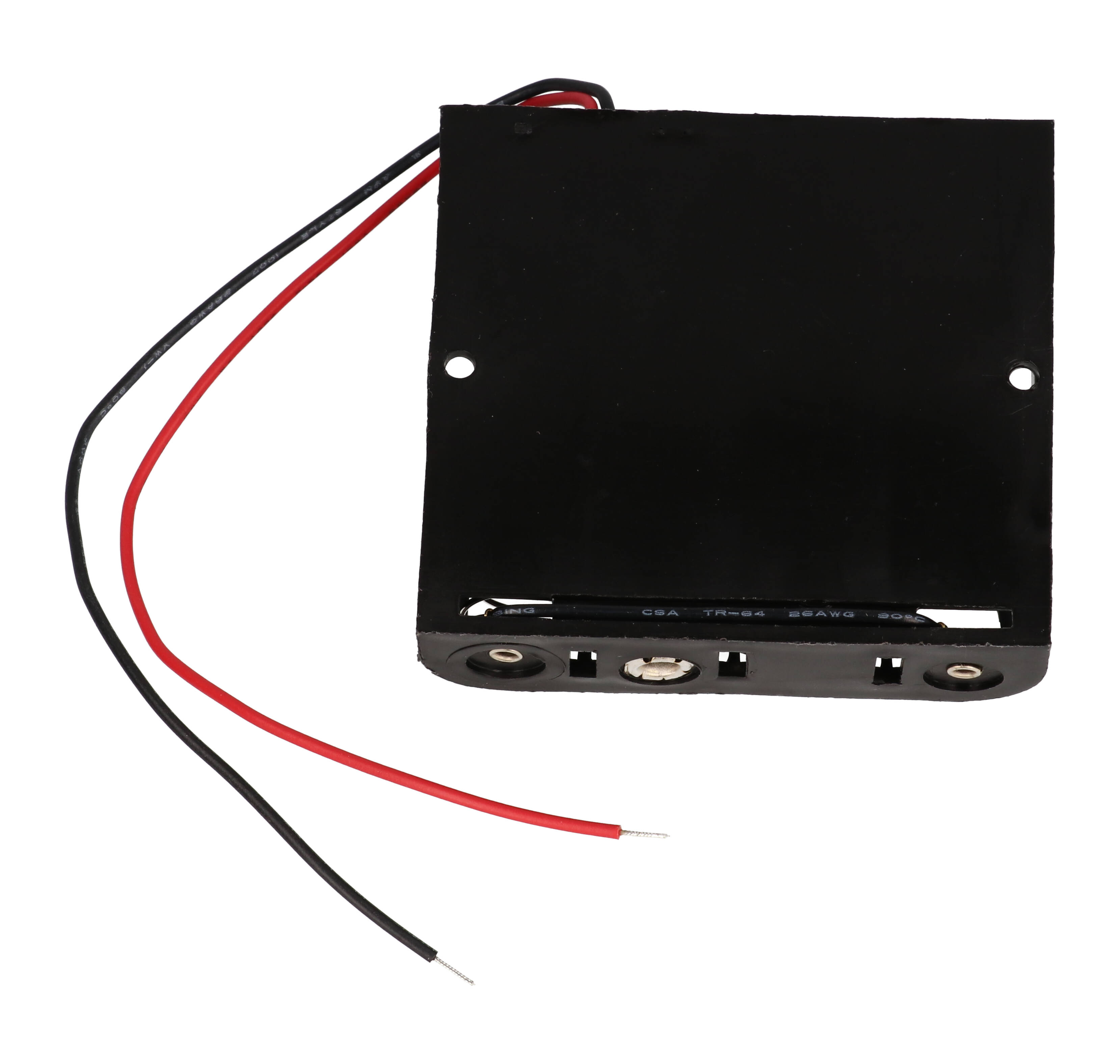

The holder is molded from black ABS plastic and comes with a + wire and a - wire, shown at 150.00 mm [5.91 in] on the drawing. An adhesive pad on the underside is used for installation.
Drawing dimensions are 61.25 mm [2.41 in] by 59.25 mm [2.33 in] across, with a height of 14.57 mm [.57 in]. It is the largest holder in the BH series, sized to hold four AA cells side by side.
The BH4AAW ships in a bag with a shipping weight of 0.03 lbs (0.01 kg) and is RoHS and REACH compliant.
The drawing note states it is for use with 4 AA batteries. The pre-attached leads and adhesive pad mean it can be fitted without separate snaps, fasteners or extra holes in the enclosure. For purchasing and inventory systems, the BH4AAW carries UPC 623980001579 and UNSPSC 39121301.
Ideal For
- Four-cell AA power supply for devices
- Battery mounting inside electronics enclosures
- Maker and prototype projects
Overview
| Type | Battery holder |
| Series | BH Series (Battery Holders) |
| Description | Hardware - battery holder for AA cell |
| Part Number | BH4AAW |
| Drawing Note | For use with 4 AA batteries |
| Short Description | 4XAA BATT HOLDER |
| Quantity Per Package | 1 |
| Compatible Batteries (Not Included) | (4) AA |
Dimensions
| Width | 59.25 mm [2.33 in] |
| Height | 14.57 mm [.57 in] |
| Inner Length | 57.00 mm [2.24 in] |
| Overall Length | 61.25 mm [2.41 in] |
| Wire Lead Length | 150.00 mm [5.91 in] |
Identifiers
| UPC | 623980001579 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.03 lbs (0.01 kg) |
Construction & Finish
| Color | Black |
| Leads | + wire and - wire |
| Material | ABS Plastic |
| Installation | Adhesive pad on underside for installation |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What batteries does the BH4AAW use?▾
Four AA batteries, which are not included.
How big is it?▾
61.25 mm [2.41 in] by 59.25 mm [2.33 in], with a height of 14.57 mm [.57 in] per the drawing.
How do I mount it?▾
It has an adhesive pad on the underside for installation.
Does it have leads?▾
Yes, a + wire and a - wire shown at 150.00 mm [5.91 in].
How is it packaged?▾
One holder per package, packed in a bag.
