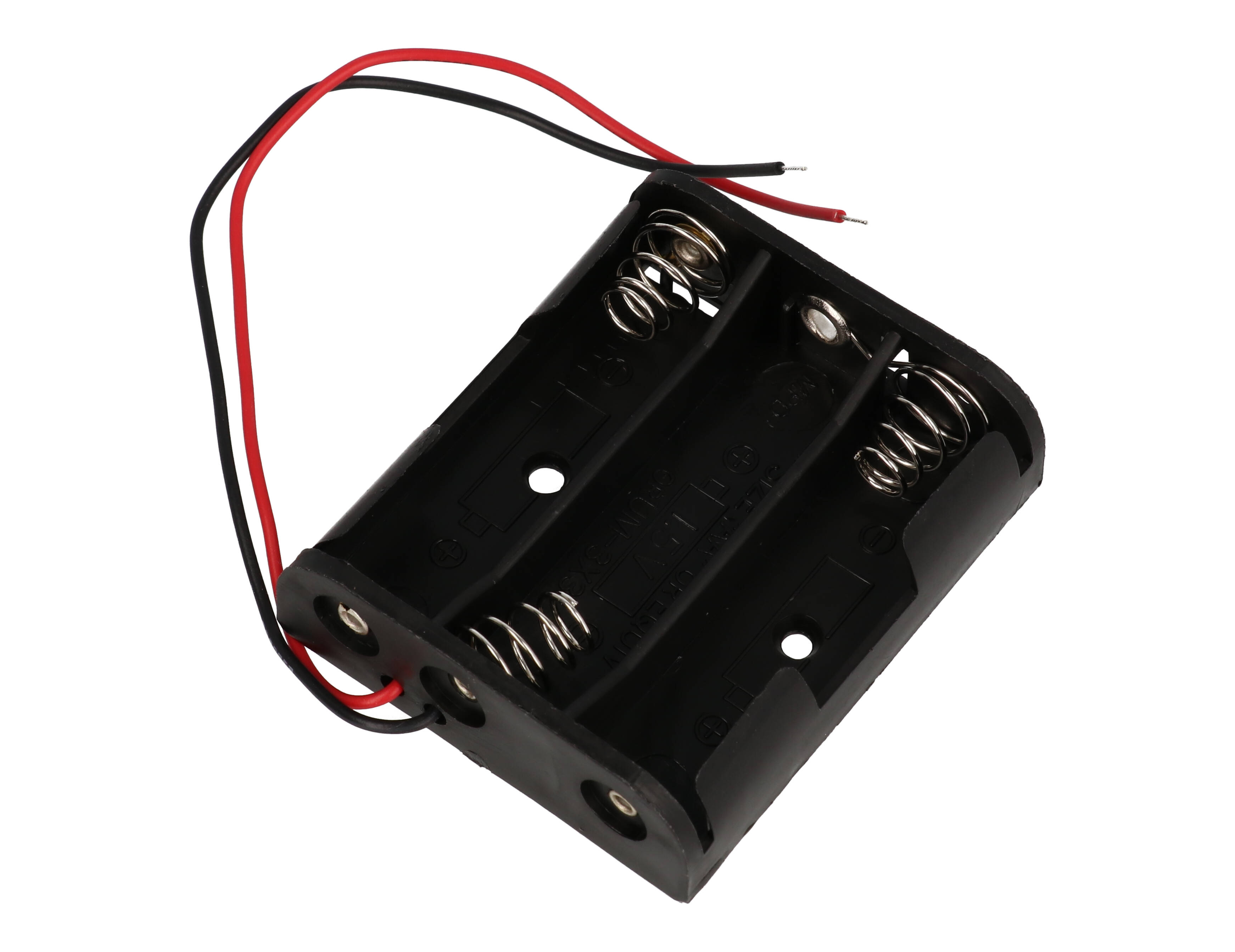

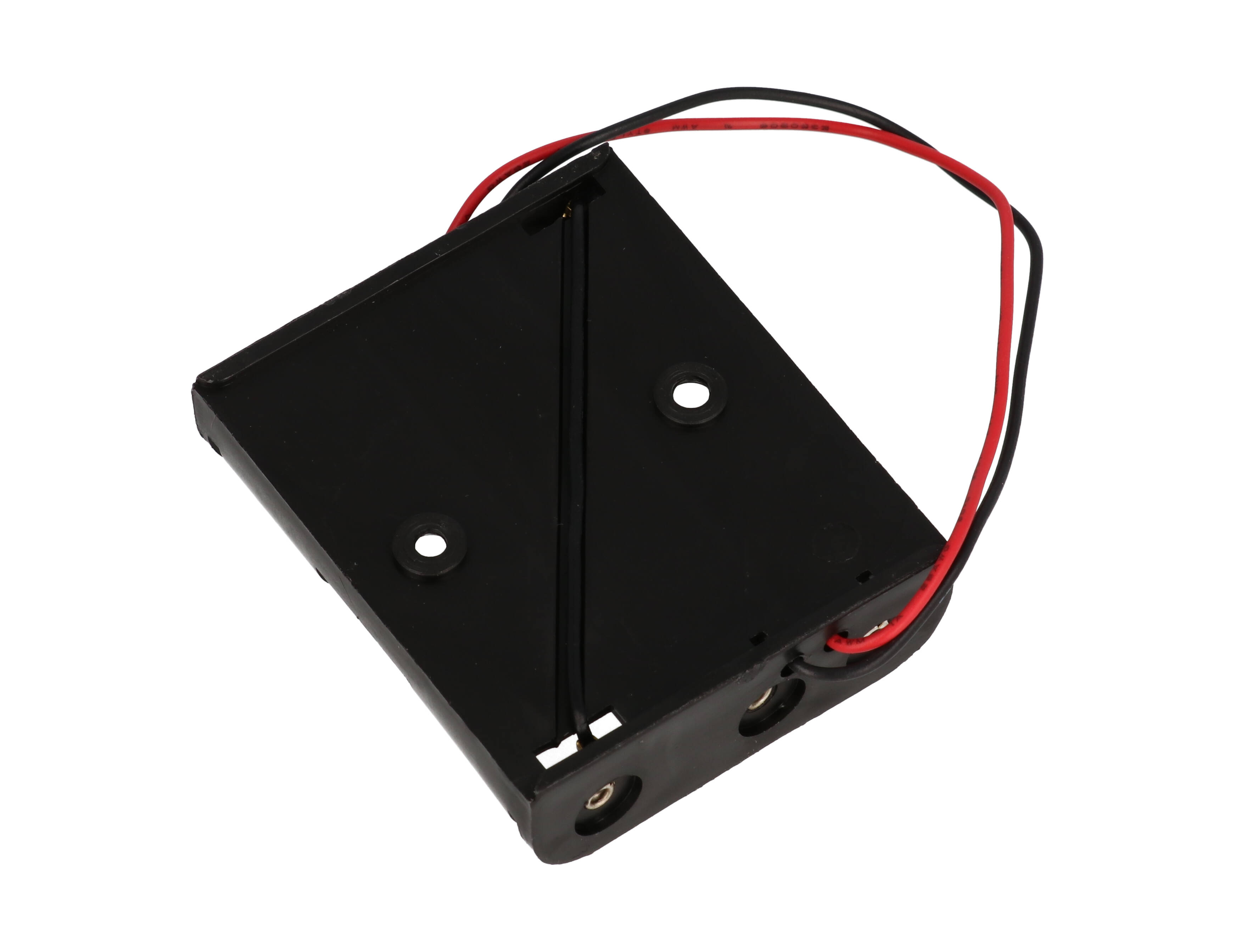

Hammond BH3AAW Three-Cell AA Battery Holder with Wire Leads
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Holds three AA batteries (not included)
- + and - wire leads, 150.00 mm [5.91 in] per drawing
- Adhesive pad on underside for installation
- 57.30 mm [2.26 in] long x 49.40 mm [1.94 in] wide x 16.64 mm [.66 in] high
- Molded black ABS plastic
- RoHS and REACH compliant; one per package
The BH3AAW holds three AA batteries and gives OEM engineers, designers and hobbyists a ready-wired three-cell AA power source for equipment built into small enclosures. The batteries are not included, and one holder comes in each package.

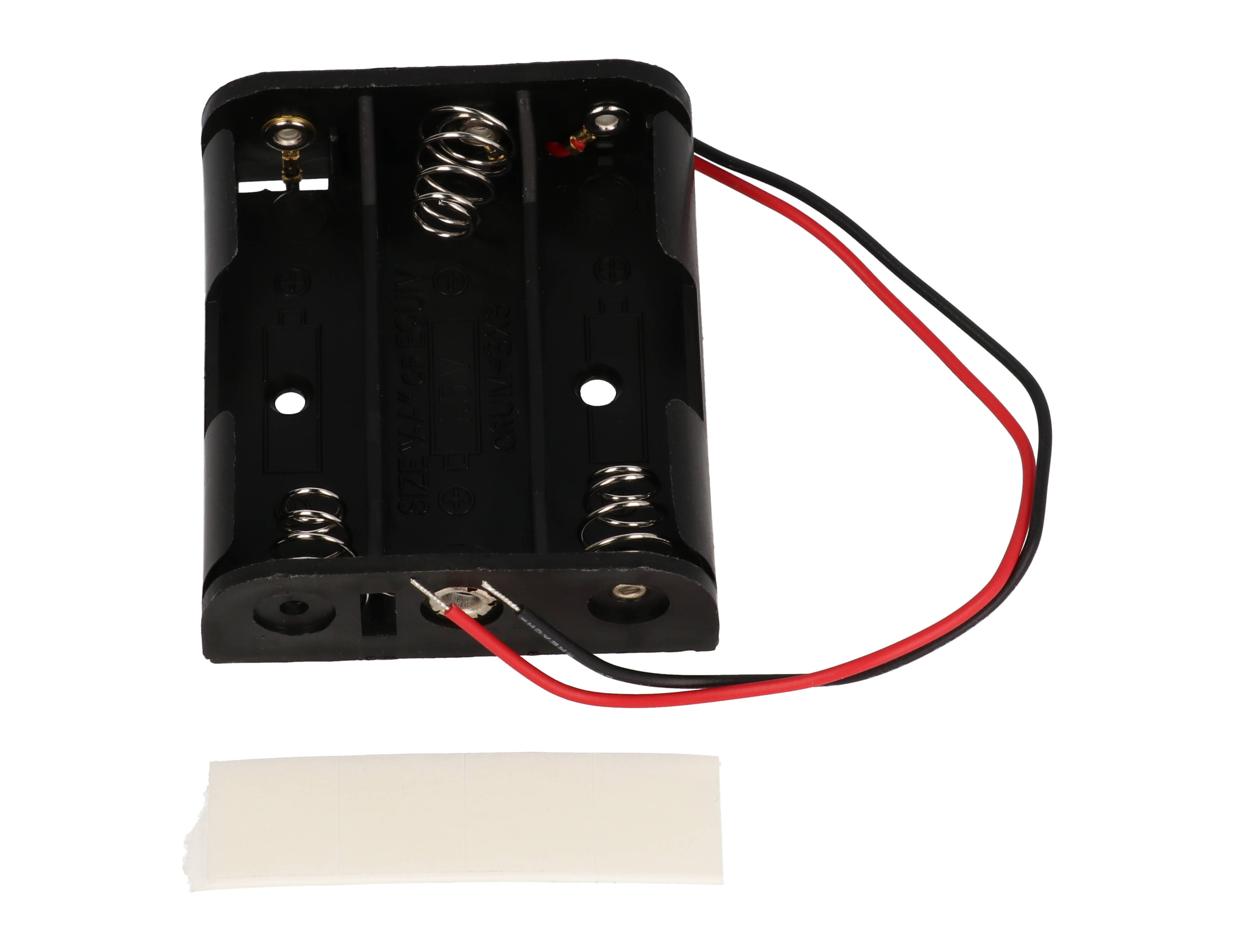

The body is molded from black ABS plastic. A + wire and a - wire, each shown on the drawing at 150.00 mm [5.91 in], allow direct connection to a board or switch, and an adhesive pad on the underside is provided for installation.
Per the drawing, the holder is 57.30 mm [2.26 in] long, 49.40 mm [1.94 in] wide and 16.64 mm [.66 in] high. That makes it the largest of the three-cell options in the series, sized for AA rather than AAA cells.
The BH3AAW ships in a bag with a shipping weight of 0.04 lbs (0.02 kg) and is RoHS and REACH compliant.
The drawing note states it is for use with 3 AA batteries. As with the other holders in the series, the pre-attached leads and adhesive underside mean it can be fitted without fasteners or extra holes in the enclosure. For purchasing, the BH3AAW carries UPC 623980001555 and UNSPSC 39121301.
Ideal For
- Three-cell AA power for portable equipment
- Internal battery mounting in enclosures
- Prototype and hobby electronics
Overview
| Type | Battery holder |
| Series | BH Series (Battery Holders) |
| Description | Hardware - battery holder for AA cell |
| Part Number | BH3AAW |
| Drawing Note | For use with 3 AA batteries |
| Short Description | 3XAA BATT HOLDER |
| Quantity Per Package | 1 |
| Compatible Batteries (Not Included) | (3) AA |
Dimensions
| Width | 49.40 mm [1.94 in] |
| Height | 16.64 mm [.66 in] |
| Inner Length | 53.45 mm [2.10 in] |
| Overall Length | 57.30 mm [2.26 in] |
| Wire Lead Length | 150.00 mm [5.91 in] |
Identifiers
| UPC | 623980001555 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Color | Black |
| Leads | + wire and - wire |
| Material | ABS Plastic |
| Installation | Adhesive pad on underside for installation |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What batteries does the BH3AAW accept?▾
Three AA batteries. Batteries are not included.
What are the dimensions?▾
57.30 mm [2.26 in] long, 49.40 mm [1.94 in] wide and 16.64 mm [.66 in] high per the drawing.
How is it fixed in place?▾
An adhesive pad on the underside is provided for installation.
How long are the leads?▾
The + and - wires are shown at 150.00 mm [5.91 in].
What does it weigh?▾
The shipping weight is 0.04 lbs (0.02 kg).
