Hammond 1599HSGYBAT 220 x 110 mm Grey Handheld Box with Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Integrated battery door on a 220 x 110 x 44 mm handheld enclosure
- General purpose ABS, UL94 HB, light gray
- Max PC board 96.5 x 140 mm; standoffs on inside top and bottom
- Fits optional AA, AAA and 9V battery holder kits for 1599H sizes
- Recessed top for a membrane display or key pad
- Box, lid, battery door and 4 cover screws included
- Keyhole knockouts inside the base for wall mounting

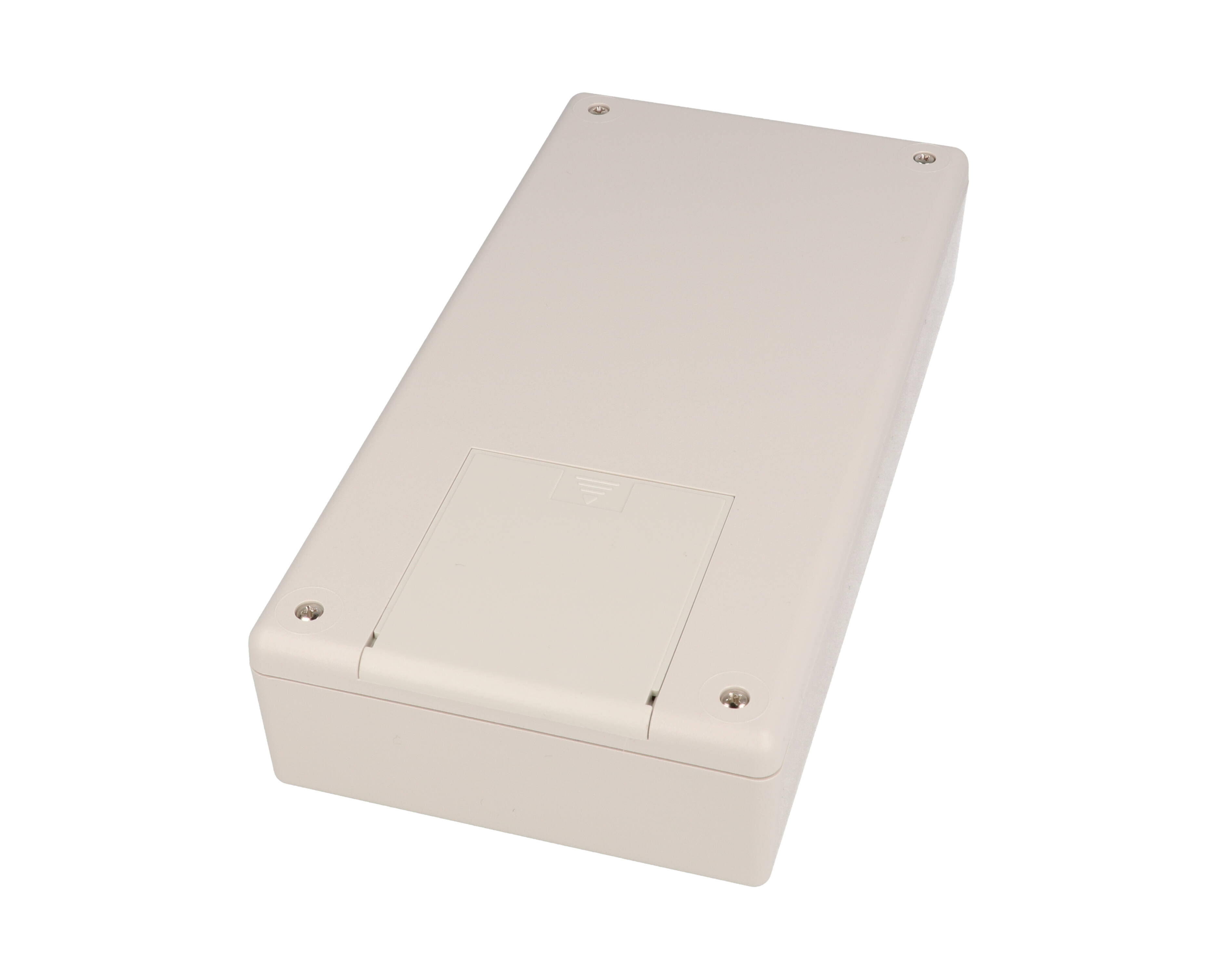

The 1599HSGYBAT is a light gray, general purpose 1599H handheld enclosure with a built-in battery door. It suits designers of portable, battery-powered instruments who want an ergonomic handheld housing and do not need flame retardant material. The matching flame retardant model is 1599HGYBAT.
Box and lid are molded from general purpose ABS rated UL94 HB and assembled with self-tapping screws into plastic posts. The top is recessed for a membrane display or key pad, and the lap joint construction helps keep out dust and splashing water. Because the battery compartment takes up part of the interior, the drawing shows a maximum PC board of 96.5 x 140 mm (board not supplied).
Nominal size is 8.66 x 4.33 x 1.73 in (220 x 110 x 44 mm), with a 45 mm depth in the series table. Inside dimensions on the drawing are 213.71 mm long, 103.70 mm wide and 38.25 mm high. Standoffs on the inside top and bottom accept #4 self-tapping screws.
The 1599HSGYBAT assembly includes the box, lid, battery door and 4 cover screws; recommended torque is 42-57 ozf.in (30-40 cN.m). Optional battery holder kits (BH1AAW through BH4AAW, BH1AAAW through BH4AAAW and BS61) are listed as fitting 1599H battery door enclosures and include the holder, wires and foam anti-rattle pad. It ships shrink wrapped and is RoHS and REACH compliant.
Ideal For
- Battery-powered handheld instruments
- Portable keypad or display controllers
- Handheld meters and test devices
- Wall-mounted battery-operated units
Overview
| Type | Hand-held, battery door |
| Series | 1599 Series Hand Held Enclosures |
| Description | enclosure - plastic |
| Part Number | 1599HSGYBAT |
| Battery Door | Yes |
| Short Description | PLASTIC BOX W/BATTERY DOOR |
| Belt Clip Included | No |
| Flame Retardant Version | 1599HGYBAT |
| General Purpose Version | 1599HSGYBAT |
Dimensions
| Inside Width | 103.70 mm [4.08 in] |
| Inside Height | 38.25 mm [1.51 in] |
| Inside Length | 213.71 mm [8.41 in] |
| Size (L X W X H) | 8.66 in x 4.33 in x 1.73 in (220 mm x 110 mm x 44 mm) |
| Depth (Series Table) | 1.77 in (45 mm) |
| Width (Series Table) | 4.33 in (110 mm) |
| Length (Series Table) | 8.66 in (220 mm) |
| Max. P.C. Board Width | 140 mm |
| Max. P.C. Board Length | 96.5 mm |
| Overall Dimensions (Drawing) | 220.00 x 110.00 x 44.85 mm [8.66 x 4.33 x 1.77 in] |
Accessories
| Battery Divider | 1599HD-BULK (ABS divider panel grey 1599HD) |
| Optional Belt Clip | 1599CLIP (Black), 1599CLIPGY (Grey) - nylon, includes 2 nylon screws and mounting template |
| Optional P.C. Board Screws | 1593ATS50 (pack of 50) or 1593ATS100 (pack of 100), #4 x 1/4" pan head self-tapping |
| Compatible Battery Holder Kits | BH1AAW, BH2AAW, BH3AAW, BH4AAW (1-4 AA cells); BH1AAAW, BH2AAAW, BH3AAAW, BH4AAAW (1-4 AAA cells); BS61 (1 - 9V cell) |
Identifiers
| UPC | 623980998954 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.5 lbs (0.23 kg) |
Construction & Finish
| Top | Recessed top for membrane display or key pad |
| Color | Light Gray (series table: Grey) |
| Material | ABS Plastic |
| P.C. Board | Not supplied |
| Solid Models | STEP or IGES |
| Wall Mounting | Two keyhole knockouts molded into the inside of the base |
| Material Detail | Box and lid made from General Purpose ABS (not flame retardant) |
| Cover Screw Type | #4 x 5/8" self-tapping screws into plastic posts (replacement 1593MS100 Grey, pkg 100) |
| Factory Modification | Milling, drilling, printing etc. available from factory |

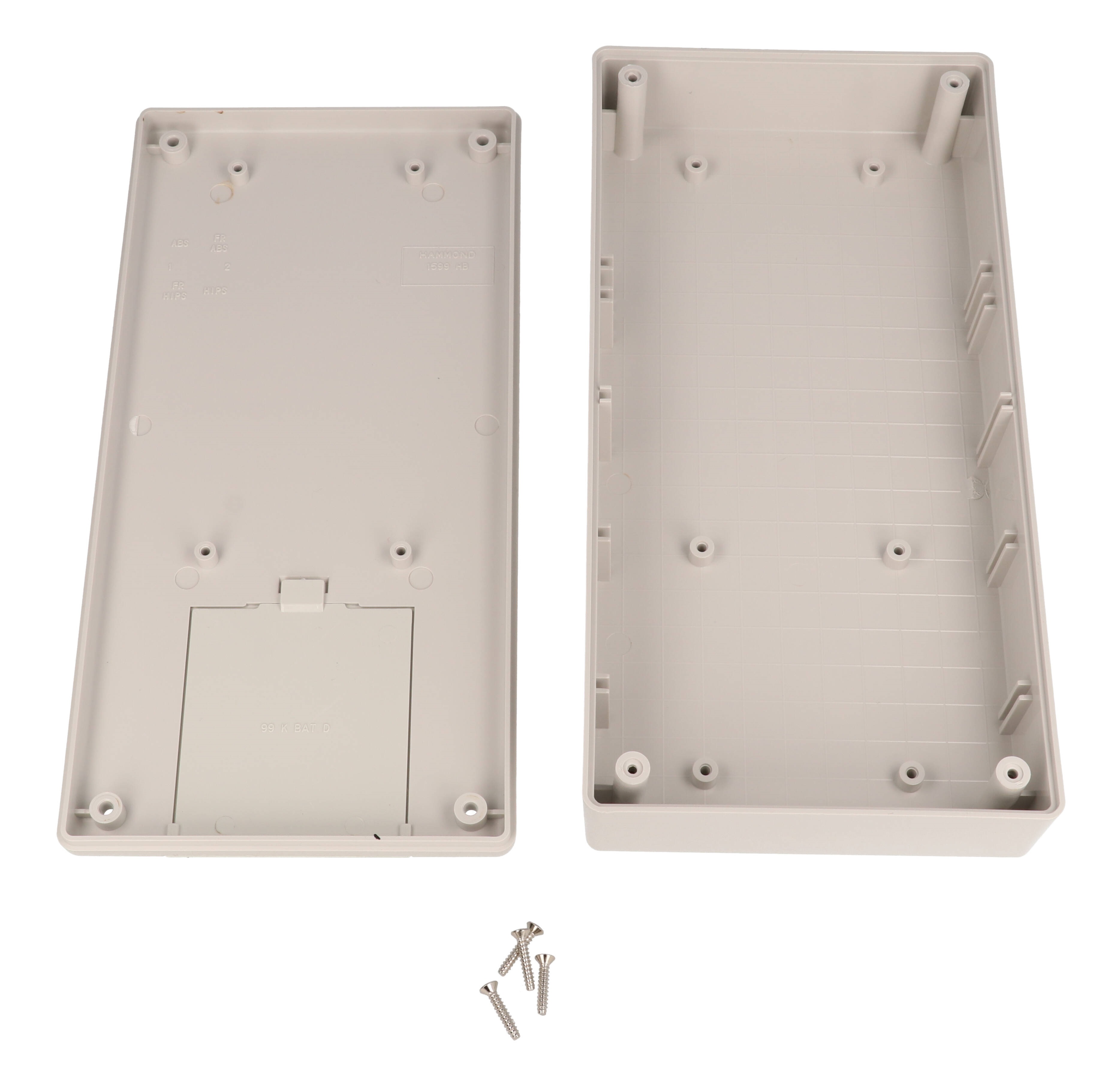

| Included In Assembly | Box, lid, battery door and 4 cover screws |
| P.C. Board Standoffs | On inside top and bottom; accept #4 self-tapping screws |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| Flame Rating | UL94 HB |
| Joint Construction | Lap joint for protection against dust and splashing water |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which battery holders fit the 1599HSGYBAT?▾
The series table lists BH1AAW, BH2AAW, BH3AAW and BH4AAW (1-4 AA cells), BH1AAAW, BH2AAAW, BH3AAAW and BH4AAAW (1-4 AAA cells) and BS61 (one 9V cell) as fitting 1599H battery door enclosures. Kits include the holder, wires and foam anti-rattle pad.
How large a PC board can I fit?▾
The drawing shows a maximum PC board of 96.5 x 140 mm for this battery door version. The board is not supplied.
Is the 1599HSGYBAT IP54 rated?▾
The series states that versions without a battery door are designed to meet IP54; no IP rating is listed for this battery door model.
What comes in the package?▾
Box, lid, battery door and 4 cover screws, shrink wrapped.
Is there a flame retardant version?▾
Yes, the flame retardant equivalent in grey with battery door is 1599HGYBAT.
