Diecast Aluminum Enclosures · 1590-RIBBED Series

Features

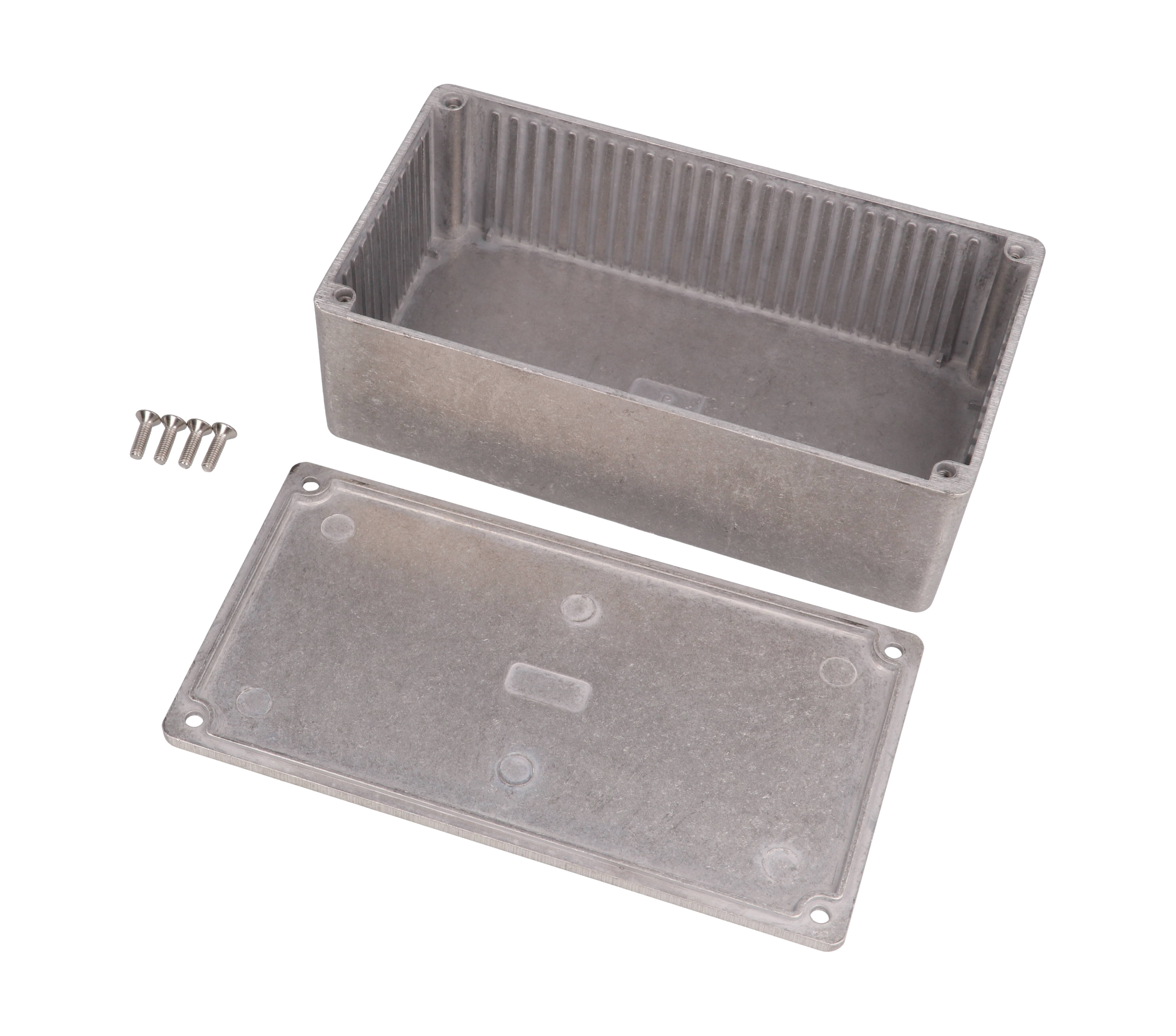

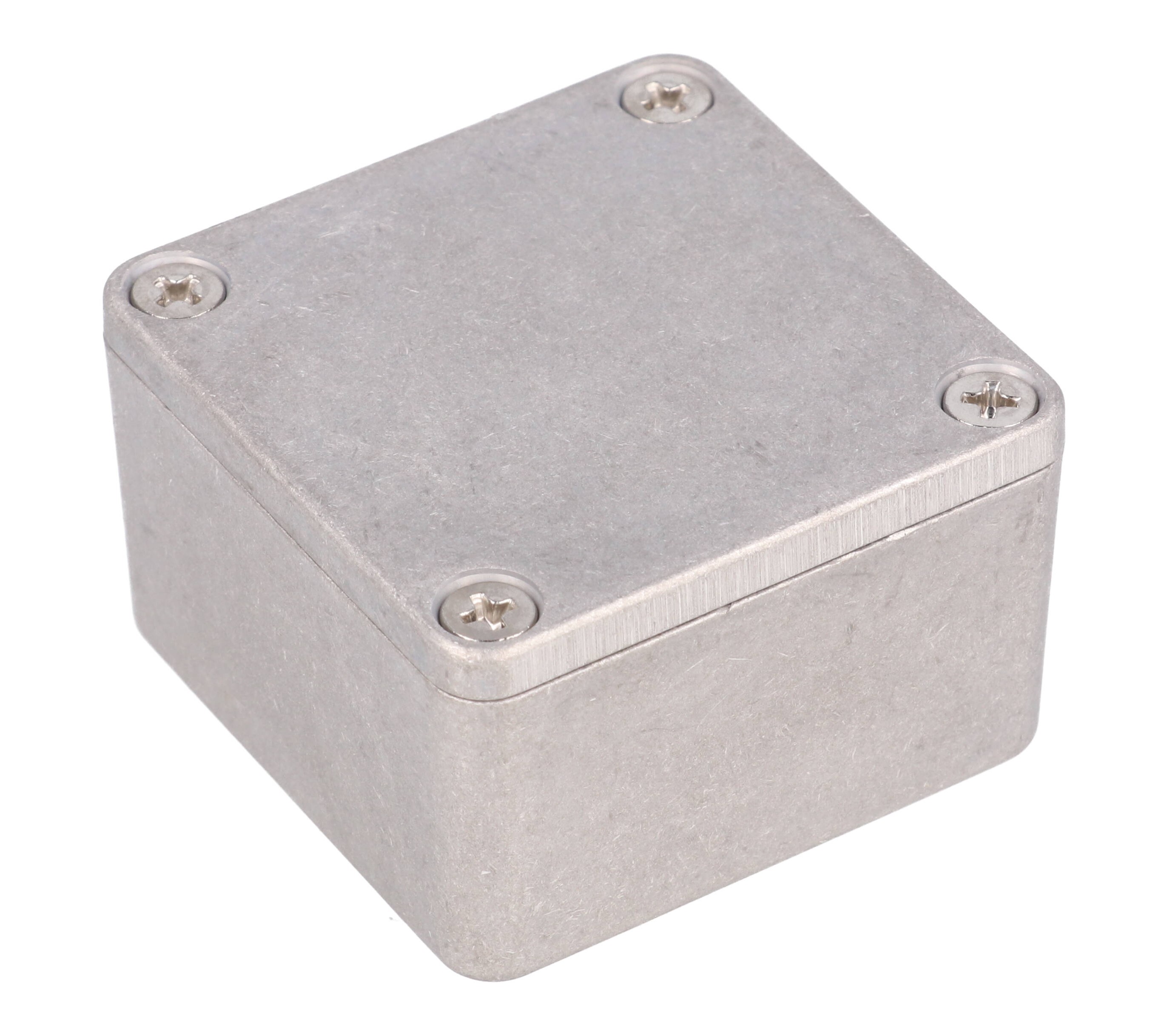

• ■Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure.
• ■Lap joint construction provides protection against access of dust and splashing water.

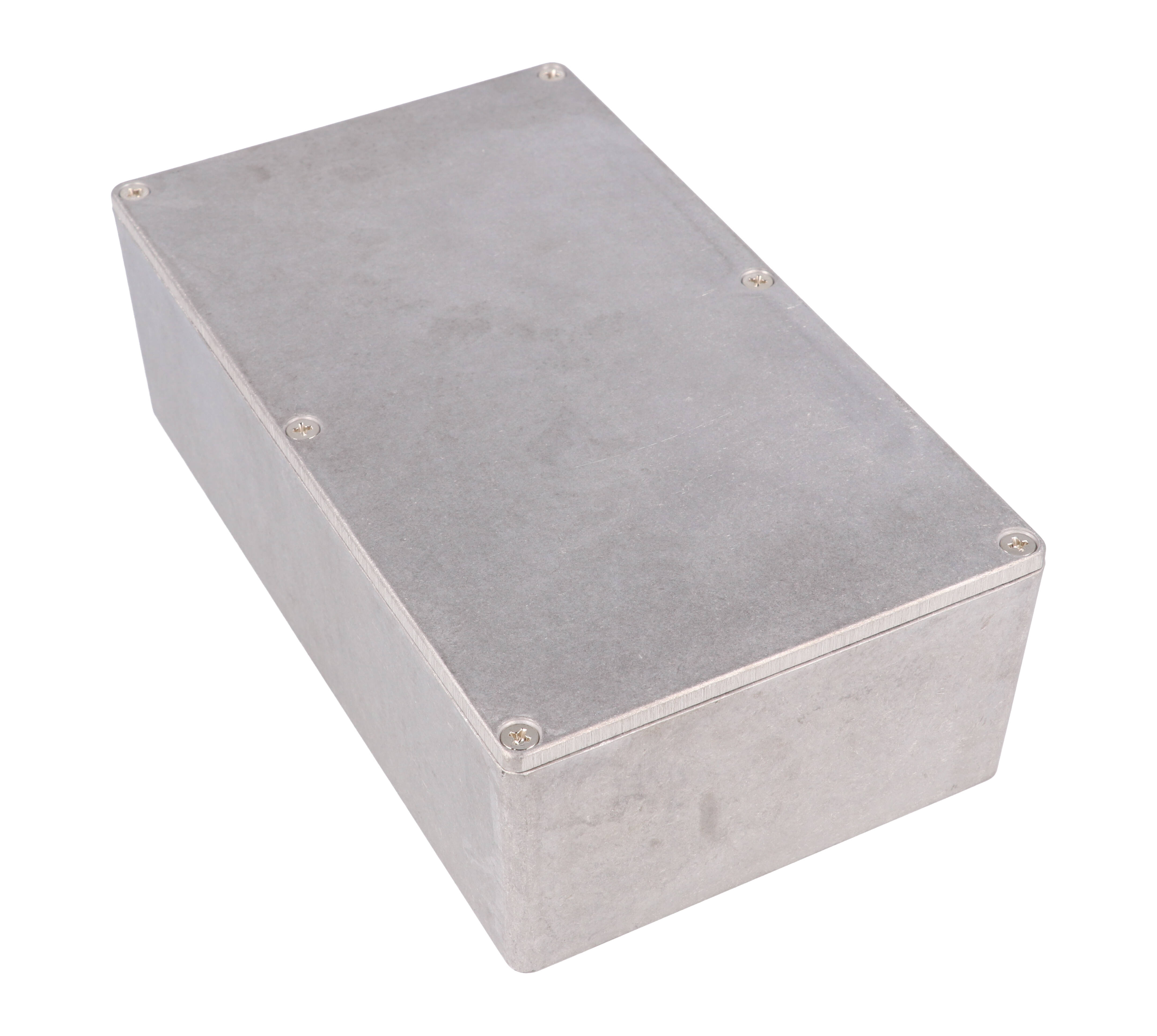

• ■Unpainted version is vibra finished for a smooth surface with no sharp edges.

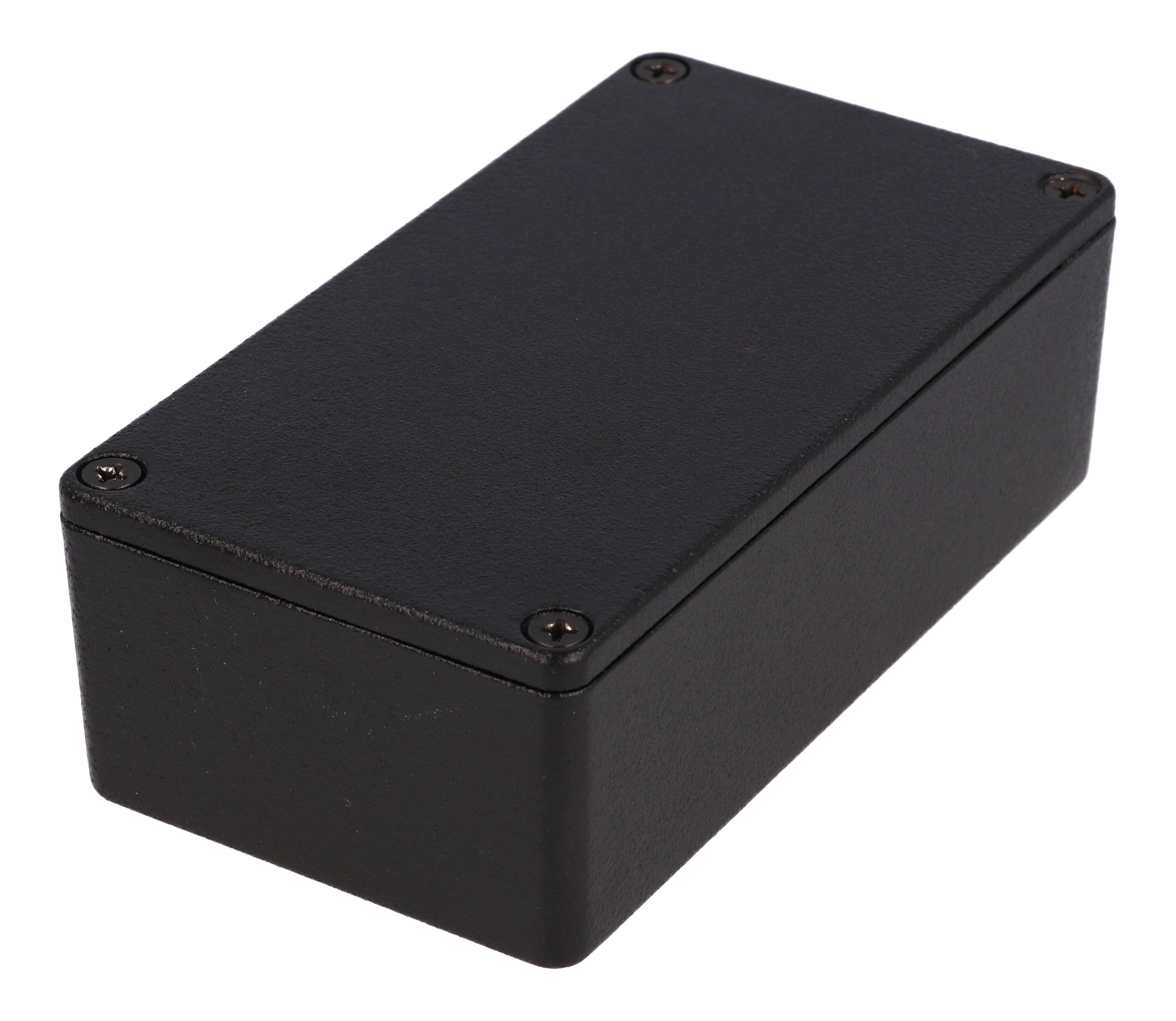

• ■Satin black painted version is painted with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance.
• ■Includes screws threaded into factory-tapped holes. Screw type and quantity vary. See details below or in drawings.
• ■Standard versions are designed to meet IP54.
• ■Water-tight versions are designed to meet IP65 and include a gasket which is supplied loose inside the enclosure (not pre-installed).
• ■Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.

Hardware

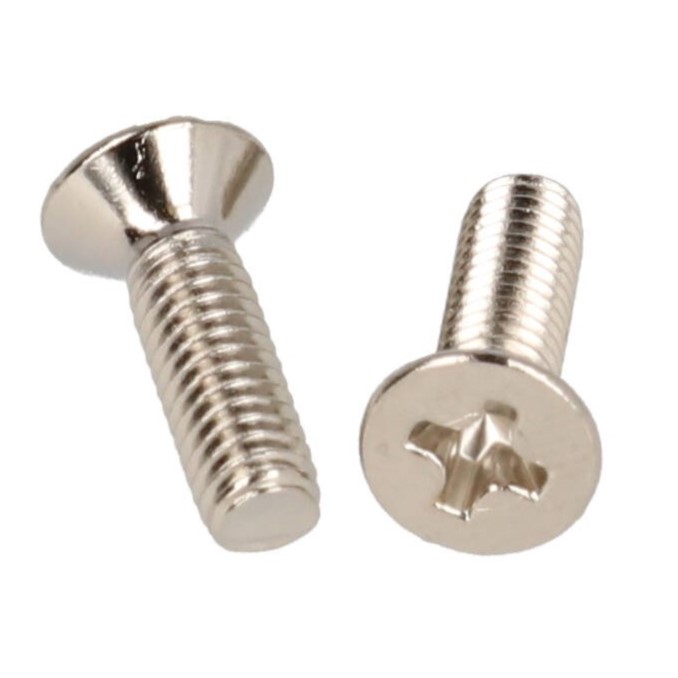

Replacement Hardware

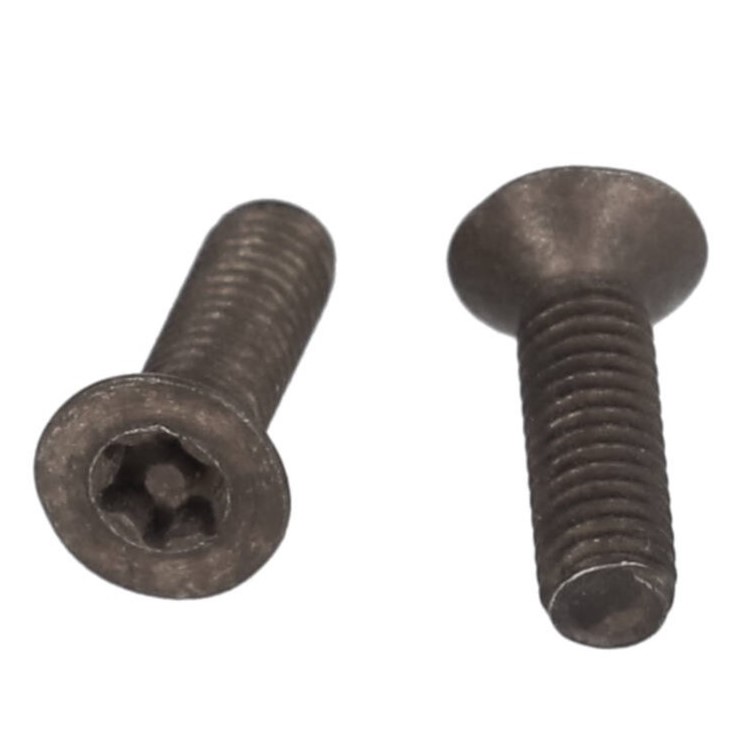

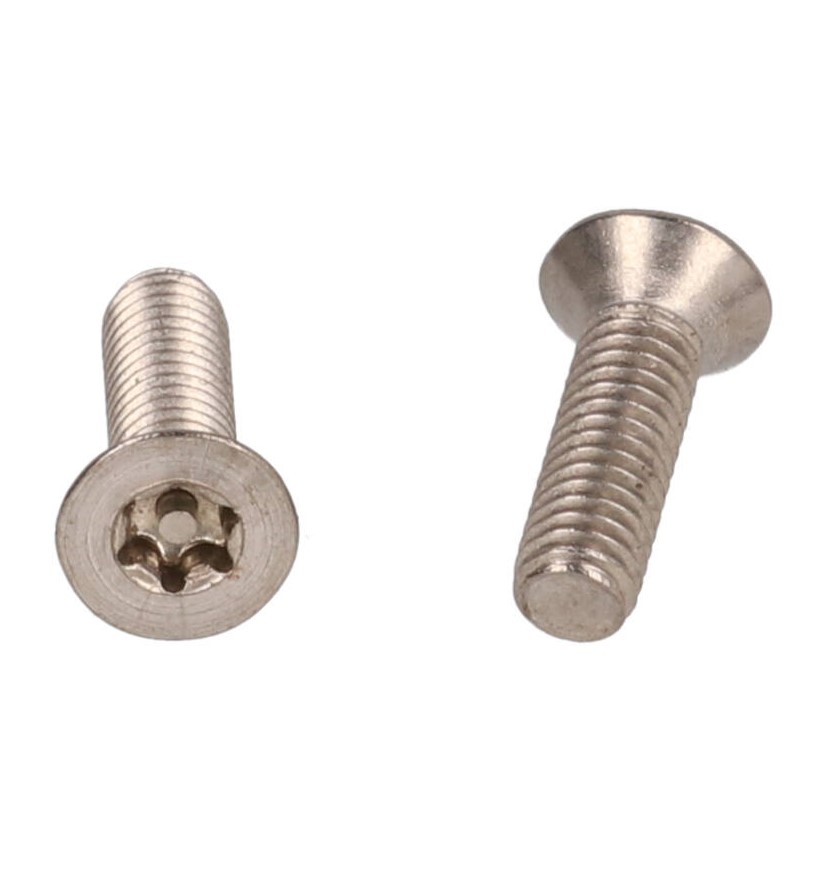

Tamper-proof Hardware Upgrade (Torx w/ Pin)

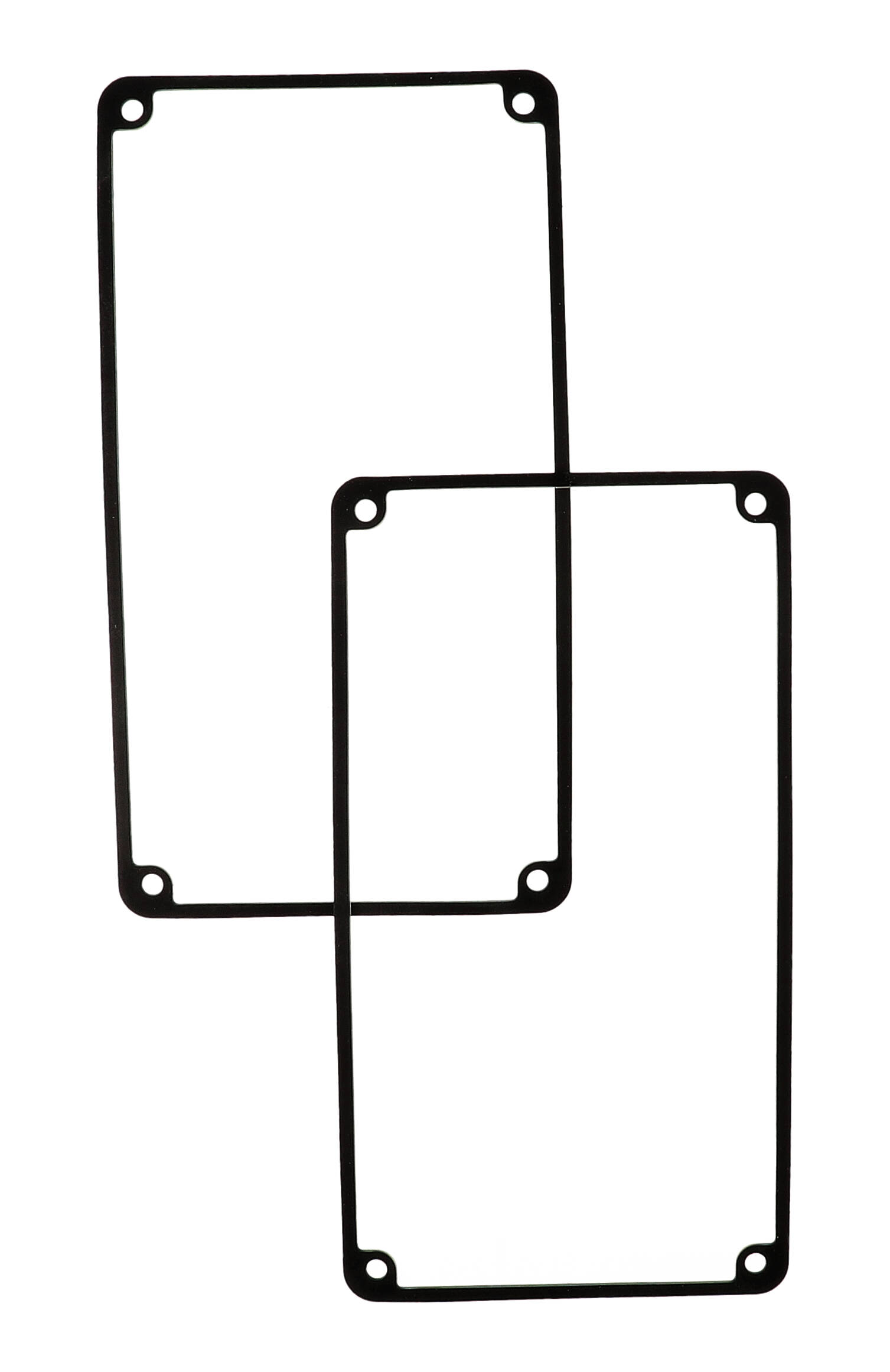

NOTE: Gaskets are included with watertight 1590 enclosures. They can also be purchased as a kit if you'd like to upgrade an IP54 enclosure to IP65. Not available for all sizes.

• ■Each kit includes two pre-formed silicone gaskets.
• ■Gaskets include adhesive backing for easy installation.
• ■Allows enclosure to be machined and/or painted first and gasketed later.
• ■Gasket is applied to the lid.
• ■Designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in).
• ■Refer to part number table below for correct gasket.
