Hammond 1590WPFLBK Black Card-Guide Flanged-Lid Box, 153x83x50 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Watertight version designed to meet IP65, with silicone gasket supplied loose inside
- Nominal size 6.03 in x 3.27 in x 1.98 in (153 mm x 83 mm x 50 mm)
- Mounting: wall-mounting flange integrated into lid
- Textured black polyester powder paint; black screws included
- Diecast aluminum alloy box and lid, tough yet easy to machine
- Max. P.C. board length 73.12 mm / width 143.22 mm (as listed)
- Internal card guides; 4 cover screws (4X M3.5x0.6) included
- Low side wall draft angle (2° or less) for easy PC board mounting

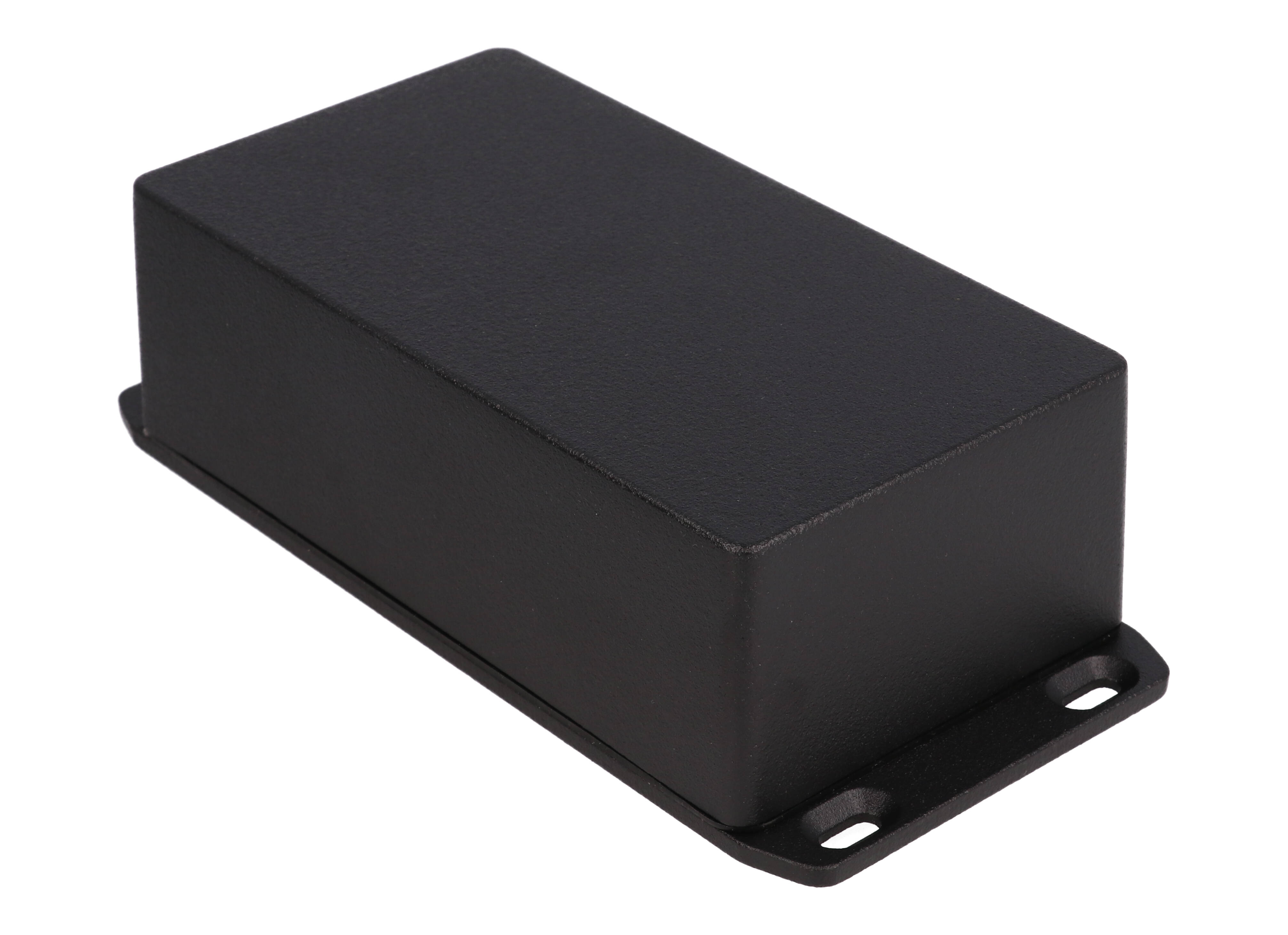

The 1590WPFLBK is the textured black version of the watertight 1590P enclosure with a flanged lid and internal card guides. Measuring 6.03 x 3.27 x 1.98 in (153 x 83 x 50 mm) and designed to meet IP65, it is intended for OEM and integration projects that need a wall-mountable black box with slide-in board mounting.
The box and lid are diecast aluminum alloy, which is tough yet easy to machine, and this part has textured black polyester powder paint for a lasting finish, even after machining, with black screws included. Lap joint construction where lid and box meet helps keep out dust and splashing water, and the low side wall draft angle (2° or less) makes P.C. board mounting easier.
Inside, it measures 146.29 x 73.98 x 45.30 mm (5.759 x 2.913 x 1.783 in), with card guides 41.73 mm (1.643 in) high. Overall length including the lid flange is 178.50 mm (7.028 in).

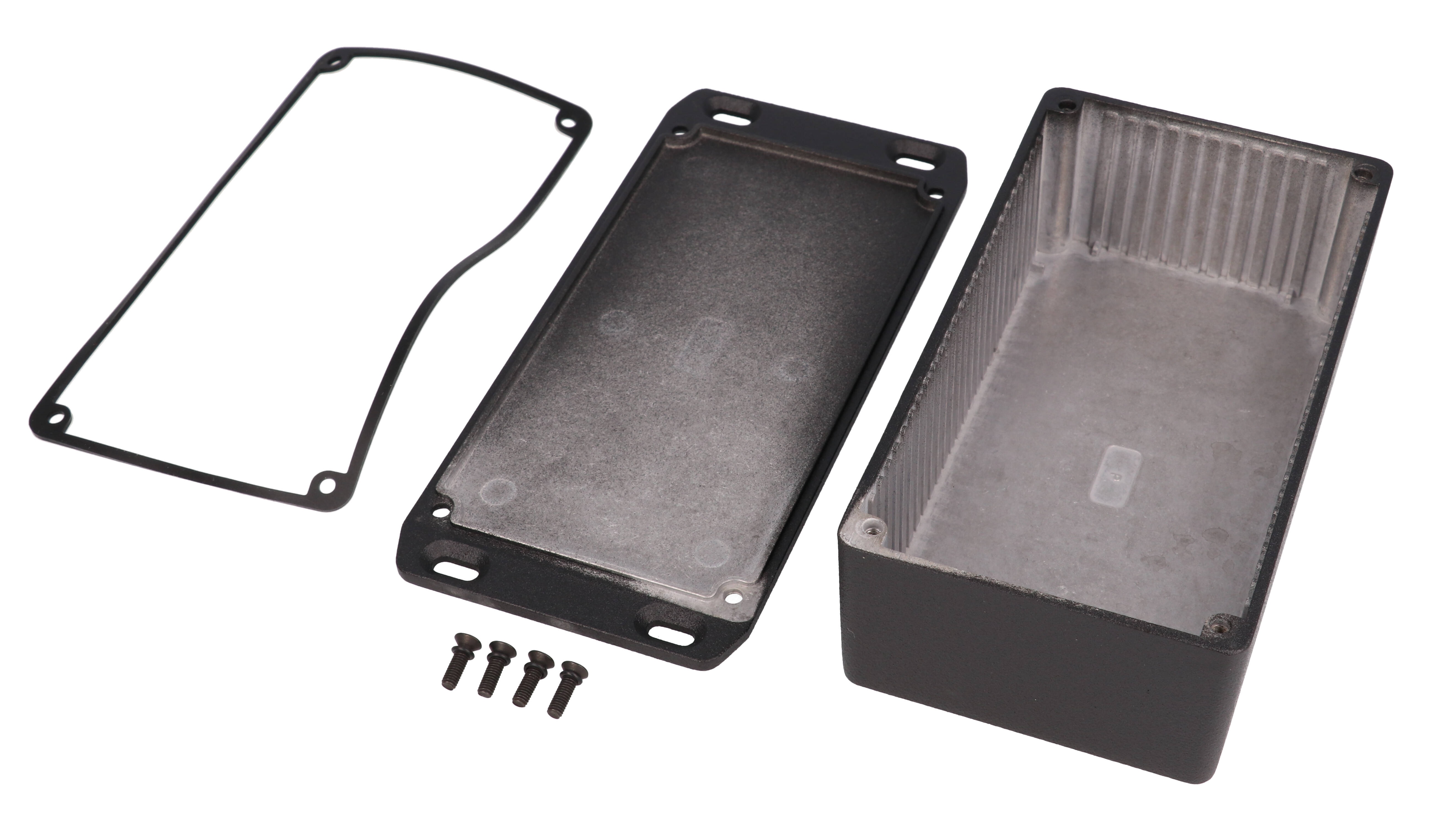

A silicone gasket is supplied with this liquid resistant enclosure, loose inside the box rather than pre-installed. The purchased assembly includes the box, lid and 4 cover screws (4X M3.5x0.6 threads); recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with the gasket. The part is RoHS and REACH compliant, and the enclosure can be factory modified (milling, drilling, printing).
Ideal For
- Black wall-mounted PCB enclosure with card guides
- Sealed control housings for equipment
- Instrument cases for dusty or wet areas
- OEM electronics machined for I/O
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Water-Tight (liquid resistant, silicone gasket) |
| Description | enclosure - watertight diecast |
| Part Number | 1590WPFLBK |
| Mounting Style | Wall-mounting flange integrated into lid |
| Enclosure Family | 1590PFL |
| Manufacturer Short Description | 1590P W-PROOF FLNGD LID BLACK |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 73.98 mm [2.913 in] |
| Inside Height | 45.30 mm [1.783 in] |
| Inside Length | 146.29 mm [5.759 in] |
| Overall Width | 83.10 mm [3.272 in] |
| Overall Height | 50.40 mm [1.984 in] |
| Size (L X W X H) | 6.03 in x 3.27 in x 1.98 in (153 mm x 83 mm x 50 mm) |
| Card Guide Height | 41.73 mm [1.643 in] |
| Max. P.C. Board Width | 143.22 mm |
| Max. P.C. Board Length | 73.12 mm |
| Overall Length Incl. Lid Flange | 178.50 mm [7.028 in] |
Accessories
| Solid Models | STEP or IGES |
| Factory Modification | Milling, drilling, printing available from factory |
| Black Cover Screws (Pkg 100) | 1550MS100BK [M3.5 x 12mm] |
| Plated Cover Screws (Pkg 100) | 1550MS100 [M3.5 x 12mm] |
| Stainless Steel Cover Screws With O-Ring (Pkg 100) | 1550WMS100 [M3.5 x 12mm] |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100) | 1550WMS100BK [M3.5 x 12mm] |
Identifiers
| UPC | 623980677644 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.78 lbs (0.35 kg) |
Construction & Finish
| Color | Black (Textured) |
| Joint | Lap joint construction where lid and box meet |
| Finish | Textured polyester powder paint |
| Included | Box, lid and 4 cover screws; black screws |
| Material | Aluminum (Die-Cast Alloy) |
| Cover Screw Threads | 4X M3.5x0.6 |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1590WPFLBK waterproof?▾
It is the watertight version of the enclosure, designed to meet IP65. A silicone gasket is included, supplied loose inside the enclosure (not pre-installed), and the recommended lid screw torque with the gasket is 25-30 cN.m [36-43 ozf.in].
What are the dimensions of the 1590WPFLBK?▾
The listed size is 6.03 in x 3.27 in x 1.98 in (153 mm x 83 mm x 50 mm). overall length incl. lid flange: 178.50 mm [7.028 in]; overall width: 83.10 mm [3.272 in]; overall height: 50.40 mm [1.984 in].
What is it made of and what finish does it have?▾
Box and lid are diecast aluminum alloy. This version is coated with textured black polyester powder paint, and black screws are included.
Can the enclosure be machined or modified?▾
Yes. Diecast aluminum is described as tough yet easy to machine, and the drawing notes the enclosure can be factory modified (milling, drilling, printing). Solid models are available in STEP or IGES.
How is the circuit board held in the 1590WPFLBK?▾
The drawing shows internal guide slots with a guide height of 41.73 mm (1.643 in); listed maximum P.C. board dimensions are 73.12 mm and 143.22 mm.
