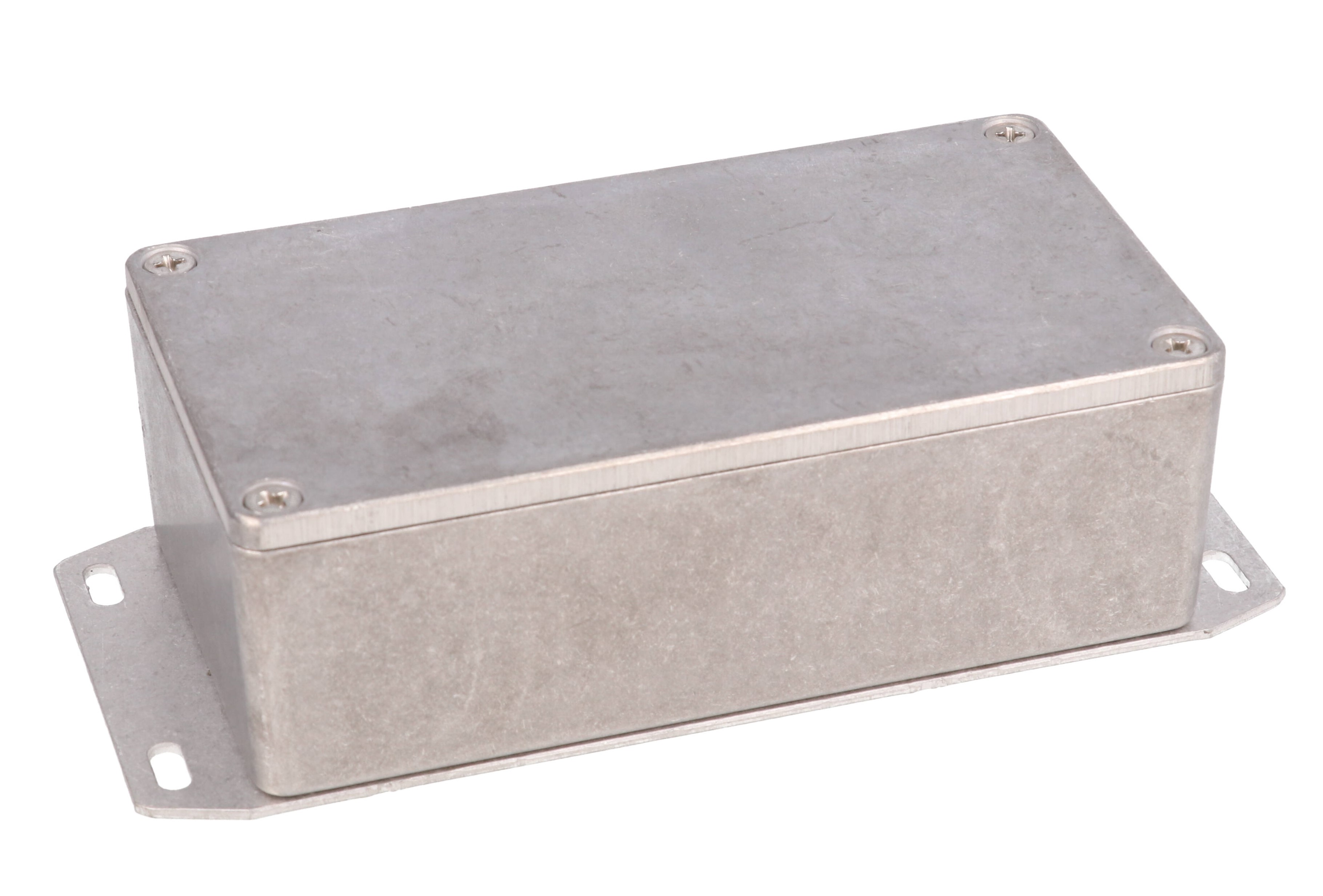

Hammond 1590NF Flanged 121x66 mm Natural Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded flanged bottom plate; 146.05 mm overall length for surface mounting
- 121 x 66 mm diecast aluminum alloy body with internal ribs
- Fits P.C. boards up to 112.24 x 56.34 mm
- IP54 standard; 1590NGASKET kit listed for IP65 upgrade
- Box, lid and 4 M3.5x0.6 cover screws included
- Natural vibra finish with no sharp edges
- RoHS and REACH compliant; 0.45 lbs (0.20 kg)
The 1590NF is the flanged-bottom-plate version of the 1590N diecast aluminum enclosure. Its welded bottom flange extends the overall length to 146.05 mm [5.750"], letting OEM engineers and integrators fasten the box directly to a mounting surface while keeping the 1590N's internal space for P.C. boards up to 112.24 mm by 56.34 mm.

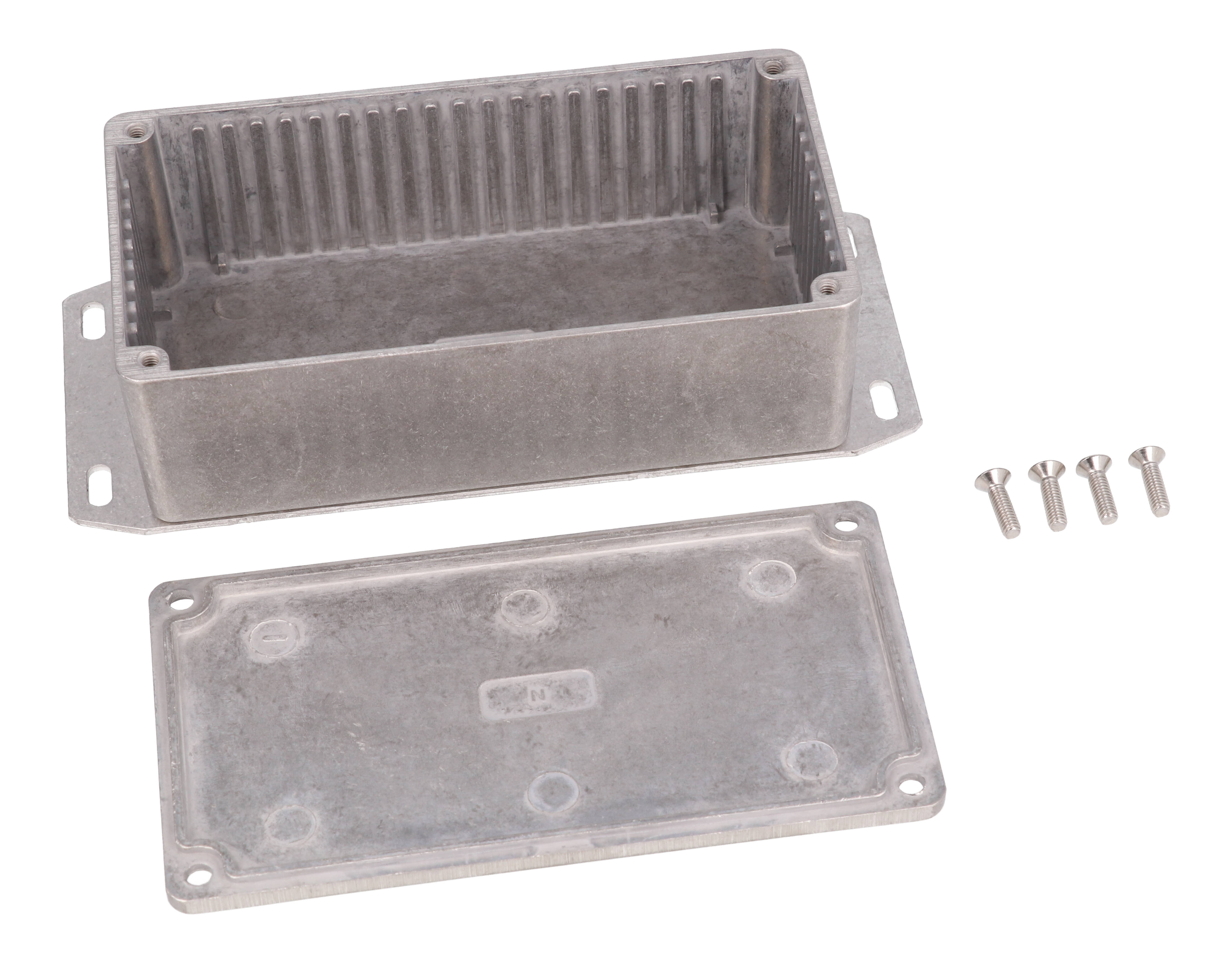

The box and lid are diecast aluminum alloy, tough yet easy to machine, and the natural finish is unpainted and vibra finished for a smooth surface with no sharp edges. Internal ribs form board guides, and lap joint construction protects against access of dust and splashing water; the 1590NF is rated IP54.
The part page lists 4.75 in x 2.61 in x 1.42 in (121 mm x 66 mm x 36 mm). On the drawing, the body measures 121.20 x 65.50 mm with an overall height of 41.50 mm [1.634"], and the inside measures 113.71 mm [4.477"] long, 57.81 mm [2.276"] wide and 35.20 mm [1.386"] high. Shipping weight is 0.45 lbs (0.20 kg).
The purchased assembly includes box, lid and 4 cover screws (M3.5x0.6); recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket. The 1590NGASKET kit is listed for this size and 1590WNF is the water-tight counterpart. RoHS and REACH compliant; shrink wrapped.
Ideal For
- Surface-mounted control electronics
- Panel and chassis mounted interface boxes
- Wall-mounted sensor housings
- Flanged OEM instrument enclosures
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Series | 1590-RIBBED Series Diecast Aluminum Enclosures (With Internal Ribs) |
| Version | Flanged Bottom Plate, Standard Version |
| Description | enclosure - diecast |
| Part Number | 1590NF |
| Short Description | 1590N WITH FLANGE |
Dimensions
| Inside Width | 57.81 mm [2.276"] |
| Inside Height | 35.20 mm [1.386"] |
| Inside Length | 113.71 mm [4.477"] |
| Size L X W X H | 4.75 in x 2.61 in x 1.42 in (121 mm x 66 mm x 36 mm) |
| Series Table Note | Dimensions include lid. Lid height is 4mm (0.16"). |
| Overall Width (Drawing) | 65.50 mm [2.579"] |
| Overall Height (Drawing) | 41.50 mm [1.634"] |
| Overall Length (Drawing) | 121.20 mm [4.772"] |
| Nominal Size (Series Table) L X W X D | 4.76 in (121 mm) x 2.60 in (66 mm) x 1.57 in (40 mm) |
| Overall Length Incl. Flange (Drawing) | 146.05 mm [5.750"] |
Identifiers
| UPC | 623980536897 |
| UNSPSC | 39121301 |
PCB Mounting
| Slot Depth | 1.50 mm [.059"] |
| Slot Width | 2.01 mm [.079"] |
| Guide Width | 3.00 mm [.118"] |
| Side Wall Draft Angle | 2 degrees or less (low draft for easy P.C. board mounting) |
| Max. P.C. Board Width (Mm) | 112.24 |
| Max. P.C. Board Length (Mm) | 56.34 |
Documentation
| Drawing Revision | 25.05.2020 |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Solid Models Available | .stp or .x_t |
Related Versions
| Other Versions In Same Size & Color | No Mounting Flanges, Standard Version: 1590N · No Mounting Flanges, Water-Tight Version: 1590WN · Flanged Lid, Standard Version: 1590NFL · Flanged Lid, Water-Tight Version: 1590WNFL · Flanged Bottom Plate, Water-Tight Version: 1590WNF |
Compatible Hardware
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Philips Machine Screws (100-pack) | 1550MS100 (natural), 1550MS100BK (black) |
| Water-Tight Philips Machine Screws (100-pack) | 1550WMS100 (natural), 1550WMS100BK (black) |
| Torx With Pin Tamper-Resistant Screws (50-pack) | 1550MS50T, 1550MS50TBK, 1550WMS50T, 1550WMS50TBK (water-tight) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.45 lbs (0.20 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Diecast aluminum alloy with internal ribs; lap joint construction protects against access of dust and splashing water |
| Cover Screws | 4X M3.5x0.6, threaded into factory-tapped holes |
| Assembly Includes | box, lid and 4 cover screws |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Counterparts | 1590WN, 1590WNFL, 1590WNF |
| Optional Gasket Kit (IP54 To IP65 Upgrade) | 1590NGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the overall length including the flange?▾
146.05 mm [5.750"].
Is the flange welded or cast?▾
The drawing notes that the bottom flange is welded.
What are the inside dimensions?▾
113.71 mm [4.477"] long, 57.81 mm [2.276"] wide and 35.20 mm [1.386"] high.
Is there a water-tight version?▾
Yes, 1590WNF is listed as the water-tight version with a flanged bottom plate.
What IP rating does the 1590NF have?▾
IP54.
