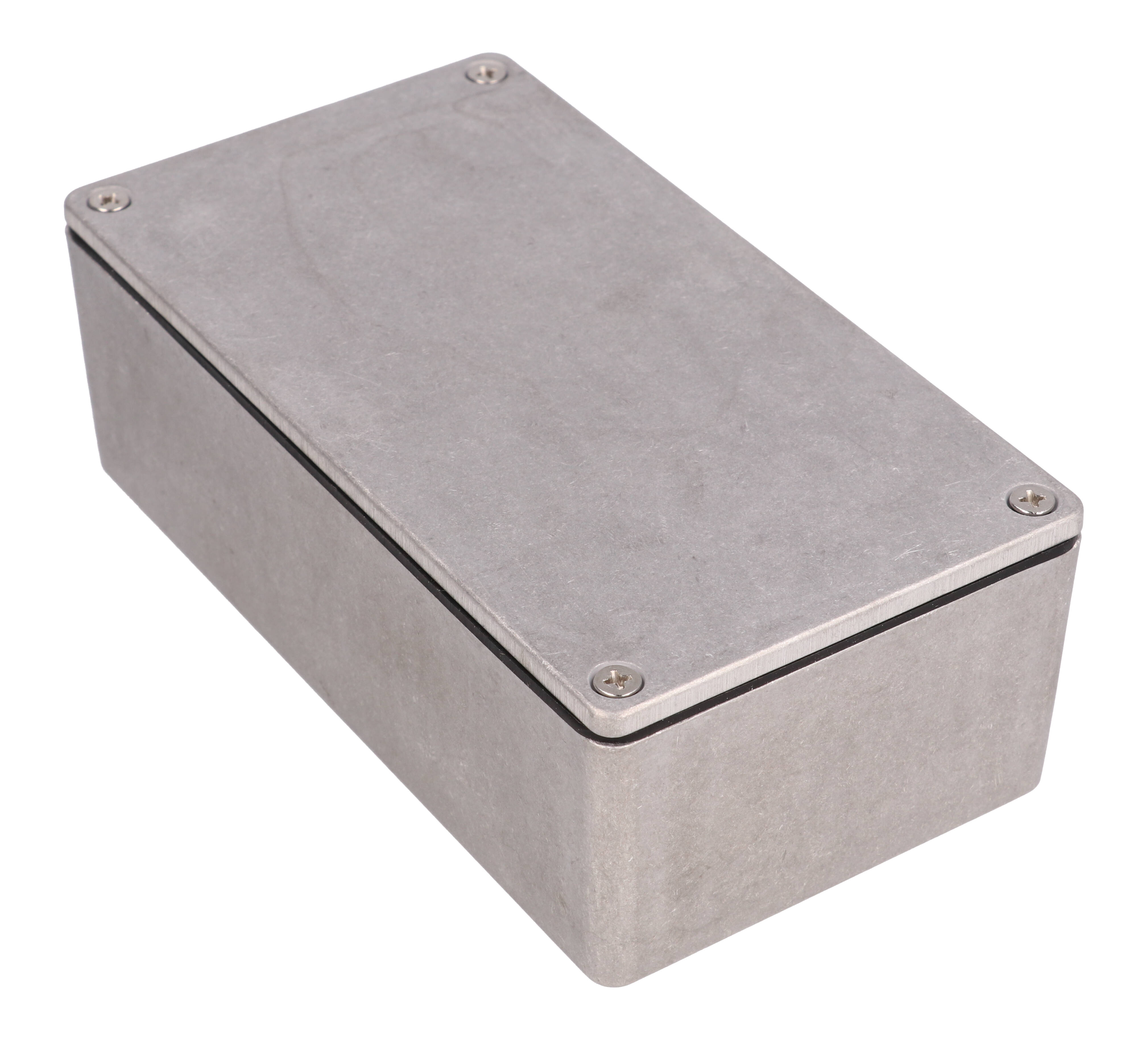

Hammond 1590WP IP65 Watertight 153mm Diecast Enclosure, Natural
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP65 water-tight design with silicone gasket included (supplied loose)
- 153 x 83 x 50 mm nominal size (6.02 x 3.27 x 1.97 in)
- Internal ribs accept a P.C. board up to 143.22 x 73.12 mm
- Natural die-cast aluminum alloy, vibra finished with no sharp edges
- 4 M3.5x0.6 cover screws in factory-tapped holes
- Replacement gasket kit 1590PGASKET available
The 1590WP is the water-tight version of the 1590P diecast aluminum enclosure in natural unpainted aluminum. Designed to meet IP65, it gives electronics engineers and equipment builders a mid-size sealed metal housing with internal ribs for mounting a printed circuit board.
Box and lid are die-cast aluminum alloy, tough yet easy to machine, and the unpainted version is vibra finished for a smooth surface with no sharp edges. Protection comes from lap joint construction and a silicone gasket that is supplied loose inside the enclosure rather than pre-installed.
The nominal size is 153 x 83 x 50 mm (6.02 x 3.27 x 1.97 in), including the 4 mm lid. The drawing lists an inside length of 146.29 mm [5.759 in], inside width of 73.98 mm [2.913 in] and inside height of 45.40 mm [1.787 in]. Internal guides take a P.C. board up to 143.22 mm by 73.12 mm, and the side wall draft of 2 degrees or less eases board mounting.

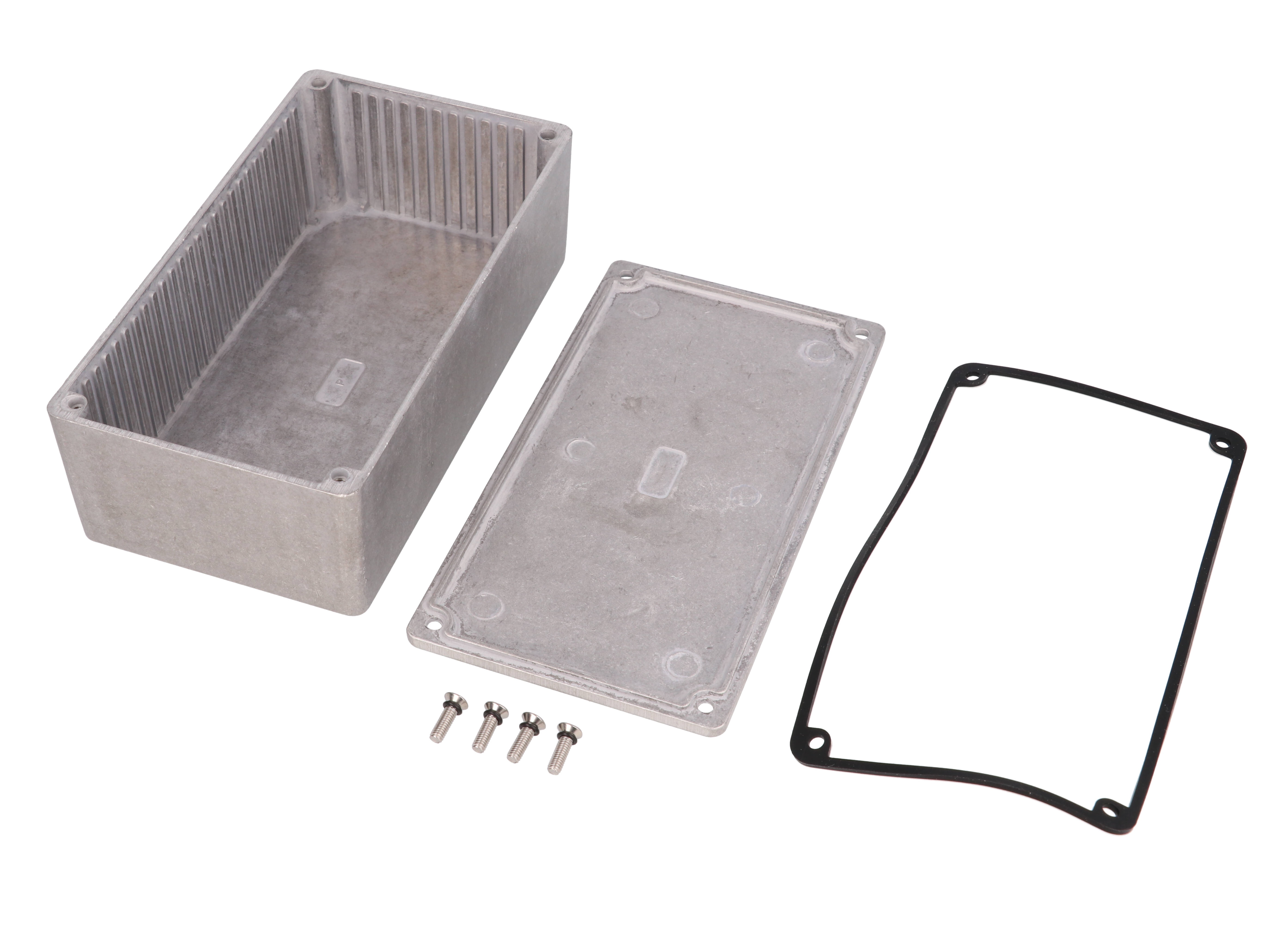

The 1590WP ships as box, lid, gasket and 4 M3.5x0.6 cover screws threaded into factory-tapped holes. With the gasket, torque the screws to 25-30 cN.m [36-43 ozf.in]. The 1590PGASKET replacement kit and 1550WMS100 liquid resistant stainless screws with O-ring are available. Shipping weight is 0.72 lbs (0.33 kg); the part is RoHS and REACH compliant.
Ideal For
- IP65 sealed electronics housings
- PCB-based control and instrumentation
- Outdoor or wash-down equipment electronics
- Machined OEM enclosures
Overview
| Type | Die-cast box, water-tight |
| Series | 1590-RIBBED (Diecast Aluminum Enclosures with Internal Ribs) |
| Version | Water-tight, no mounting flanges |
| CAD Models | Solid models available |
| Description | 1590P Waterproof |
| Part Number | 1590WP |
| Factory Modification | Can be factory modified (milling, drilling, printing) |
Dimensions
| Box Height | 46.40 mm [1.827 in] |
| Lid Height | 4 mm (0.16 in) - included in overall dimensions |
| Inside Width | 73.98 mm [2.913 in] |
| Inside Height | 45.40 mm [1.787 in] |
| Inside Length | 146.29 mm [5.759 in] |
| Overall Width | 83.10 mm [3.272 in] |
| Overall Height | 50.40 mm [1.984 in] |
| Overall Length | 153.20 mm [6.031 in] |
| PCB Slot Width | 2.00 mm [.079 in] |
| Size L X W X H | 6.03 in x 3.27 in x 1.98 in (153 mm x 83 mm x 50 mm) |
| PCB Guide Depth | 1.10 mm [.043 in] |
| PCB Guide Width | 3.00 mm [.118 in] |
| PCB Guide Height | 41.73 mm [1.643 in] |
| Max. P.C. Board Width | 143.22 mm |
| Max. P.C. Board Length | 73.12 mm |
| Nominal Size (L X W X D) | 6.02 in (153 mm) x 3.27 in (83 mm) x 1.97 in (50 mm) |
Accessories
| Optional Replacement Gasket Kit | 1590PGASKET |
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Standard Cover Screws, Black (Pkg 100) | 1550MS100BK [M3.5 x 12mm] |
| Standard Cover Screws, Plated (Pkg 100) | 1550MS100 [M3.5 x 12mm] |
| Tamper-Resistant Torx With Pin Screws (50-pack) | 1550MS50T (natural), 1550MS50TBK (black), 1550WMS50T (water-tight), 1550WMS50TBK (water-tight black) |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1550WMS100 [M3.5 x 12mm, With O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1550WMS100BK [M3.5 x 12mm, With O-Ring] |
Identifiers
| UPC | 623980676876 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.72 lbs (0.33 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished |
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Lap joint construction for protection against access of dust and splashing water |
| Assembly Hardware | Screws threaded into factory-tapped holes |
| Included Hardware | Box, lid, 4 cover screws (4X M3.5x0.6) and silicone gasket |
| Internal Features | Internal ribs with P.C. board guide slots |
| Side Wall Draft Angle | 2 degrees or less (for easy P.C. board mounting) |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Lid Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP65 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1590WP?▾
Nominal size is 153 x 83 x 50 mm (6.02 x 3.27 x 1.97 in). Inside it measures 146.29 x 73.98 x 45.40 mm.
Is the 1590WP rated IP65?▾
Yes, it is the water-tight version designed to meet IP65, with a silicone gasket supplied loose inside the enclosure.
What is the largest PCB it takes?▾
The internal guides accept a P.C. board up to 143.22 mm by 73.12 mm.
What torque is recommended?▾
25-30 cN.m [36-43 ozf.in] with the gasket fitted; 50-55 cN.m [71-78 ozf.in] without a gasket.
Which replacement gasket fits?▾
The series table lists the 1590PGASKET kit.
