Hammond 1590PPBK 121x95x57 mm Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Satin black polyester powder paint; black cover screws included
- 121 x 95 x 57 mm diecast aluminum alloy body with internal ribs
- Deep interior with 56.20 mm inside height
- Fits P.C. boards up to 111.57 x 85.67 mm
- IP54 rated with lap joint construction
- Box, lid and 4 M3.5x0.6 x 12 mm cover screws included
- RoHS and REACH compliant; 0.66 lbs (0.30 kg)

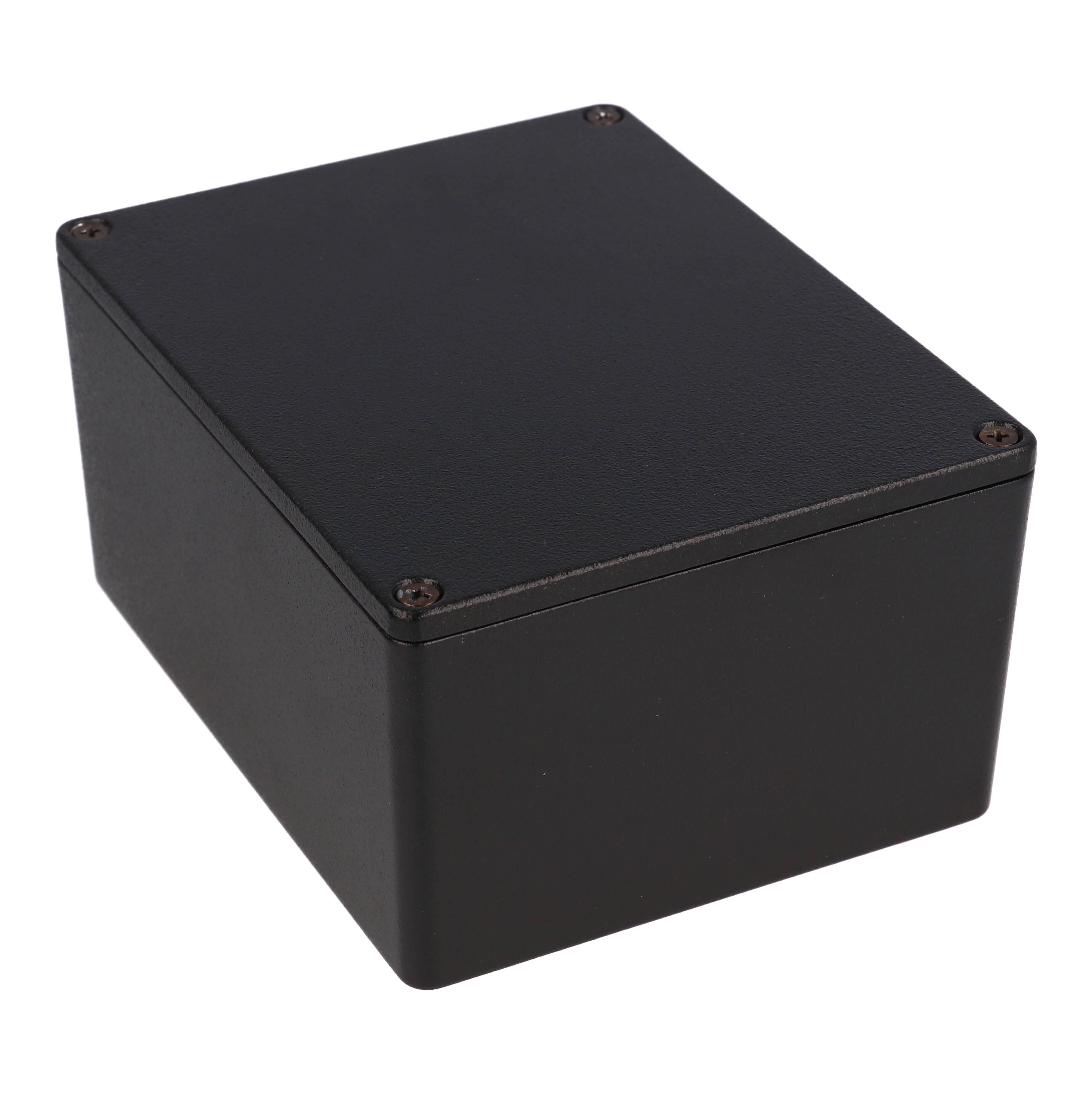

The 1590PPBK is the satin black painted version of the deep 1590PP diecast aluminum enclosure. It is aimed at builders and OEM designers who need a finished black metal box with extra depth, offering 56.20 mm [2.213"] of inside height and internal ribs for P.C. boards up to 111.57 mm by 85.67 mm.

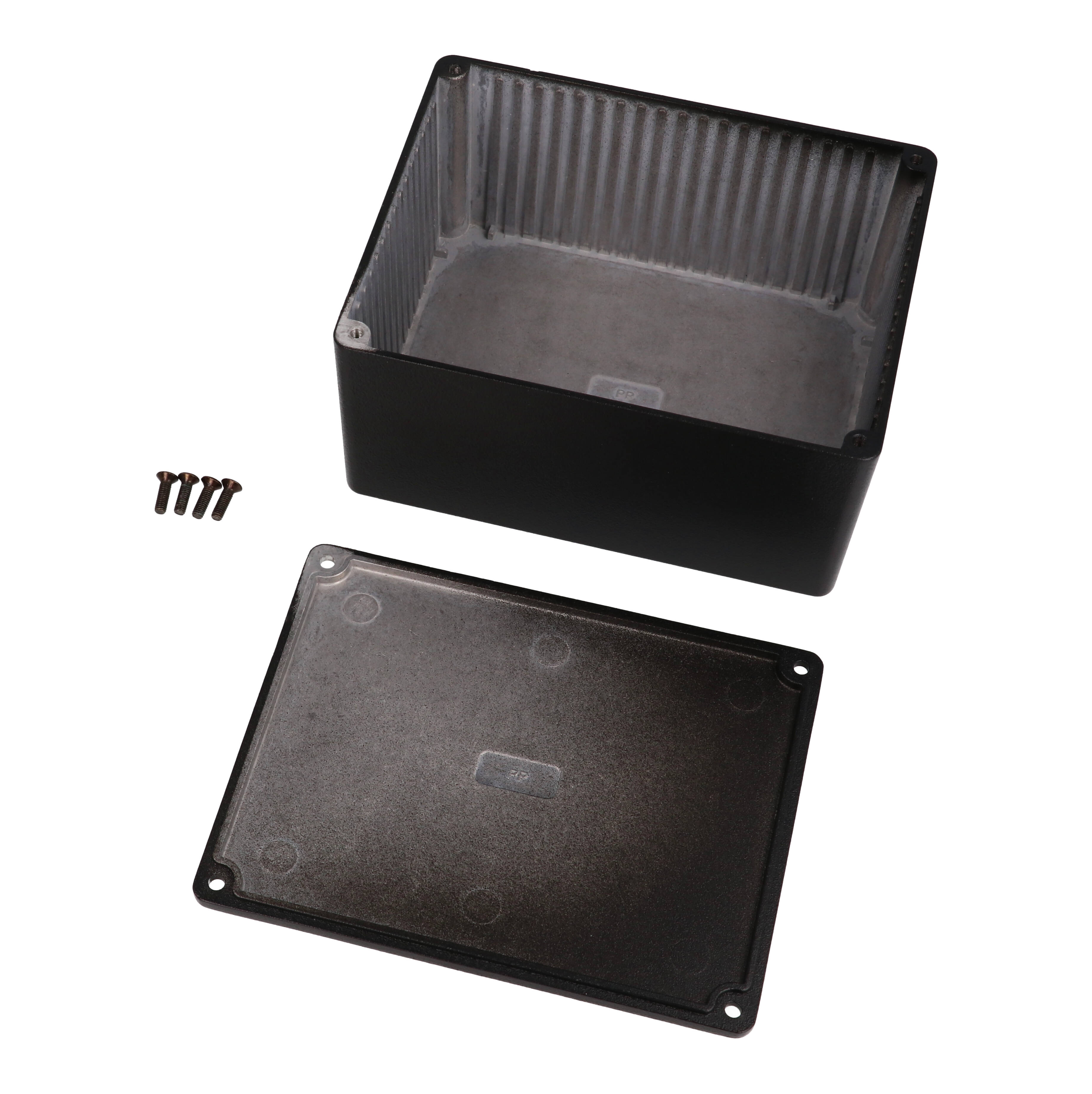

It is diecast aluminum alloy, tough yet easy to machine, painted with tough polyester powder paint for a lasting finish even after machining, with black screws included to enhance appearance. The purchased assembly includes the box, lid and 4 cover screws (M3.5x0.6 x 12.00 mm) that thread into factory-tapped holes. Recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket. Lap joint construction protects against dust and splashing water, and the enclosure is rated IP54.
The part page lists 4.76 in x 3.74 in x 2.24 in (121 mm x 95 mm x 57 mm); the series table lists 121 x 85 x 61 mm. Inside dimensions are 113.58 mm [4.472"] long, 87.68 mm [3.452"] wide and 56.20 mm [2.213"] high, and the low side wall draft angle of 2 degrees or less eases board mounting. Shipping weight is 0.66 lbs (0.30 kg).
The 1590PPBK is RoHS and REACH compliant and ships shrink wrapped.
Ideal For
- Black deep-body effects pedal builds
- Deep OEM electronics housings
- Painted instrument and control housings
- Electronics project boxes
Overview
| Type | Die-cast box |
| Color | Black |
| Series | 1590-RIBBED Series Diecast Aluminum Enclosures (With Internal Ribs) |
| Version | No Mounting Flanges, Standard Version |
| Description | enclosure - diecast |
| Part Number | 1590PPBK |
| Short Description | 1590PP DIECAST BK |
Dimensions
| Inside Width | 87.68 mm [3.452"] |
| Inside Height | 56.20 mm [2.213"] |
| Inside Length | 113.58 mm [4.472"] |
| Size L X W X H | 4.76 in x 3.74 in x 2.24 in (121 mm x 95 mm x 57 mm) |
| Series Table Note | Dimensions include lid. Lid height is 4mm (0.16"). |
| Overall Width (Drawing) | 95.00 mm [3.740"] |
| Overall Height (Drawing) | 60.70 mm [2.390"] |
| Overall Length (Drawing) | 121.00 mm [4.764"] |
| Nominal Size (Series Table) L X W X D | 4.76 in (121 mm) x 3.35 in (85 mm) x 2.40 in (61 mm) |
Identifiers
| UPC | 623980023595 |
| UNSPSC | 39121301 |
PCB Mounting
| Slot Width | 2.00 mm |
| Guide Depth | 1.00 mm [.039"] |
| Guide Width | 3.03 mm [.119"] |
| Guide Height | 52.91 mm [2.083"] |
| Side Wall Draft Angle | 2 degrees or less (low draft for easy P.C. board mounting) |
| Max. P.C. Board Width (Mm) | 111.57 |
| Max. P.C. Board Length (Mm) | 85.67 |
Documentation
| Drawing Revision | 25.05.2020 |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Solid Models Available | .stp or .x_t |
Compatible Hardware
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Philips Machine Screws (100-pack) | 1550MS100 (natural), 1550MS100BK (black) |
| Water-Tight Philips Machine Screws (100-pack) | 1550WMS100 (natural), 1550WMS100BK (black) |
| Torx With Pin Tamper-Resistant Screws (50-pack) | 1550MS50T, 1550MS50TBK, 1550WMS50T, 1550WMS50TBK (water-tight) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.66 lbs (0.30 kg) |
Construction & Finish
| Finish | Satin black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Diecast aluminum alloy with internal ribs; lap joint construction protects against access of dust and splashing water |
| Cover Screws | 4X M3.5x0.6 x 12.00 mm, threaded into factory-tapped holes (black screws included) |
| Lid Screw Holes | 4X Ø 4.00 mm [.157"] |
| Assembly Includes | box, lid and 4 cover screws |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What finish does the 1590PPBK have?▾
Satin black polyester powder paint, with black screws included.
How deep is the inside?▾
Inside height is 56.20 mm [2.213"], with inside length 113.58 mm [4.472"] and width 87.68 mm [3.452"].
What board size fits?▾
Maximum P.C. board length 85.67 mm and width 111.57 mm.
What IP rating does it have?▾
IP54.
What torque should the cover screws use?▾
50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket.
