Hammond 1590PBK 153x83x50 mm Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Satin black polyester powder paint; black cover screws included
- 153 x 83 x 50 mm diecast aluminum alloy body with internal ribs
- Fits P.C. boards up to 143.22 x 73.12 mm
- IP54 standard; 1590PGASKET kit listed for IP65
- Box, lid and 4 M3.5x0.6 cover screws included
- Torque 50-55 cN.m, or 25-30 cN.m with gasket
- RoHS and REACH compliant; 0.76 lbs (0.34 kg)

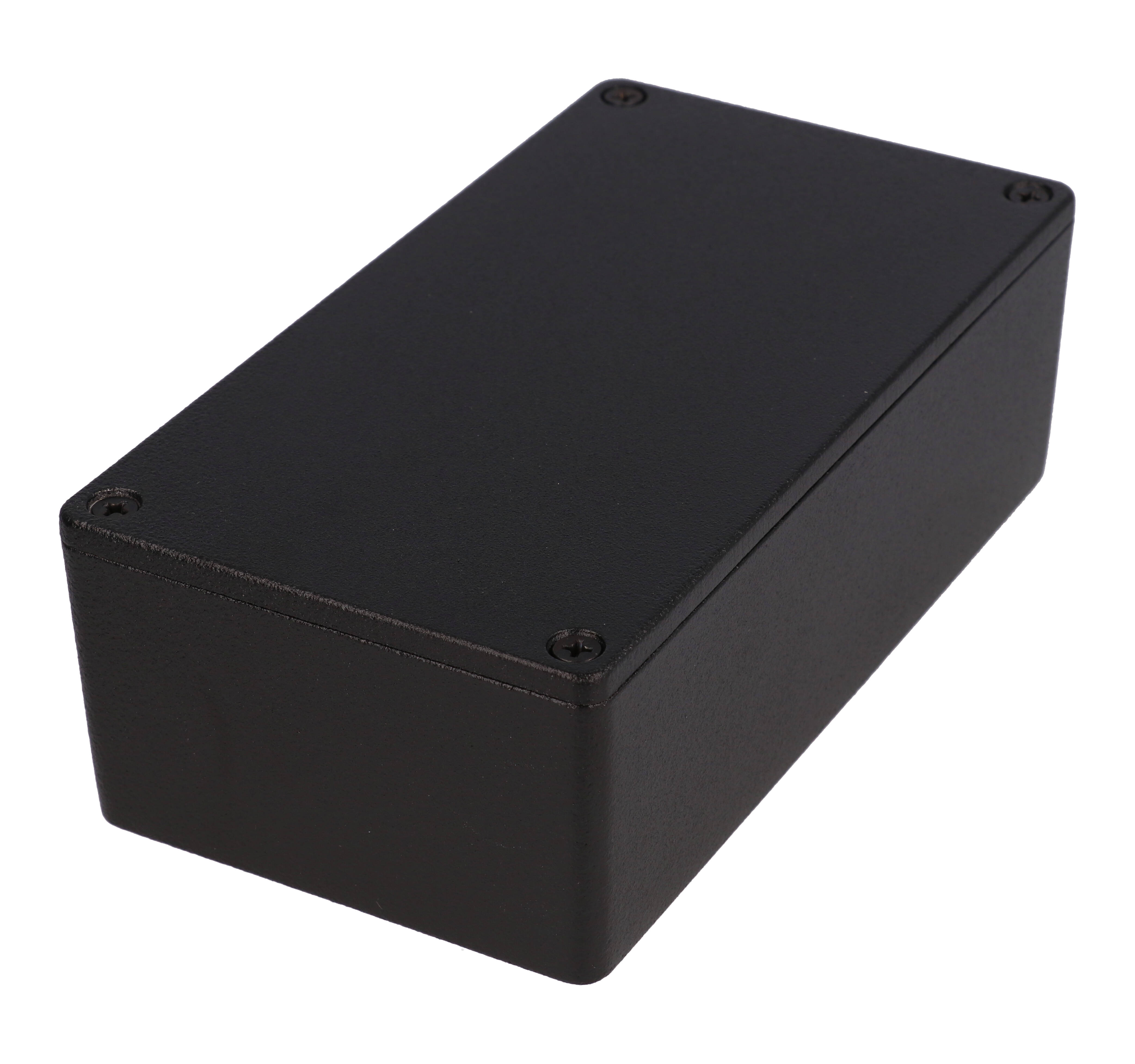

The 1590PBK is the satin black painted version of the 1590P diecast aluminum enclosure. It gives OEM designers and integrators a finished black metal housing with room for P.C. boards up to 143.22 mm by 73.12 mm on internal ribs that serve as board guides.

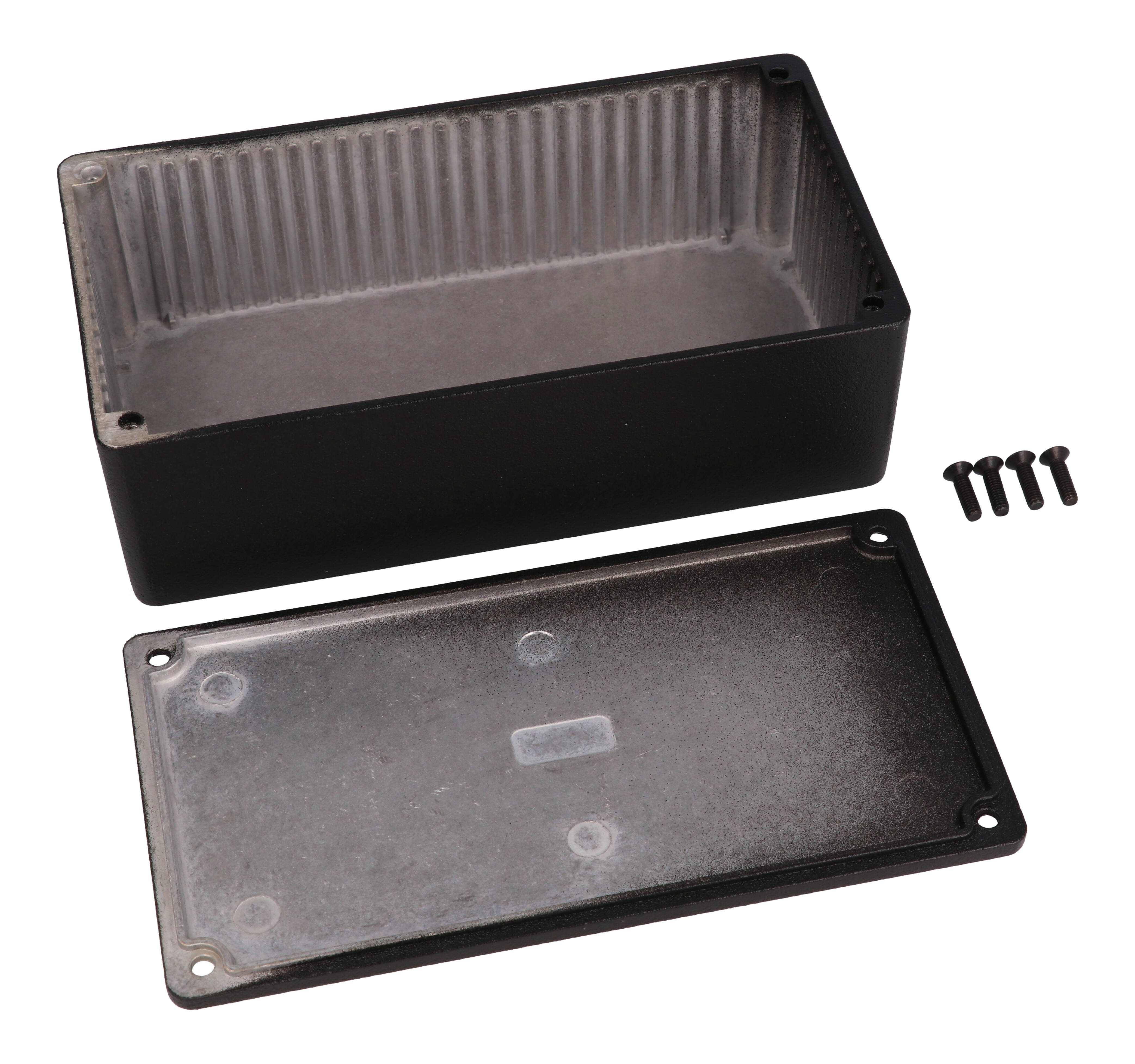

The enclosure is diecast aluminum alloy, tough yet easy to machine, painted with tough polyester powder paint for a lasting finish even after machining. Black screws are included to enhance appearance. The purchased assembly includes the box, lid and 4 cover screws (M3.5x0.6), which thread into factory-tapped holes; recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket. Lap joint construction protects against dust and splashing water, and the standard enclosure is rated IP54.
The listed size is 6.03 in x 3.27 in x 1.98 in (153 mm x 83 mm x 50 mm). Inside the box there is 146.29 mm [5.759"] of length, 73.98 mm [2.913"] of width and 45.40 mm [1.787"] of height, and the side walls have a draft angle of 2 degrees or less. Shipping weight is 0.76 lbs (0.34 kg).
The 1590PGASKET kit is listed for this size, and 1590WPBK is the black water-tight counterpart; 1590PFLBK offers a black flanged lid. RoHS and REACH compliant; shrink wrapped.
Ideal For
- Black instrument and control enclosures
- OEM electronics with a painted exterior
- Housings for larger P.C. boards
- Electronics project boxes
Overview
| Type | Die-cast box |
| Color | Black |
| Series | 1590-RIBBED Series Diecast Aluminum Enclosures (With Internal Ribs) |
| Version | No Mounting Flanges, Standard Version |
| Description | enclosure - diecast |
| Part Number | 1590PBK |
| Short Description | 1590P BLACK |
Dimensions
| Inside Width | 73.98 mm [2.913"] |
| Inside Height | 45.40 mm [1.787"] |
| Inside Length | 146.29 mm [5.759"] |
| Size L X W X H | 6.03 in x 3.27 in x 1.98 in (153 mm x 83 mm x 50 mm) |
| Series Table Note | Dimensions include lid. Lid height is 4mm (0.16"). |
| Overall Width (Drawing) | 83.10 mm [3.272"] |
| Overall Height (Drawing) | 50.40 mm [1.984"] |
| Overall Length (Drawing) | 153.20 mm [6.031"] |
| Nominal Size (Series Table) L X W X D | 6.02 in (153 mm) x 3.27 in (83 mm) x 1.97 in (50 mm) |
Identifiers
| UPC | 623980556994 |
| UNSPSC | 39121301 |
PCB Mounting
| Slot Width | 2.00 mm |
| Guide Depth | 1.10 mm [.043"] |
| Guide Width | 3.00 mm [.118"] |
| Guide Height | 41.73 mm [1.643"] |
| Side Wall Draft Angle | 2 degrees or less (low draft for easy P.C. board mounting) |
| Max. P.C. Board Width (Mm) | 143.22 |
| Max. P.C. Board Length (Mm) | 73.12 |
Documentation
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Solid Models Available | STEP or IGES |
Related Versions
| Other Versions In Same Size & Color | No Mounting Flanges, Water-Tight Version: 1590WPBK · Flanged Lid, Standard Version: 1590PFLBK · Flanged Lid, Water-Tight Version: 1590WPFLBK · Flanged Bottom Plate, Water-Tight Version: 1590WPFBK |
Compatible Hardware
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Philips Machine Screws (100-pack) | 1550MS100 (natural), 1550MS100BK (black) |
| Water-Tight Philips Machine Screws (100-pack) | 1550WMS100 (natural), 1550WMS100BK (black) |
| Torx With Pin Tamper-Resistant Screws (50-pack) | 1550MS50T, 1550MS50TBK, 1550WMS50T, 1550WMS50TBK (water-tight) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.76 lbs (0.34 kg) |
Construction & Finish
| Finish | Satin black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Diecast aluminum alloy with internal ribs; lap joint construction protects against access of dust and splashing water |
| Cover Screws | 4X M3.5x0.6, threaded into factory-tapped holes (black screws included) |
| Lid Screw Holes | 4X Ø 4.00 mm [.157"] |
| Assembly Includes | box, lid and 4 cover screws |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Counterparts | 1590WPBK, 1590WPFLBK, 1590WPFBK |
| Optional Gasket Kit (IP54 To IP65 Upgrade) | 1590PGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What finish does the 1590PBK have?▾
Satin black polyester powder paint for a lasting finish even after machining, with black screws included.
What are the inside dimensions?▾
146.29 mm [5.759"] long, 73.98 mm [2.913"] wide and 45.40 mm [1.787"] high.
Is a water-tight black version listed?▾
Yes, 1590WPBK is the water-tight black version of this enclosure.
Which gasket kit fits?▾
The 1590PGASKET kit is listed for this size.
What IP rating does the 1590PBK have?▾
IP54.
