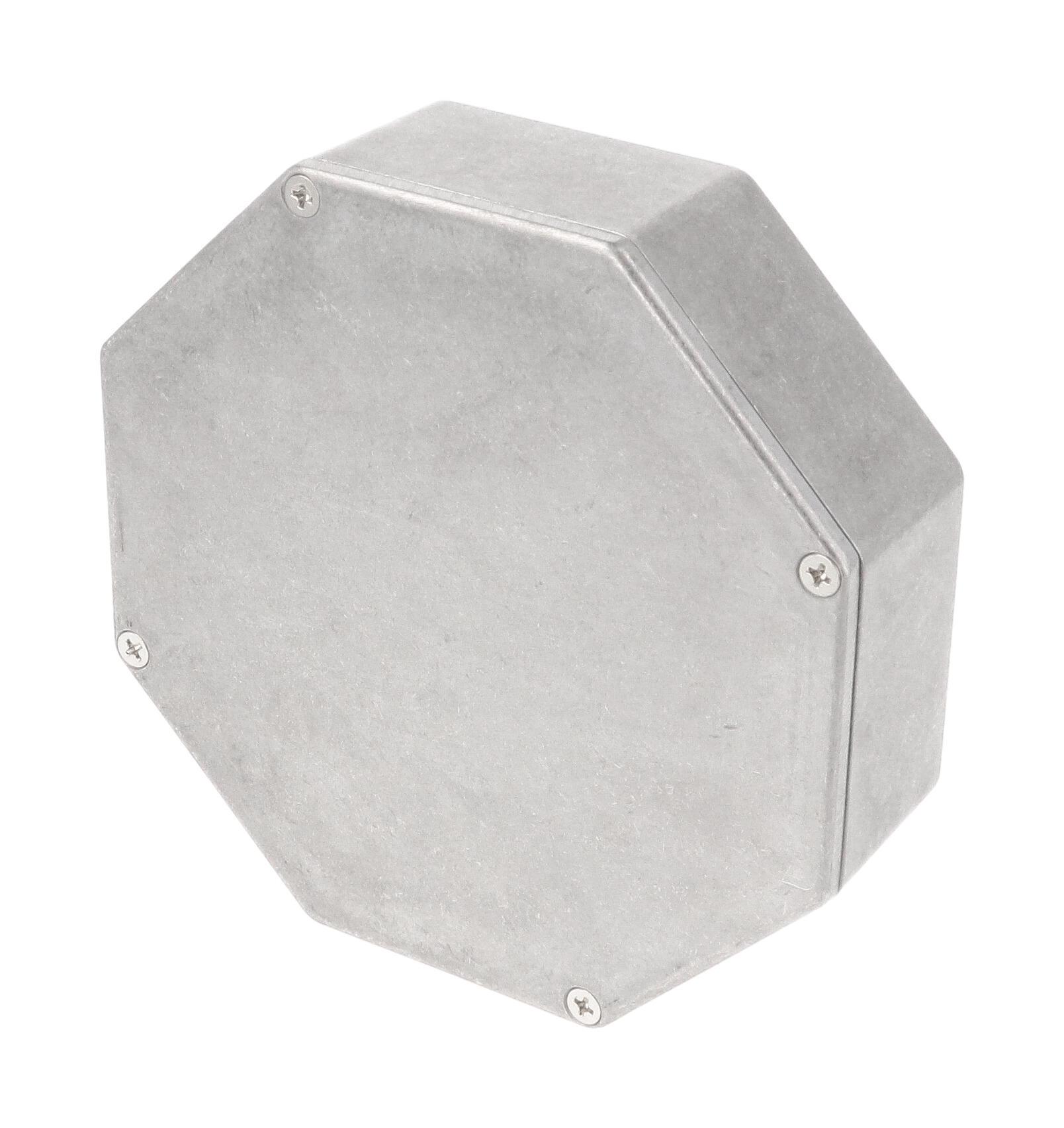

Diecast Octagon Enclosure
- Type Die-cast box
- Material Aluminum (Die-Cast Alloy)
- Color Natural Aluminum
- IP Rating IP54
$9.90In stock
Buy now
Octagon & Trapezoid Diecast Aluminum Enclosures · 1590TRP-STP Series
Brand: Hammond Manufacturing · 12 part numbers
Unusual Shapes for a Unique Look
- ■Rugged, diecast aluminum alloy electronic instrument enclosure.
- ■Aluminum material is tough yet easy to machine.
- ■Lap joint construction provides protection against access of dust and splashing water.
- ■Unpainted version is vibra finished for a smooth surface with no sharp edges.
- ■Our most popular application is stomp box usage. See our 1590 Stomp Box series for more colors and traditional shapes.
- ■Four #6-32 x 1/2” machine screws secure lid into factory-tapped holes.
from $7.90
12 of 12 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1590TRP-STP Series part number
Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
12 of 12 part numbers · 12 priced online

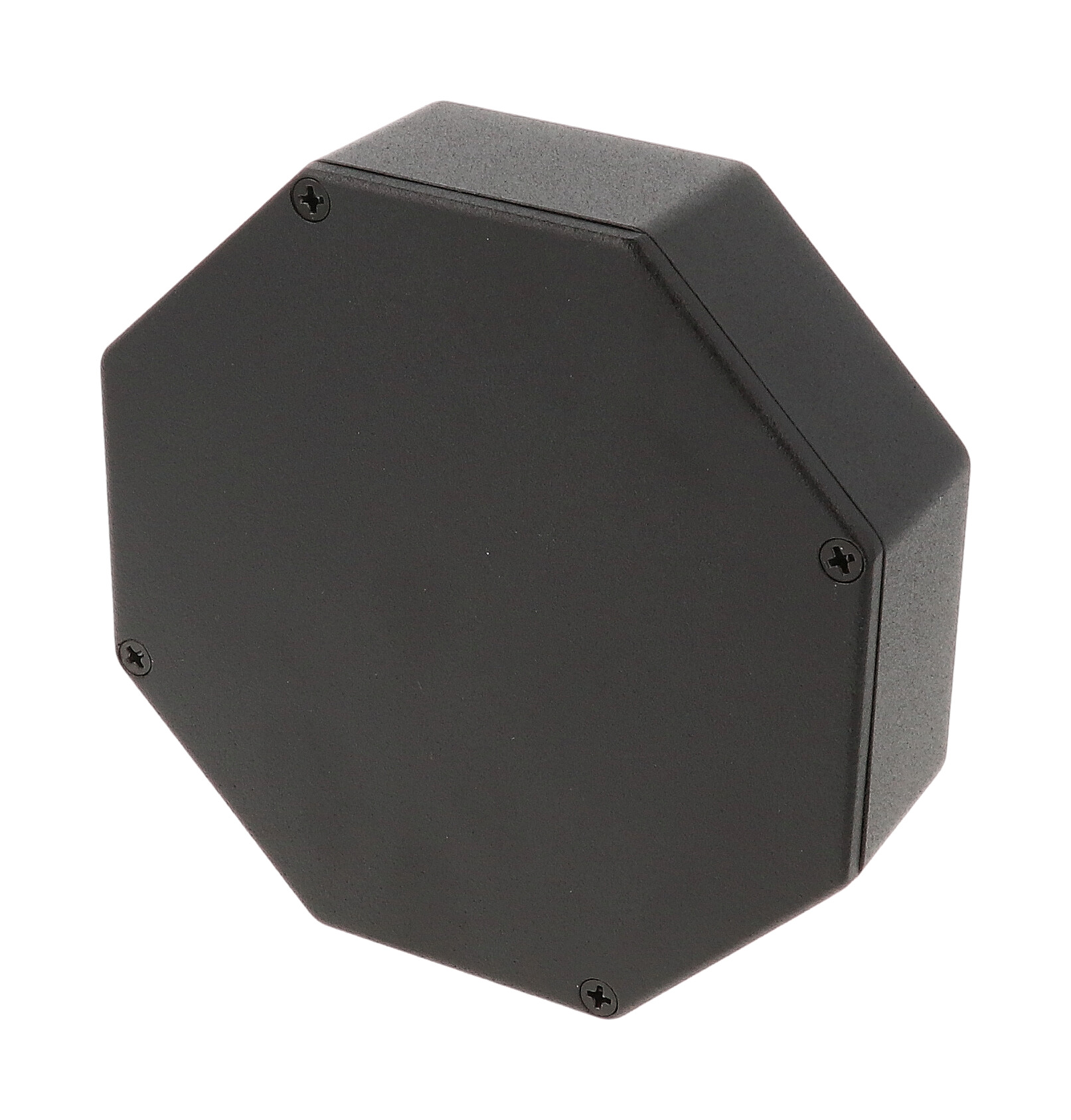

Painted Diecast Oct. Enclosure
- Type Die-cast box
- Material Aluminum (Die-Cast Alloy)
- Color Black
- IP Rating IP54
$12.49In stock
Buy now
Diecast Trap Enclosure
- Type Die-cast box
- Material Aluminum (Die-Cast Alloy)
- Color Natural Aluminum
- IP Rating IP54
$7.90In stock
Buy now

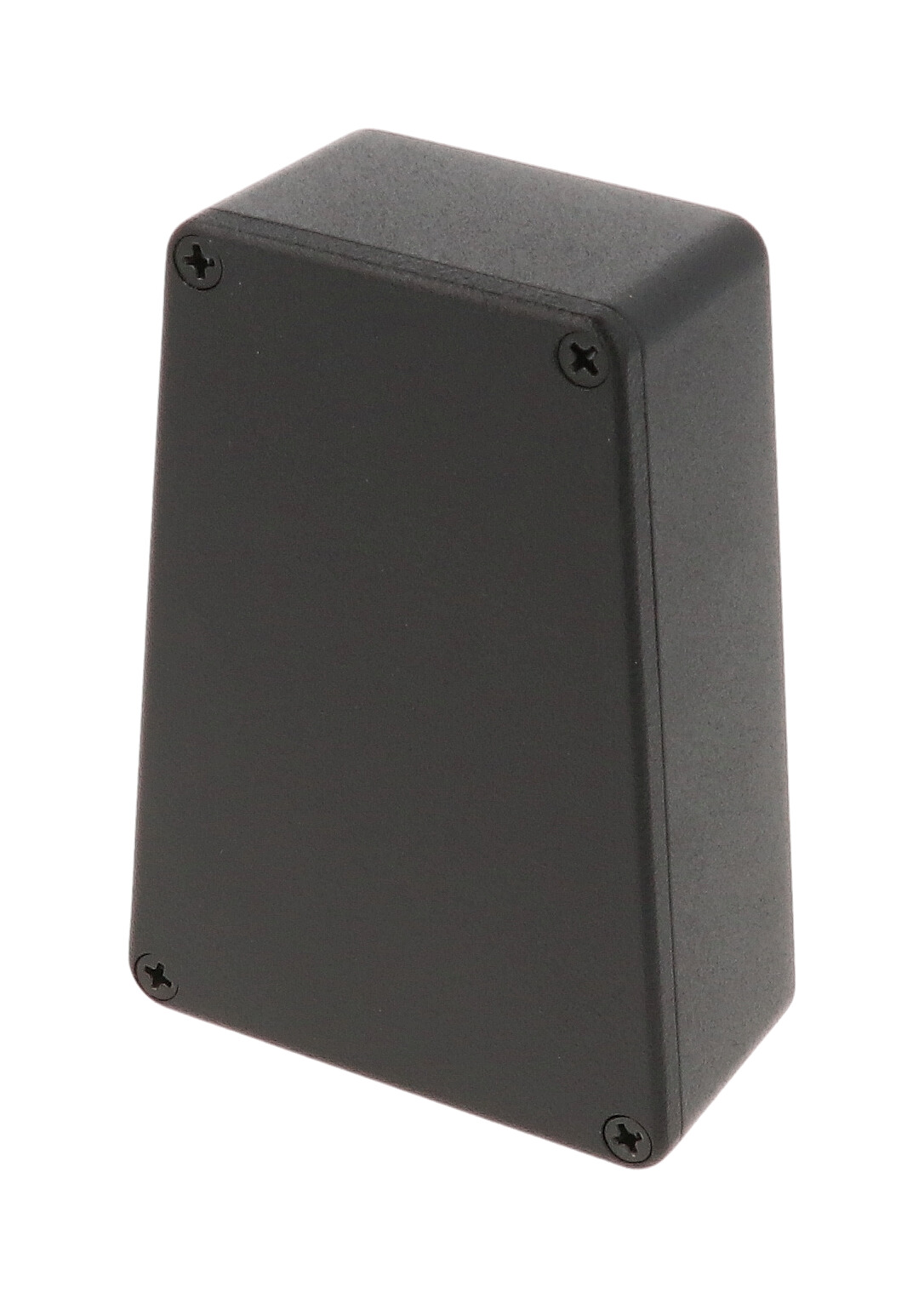

Painted Diecast Trap Enclosure
- Type Die-cast box
- Material Aluminum (Die-Cast Alloy)
- Color Black
- IP Rating IP54
$10.37In stock
Buy now

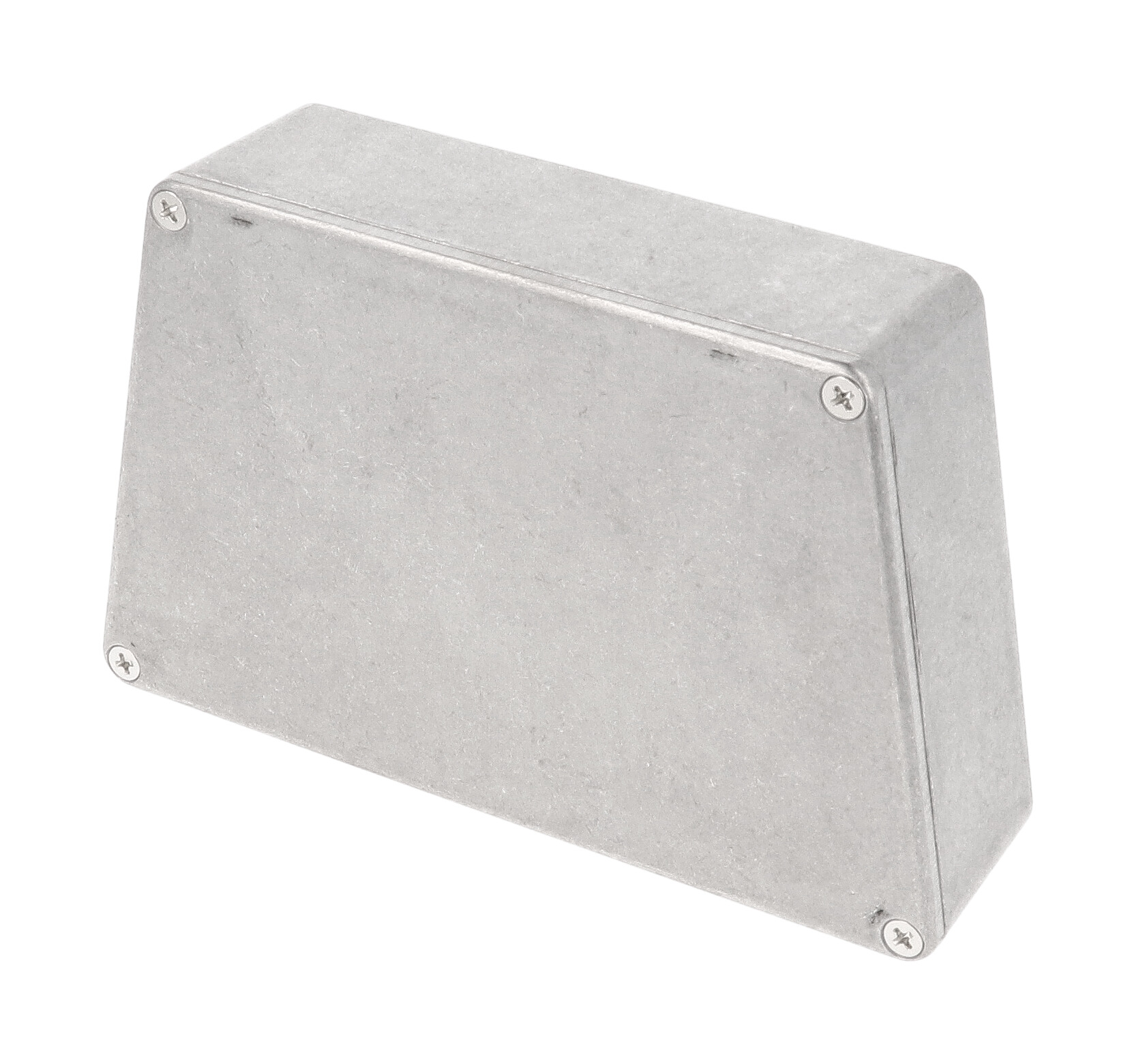

Diecast Trap Enclosure
- Type Die-cast box
- Material Aluminum (Die-Cast Alloy)
- Color Natural Aluminum
- IP Rating IP54
$9.24In stock
Buy now
Painted Diecast Trap Enclosure
- Type Die-cast box
- Material Aluminum (Die-Cast Alloy)
- Color Black
- IP Rating IP54
$11.76In stock
Buy now
1590STPC Waterproof
- Type Die-cast box, water-tight
- Material Aluminum Steel
- Color Natural Aluminum
- IP Rating IP65
$16.12In stock
Buy now
1590STPC Waterproof Black
- Type Die-cast box, water-tight
- Material Aluminum Steel
- Color Black
- IP Rating IP65
$20.04In stock
Buy now

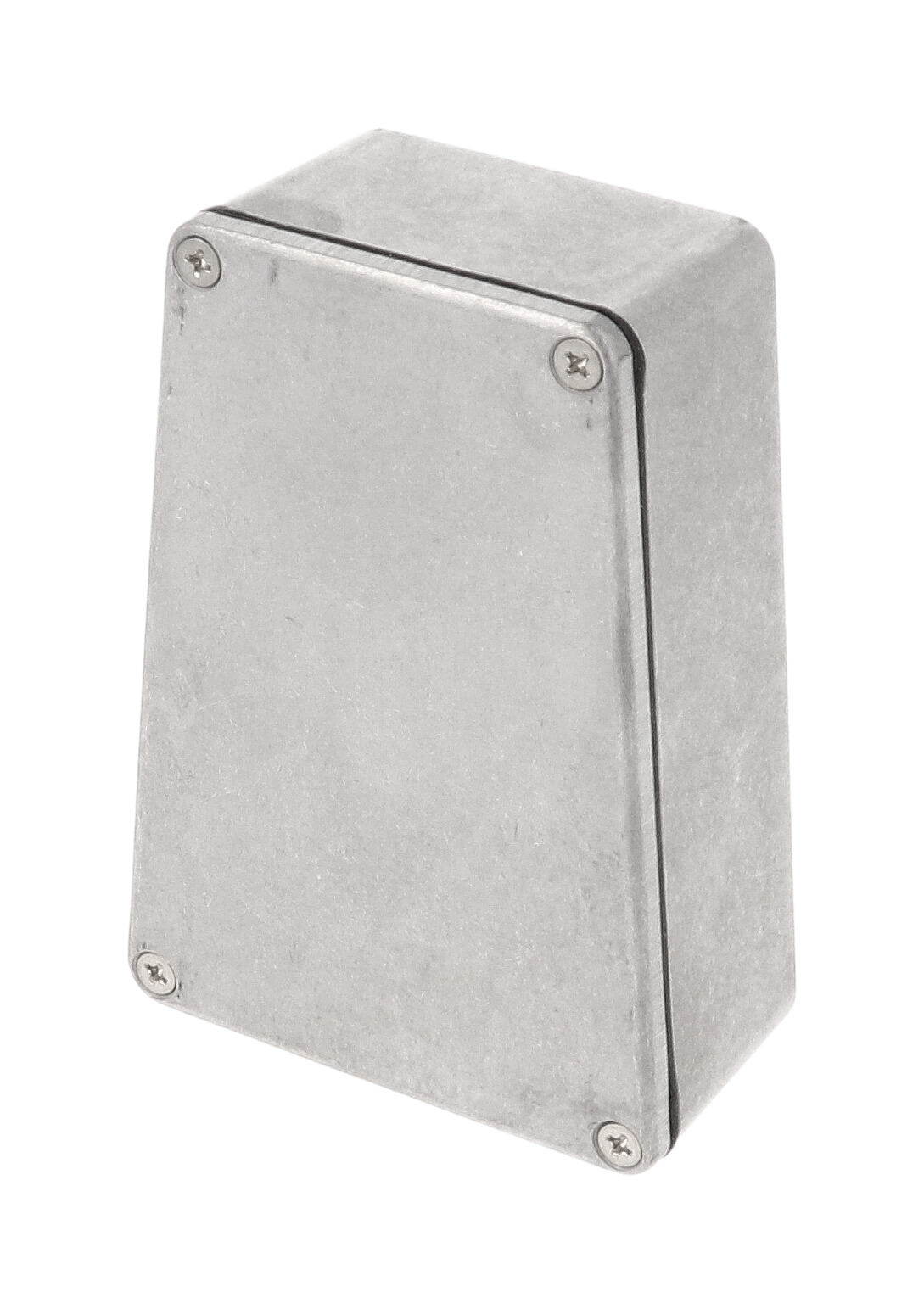

1590TRPB Waterproof
- Type Die-cast box, water-tight
- Material Aluminum Steel
- Color Natural Aluminum
- IP Rating IP65
$12.46In stock
Buy now

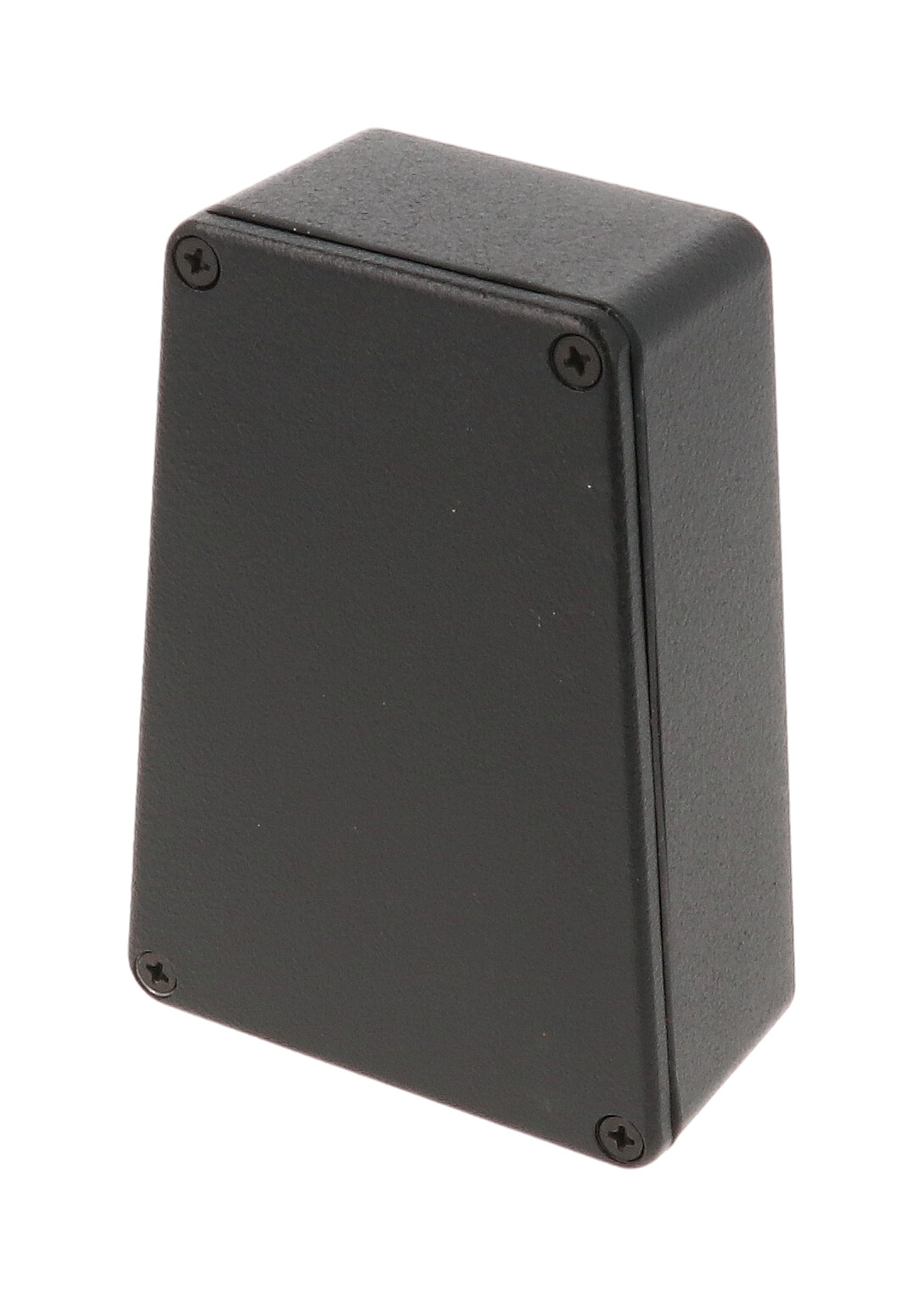

1590TRPB Waterproof Black
- Type Die-cast box, water-tight
- Material Aluminum Steel
- Color Black
- IP Rating IP65
$16.27In stock
Buy now

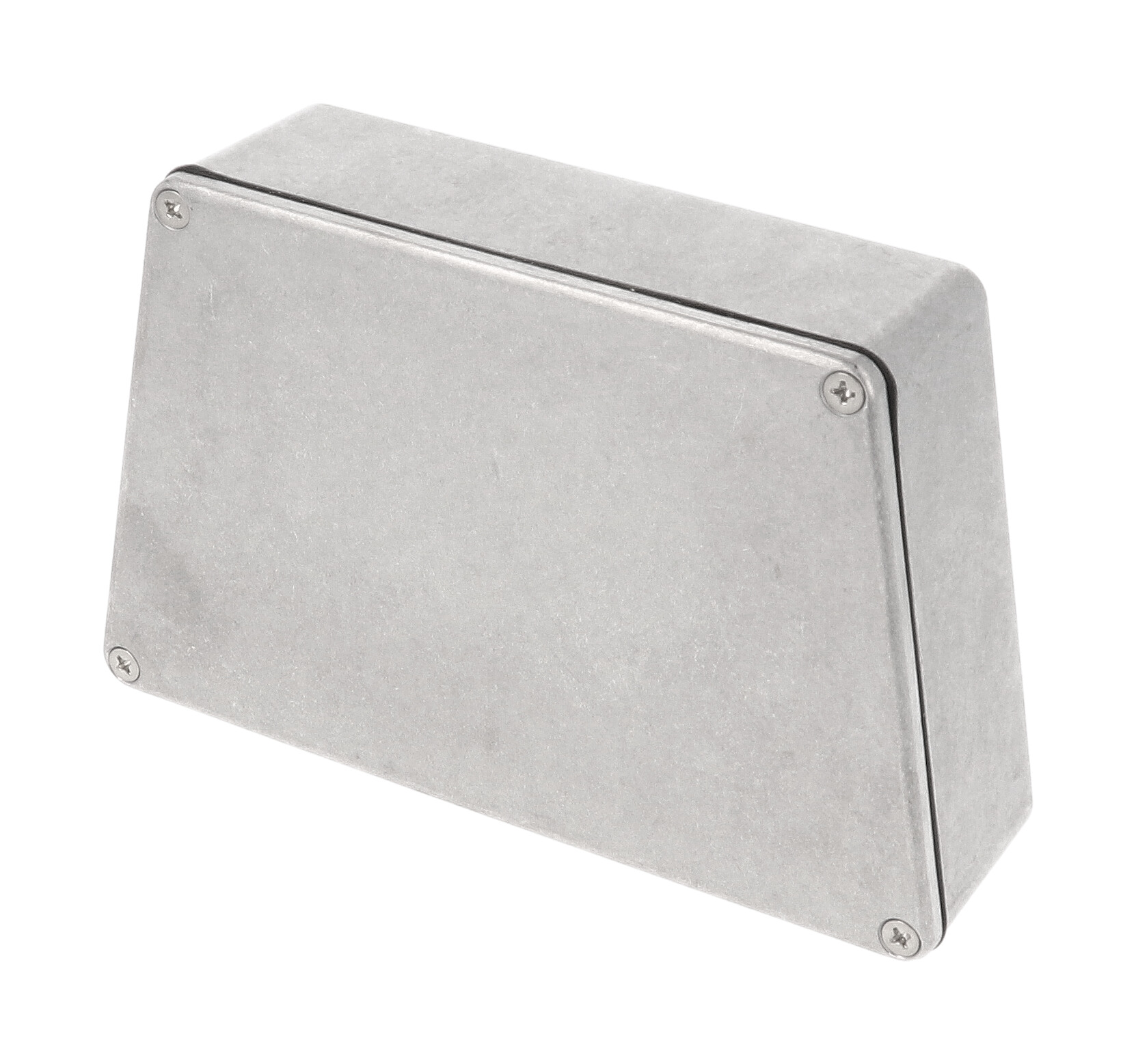

1590TRPC Waterproof
- Type Die-cast box, water-tight
- Material Aluminum Steel
- Color Natural Aluminum
- IP Rating IP65
$15.38In stock
Buy now
1590TRPC Waterproof Black
- Type Die-cast box, water-tight
- Material Aluminum Steel
- Color Black
- IP Rating IP65
$19.27In stock
Buy nowDimension tables (inches / mm)
Standard Version
Units shown: mm . Switch units to: inch
| Unpainted | Black | Length | Width at · Small End | Width at · Large End | Depth | Price | Order |
|---|---|---|---|---|---|---|---|
| 1590TRPB | 1590TRPBBK | 4.41 | 2.44 | 3.11 | 1.54 | $7.90In stock1590TRPB | Buy now |
| 1590TRPC | 1590TRPCBK | 3.74 | 4.80 | 5.94 | 1.54 | $9.24In stock1590TRPC | Buy now |
| 1590STPC | 1590STPCBK | 5.24 | 2.24 | 5.24 | 1.54 | $9.90In stock1590STPC | Buy now |
Watertight Version (Includes Gasket)
Units shown: mm . Switch units to: inch
| Unpainted | Black | Length | Width at · Small End | Width at · Large End | Depth | Price | Order |
|---|---|---|---|---|---|---|---|
| 1590WTRPB | 1590WTRPBBK | 4.41 | 2.44 | 3.11 | 1.54 | $12.46In stock1590WTRPB | Buy now |
| 1590WTRPC | 1590WTRPCBK | 3.74 | 4.80 | 5.94 | 1.54 | $15.38In stock1590WTRPC | Buy now |
| 1590WSTPC | 1590WSTPCBK | 5.24 | 2.24 | 5.24 | 1.54 | $16.12In stock1590WSTPC | Buy now |
Features
- ■Rugged, diecast aluminum alloy electronic instrument enclosure.
- ■Aluminum material is tough yet easy to machine.
- ■Lap joint construction provides protection against access of dust and splashing water.
- ■Unpainted version is vibra finished for a smooth surface with no sharp edges.
- ■Our most popular application is stomp box usage. See our 1590 Stomp Box series for more colors and traditional shapes.
- ■Four #6-32 x 1/2” machine screws secure lid into factory-tapped holes.
- ■Designed to meet IP54.
- ■Low side wall draft angle (2° or less) for easy PC board mounting.
- ■Replacement screws for natural finish series, machine type, nickel plated, #6-32 x 1/2” - 1590MS100 - Package of 100
- ■Replacement screws for black series, #6-32 x 1/2” - 1590MS50BK - Package of 50
