Diecast Zinc Enclosures · 1590K4 Series

Brand: Hammond Manufacturing · 3 part numbers

Heavy, High Impact Material

■High impact zinc diecast alloy electronic instrument enclosure.
■Zinc material is tough yet easy to machine and offers easy ability to plate the enclosure.
■Zinc material offers a heavier weight alternative to our 1590 diecast aluminum enclosures.
■Zinc diecast enclosures provide extra coolness to the touch and add perceived premium quality weight to your product.
■Lap joint construction provides protection against access of dust and splashing water.
■Enclosure is vibra finished for a smooth surface with no sharp edges.

from $8.98

3 of 3 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your 1590K4 Series part number

Filter 3 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

3 of 3 part numbers · 3 priced online

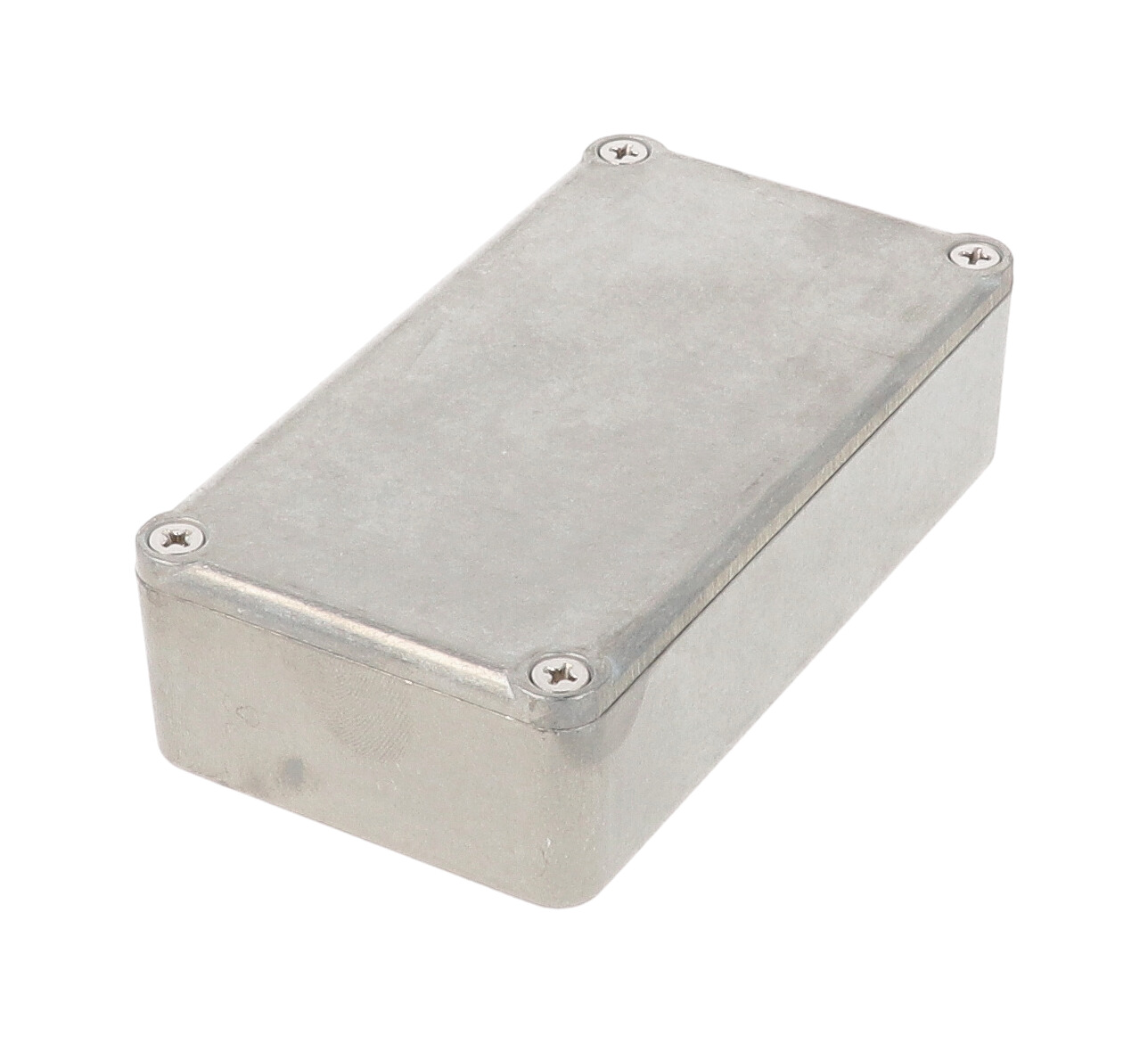

1590K430

Zinc Enclosure 111 X 60 X 30

$8.98In stock

Buy now

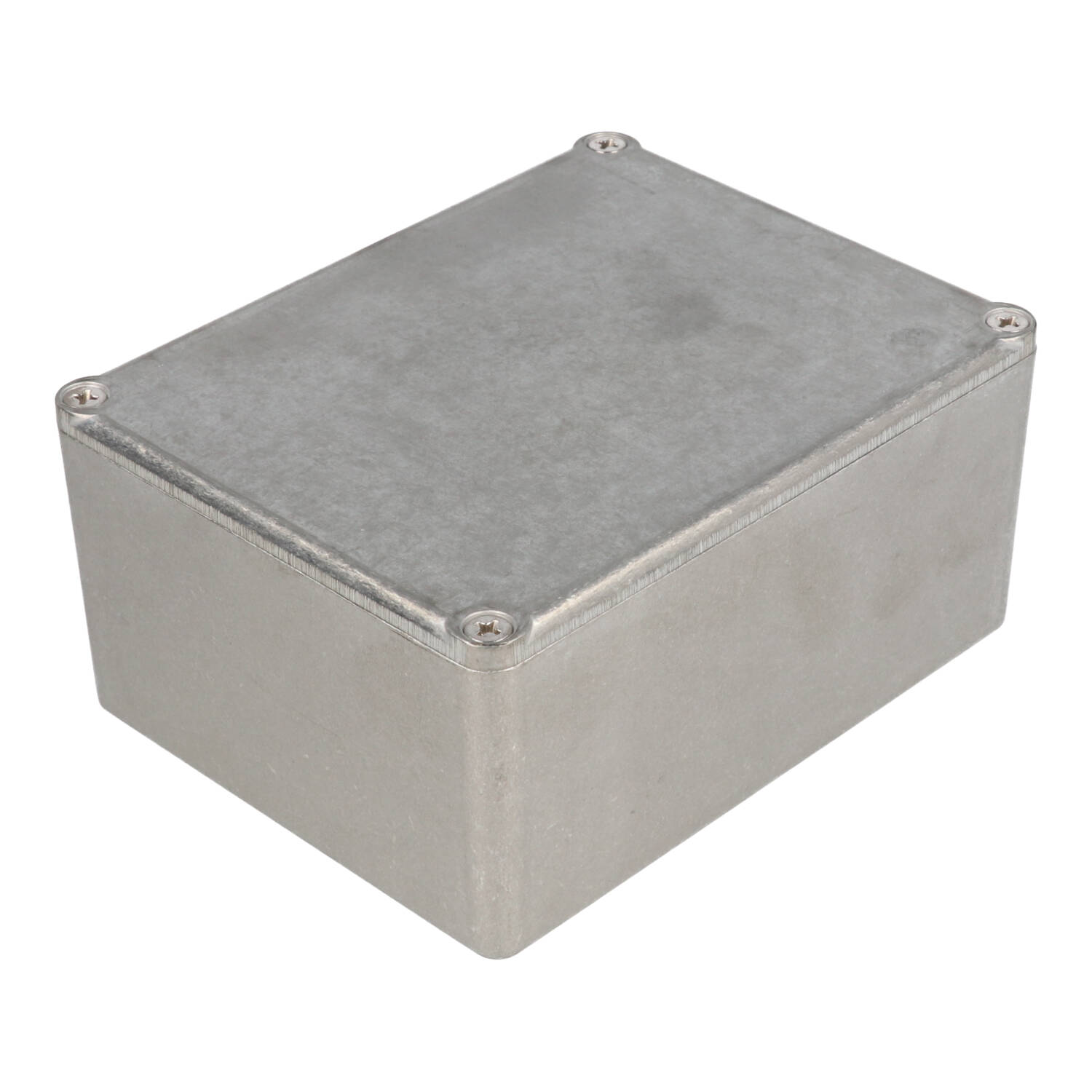

1590K431

Zinc Enclosure 119 X 93 X 56

$14.08In stock

Buy now

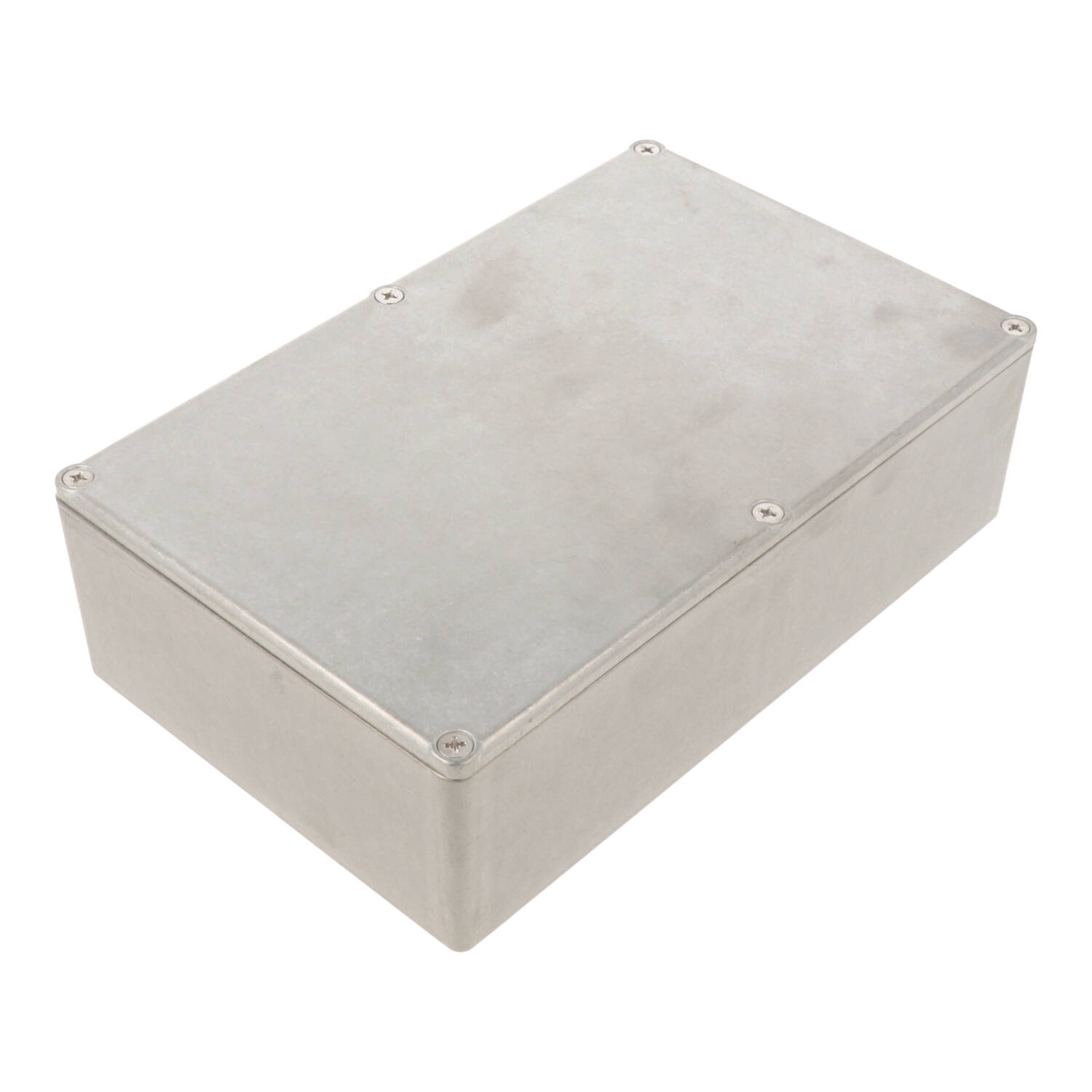

1590K432

Zinc Enclosure 189 X 117 X 56

$22.62In stock

Buy now

Dimension tables (inches / mm)

Enclosures

Units shown: mm . Switch units to: inch

Part Number	Color	Length	Width	Depth	Price	Order
1590K430	Natural	4.41	2.44	1.22	$8.98In stock	Buy now
1590K431	Natural	4.72	3.70	2.20	$14.08In stock	Buy now
1590K432	Natural	7.40	4.72	2.20	$22.62In stock	Buy now

Key Features:

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: mm . Switch units to: inch

■High impact zinc diecast alloy electronic instrument enclosure.
■Zinc material is tough yet easy to machine and offers easy ability to plate the enclosure.
■Zinc material offers a heavier weight alternative to our 1590 diecast aluminum enclosures.
■Zinc diecast enclosures provide extra coolness to the touch and add perceived premium quality weight to your product.
■Lap joint construction provides protection against access of dust and splashing water.
■Enclosure is vibra finished for a smooth surface with no sharp edges.
■Designed to meet IP54.
■Low side wall draft angle (2° or less) for easy PC board mounting.

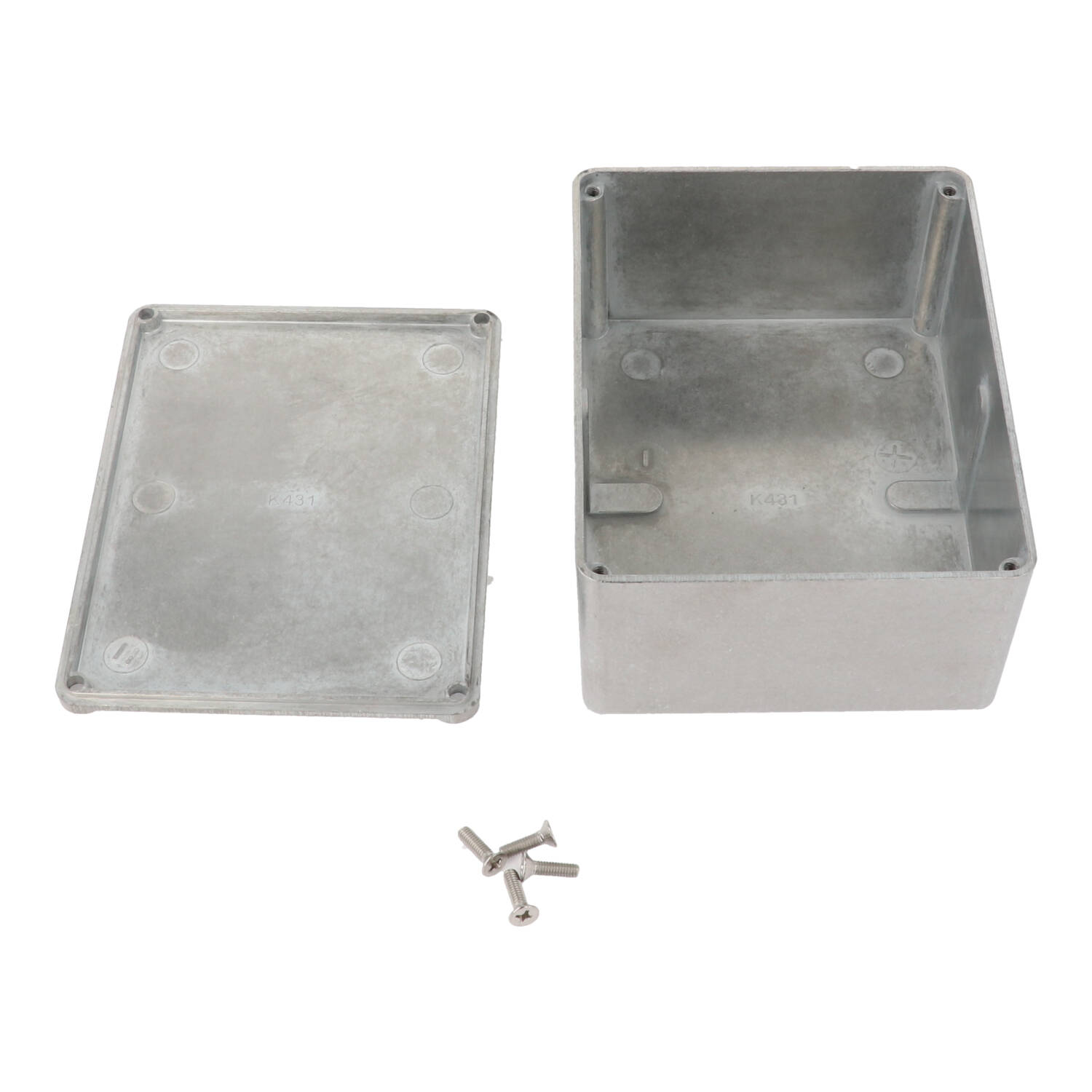

■Four (or six in the 1590K432 ) M3.5 x 0.6 x 12mm long stainless steel Philips head machine screws secure lid into factory tapped holes.
