Watertight Diecast Aluminum Enclosures · 1550Z Series

Key Features:

• ■Thick-wall diecast aluminum watertight electronic instrument enclosure.
• ■Rugged, diecast aluminum alloy is tough yet easy to machine.
• ■No internal ribs for easy installation of connectors without interference or additional milling.

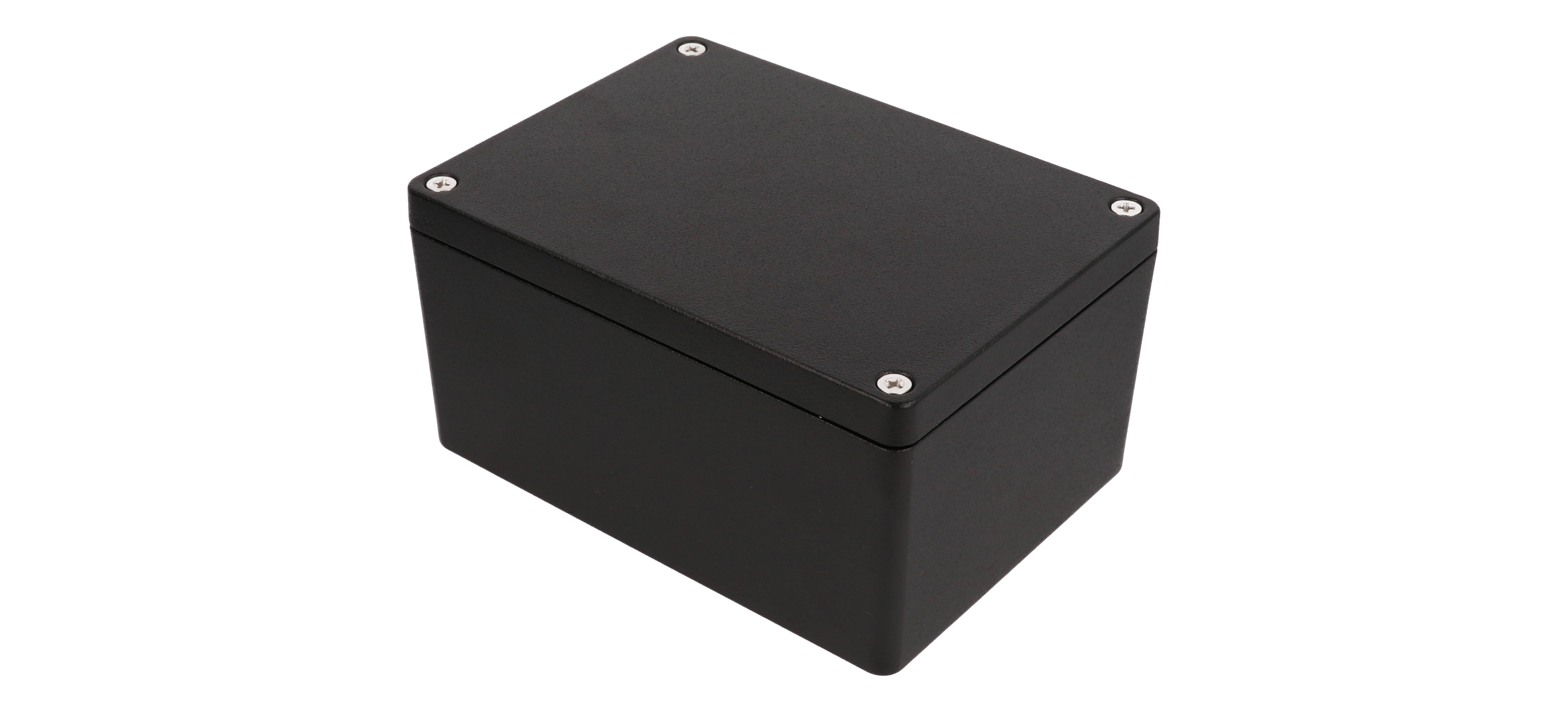

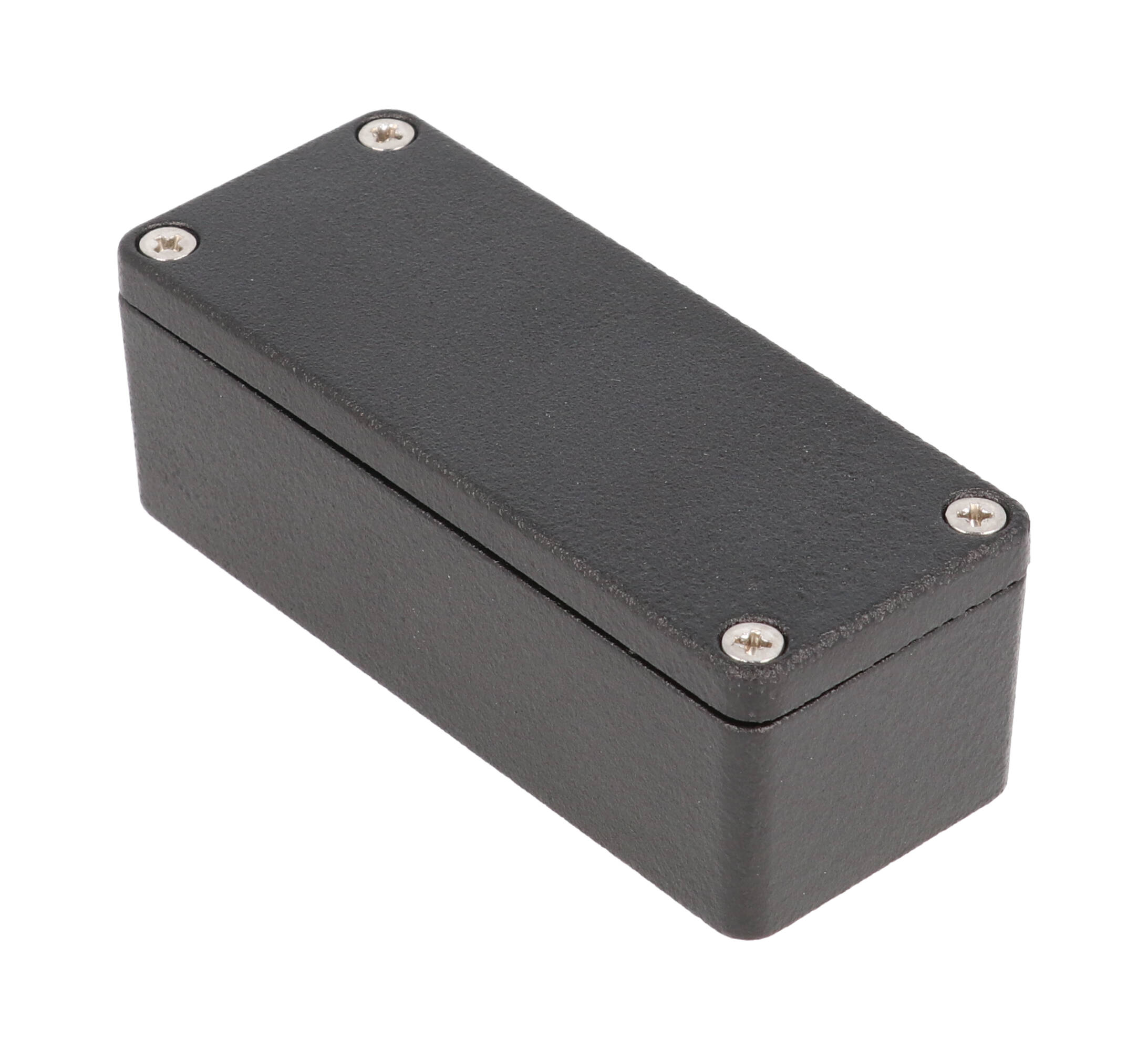

• ■Easy to wallmount using blind thru-box holes (on all sizes except 1550Z102 , 1550Z115, and 1550Z120 ). Access to blind holes is outside of gasket ring to uphold ingress protection.

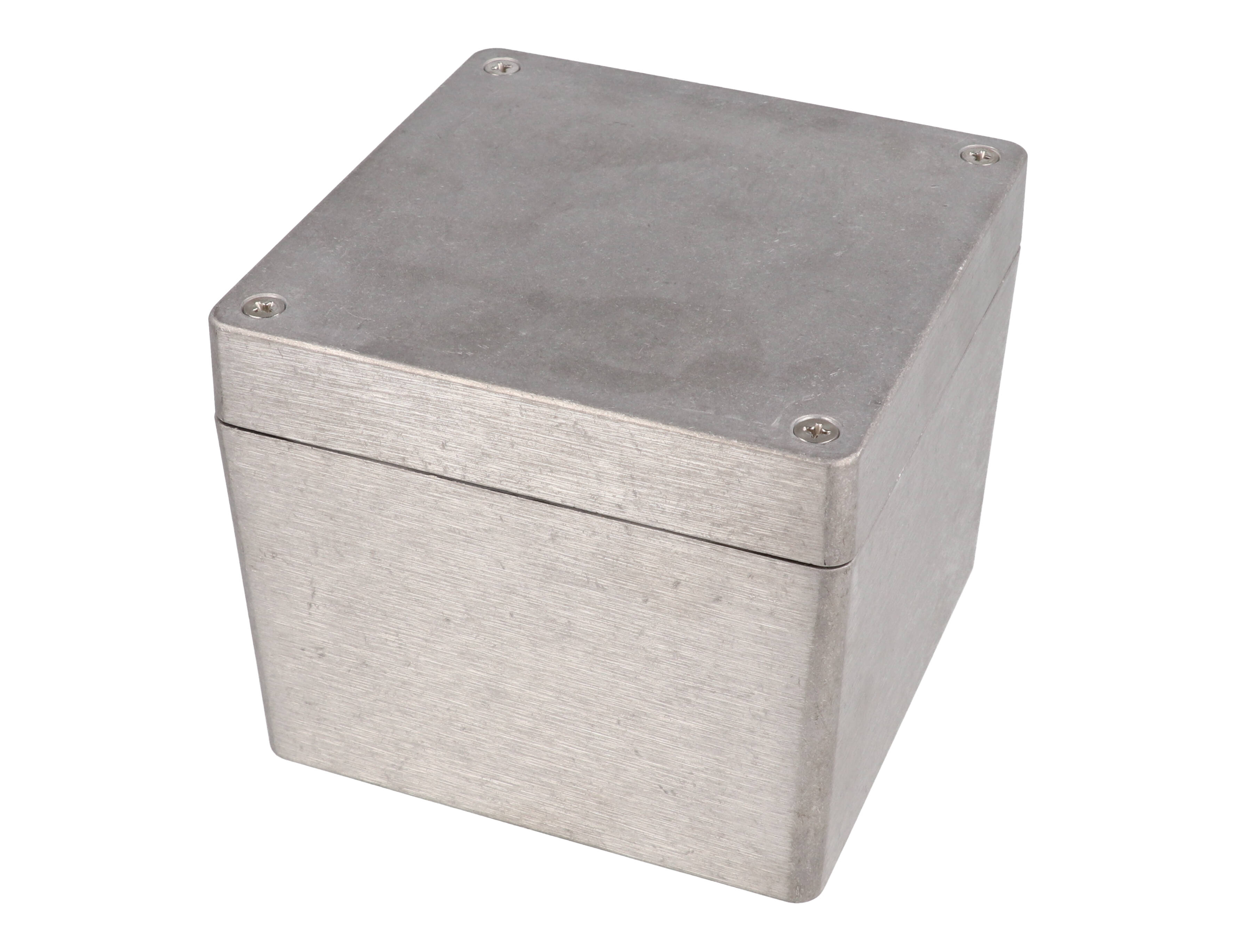

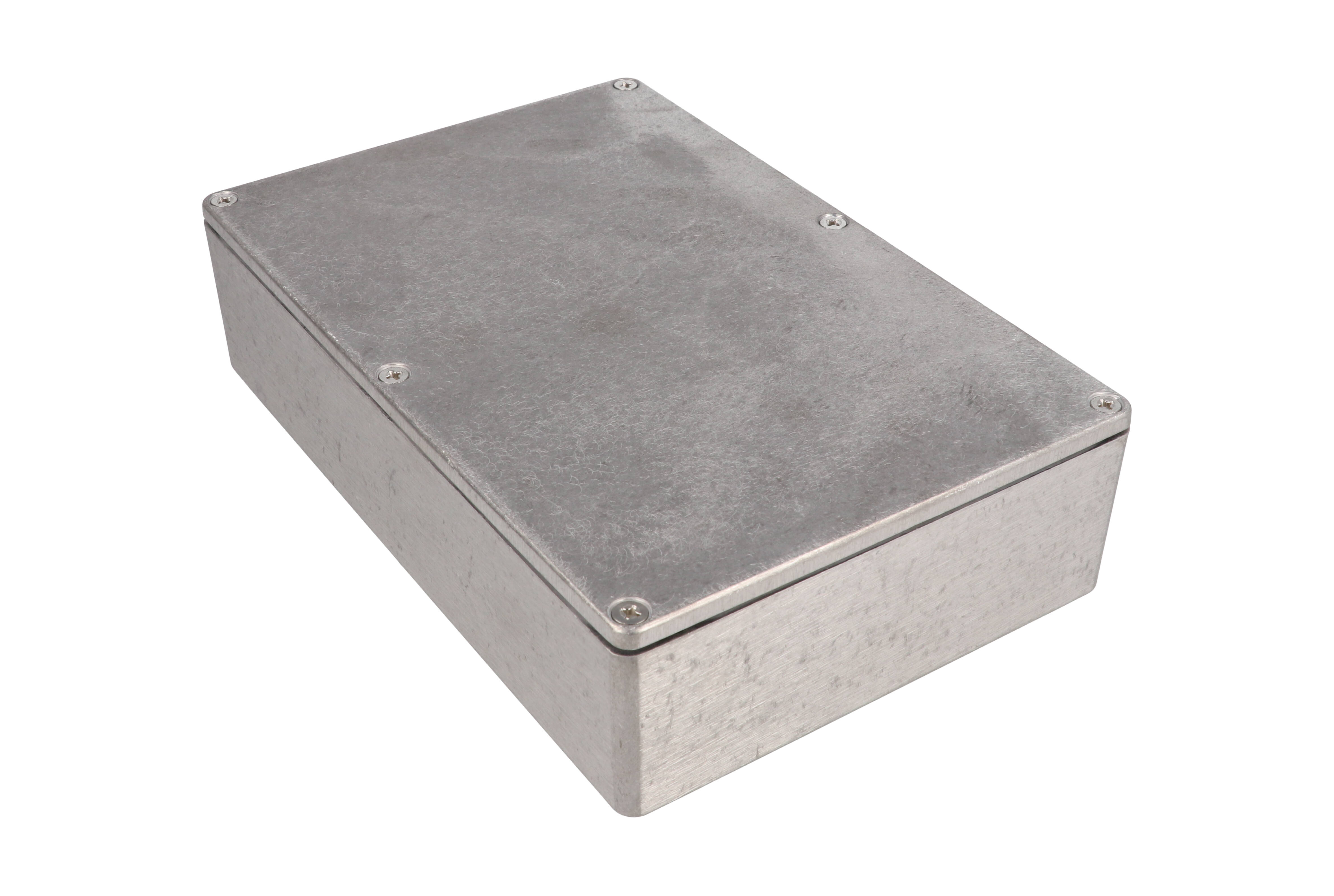

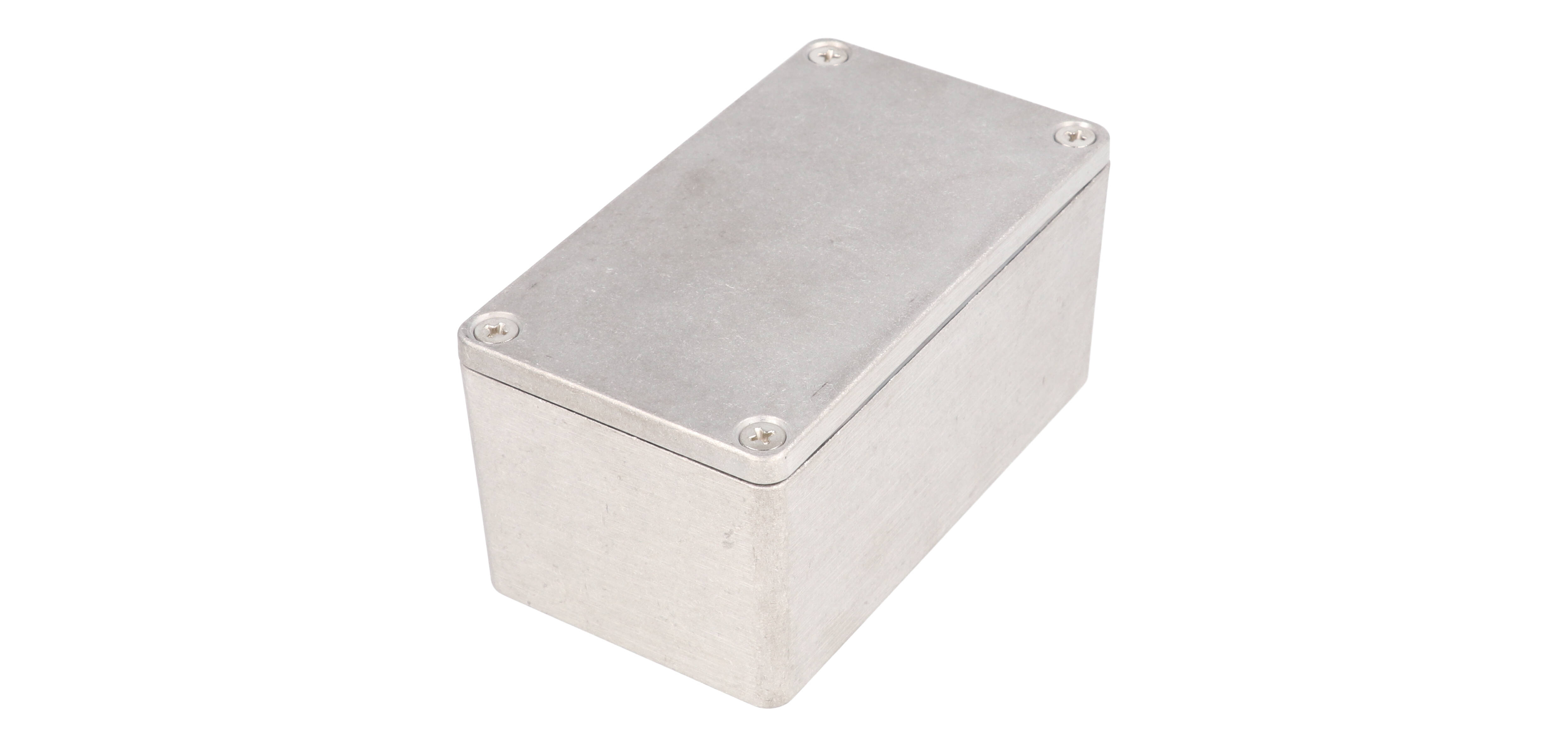

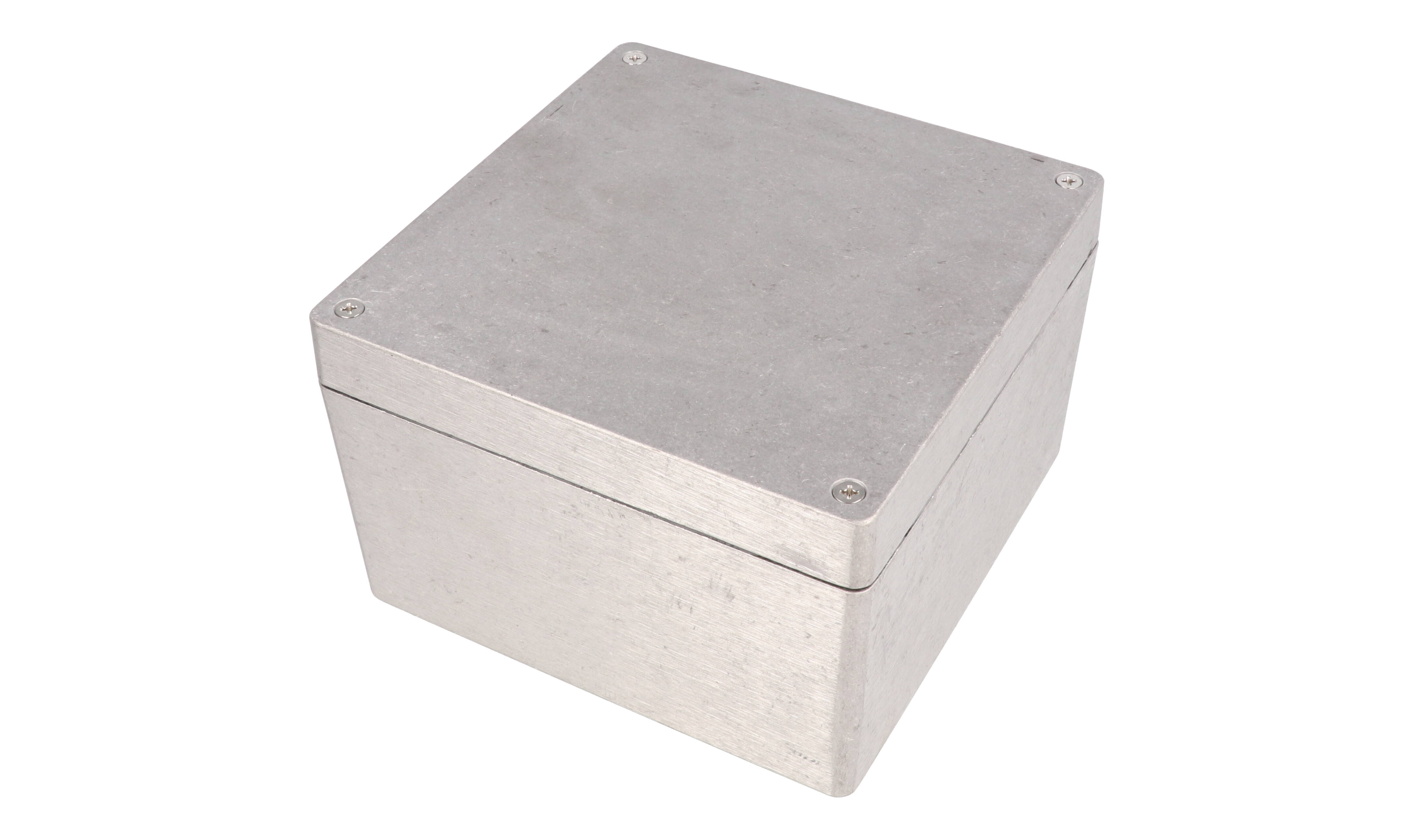

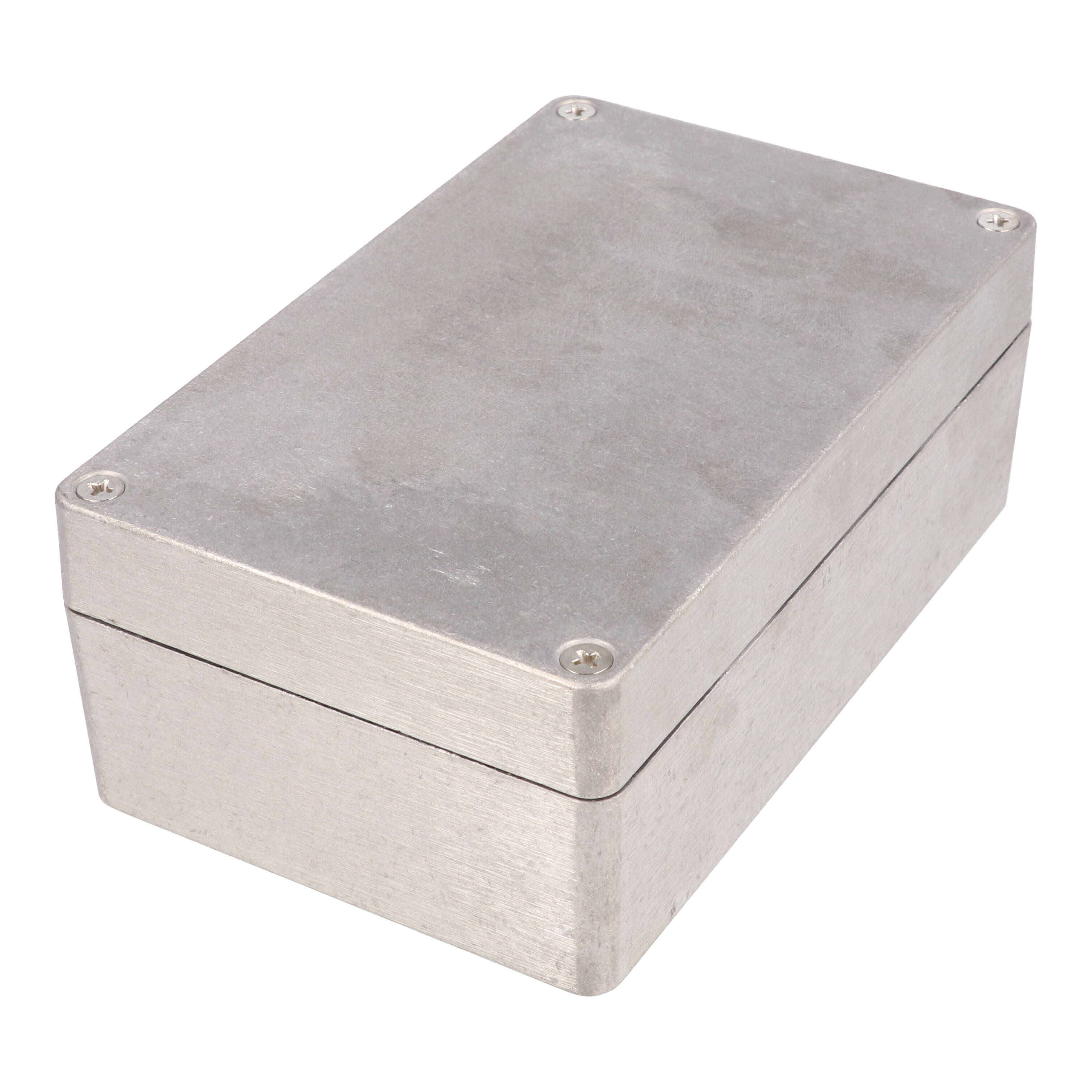

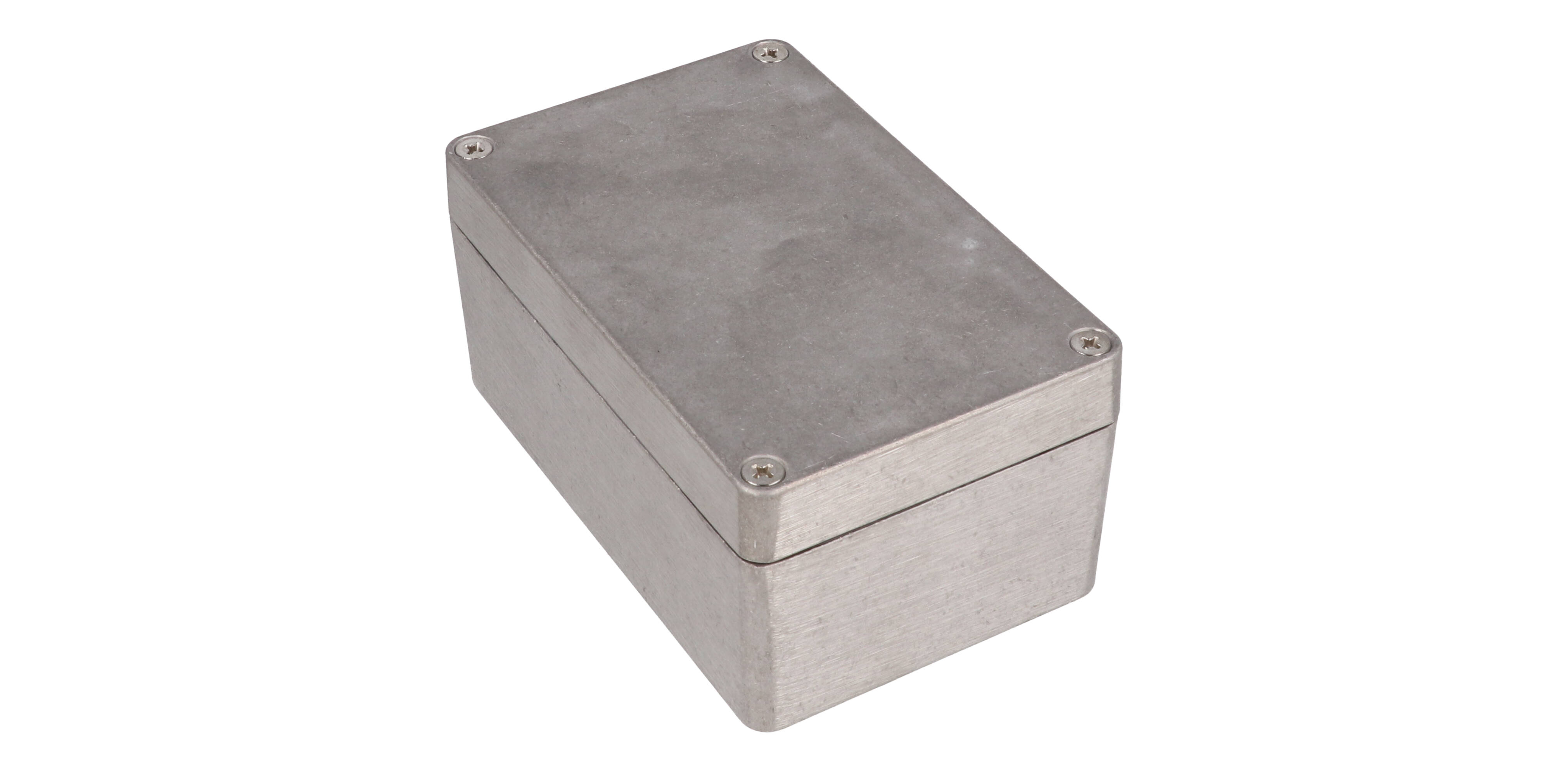

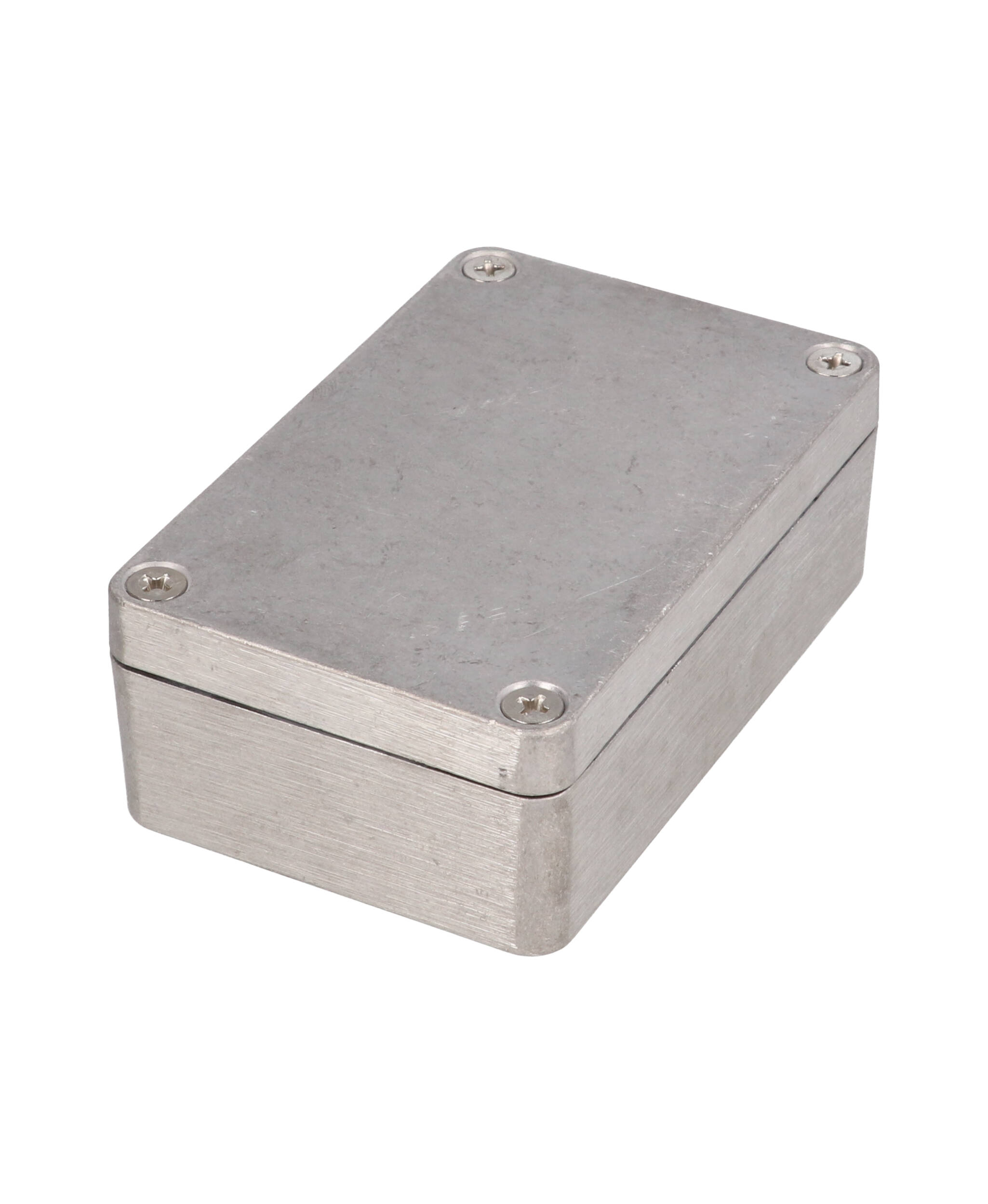

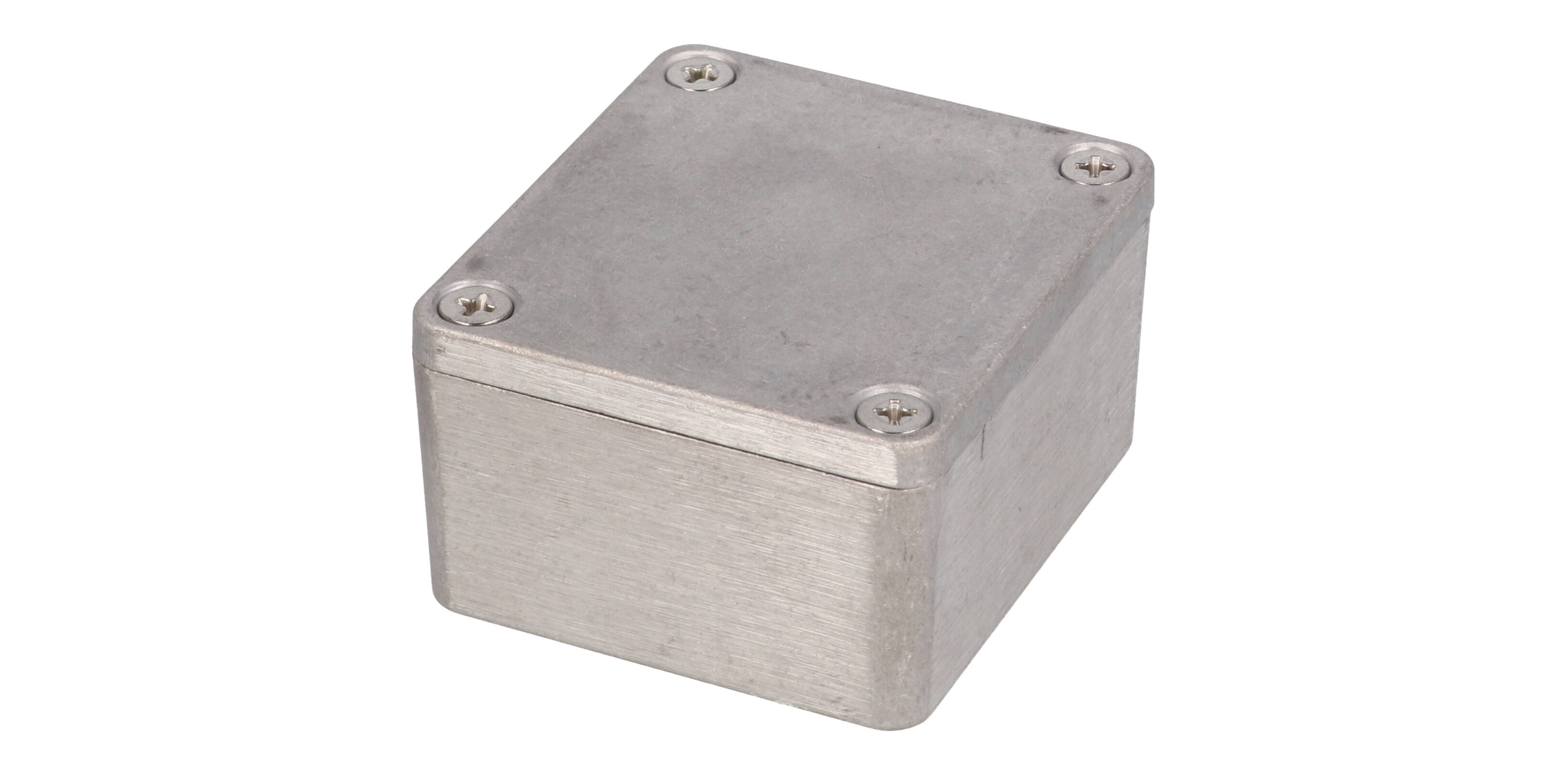

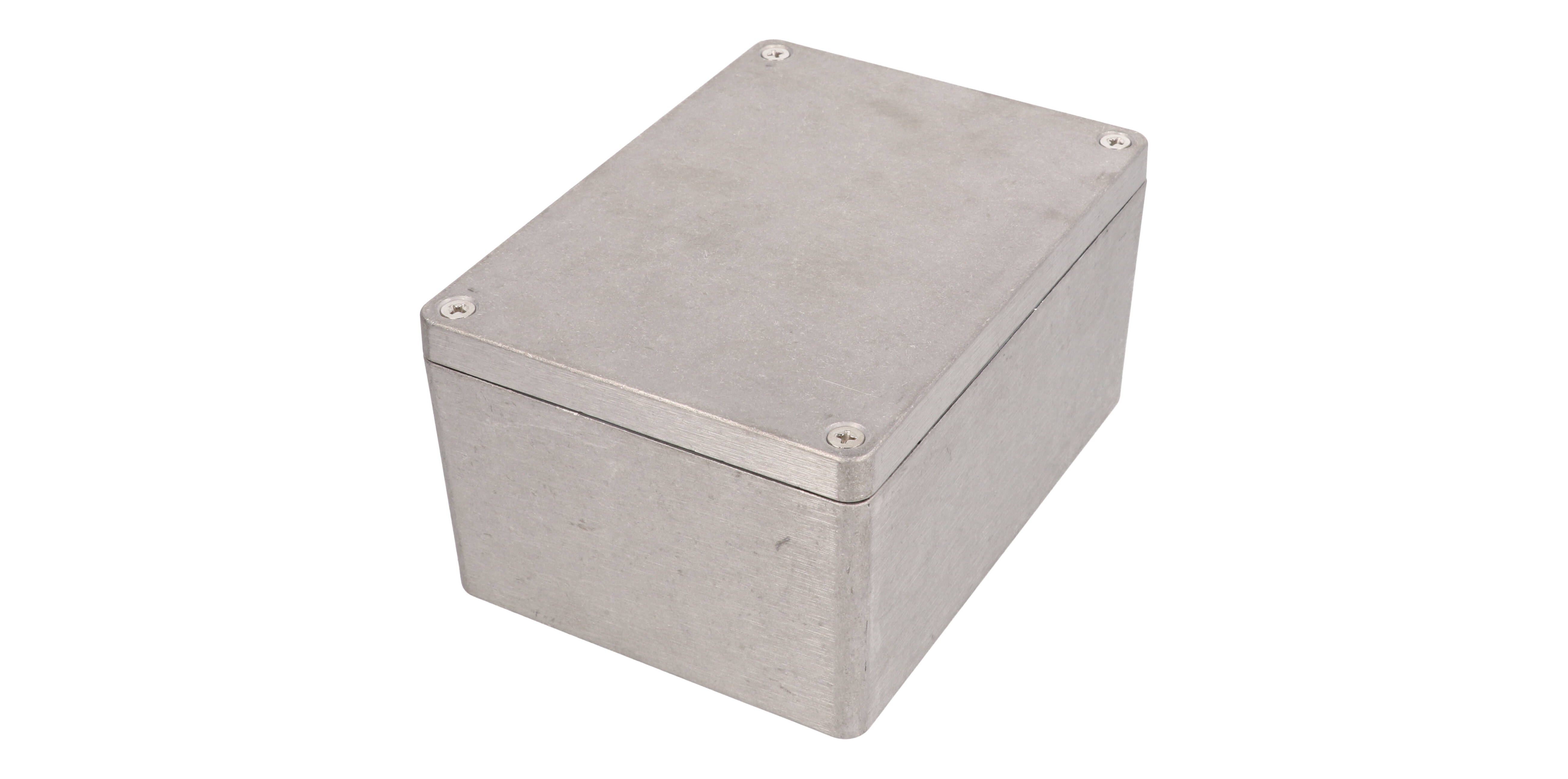

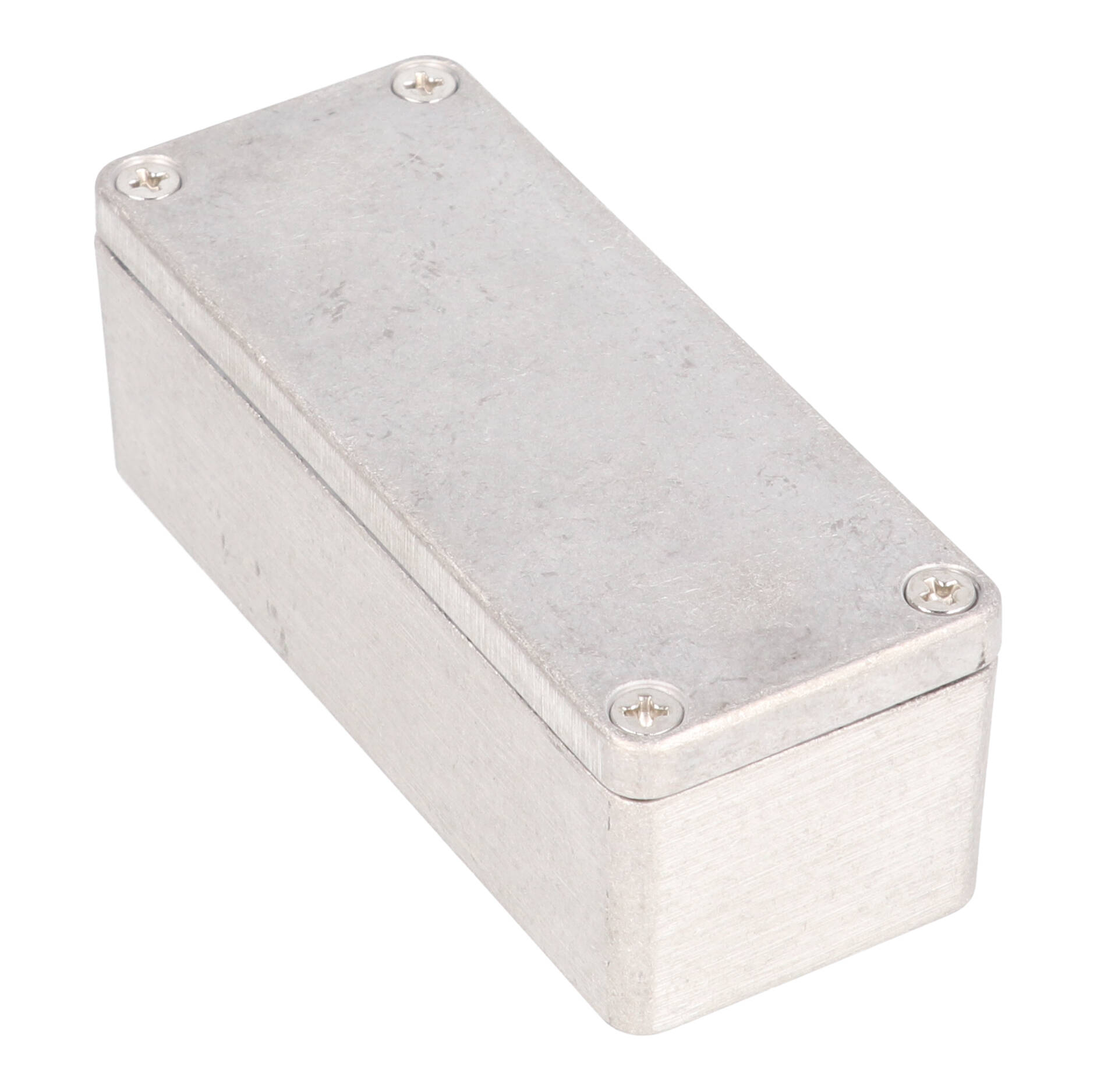

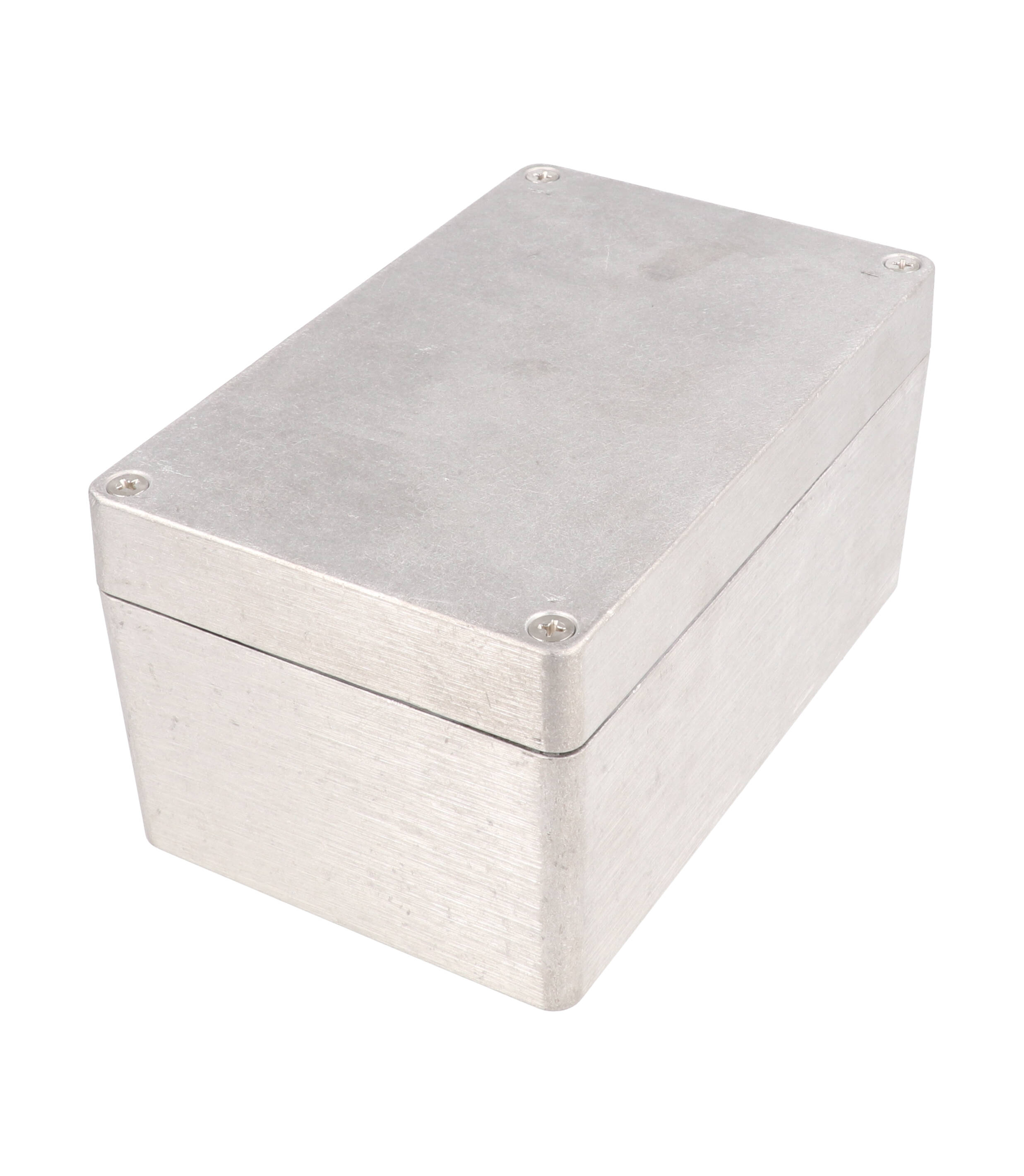

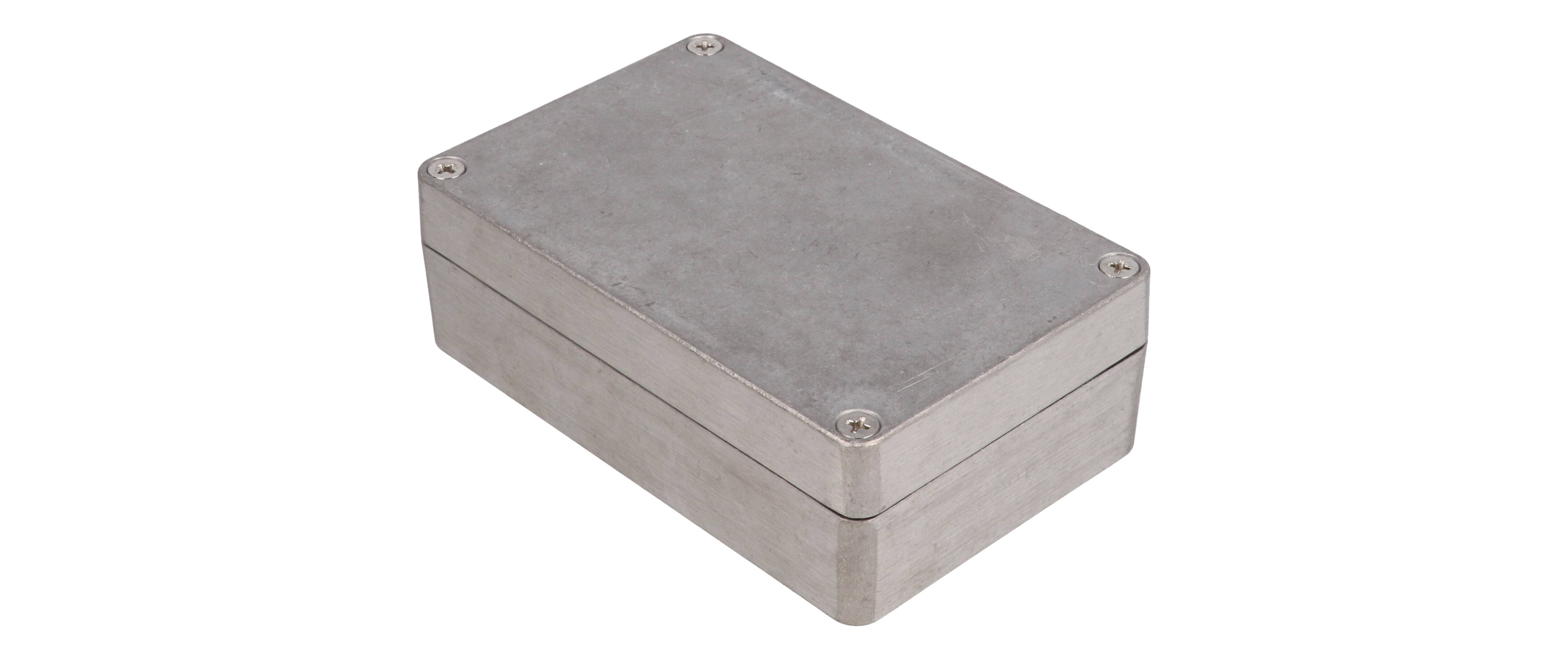

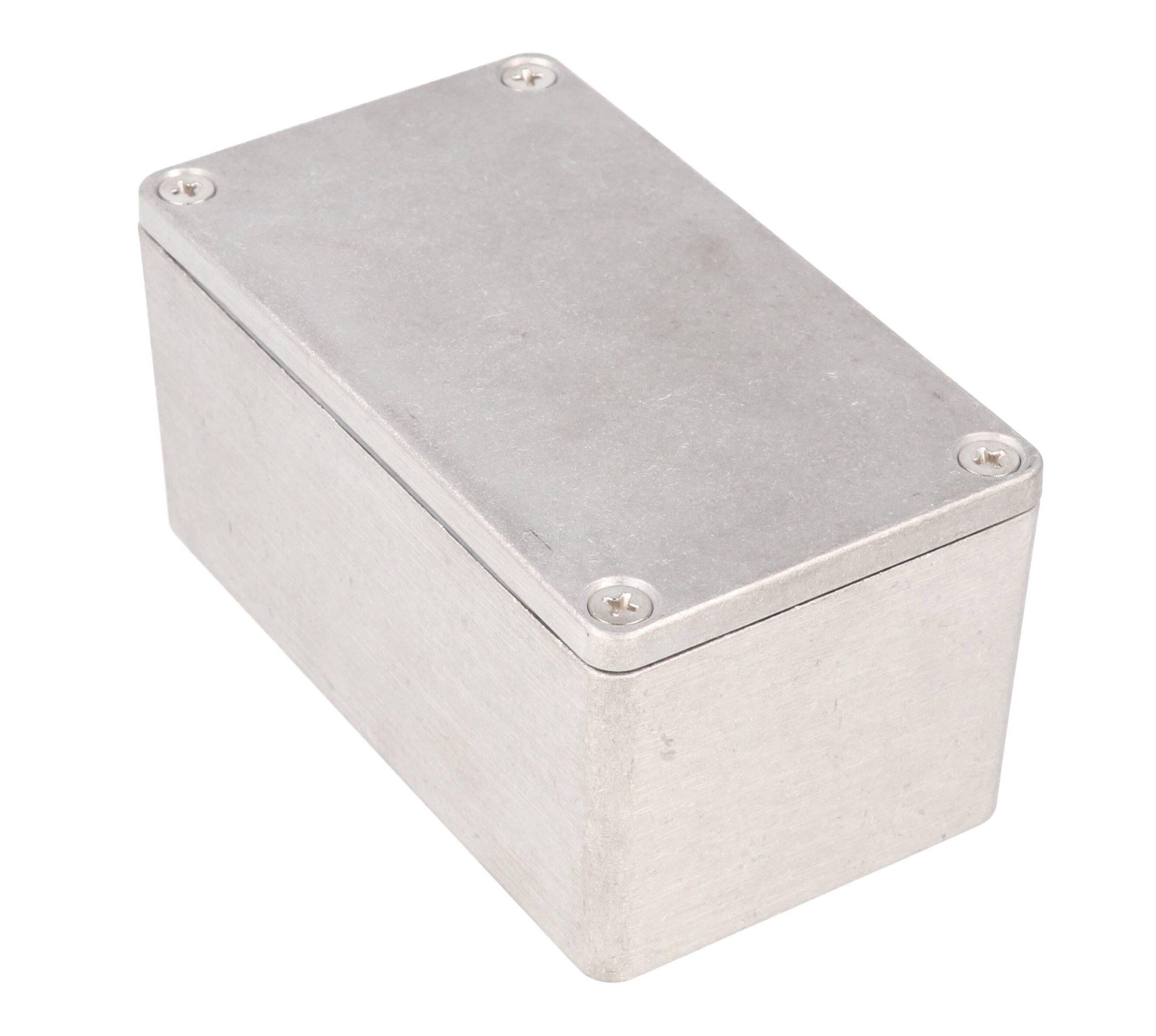

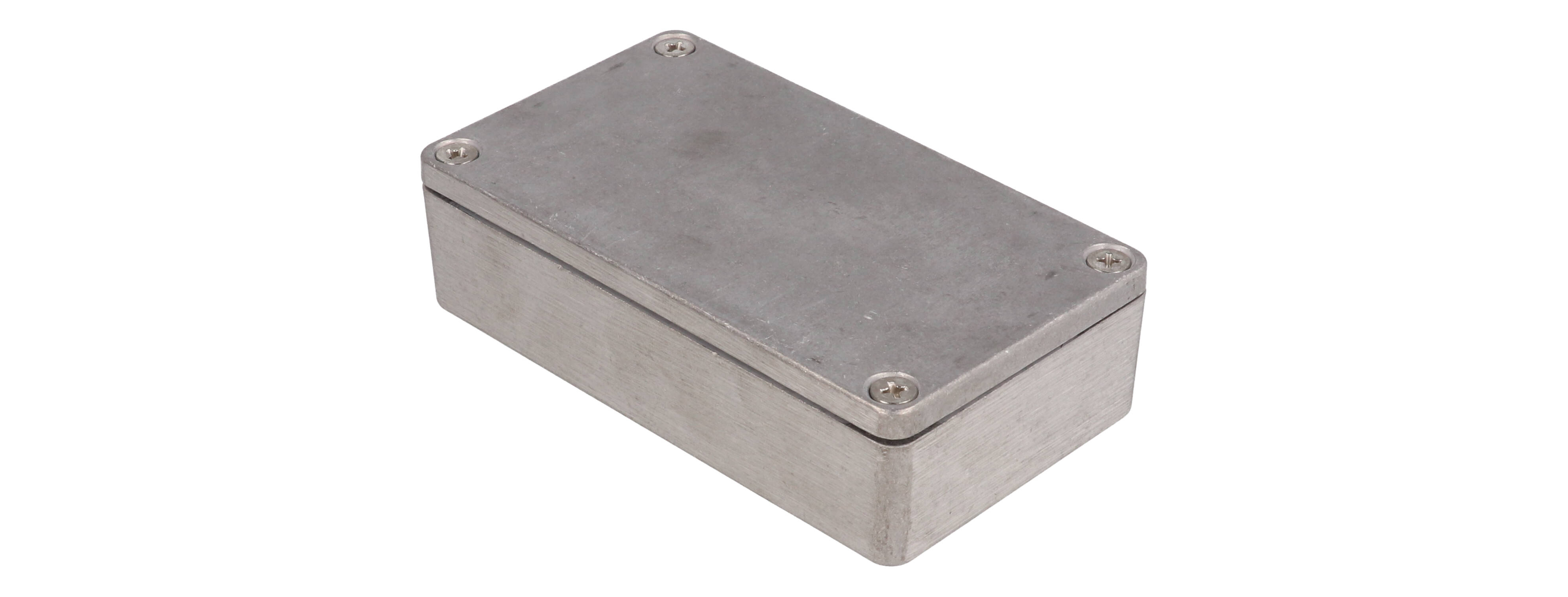

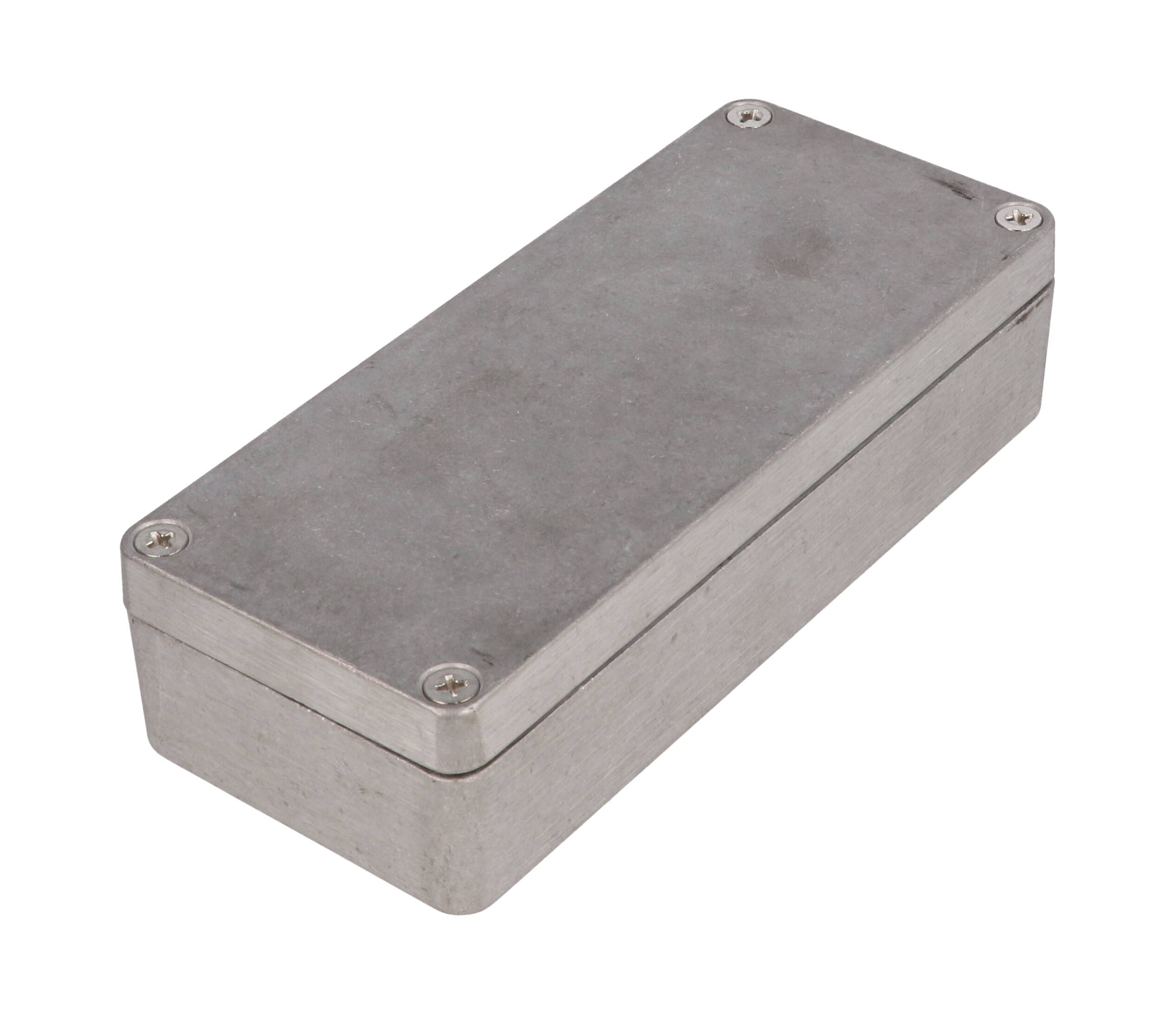

• ■Unpainted version is vibra finished for a smooth surface with no sharp edges.

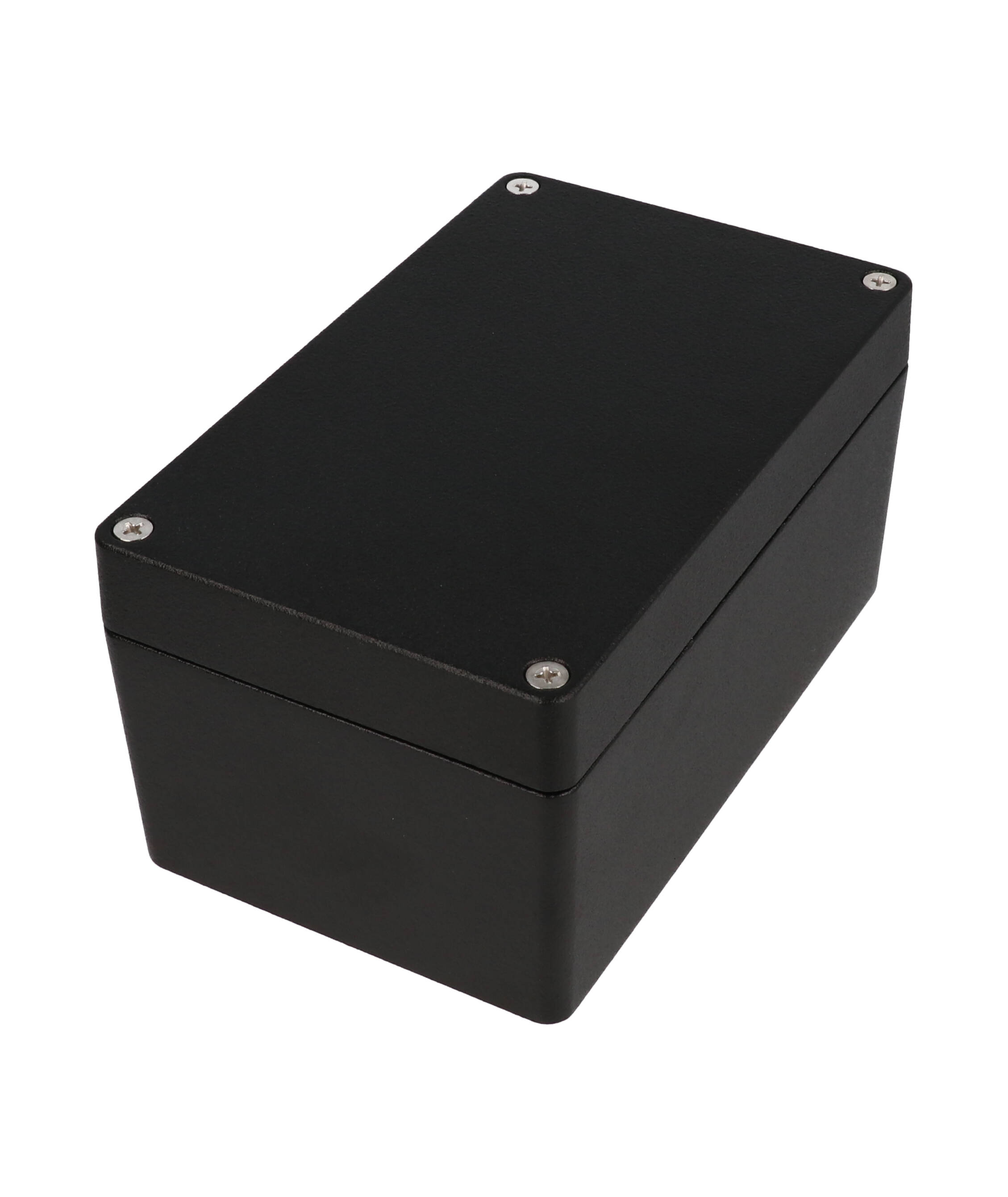

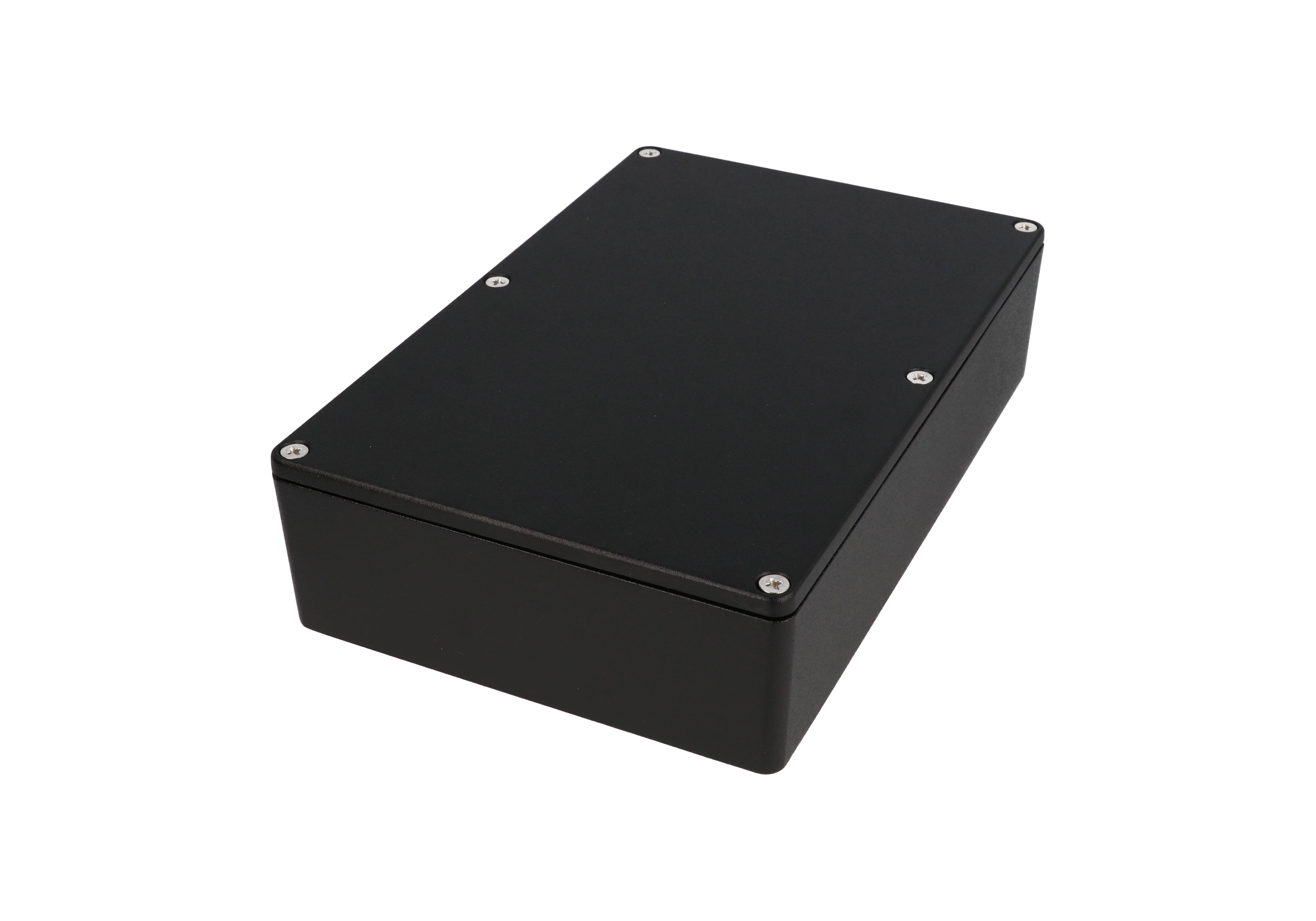

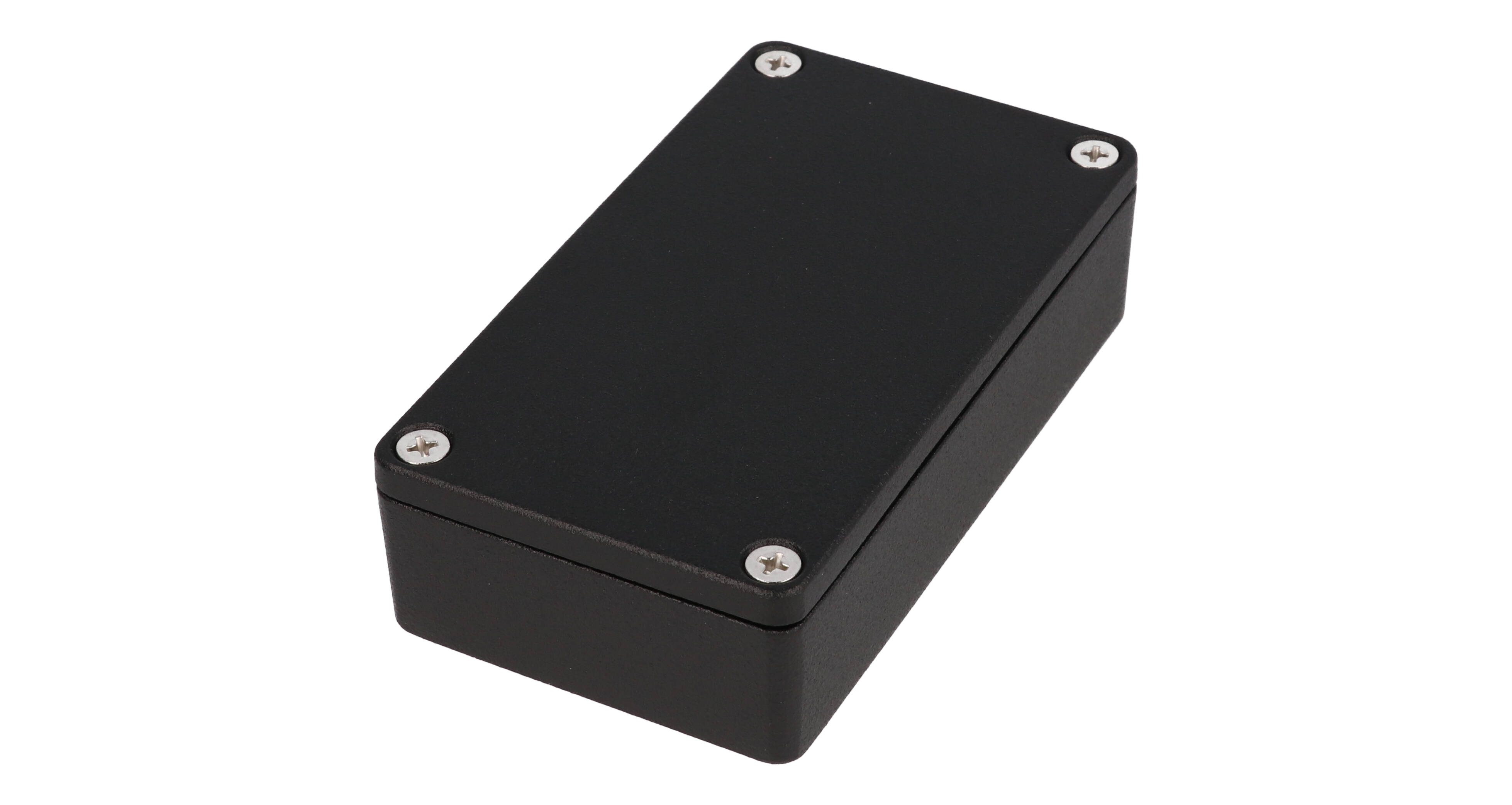

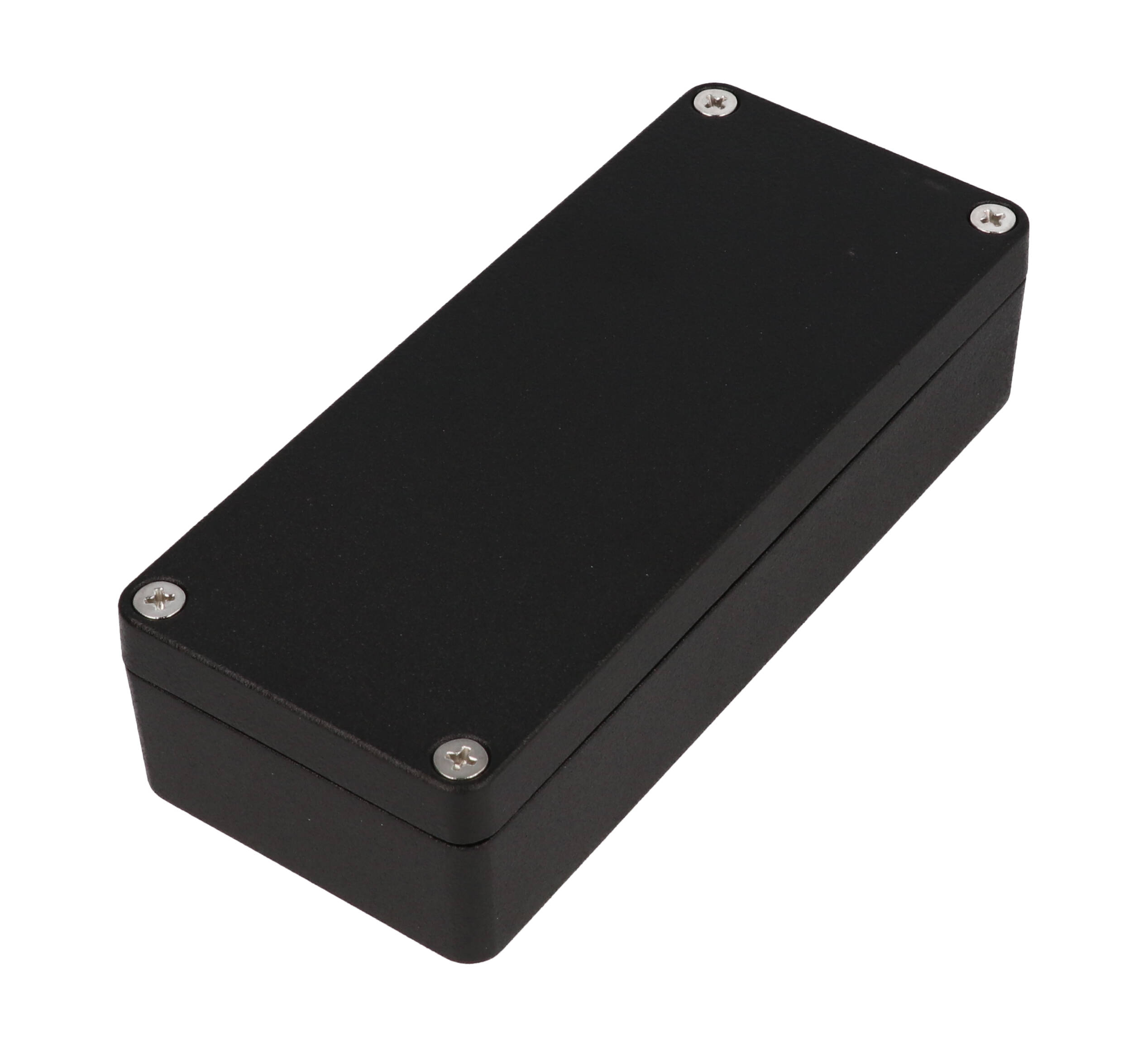

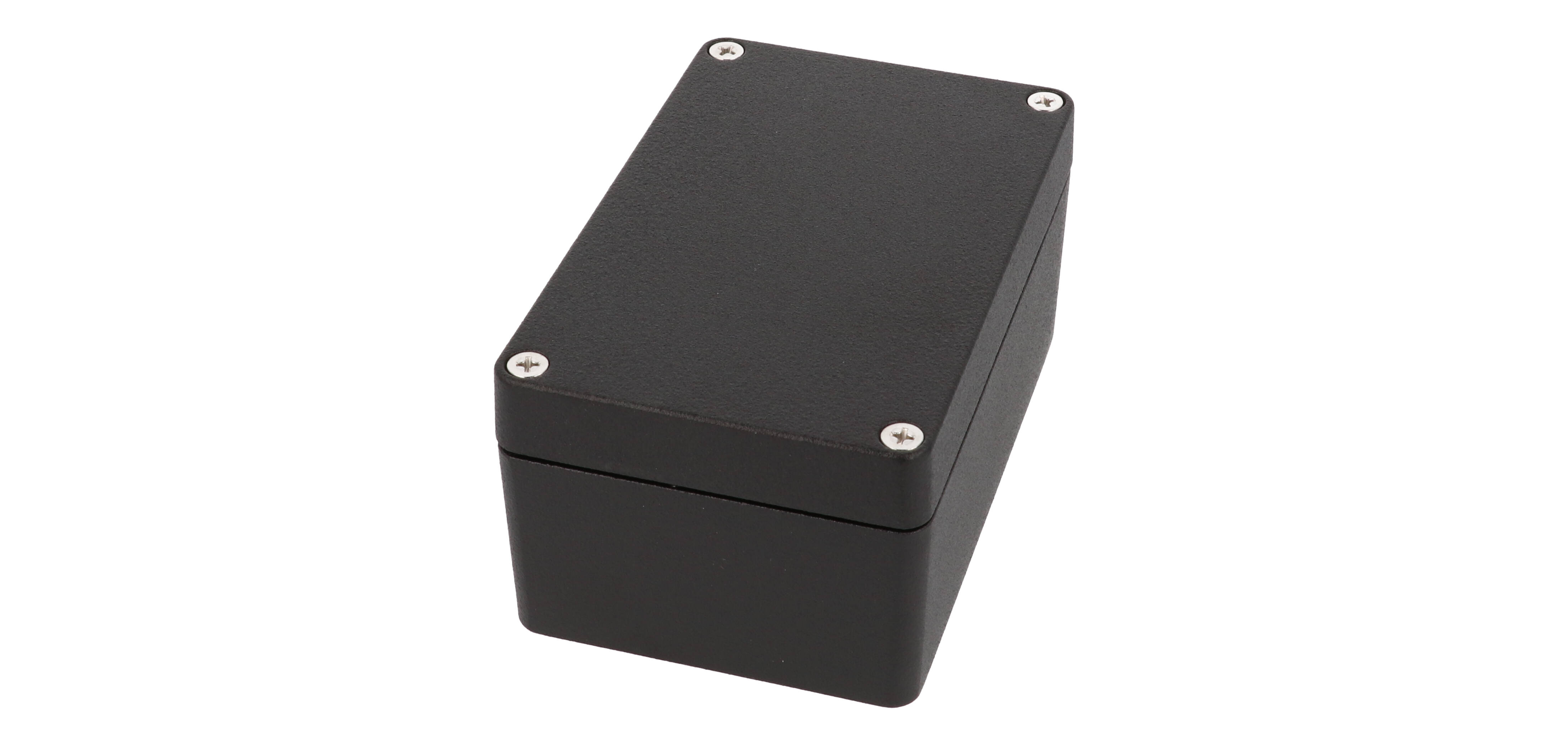

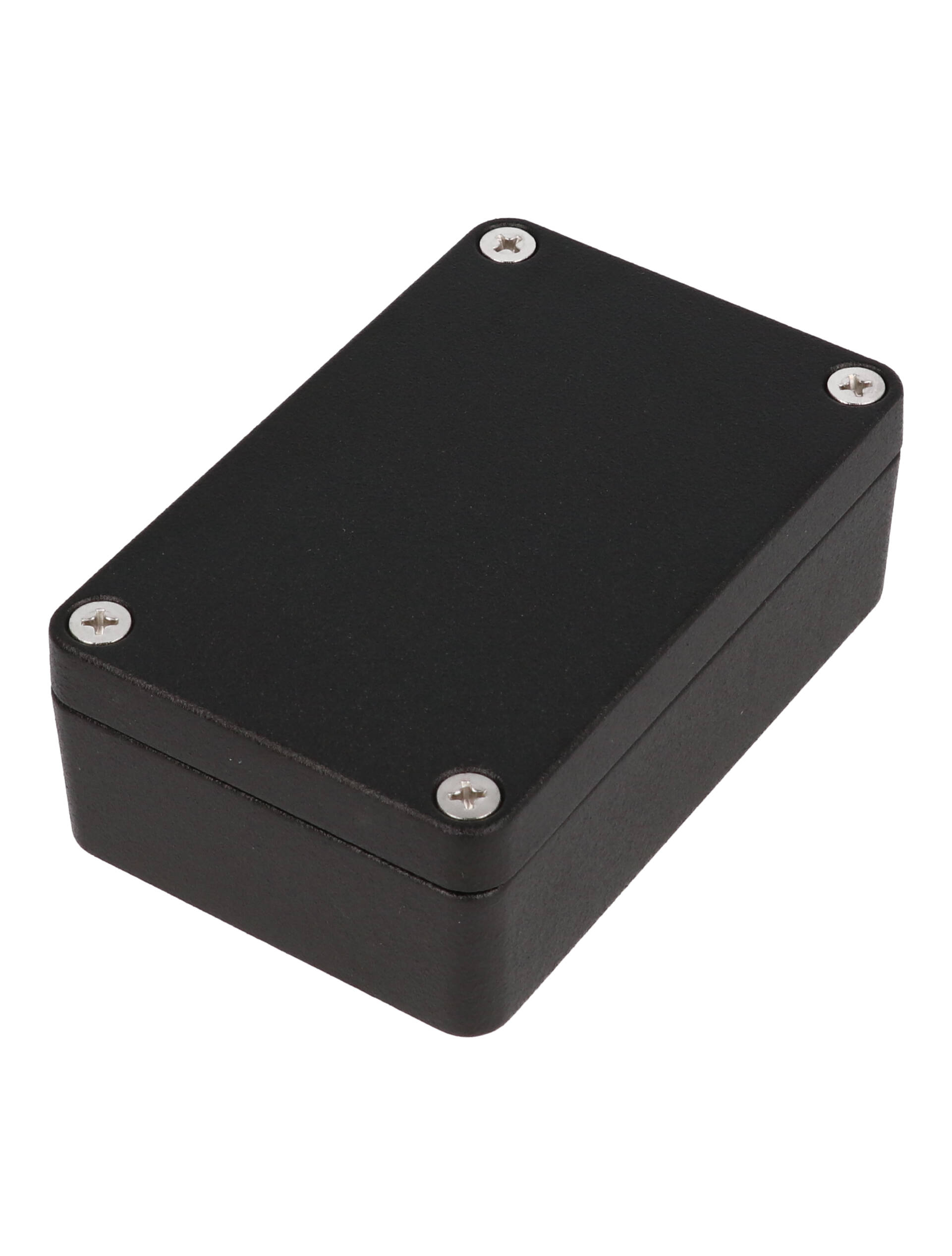

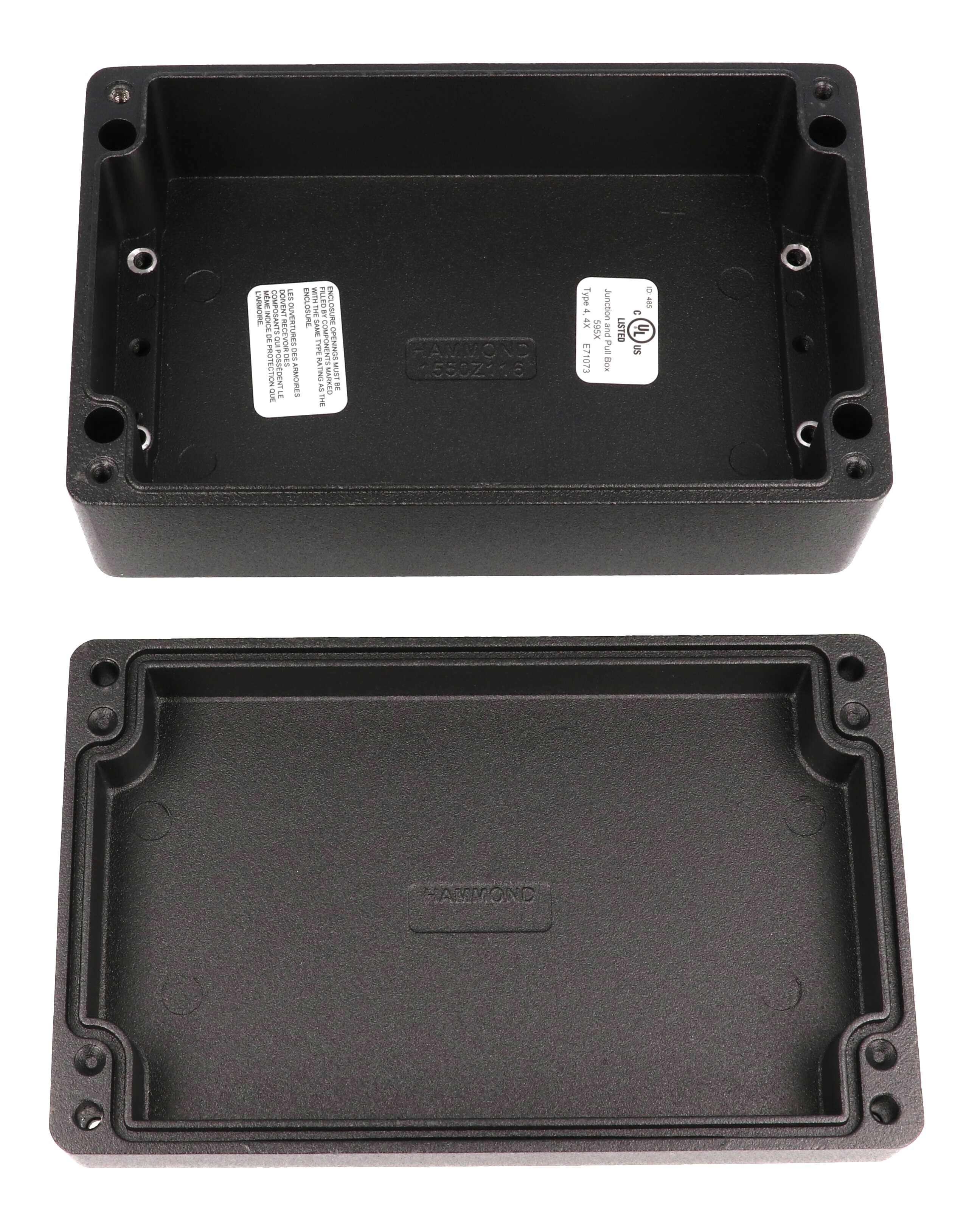

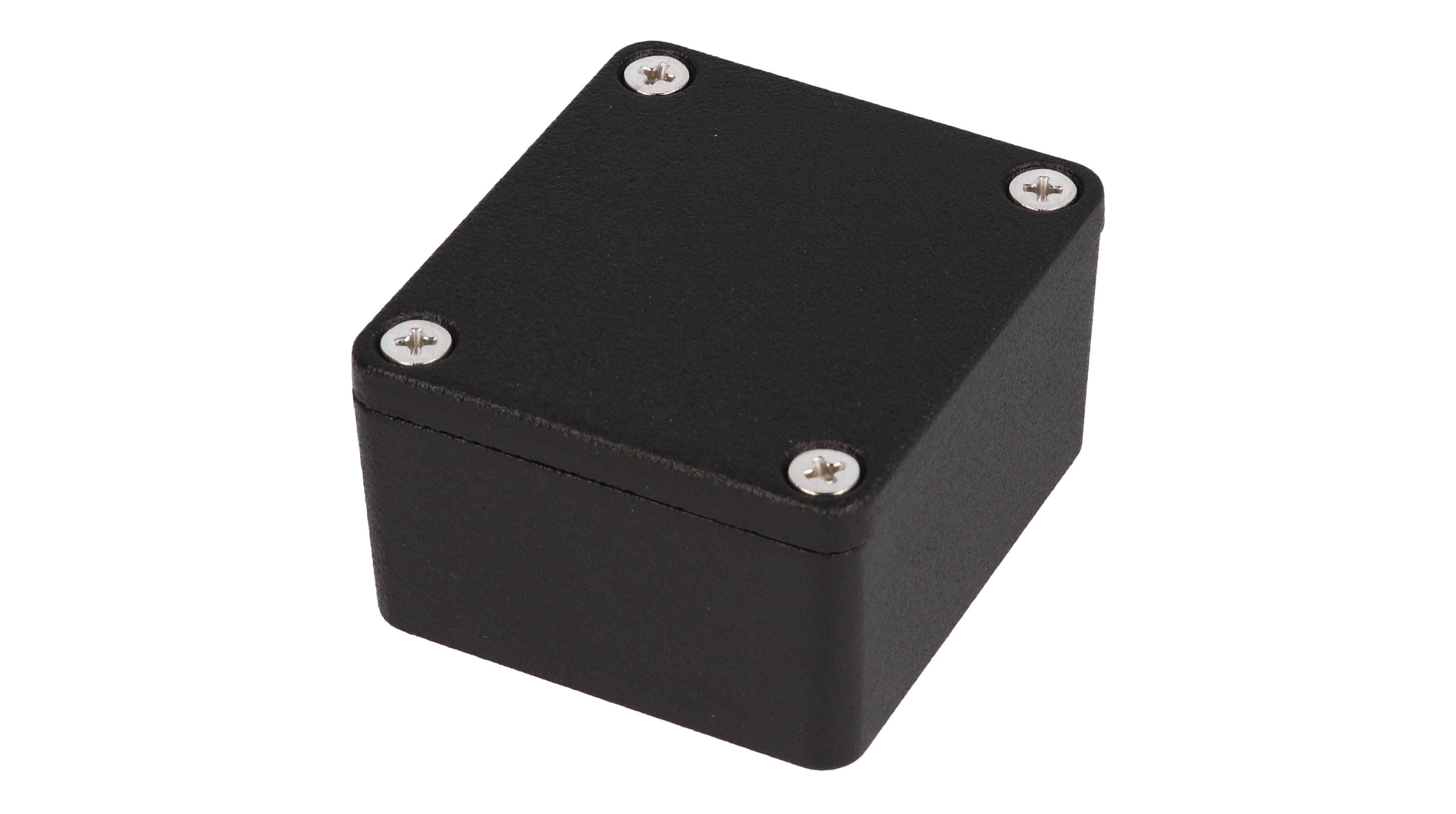

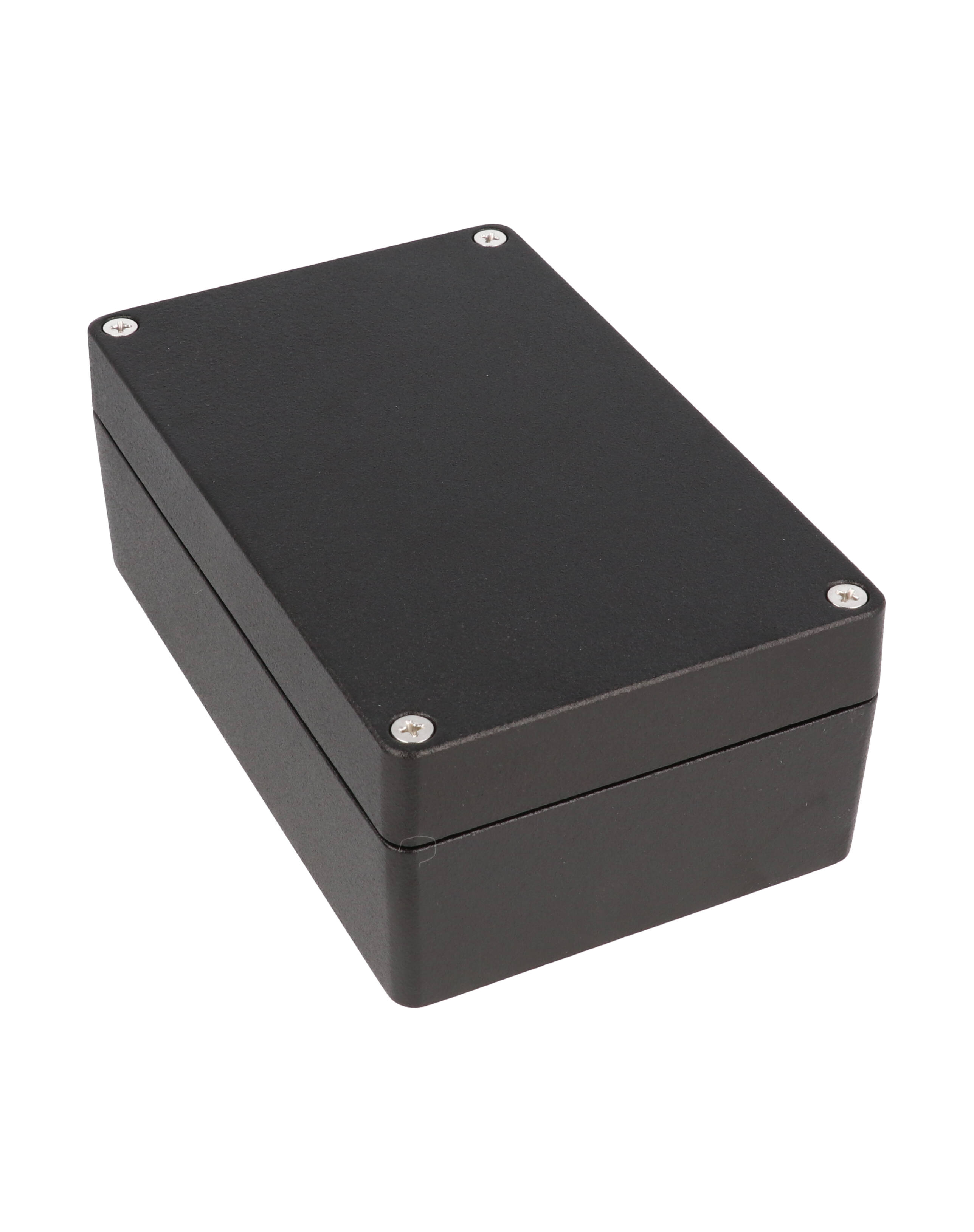

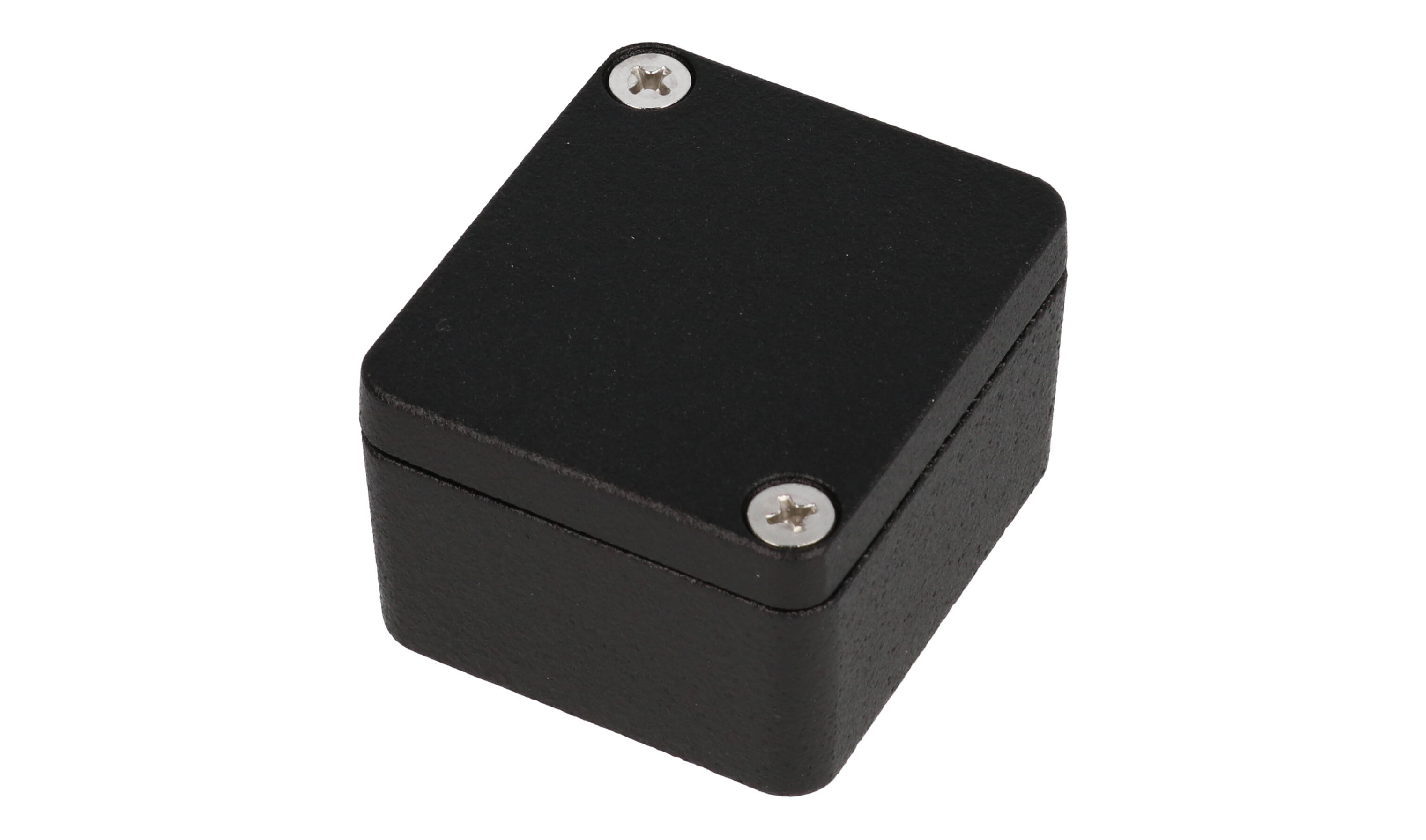

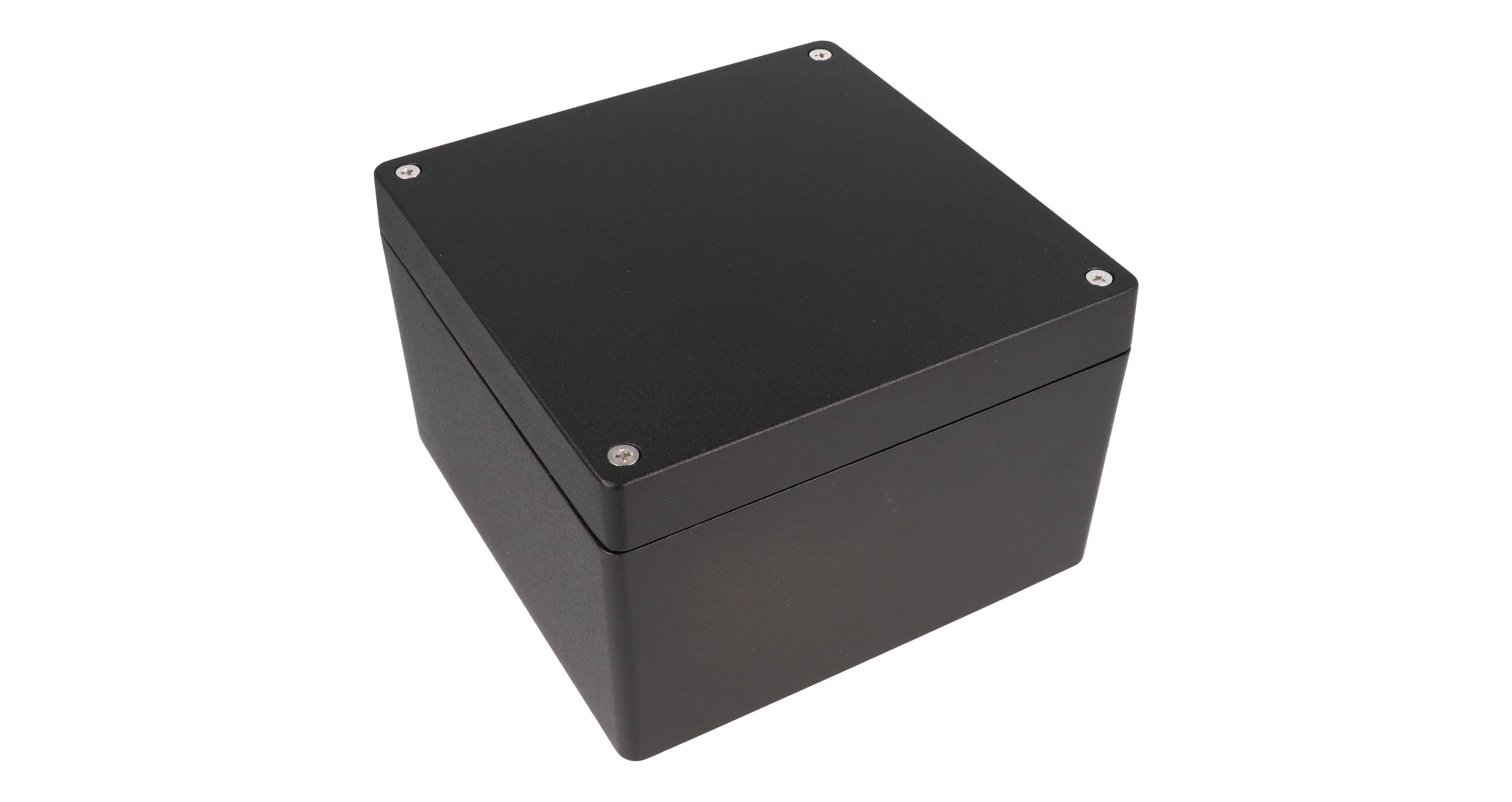

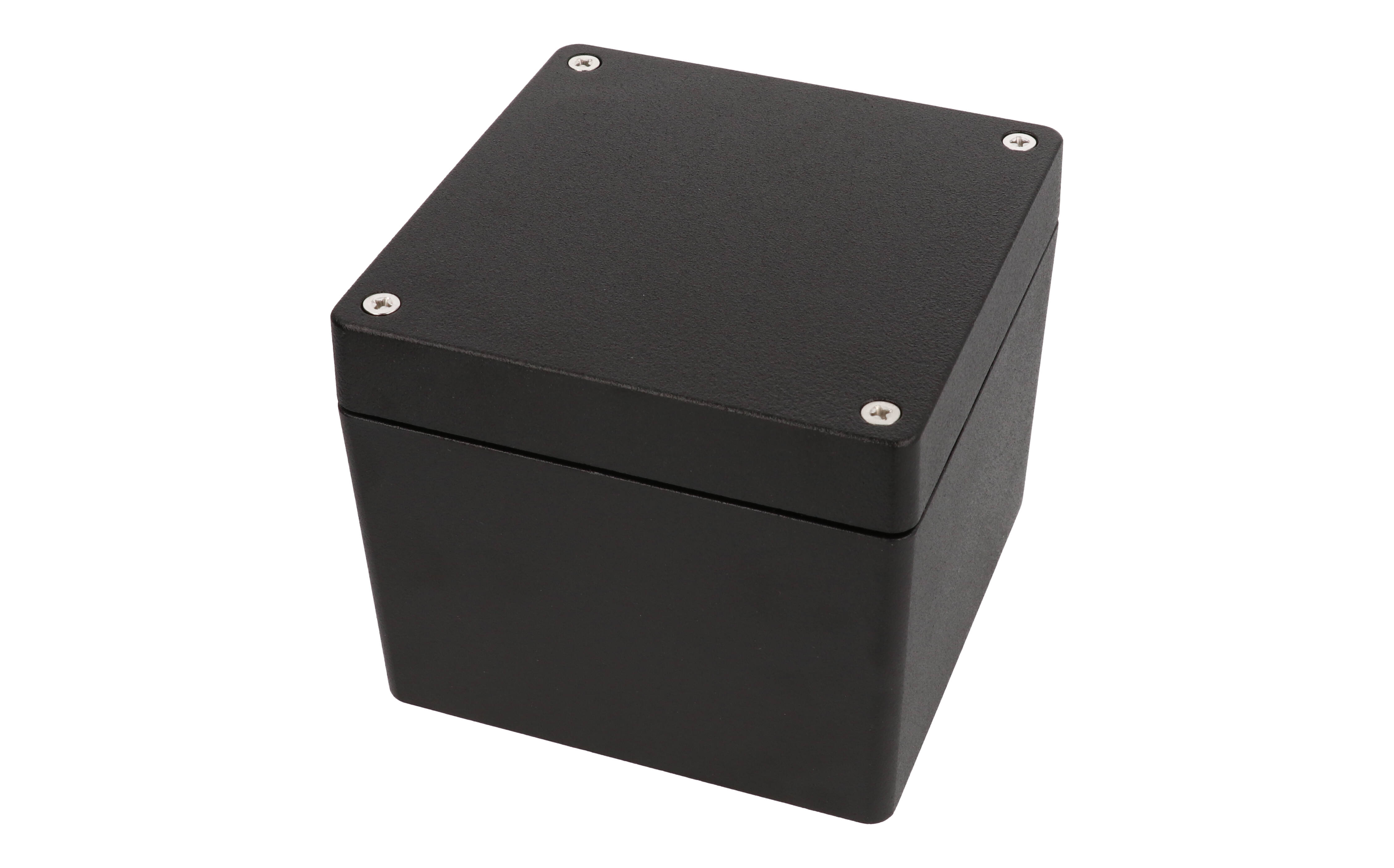

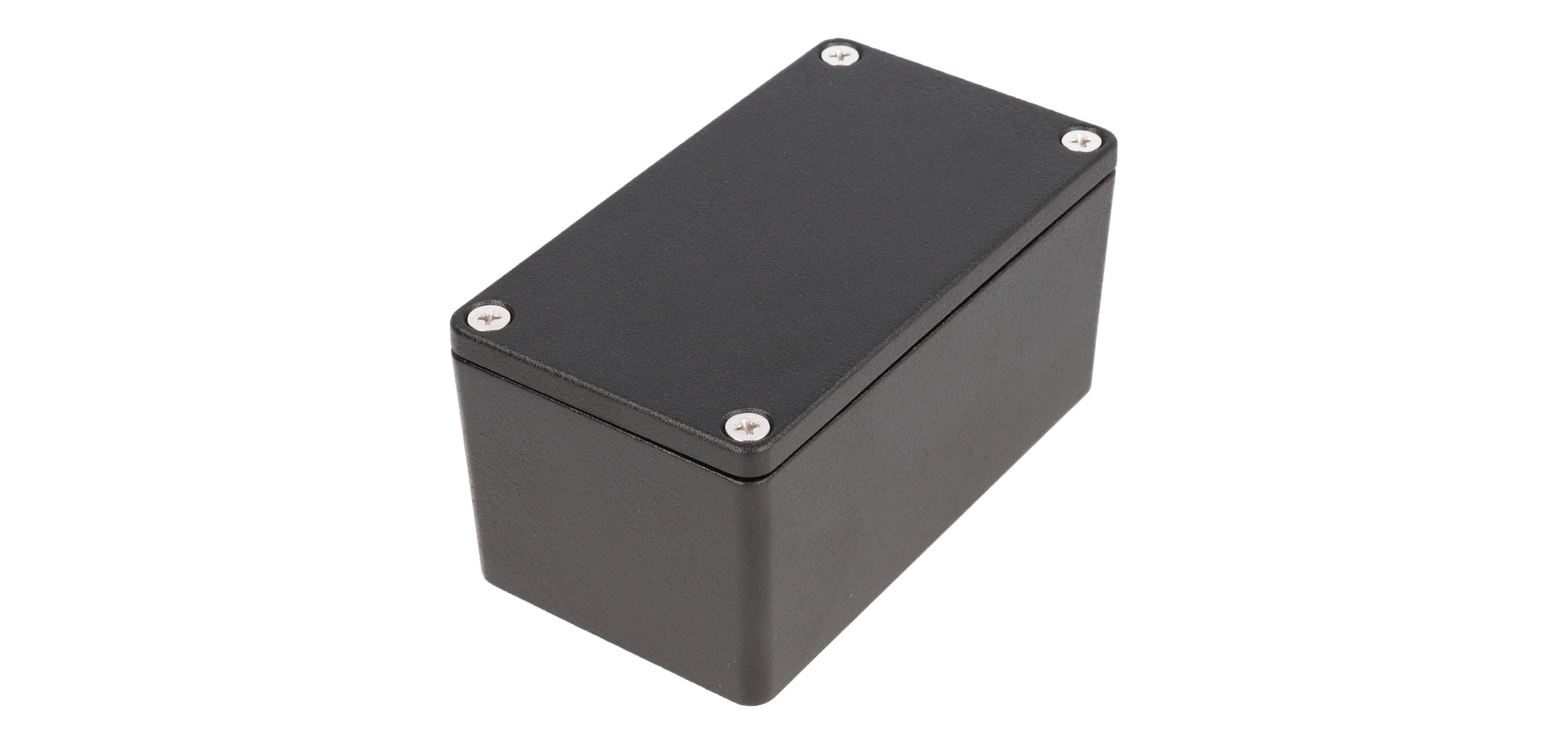

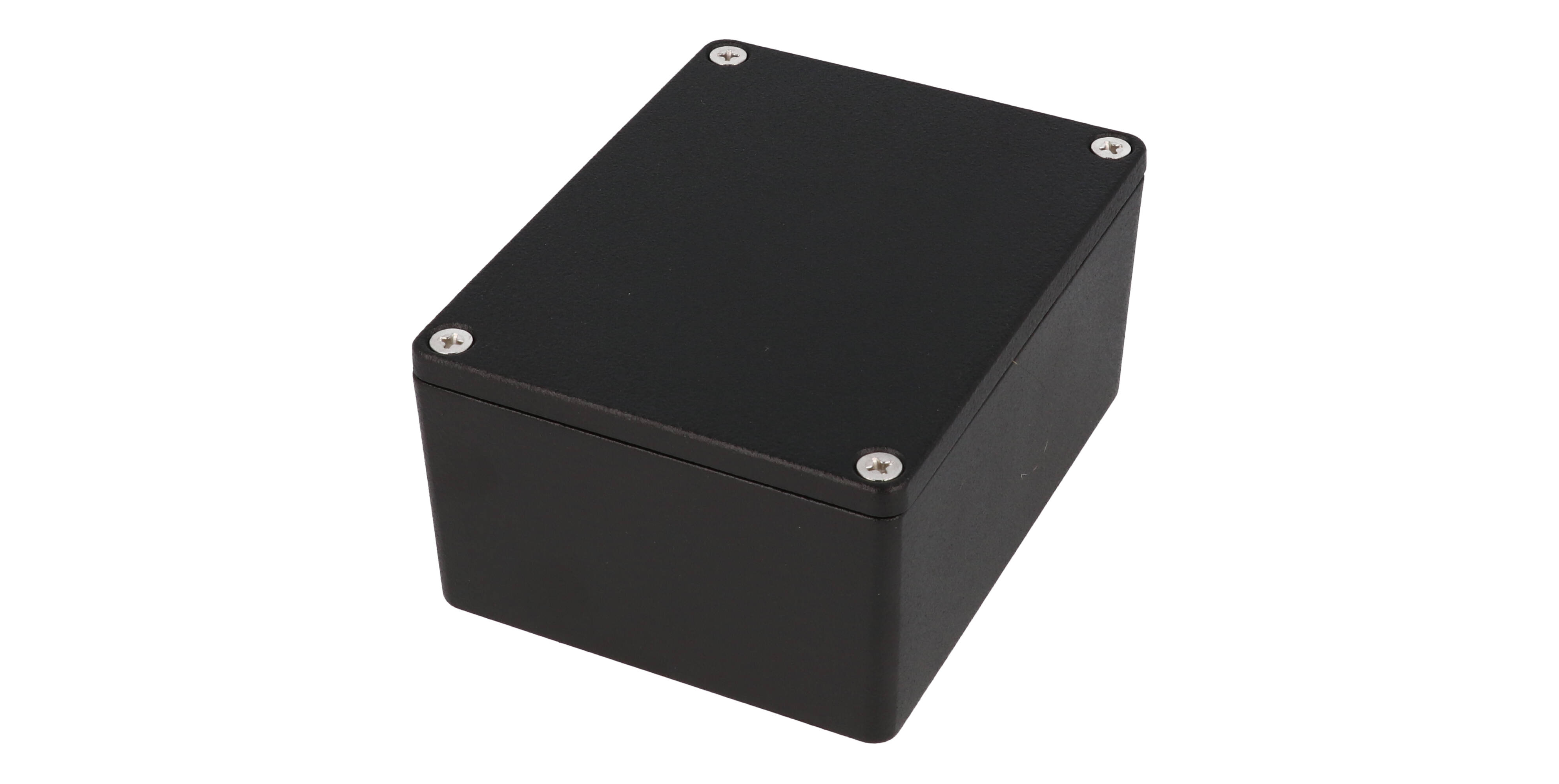

• ■Textured black version is coated with tough polyester powder for a lasting finish, even after machining. Finish is applied outside and inside the enclosure.

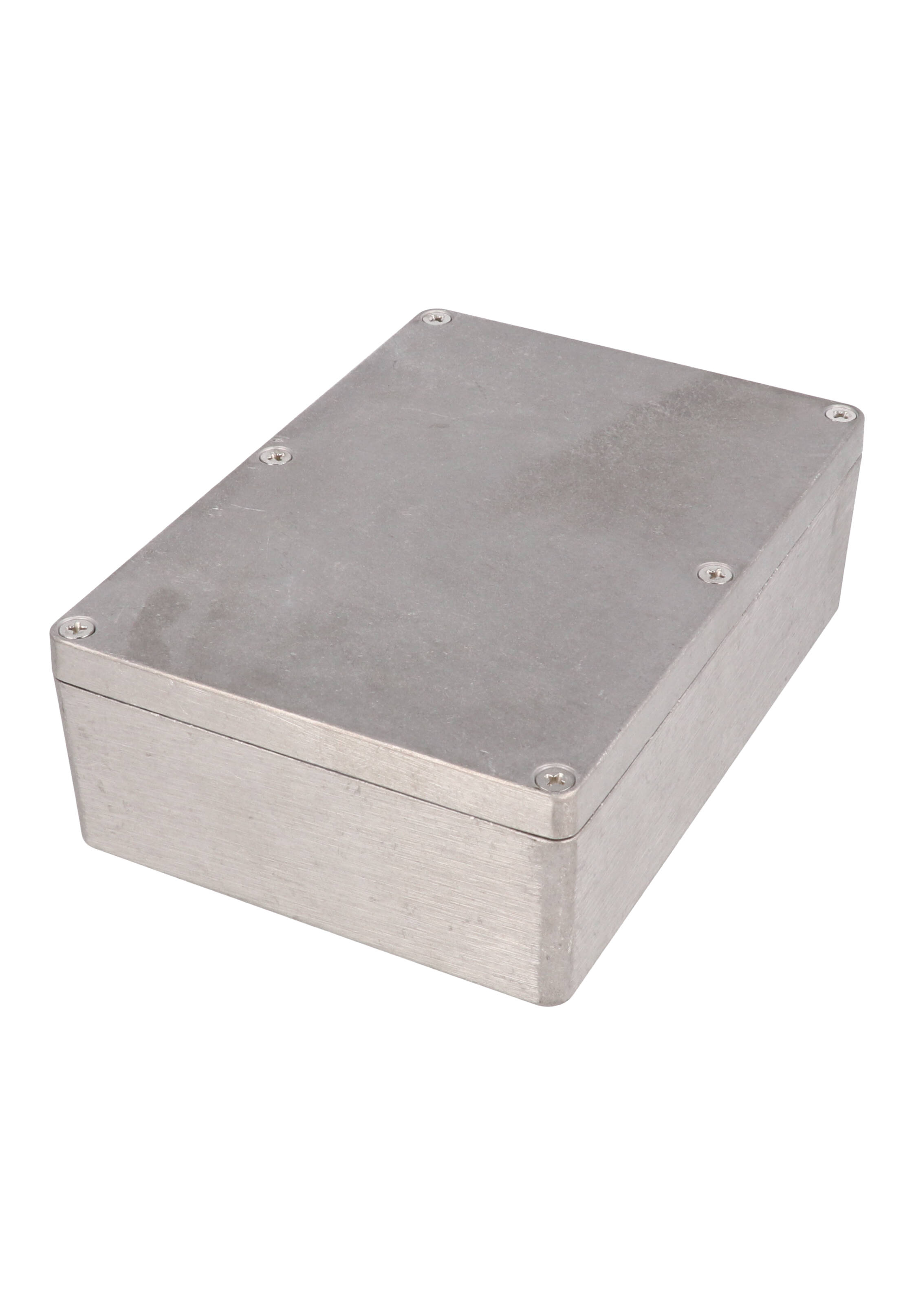

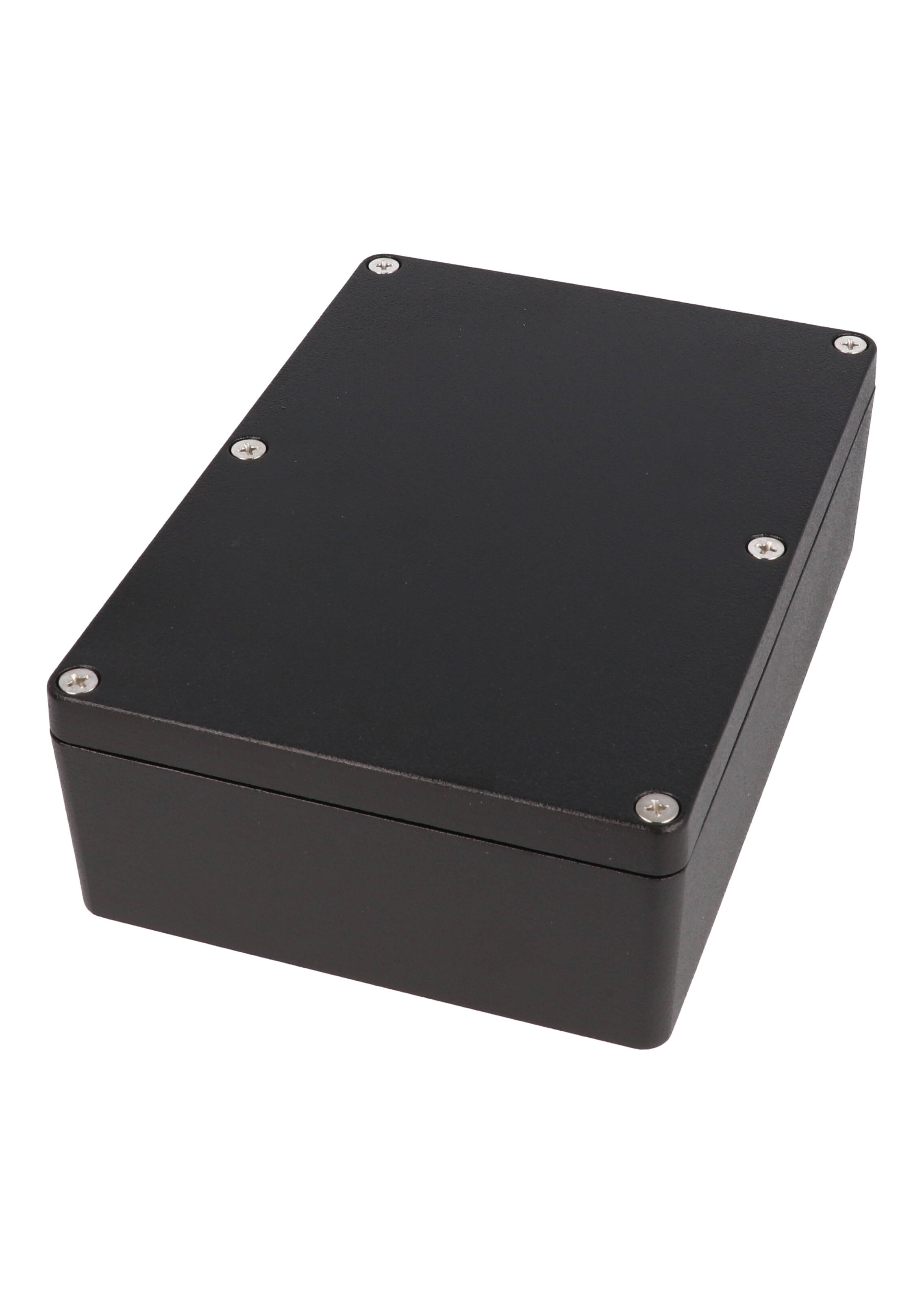

• ■Lid is secured with either two, four, or six stainless steel Philips head machine screws, depending on enclosure size.
• ■Lid screws are outside the gasket protection area to eliminate the need for o-rings.

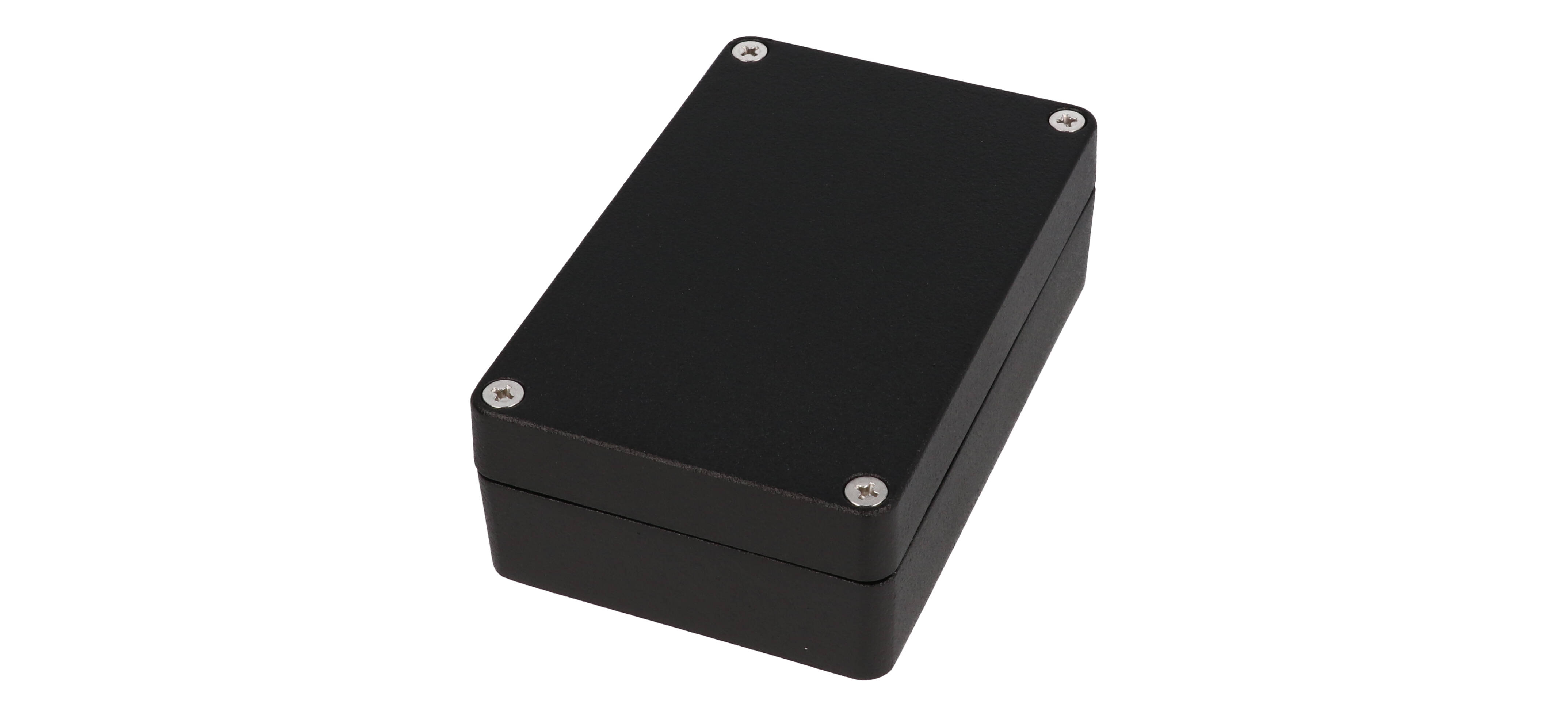

• ■Lid screws are self-captivating on six sizes: 1550Z107 , 1550Z108 , 1550Z116 , 1550Z117 , 1550Z137, and 1550Z139 . Lid holes are slightly undersized and threaded with the first installation.
• ■Copper grounding screws and washers available separately.

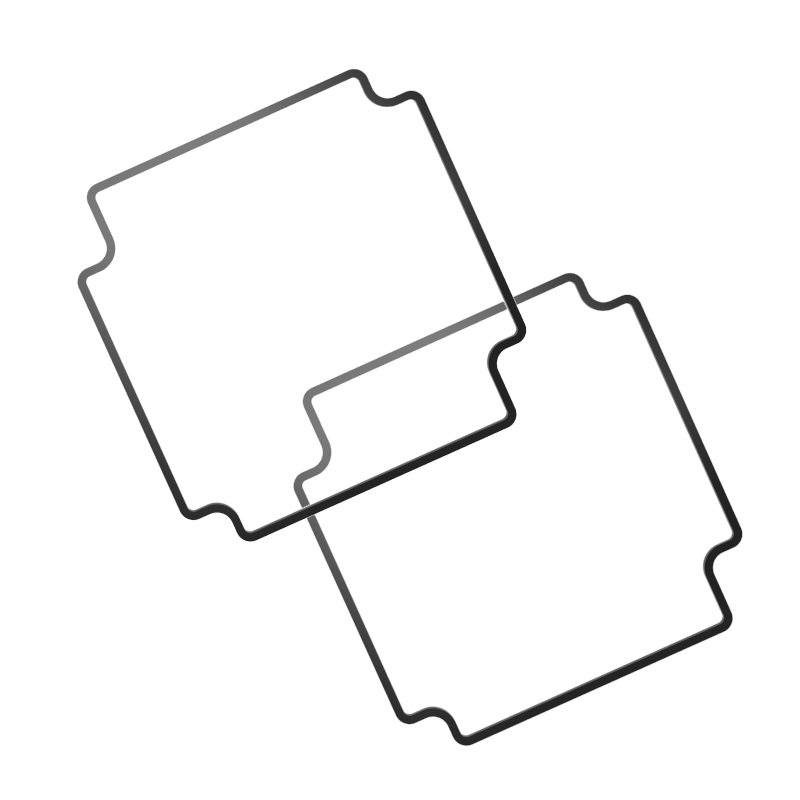

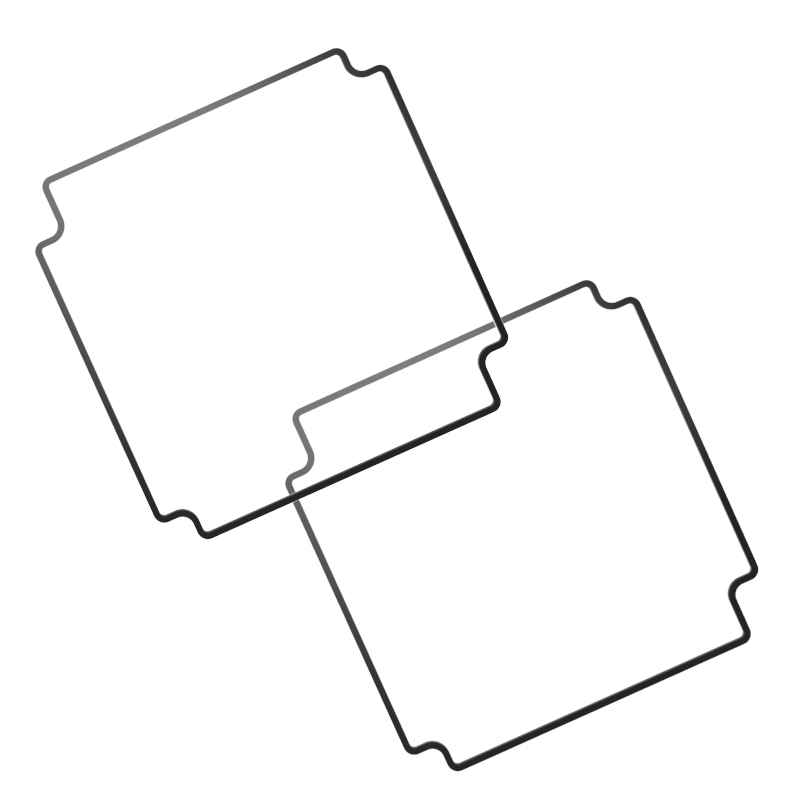

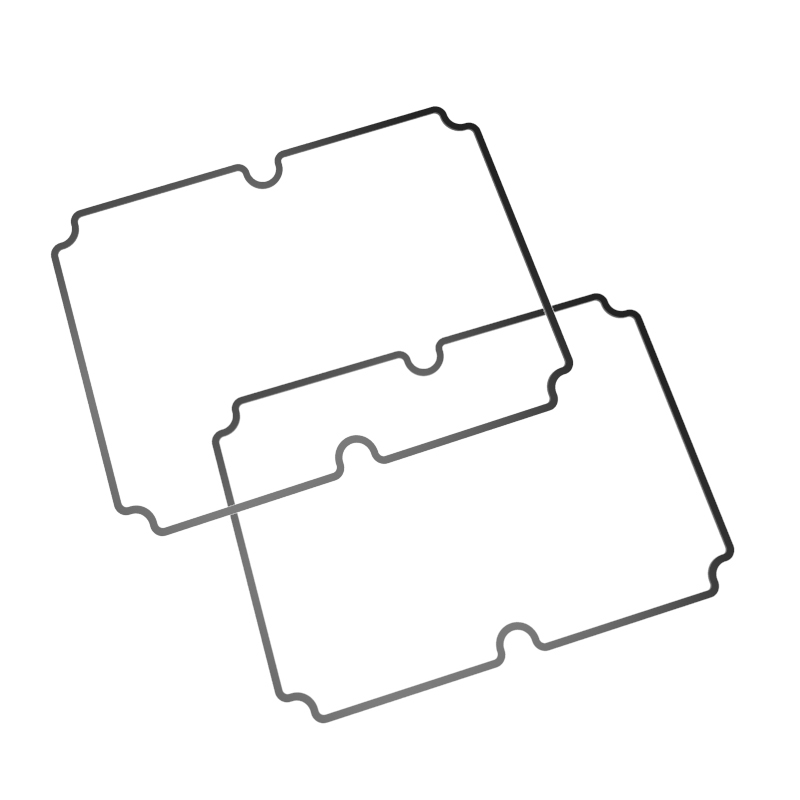

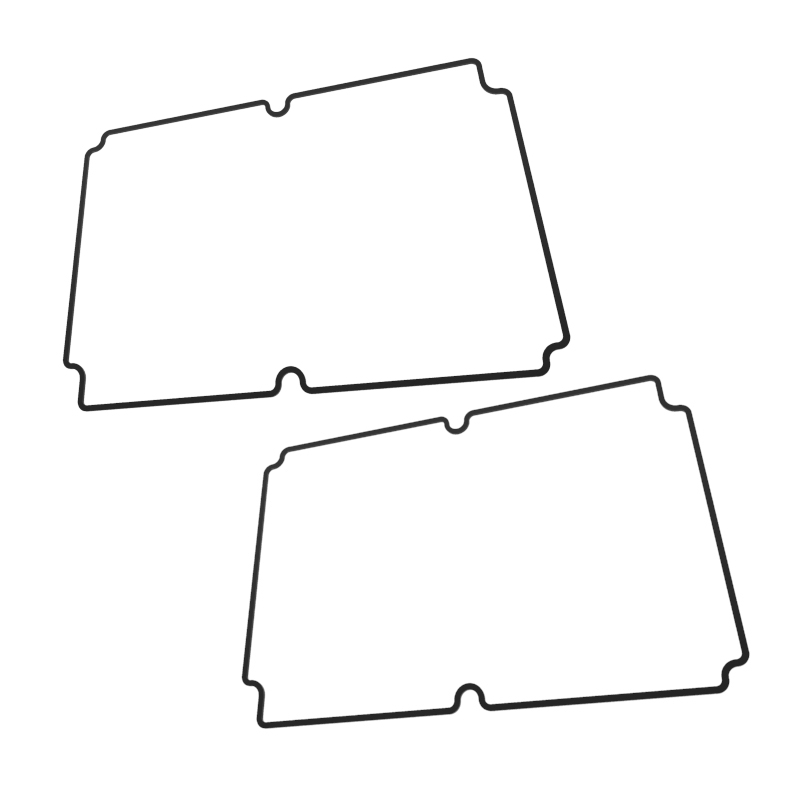

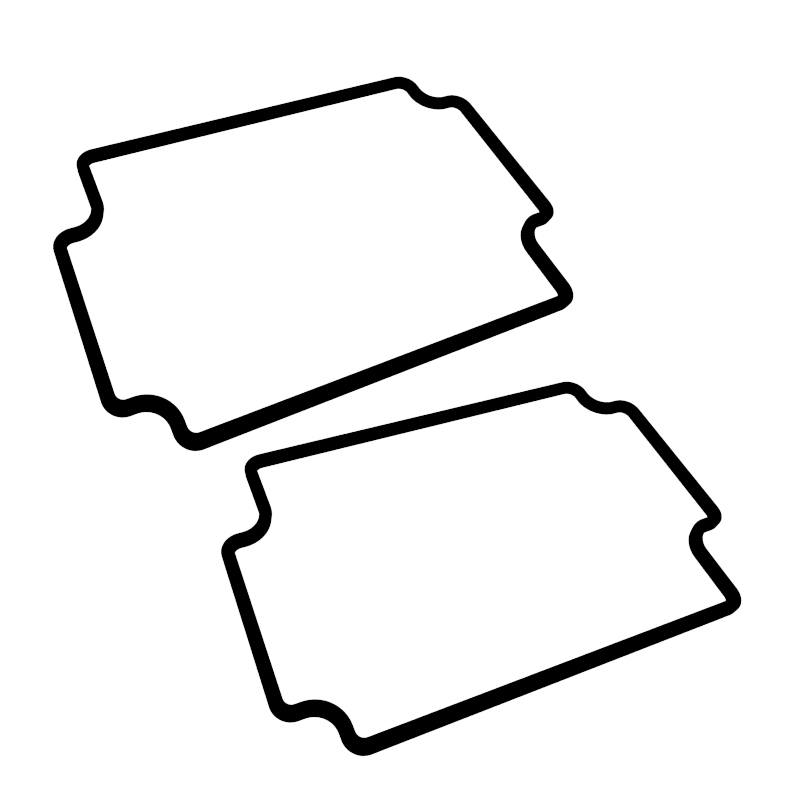

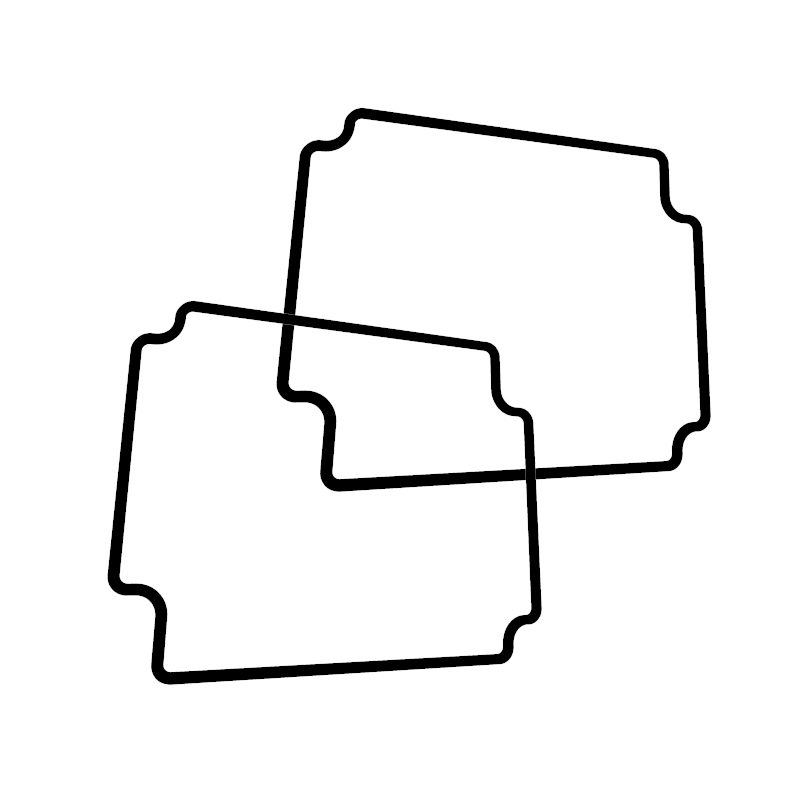

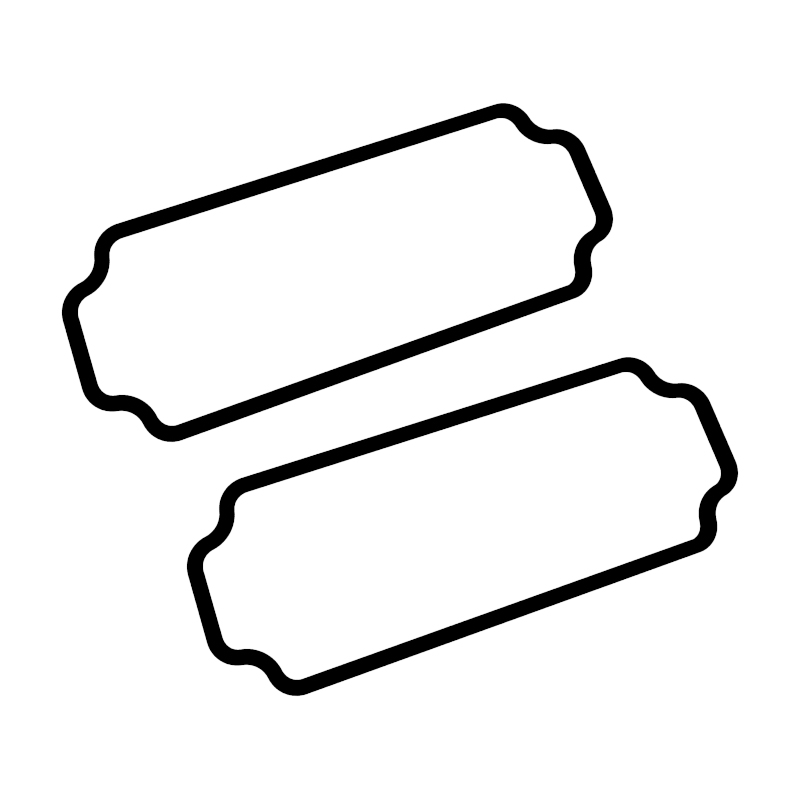

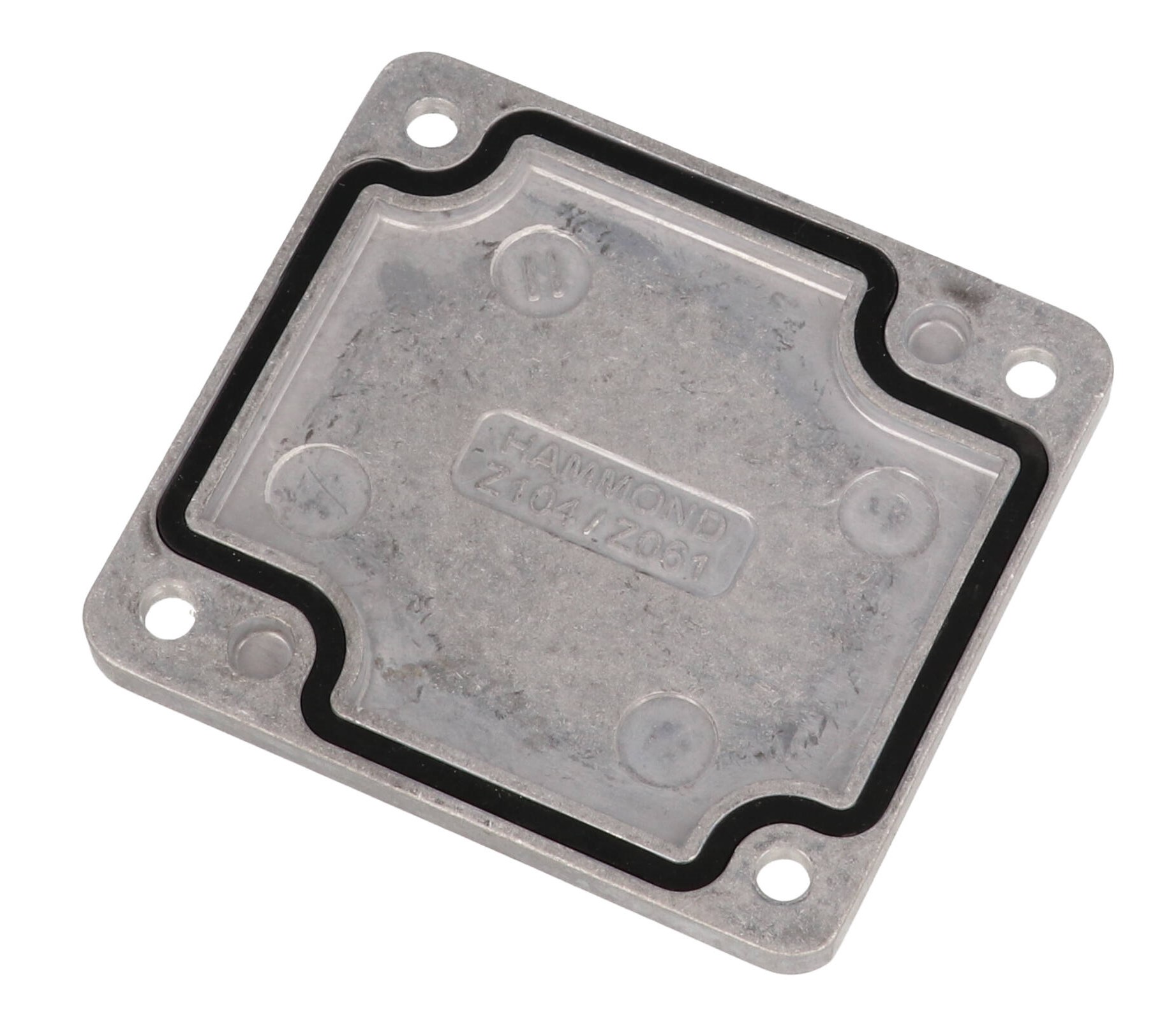

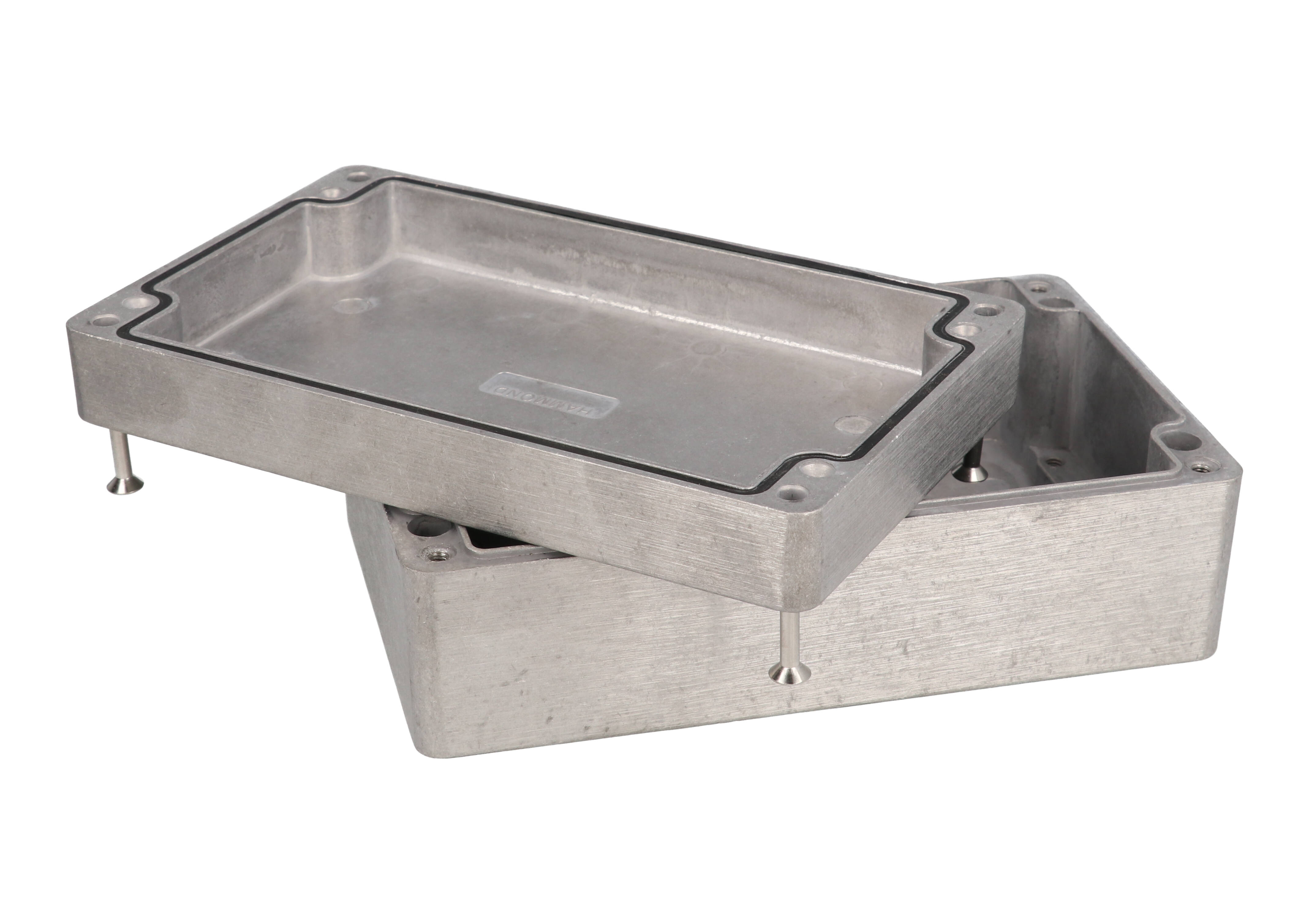

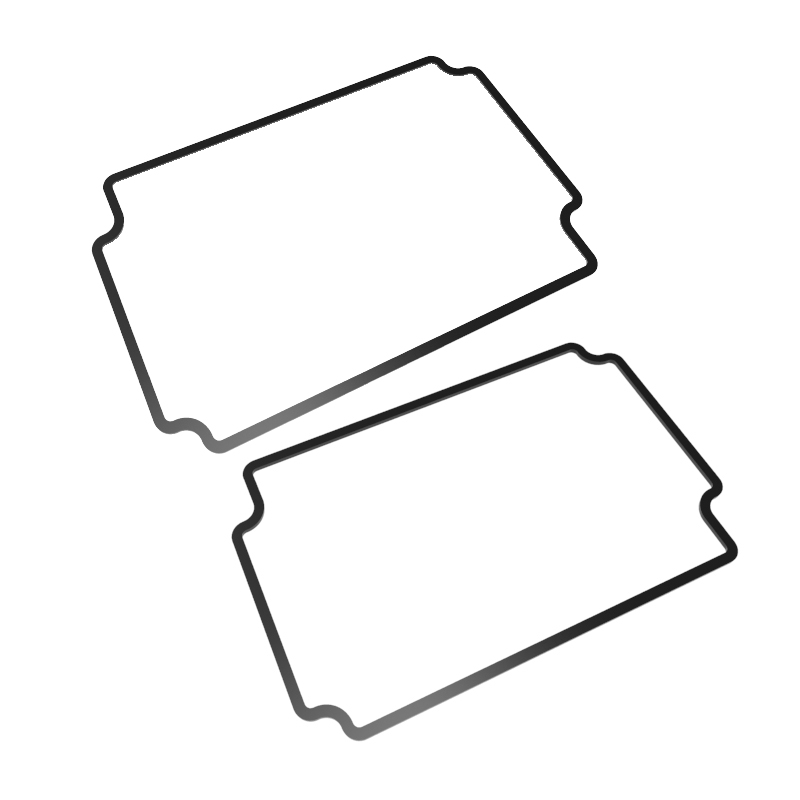

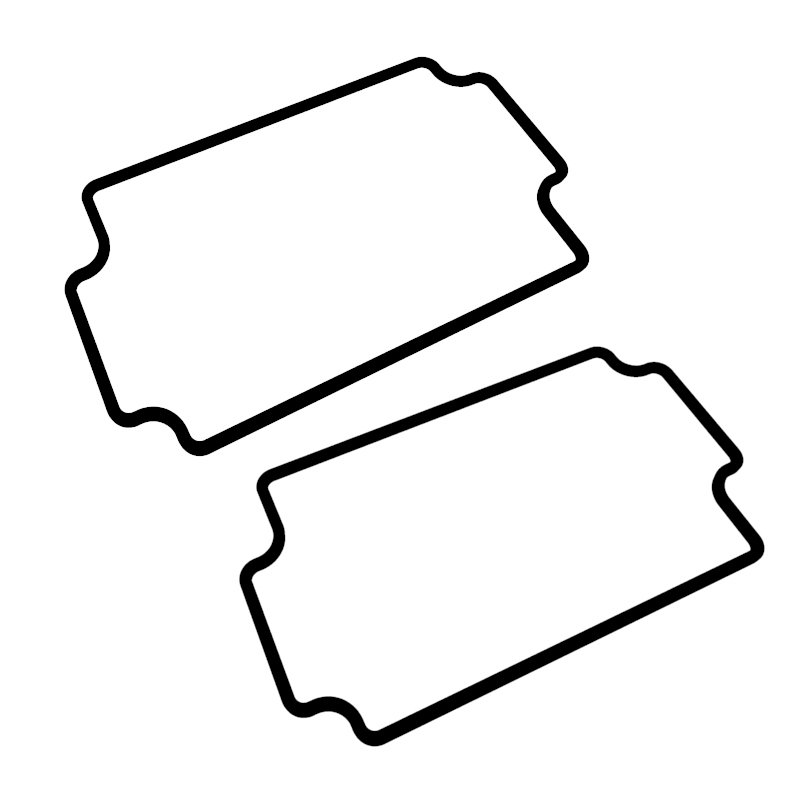

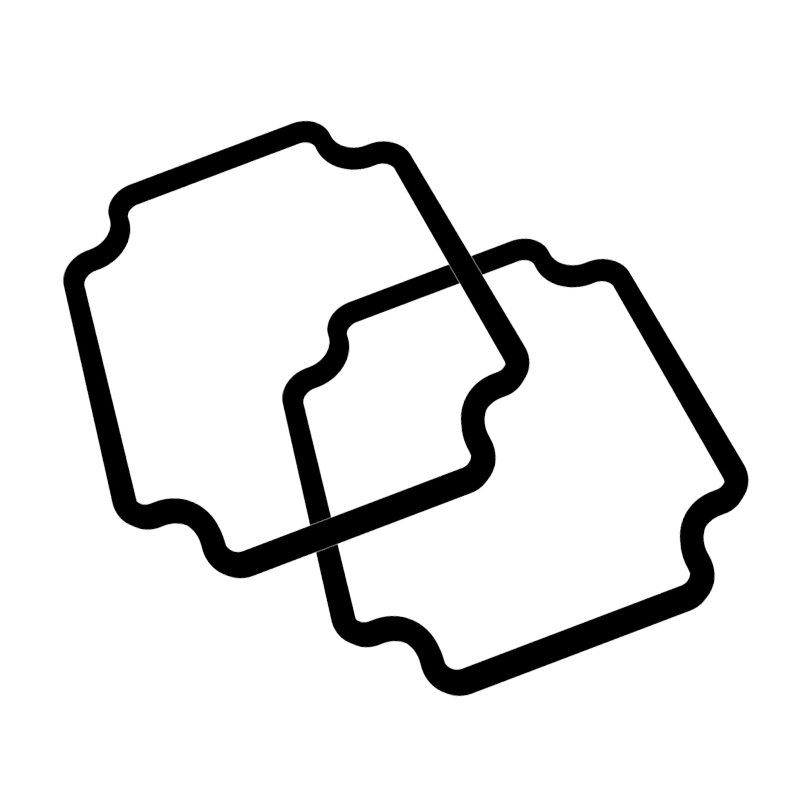

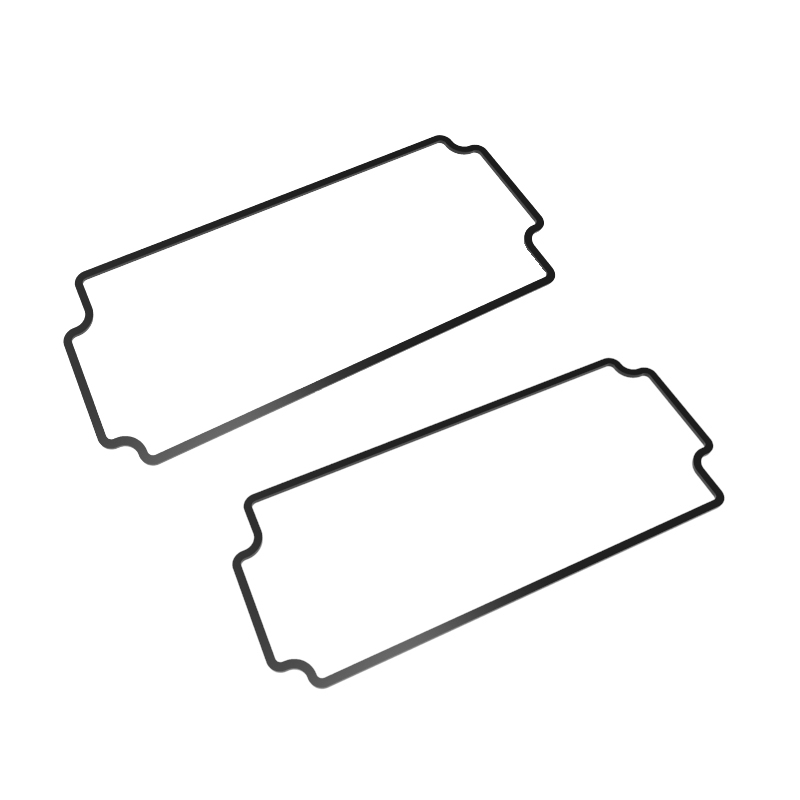

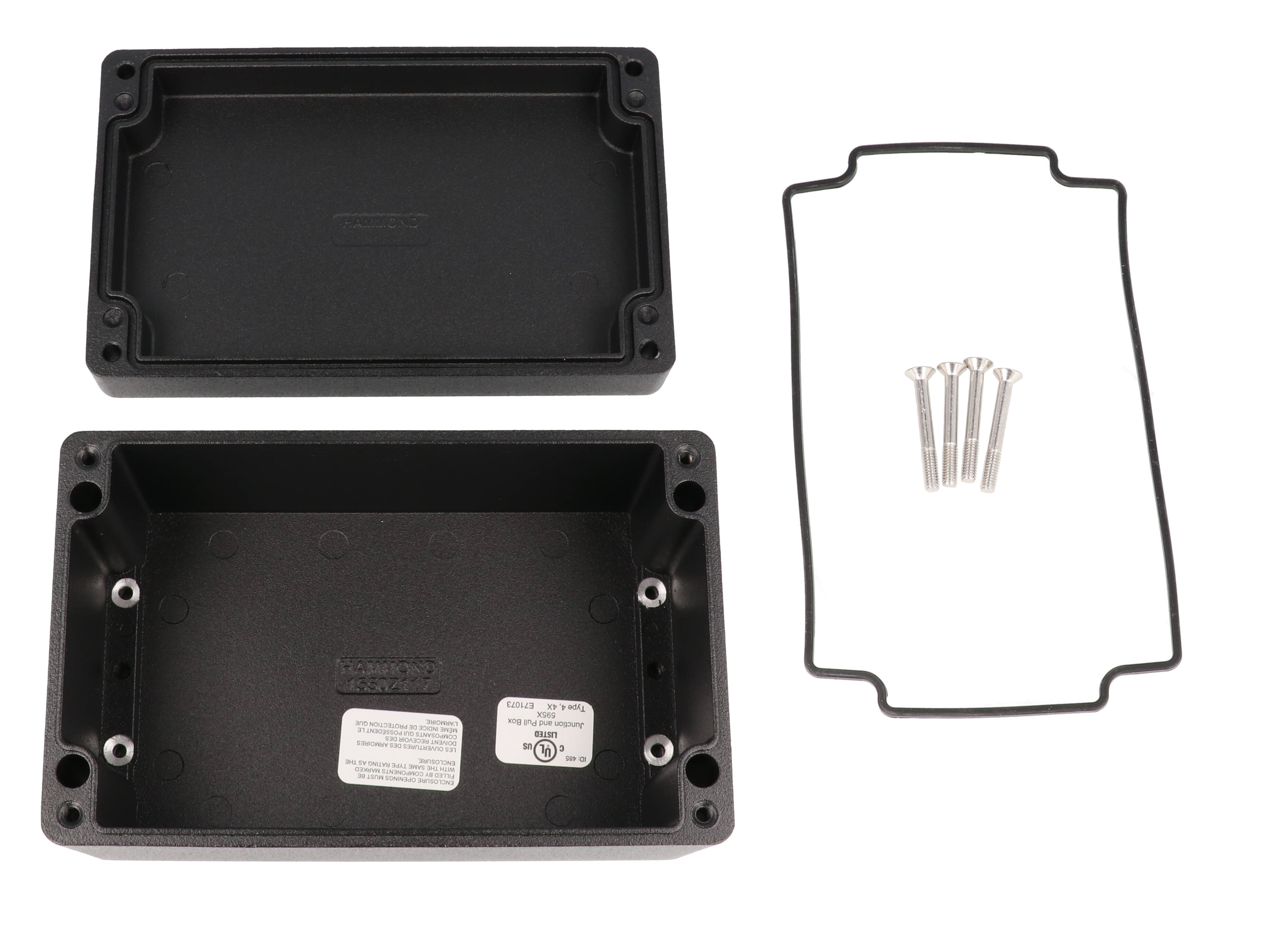

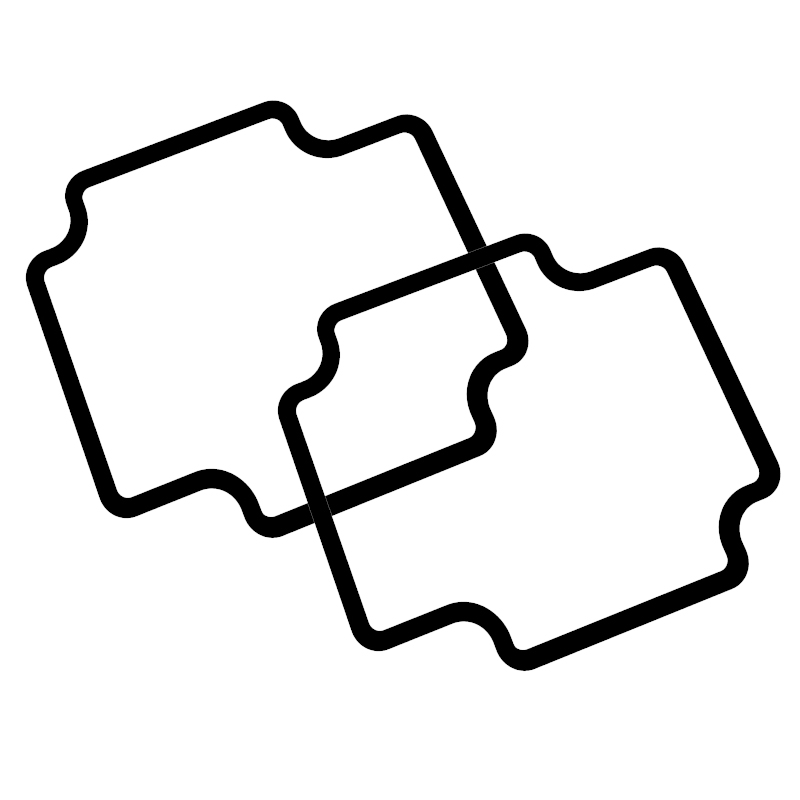

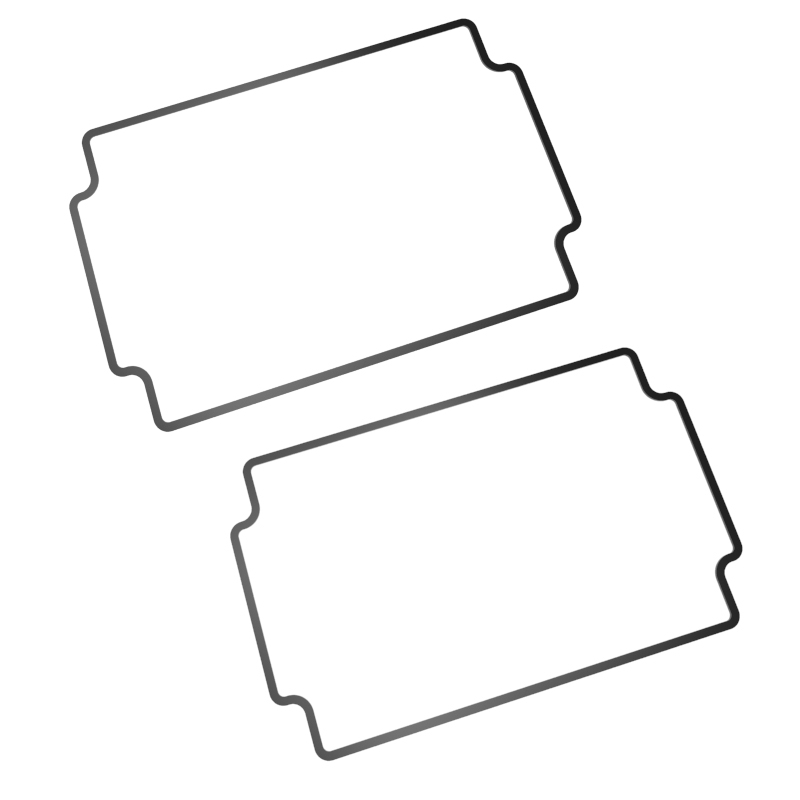

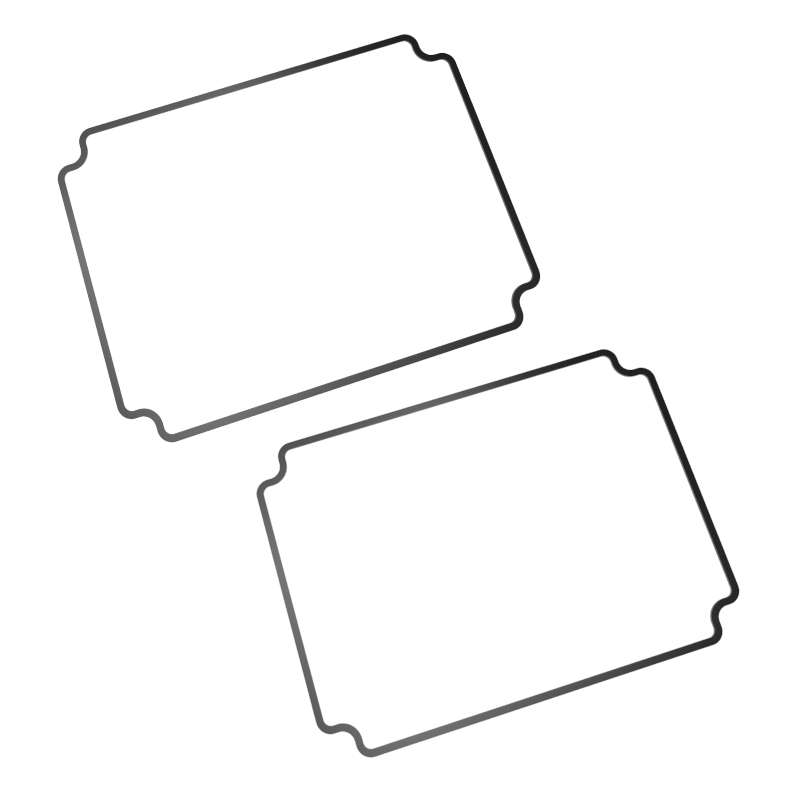

• ■Gasket is pre-formed, one-piece silicone rubber and installs easily into lid groove.
• ■Gasket has a temperature rating of -40°C to +150°C (-40°F to 302°F).
• ■cUL and UL listed under file #E71073.
• ■Independently tested to meet IP66, IP67, and IP68 as well as NEMA Type 4, 4X, 12 & 13 ratings . Customers should conduct their own testing to determine suitability for any specific application.
• ■Customers should conduct their own testing to determine suitability for any specific application.

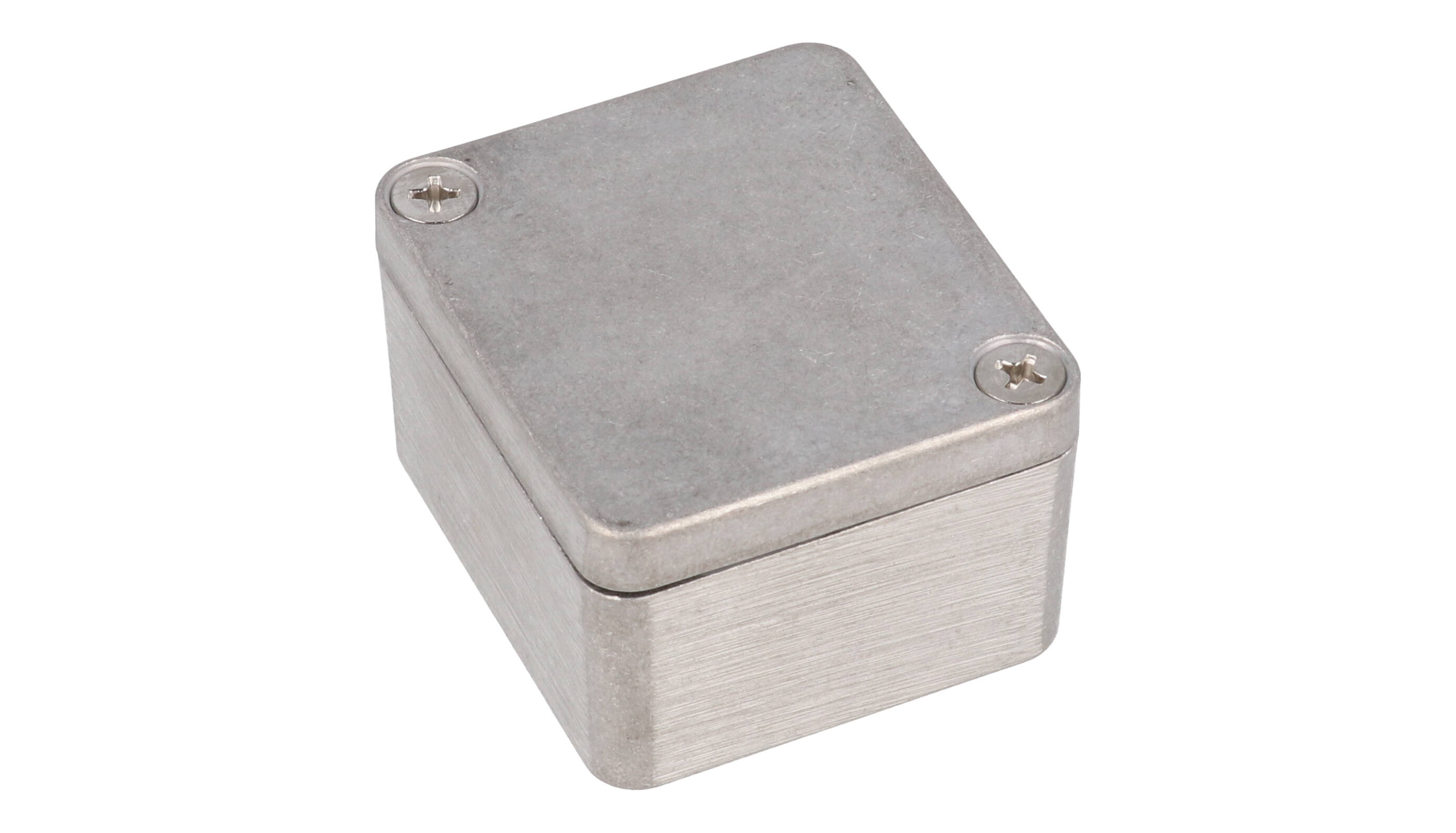

• ■All sizes except 1550Z101 carry an impact rating of IK08 per IEC62262.
