Hammond 1550Z111 115x65x55mm Watertight Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Nominal 115 x 65 x 55 mm (L x W x total depth); inside 107.37 mm x 57.37 mm x 49.70 mm
- Independently tested to IP66, IP67 and IP68 plus NEMA Type 4, 4X, 12 and 13
- cUL and UL listed under file #E71073; IK08 impact rating per IEC62262
- Thick-wall diecast aluminum alloy with no internal ribs for easy connector installation
- Unpainted, vibra-finished surface with no sharp edges
- 4 stainless steel Phillips head lid screws located outside the gasket area
- Blind thru-box wall-mount holes outside the gasket ring
- Pre-formed one-piece silicone gasket rated -40°C to +150°C (-40°F to 302°F)

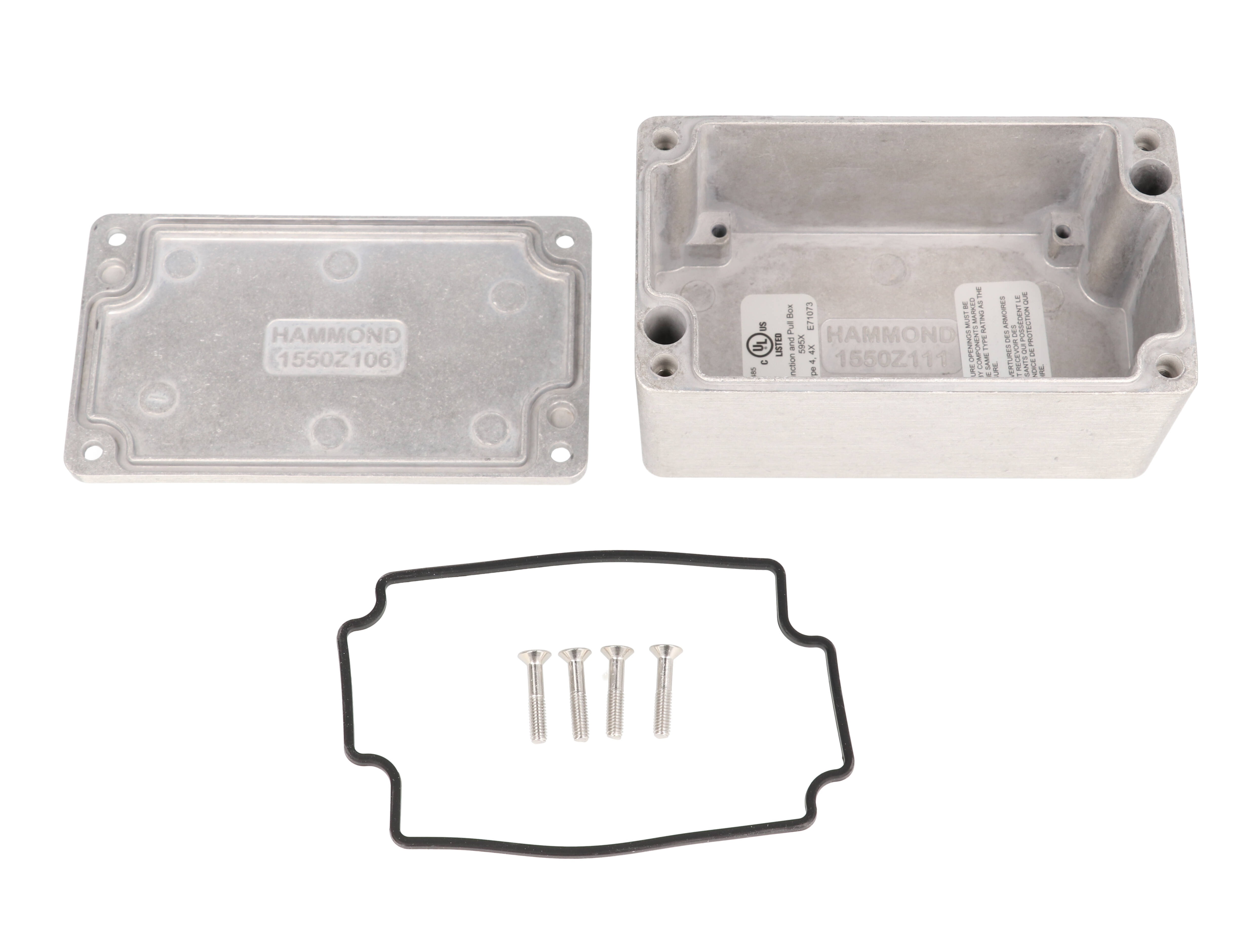

The 1550Z111 is a natural (unpainted) thick-wall diecast aluminum enclosure from the Hammond 1550Z watertight series with a nominal 115 x 65 mm footprint and a comparatively deep 55 mm total depth. The narrow, tall body is useful for electronics builders who need vertical room for connectors, components or cable entry on a small plan area.
Overall dimensions per the drawing are 115.40 mm [4.54 in] long, 65.40 mm [2.57 in] wide and 55.40 mm [2.18 in] high, with inside dimensions of 107.37 mm [4.23 in] (length), 57.37 mm [2.26 in] (width) and 49.70 mm [1.96 in] (depth). The listed maximum P.C. board dimensions are 56.7 mm and 106.7 mm, and the lid height is 0.20 in (5 mm). Shipping weight is 0.67 lbs (0.30 kg).
Box and lid are made from diecast aluminum alloy that is tough yet easy to machine, and the walls have no internal ribs, so connectors fit without interference or extra milling. This unpainted version is vibra finished for a smooth natural aluminum surface with no sharp edges, and the alloy is easy to machine for custom openings.
The purchased assembly includes the box, lid, silicone gasket and 4 stainless steel Phillips head cover screws, which sit outside the gasket protection area so no o-rings are needed. Recommended cover screw torque is 5-7.5 lbf.in (50-75 cN.m). For wall mounting, the box uses blind thru-box holes located outside the gasket ring, so access to them does not compromise ingress protection. An internal ground point accepts an #6 self tapping screw; matching hardware is sold separately as SCG060-50.
The 1550Z series is cUL and UL listed (file #E71073) and independently tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 12 and 13; this size is rated IK08 per IEC62262. It is RoHS and REACH compliant; customers should test suitability for their specific application.
Ideal For
- Watertight electronic instrument housing
- Outdoor and wash-down field electronics requiring IP68 / NEMA 4X protection
- Connector and cable-entry projects that need rib-free walls for machining
- Enclosures to be custom machined, printed or finished
- Grounded aluminum enclosures for sensitive electronics
Overview
| Type | Thick wall, water-tight |
| Color | Natural Aluminum |
| Series | 1550Z Series - Watertight Diecast Aluminum Enclosures (cUL & UL Listed, Thick Wall) |
| Part Number | 1550Z111 |
| Finish Variant | Natural Finish Enclosure |
| Long Description | watertight diecast enclosure |
| Short Description | DIECAST BOX 1550Z SERIES |
| Other Finish Variant | 1550Z111BK (Black Textured Enclosure) |
| Color (Ordering Table) | Unpainted |
Dimensions
| Lid Height | 0.20 in (5 mm) |
| Inside Depth | 49.70 mm [1.96 in] |
| Inside Width | 57.37 mm [2.26 in] |
| Inside Length | 107.37 mm [4.23 in] |
| Nominal Width | 2.56 in (65 mm) |
| Nominal Length | 4.53 in (115 mm) |
| Size L X W X H | 4.54 in x 2.58 in x 2.18 in (115 mm x 66 mm x 55 mm) |
| Nominal Total Depth | 2.17 in (55 mm) |
| Max. P.C. Board Width | 106.7 mm |
| Max. P.C. Board Length | 56.7 mm |
| Overall Width (Drawing) | 65.40 mm [2.57 in] |
| Overall Height (Drawing) | 55.40 mm [2.18 in] |
| Overall Length (Drawing) | 115.40 mm [4.54 in] |
Accessories
| Ground Screw Pack | SCG060-50 - Ground hardware (50 pack): #6 phos. bronze plate lock washer and #6-32 x 5/16 copper plate self-tapping screw |
| Series Accessories | Breather kit, pressure compensation plug, small rainproof ventilator, liquid-tight cordgrips (nylon) and liquid-tight cordgrips (nickel plated brass) |
| Replacement Gaskets (Pair) | 1550Z106GASKET - Pre-formed silicone gasket (2 pack) |
| Replacement Lid Screw Pack | SC1550Z103-50 - Stainless steel cover screws, M4 - 0.7 x 20mm (50 pack) |
Identifiers
| UPC | 623980404301 |
| UNSPSC | 39121301 |
| Drawing Revision | REV: 08.07.2024 |
Customization
| Solid Models | .stp or .x_t |
| Factory Modification | Available (milling, drilling, printing etc.) - contact factory for quotes |
Mounting & Hardware
| Ground Point | Accepts #6 self tapping ground screw (inside box) |
| Mounting Hole | Accepts M4-0.7 machine screw |
| Wall Mounting | Blind thru-box holes; access is outside the gasket ring to uphold ingress protection |
| Cover Screw Size | M4 - 0.7 x 20mm |
| Recommended Cover Screw Torque | 5-7.5 lbf.in (50-75 cN.m) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.67 lbs (0.30 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Gasket | Pre-formed, one-piece silicone rubber; installs into lid groove |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Fastening | 4 stainless steel Phillips head machine screws, outside the gasket protection area (no o-rings needed) |
| Wall Construction | Thick wall; no internal ribs |
| Box And Lid Material | Diecast Aluminum Alloy |
| Included In Assembly | Box, lid, silicone gasket, and 4 cover screws |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 12 & 13 |
| Impact Rating | IK08 per IEC62262 |
| Series Ingress Testing | Independently tested to meet IP66, IP67 and IP68 |
| Gasket Temperature Rating | -40°C to +150°C (-40°F to 302°F) |
Compliance & Certifications
| UL / CUL | cUL and UL listed under file #E71073 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1550Z111?▾
The drawing gives an inside length of 107.37 mm [4.23 in], inside width of 57.37 mm [2.26 in] and inside depth of 49.70 mm [1.96 in]. Overall size is 115.40 mm [4.54 in] x 65.40 mm [2.57 in] x 55.40 mm [2.18 in].
What is included with the 1550Z111?▾
The purchased assembly includes the box, lid, silicone gasket and 4 cover screws. Box and lid are made from diecast aluminum alloy.
What ingress and NEMA ratings does the 1550Z111 carry?▾
The part page lists IP68 and NEMA 4, 4X, 12 & 13. The 1550Z series is independently tested to meet IP66, IP67 and IP68; customers should conduct their own testing for any specific application.
How is the 1550Z111 mounted?▾
It wall mounts using blind thru-box holes located outside the gasket ring, so mounting does not compromise ingress protection. The mounting hole accepts an M4-0.7 machine screw.
Which replacement parts fit the 1550Z111?▾
Replacement lid screws are SC1550Z103-50 (M4 - 0.7 x 20mm (50 pack)), ground hardware is SCG060-50, and replacement gaskets are 1550Z106GASKET (sold as a pair).
Is the 1550Z111 UL listed?▾
Yes. The 1550Z series is cUL and UL listed under file #E71073, and this size carries an IK08 impact rating per IEC62262. It is also RoHS and REACH compliant.
