Hammond 1550Z108 125x80x59mm Deep Watertight Diecast Aluminum Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Nominal 125 x 80 x 59 mm (L x W x total depth); inside 116.04 mm x 70.64 mm x 50.80 mm
- Independently tested to IP66, IP67 and IP68 plus NEMA Type 4, 4X, 12 and 13
- cUL and UL listed under file #E71073; IK08 impact rating per IEC62262
- Thick-wall diecast aluminum alloy with no internal ribs for easy connector installation
- Unpainted, vibra-finished surface with no sharp edges
- 4 stainless steel lid screws, self-captivating on this size, outside the gasket area
- Blind thru-box wall-mount holes outside the gasket ring
- Pre-formed one-piece silicone gasket rated -40°C to +150°C (-40°F to 302°F)

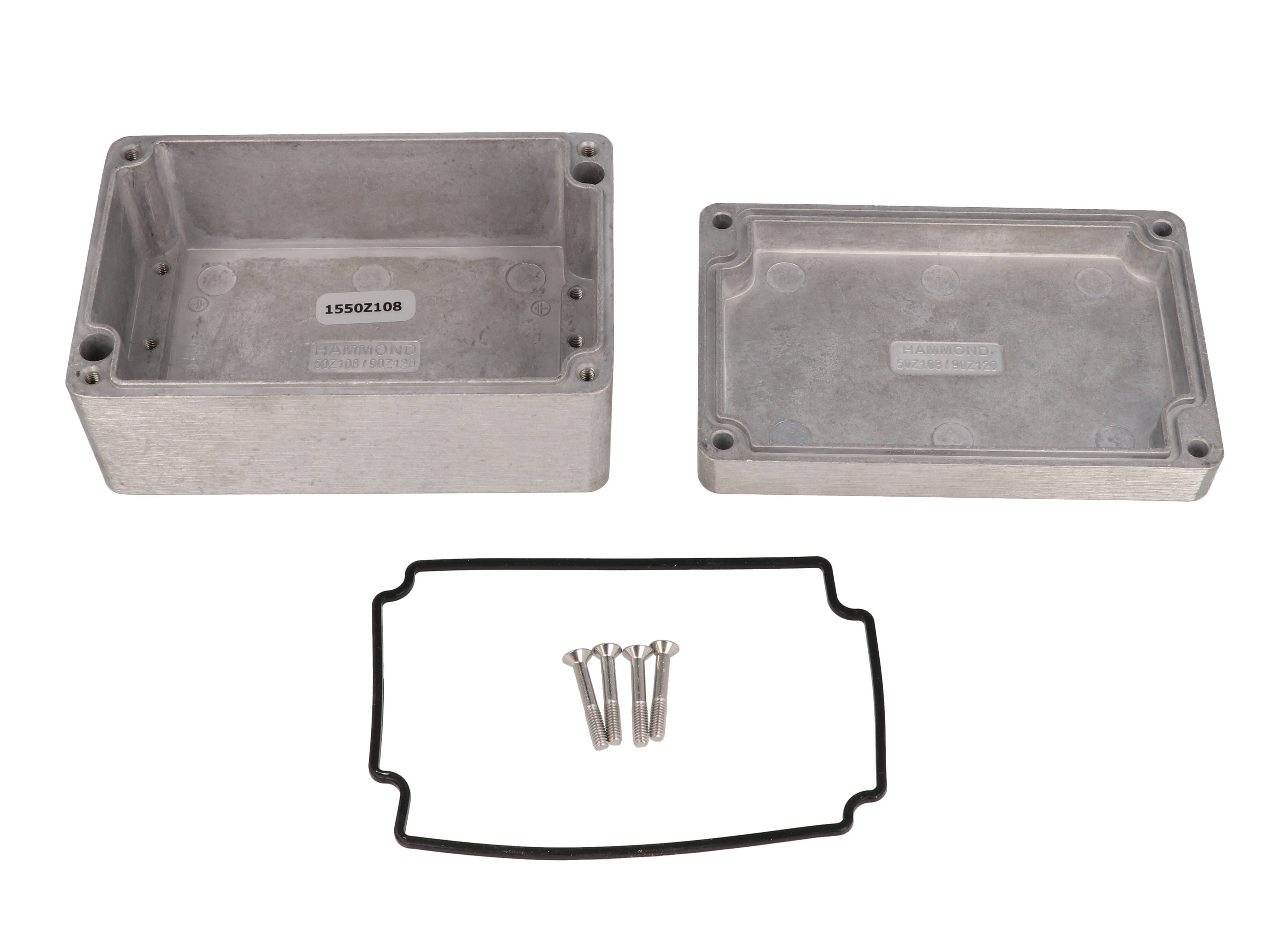

The 1550Z108 is a natural (unpainted) thick-wall diecast aluminum enclosure in the Hammond 1550Z watertight series. It shares the nominal 125 x 80 mm footprint of the 1550Z107 but steps up to a 59 mm total depth, giving roughly 50.80 mm of inside depth for taller components, terminal blocks or stacked boards while keeping the same compact plan size.
Overall dimensions per the drawing are 125.40 mm [4.94 in] long, 80.40 mm [3.17 in] wide and 58.80 mm [2.31 in] high, with inside dimensions of 116.04 mm [4.57 in] (length), 70.64 mm [2.78 in] (width) and 50.80 mm [2.00 in] (depth). The listed maximum P.C. board dimensions are 70.14 mm and 115.14 mm, and the lid height is 0.63 in (16 mm). Shipping weight is 1.05 lbs (0.48 kg).
Box and lid are made from diecast aluminum alloy that is tough yet easy to machine, and the walls have no internal ribs, so connectors fit without interference or extra milling. This unpainted version is vibra finished for a smooth natural aluminum surface with no sharp edges, and the alloy is easy to machine for custom openings.

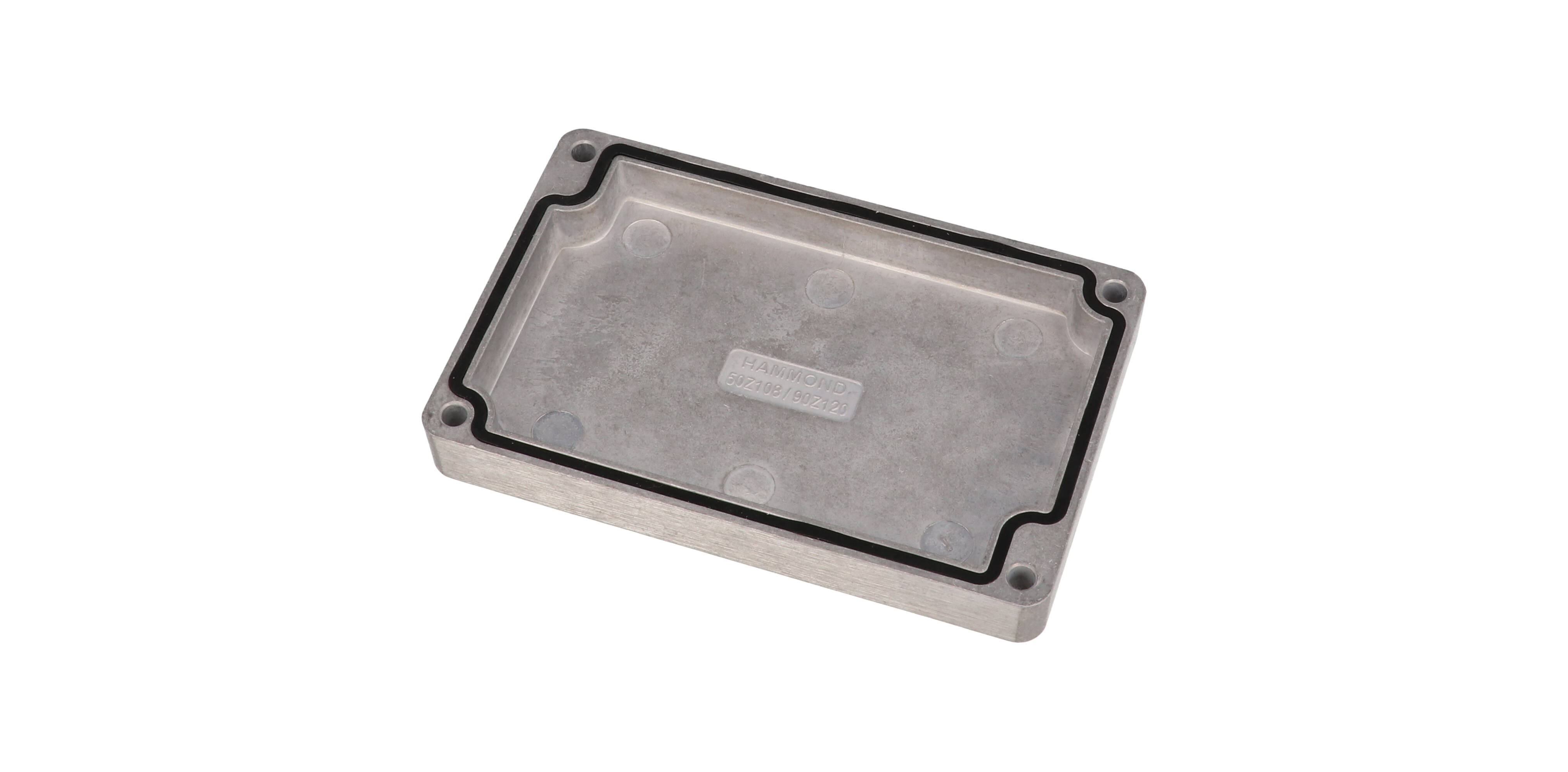

The purchased assembly includes the box, lid, silicone gasket and 4 stainless steel Phillips head cover screws, which sit outside the gasket protection area so no o-rings are needed. On this size the lid screws are self-captivating: the lid holes are slightly undersized and are threaded with the first installation, so the screws stay with the lid when it is removed. Recommended cover screw torque is 5-7.5 lbf.in (50-75 cN.m). For wall mounting, the box uses blind thru-box holes located outside the gasket ring, so access to them does not compromise ingress protection. An internal ground point accepts an M4-0.7 machine screw; matching hardware is sold separately as SCGM4-50.
The 1550Z series is cUL and UL listed (file #E71073) and independently tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 12 and 13; this size is rated IK08 per IEC62262. It is RoHS and REACH compliant; customers should test suitability for their specific application.
Ideal For
- Watertight electronic instrument housing
- Outdoor and wash-down field electronics requiring IP68 / NEMA 4X protection
- Connector and cable-entry projects that need rib-free walls for machining
- Enclosures to be custom machined, printed or finished
- Grounded aluminum enclosures for sensitive electronics
Overview
| Type | Thick wall, water-tight |
| Color | Natural Aluminum |
| Series | 1550Z Series - Watertight Diecast Aluminum Enclosures (cUL & UL Listed, Thick Wall) |
| Part Number | 1550Z108 |
| Finish Variant | Natural Finish Enclosure |
| Long Description | watertight diecast enclosure |
| Short Description | DIECAST BOX 1550Z SERIES |
| Other Finish Variant | 1550Z108BK (Black Textured Enclosure) |
| Color (Ordering Table) | Unpainted |
Dimensions
| Lid Height | 0.63 in (16 mm) |
| Inside Depth | 50.80 mm [2.00 in] |
| Inside Width | 70.64 mm [2.78 in] |
| Inside Length | 116.04 mm [4.57 in] |
| Nominal Width | 3.15 in (80 mm) |
| Nominal Length | 4.92 in (125 mm) |
| Size L X W X H | 4.94 in x 3.17 in x 2.31 in (125 mm x 81 mm x 59 mm) |
| Nominal Total Depth | 2.32 in (59 mm) |
| Max. P.C. Board Width | 115.14 mm |
| Max. P.C. Board Length | 70.14 mm |
| Overall Width (Drawing) | 80.40 mm [3.17 in] |
| Overall Height (Drawing) | 58.80 mm [2.31 in] |
| Overall Length (Drawing) | 125.40 mm [4.94 in] |
Accessories
| Ground Screw Pack | SCGM4-50 - Copper plate ground hardware: M4 - 0.7 x 6mm screw and M4 washer (50 pack) |
| Series Accessories | Breather kit, pressure compensation plug, small rainproof ventilator, liquid-tight cordgrips (nylon) and liquid-tight cordgrips (nickel plated brass) |
| Replacement Gaskets (Pair) | 1550Z107GASKET - Pre-formed silicone gasket (2 pack) |
| Replacement Lid Screw Pack | SC1550Z107-50 - Stainless steel cover screws, M4 - 0.7 x 25mm (50 pack) |
Identifiers
| UPC | 623980404264 |
| UNSPSC | 39121301 |
| Drawing Revision | REV: 08.07.2024 |
Customization
| Solid Models | .stp or .x_t |
| Factory Modification | Available (milling, drilling, printing etc.) - contact factory for quotes |
Mounting & Hardware
| Ground Point | Accepts M4-0.7 machine ground screw (inside box) |
| Mounting Hole | Accepts M4-0.7 machine screw |
| Wall Mounting | Blind thru-box holes; access is outside the gasket ring to uphold ingress protection |
| Cover Screw Size | M4 - 0.7 x 25mm |
| Recommended Cover Screw Torque | 5-7.5 lbf.in (50-75 cN.m) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.05 lbs (0.48 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Gasket | Pre-formed, one-piece silicone rubber; installs into lid groove |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Fastening | 4 stainless steel Phillips head machine screws, outside the gasket protection area (no o-rings needed) |
| Wall Construction | Thick wall; no internal ribs |
| Captive Lid Screws | Yes - self-captivating; lid holes slightly undersized and threaded with the first installation |
| Box And Lid Material | Diecast Aluminum Alloy |
| Included In Assembly | Box, lid, silicone gasket, and 4 cover screws |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 12 & 13 |
| Impact Rating | IK08 per IEC62262 |
| Series Ingress Testing | Independently tested to meet IP66, IP67 and IP68 |
| Gasket Temperature Rating | -40°C to +150°C (-40°F to 302°F) |
Compliance & Certifications
| UL / CUL | cUL and UL listed under file #E71073 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1550Z108?▾
The drawing gives an inside length of 116.04 mm [4.57 in], inside width of 70.64 mm [2.78 in] and inside depth of 50.80 mm [2.00 in]. Overall size is 125.40 mm [4.94 in] x 80.40 mm [3.17 in] x 58.80 mm [2.31 in].
What is included with the 1550Z108?▾
The purchased assembly includes the box, lid, silicone gasket and 4 cover screws. Box and lid are made from diecast aluminum alloy.
What ingress and NEMA ratings does the 1550Z108 carry?▾
The part page lists IP68 and NEMA 4, 4X, 12 & 13. The 1550Z series is independently tested to meet IP66, IP67 and IP68; customers should conduct their own testing for any specific application.
How is the 1550Z108 mounted?▾
It wall mounts using blind thru-box holes located outside the gasket ring, so mounting does not compromise ingress protection. The mounting hole accepts an M4-0.7 machine screw.
Which replacement parts fit the 1550Z108?▾
Replacement lid screws are SC1550Z107-50 (M4 - 0.7 x 25mm (50 pack)), ground hardware is SCGM4-50, and replacement gaskets are 1550Z107GASKET (sold as a pair).
Are the lid screws on the 1550Z108 captive?▾
Yes. Lid screws are self-captivating on this size: the lid holes are slightly undersized and are threaded with the first installation. Recommended cover screw torque is 5-7.5 lbf.in (50-75 cN.m).
