Hammond 1590K432 188x120x56 mm Zinc Diecast Enclosure, Six-Screw Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Zinc diecast alloy enclosure, 188 mm x 120 mm x 56 mm (L x W x D)
- Heavier alternative to 1590 diecast aluminum enclosures, with premium weight and cool touch
- Fits PC boards up to 113.31 x 181.31 mm; draft angle 2° or less
- Designed to meet IP54 with lap joint construction
- Six M3.5 x 0.6 x 12 mm stainless steel Philips screws into factory tapped holes
- Vibra finished natural surface with no sharp edges
- Easy to machine and easy to plate
- RoHS and REACH compliant; shipping weight 2.33 lbs (1.06 kg)

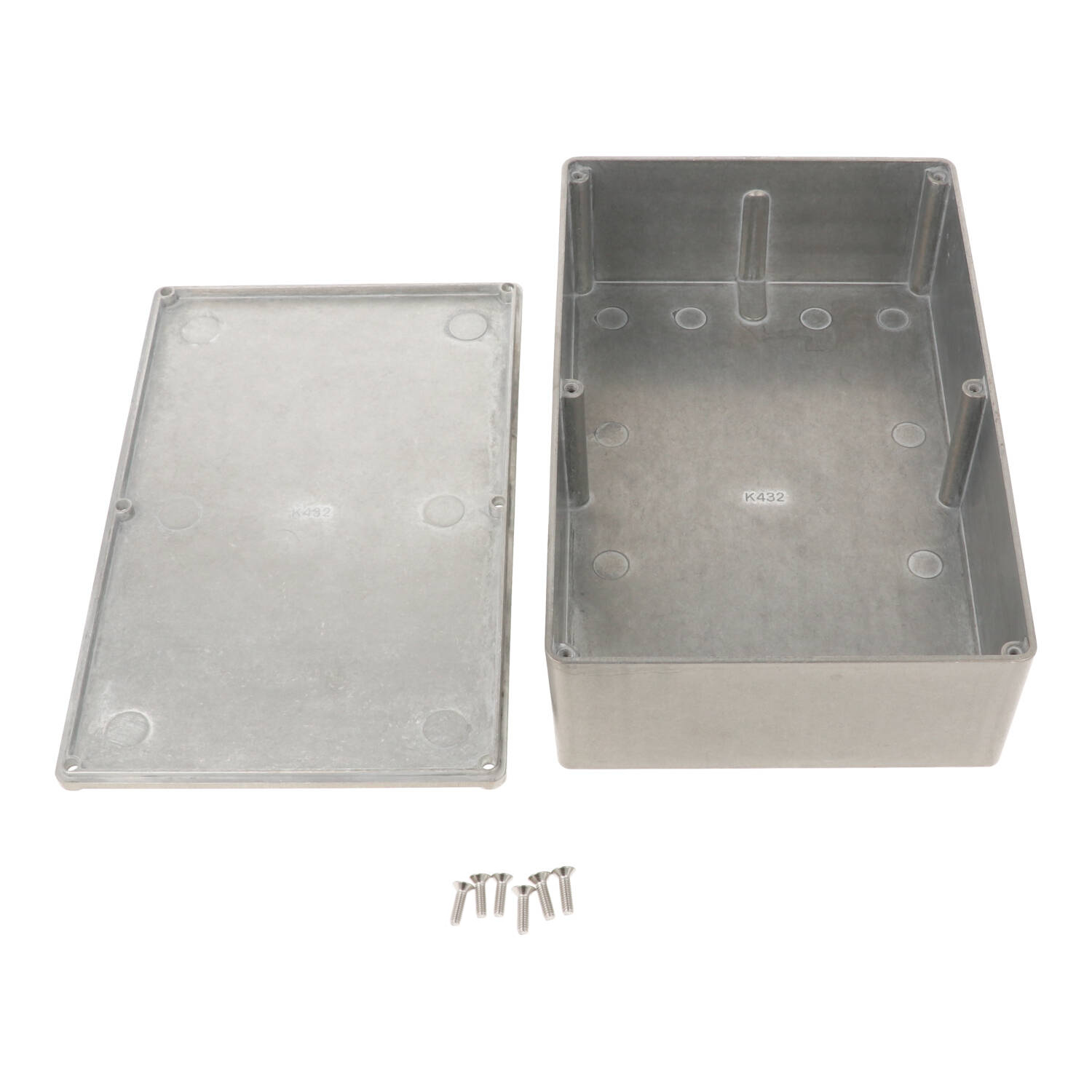

The 1590K432 is the largest 1590K4 zinc enclosure, a 188 x 120 x 56 mm box, and the only size in the series whose lid is held by six screws. It is a high impact zinc diecast alloy electronic instrument enclosure supplied in a natural finish, intended for OEM engineers and product designers who want a heavier alternative to Hammond's 1590 diecast aluminum enclosures.
Box and lid are made from diecast zinc alloy. Zinc is tough yet easy to machine and makes it easy to plate the enclosure. It feels cool to the touch and adds perceived premium quality weight to the finished product. The enclosure is vibra finished for a smooth surface with no sharp edges.
The ordering table lists 7.40 in (188 mm) long, 4.72 in (120 mm) wide and 2.20 in (56 mm) deep, while the part page gives 7.4 in x 4.72 in x 2.05 in (188 mm x 120 mm x 52 mm). From the drawing: inside height 52.10 mm [2.051 in]. Maximum PC board size is 113.31 x 181.31 mm, and a side wall draft angle of 2° or less simplifies PC board mounting.
Lap joint construction protects against dust and splashing water, and the enclosure is designed to meet IP54. Six M3.5 x 0.6 x 12 mm stainless steel Philips head machine screws secure the lid into factory tapped holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in]. Plated replacement screws are 1550MS100 (M3.5 x 12 mm, pack of 100). The 1590K432 is RoHS and REACH compliant, ships shrink wrapped at 2.33 lbs (1.06 kg), and can be factory modified by milling, drilling or printing; solid models are available in .stp or .x_t.
Ideal For
- Premium-feel electronic instrument housings
- OEM products that benefit from added weight
- Enclosures intended to be plated
- Machined control and interface boxes
Overview
| Type | Die-cast box |
| Series | 1590K4 Diecast Zinc Enclosures |
| Included | Box, lid and 6 cover screws |
| CAD Models | Solid models available in .stp or .x_t |
| Long Description | enclosure - diecast |
| Short Description | ZINC ENCLOSURE 189 X 117 X 56 |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact factory for quotes |
Dimensions
| Inside Height | 52.10 mm [2.051 in] |
| Nominal Depth | 2.20 in (56 mm) |
| Nominal Width | 4.72 in (120 mm) |
| Nominal Length | 7.40 in (188 mm) |
| Size (L X W X H) | 7.4 in x 4.72 in x 2.05 in (188 mm x 120 mm x 52 mm) |
| Max. P.C. Board Width | 181.31 mm |
| Max. P.C. Board Length | 113.31 mm |
| Overall Depth (Drawing) | 56.10 mm [2.209 in] |
| Overall Width (Drawing) | 120.00 mm [4.724 in] |
| Overall Length (Drawing) | 188.00 mm [7.402 in] |
Accessories
| Plated Cover Screws (Pkg 100) | 1550MS100 [M3.5 x 12mm] |
Identifiers
| UPC | 623980023106 |
| UNSPSC | 39121301 |
| Part Number | 1590K432 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 2.33 lbs (1.06 kg) |
Construction & Finish
| Color | Natural Aluminum (ordering table: Natural) |
| Material | Zinc (Die-Cast Alloy) |
| Lid Screws | Six M3.5 x 0.6 x 12mm long stainless steel Philips head machine screws into factory tapped holes |
| Surface Finish | Vibra finished for a smooth surface with no sharp edges |
| Joint Construction | Lap joint construction, protection against access of dust and splashing water |
| Material Properties | Tough yet easy to machine; easy to plate |
| Box And Lid Material | Diecast zinc alloy |
| Side Wall Draft Angle | 2° or less, for easy PC board mounting |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
