Hammond 1590MBK 112x63x31 mm Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Satin black polyester powder paint for a lasting finish after machining
- Black cover screws included; assembly is box, lid and 4 screws
- 112 x 63 x 31 mm diecast aluminum alloy body with internal ribs
- Fits P.C. boards up to 103.3 x 54.3 mm
- IP54 rated with lap joint construction
- Recommended screw torque 50-55 cN.m [71-78 ozf.in]
- RoHS and REACH compliant; 0.32 lbs (0.15 kg)

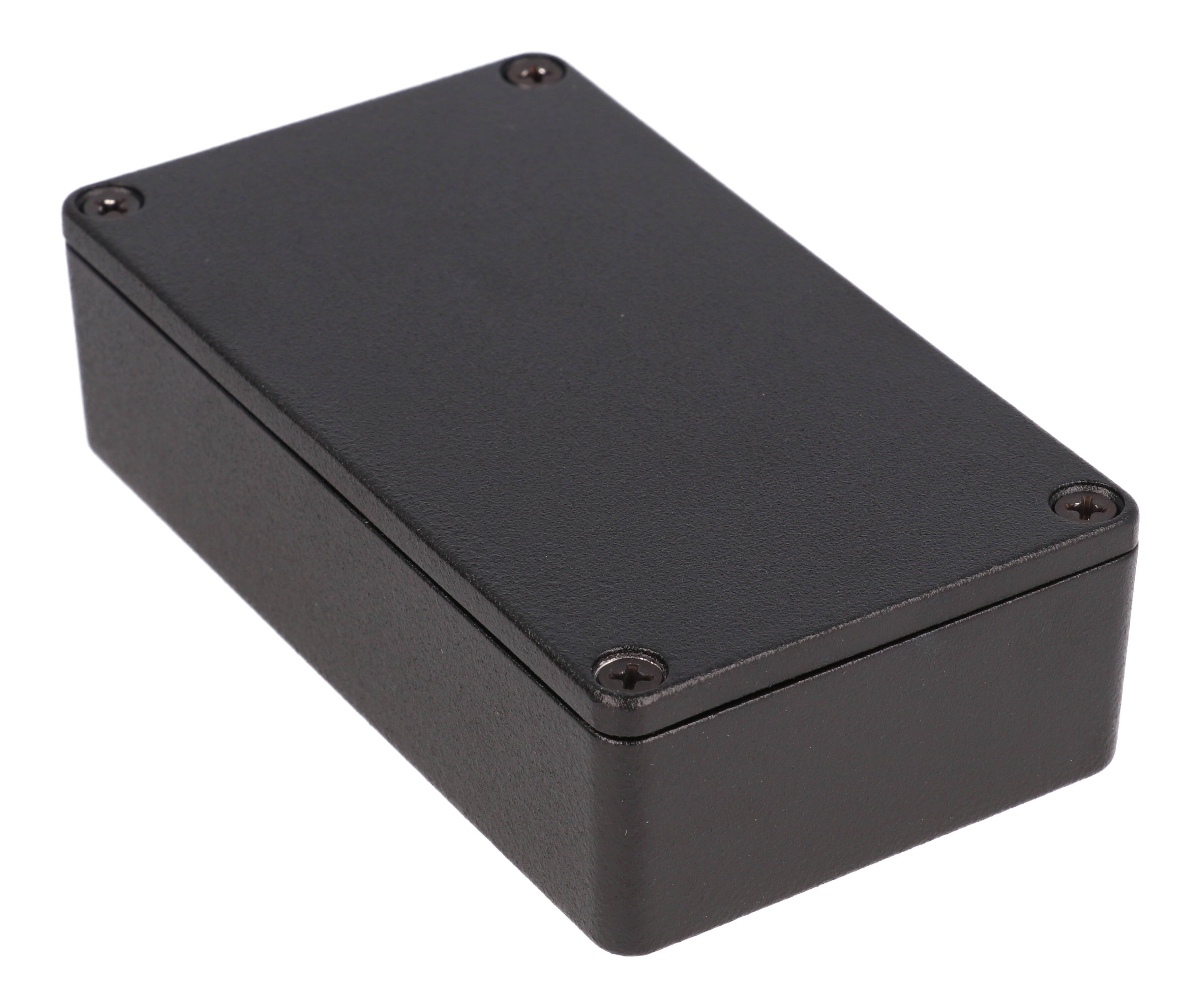

The 1590MBK is the black painted version of the 1590M diecast aluminum enclosure, aimed at builders of pedals, instruments and OEM electronics who want a finished, dark exterior on a mid-size metal box. Internal ribs provide board guides, and the low side wall draft angle of 2 degrees or less makes P.C. board mounting straightforward.

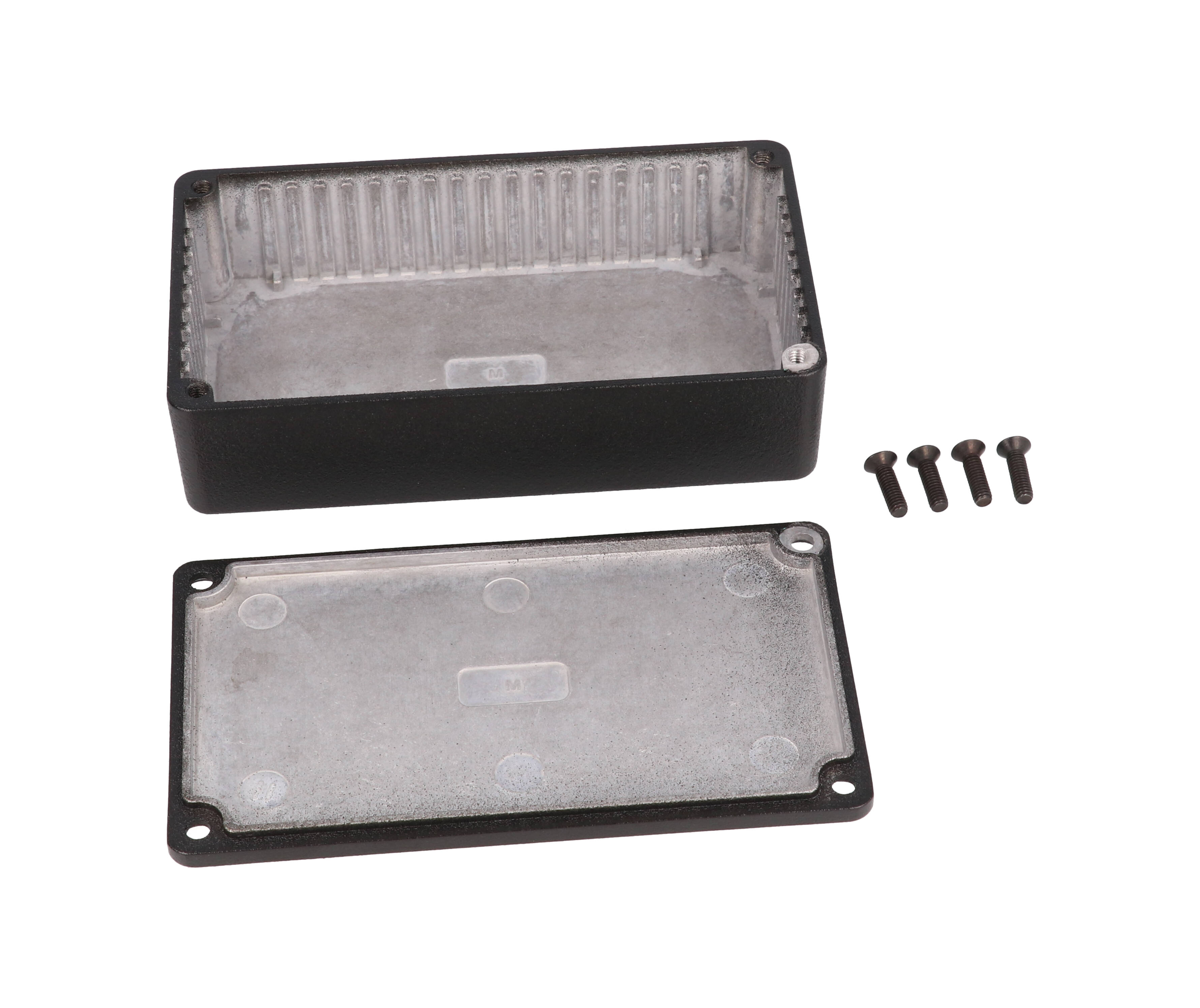

The box and lid are diecast aluminum alloy, tough yet easy to machine, finished in satin black polyester powder paint that holds up even after machining. Black screws are included to enhance appearance. The purchased assembly includes box, lid and 4 cover screws (M3.5x0.6) threaded into factory-tapped holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in]. Lap joint construction protects against dust and splashing water, and the enclosure is rated IP54.
The part page lists 4.48 in x 2.49 in x 1.06 in (114 mm x 63 mm x 27 mm); the series table lists 112 x 63 x 31 mm including the 4 mm lid. Inside dimensions are 107.17 mm long, 55.17 mm [2.172"] wide and 26.60 mm [1.047"] high, and the maximum P.C. board is 103.3 mm by 54.3 mm. Shipping weight is 0.32 lbs (0.15 kg).
The 1590MBK is RoHS and REACH compliant and ships shrink wrapped. Black replacement screws are available as 1550MS100BK.
Ideal For
- Black stomp box and effects pedal builds
- Instrument and test gear housings
- OEM control electronics with a painted finish
- P.C. board enclosures
Overview
| Type | Die-cast box |
| Color | Black |
| Series | 1590-RIBBED Series Diecast Aluminum Enclosures (With Internal Ribs) |
| Version | No Mounting Flanges, Standard Version |
| Description | enclosure - diecast |
| Part Number | 1590MBK |
| Short Description | 1590M PAINTED BLACK |
Dimensions
| Inside Width | 55.17 mm [2.172"] |
| Inside Height | 26.60 mm [1.047"] |
| Inside Length | 107.17 mm |
| Size L X W X H | 4.48 in x 2.49 in x 1.06 in (114 mm x 63 mm x 27 mm) |
| Series Table Note | Dimensions include lid. Lid height is 4mm (0.16"). |
| Overall Width (Drawing) | 63.00 mm [2.480"] |
| Overall Height (Drawing) | 31.00 mm [1.220"] |
| Overall Length (Drawing) | 112.00 mm [4.409"] |
| Nominal Size (Series Table) L X W X D | 4.41 in (112 mm) x 2.48 in (63 mm) x 1.22 in (31 mm) |
Identifiers
| UPC | 623980543093 |
| UNSPSC | 39121301 |
PCB Mounting
| Slot Depth | 1.50 mm [.059"] |
| Slot Width | 2.01 mm [.079"] |
| Guide Width | 2.99 mm [.118"] |
| Guide Height | 22.74 mm [.895"] |
| Side Wall Draft Angle | 2 degrees or less (low draft for easy P.C. board mounting) |
| Max. P.C. Board Width (Mm) | 103.3 |
| Max. P.C. Board Length (Mm) | 54.3 |
Documentation
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Solid Models Available | STEP or IGES |
Compatible Hardware
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Philips Machine Screws (100-pack) | 1550MS100 (natural), 1550MS100BK (black) |
| Water-Tight Philips Machine Screws (100-pack) | 1550WMS100 (natural), 1550WMS100BK (black) |
| Torx With Pin Tamper-Resistant Screws (50-pack) | 1550MS50T, 1550MS50TBK, 1550WMS50T, 1550WMS50TBK (water-tight) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.32 lbs (0.15 kg) |
Construction & Finish
| Finish | Satin black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Diecast aluminum alloy with internal ribs; lap joint construction protects against access of dust and splashing water |
| Cover Screws | 4X M3.5x0.6, threaded into factory-tapped holes (black screws included) |
| Lid Screw Holes | 4X Ø 3.40 mm [.134"] |
| Assembly Includes | box, lid and 4 cover screws |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What finish does the 1590MBK have?▾
Satin black polyester powder paint, described as a lasting finish even after machining. Black screws are included.
What are the inside dimensions?▾
107.17 mm long, 55.17 mm [2.172"] wide and 26.60 mm [1.047"] high.
What is in the box?▾
The purchased assembly includes the box, lid and 4 cover screws.
What IP rating does it carry?▾
The 1590MBK is rated IP54.
What replacement screws fit?▾
1550MS100BK (black Philips, 100-pack) and 1550MS50TBK (black Torx with pin tamper-resistant, 50-pack) are listed for this size.
