Hammond 1590WNBK IP65 Watertight 121mm Diecast Enclosure, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP65 water-tight design; silicone gasket supplied loose inside
- Black textured polyester powder paint finish with black screws
- 121 x 66 x 40 mm nominal size (4.76 x 2.60 x 1.57 in)
- Internal ribs accept a P.C. board up to 112.24 x 56.34 mm
- 4 M3.5x0.6 cover screws in factory-tapped holes
- Black liquid resistant screws 1550WMS100BK and 1590NGASKET kit available
- RoHS and REACH compliant

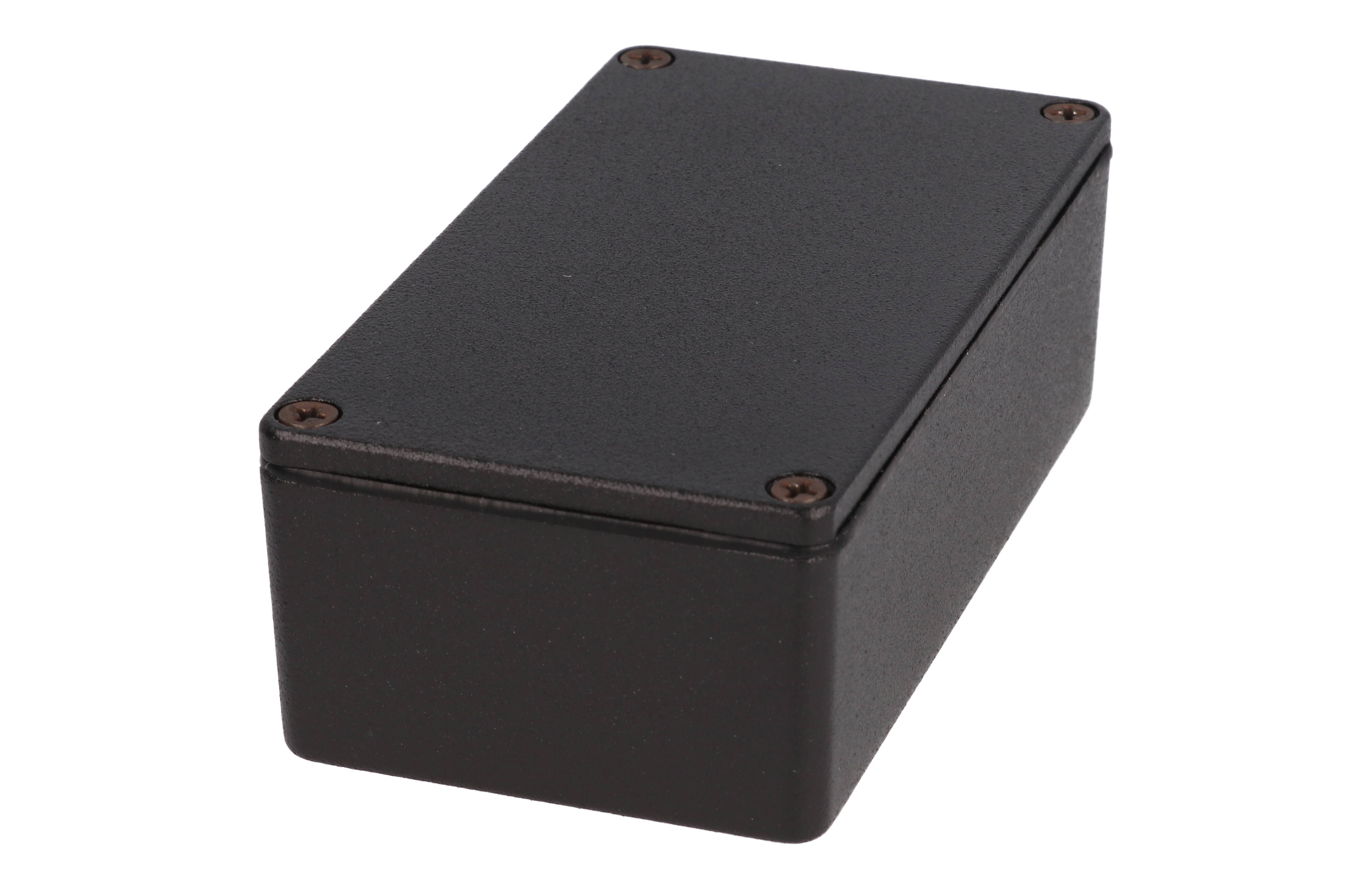

The 1590WNBK is the black textured, water-tight version of the 1590N diecast aluminum enclosure. Designed to meet IP65, it gives equipment builders and electronics engineers a compact, sealed metal housing with a painted finish that suits front-of-house or customer-facing products.

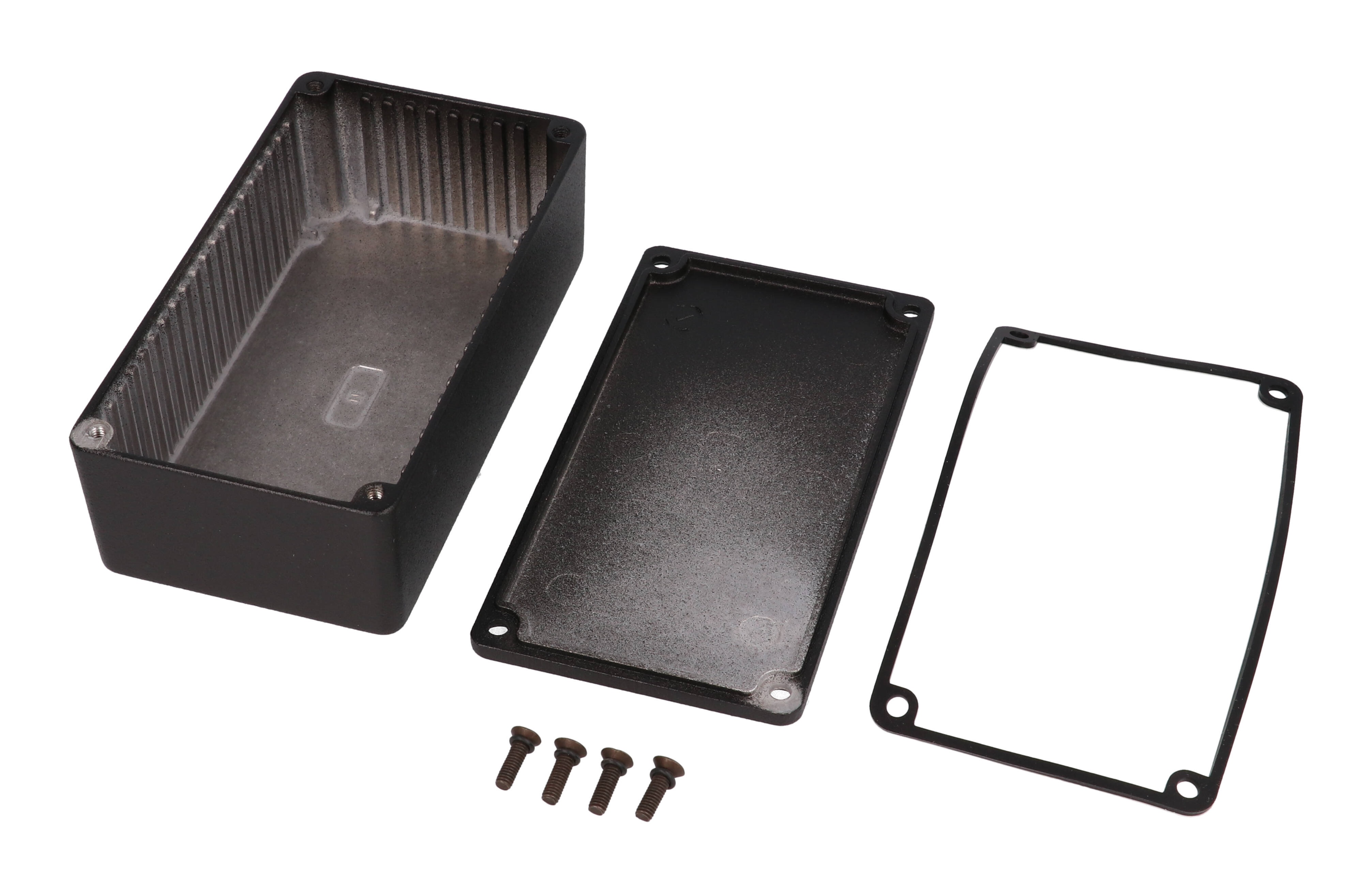

The die-cast aluminum alloy box and lid are painted with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to match. Lap joint construction and the silicone gasket, which ships loose inside the enclosure rather than pre-installed, provide the sealing.
The 1590WNBK has a nominal size of 121 x 66 x 40 mm (4.76 x 2.60 x 1.57 in) including the 4 mm lid, and the part page lists 4.75 x 2.61 x 1.42 in (121 x 66 x 36 mm). Inside dimensions are 113.71 mm [4.477 in] long, 57.81 mm [2.276 in] wide and 35.20 mm [1.386 in] high. Internal ribs with guide slots hold a P.C. board up to 112.24 x 56.34 mm, helped by a side wall draft of 2 degrees or less.
Four M3.5x0.6 cover screws thread into factory-tapped holes; with the gasket fitted, tighten them to 25-30 cN.m [36-43 ozf.in]. Accessories include black liquid resistant stainless steel screws with O-ring (1550WMS100BK) and the 1590NGASKET replacement gasket kit. Shipping weight is 0.39 lbs (0.18 kg); RoHS and REACH compliant.
Ideal For
- Sealed IP65 electronics in a black finish
- Compact PCB-based control and sensor housings
- Electronic instrument enclosures
- Machined OEM enclosures
Overview
| Type | Die-cast box, water-tight |
| Series | 1590-RIBBED (Diecast Aluminum Enclosures with Internal Ribs) |
| Version | Water-tight, no mounting flanges |
| CAD Models | Solid models available |
| Description | 1590N Waterproof Black |
| Part Number | 1590WNBK |
| Factory Modification | Can be factory modified (milling, drilling, printing) |
Dimensions
| Box Height | 36.00 mm [1.417 in] |
| Lid Height | 4 mm (0.16 in) - included in overall dimensions |
| Inside Width | 57.81 mm [2.276 in] |
| Inside Height | 35.20 mm [1.386 in] |
| Inside Length | 113.71 mm [4.477 in] |
| Overall Width | 65.50 mm [2.579 in] |
| Overall Height | 40.00 mm [1.575 in] |
| Overall Length | 121.20 mm [4.772 in] |
| PCB Slot Width | 2.01 mm [.079 in] |
| Size L X W X H | 4.75 in x 2.61 in x 1.42 in (121 mm x 66 mm x 36 mm) |
| PCB Guide Depth | 1.50 mm [.059 in] |
| PCB Guide Width | 3.00 mm [.118 in] |
| PCB Guide Height | 31.13 mm [1.226 in] |
| Max. P.C. Board Width | 112.24 mm |
| Max. P.C. Board Length | 56.34 mm |
| Nominal Size (L X W X D) | 4.76 in (121 mm) x 2.60 in (66 mm) x 1.57 in (40 mm) |
Accessories
| Optional Replacement Gasket Kit | 1590NGASKET |
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Standard Cover Screws, Black (Pkg 100) | 1550MS100BK [M3.5 x 12mm] |
| Standard Cover Screws, Plated (Pkg 100) | 1550MS100 [M3.5 x 12mm] |
| Tamper-Resistant Torx With Pin Screws (50-pack) | 1550MS50T (natural), 1550MS50TBK (black), 1550WMS50T (water-tight), 1550WMS50TBK (water-tight black) |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1550WMS100 [M3.5 x 12mm, With O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1550WMS100BK [M3.5 x 12mm, With O-Ring] |
Identifiers
| UPC | 623980539898 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.39 lbs (0.18 kg) |
Construction & Finish
| Color | Black |
| Finish | Black textured, polyester powder paint |
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Lap joint construction for protection against access of dust and splashing water |
| Assembly Hardware | Screws threaded into factory-tapped holes |
| Included Hardware | Box, lid, 4 cover screws (4X M3.5x0.6); black screws and silicone gasket |
| Internal Features | Internal ribs with P.C. board guide slots |
| Side Wall Draft Angle | 2 degrees or less (for easy P.C. board mounting) |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Lid Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP65 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What finish does the 1590WNBK have?▾
It is a black textured version, painted with tough polyester powder paint for a lasting finish even after machining. Black screws are included.
Is the 1590WNBK waterproof?▾
It is a water-tight version designed to meet IP65. The silicone gasket is supplied loose inside the enclosure and is not pre-installed.
What board size fits inside?▾
The internal guides accept a P.C. board up to 112.24 mm by 56.34 mm.
Which replacement screws match this enclosure?▾
Black liquid resistant stainless steel cover screws with O-ring are 1550WMS100BK (Pkg 100, M3.5 x 12mm).
How much does it weigh?▾
The shipping weight is 0.39 lbs (0.18 kg).
