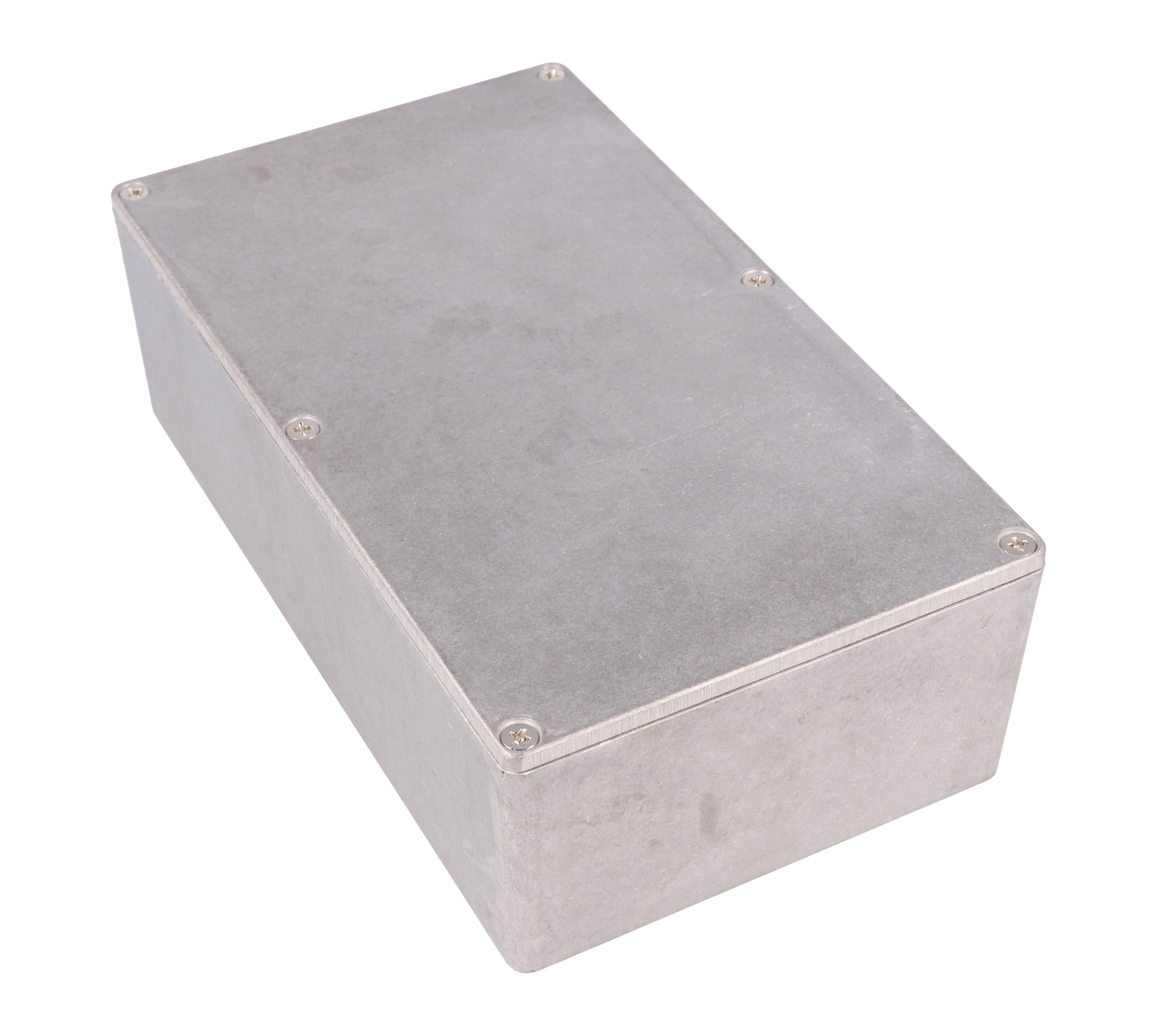

Hammond 1590R 192x111x57 mm Natural Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 192 x 111 x 57 mm diecast aluminum alloy enclosure with internal ribs
- Fits P.C. boards up to 182.42 x 102.42 mm on 53.03 mm high guides
- IP54 standard; optional 1590RGASKET kit listed for this size
- Includes box, lid and 6 M3.5x0.6 cover screws
- Natural vibra finish, smooth with no sharp edges
- Screw torque 50-55 cN.m, or 25-30 cN.m with gasket
- RoHS and REACH compliant; 1.19 lbs (0.54 kg)
The 1590R is the largest size listed in the 1590-RIBBED diecast aluminum series table, with room for P.C. boards up to 182.42 mm by 102.42 mm. It suits OEM engineers, integrators and facilities teams housing larger control or instrument electronics in a rugged metal enclosure with internal ribs that guide the board.

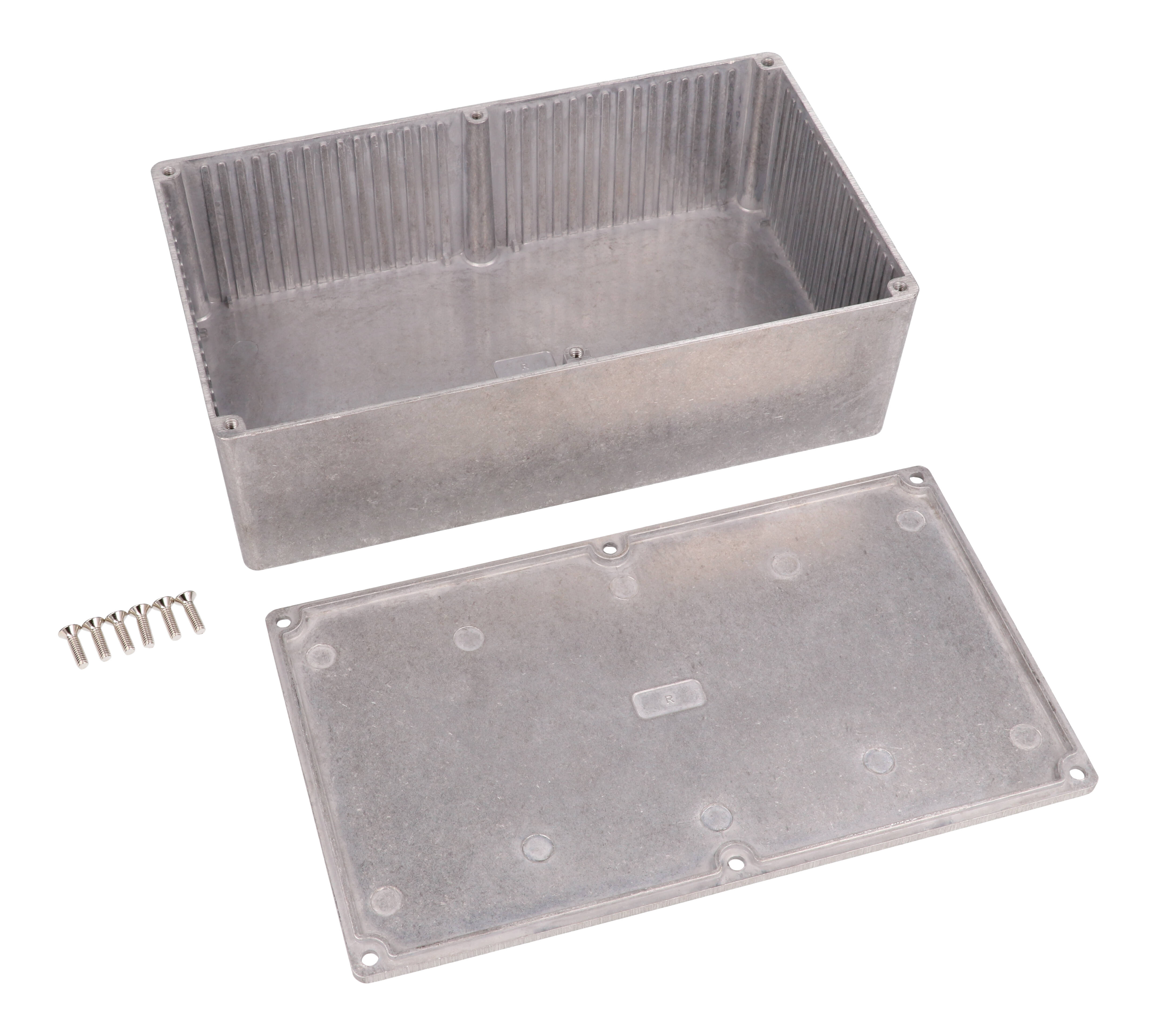

The box and lid are diecast aluminum alloy, tough yet easy to machine. This natural version is unpainted and vibra finished for a smooth surface with no sharp edges. Lap joint construction protects against access of dust and splashing water, and the standard 1590R is rated IP54. Unlike the smaller sizes, the purchased assembly includes box, lid and 6 cover screws (M3.5x0.6), threaded into factory-tapped holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket.
The part page lists 7.55 in x 4.37 in x 2.24 in (192 mm x 111 mm x 57 mm); the series table lists 192 x 102 x 61 mm, and the drawing outline is 191.80 x 111.60 x 61.00 mm. Inside dimensions are 183.29 mm [7.216"] long, 103.29 mm [4.067"] wide and 56.80 mm [2.236"] high, with 53.03 mm [2.088"] guide height. Shipping weight is 1.19 lbs (0.54 kg).
The optional 1590RGASKET kit is listed for this size, and a flanged-bottom 1590RF is offered. RoHS and REACH compliant; shrink wrapped; solid models in STEP or IGES.
Ideal For
- Larger P.C. board and control electronics housings
- OEM instrument enclosures
- Electronic instrument housings
- Electronics project boxes
Overview
| Type | Die-cast box |
| Color | Natural Aluminum |
| Series | 1590-RIBBED Series Diecast Aluminum Enclosures (With Internal Ribs) |
| Version | No Mounting Flanges, Standard Version |
| Description | enclosure - diecast |
| Part Number | 1590R |
| Short Description | DIECAST BOX 7.5X4.3X2.4 C90 |
Dimensions
| Inside Width | 103.29 mm [4.067"] |
| Inside Height | 56.80 mm [2.236"] |
| Inside Length | 183.29 mm [7.216"] |
| Size L X W X H | 7.55 in x 4.37 in x 2.24 in (192 mm x 111 mm x 57 mm) |
| Series Table Note | Dimensions include lid. Lid height is 4mm (0.16"). |
| Overall Width (Drawing) | 111.60 mm [4.394"] |
| Overall Height (Drawing) | 61.00 mm [2.402"] |
| Overall Length (Drawing) | 191.80 mm [7.551"] |
| Nominal Size (Series Table) L X W X D | 7.56 in (192 mm) x 4.02 in (102 mm) x 2.40 in (61 mm) |
Identifiers
| UPC | 623980543901 |
| UNSPSC | 39121301 |
PCB Mounting
| Slot Width | 2.00 mm [.079"] |
| Guide Depth | 1.00 mm [.039"] |
| Guide Width | 3.00 mm [.118"] |
| Guide Height | 53.03 mm [2.088"] |
| Side Wall Draft Angle | 2 degrees or less (low draft for easy P.C. board mounting) |
| Max. P.C. Board Width (Mm) | 182.42 |
| Max. P.C. Board Length (Mm) | 102.42 |
Documentation
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Solid Models Available | STEP or IGES |
Related Versions
| Other Versions In Same Size & Color | Flanged Bottom Plate, Standard Version: 1590RF |
Compatible Hardware
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Philips Machine Screws (100-pack) | 1550MS100 (natural), 1550MS100BK (black) |
| Water-Tight Philips Machine Screws (100-pack) | 1550WMS100 (natural), 1550WMS100BK (black) |
| Torx With Pin Tamper-Resistant Screws (50-pack) | 1550MS50T, 1550MS50TBK, 1550WMS50T, 1550WMS50TBK (water-tight) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.19 lbs (0.54 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Diecast aluminum alloy with internal ribs; lap joint construction protects against access of dust and splashing water |
| Cover Screws | 6X M3.5x0.6, threaded into factory-tapped holes |
| Assembly Includes | box, lid and 6 cover screws |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Optional Gasket Kit (IP54 To IP65 Upgrade) | 1590RGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1590R?▾
183.29 mm [7.216"] long, 103.29 mm [4.067"] wide and 56.80 mm [2.236"] high.
How many cover screws are included?▾
The purchased assembly includes box, lid and 6 cover screws.
What board size fits?▾
Maximum P.C. board length 102.42 mm and maximum P.C. board width 182.42 mm.
Can the 1590R be upgraded to IP65?▾
The standard 1590R is IP54; the 1590RGASKET kit is listed as the optional gasket kit for this size.
Is there a flanged version?▾
Yes, the 1590RF has a flanged bottom plate.
