Hammond 1590NGASKET IP65 Silicone Gasket 2-Pack for N and N1 Boxes
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two pre-formed silicone gaskets for 1590N / 1590N1 enclosures
- Listed replacement kit for all 1590N1 natural and black versions
- Converts a standard IP54 enclosure toward IP65
- Adhesive-backed, applied to the lid
- Rated -40°C to 150°C (-40°F to 302°F)
- Torque lid screws to 25-30 cN.m (36-43 ozf.in) when gasketed

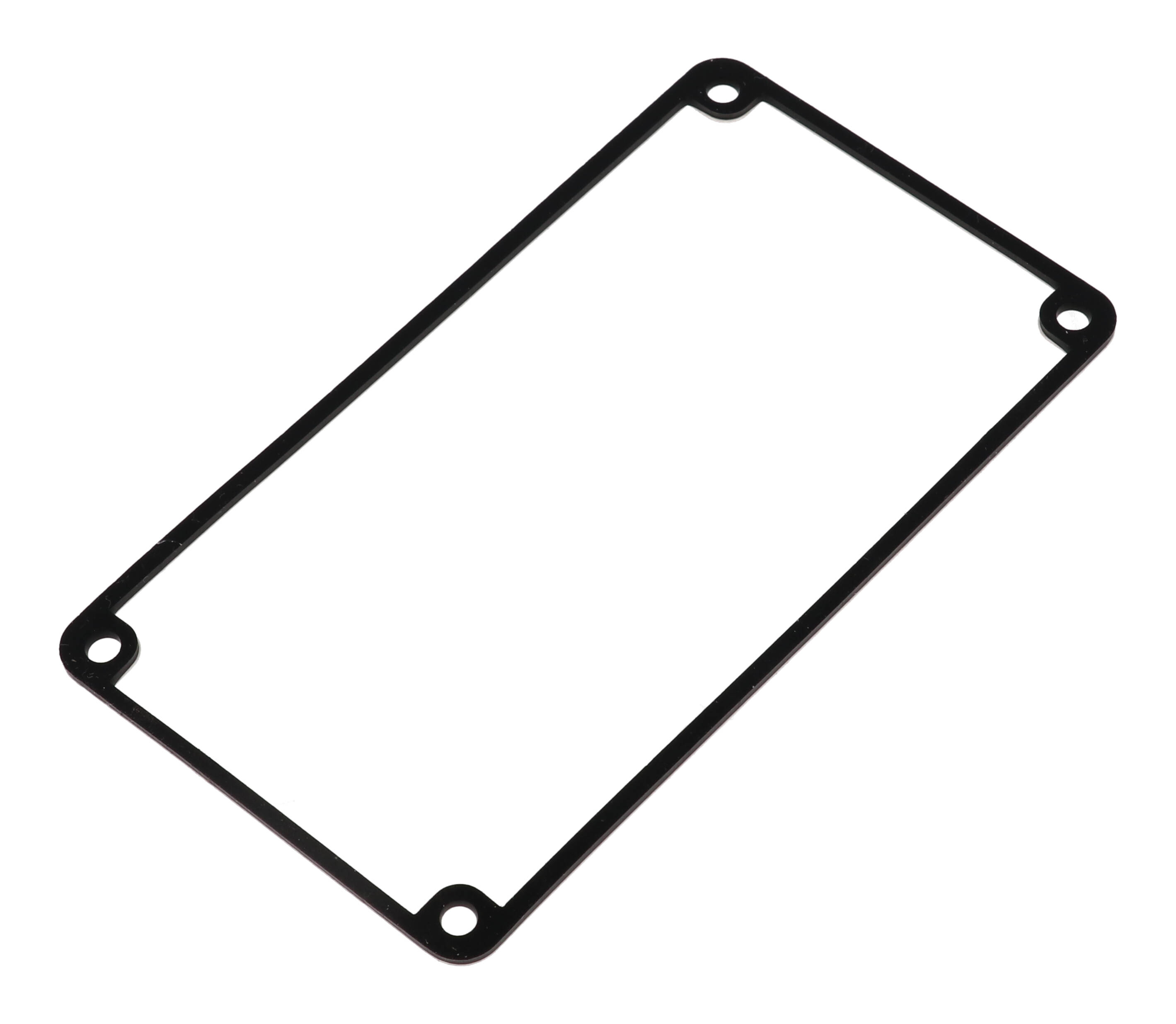

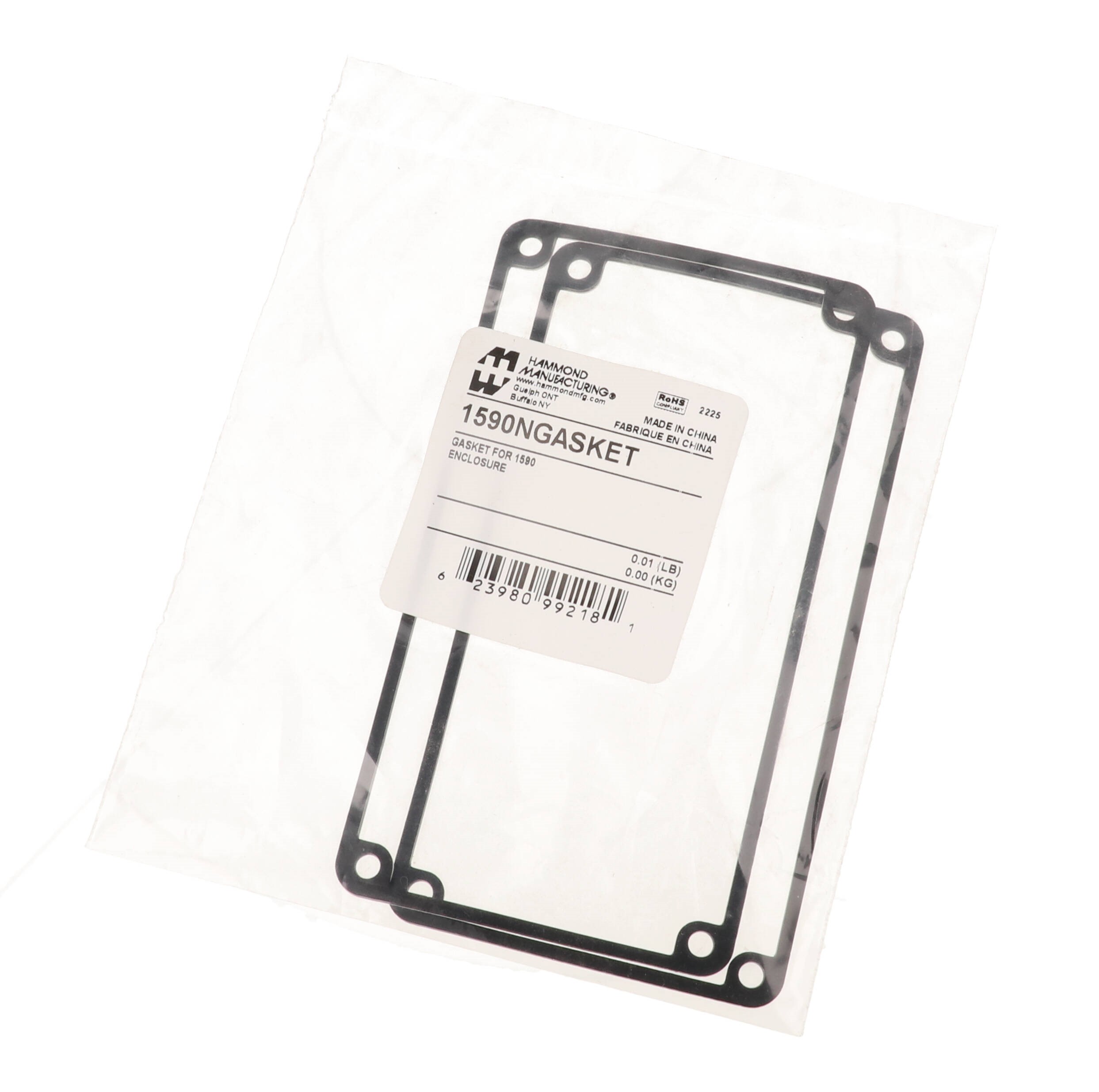

The 1590NGASKET is a two-gasket silicone kit for 1590N and 1590N1 diecast aluminum enclosures. In the series ordering table it is the optional replacement gasket kit for the 121 x 66 x 40 mm N1 box in natural and black, with no flanges, a flanged lid or a flanged bottom plate, as well as their water-tight versions.
Gaskets are included with water-tight 1590 enclosures, but this kit lets you upgrade a standard IP54 enclosure to IP65 or replace a worn gasket. The two gaskets are pre-formed and have adhesive backing for easy installation, and they are applied to the lid. Because the gasket goes on last, the enclosure can be machined and/or painted first and gasketed later.
The silicone is rated for -40°C to 150°C (-40°F to 302°F). IP65 depends on a properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in).
For a complete watertight conversion, the series notes recommend ordering watertight screws (stainless steel with O-ring) too. The N1 drawings list these as 1590WMS100 and 1590WMS100BK, 6-32 x 1/2 in with O-ring, in packages of 100. The gasket kit ships in a bag and is RoHS and REACH compliant.
Ideal For
- IP54 to IP65 upgrade on 1590N1 enclosures
- Replacement lid gasket for water-tight 1590WN1 boxes
- Sealing machined or painted diecast enclosures
Overview
| Fits | 1590N and 1590N1 enclosures |
| Type | Gasket |
| Part Number | 1590NGASKET |
| Pack Quantity | 2 pre-formed silicone gaskets |
| Long Description | silicone gasket for 1590N, N1 enclosures, 2-pack |
| Short Description | N / N1 SILICONE GASKET- 2 PACK |
| Listed As Replacement Gasket Kit For | 1590N1, 1590N1BK, 1590N1FL, 1590N1FLBK, 1590N1F, 1590N1FBK and their water-tight versions (1590WN1, 1590WN1BK, 1590WN1FL, 1590WN1FLBK, 1590WN1F, 1590WN1FBK) |
Identifiers
| UPC | 623980992181 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Backing | Adhesive backing |
| Material | Silicone |
| Application Location | Applied to the lid |
Environmental & Protection
| IP Rating | IP65 (with properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in)) |
| Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1590NGASKET fit?▾
It is a silicone gasket for 1590N and 1590N1 enclosures, and the ordering table lists it for the 1590N1, N1BK, N1FL, N1FLBK, N1F and N1FBK and their water-tight versions.
What is in the pack?▾
Two pre-formed silicone gaskets with adhesive backing.
Can I install it after machining the enclosure?▾
Yes. The gasket is applied to the lid, allowing the enclosure to be machined and/or painted first and gasketed later.
What torque should the lid screws be?▾
25-30 cN.m (36-43 ozf.in) with the gasket installed, for the enclosure to be designed to meet IP65.
Do I need different screws?▾
The series notes recommend watertight screws (stainless steel with O-ring) when converting a standard enclosure to a watertight box; for the N1 these are listed as 1590WMS100 or 1590WMS100BK.
