Hammond 1590NFL 121x66 mm Flanged Lid Natural Diecast Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flanged lid; 149.50 mm overall length for mounting
- 121 x 66 x 40 mm diecast aluminum alloy enclosure with internal ribs
- Fits P.C. boards up to 112.24 x 56.34 mm
- IP54 standard; 1590NGASKET kit listed for IP65
- Box, lid and 4 M3.5x0.6 cover screws included
- Natural vibra finish, smooth with no sharp edges
- RoHS and REACH compliant; 0.41 lbs (0.19 kg)

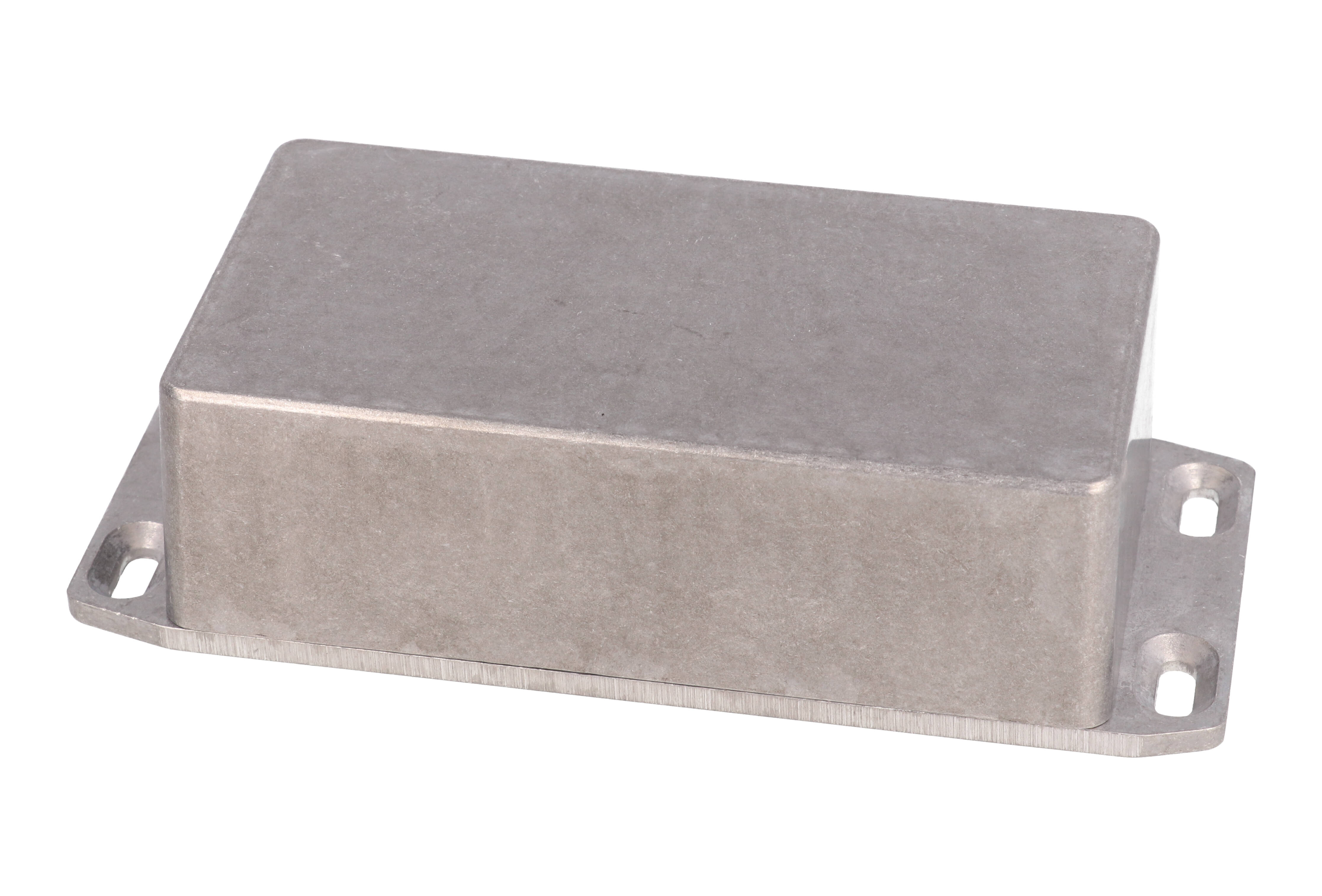

The 1590NFL is the 1590N diecast aluminum enclosure supplied with a flanged lid, giving an overall length of 149.50 mm [5.886"]. It suits OEM designers and integrators who want the mounting flange on the lid rather than the base, while housing a P.C. board up to 112.24 mm by 56.34 mm on the internal ribs.

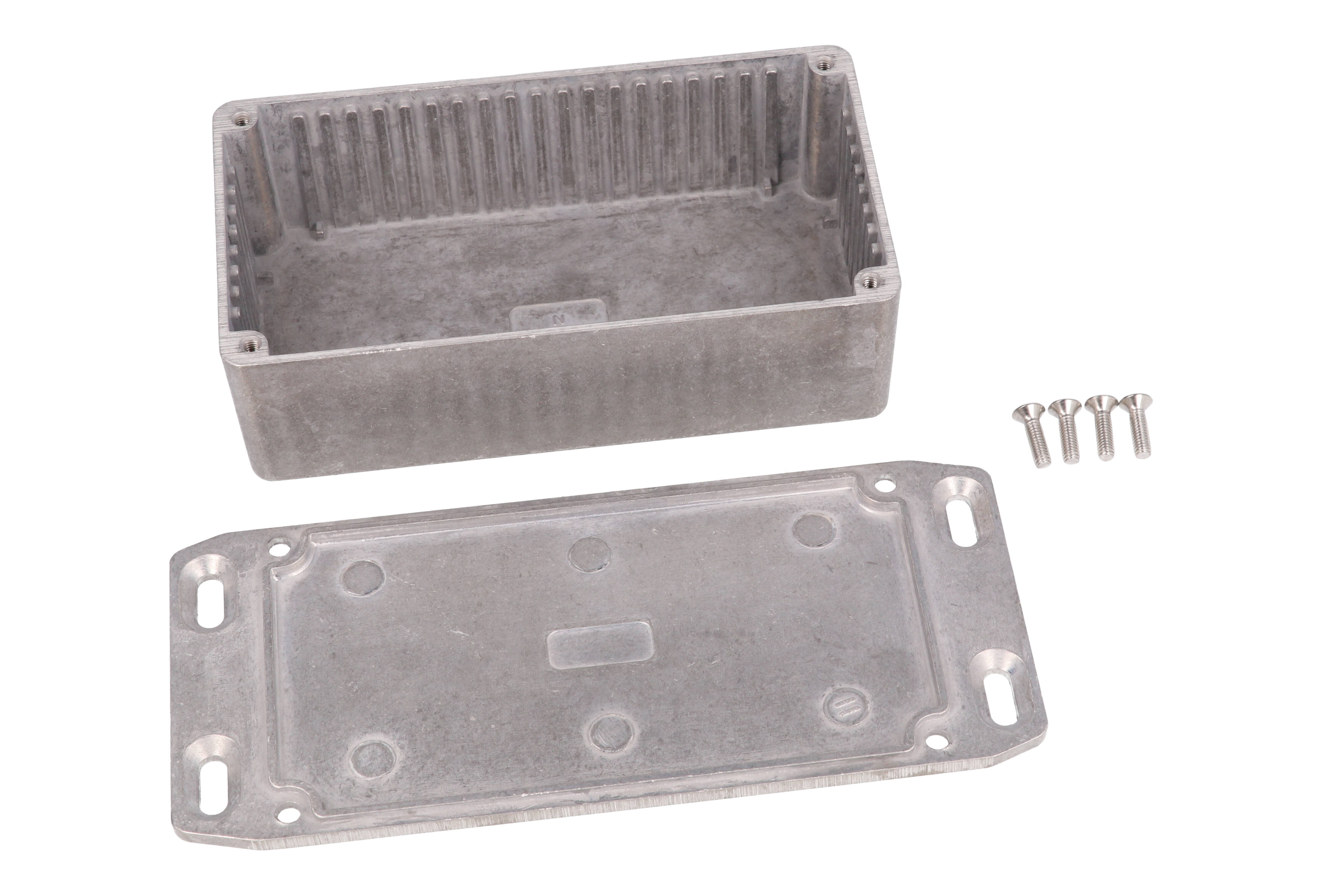

Box and lid are diecast aluminum alloy, tough yet easy to machine. The natural finish is unpainted and vibra finished for a smooth surface with no sharp edges. Lap joint construction protects against access of dust and splashing water and the enclosure is rated IP54. The purchased assembly includes box, lid and 4 cover screws (M3.5x0.6), with a recommended torque of 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket.
The part page lists 4.75 in x 2.61 in x 1.42 in (121 mm x 66 mm x 36 mm), and the series table lists 121 x 66 x 40 mm. The drawing gives inside dimensions of 113.71 mm [4.477"] long, 57.81 mm [2.276"] wide and 35.35 mm [1.392"] high, with 31.13 mm [1.226"] guide height. Shipping weight is 0.41 lbs (0.19 kg).
The 1590NGASKET kit is listed for this size, and 1590WNFL is the water-tight flanged-lid counterpart. RoHS and REACH compliant; shrink wrapped.
Ideal For
- Surface-mounted electronics via the flanged lid
- OEM control modules
- Wall or chassis mounted instrument housings
- P.C. board enclosures
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Series | 1590-RIBBED Series Diecast Aluminum Enclosures (With Internal Ribs) |
| Version | Flanged Lid, Standard Version |
| Description | enclosure - diecast |
| Part Number | 1590NFL |
| Short Description | 1590N WITH FLANGED LID |
Dimensions
| Inside Width | 57.81 mm [2.276"] |
| Inside Height | 35.35 mm [1.392"] |
| Inside Length | 113.71 mm [4.477"] |
| Size L X W X H | 4.75 in x 2.61 in x 1.42 in (121 mm x 66 mm x 36 mm) |
| Series Table Note | Dimensions include lid. Lid height is 4mm (0.16"). |
| Overall Width (Drawing) | 65.50 mm [2.579"] |
| Overall Height (Drawing) | 40.00 mm [1.575"] |
| Nominal Size (Series Table) L X W X D | 4.76 in (121 mm) x 2.60 in (66 mm) x 1.57 in (40 mm) |
| Overall Length Incl. Flange (Drawing) | 149.50 mm [5.886"] |
Identifiers
| UPC | 623980539713 |
| UNSPSC | 39121301 |
PCB Mounting
| Slot Depth | 1.50 mm [.059"] |
| Slot Width | 2.01 mm [.079"] |
| Guide Width | 3.00 mm [.118"] |
| Guide Height | 31.13 mm [1.226"] |
| Side Wall Draft Angle | 2 degrees or less (low draft for easy P.C. board mounting) |
| Max. P.C. Board Width (Mm) | 112.24 |
| Max. P.C. Board Length (Mm) | 56.34 |
Documentation
| Drawing Revision | 25.05.2020 |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Solid Models Available | .stp or .x_t |
Related Versions
| Other Versions In Same Size & Color | No Mounting Flanges, Standard Version: 1590N · No Mounting Flanges, Water-Tight Version: 1590WN · Flanged Lid, Water-Tight Version: 1590WNFL · Flanged Bottom Plate, Standard Version: 1590NF · Flanged Bottom Plate, Water-Tight Version: 1590WNF |
Compatible Hardware
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Philips Machine Screws (100-pack) | 1550MS100 (natural), 1550MS100BK (black) |
| Water-Tight Philips Machine Screws (100-pack) | 1550WMS100 (natural), 1550WMS100BK (black) |
| Torx With Pin Tamper-Resistant Screws (50-pack) | 1550MS50T, 1550MS50TBK, 1550WMS50T, 1550WMS50TBK (water-tight) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.41 lbs (0.19 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Flange | Flanged lid |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Diecast aluminum alloy with internal ribs; lap joint construction protects against access of dust and splashing water |
| Cover Screws | 4X M3.5x0.6, threaded into factory-tapped holes |
| Assembly Includes | box, lid and 4 cover screws |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Counterparts | 1590WN, 1590WNFL, 1590WNF |
| Optional Gasket Kit (IP54 To IP65 Upgrade) | 1590NGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is different about the 1590NFL?▾
It has a flanged lid rather than a plain lid, with an overall length of 149.50 mm [5.886"].
What are the inside dimensions?▾
113.71 mm [4.477"] long, 57.81 mm [2.276"] wide and 35.35 mm [1.392"] high.
What IP rating does it have?▾
IP54 as standard. The water-tight 1590WNFL and the 1590NGASKET kit are listed for IP65.
What is included?▾
Box, lid and 4 cover screws.
What is the recommended screw torque?▾
50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket.
