Hammond 1590WNFBK IP65 Flanged 121mm Diecast Enclosure, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded flanged bottom plate for surface mounting
- IP65 water-tight design; silicone gasket supplied loose
- Black textured polyester powder paint with black screws
- 146.05 mm overall length with flange; 121 x 66 x 40 mm nominal
- Internal ribs accept a P.C. board up to 112.24 x 56.34 mm
- 4 M3.5x0.6 cover screws; 25-30 cN.m torque with gasket

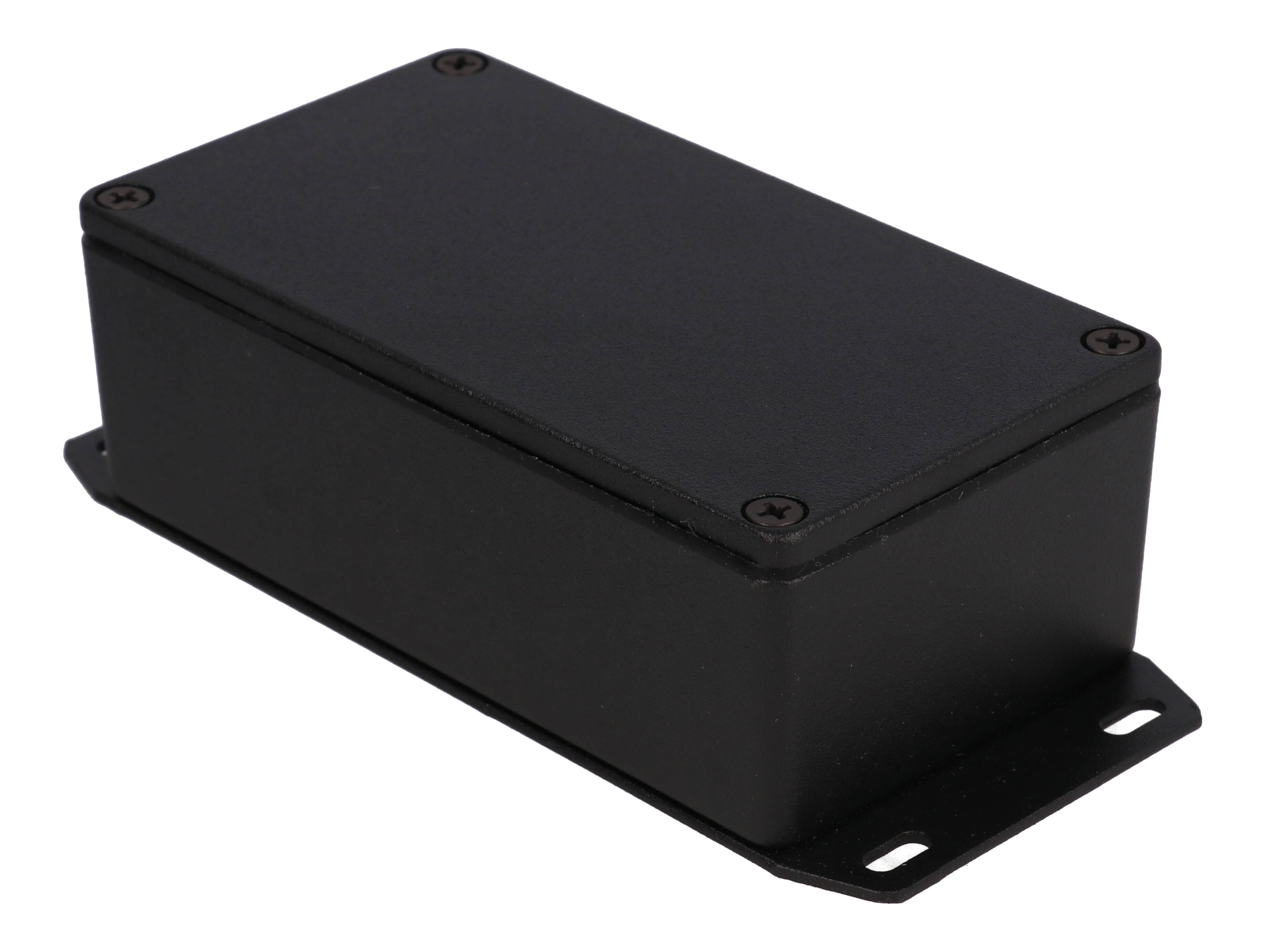

The 1590WNFBK is the black textured, water-tight 1590N diecast aluminum enclosure with a flanged bottom plate. It gives panel builders and OEM designers a sealed, flange-mounted metal housing, designed to meet IP65, in a painted finish.
Box and lid are die-cast aluminum alloy painted with tough polyester powder paint for a lasting finish even after machining, and black screws are included. The bottom flange is welded to the box. Lap joint construction works together with the silicone gasket, which is supplied loose inside the enclosure and not pre-installed, so machining can be done before sealing.
The nominal size is 121 x 66 x 40 mm (4.76 x 2.60 x 1.57 in). The flange extends the overall length to 146.05 mm [5.750 in], and overall height is 41.50 mm [1.634 in]. Interior dimensions are 113.71 x 57.81 x 35.20 mm [4.477 x 2.276 x 1.386 in], with internal ribs that locate a P.C. board up to 112.24 x 56.34 mm and a side wall draft angle of 2 degrees or less.

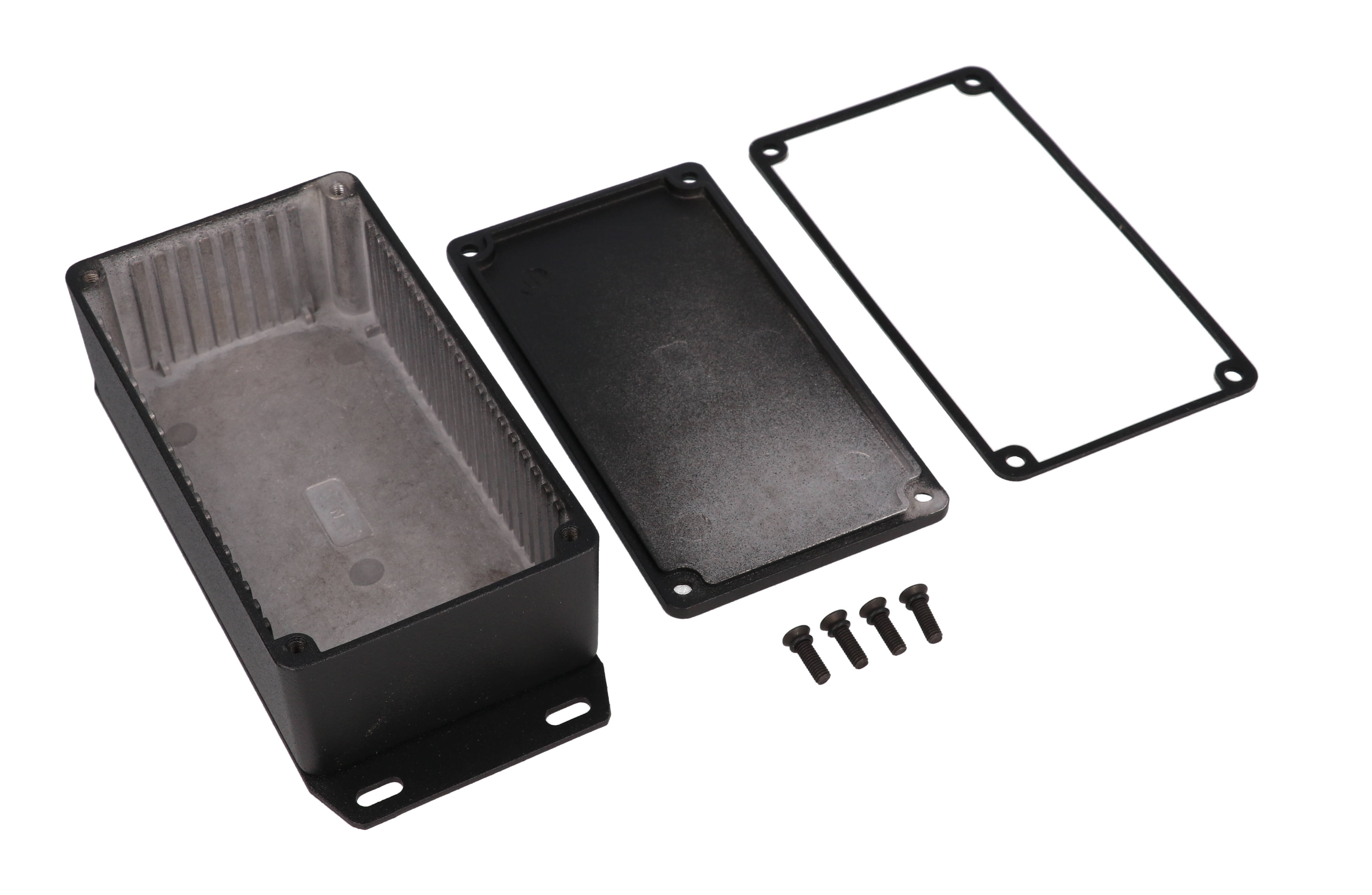

Supplied with box, lid, gasket and 4 M3.5x0.6 cover screws. Recommended torque with the gasket is 25-30 cN.m [36-43 ozf.in]. The 1590NGASKET replacement kit and 1550WMS100BK black liquid resistant screws are listed accessories. Shipping weight is 0.38 lbs (0.17 kg); RoHS and REACH compliant.
Ideal For
- Flange-mounted IP65 electronics in a black finish
- Wall- or panel-mounted control PCBs
- Electronic instrument enclosures
- Machined OEM housings
Mounting
| Mounting | Flanged bottom plate (bottom flange is welded) |
Overview
| Type | Die-cast box, water-tight |
| Series | 1590-RIBBED (Diecast Aluminum Enclosures with Internal Ribs) |
| Version | Water-tight, with flanged bottom plate |
| CAD Models | Solid models available |
| Description | 1590N Waterproof F-Box Black |
| Part Number | 1590WNFBK |
| Factory Modification | Can be factory modified (milling, drilling, printing) |
Dimensions
| Box Width | 65.50 mm [2.579 in] |
| Box Height | 36.00 mm [1.417 in] |
| Box Length | 121.20 mm [4.772 in] |
| Lid Height | 4 mm (0.16 in) - included in overall dimensions |
| Inside Width | 57.81 mm [2.276 in] |
| Inside Height | 35.20 mm [1.386 in] |
| Inside Length | 113.71 mm [4.477 in] |
| Overall Height | 41.50 mm [1.634 in] |
| PCB Slot Width | 2.01 mm [.079 in] |
| Size L X W X H | 4.75 in x 2.61 in x 1.42 in (121 mm x 66 mm x 36 mm) |
| PCB Guide Depth | 1.50 mm [.059 in] |
| PCB Guide Width | 3.00 mm [.118 in] |
| Max. P.C. Board Width | 112.24 mm |
| Max. P.C. Board Length | 56.34 mm |
| Nominal Size (L X W X D) | 4.76 in (121 mm) x 2.60 in (66 mm) x 1.57 in (40 mm) |
| Overall Length Including Flange | 146.05 mm [5.750 in] |
Accessories
| Optional Replacement Gasket Kit | 1590NGASKET |
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Standard Cover Screws, Black (Pkg 100) | 1550MS100BK [M3.5 x 12mm] |
| Standard Cover Screws, Plated (Pkg 100) | 1550MS100 [M3.5 x 12mm] |
| Tamper-Resistant Torx With Pin Screws (50-pack) | 1550MS50T (natural), 1550MS50TBK (black), 1550WMS50T (water-tight), 1550WMS50TBK (water-tight black) |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1550WMS100 [M3.5 x 12mm, With O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1550WMS100BK [M3.5 x 12mm, With O-Ring] |
Identifiers
| UPC | 623980539935 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.38 lbs (0.17 kg) |
Construction & Finish
| Color | Black |
| Finish | Black textured, polyester powder paint |
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Lap joint construction for protection against access of dust and splashing water |
| Assembly Hardware | Screws threaded into factory-tapped holes |
| Included Hardware | Box, lid, 4 cover screws (4X M3.5x0.6); black screws and silicone gasket |
| Internal Features | Internal ribs with P.C. board guide slots |
| Side Wall Draft Angle | 2 degrees or less (for easy P.C. board mounting) |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Lid Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP65 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1590WNFBK?▾
It is the black textured, water-tight version of the 1590N enclosure with a flanged bottom plate, designed to meet IP65.
How long is it including the flange?▾
The overall length including the welded bottom flange is 146.05 mm [5.750 in].
Is the gasket pre-installed?▾
No. The silicone gasket is supplied loose inside the enclosure.
What PCB size fits?▾
The internal guides accept a P.C. board up to 112.24 mm by 56.34 mm.
What screws are included?▾
Four M3.5x0.6 cover screws; the black painted version includes black screws.
