Hammond 1590LBK 101x50x25 mm Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Satin black polyester powder paint that lasts even after machining
- Black cover screws included to match the finish
- 101 x 50 x 25 mm diecast aluminum alloy body with internal ribs
- Accepts P.C. boards up to 93.71 x 42.61 mm in 1.97 mm guide slots
- IP54 rated; lap joint construction resists dust and splashing water
- Draft angle of 2 degrees or less on side walls for board mounting
- RoHS and REACH compliant; 0.22 lbs (0.10 kg) shipping weight

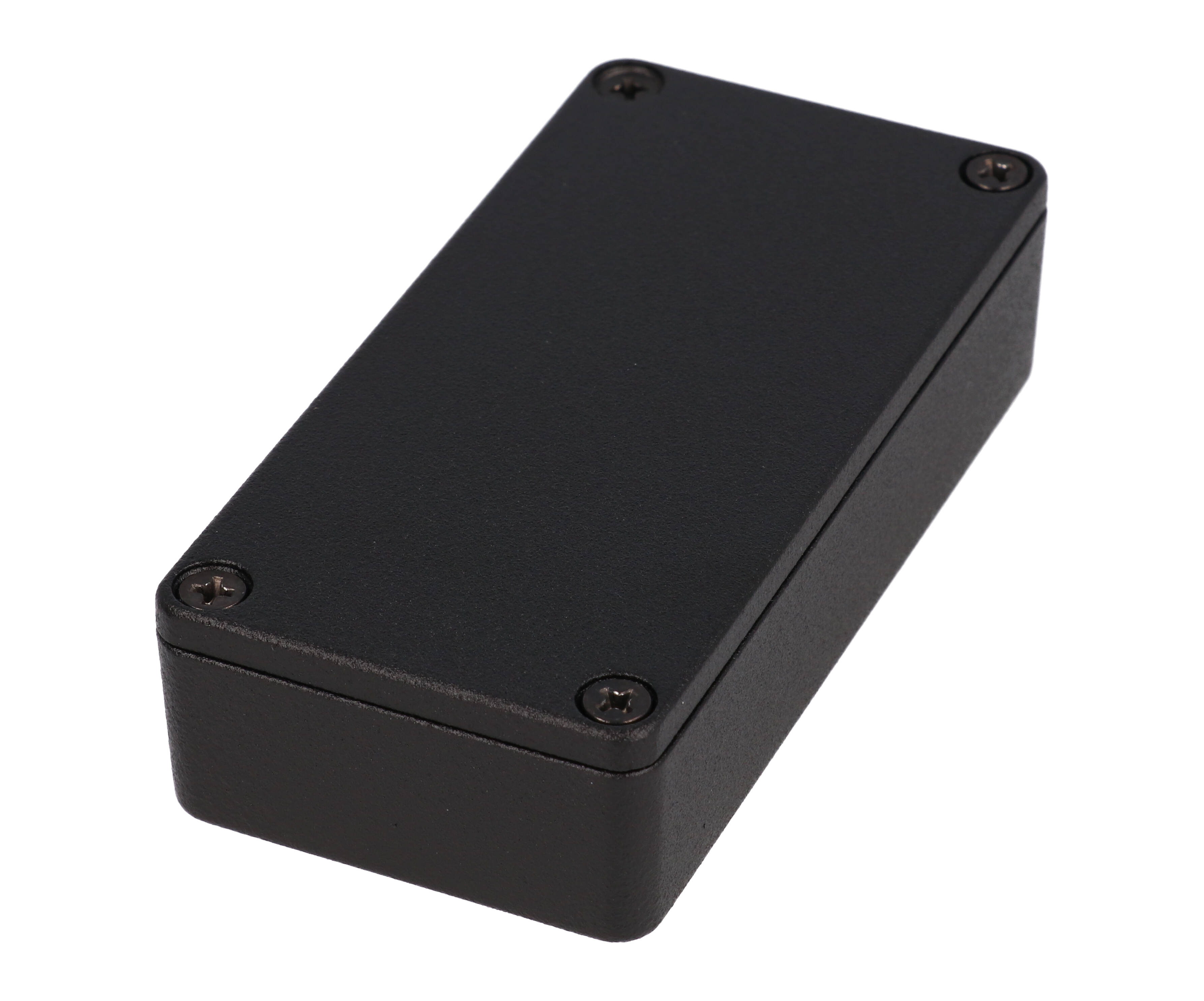

The 1590LBK is the satin black painted version of the slim 1590L diecast aluminum enclosure. It suits designers of pedals, test gear and compact OEM electronics who want a finished black exterior on a small, narrow box with internal ribs for guiding a P.C. board.

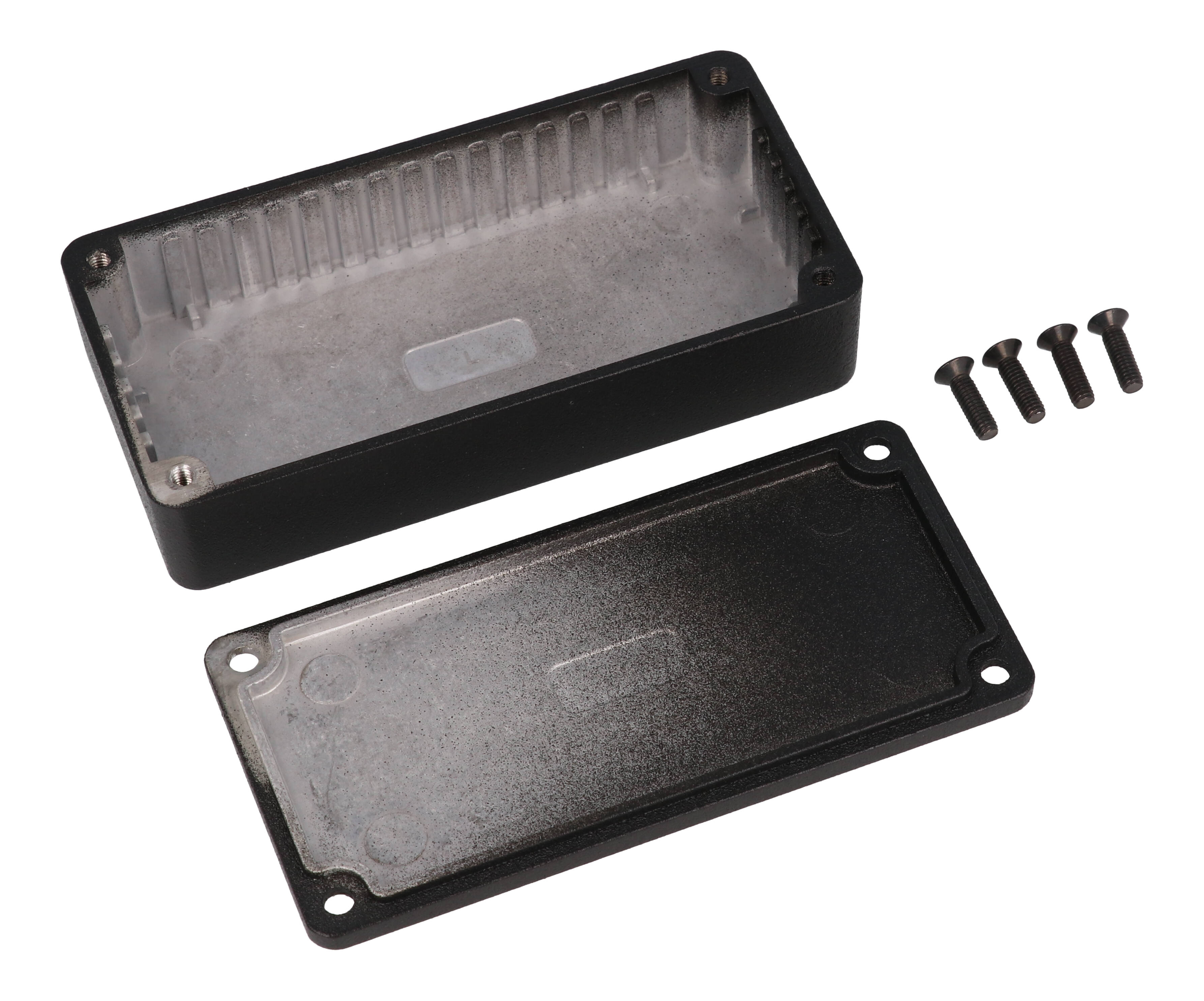

The body and lid are diecast aluminum alloy, tough yet easy to machine, and painted with tough polyester powder paint for a lasting finish even after machining. Black screws are included to enhance appearance. The lid attaches with 4X M3.5x0.6 x 12.00 mm screws that thread into factory-tapped holes, and lap joint construction helps keep out dust and splashing water for an IP54 rating.
Listed size is 3.96 in x 1.97 in x 0.98 in (101 mm x 50 mm x 25 mm) with a shipping weight of 0.22 lbs (0.10 kg). Inside, the drawing shows 97.29 mm [3.830"] of length, 43.22 mm [1.702"] of width and 21.05 mm [.829"] of height. Maximum P.C. board size is 93.71 mm by 42.61 mm, and the side walls have a draft angle of 2 degrees or less to make board mounting easier.
The 1590LBK is RoHS and REACH compliant and ships shrink wrapped. Black replacement screws (1550MS100BK) and black Torx tamper-resistant screws (1550MS50TBK) are offered for this size.
Ideal For
- Black-finish guitar pedal and stomp box enclosures
- Slim instrument and test equipment housings
- Compact OEM electronics with a painted exterior
- Narrow P.C. board projects
Overview
| Type | Die-cast box |
| Color | Black |
| Series | 1590-RIBBED Series Diecast Aluminum Enclosures (With Internal Ribs) |
| Version | No Mounting Flanges, Standard Version |
| Description | enclosure - diecast |
| Part Number | 1590LBK |
| Short Description | 1590L PAINTED BLACK |
Dimensions
| Inside Width | 43.22 mm [1.702"] |
| Inside Height | 21.05 mm [.829"] |
| Inside Length | 97.29 mm [3.830"] |
| Size L X W X H | 3.96 in x 1.97 in x 0.98 in (101 mm x 50 mm x 25 mm) |
| Series Table Note | Dimensions include lid. Lid height is 4mm (0.16"). |
| Overall Width (Drawing) | 50.00 mm [1.969"] |
| Overall Height (Drawing) | 24.90 mm [.980"] |
| Overall Length (Drawing) | 101.30 mm [3.988"] |
| Nominal Size (Series Table) L X W X D | 3.98 in (101 mm) x 1.57 in (40 mm) x 0.98 in (25 mm) |
Identifiers
| UPC | 623980542997 |
| UNSPSC | 39121301 |
PCB Mounting
| Slot Depth | 1.00 mm [.039"] |
| Slot Width | 1.97 mm [.078"] |
| Guide Width | 3.03 mm [.119"] |
| Guide Height | 16.83 mm [.663"] |
| Side Wall Draft Angle | 2 degrees or less (low draft for easy P.C. board mounting) |
| Max. P.C. Board Width (Mm) | 93.71 |
| Max. P.C. Board Length (Mm) | 42.61 |
Documentation
| Drawing Revision | 18.12.2025 |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Solid Models Available | .stp or .x_t |
Compatible Hardware
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Philips Machine Screws (100-pack) | 1550MS100 (natural), 1550MS100BK (black) |
| Water-Tight Philips Machine Screws (100-pack) | 1550WMS100 (natural), 1550WMS100BK (black) |
| Torx With Pin Tamper-Resistant Screws (50-pack) | 1550MS50T, 1550MS50TBK, 1550WMS50T, 1550WMS50TBK (water-tight) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.22 lbs (0.10 kg) |
Construction & Finish
| Finish | Satin black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Diecast aluminum alloy with internal ribs; lap joint construction protects against access of dust and splashing water |
| Cover Screws | 4X M3.5x0.6 x 12.00 mm, threaded into factory-tapped holes (black screws included) |
| Lid Screw Holes | 4X Ø 3.40 mm [.134"] |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590LBK finished?▾
It is painted with a tough satin black polyester powder paint for a lasting finish even after machining, and black screws are included.
What are the inside dimensions?▾
Inside length is 97.29 mm [3.830"], inside width 43.22 mm [1.702"] and inside height 21.05 mm [.829"].
What IP rating does it have?▾
The 1590LBK is rated IP54.
Can I get black replacement screws?▾
Yes. 1550MS100BK is a 100-pack of black Philips machine screws and 1550MS50TBK is a 50-pack of black Torx with pin tamper-resistant screws for this size.
Is a flanged black version listed?▾
The series table lists only the 1590LBK in black for this size; the flanged 1590LF is listed in natural.
