Hammond 1590WN IP65 Watertight 121mm Diecast Enclosure, Natural
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP65 water-tight design with silicone gasket included (supplied loose)
- Natural die-cast aluminum alloy, vibra finished with no sharp edges
- 121 x 66 x 40 mm nominal size (4.76 x 2.60 x 1.57 in)
- Internal ribs accept a P.C. board up to 112.24 x 56.34 mm
- Includes 4 M3.5x0.6 cover screws in factory-tapped holes
- Lid screw torque with gasket: 25-30 cN.m [36-43 ozf.in]
- Replacement gasket kit 1590NGASKET available
The 1590WN is the water-tight version of the 1590N diecast aluminum enclosure, supplied in natural unpainted aluminum. It suits electronics designers, instrument builders and field-equipment OEMs who need a compact metal housing designed to meet IP65, with internal ribs to locate a printed circuit board.

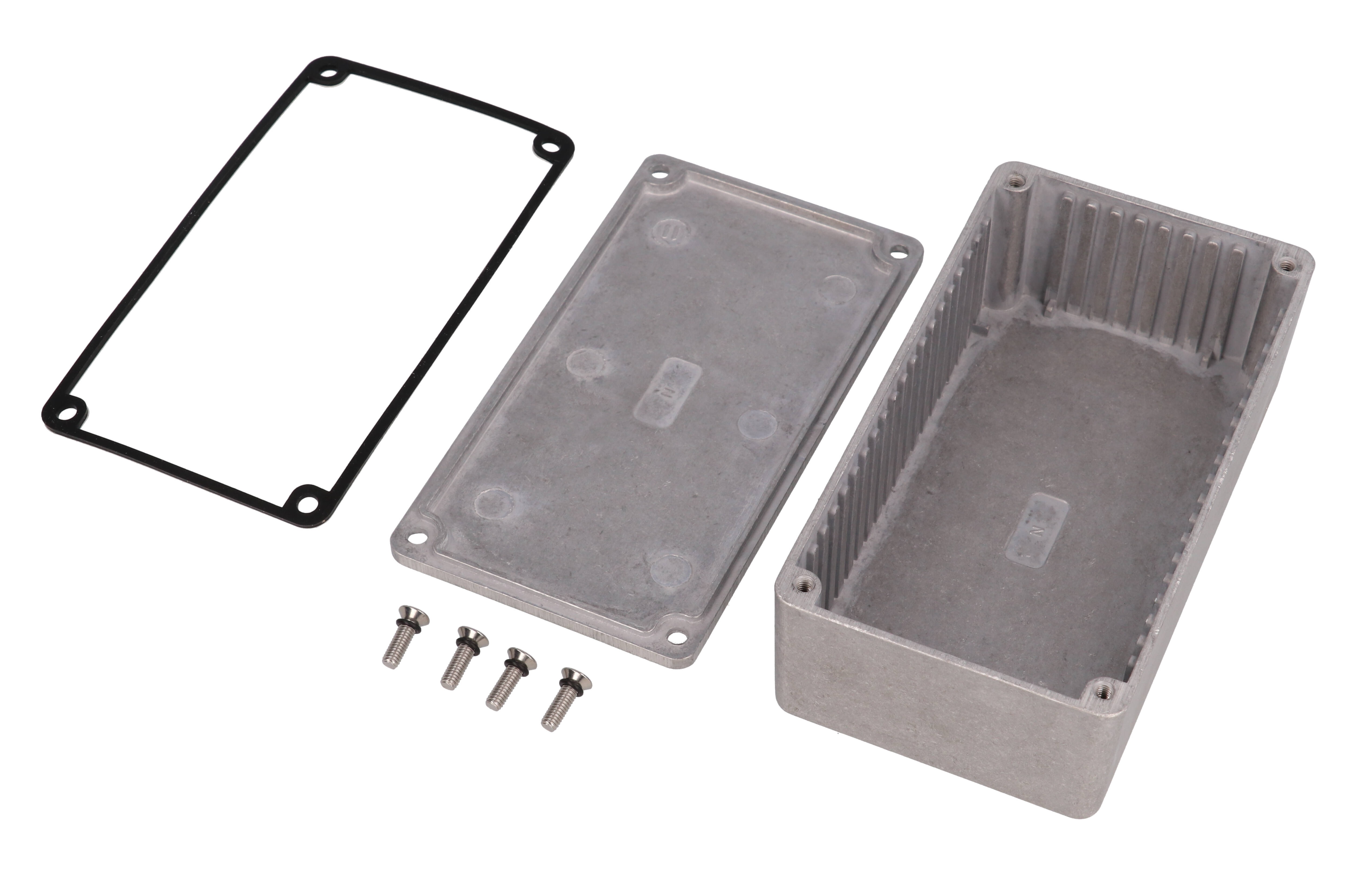

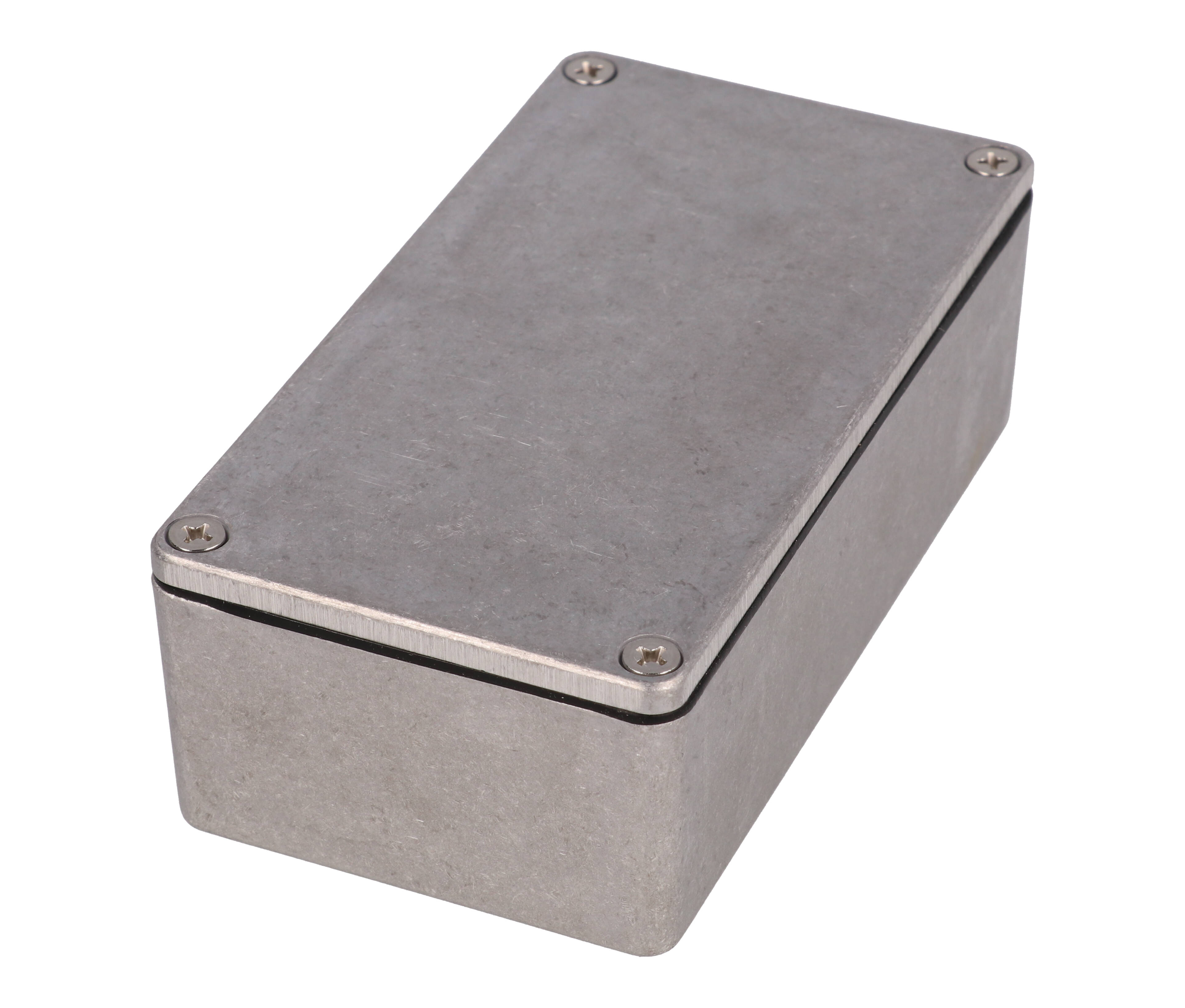

Box and lid are die-cast aluminum alloy, tough yet easy to machine. The unpainted finish is vibra finished for a smooth surface with no sharp edges. Lap joint construction guards against dust and splashing water, and the included silicone gasket is supplied loose inside the enclosure rather than pre-installed, so you can machine the box before sealing it.
Nominal size is 121 x 66 x 40 mm (4.76 x 2.60 x 1.57 in), with the 4 mm lid included. Inside, the drawing gives 113.71 mm [4.477 in] length, 57.81 mm [2.276 in] width and 35.20 mm [1.386 in] height. The internal guides take a P.C. board up to 112.24 mm by 56.34 mm, and the side wall draft angle is 2 degrees or less.
The assembly includes box, lid, gasket and 4 cover screws (M3.5x0.6) threaded into factory-tapped holes. With the gasket fitted, the recommended screw torque is 25-30 cN.m [36-43 ozf.in]. Liquid resistant stainless steel cover screws with O-ring (1550WMS100) and the 1590NGASKET replacement kit are listed accessories. The 1590WN is RoHS and REACH compliant and weighs 0.37 lbs (0.17 kg).
Ideal For
- Outdoor or wash-down electronics needing IP65
- Compact sensor and control PCB housings
- Electronic instrument enclosures
- Custom machined OEM enclosures
Overview
| Type | Die-cast box, water-tight |
| Series | 1590-RIBBED (Diecast Aluminum Enclosures with Internal Ribs) |
| Version | Water-tight, no mounting flanges |
| CAD Models | Solid models available |
| Description | 1590N Waterproof |
| Part Number | 1590WN |
| Factory Modification | Can be factory modified (milling, drilling, printing) |
Dimensions
| Box Height | 36.00 mm [1.417 in] |
| Lid Height | 4 mm (0.16 in) - included in overall dimensions |
| Inside Width | 57.81 mm [2.276 in] |
| Inside Height | 35.20 mm [1.386 in] |
| Inside Length | 113.71 mm [4.477 in] |
| Overall Width | 65.50 mm [2.579 in] |
| Overall Height | 40.00 mm [1.575 in] |
| Overall Length | 121.20 mm [4.772 in] |
| PCB Slot Width | 2.01 mm [.079 in] |
| Size L X W X H | 4.75 in x 2.61 in x 1.42 in (121 mm x 66 mm x 36 mm) |
| PCB Guide Depth | 1.50 mm [.059 in] |
| PCB Guide Width | 3.00 mm [.118 in] |
| PCB Guide Height | 31.13 mm [1.226 in] |
| Max. P.C. Board Width | 112.24 mm |
| Max. P.C. Board Length | 56.34 mm |
| Nominal Size (L X W X D) | 4.76 in (121 mm) x 2.60 in (66 mm) x 1.57 in (40 mm) |
Accessories
| Optional Replacement Gasket Kit | 1590NGASKET |
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Standard Cover Screws, Black (Pkg 100) | 1550MS100BK [M3.5 x 12mm] |
| Standard Cover Screws, Plated (Pkg 100) | 1550MS100 [M3.5 x 12mm] |
| Tamper-Resistant Torx With Pin Screws (50-pack) | 1550MS50T (natural), 1550MS50TBK (black), 1550WMS50T (water-tight), 1550WMS50TBK (water-tight black) |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1550WMS100 [M3.5 x 12mm, With O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1550WMS100BK [M3.5 x 12mm, With O-Ring] |
Identifiers
| UPC | 623980539751 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.37 lbs (0.17 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished |
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Lap joint construction for protection against access of dust and splashing water |
| Assembly Hardware | Screws threaded into factory-tapped holes |
| Included Hardware | Box, lid, 4 cover screws (4X M3.5x0.6) and silicone gasket |
| Internal Features | Internal ribs with P.C. board guide slots |
| Side Wall Draft Angle | 2 degrees or less (for easy P.C. board mounting) |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Lid Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP65 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the gasket installed on the 1590WN?▾
No. The silicone gasket is supplied loose inside the enclosure and is not pre-installed.
What IP rating does the 1590WN meet?▾
The 1590WN is a water-tight version designed to meet IP65.
What are the inside dimensions?▾
Inside length 113.71 mm [4.477 in], inside width 57.81 mm [2.276 in] and inside height 35.20 mm [1.386 in]. The guides accept a P.C. board up to 112.24 x 56.34 mm.
How tight should the lid screws be?▾
With the gasket fitted, torque the 4 M3.5x0.6 cover screws to 25-30 cN.m [36-43 ozf.in].
Is there a black version?▾
Yes, the series table lists the 1590WNBK as the black water-tight version of the same size.
