Hammond 1590M 112x63x31 mm Natural Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 112 x 63 x 31 mm diecast aluminum alloy enclosure with internal ribs
- Accepts P.C. boards up to 103.3 x 54.3 mm on 22.74 mm high guides
- IP54 rated; lap joint construction resists dust and splashing water
- Includes box, lid and 4 M3.5x0.6 cover screws in factory-tapped holes
- Unpainted, vibra finished for a smooth surface with no sharp edges
- Recommended cover screw torque 50-55 cN.m [71-78 ozf.in]
- RoHS and REACH compliant; 0.32 lbs (0.15 kg)

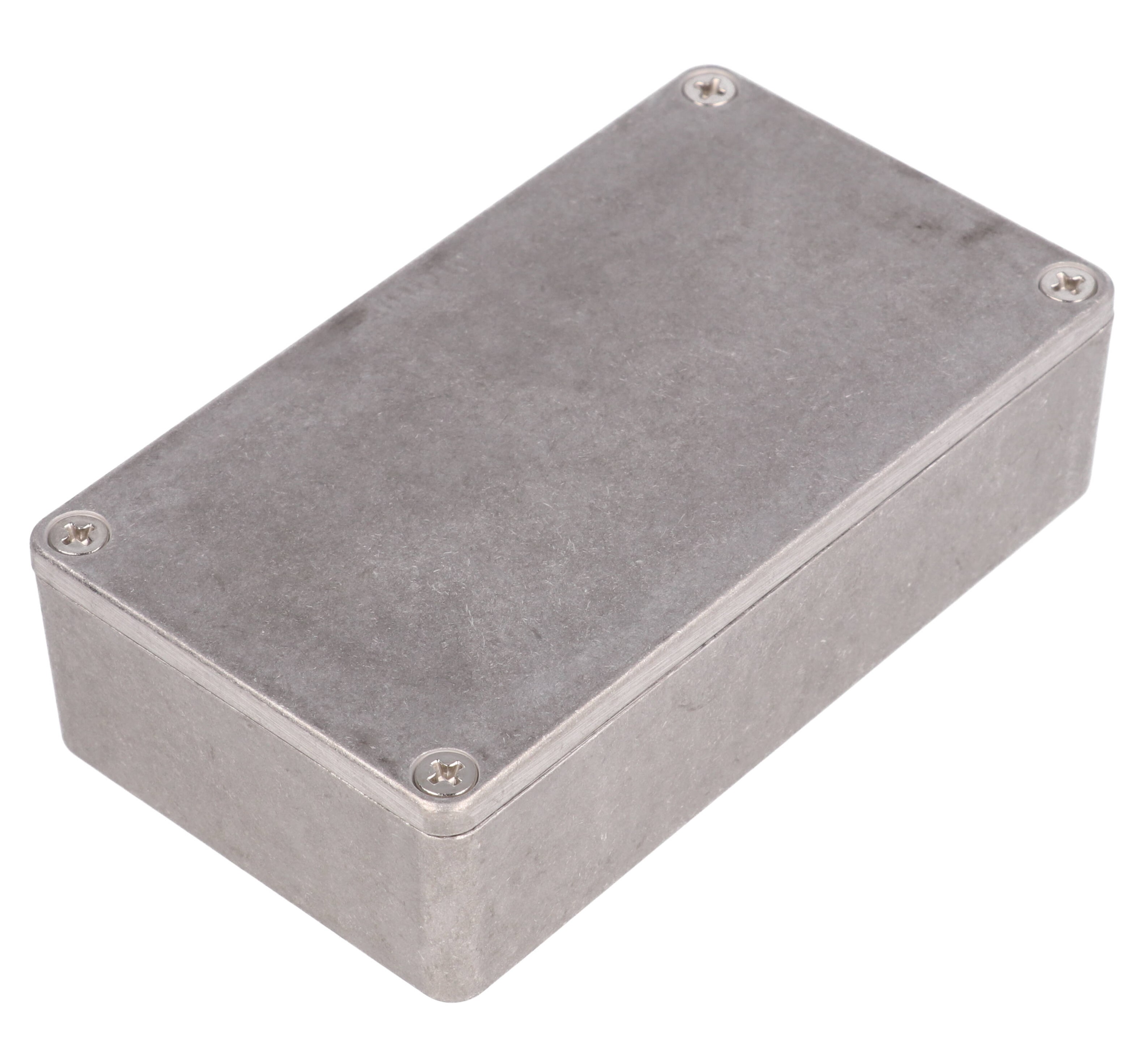

The 1590M is a mid-size diecast aluminum instrument enclosure in the 1590-RIBBED series, suited to OEM engineers, integrators and hobbyists housing a circuit board in a rugged metal box. Internal ribs form guides so a P.C. board can be slid in, and the side walls have a low draft angle of 2 degrees or less for easy board mounting.

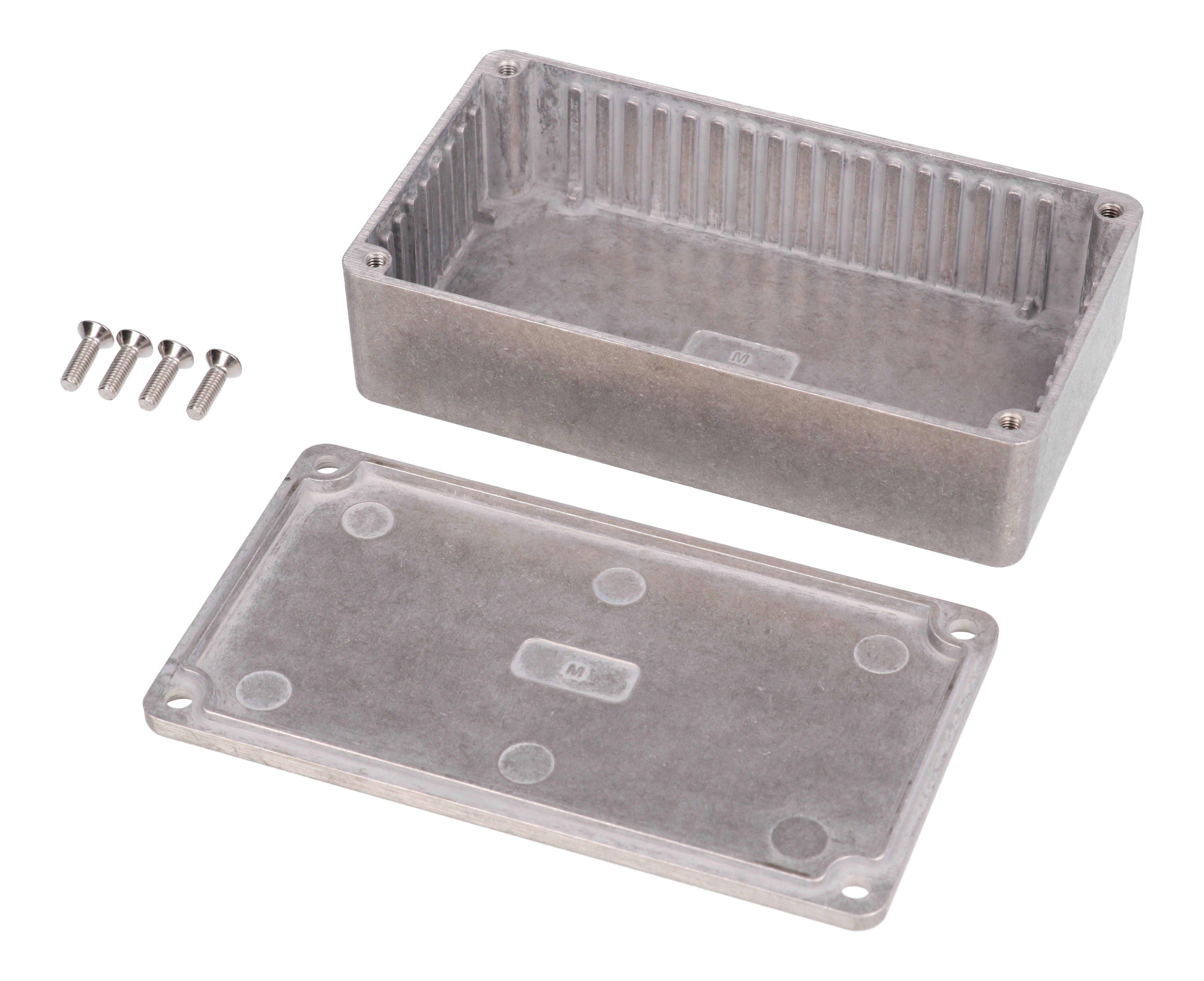

The box and lid are made from diecast aluminum alloy that is tough yet easy to machine. This natural version is unpainted and vibra finished for a smooth surface with no sharp edges. Lap joint construction protects against access of dust and splashing water, and the 1590M is rated IP54. The purchased assembly includes the box, lid and 4 cover screws (M3.5x0.6), with a recommended torque of 50-55 cN.m [71-78 ozf.in].
The part page lists the size as 4.48 in x 2.49 in x 1.06 in (114 mm x 63 mm x 27 mm), while the series table gives 112 x 63 x 31 mm including the 4 mm lid, matching the drawing's 112.00 x 63.00 x 31.00 mm outline. Inside, there is 107.17 mm of length, 55.17 mm [2.172"] of width and 26.60 mm [1.047"] of height. Maximum P.C. board size is 103.3 mm by 54.3 mm. Shipping weight is 0.32 lbs (0.15 kg).
A flanged-bottom 1590MF is offered in the same size. The 1590M is RoHS and REACH compliant, ships shrink wrapped, and solid models are available in STEP or IGES.
Ideal For
- P.C. board instrument enclosures
- Guitar effects pedal and stomp box builds
- OEM electronics and control modules
- Electronics project boxes
Overview
| Type | Die-cast box |
| Color | Natural Aluminum |
| Series | 1590-RIBBED Series Diecast Aluminum Enclosures (With Internal Ribs) |
| Version | No Mounting Flanges, Standard Version |
| Description | enclosure - diecast |
| Part Number | 1590M |
| Short Description | DIECAST BOX 4.4X2.4X1.2 C90 |
Dimensions
| Inside Width | 55.17 mm [2.172"] |
| Inside Height | 26.60 mm [1.047"] |
| Inside Length | 107.17 mm |
| Size L X W X H | 4.48 in x 2.49 in x 1.06 in (114 mm x 63 mm x 27 mm) |
| Series Table Note | Dimensions include lid. Lid height is 4mm (0.16"). |
| Overall Width (Drawing) | 63.00 mm [2.480"] |
| Overall Height (Drawing) | 31.00 mm [1.220"] |
| Overall Length (Drawing) | 112.00 mm [4.409"] |
| Nominal Size (Series Table) L X W X D | 4.41 in (112 mm) x 2.48 in (63 mm) x 1.22 in (31 mm) |
Identifiers
| UPC | 623980543307 |
| UNSPSC | 39121301 |
PCB Mounting
| Slot Depth | 1.50 mm [.059"] |
| Slot Width | 2.01 mm [.079"] |
| Guide Width | 2.99 mm [.118"] |
| Guide Height | 22.74 mm [.895"] |
| Side Wall Draft Angle | 2 degrees or less (low draft for easy P.C. board mounting) |
| Max. P.C. Board Width (Mm) | 103.3 |
| Max. P.C. Board Length (Mm) | 54.3 |
Documentation
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Solid Models Available | STEP or IGES |
Related Versions
| Other Versions In Same Size & Color | Flanged Bottom Plate, Standard Version: 1590MF |
Compatible Hardware
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Philips Machine Screws (100-pack) | 1550MS100 (natural), 1550MS100BK (black) |
| Water-Tight Philips Machine Screws (100-pack) | 1550WMS100 (natural), 1550WMS100BK (black) |
| Torx With Pin Tamper-Resistant Screws (50-pack) | 1550MS50T, 1550MS50TBK, 1550WMS50T, 1550WMS50TBK (water-tight) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.32 lbs (0.15 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Diecast aluminum alloy with internal ribs; lap joint construction protects against access of dust and splashing water |
| Cover Screws | 4X M3.5x0.6, threaded into factory-tapped holes |
| Lid Screw Holes | 4X Ø 3.40 mm [.134"] |
| Assembly Includes | box, lid and 4 cover screws |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is included with the 1590M?▾
The purchased assembly includes the box, lid and 4 cover screws.
What are the inside dimensions?▾
The drawing shows an inside length of 107.17 mm, inside width of 55.17 mm [2.172"] and inside height of 26.60 mm [1.047"].
Why do the part page and series table sizes differ?▾
The part page lists 114 x 63 x 27 mm, while the series table lists 112 x 63 x 31 mm and notes that dimensions include the lid, which is 4 mm (0.16") high. The drawing shows 112.00 x 63.00 x 31.00 mm overall.
What torque should the lid screws be tightened to?▾
The recommended torque is 50-55 cN.m [71-78 ozf.in].
What IP rating does the 1590M have?▾
The 1590M is rated IP54.
