Hammond 1590NFBK Flanged 121x66 mm Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded flanged bottom plate; 146.05 mm overall length
- Satin black polyester powder paint; black screws included
- 121 x 66 mm diecast aluminum alloy body with internal ribs
- Fits P.C. boards up to 112.24 x 56.34 mm
- IP54 standard; 1590NGASKET kit listed for IP65
- Box, lid and 4 M3.5x0.6 cover screws included
- RoHS and REACH compliant; 0.46 lbs (0.21 kg)

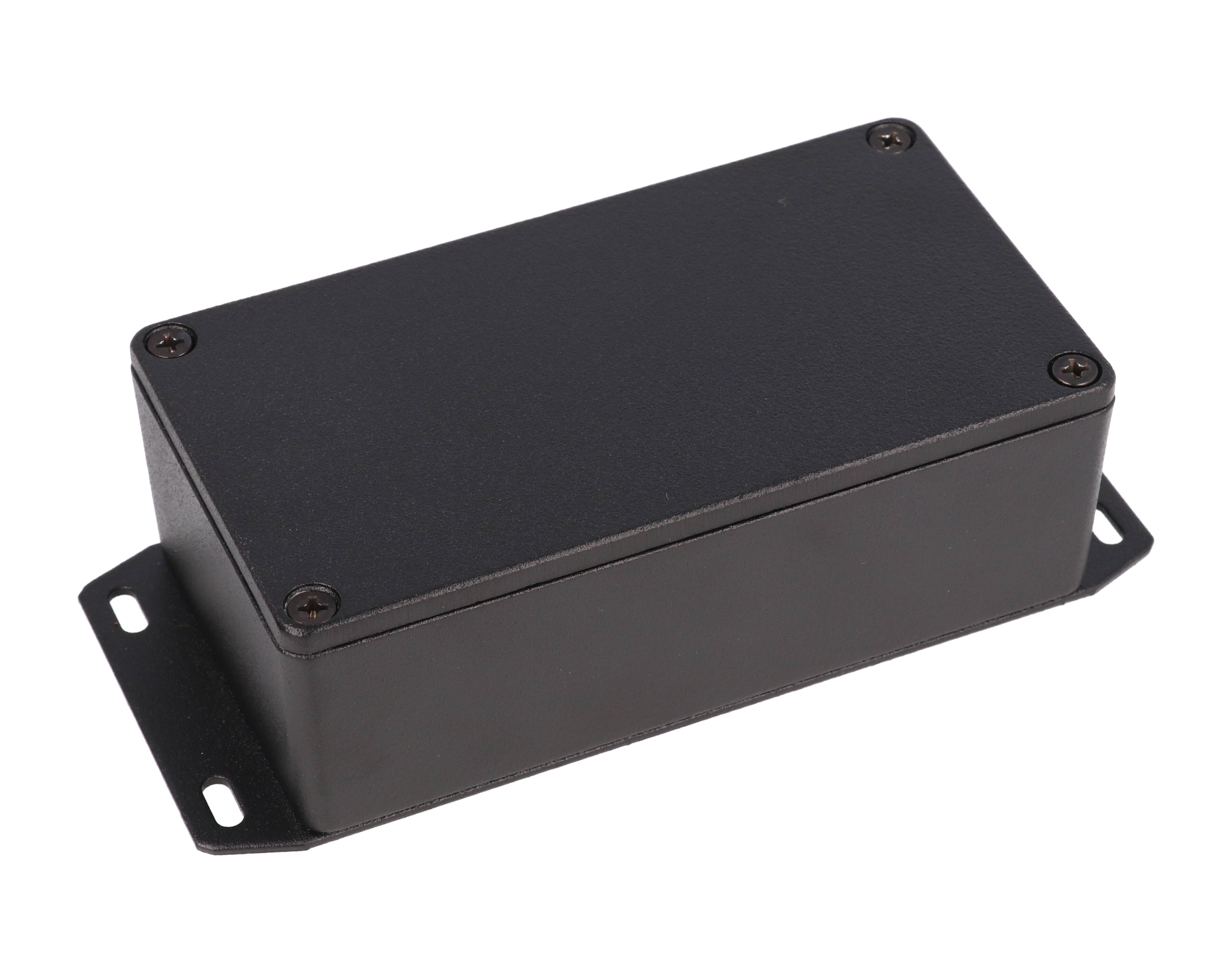

The 1590NFBK combines the 1590N enclosure size with a welded flanged bottom plate and a satin black painted finish. It is intended for integrators and OEM designers who need to surface-mount a black metal electronics box, with the flange bringing the overall length to 146.05 mm [5.750"].
Construction is diecast aluminum alloy, tough yet easy to machine, painted with tough polyester powder paint for a lasting finish even after machining. Black screws are included to enhance appearance. Internal ribs guide P.C. boards up to 112.24 mm by 56.34 mm, and the side walls have a draft angle of 2 degrees or less. Lap joint construction protects against dust and splashing water, giving an IP54 rating.
The part page lists 4.75 in x 2.61 in x 1.42 in (121 mm x 66 mm x 36 mm); the drawing shows an overall height of 41.50 mm [1.634"] and inside dimensions of 113.71 mm [4.477"] by 57.81 mm [2.276"] by 35.20 mm [1.386"]. Shipping weight is 0.46 lbs (0.21 kg).
The assembly includes box, lid and 4 cover screws (M3.5x0.6), with a recommended torque of 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket. The 1590NGASKET kit is listed for this size and 1590WNFBK is the black water-tight counterpart. RoHS and REACH compliant.
Ideal For
- Surface-mounted black control enclosures
- Chassis mounted OEM electronics
- Wall-mounted interface and sensor boxes
- Painted flanged instrument housings
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Series | 1590-RIBBED Series Diecast Aluminum Enclosures (With Internal Ribs) |
| Version | Flanged Bottom Plate, Standard Version |
| Description | enclosure - diecast |
| Part Number | 1590NFBK |
| Short Description | 1590N FLANGED BOX BLACK |
Dimensions
| Inside Width | 57.81 mm [2.276"] |
| Inside Height | 35.20 mm [1.386"] |
| Inside Length | 113.71 mm [4.477"] |
| Size L X W X H | 4.75 in x 2.61 in x 1.42 in (121 mm x 66 mm x 36 mm) |
| Series Table Note | Dimensions include lid. Lid height is 4mm (0.16"). |
| Overall Width (Drawing) | 65.50 mm [2.579"] |
| Overall Height (Drawing) | 41.50 mm [1.634"] |
| Overall Length (Drawing) | 121.20 mm [4.772"] |
| Nominal Size (Series Table) L X W X D | 4.76 in (121 mm) x 2.60 in (66 mm) x 1.57 in (40 mm) |
| Overall Length Incl. Flange (Drawing) | 146.05 mm [5.750"] |
Identifiers
| UPC | 623980539843 |
| UNSPSC | 39121301 |
PCB Mounting
| Slot Depth | 1.50 mm [.059"] |
| Slot Width | 2.01 mm [.079"] |
| Guide Width | 3.00 mm [.118"] |
| Side Wall Draft Angle | 2 degrees or less (low draft for easy P.C. board mounting) |
| Max. P.C. Board Width (Mm) | 112.24 |
| Max. P.C. Board Length (Mm) | 56.34 |
Documentation
| Drawing Revision | 25.05.2020 |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Solid Models Available | .stp or .x_t |
Related Versions
| Other Versions In Same Size & Color | No Mounting Flanges, Standard Version: 1590NBK · No Mounting Flanges, Water-Tight Version: 1590WNBK · Flanged Lid, Standard Version: 1590NFLBK · Flanged Lid, Water-Tight Version: 1590WNFLBK · Flanged Bottom Plate, Water-Tight Version: 1590WNFBK |
Compatible Hardware
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Philips Machine Screws (100-pack) | 1550MS100 (natural), 1550MS100BK (black) |
| Water-Tight Philips Machine Screws (100-pack) | 1550WMS100 (natural), 1550WMS100BK (black) |
| Torx With Pin Tamper-Resistant Screws (50-pack) | 1550MS50T, 1550MS50TBK, 1550WMS50T, 1550WMS50TBK (water-tight) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.46 lbs (0.21 kg) |
Construction & Finish
| Finish | Satin black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Diecast aluminum alloy with internal ribs; lap joint construction protects against access of dust and splashing water |
| Cover Screws | 4X M3.5x0.6, threaded into factory-tapped holes (black screws included) |

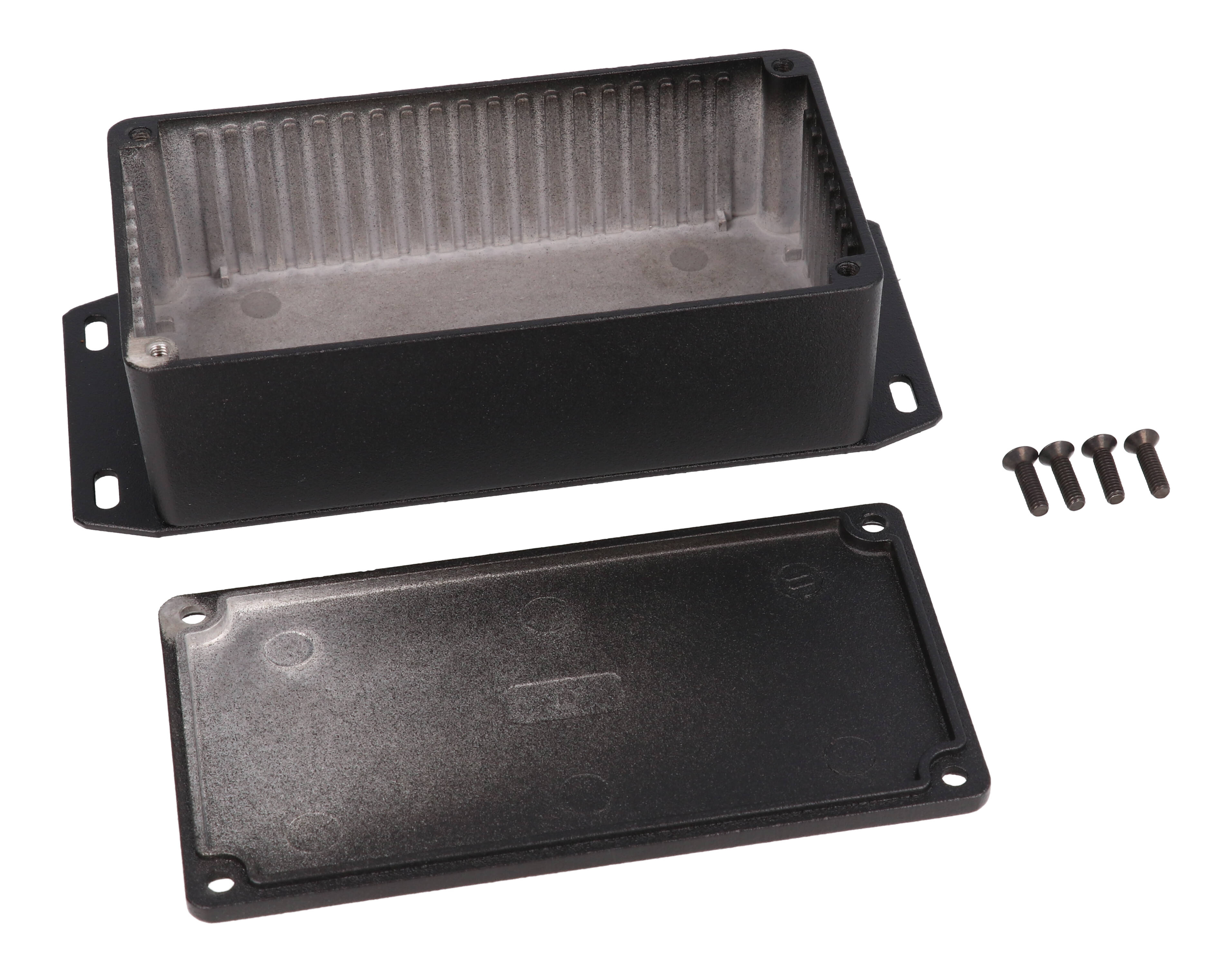

| Assembly Includes | box, lid and 4 cover screws |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Counterparts | 1590WNBK, 1590WNFLBK, 1590WNFBK |
| Optional Gasket Kit (IP54 To IP65 Upgrade) | 1590NGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590NFBK mounted?▾
It has a welded flanged bottom plate for surface mounting, giving an overall length of 146.05 mm [5.750"].
What finish does it have?▾
Satin black polyester powder paint, with black screws included.
What are the inside dimensions?▾
113.71 mm [4.477"] long, 57.81 mm [2.276"] wide and 35.20 mm [1.386"] high.
What is the water-tight equivalent?▾
1590WNFBK is listed as the black water-tight version with a flanged bottom plate.
What IP rating does it have?▾
IP54.
