Hammond 1590PF Flanged 153x83 mm Natural Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

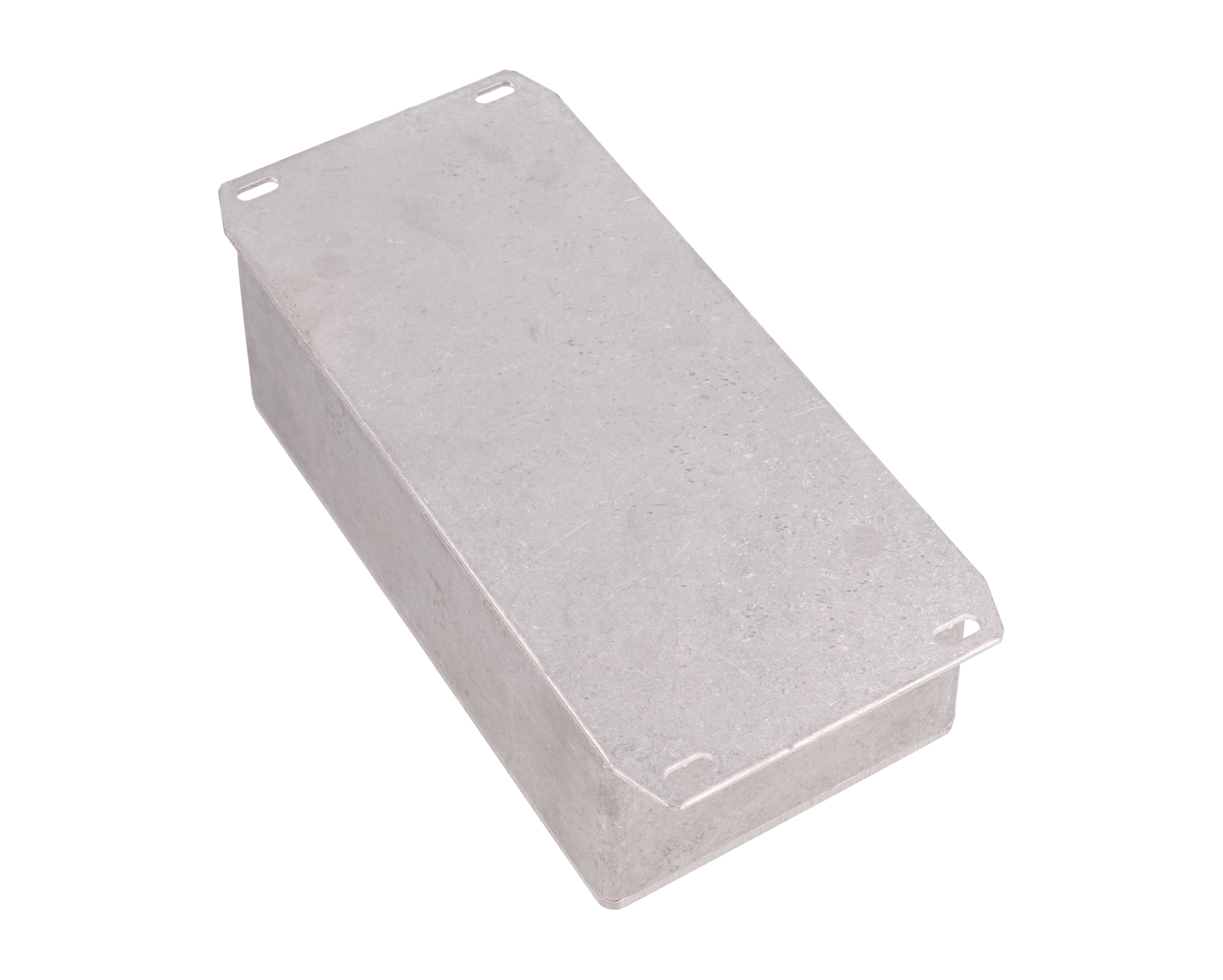

- Welded flanged bottom plate; 179.53 mm overall length for surface mounting
- 153 x 83 mm diecast aluminum alloy body with internal ribs
- Fits P.C. boards up to 143.22 x 73.12 mm
- IP54 standard; 1590PGASKET kit listed for IP65
- Box, lid and 4 M3.5x0.6 cover screws included
- Natural vibra finish with no sharp edges
- RoHS and REACH compliant; 0.87 lbs (0.39 kg)

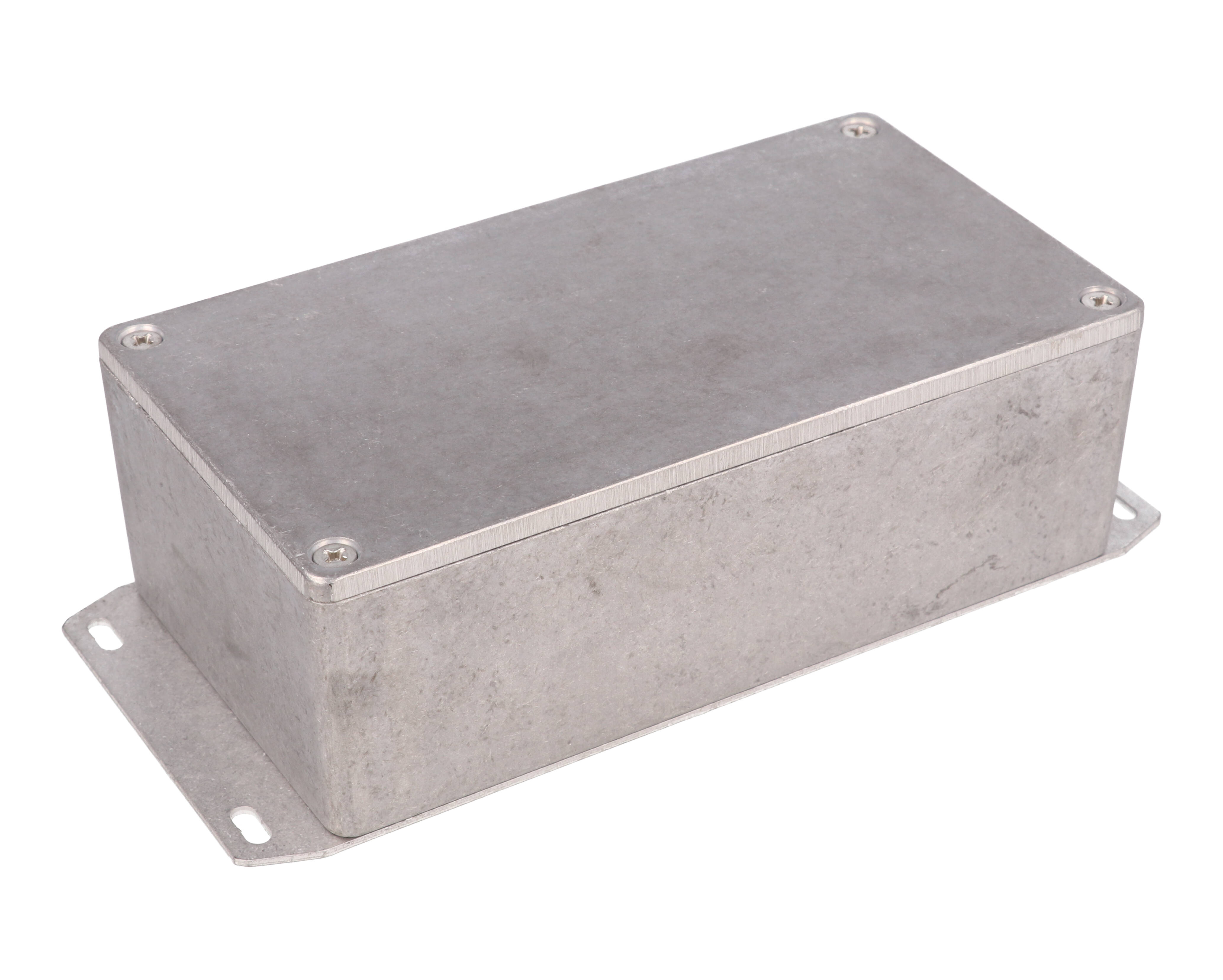

The 1590PF is the 1590P diecast aluminum enclosure fitted with a welded flanged bottom plate. The flange brings the overall length to 179.53 mm [7.068"] so the enclosure can be fastened to a mounting surface, making it suitable for integrators and OEM engineers surface-mounting electronics on P.C. boards up to 143.22 mm by 73.12 mm.
Box and lid are diecast aluminum alloy, tough yet easy to machine, in a natural finish that is unpainted and vibra finished for a smooth surface with no sharp edges. Internal ribs guide the board and the side walls have a draft angle of 2 degrees or less. Lap joint construction protects against access of dust and splashing water; the 1590PF is rated IP54.
The part page lists 6.03 in x 3.27 in x 1.98 in (153 mm x 83 mm x 50 mm); the drawing shows an overall height of 51.90 mm [2.043"] and inside dimensions of 146.29 mm [5.759"] long, 73.98 mm [2.913"] wide and 45.40 mm [1.787"] high. Shipping weight is 0.87 lbs (0.39 kg).
The purchased assembly includes box, lid and 4 cover screws (M3.5x0.6); recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket. The 1590PGASKET kit is listed for this size, and 1590WPF is the water-tight counterpart. RoHS and REACH compliant; shrink wrapped.
Ideal For
- Surface-mounted control electronics
- Chassis mounted OEM assemblies
- Wall-mounted interface and instrument housings
- Flanged enclosures for larger P.C. boards
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Series | 1590-RIBBED Series Diecast Aluminum Enclosures (With Internal Ribs) |
| Version | Flanged Bottom Plate, Standard Version |
| Description | enclosure - diecast |
| Part Number | 1590PF |
| Short Description | 1590P WITH FLANGE |
Dimensions
| Inside Width | 73.98 mm [2.913"] |
| Inside Height | 45.40 mm [1.787"] |
| Inside Length | 146.29 mm [5.759"] |
| Size L X W X H | 6.03 in x 3.27 in x 1.98 in (153 mm x 83 mm x 50 mm) |
| Series Table Note | Dimensions include lid. Lid height is 4mm (0.16"). |
| Overall Width (Drawing) | 83.10 mm [3.272"] |
| Overall Height (Drawing) | 51.90 mm [2.043"] |
| Overall Length (Drawing) | 153.20 mm [6.031"] |
| Nominal Size (Series Table) L X W X D | 6.02 in (153 mm) x 3.27 in (83 mm) x 1.97 in (50 mm) |
| Overall Length Incl. Flange (Drawing) | 179.53 mm [7.068"] |
Identifiers
| UPC | 623980536910 |
| UNSPSC | 39121301 |
PCB Mounting
| Slot Depth | 1.10 mm [.043"] |
| Guide Width | 3.00 mm [.118"] |
| Guide Height | 41.73 mm [1.643"] |
| Side Wall Draft Angle | 2 degrees or less (low draft for easy P.C. board mounting) |
| Max. P.C. Board Width (Mm) | 143.22 |
| Max. P.C. Board Length (Mm) | 73.12 |
Documentation
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Solid Models Available | STEP or IGES |
Related Versions
| Other Versions In Same Size & Color | No Mounting Flanges, Standard Version: 1590P · No Mounting Flanges, Water-Tight Version: 1590WP · Flanged Lid, Standard Version: 1590PFL · Flanged Lid, Water-Tight Version: 1590WPFL · Flanged Bottom Plate, Water-Tight Version: 1590WPF |
Compatible Hardware
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Philips Machine Screws (100-pack) | 1550MS100 (natural), 1550MS100BK (black) |
| Water-Tight Philips Machine Screws (100-pack) | 1550WMS100 (natural), 1550WMS100BK (black) |
| Torx With Pin Tamper-Resistant Screws (50-pack) | 1550MS50T, 1550MS50TBK, 1550WMS50T, 1550WMS50TBK (water-tight) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.87 lbs (0.39 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Diecast aluminum alloy with internal ribs; lap joint construction protects against access of dust and splashing water |
| Cover Screws | 4X M3.5x0.6, threaded into factory-tapped holes |
| Bottom Flange | Welded |

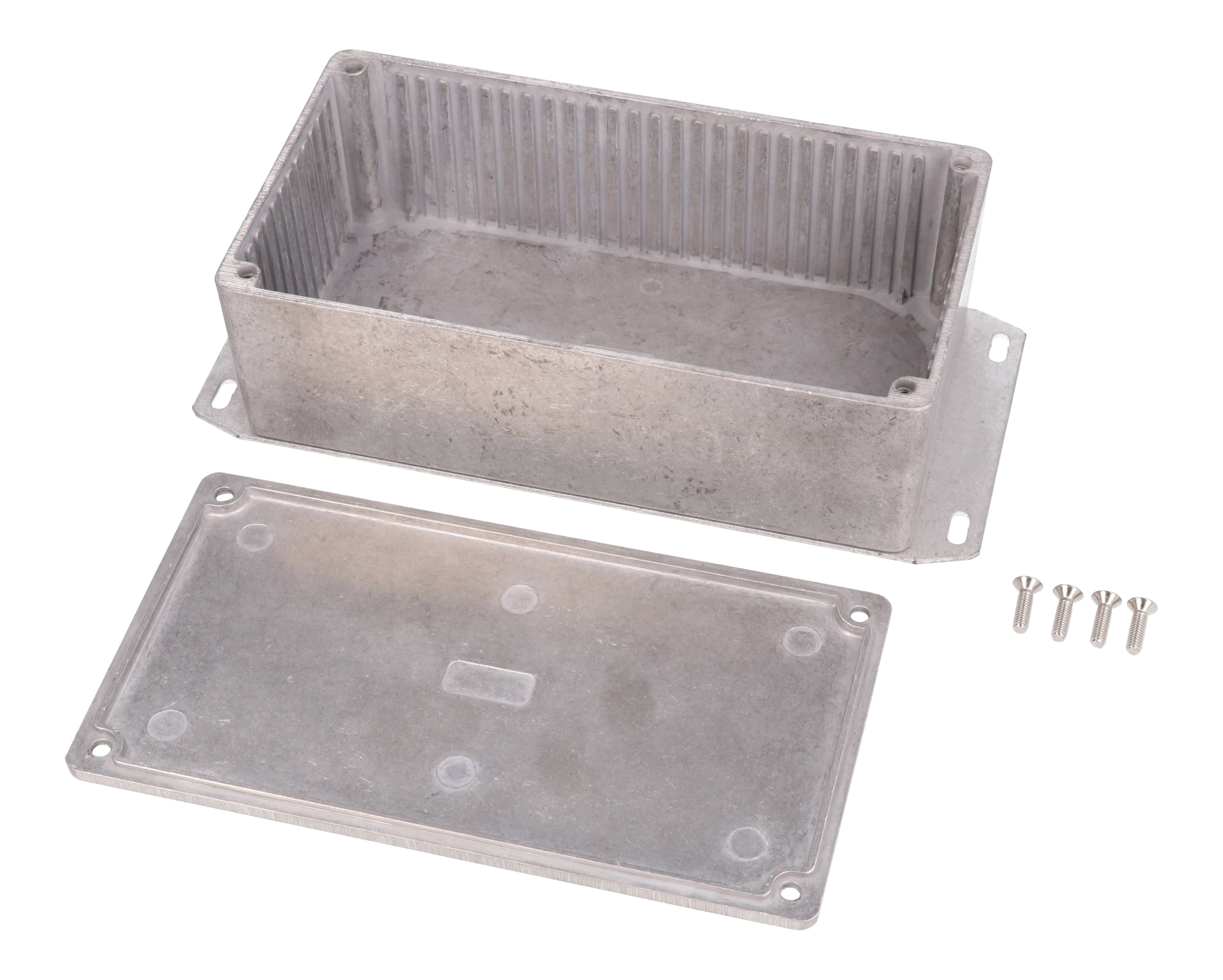

| Assembly Includes | box, lid and 4 cover screws |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Counterparts | 1590WP, 1590WPFL, 1590WPF |
| Optional Gasket Kit (IP54 To IP65 Upgrade) | 1590PGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the overall length of the 1590PF?▾
179.53 mm [7.068"] including the flange.
Is the flange welded?▾
Yes, the drawing notes the bottom flange is welded.
What are the inside dimensions?▾
146.29 mm [5.759"] long, 73.98 mm [2.913"] wide and 45.40 mm [1.787"] high.
Is there a water-tight version?▾
Yes, 1590WPF is listed as the water-tight version with a flanged bottom plate.
What IP rating does it have?▾
IP54.
