Hammond 1590RBK Black Textured 192mm Ribbed Diecast Enclosure
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

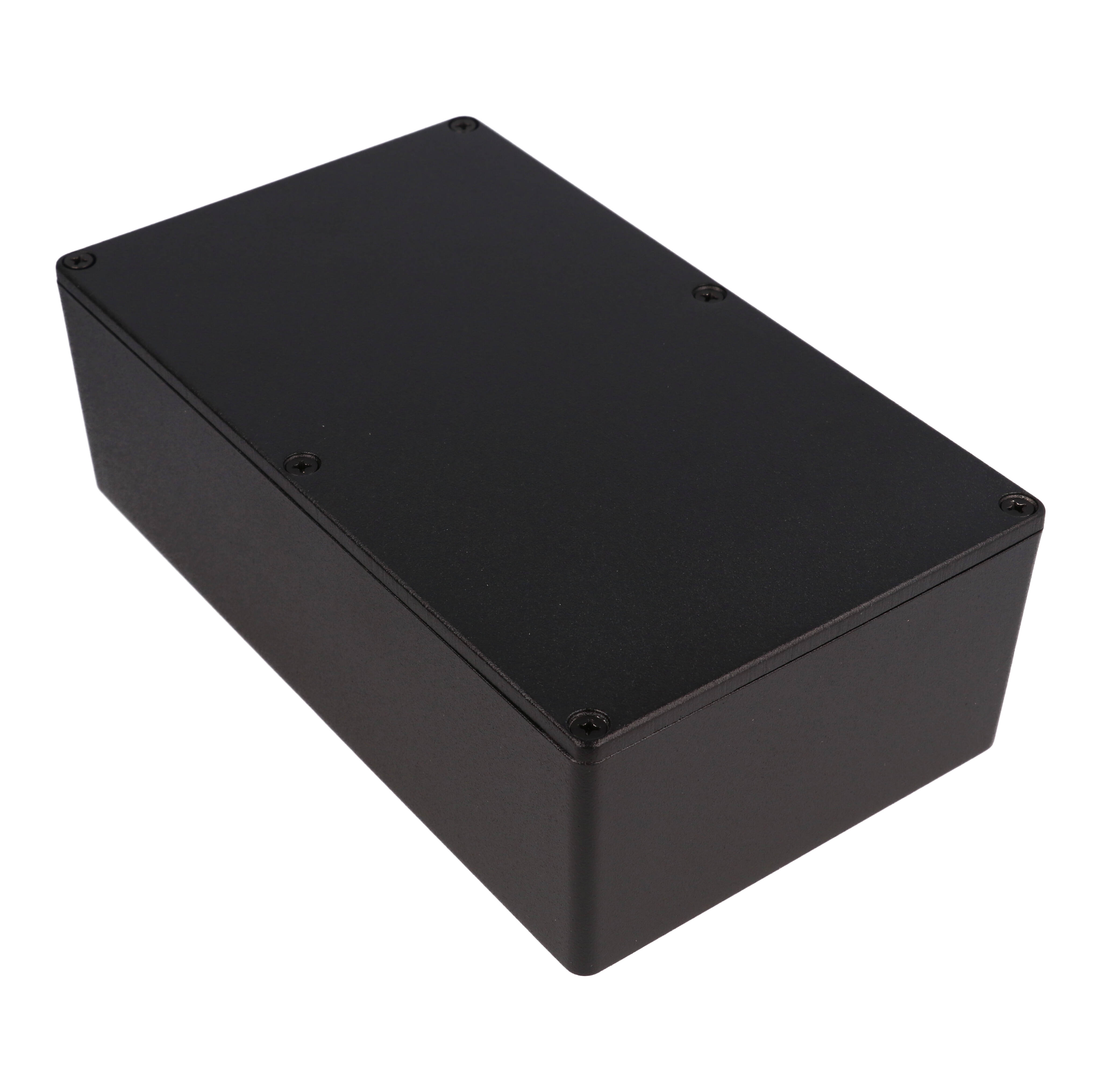

- Die-cast aluminum alloy box and lid with black textured polyester powder paint finish
- 192 x 102 x 61 mm nominal size (7.56 x 4.02 x 2.40 in), lid included
- Internal ribs with guides for a P.C. board up to 182.42 x 102.42 mm
- Designed to meet IP54; optional 1590RGASKET kit for IP65 upgrade
- Includes 6 M3.5x0.6 cover screws; black screws for a matched look
- Side wall draft angle of 2 degrees or less for easy board mounting
- RoHS and REACH compliant
The 1590RBK is the black textured version of the 1590R diecast aluminum enclosure, the largest size in the 1590-RIBBED family. It is built for OEM engineers, instrument builders and electronics hobbyists who need a rugged, easy-to-machine metal box with internal ribs that hold a printed circuit board without extra standoffs.
Box and lid are made from die-cast aluminum alloy. The black version is painted with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to match. Lap joint construction between box and lid protects against access of dust and splashing water, and the standard version is designed to meet IP54.
Nominal size is 192 x 102 x 61 mm (7.56 x 4.02 x 2.40 in), with dimensions including the 4 mm (0.16 in) lid. The drawing gives an inside length of 183.29 mm [7.216 in], inside width of 103.29 mm [4.067 in] and inside height of 56.80 mm [2.236 in]. Internal guides accept a P.C. board up to 182.42 mm by 102.42 mm, and the low side wall draft angle of 2 degrees or less makes board mounting straightforward.
The purchased assembly includes box, lid and 6 cover screws (M3.5x0.6) threaded into factory-tapped holes; recommended torque is 50-55 cN.m [71-78 ozf.in]. To upgrade the enclosure toward IP65, the optional 1590RGASKET silicone gasket kit is available, with lid screws torqued to 25-30 cN.m [36-43 ozf.in]. The 1590RBK is RoHS and REACH compliant and ships shrink wrapped.
Ideal For
- Electronic instrument enclosures
- PCB-mounted control and sensing electronics
- Custom machined OEM project boxes
- Dust- and splash-protected electronics (IP54)
Overview
| Type | Die-cast box |
| Series | 1590-RIBBED (Diecast Aluminum Enclosures with Internal Ribs) |
| Version | Standard, no mounting flanges |
| CAD Models | Solid models available |
| Description | 1590R Painted Black Texture diecast enclosure |
| Part Number | 1590RBK |
| Factory Modification | Can be factory modified (milling, drilling, printing) |
Dimensions
| Box Width | 102.00 mm [4.016 in] |
| Box Height | 57.00 mm [2.244 in] |
| Lid Height | 4 mm (0.16 in) - included in overall dimensions |
| Inside Width | 103.29 mm [4.067 in] |
| Inside Height | 56.80 mm [2.236 in] |
| Inside Length | 183.29 mm [7.216 in] |
| Overall Width | 111.60 mm [4.394 in] |
| Overall Height | 61.00 mm [2.402 in] |
| Overall Length | 191.80 mm [7.551 in] |
| PCB Slot Width | 2.00 mm [.079 in] |
| Size L X W X H | 7.55 in x 4.37 in x 2.24 in (192 mm x 111 mm x 57 mm) |
| PCB Guide Depth | 1.00 mm [.039 in] |
| PCB Guide Width | 3.00 mm [.118 in] |
| PCB Guide Height | 53.03 mm [2.088 in] |
| Max. P.C. Board Width | 182.42 mm |
| Max. P.C. Board Length | 102.42 mm |
| Nominal Size (L X W X D) | 7.56 in (192 mm) x 4.02 in (102 mm) x 2.40 in (61 mm) |
Accessories
| Optional Replacement Gasket Kit | 1590RGASKET |
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Standard Cover Screws, Black (Pkg 100) | 1550MS100BK [M3.5 x 12mm] |
| Standard Cover Screws, Plated (Pkg 100) | 1550MS100 [M3.5 x 12mm] |
| Tamper-Resistant Torx With Pin Screws (50-pack) | 1550MS50T (natural), 1550MS50TBK (black), 1550WMS50T (water-tight), 1550WMS50TBK (water-tight black) |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1550WMS100 [M3.5 x 12mm, With O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1550WMS100BK [M3.5 x 12mm, With O-Ring] |
Identifiers
| UPC | 623980997742 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.2 lbs (0.54 kg) |
Construction & Finish
| Color | Black |
| Finish | Black textured, polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Lap joint construction for protection against access of dust and splashing water |
| Assembly Hardware | Screws threaded into factory-tapped holes |

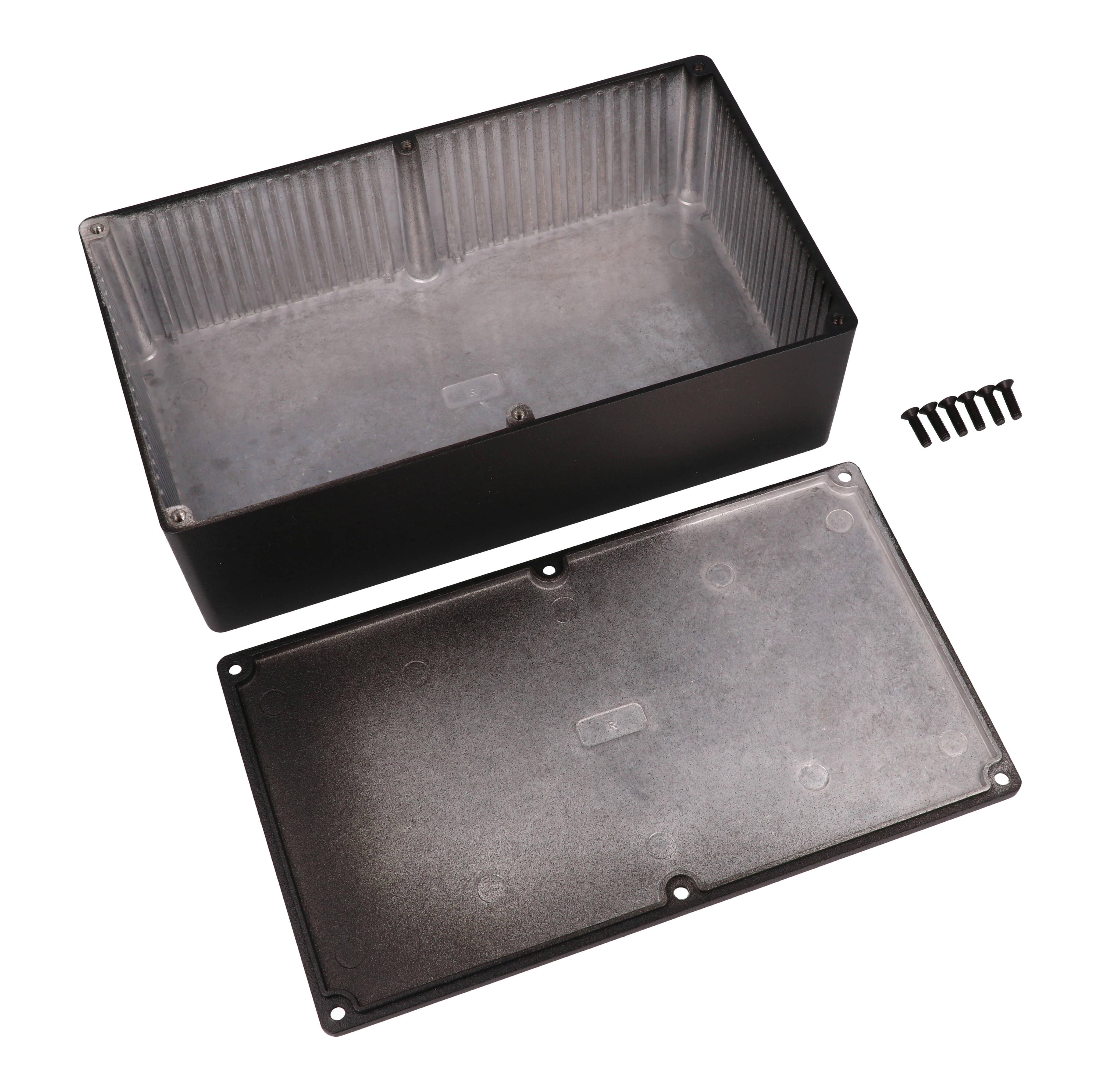

| Included Hardware | Box, lid and 6 cover screws (6X M3.5x0.6); black screws |
| Internal Features | Internal ribs with P.C. board guide slots |
| Side Wall Draft Angle | 2 degrees or less (for easy P.C. board mounting) |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Lid Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional 1590RGASKET replacement gasket kit |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is included with the 1590RBK?▾
The purchased assembly includes the box, the lid and 6 cover screws (M3.5x0.6). As the black painted version, it comes with black screws.
What size circuit board fits inside?▾
The internal guides accept a P.C. board up to 182.42 mm by 102.42 mm. Inside dimensions are 183.29 x 103.29 x 56.80 mm.
Is the 1590RBK waterproof?▾
It is a standard version designed to meet IP54. Adding the optional 1590RGASKET kit, with lid screws torqued to 25-30 cN.m (36-43 ozf.in), is designed to meet IP65.
Can I drill or machine the enclosure?▾
Yes. The die-cast aluminum alloy is tough yet easy to machine, and the polyester powder paint is described as a lasting finish even after machining. Factory modification such as milling, drilling and printing is also offered.
What torque should the lid screws be tightened to?▾
50-55 cN.m [71-78 ozf.in] without a gasket, or 25-30 cN.m [36-43 ozf.in] with a gasket fitted.
